Vehicles That Don't Start.

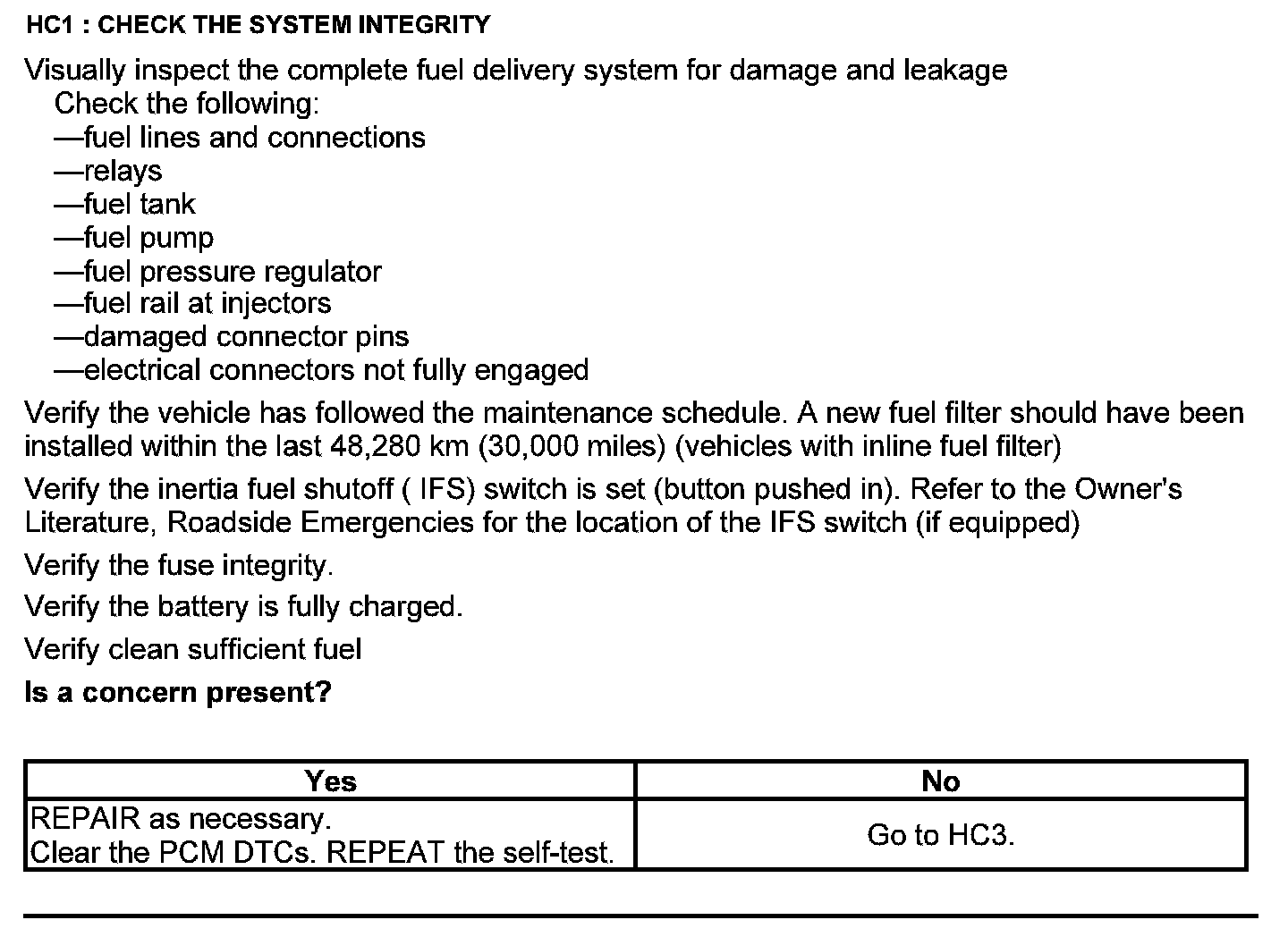

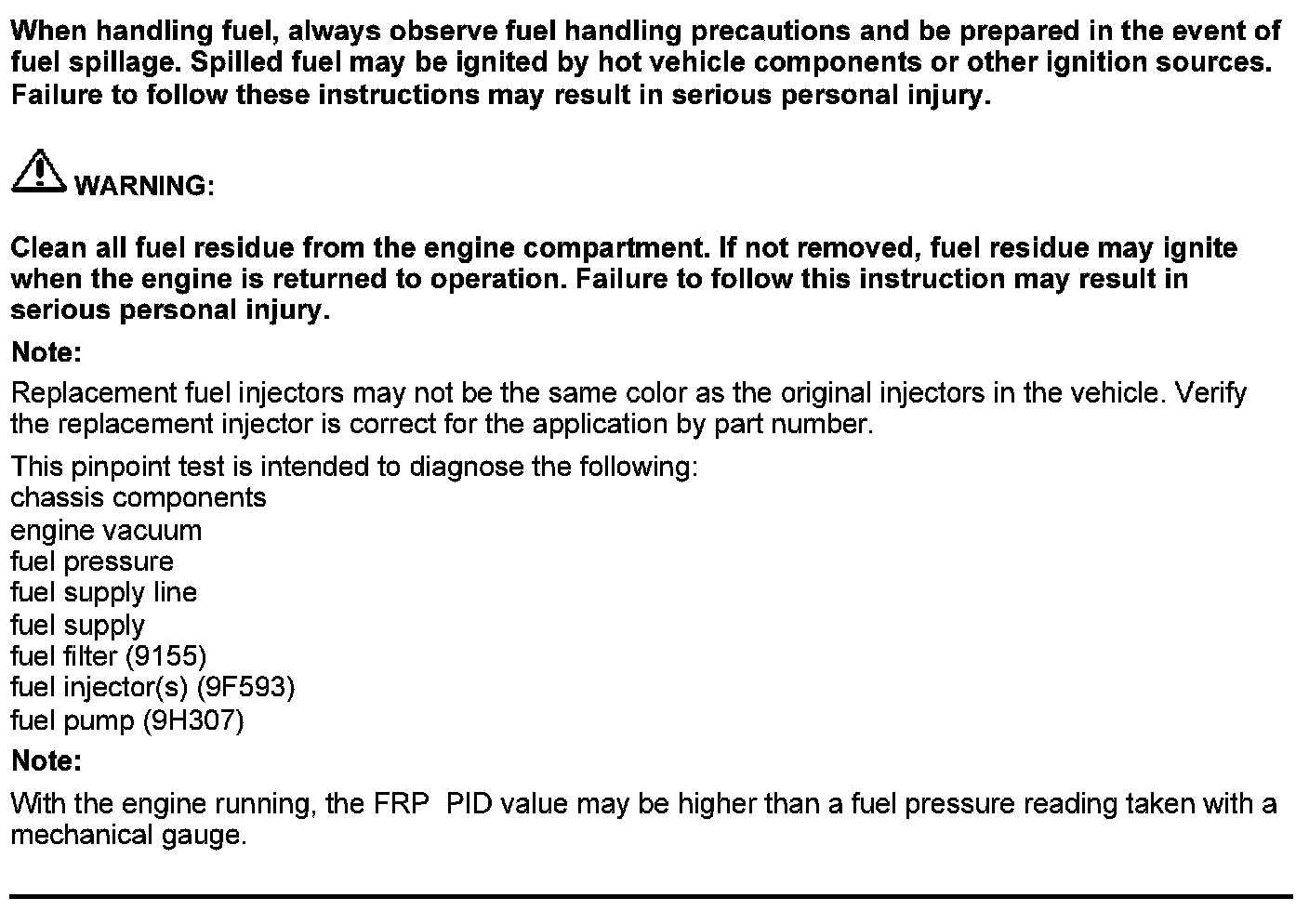

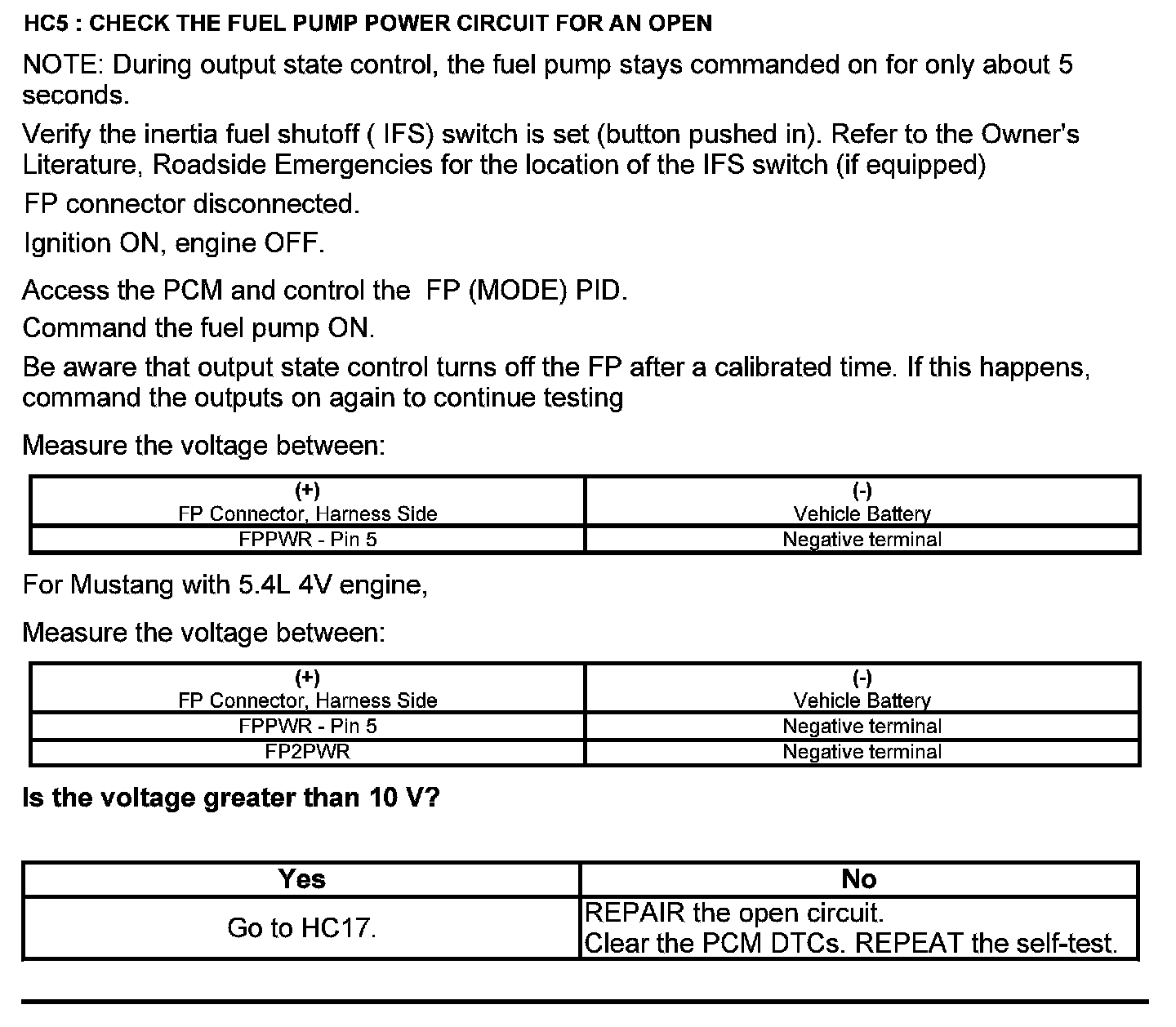

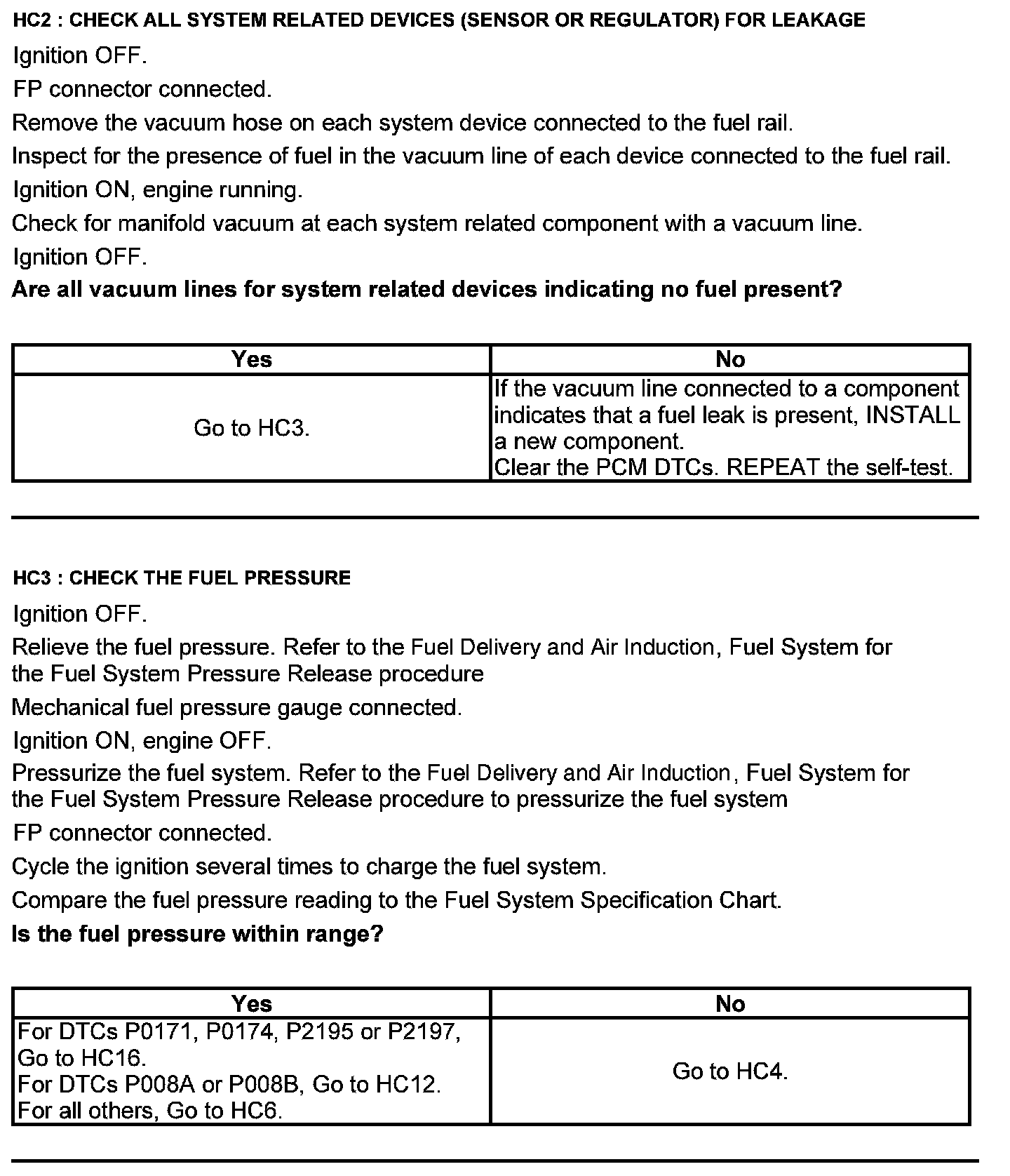

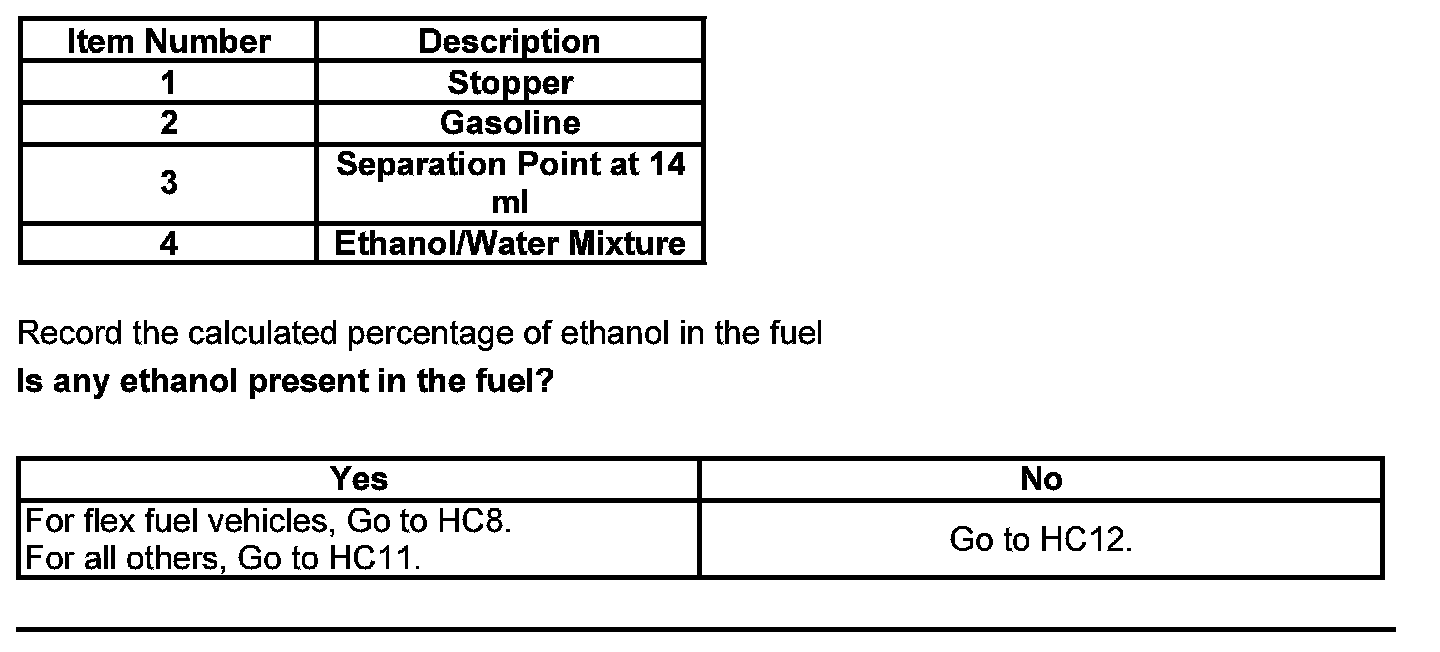

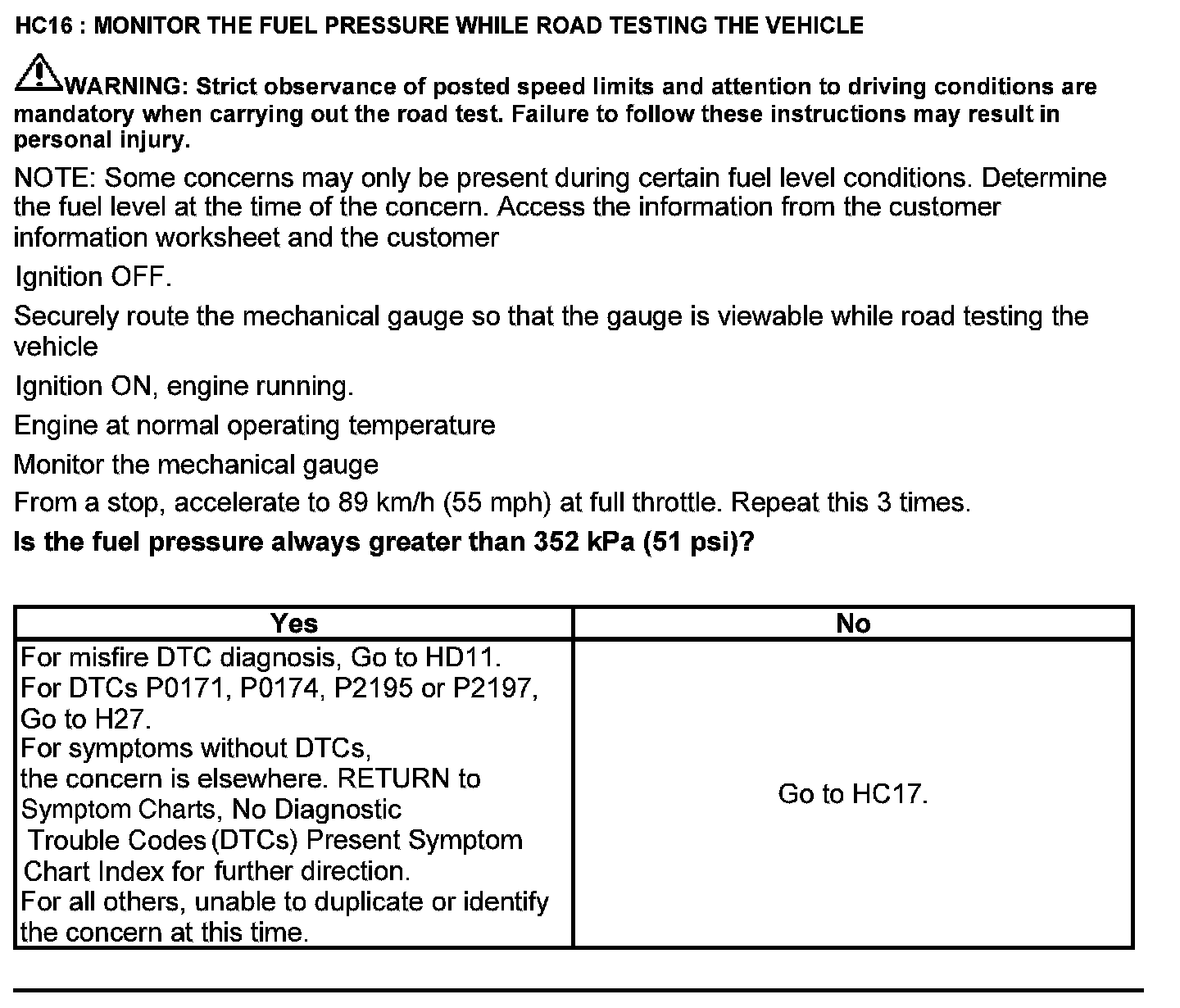

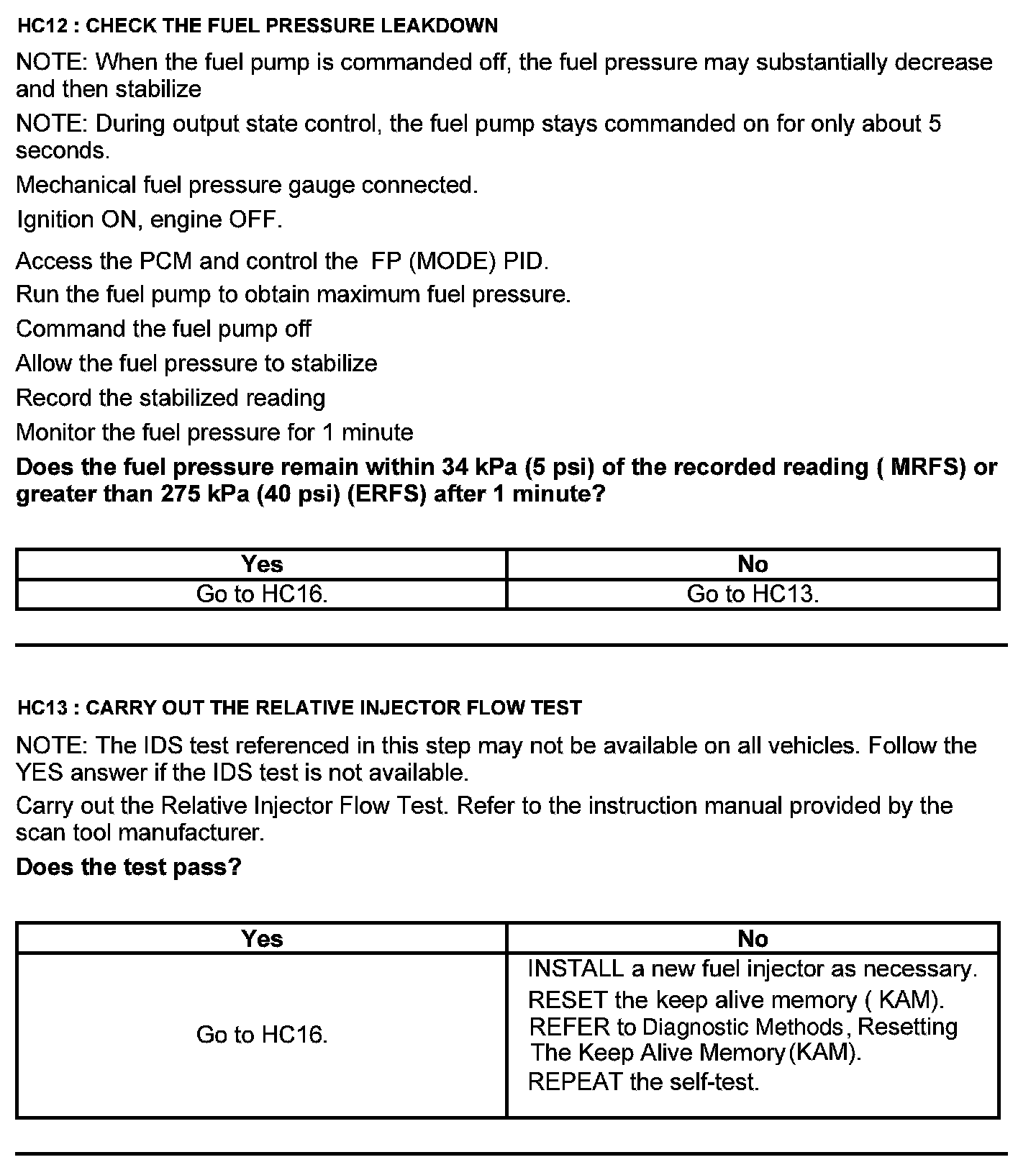

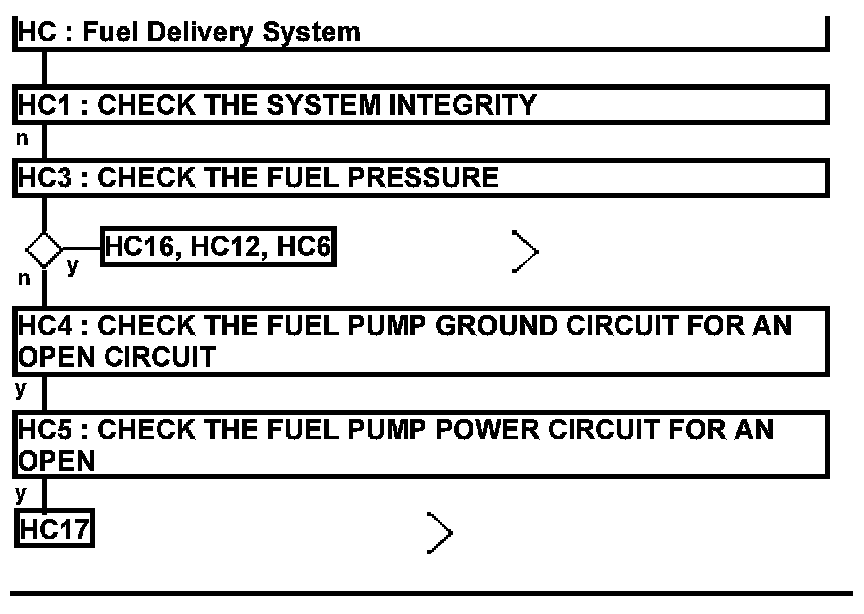

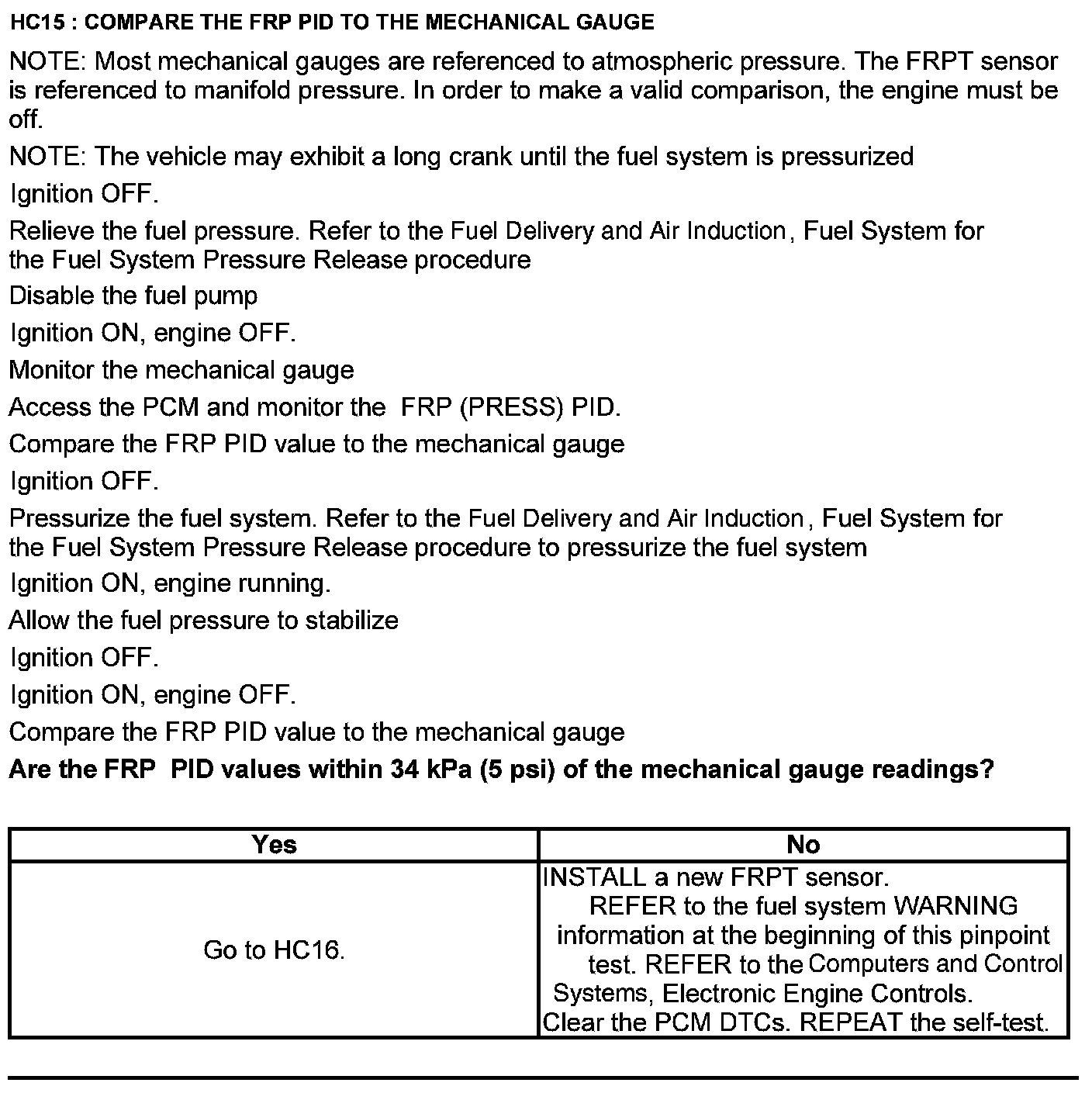

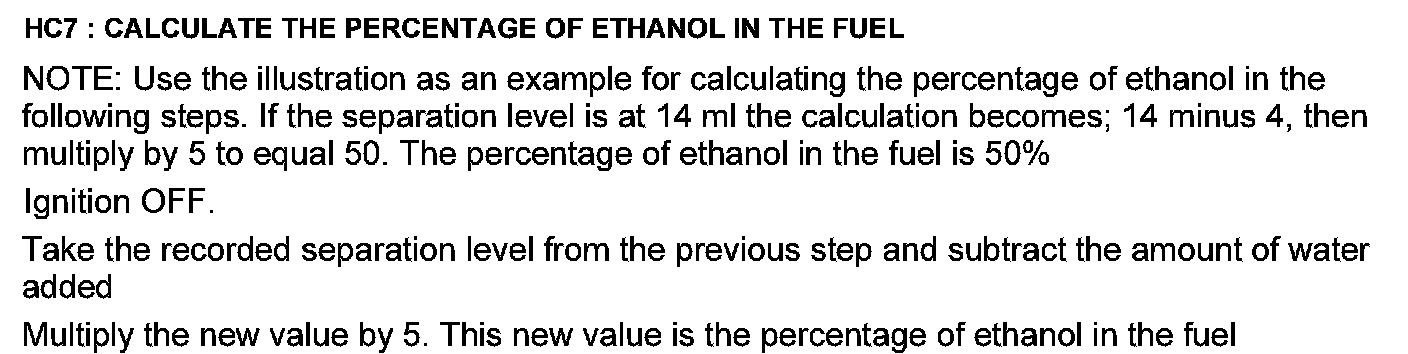

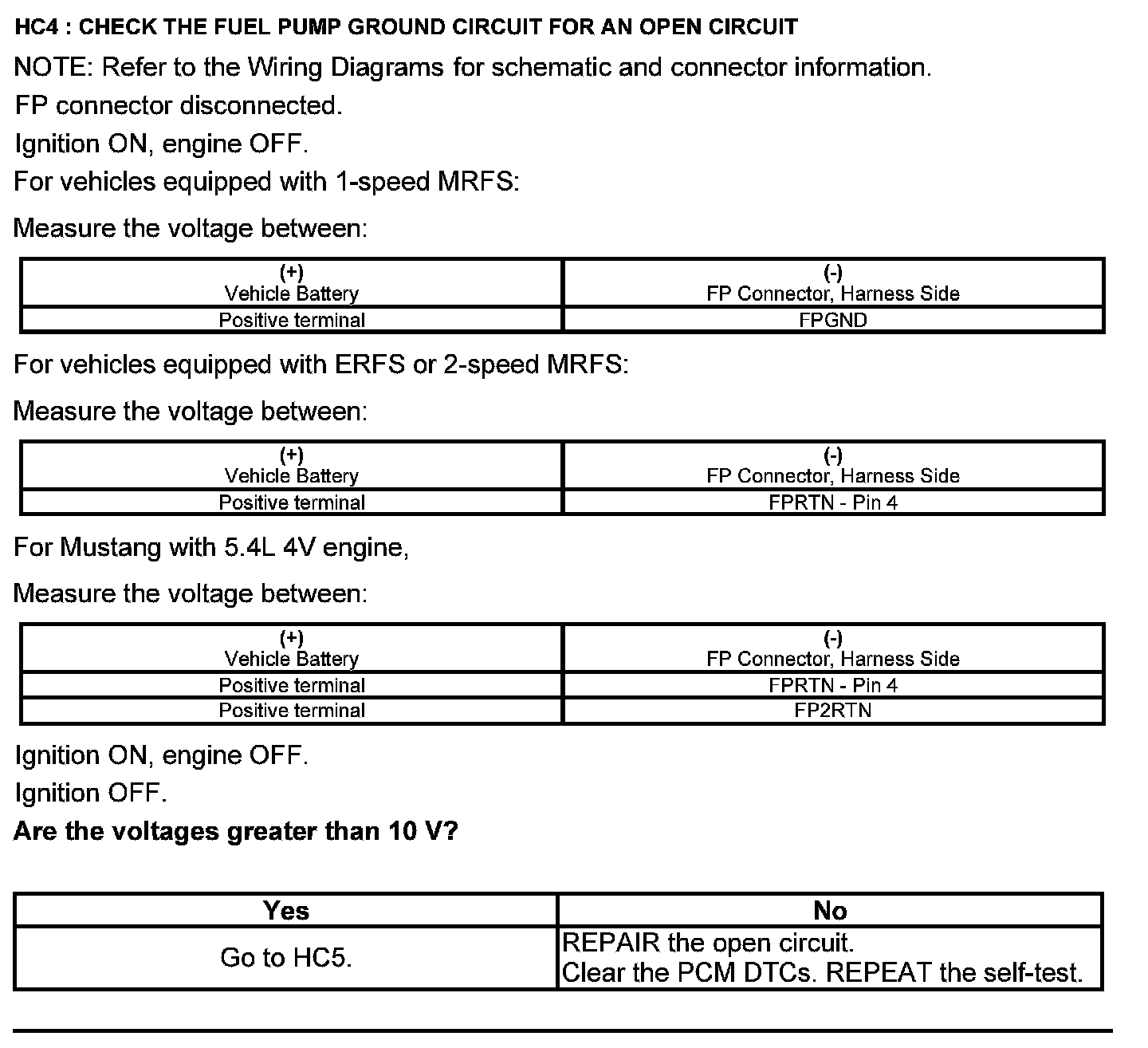

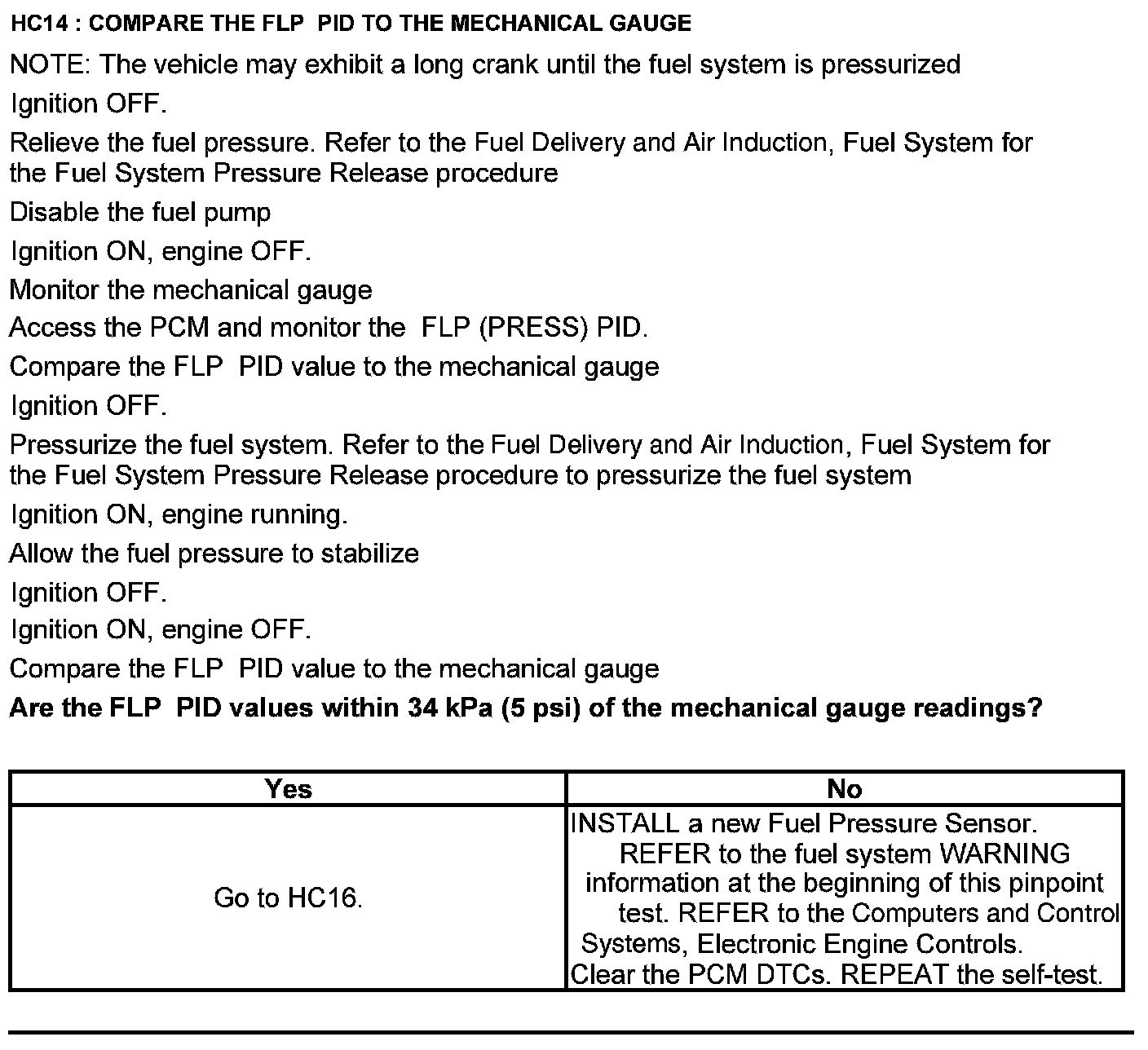

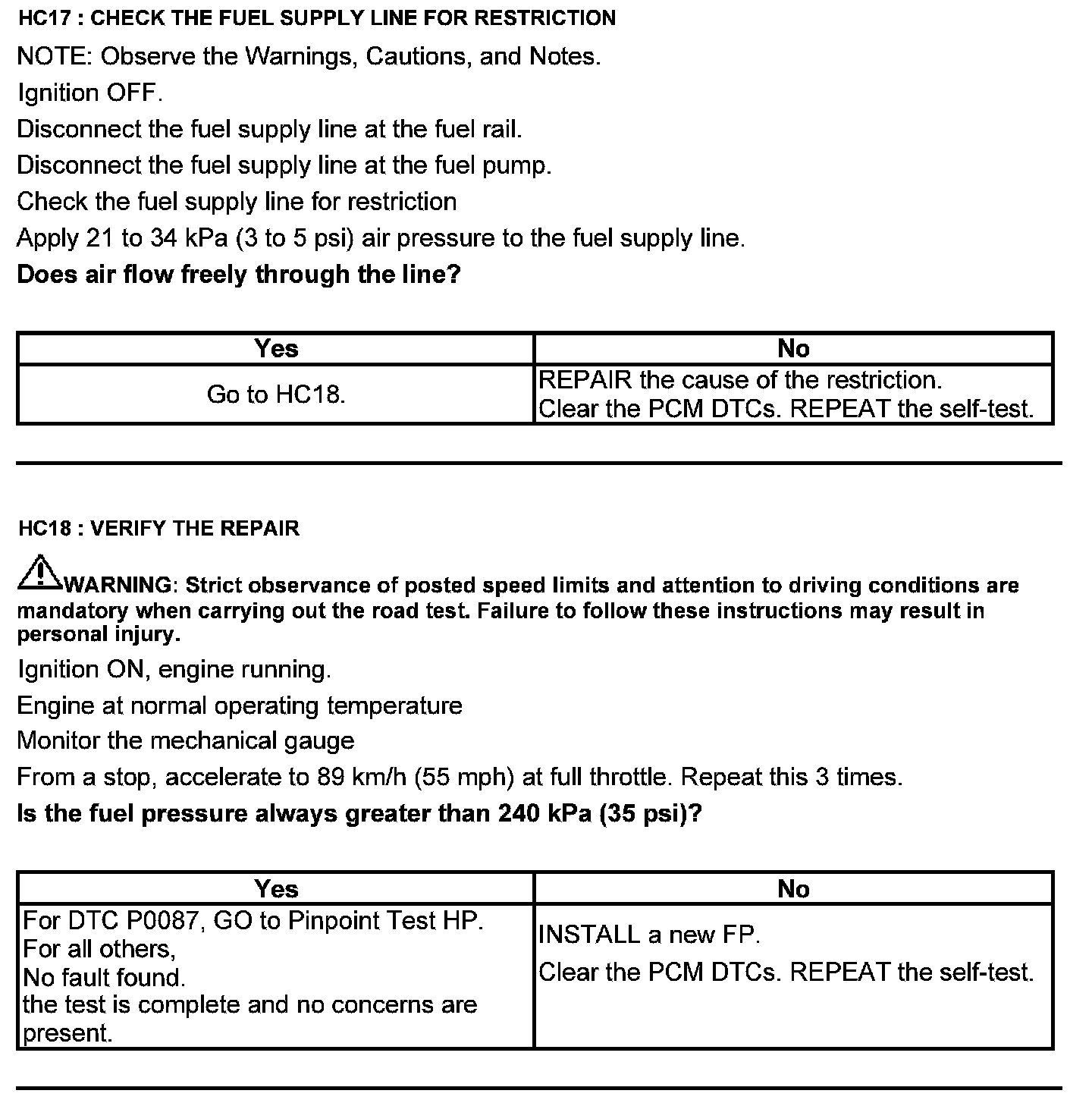

Fuel Delivery System - Vehicles That Don't Start

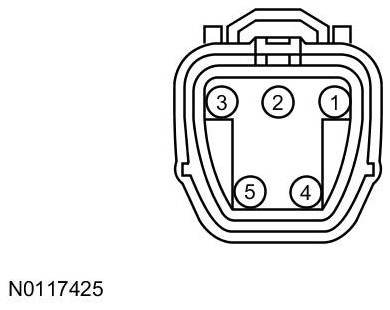

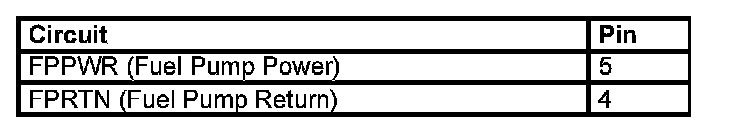

Fuel Pump (FP) Connector





Harness Side
