Automatic Transmission

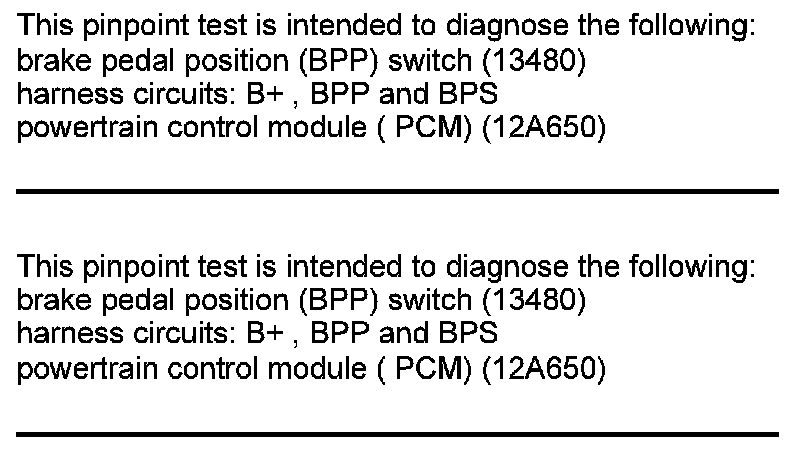

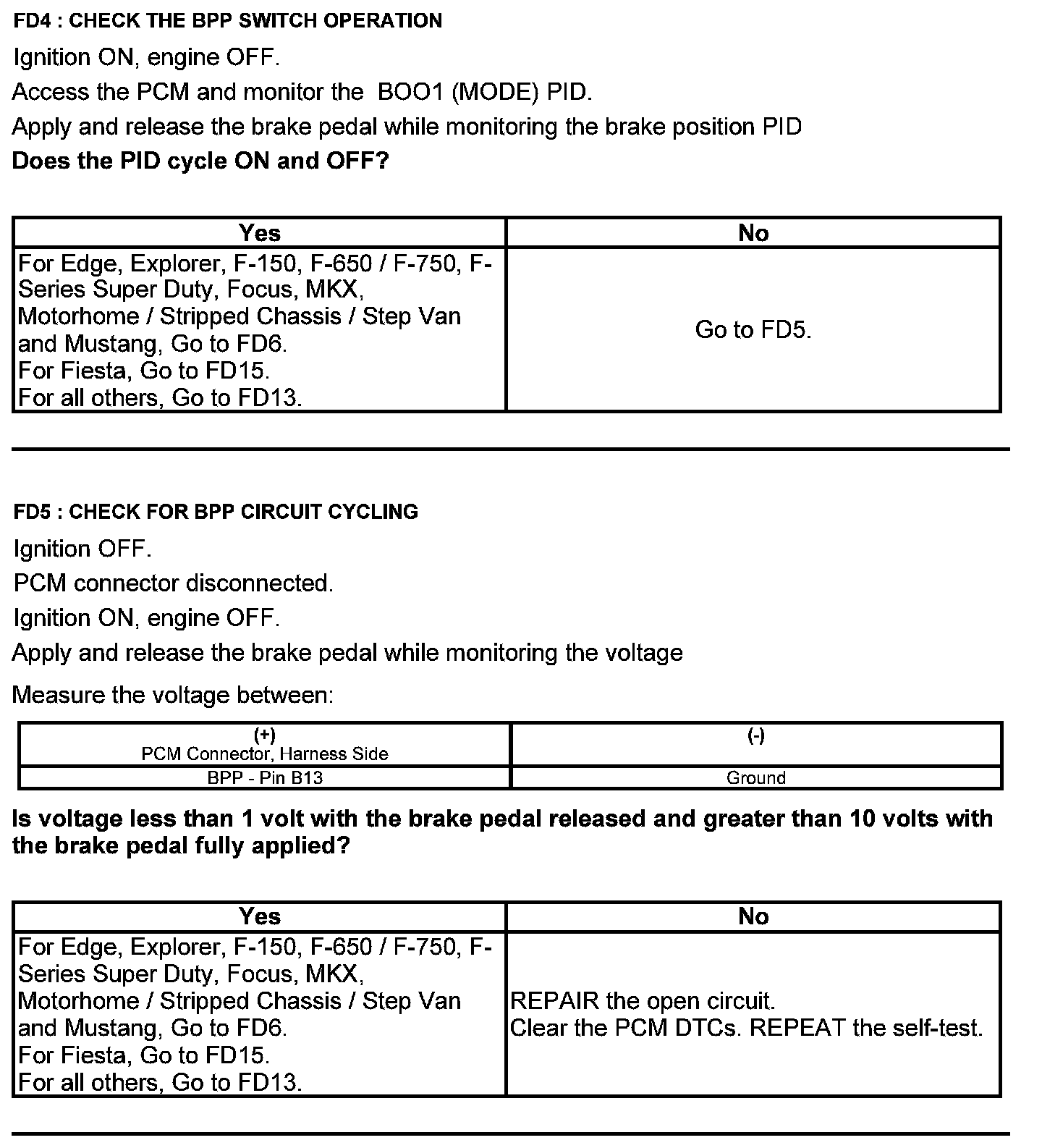

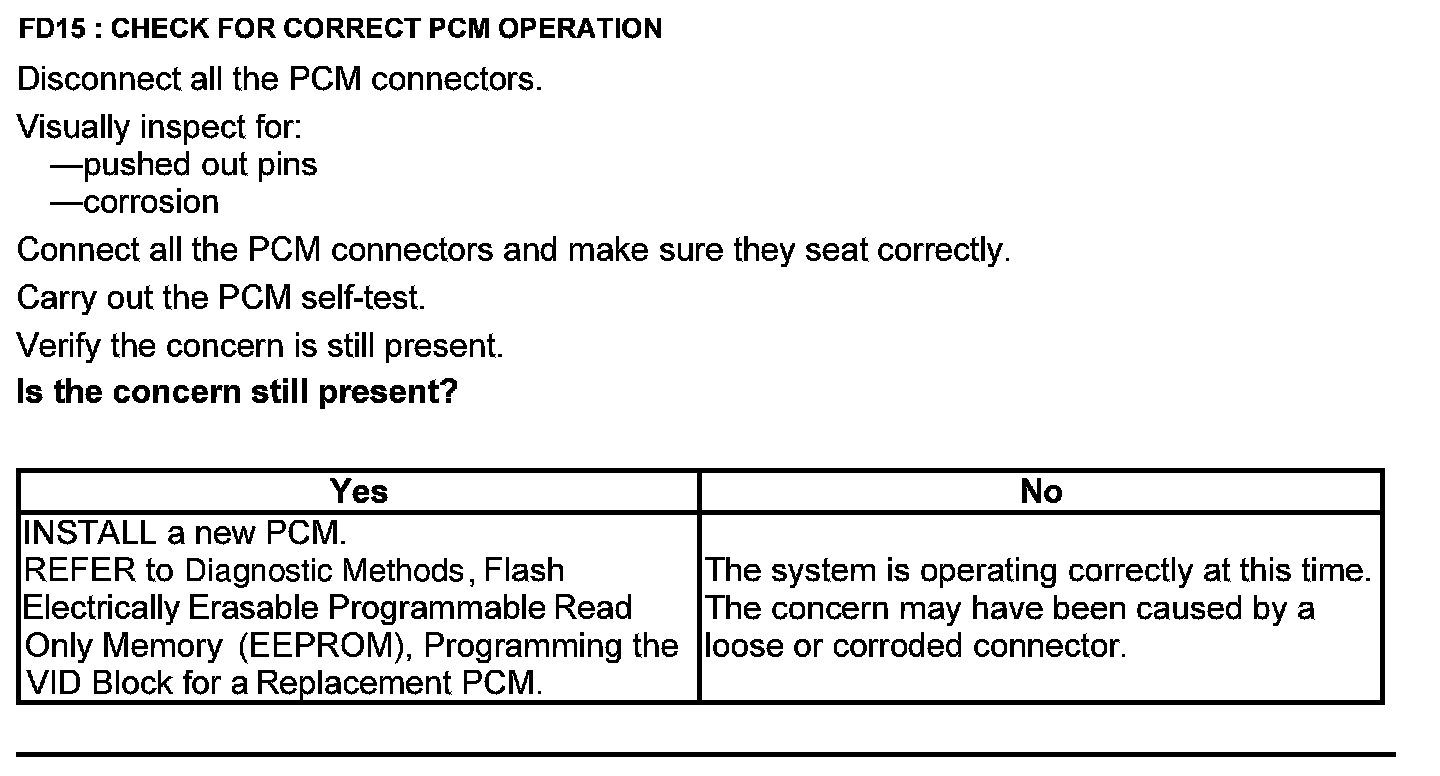

Brake Pedal Inputs - Automatic Transmission

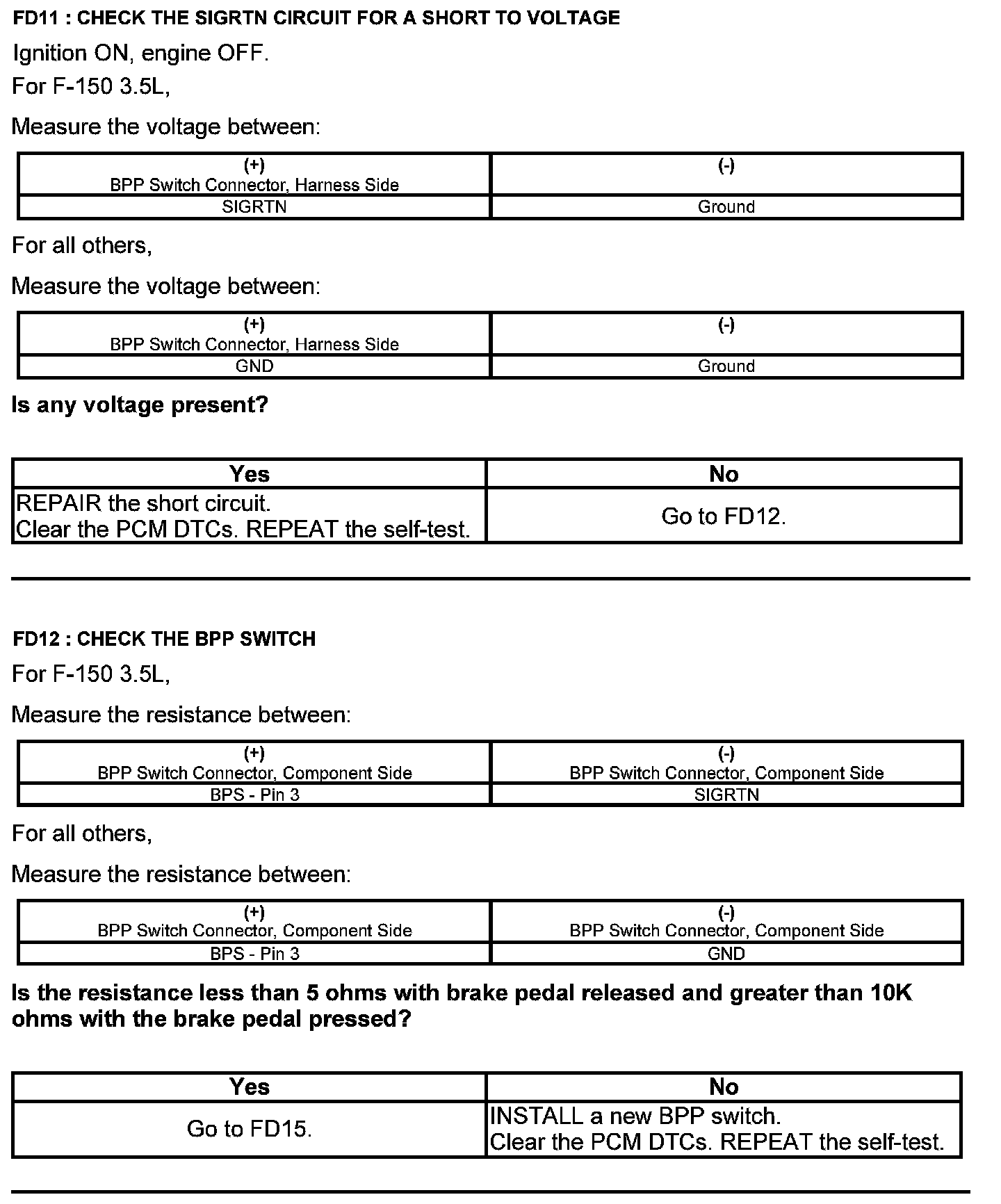

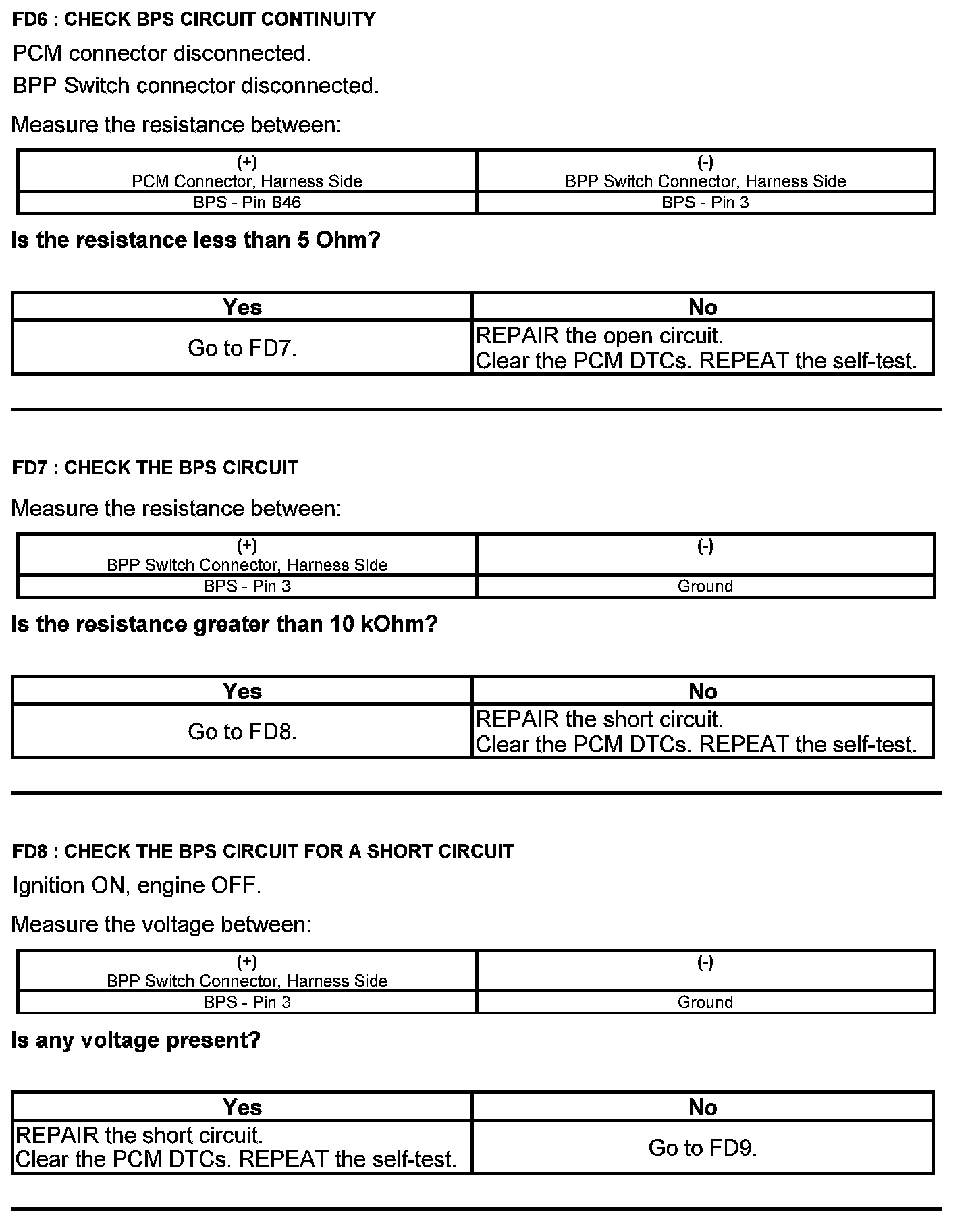

Brake Pedal Position (BPP) Switch Connector





Harness Side

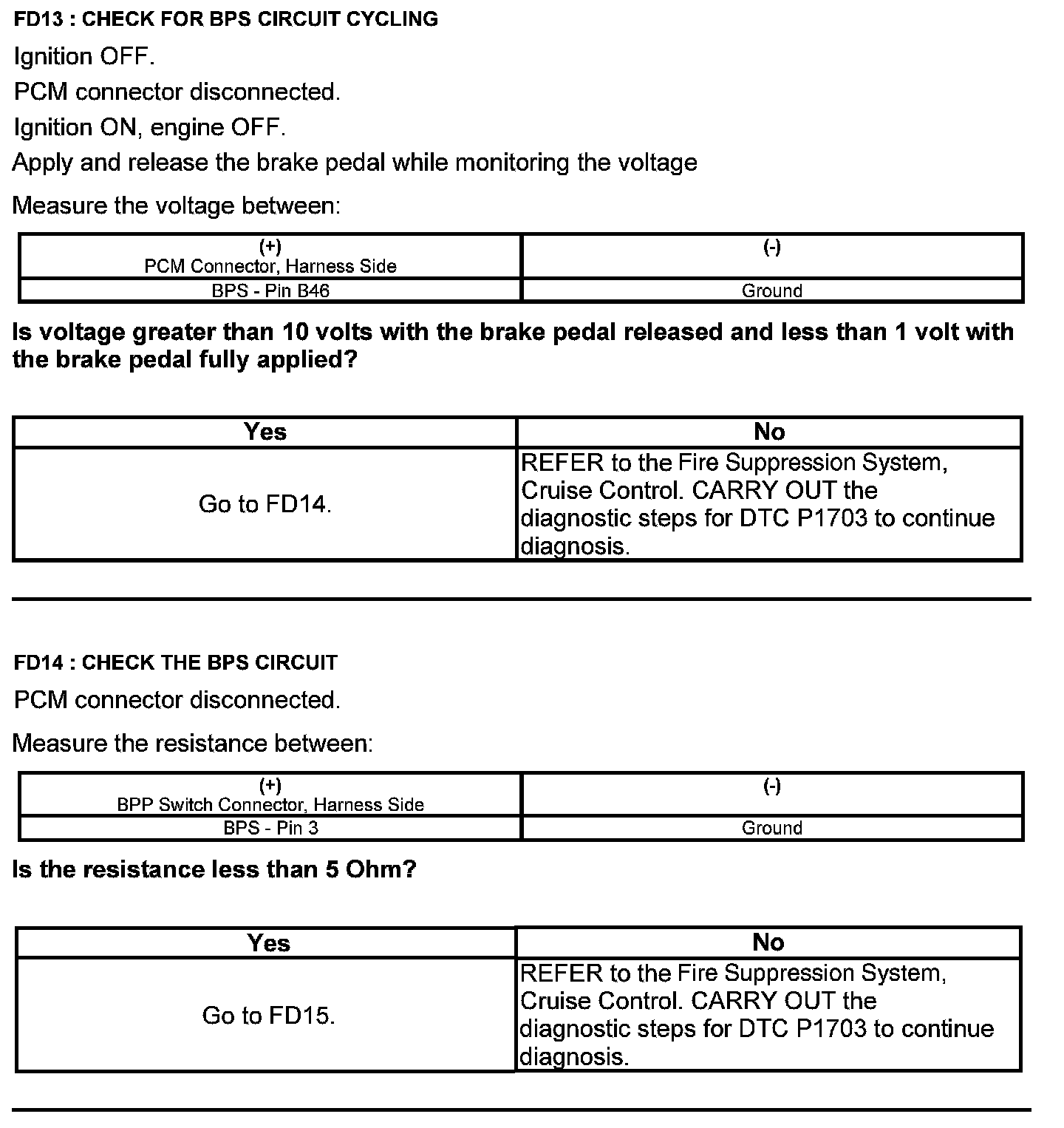

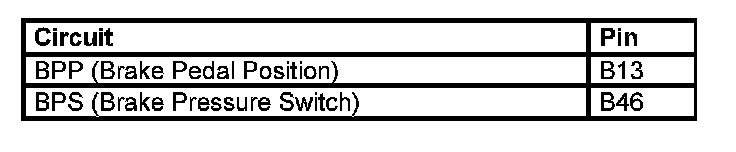

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.





Harness Side
