All Others

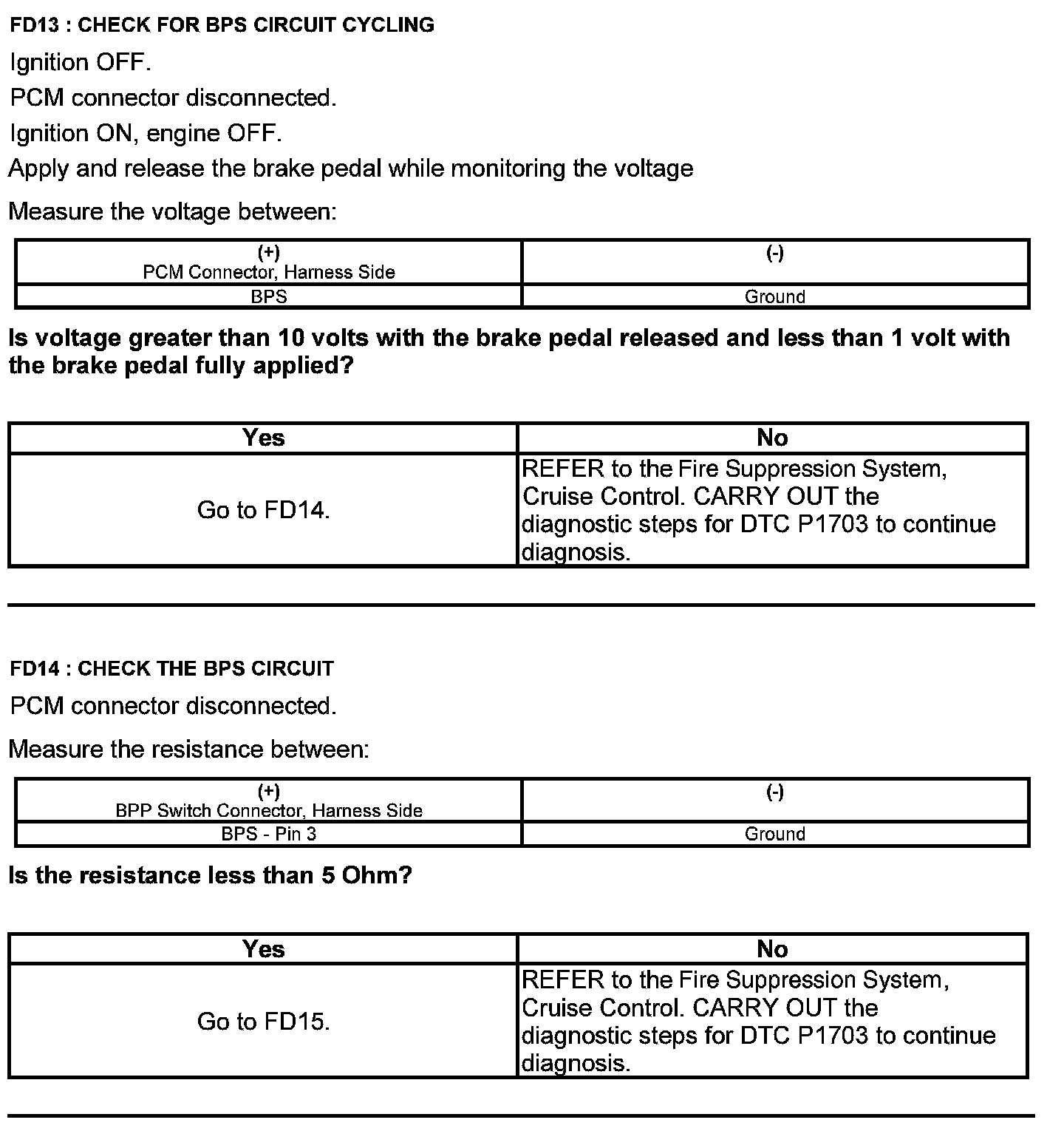

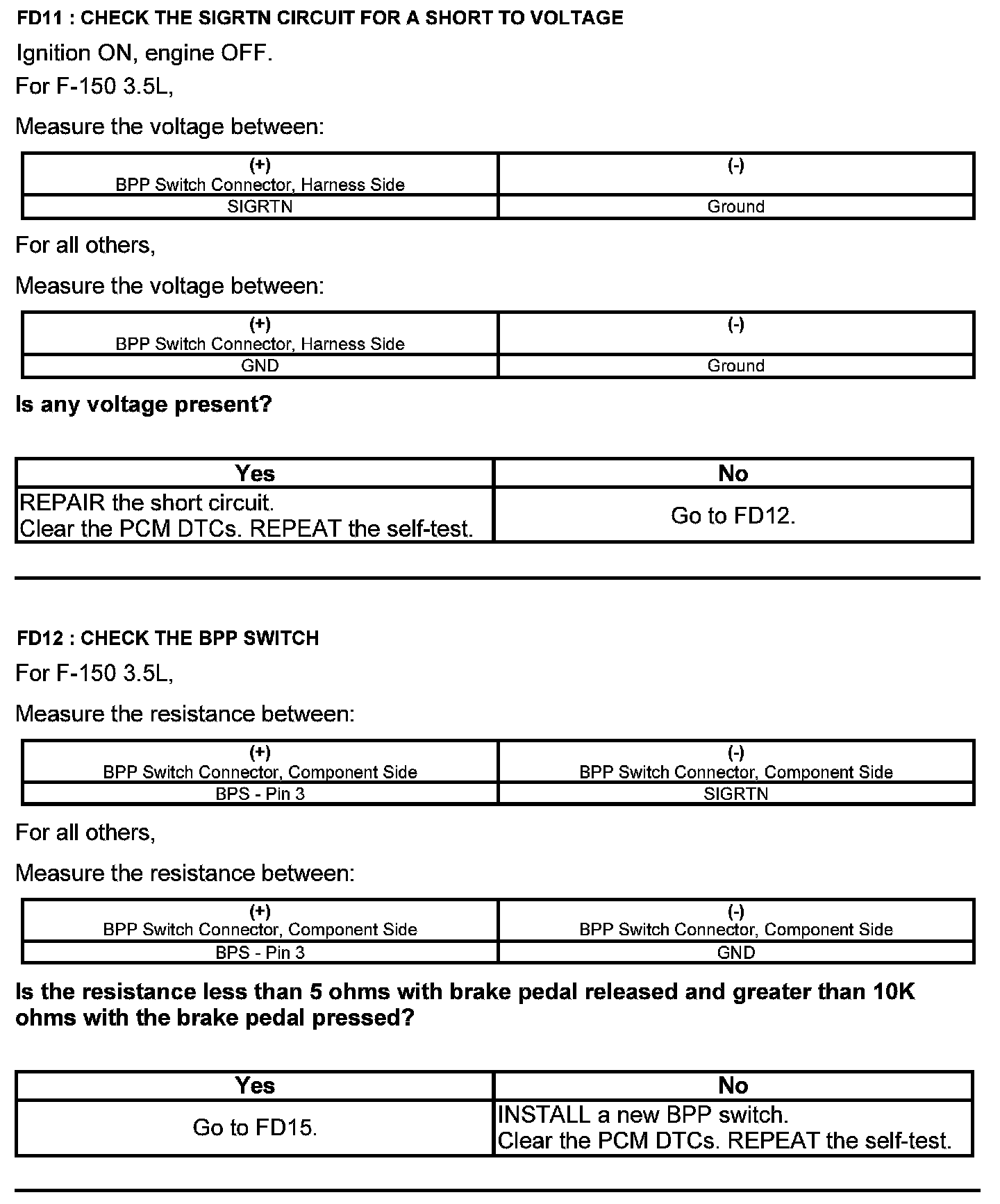

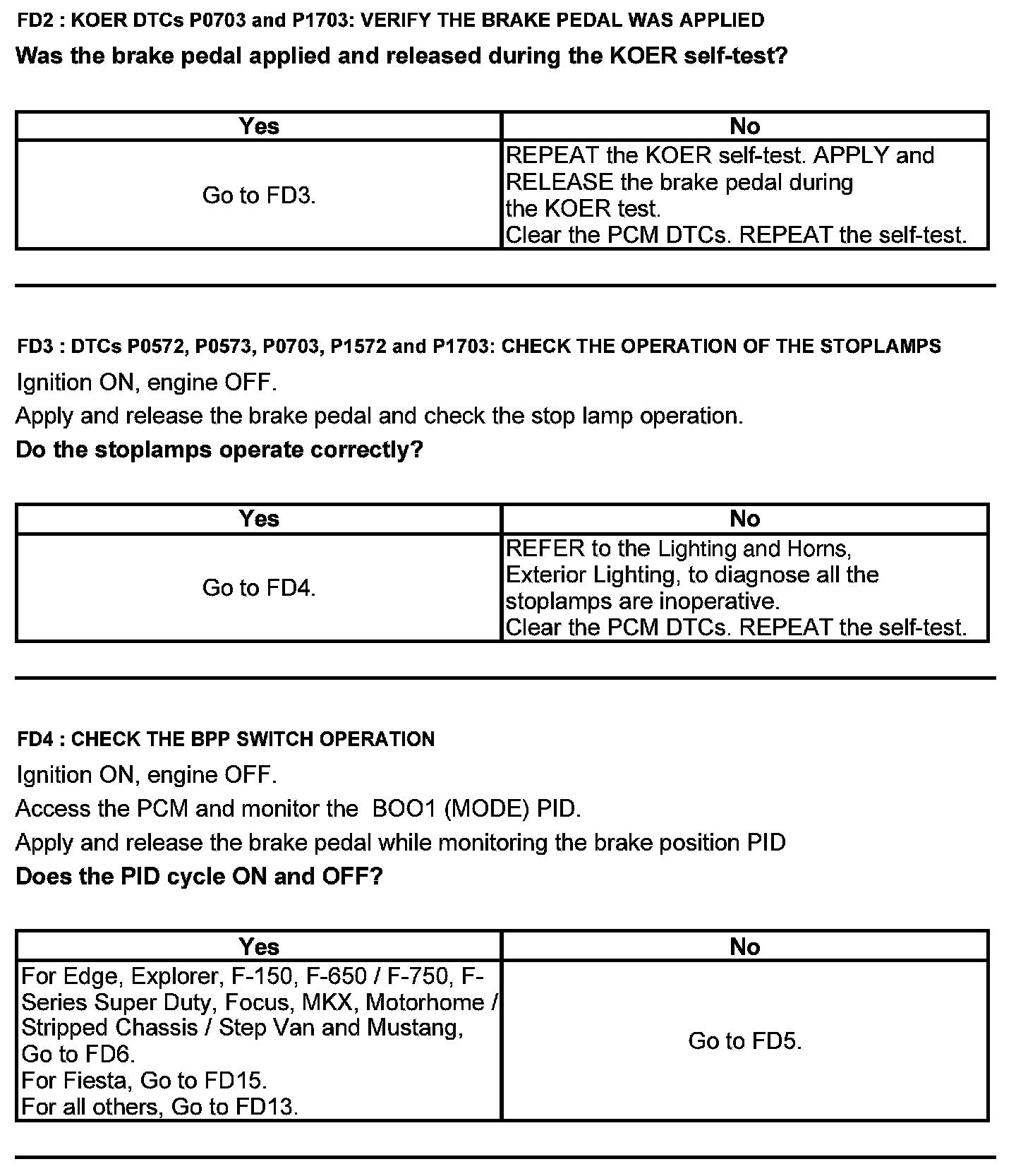

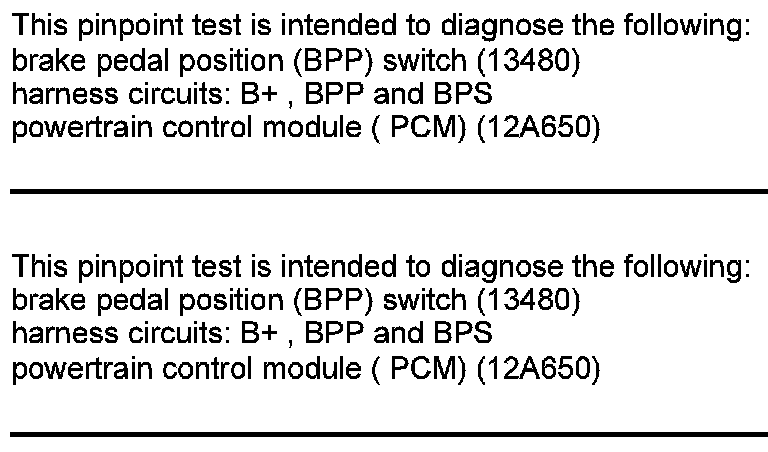

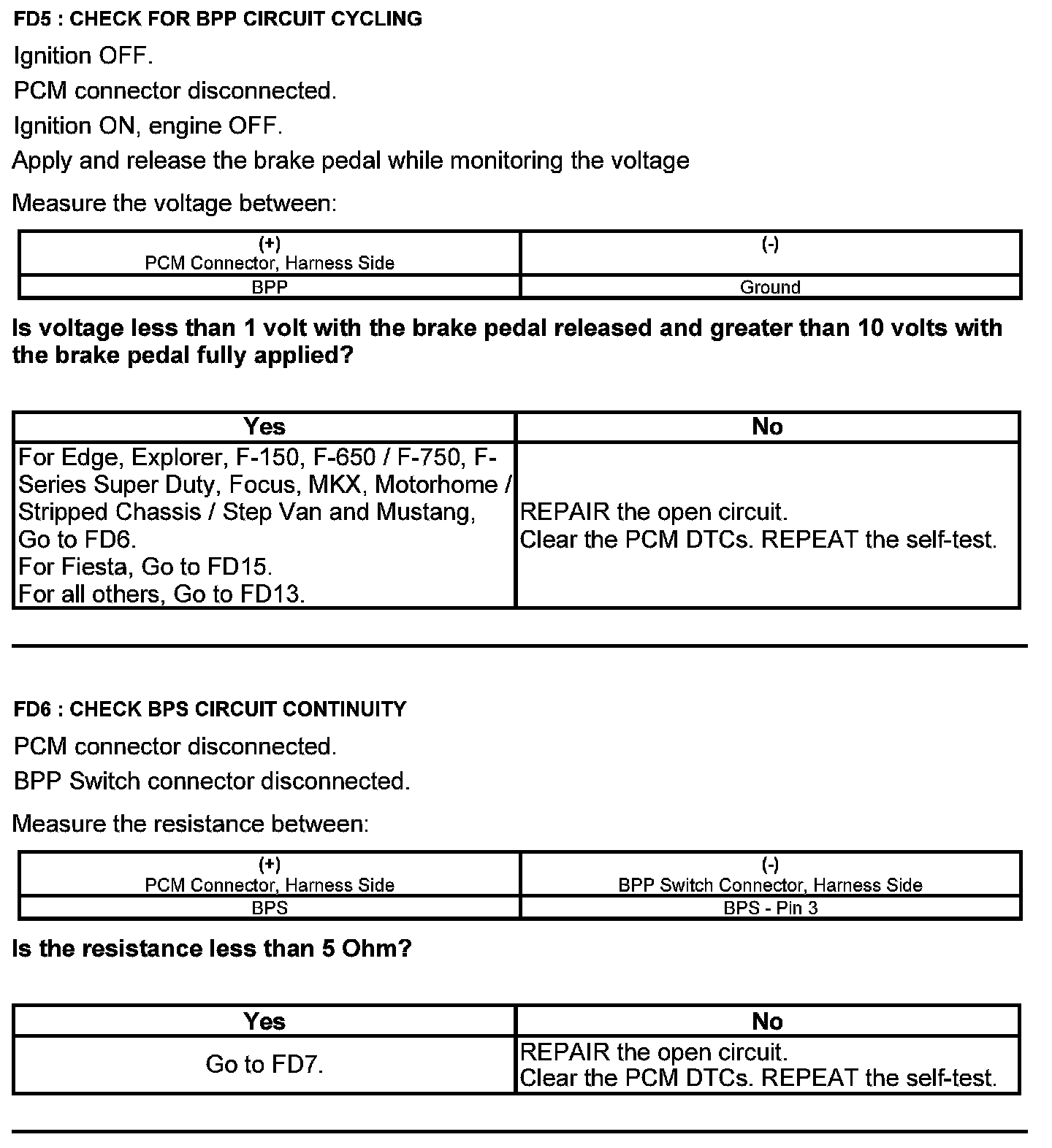

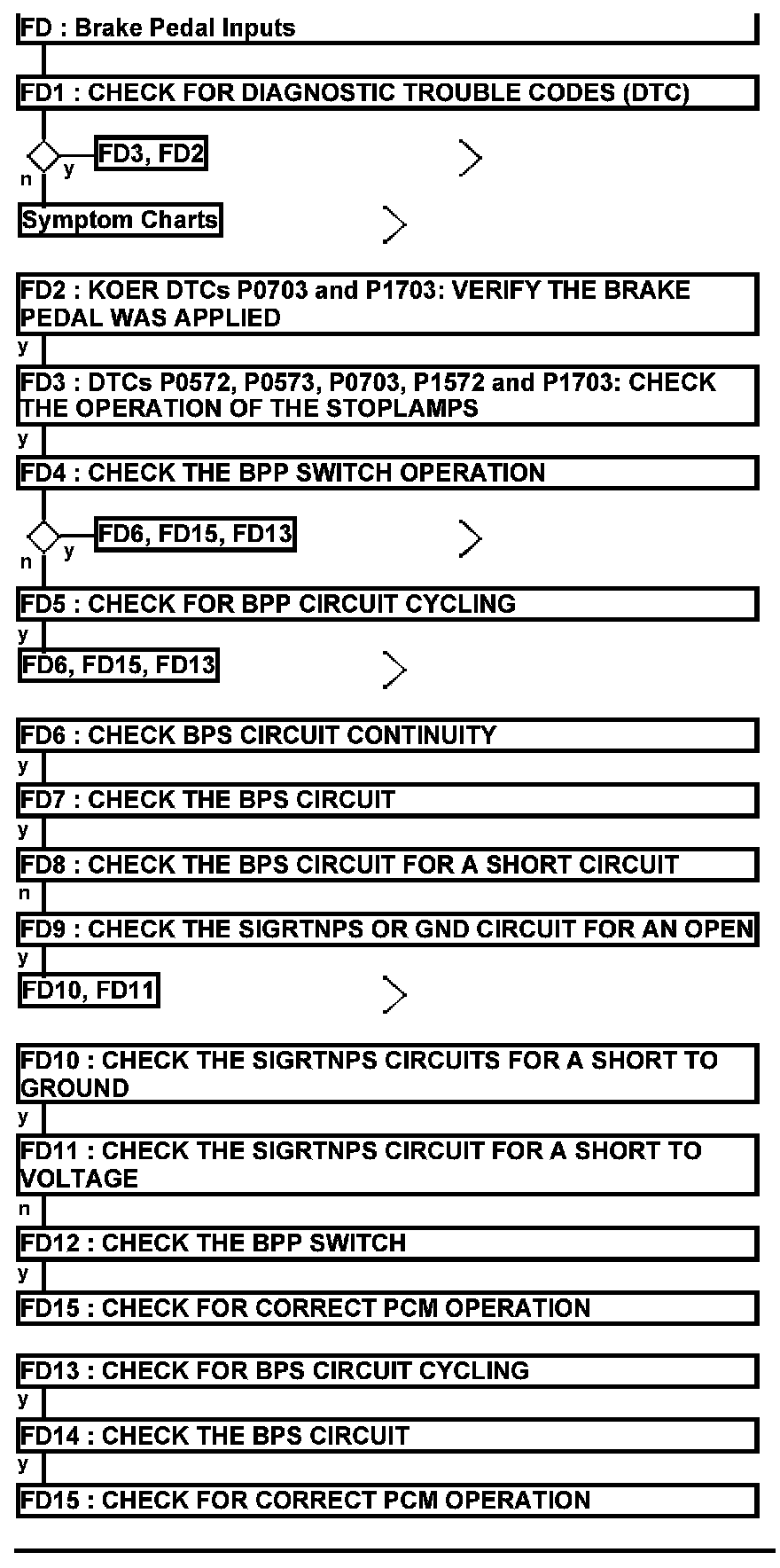

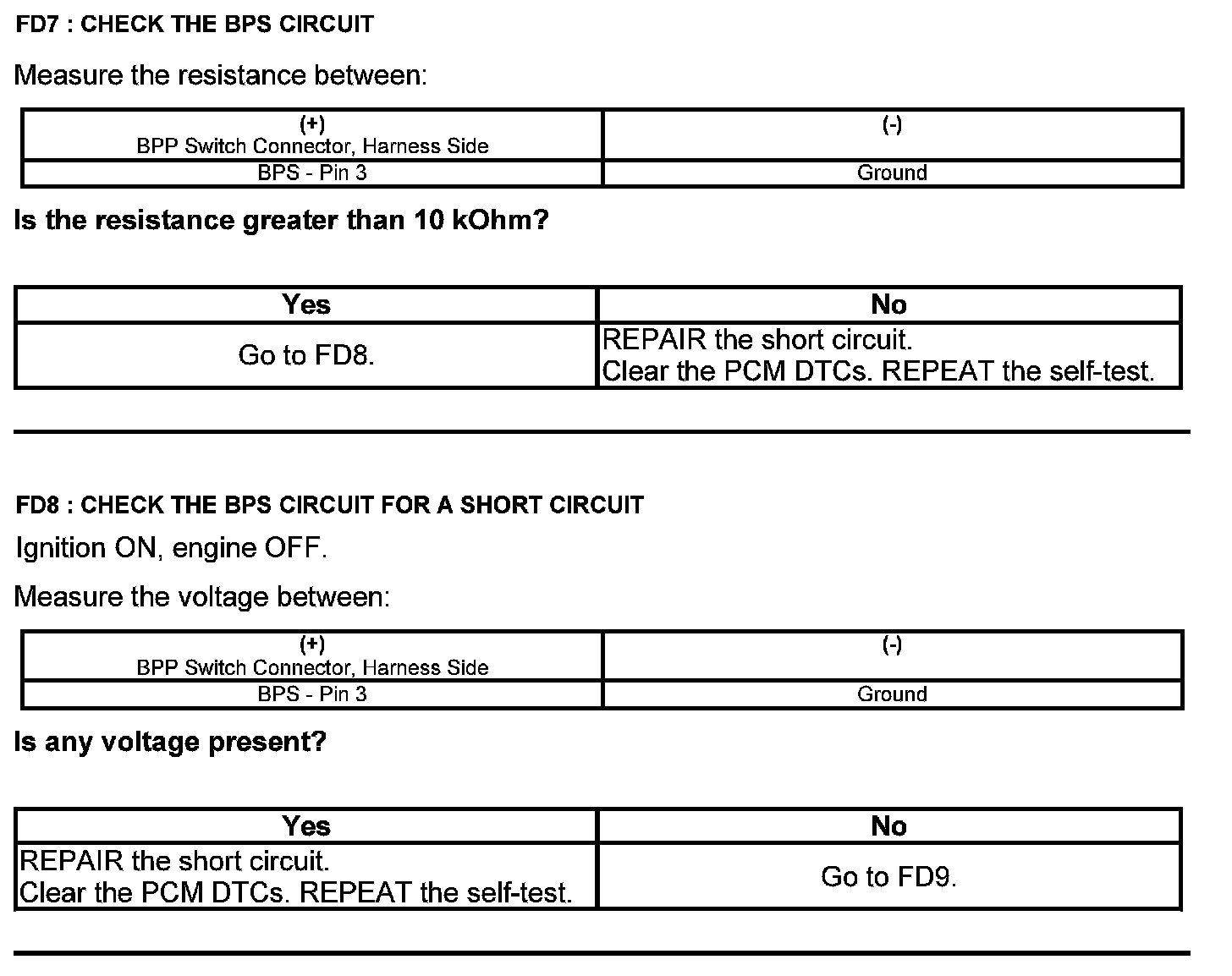

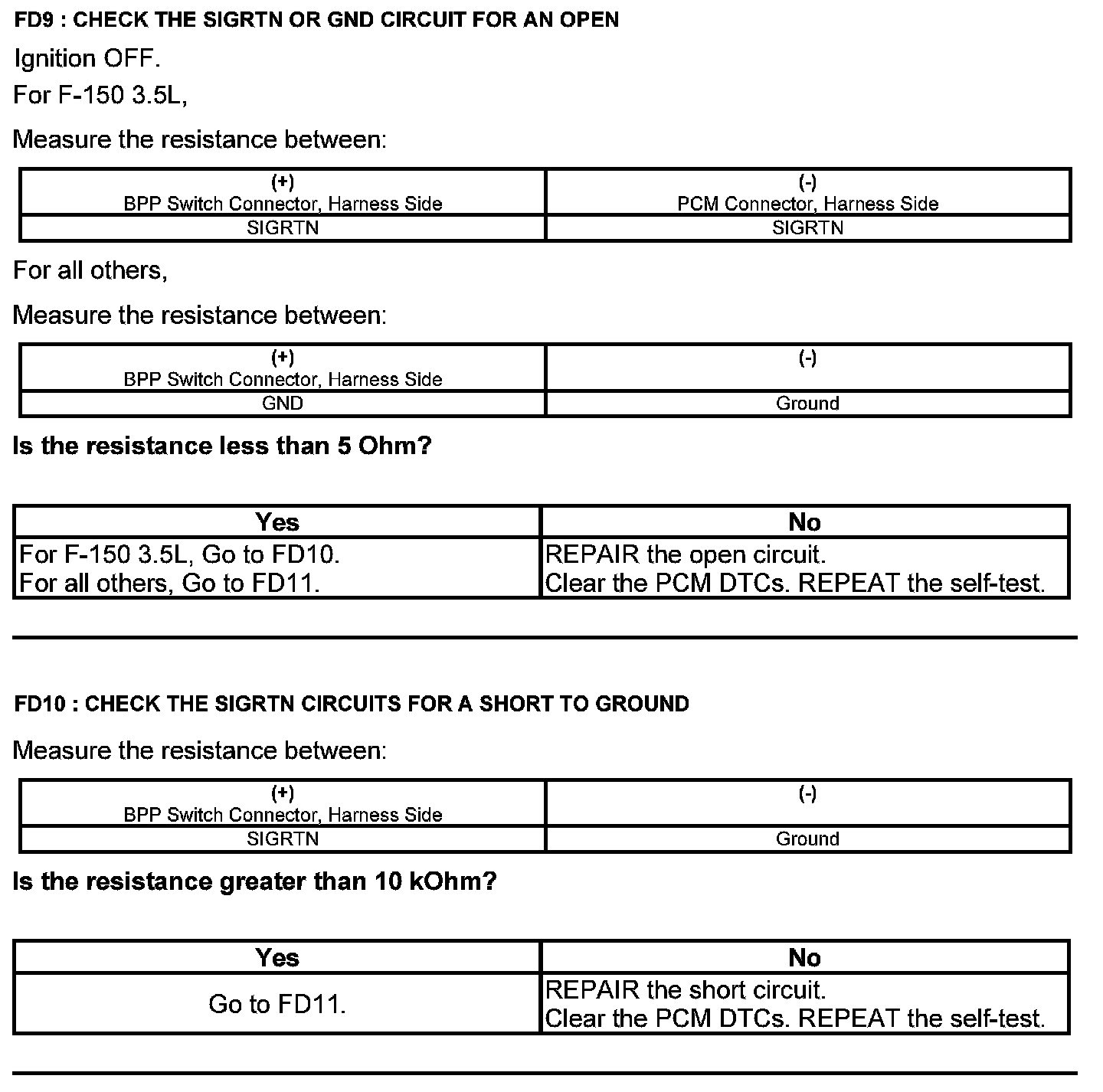

Brake Pedal Inputs - All Others











Brake Pedal Position (BPP) Switch Connector





Harness Side
