Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test FB: Power Take Off (PTO) >> Automatic Transmission

Automatic Transmission

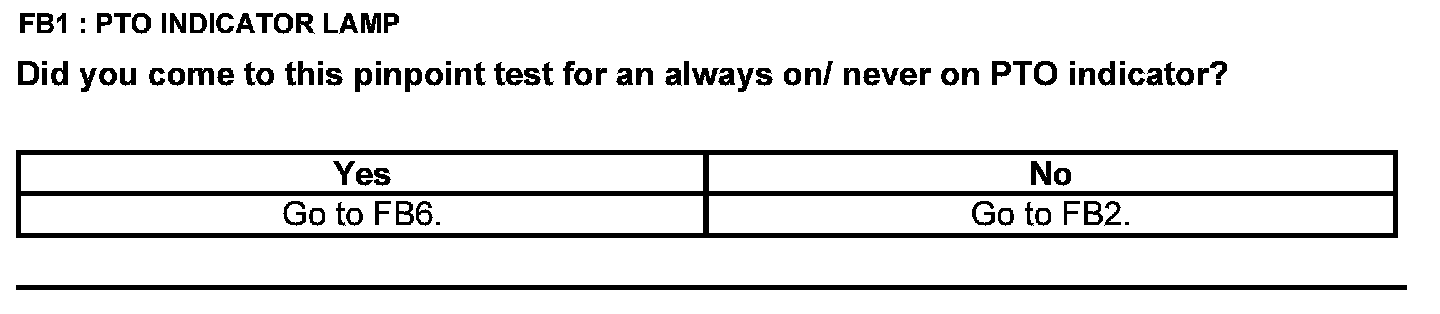

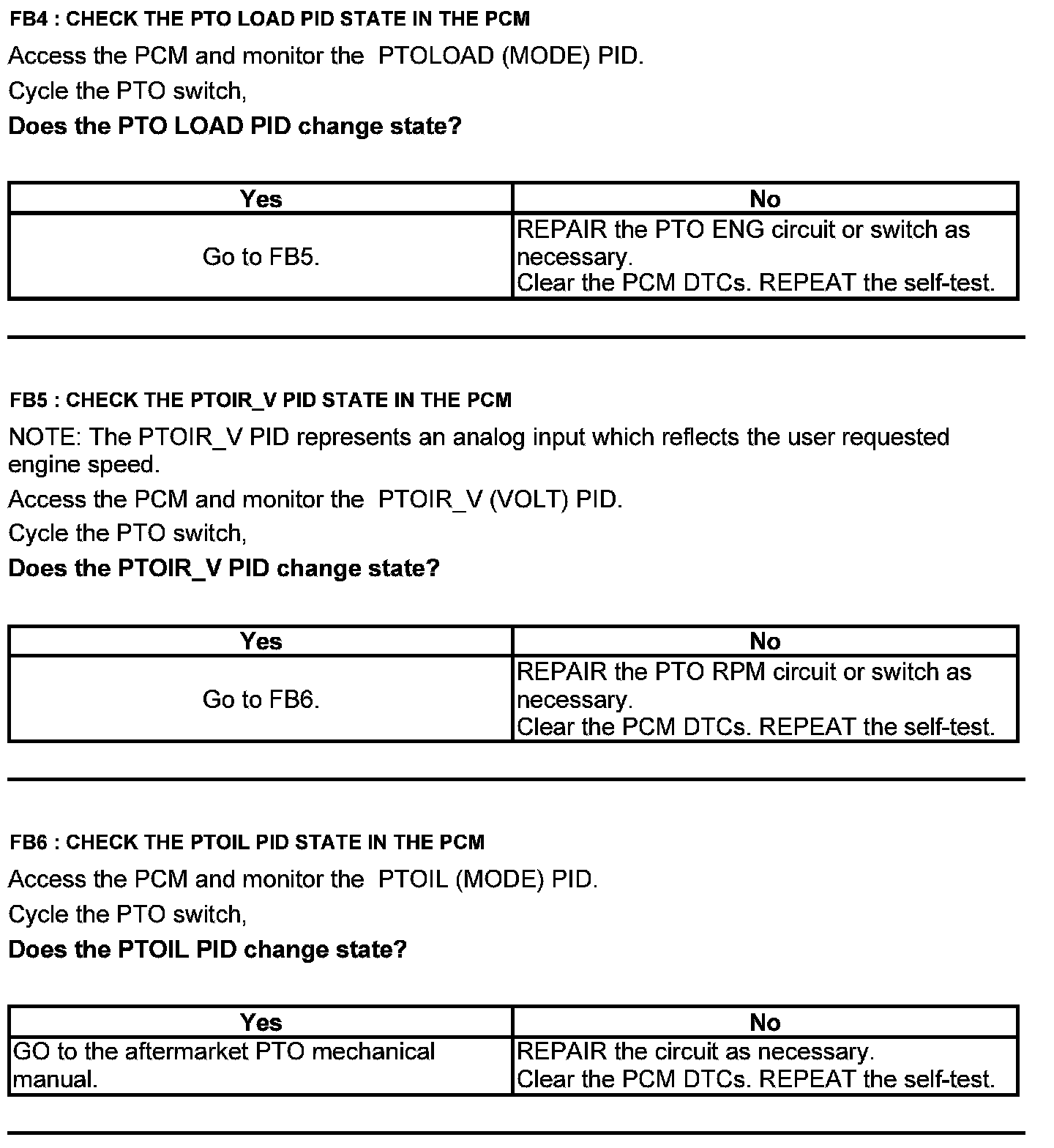

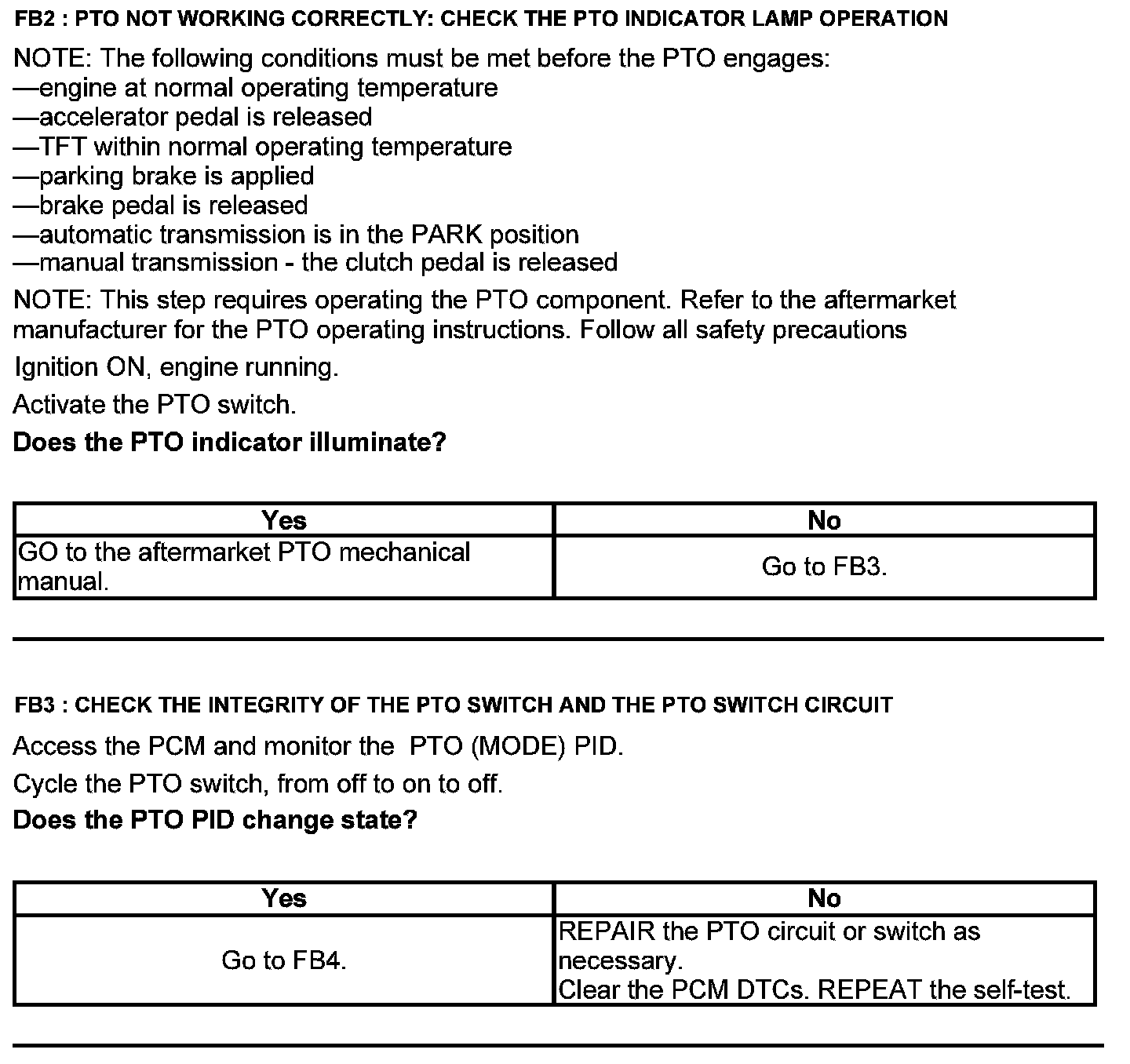

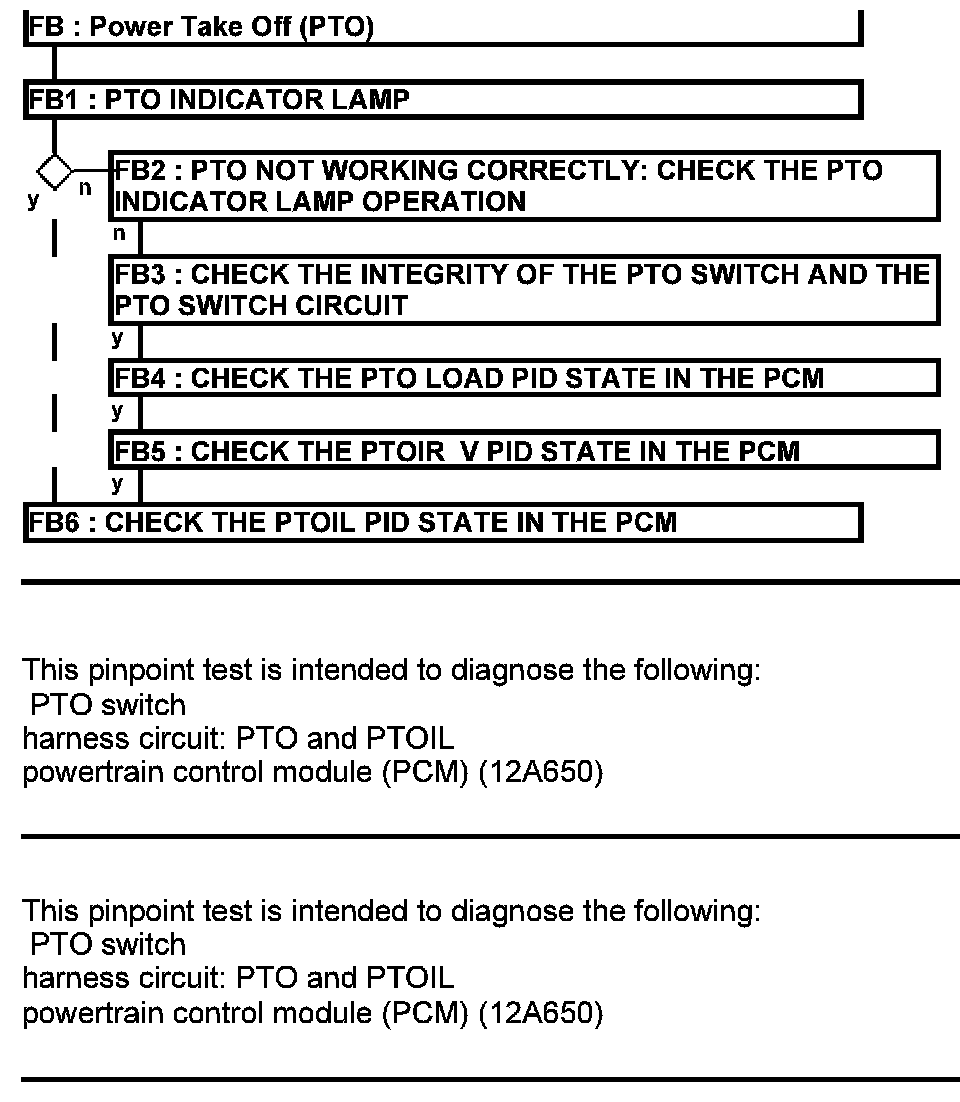

Power Take Off (PTO) - Automatic Transmission






Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
