Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DZ: Universal Heated Oxygen Sensor (HO2S) >> Automatic Transmission

Automatic Transmission

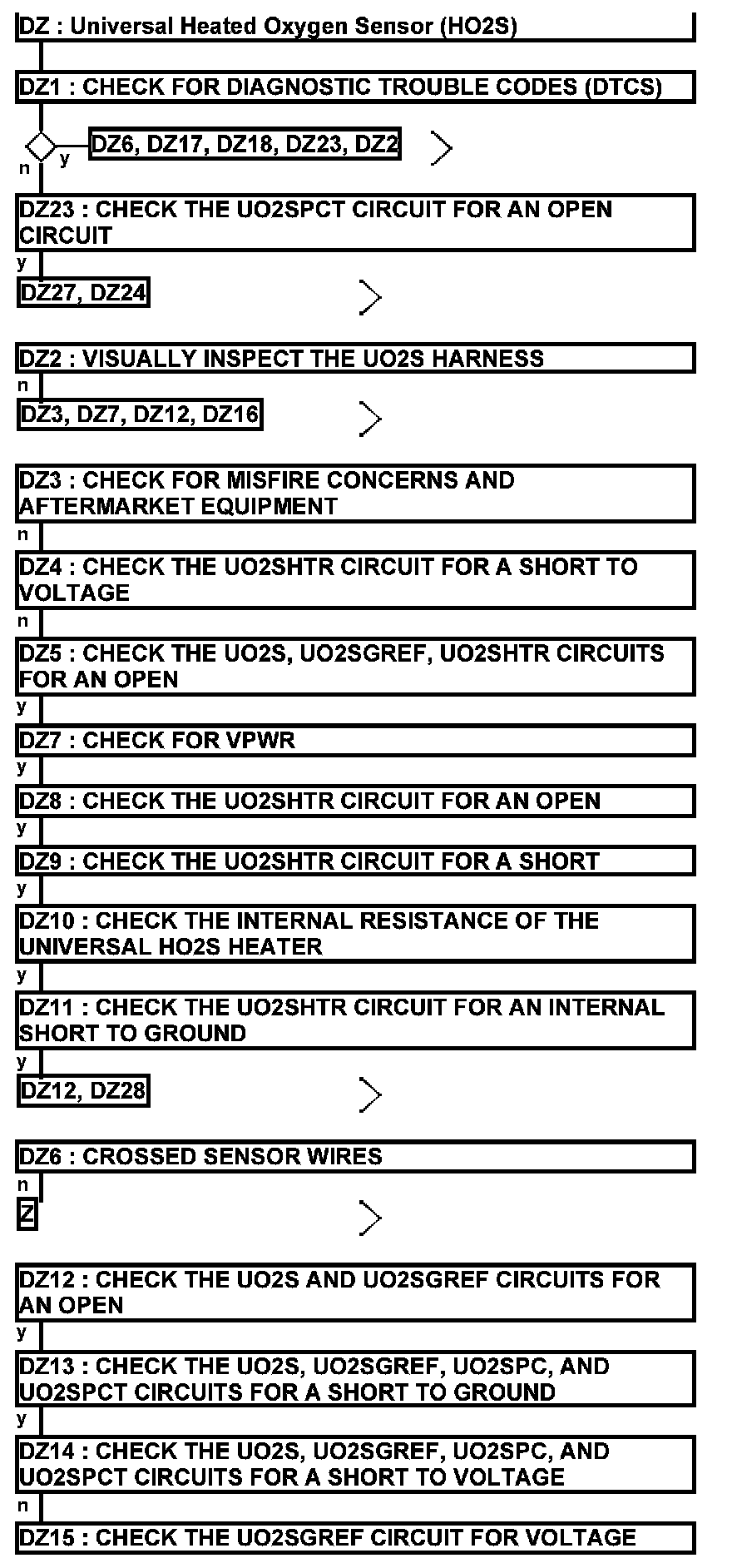

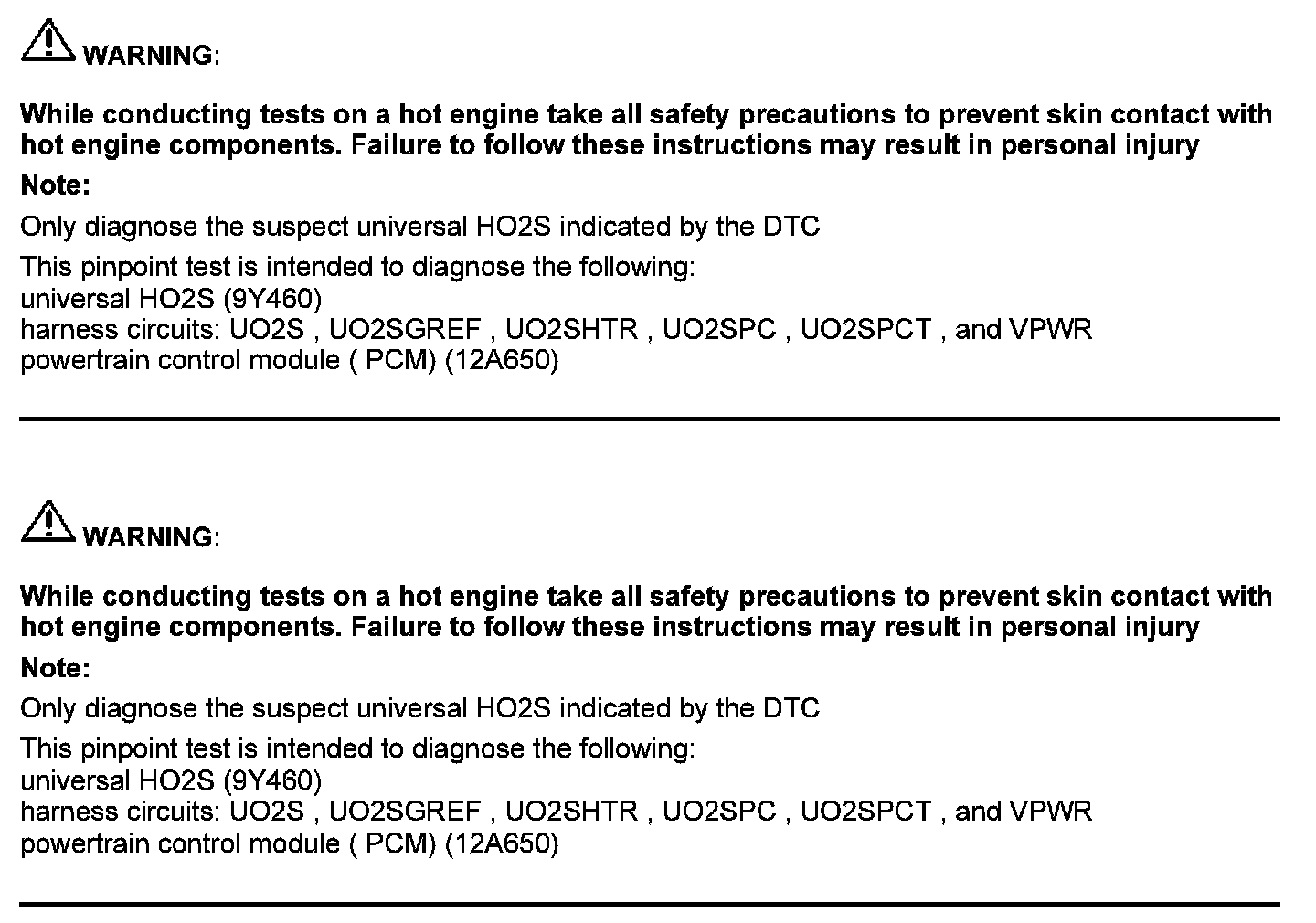

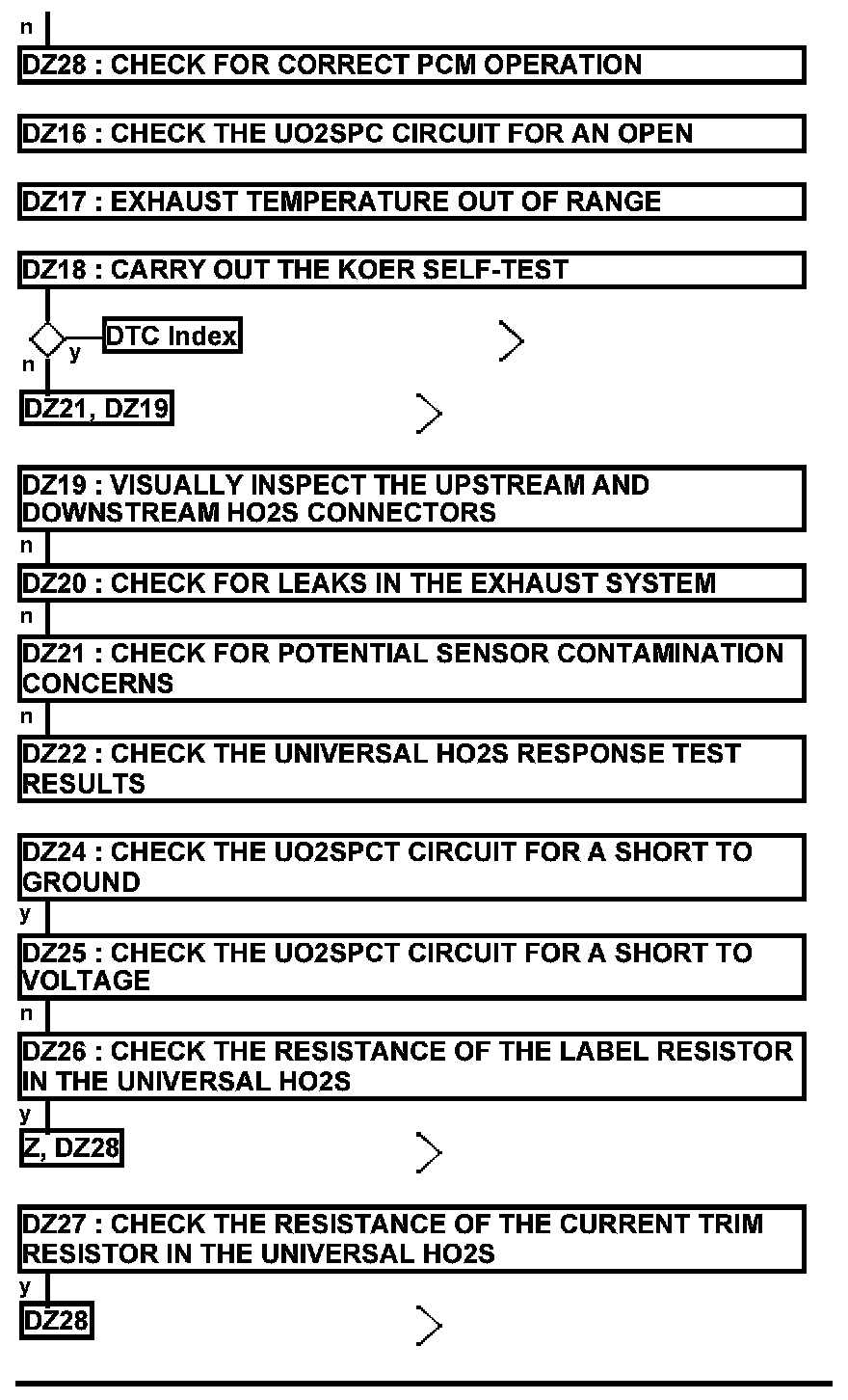

Universal Heated Oxygen Sensor (HO2S) - Automatic Transmission

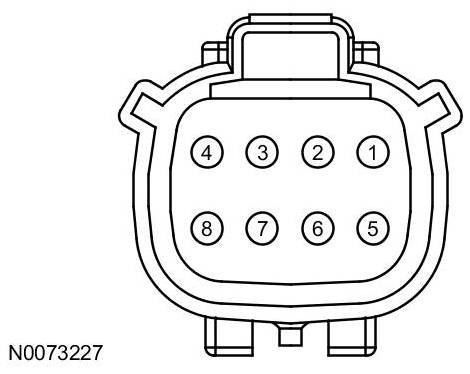

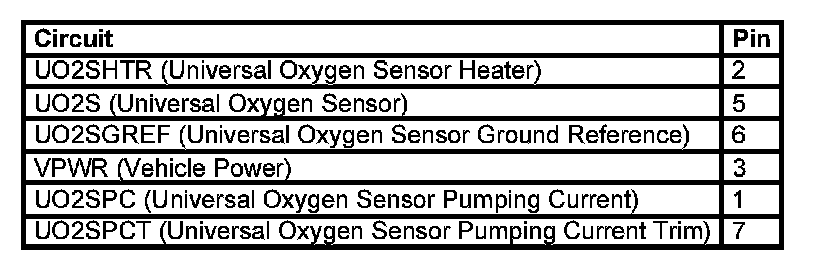

Universal HO2S-Front Connector





Harness Side

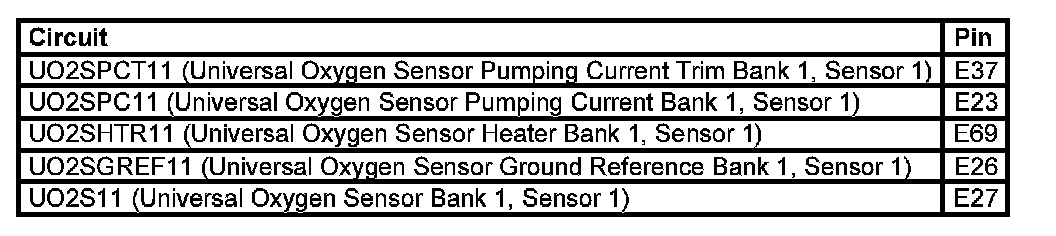

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
