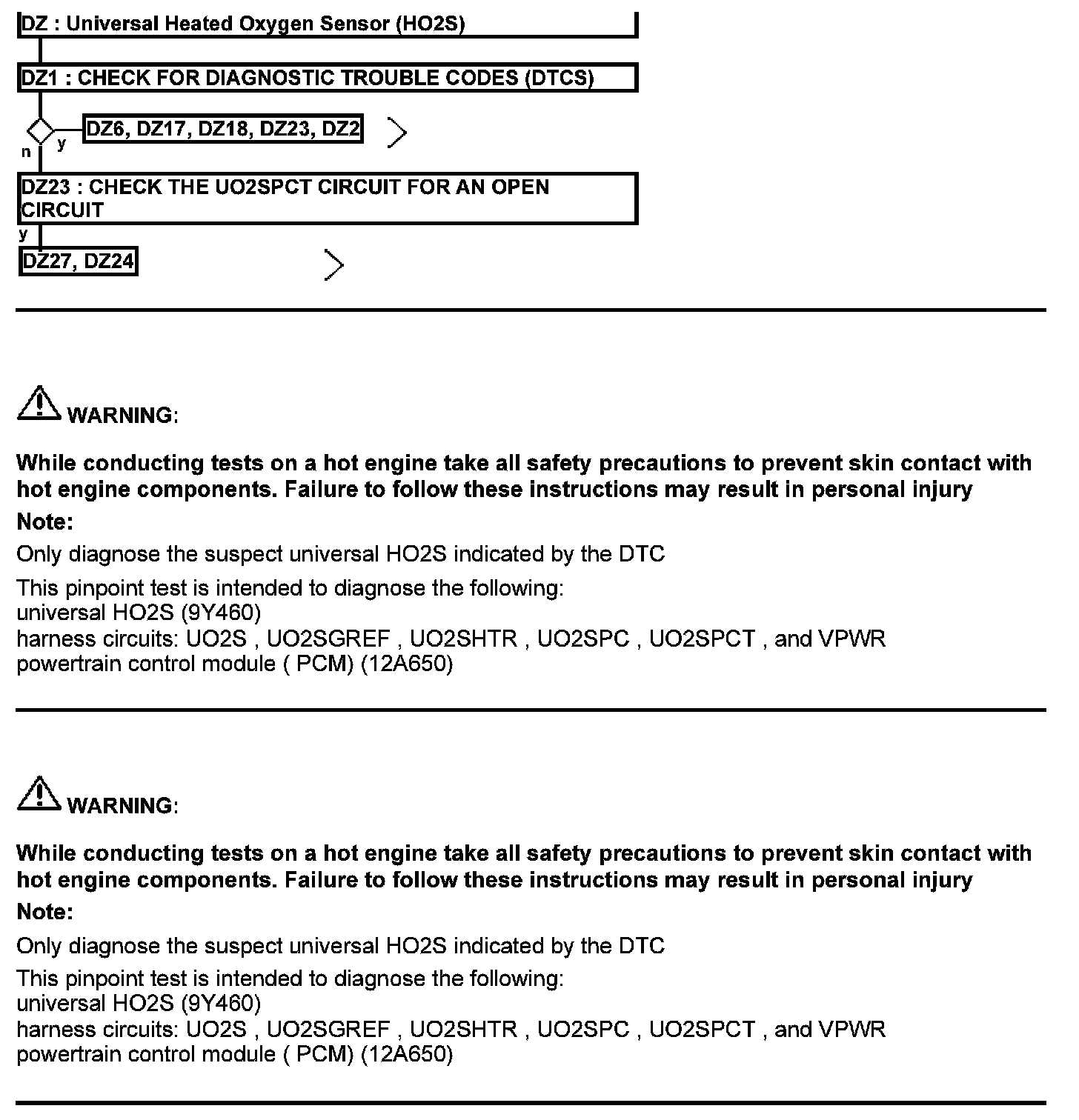

Test DZ: Universal Heated Oxygen Sensor (HO2S)
>>
All Others
All Others
Universal Heated Oxygen Sensor (HO2S) - All Others
