Automatic Transmission

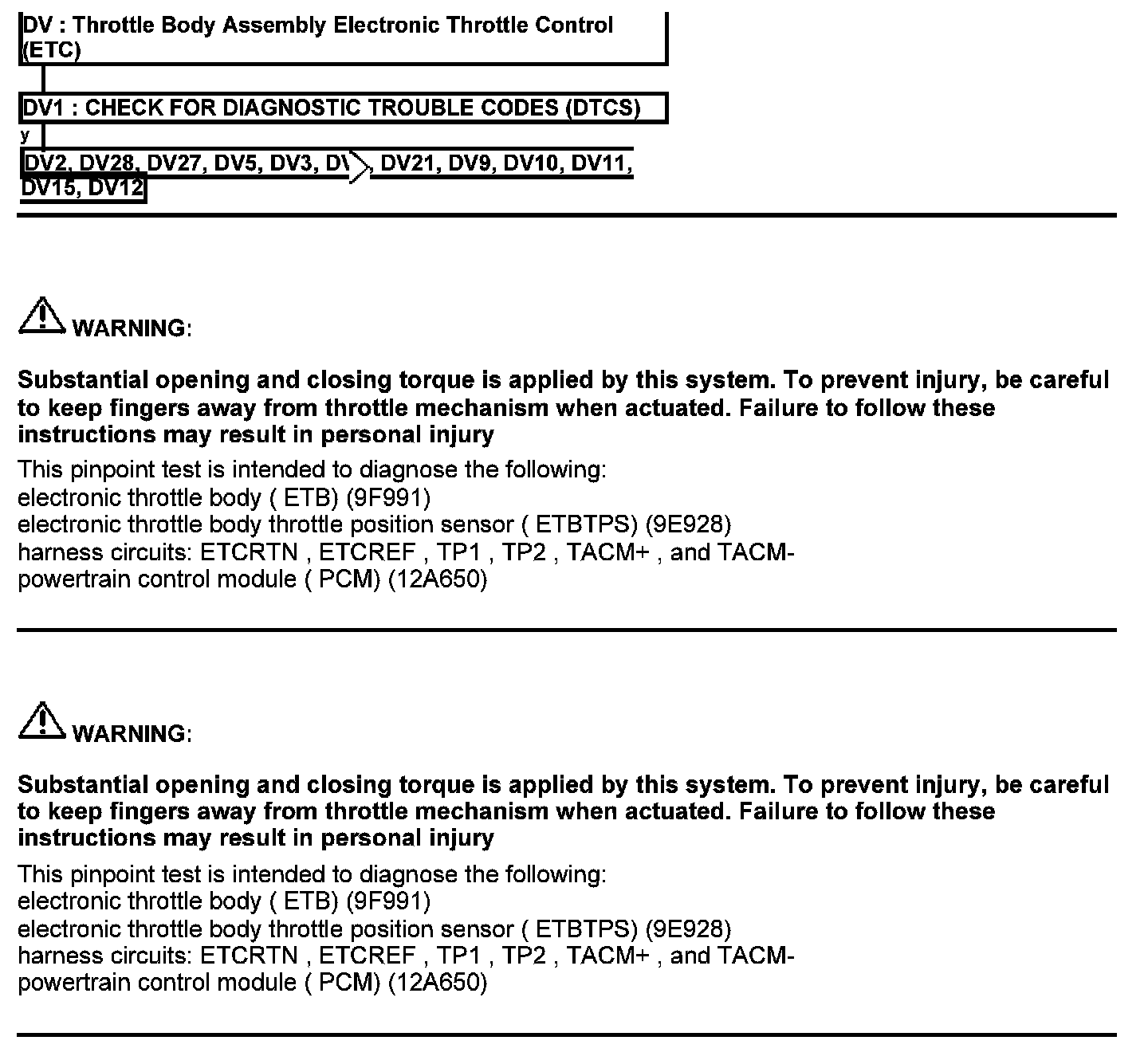

Throttle Body Assembly Electronic Throttle Control (ETC) - Automatic Transmission

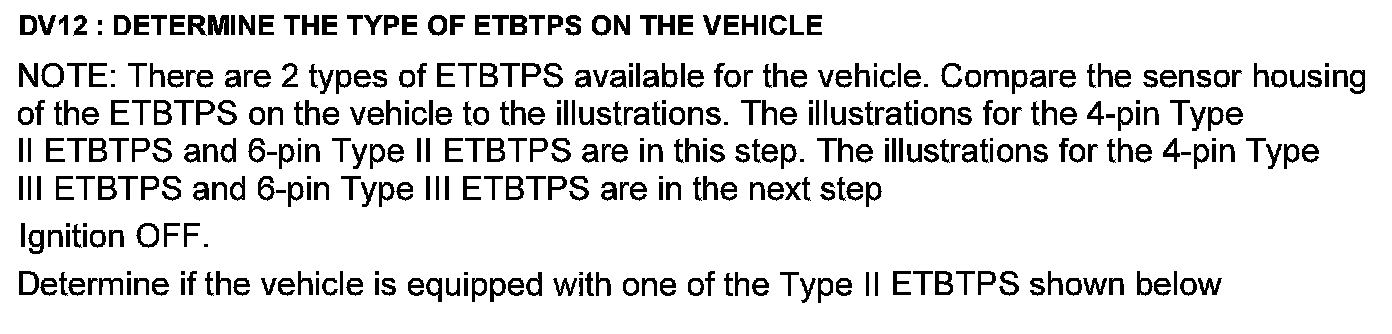

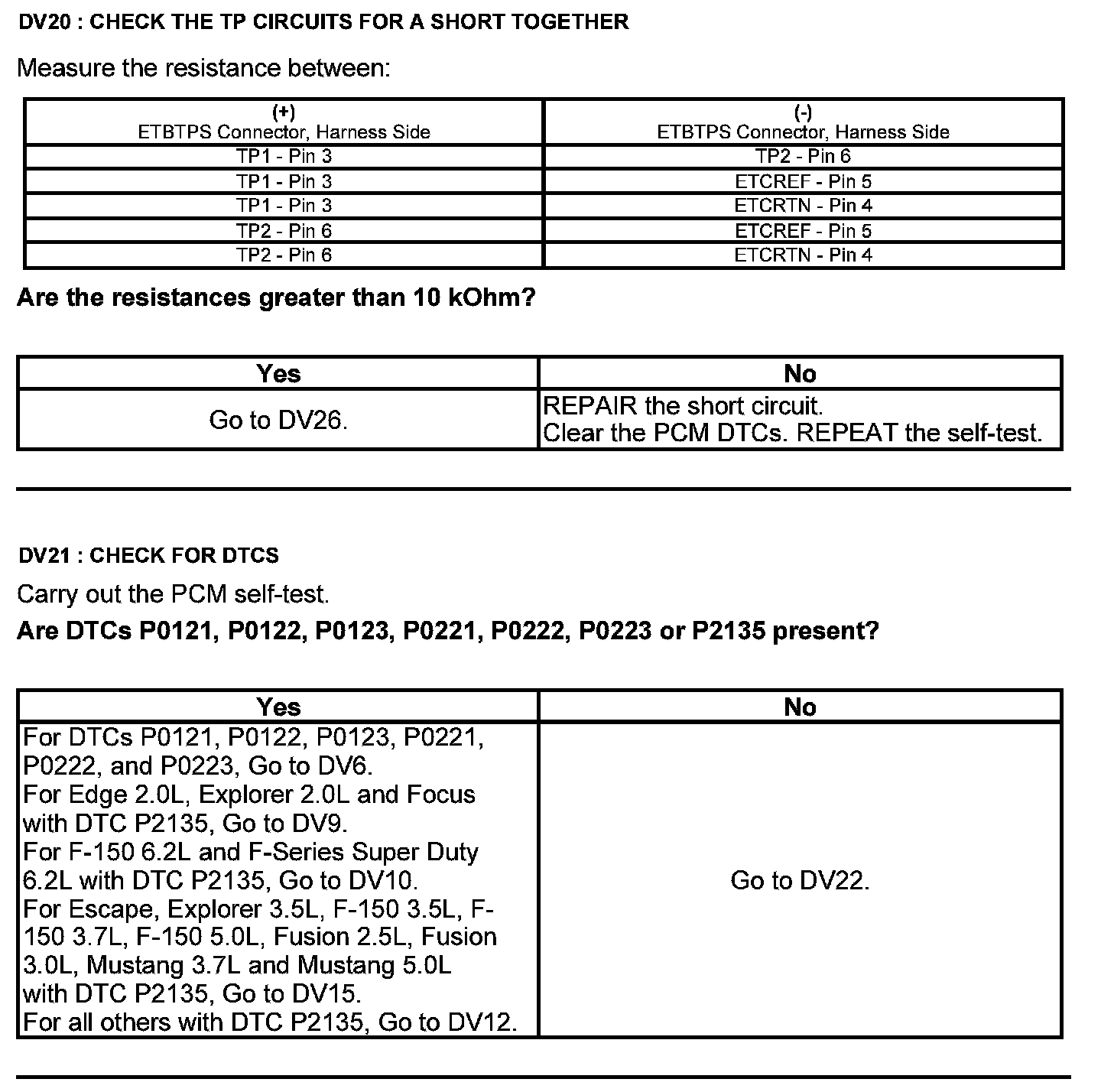

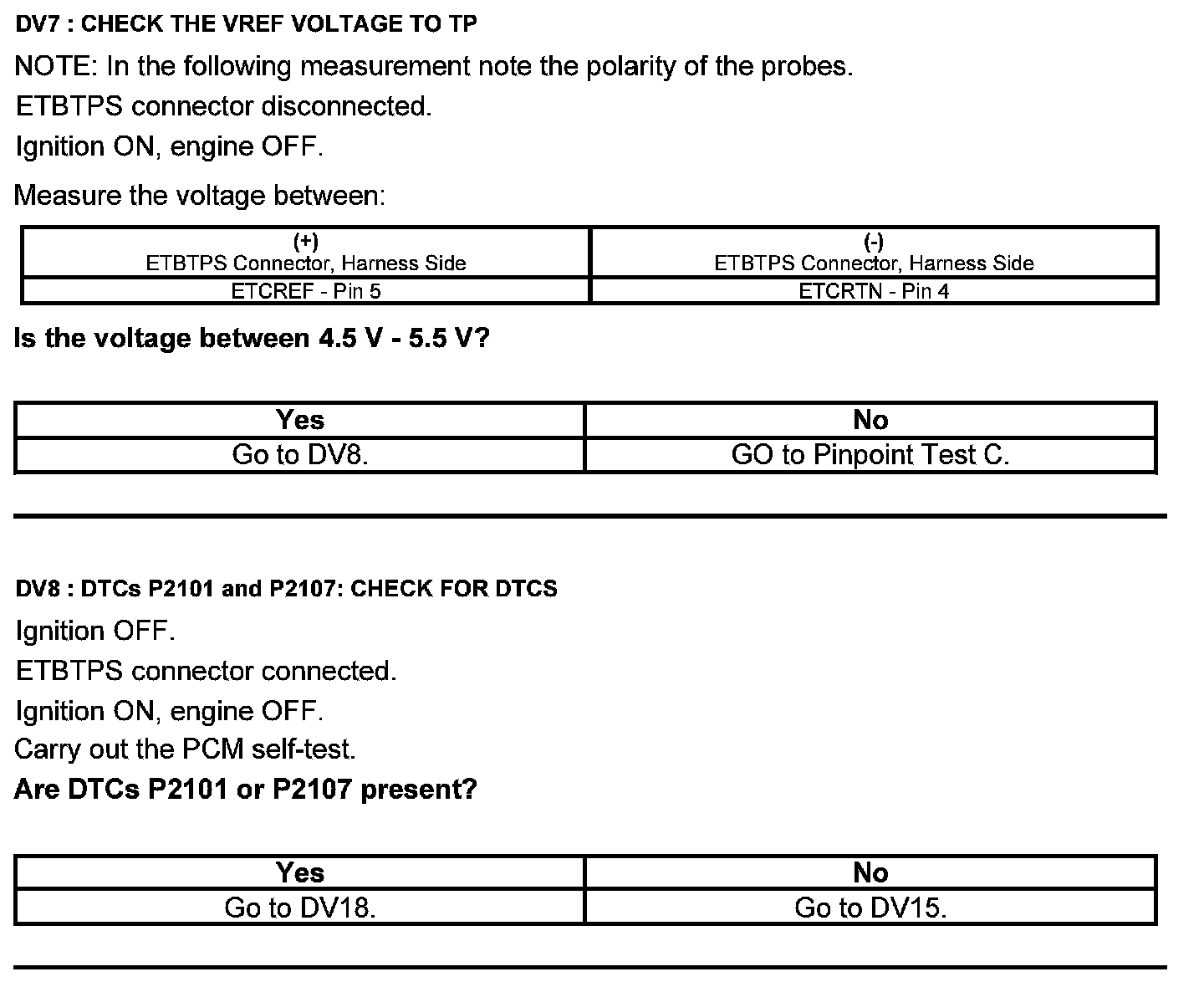

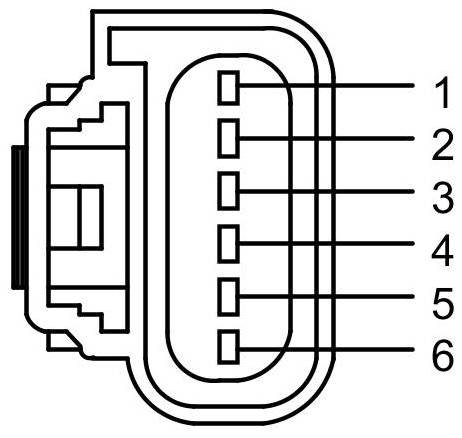

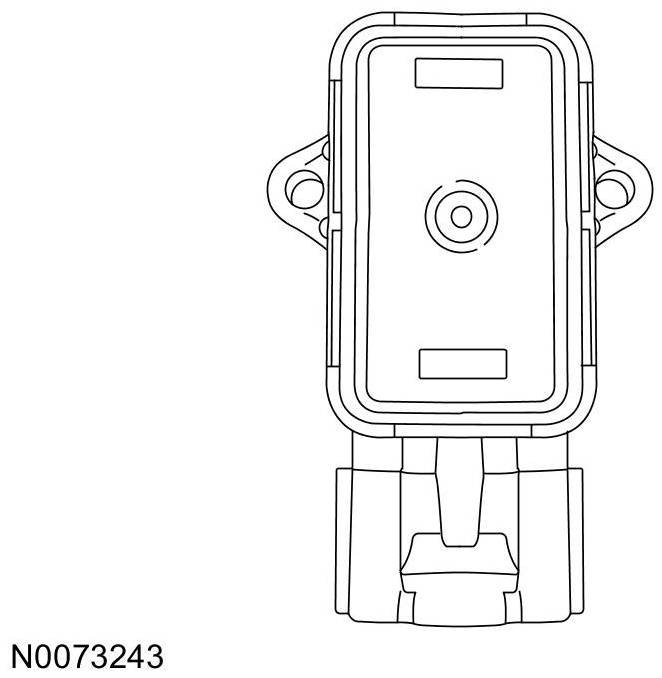

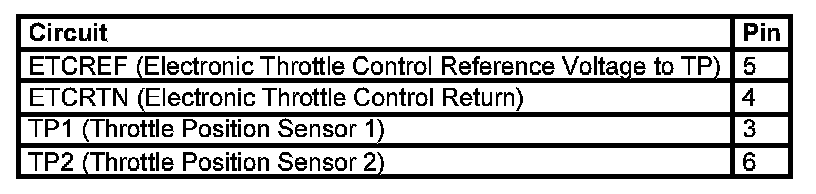

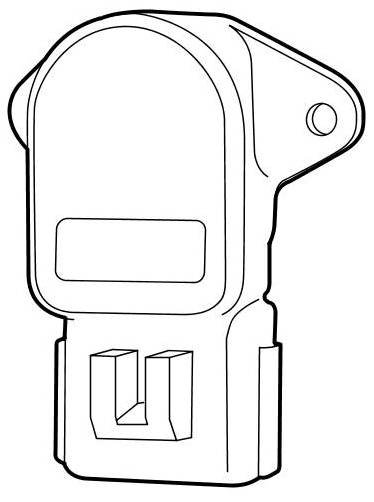

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector
Harness Side

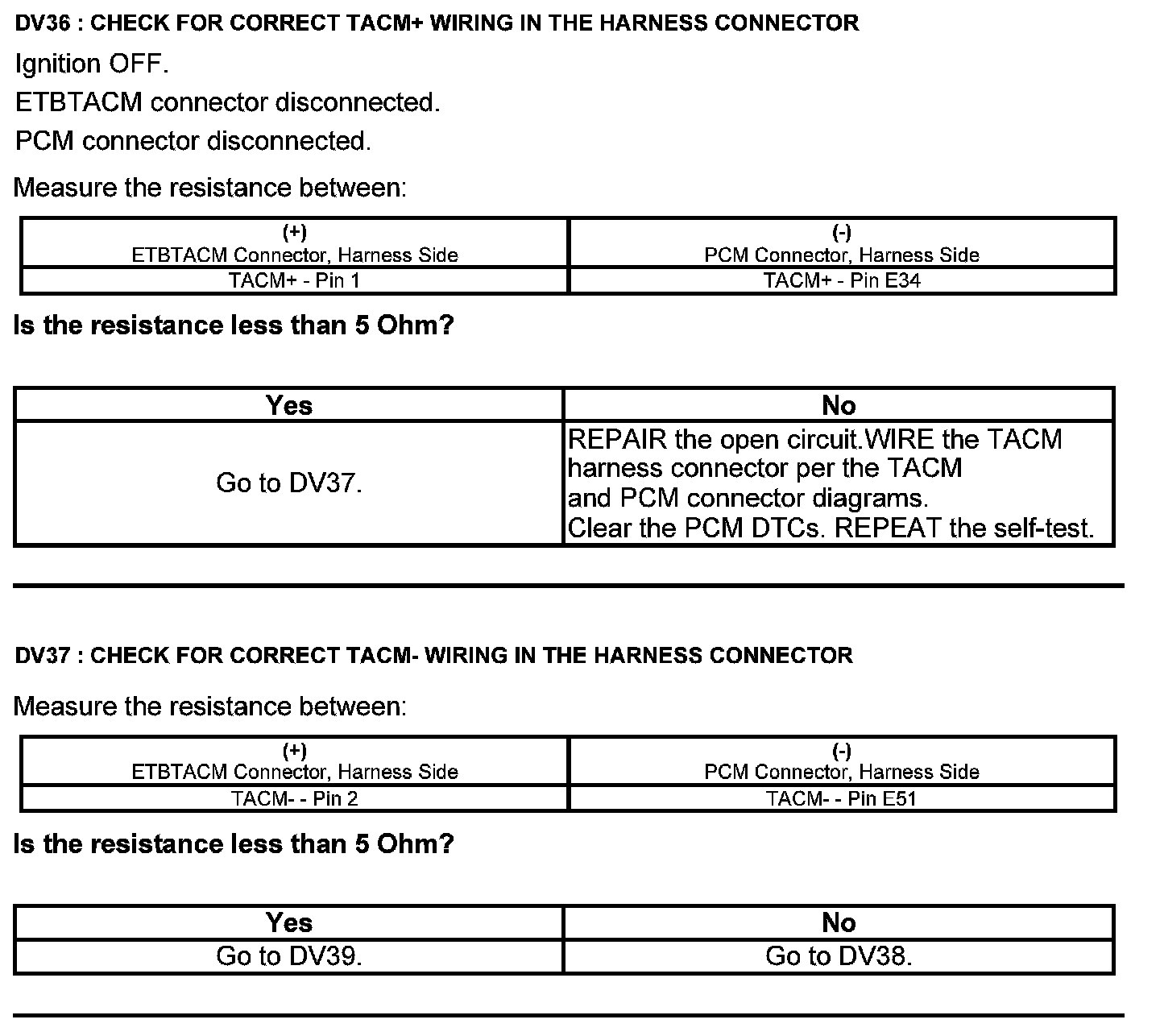

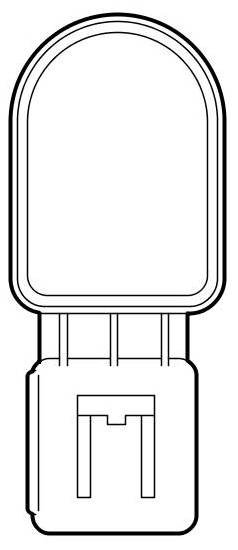

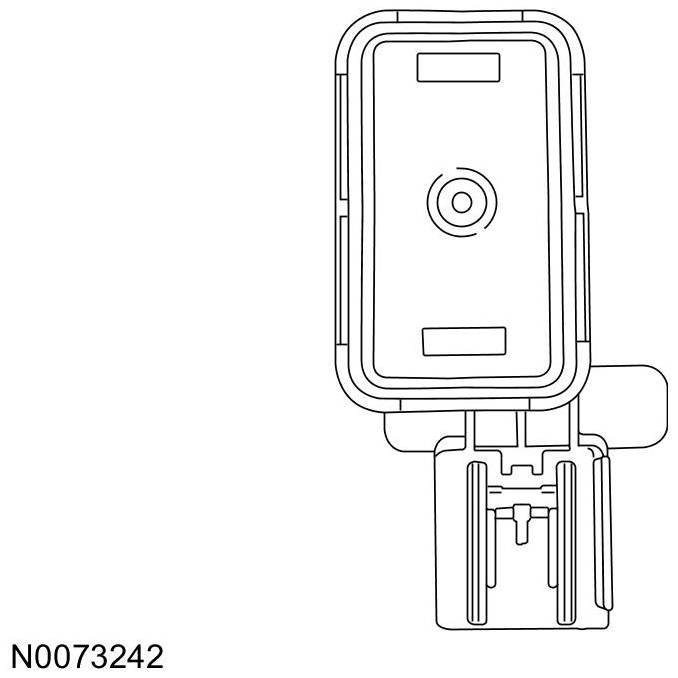

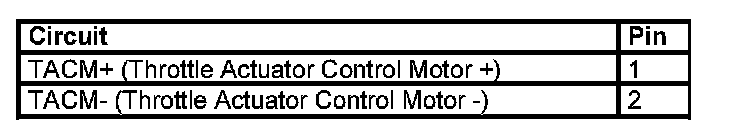

Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector
Harness Side

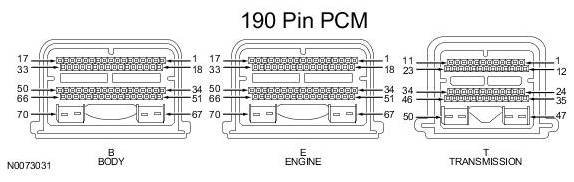

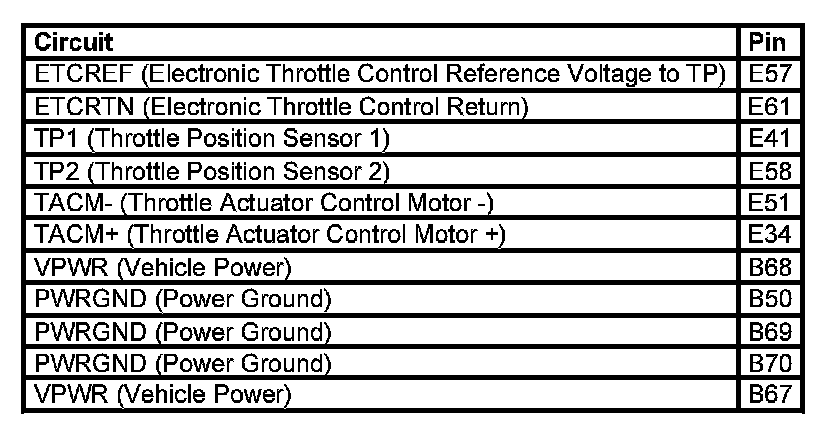

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.
Harness Side
