Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DV: Throttle Body Assembly Electronic Throttle Control (ETC) >> All Others

All Others

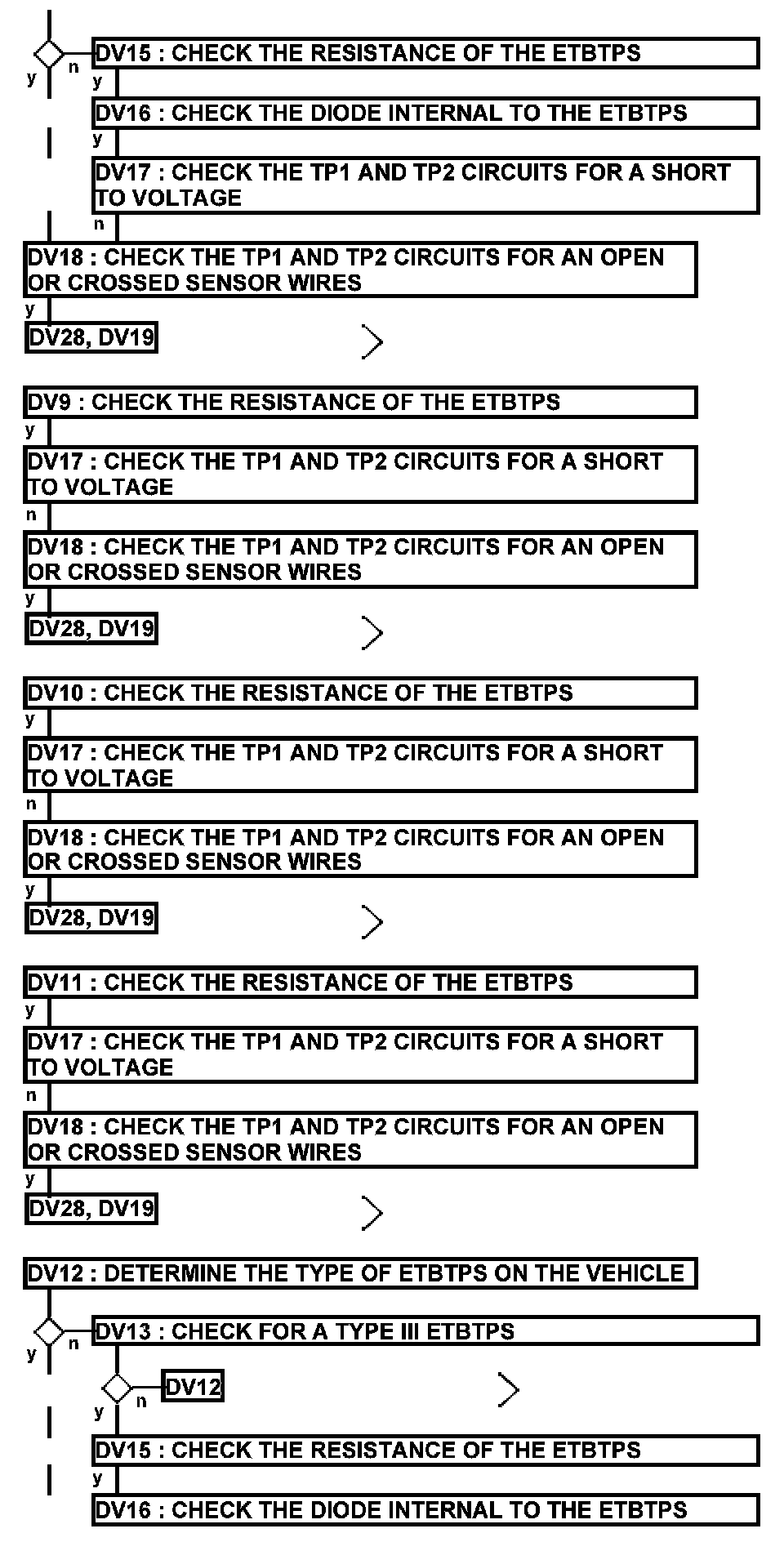

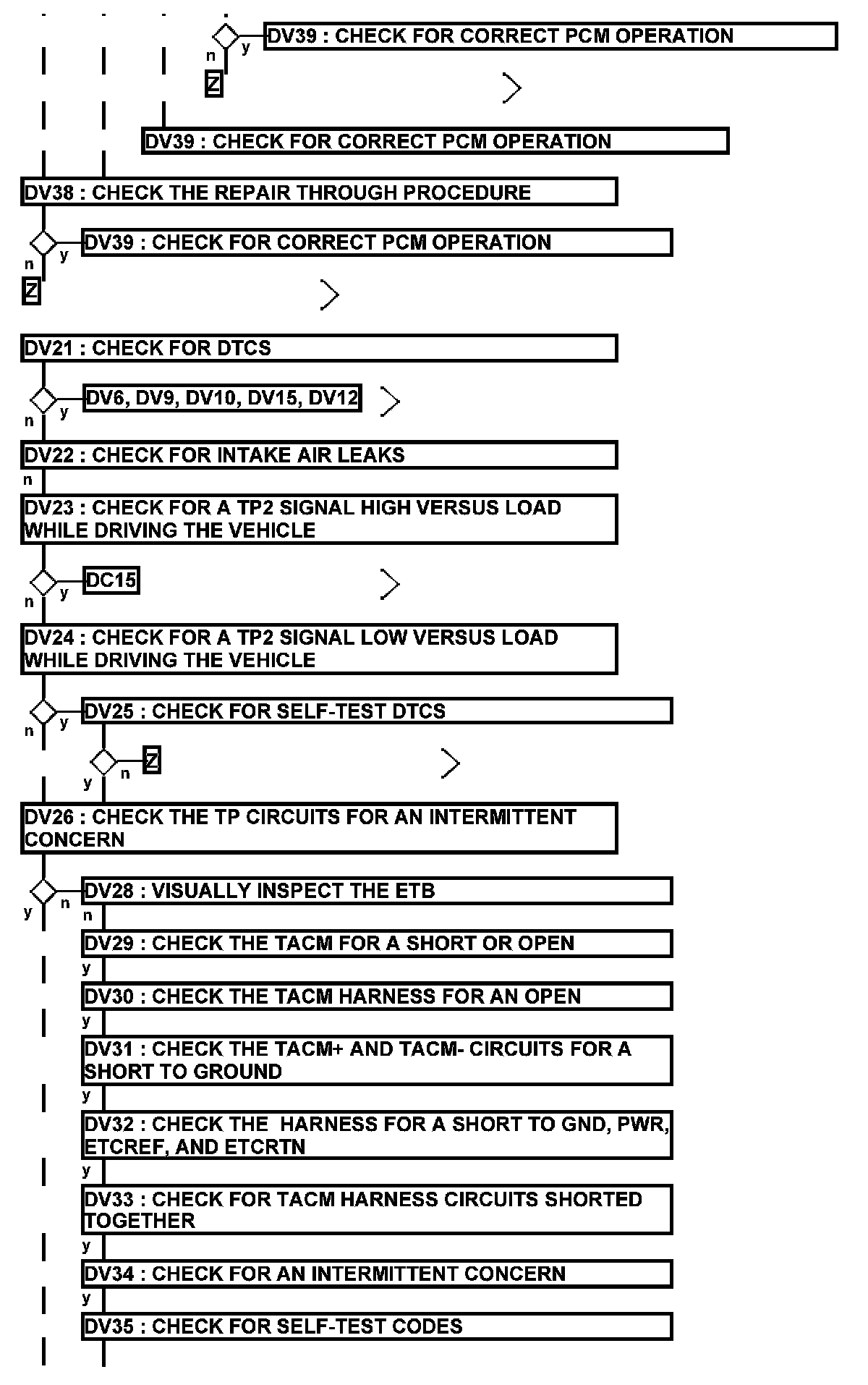

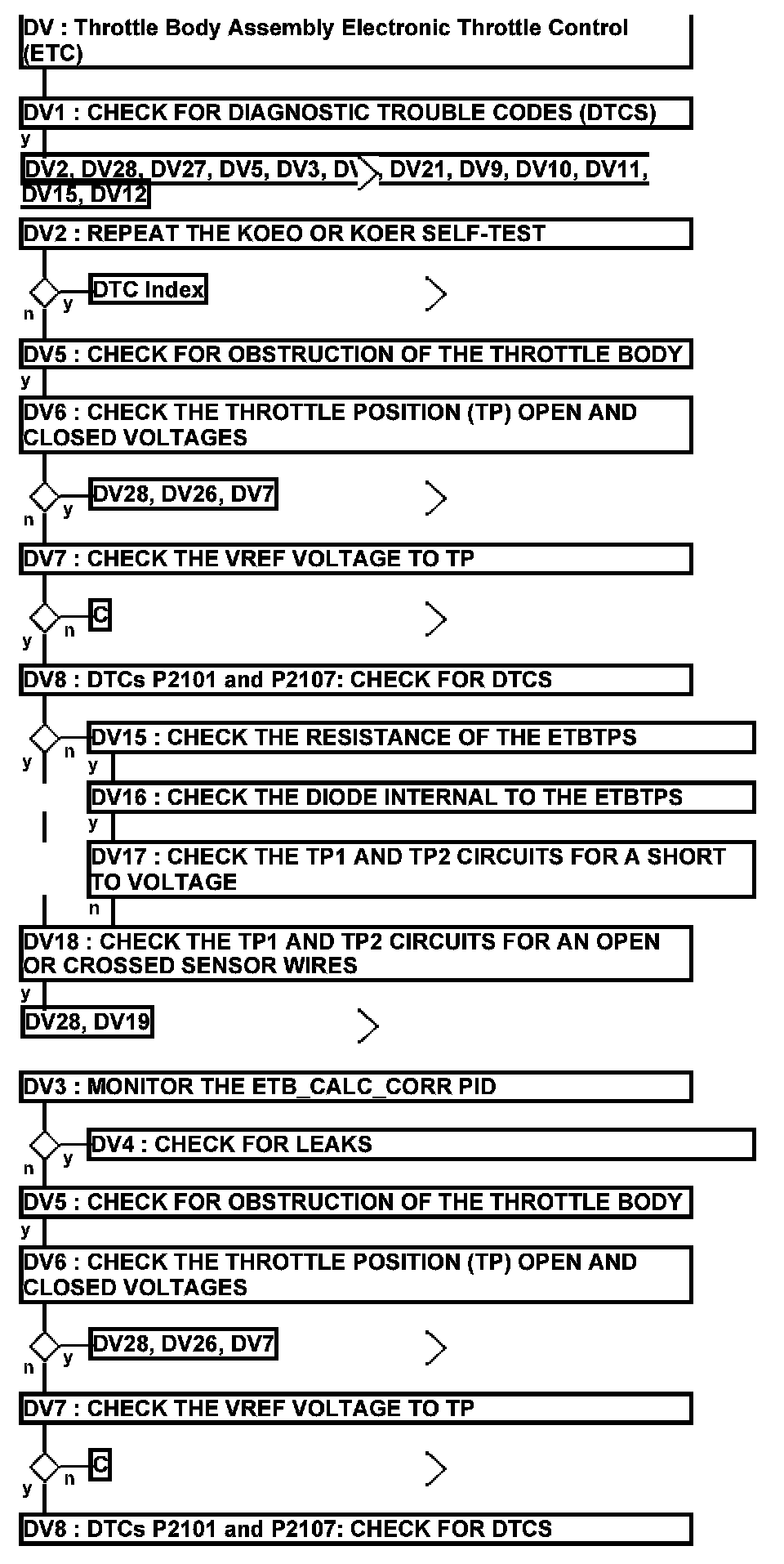

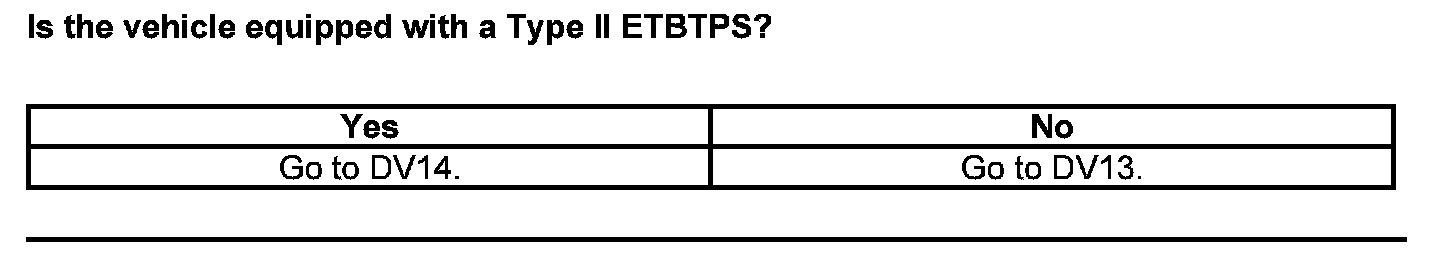

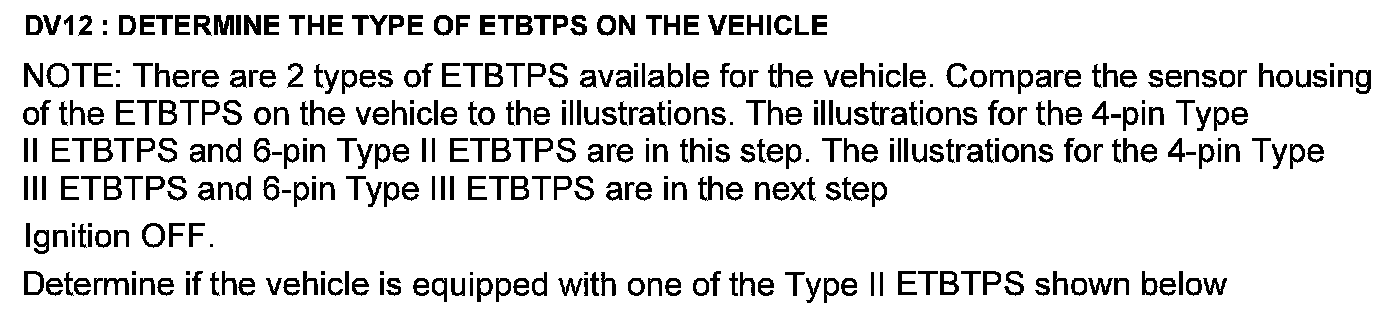

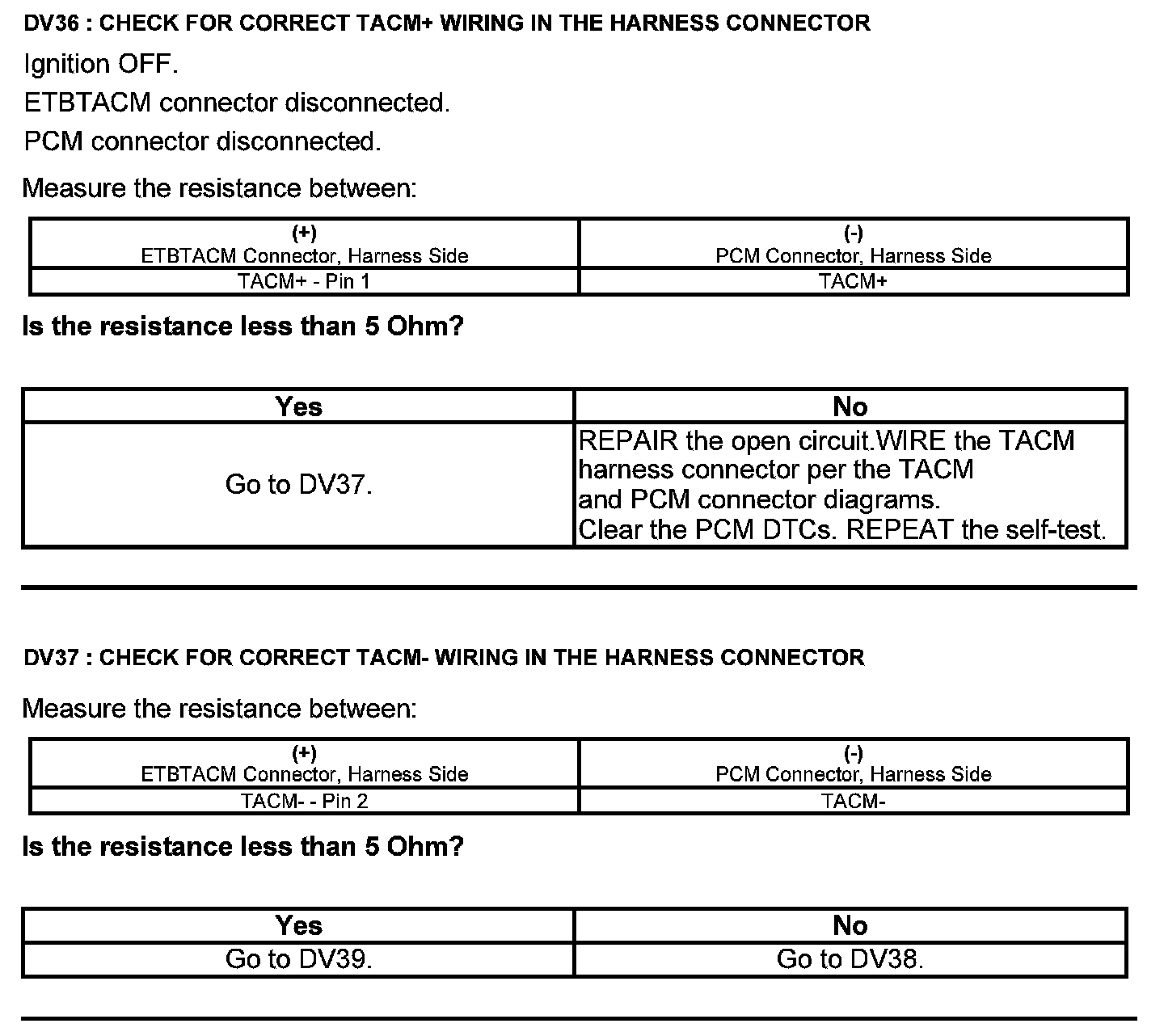

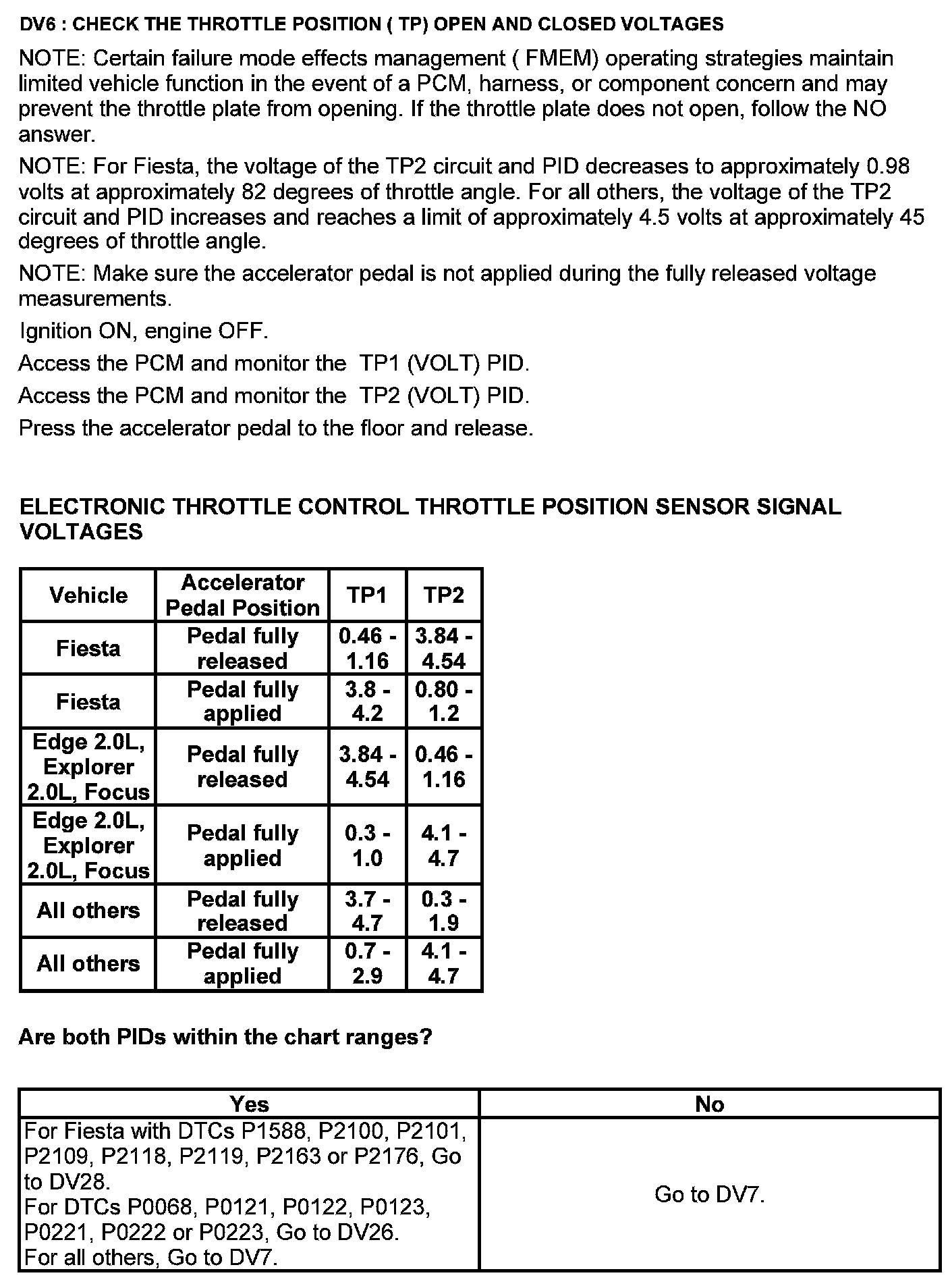

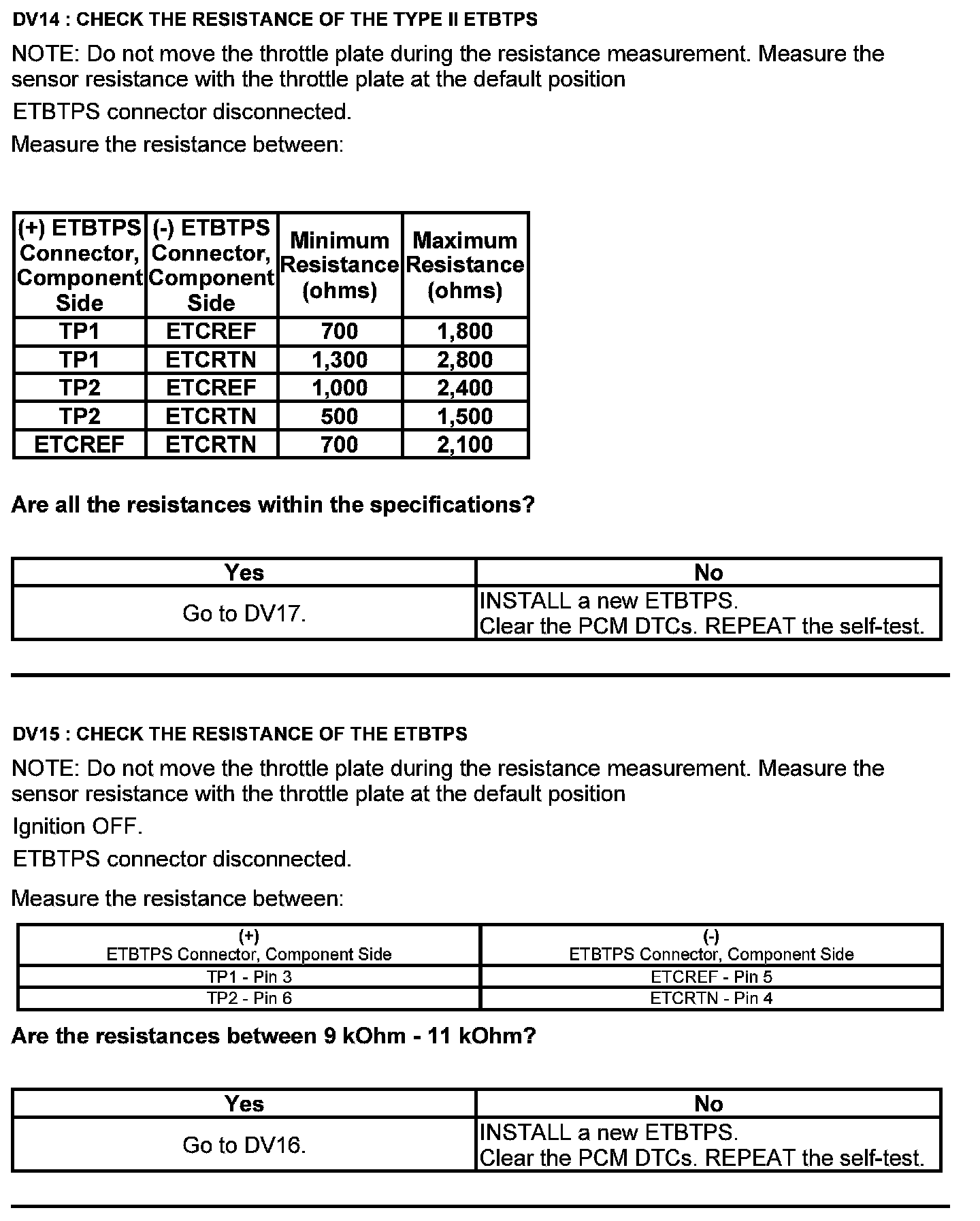

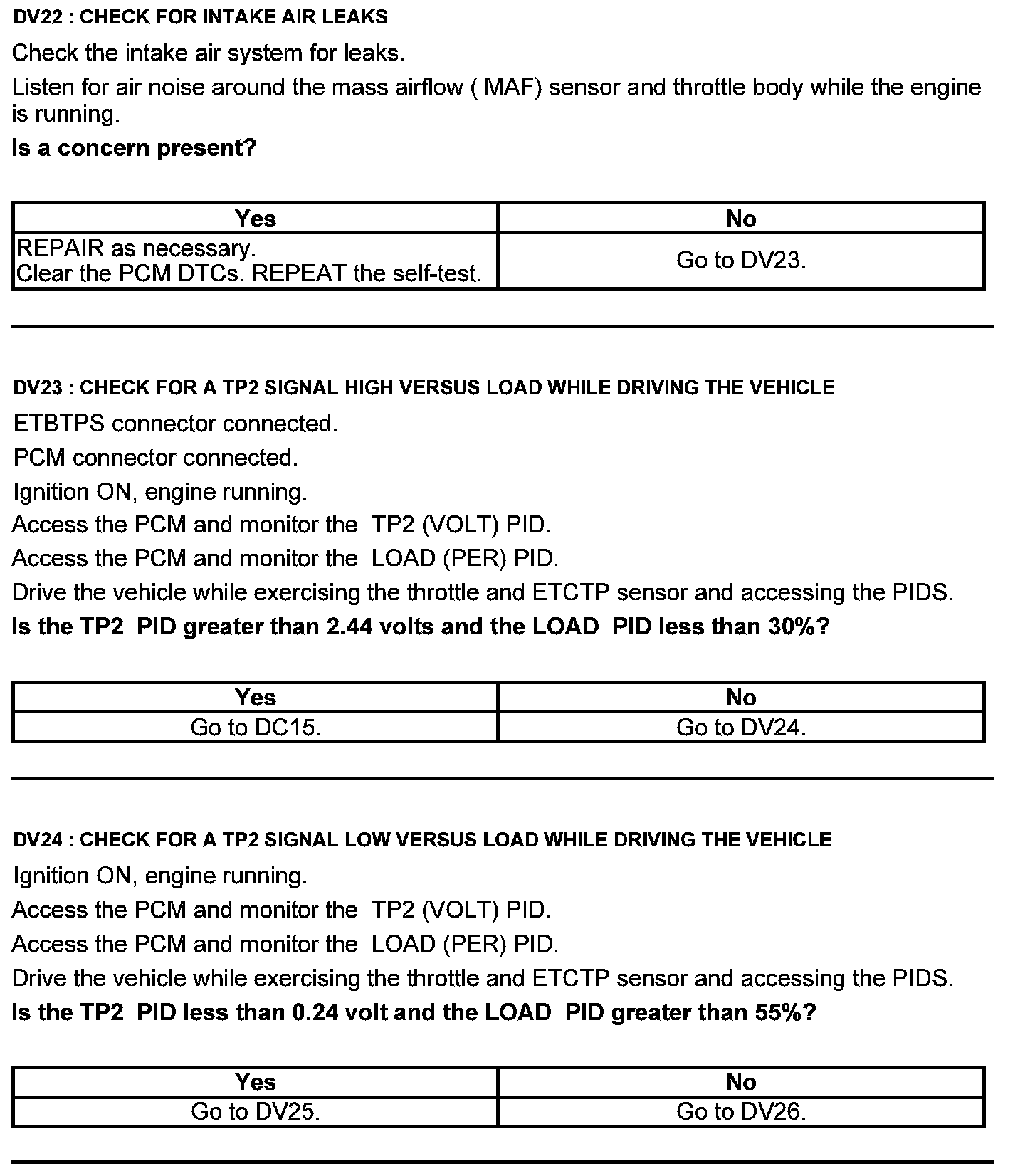

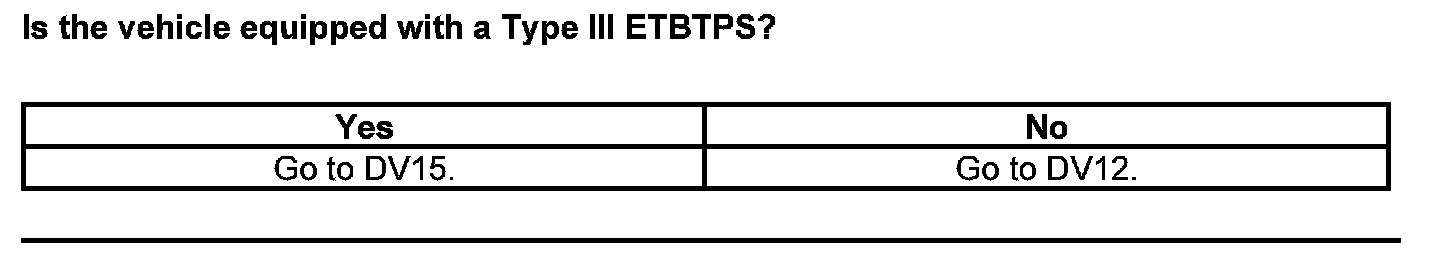

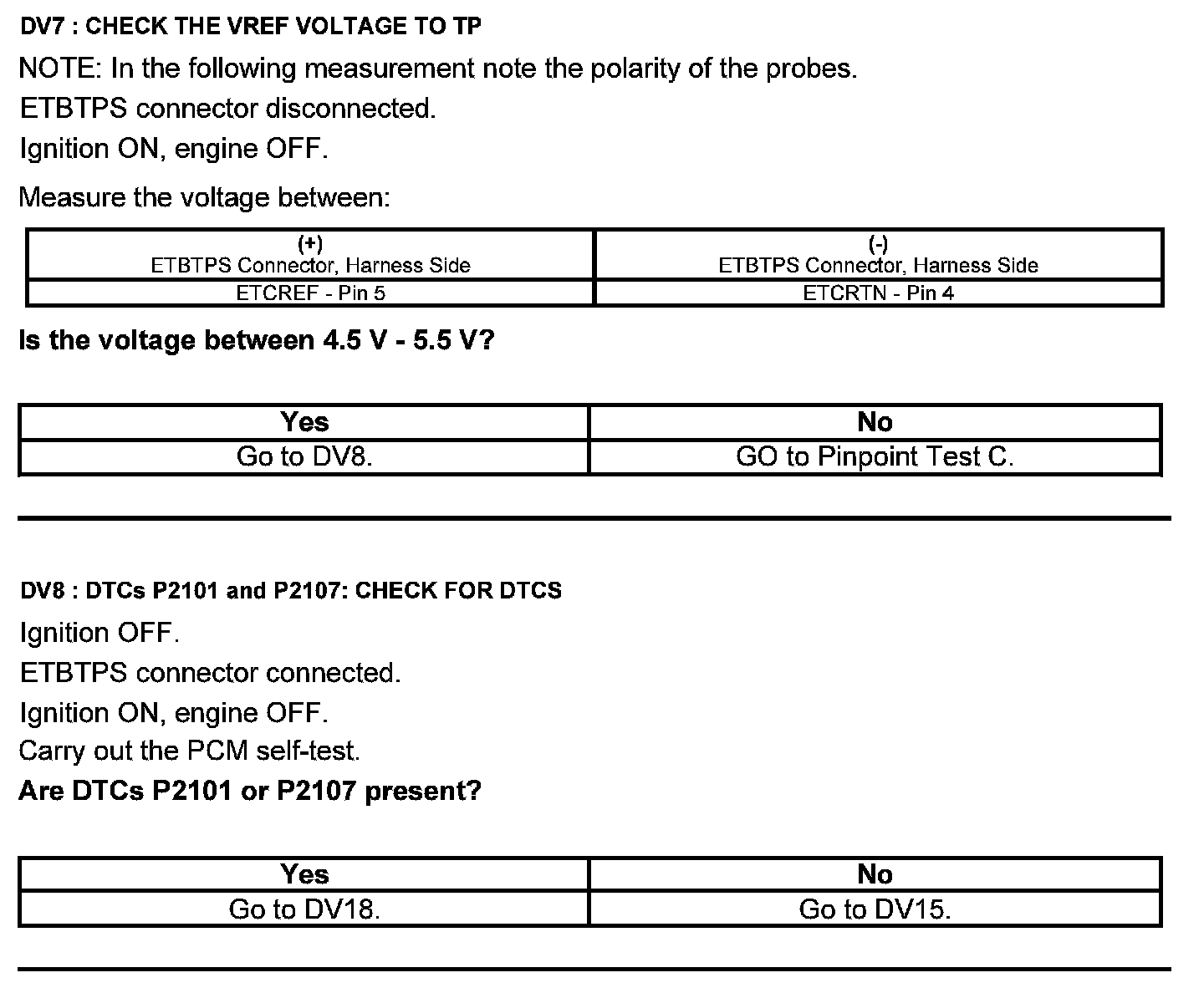

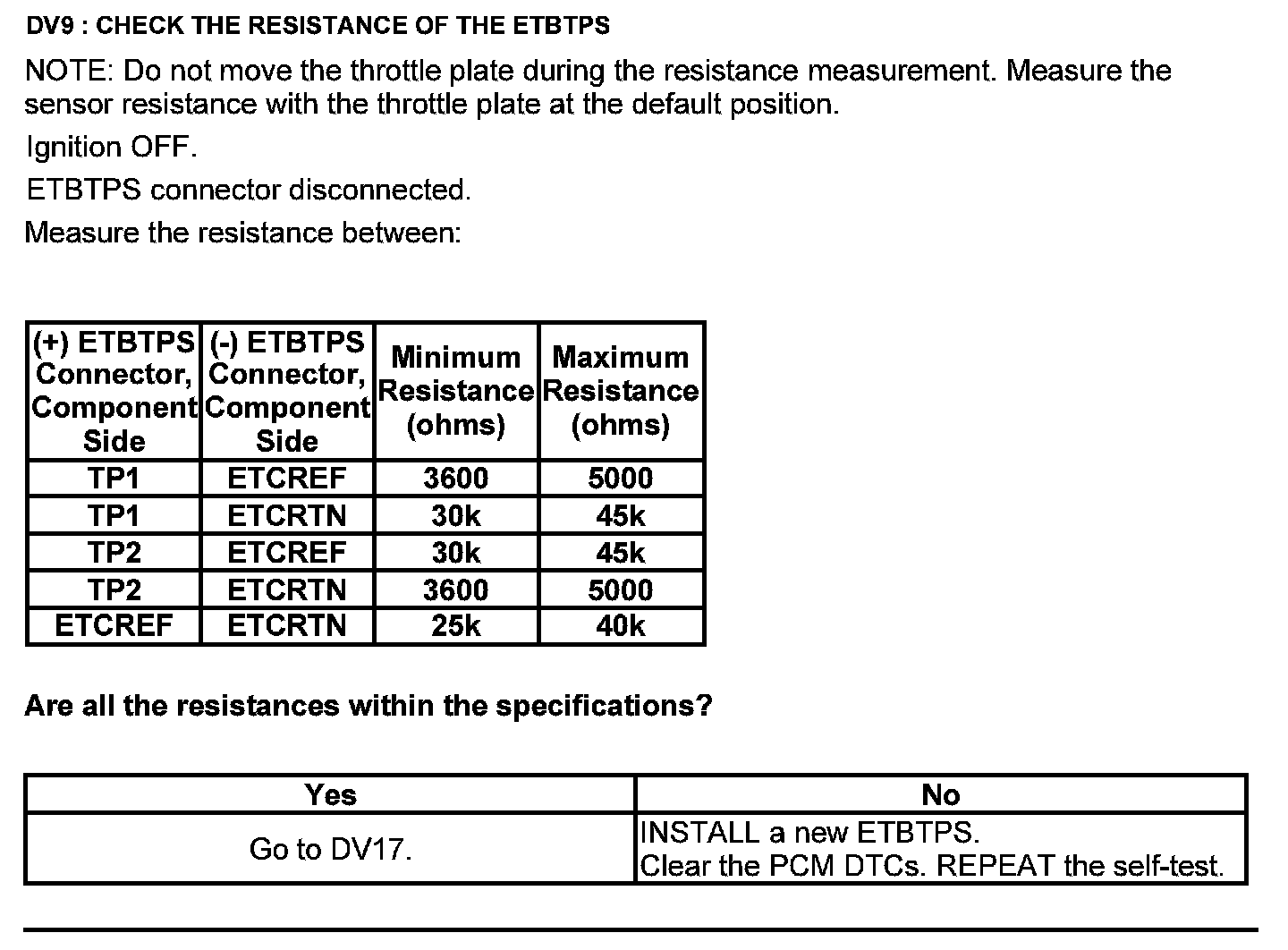

Throttle Body Assembly Electronic Throttle Control (ETC) - All Others

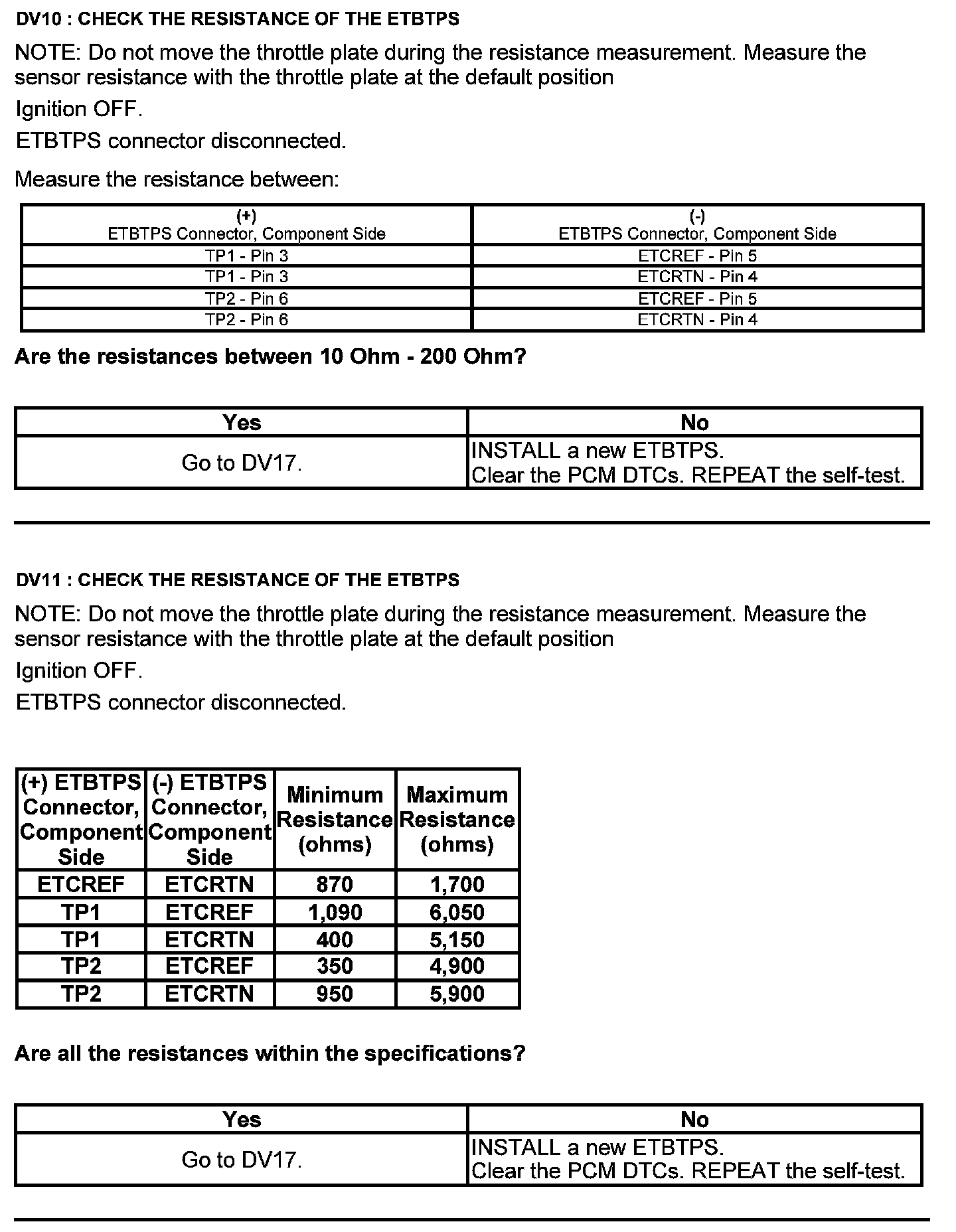

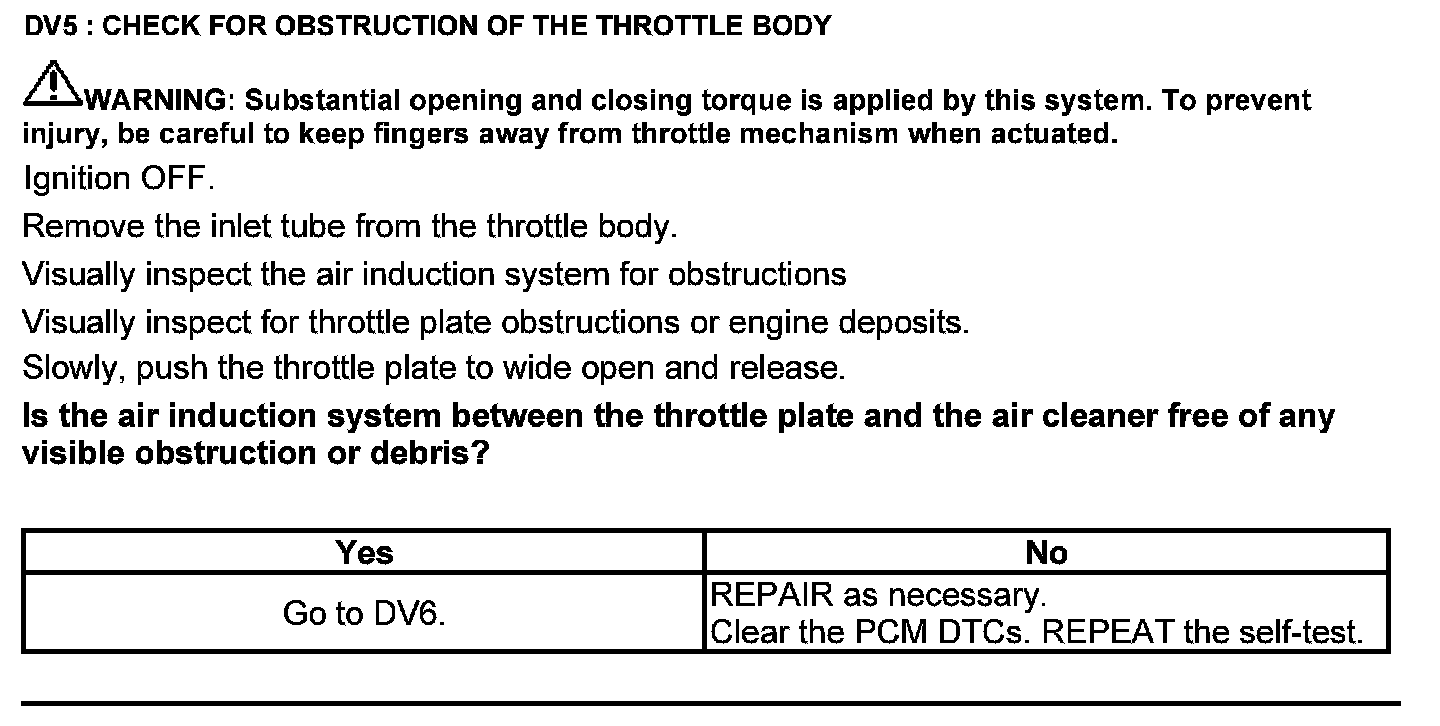

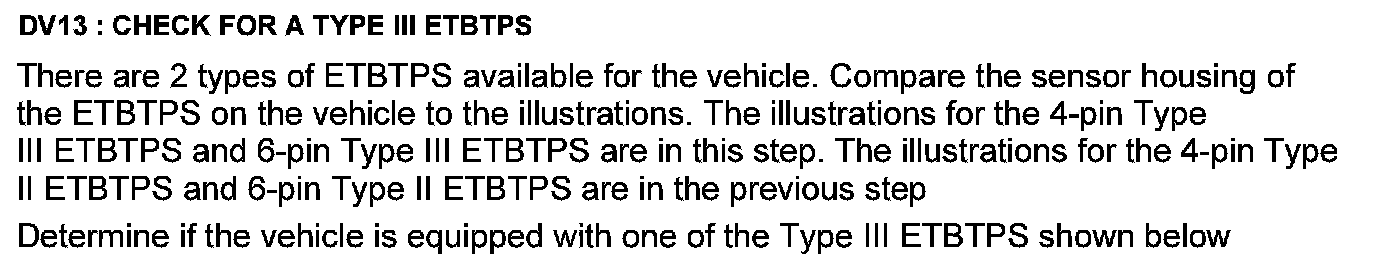

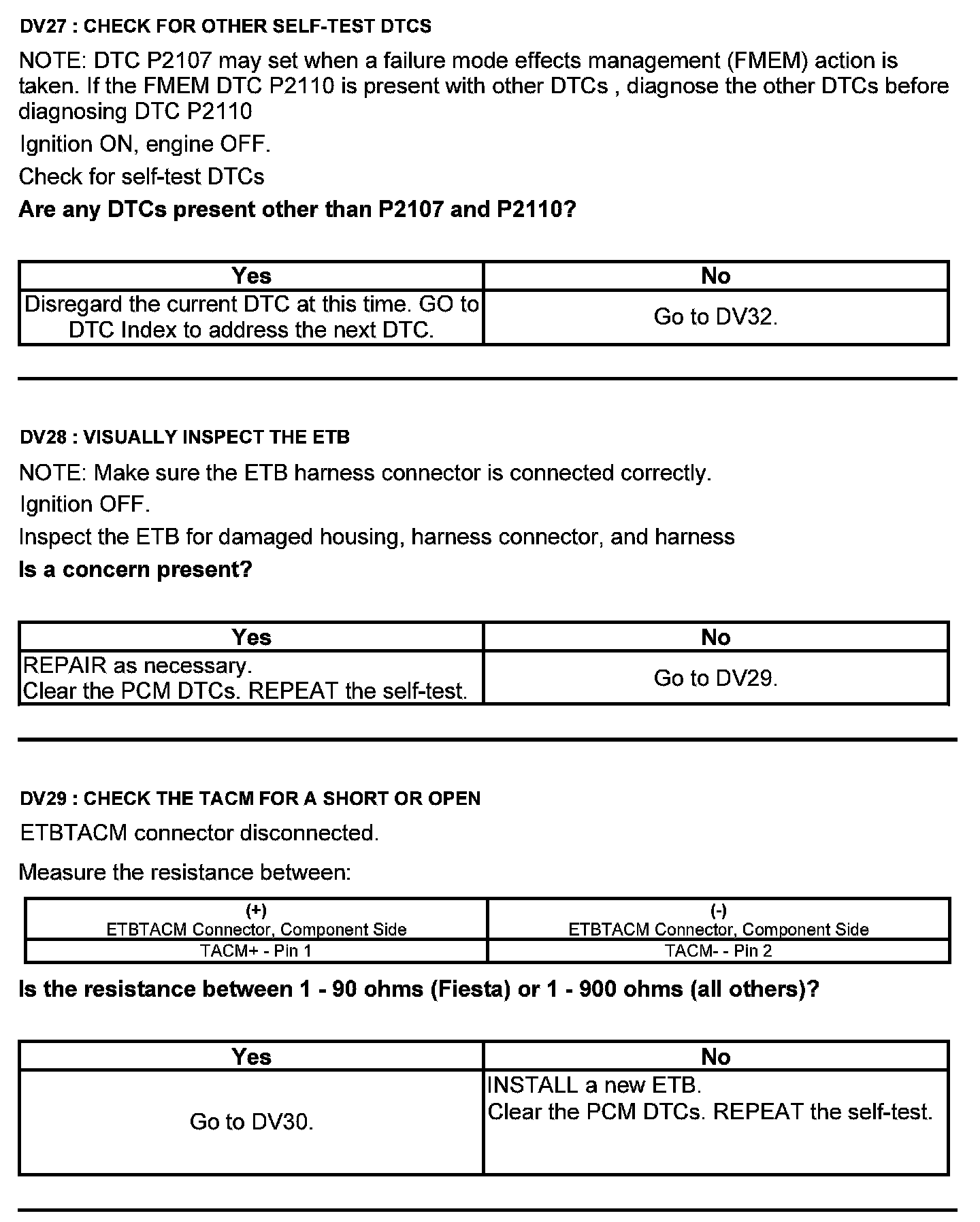

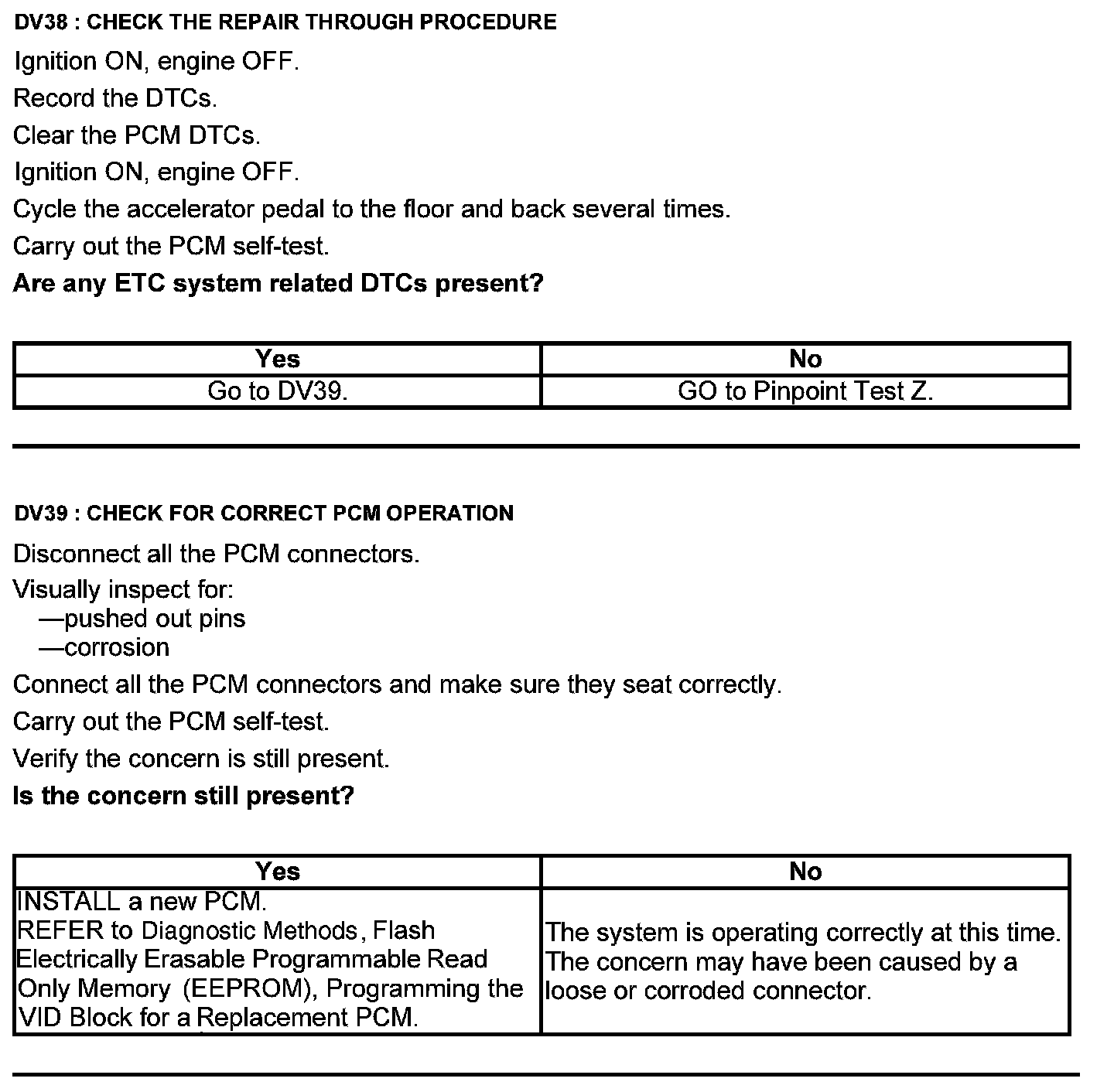

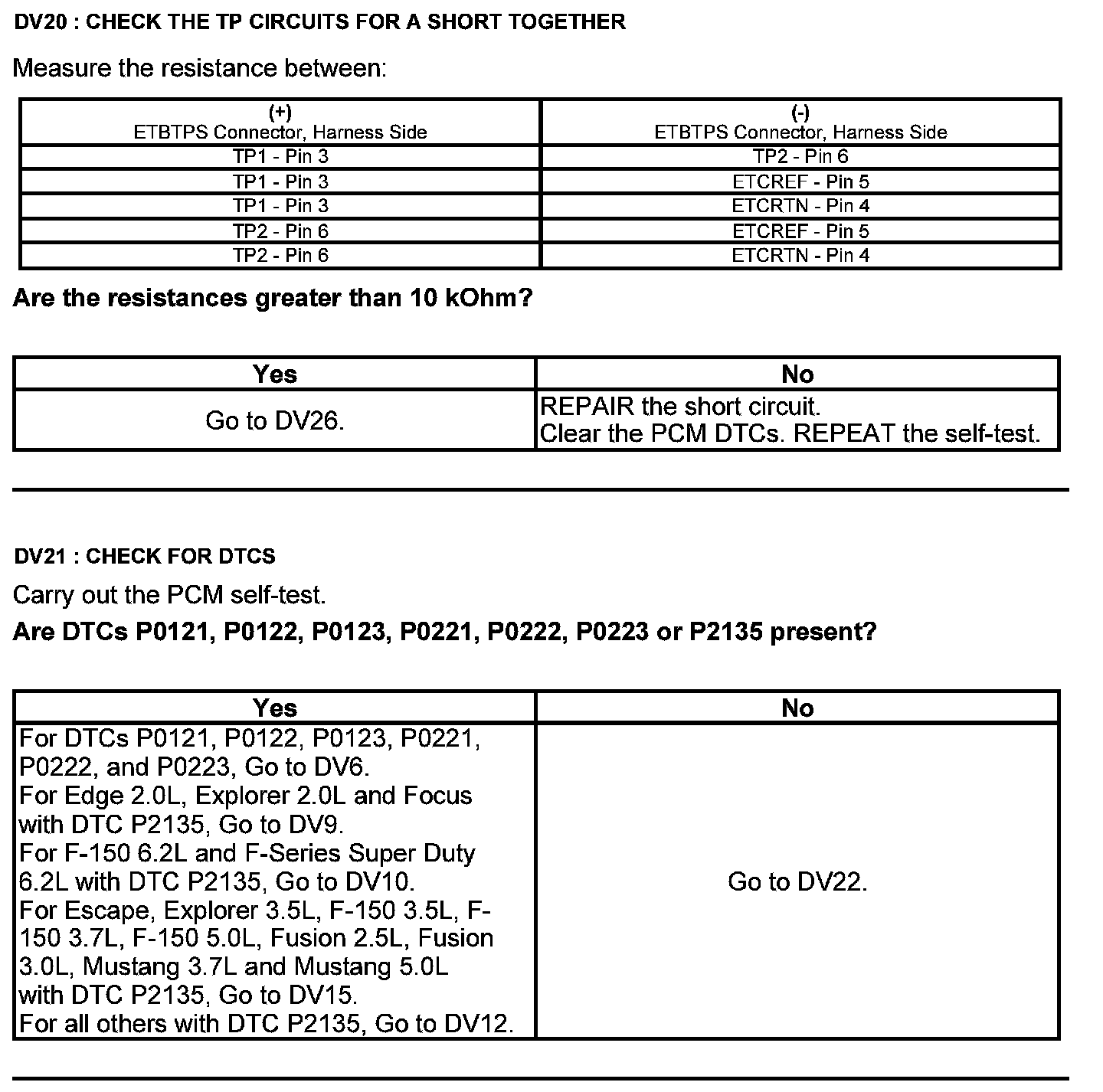

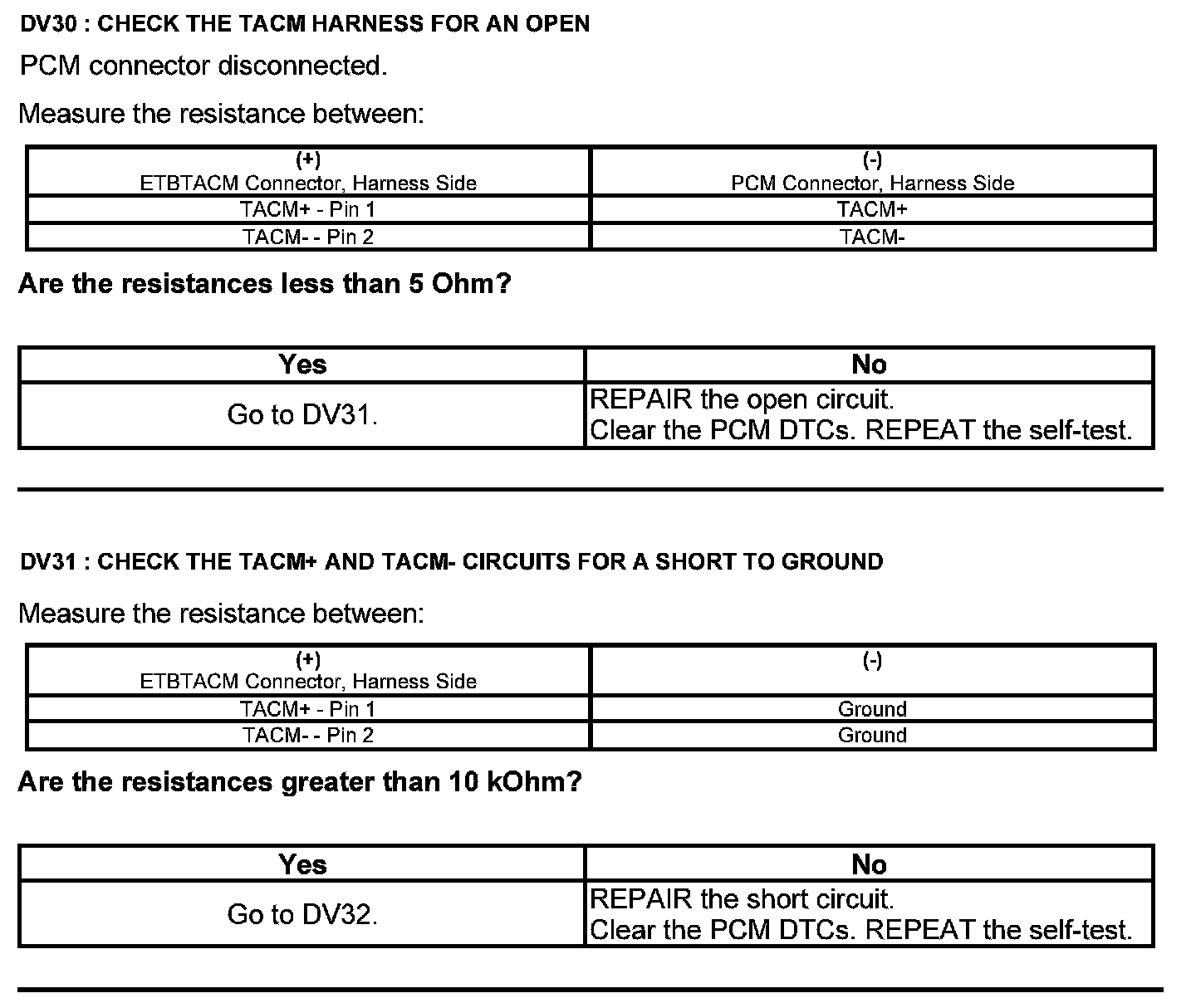

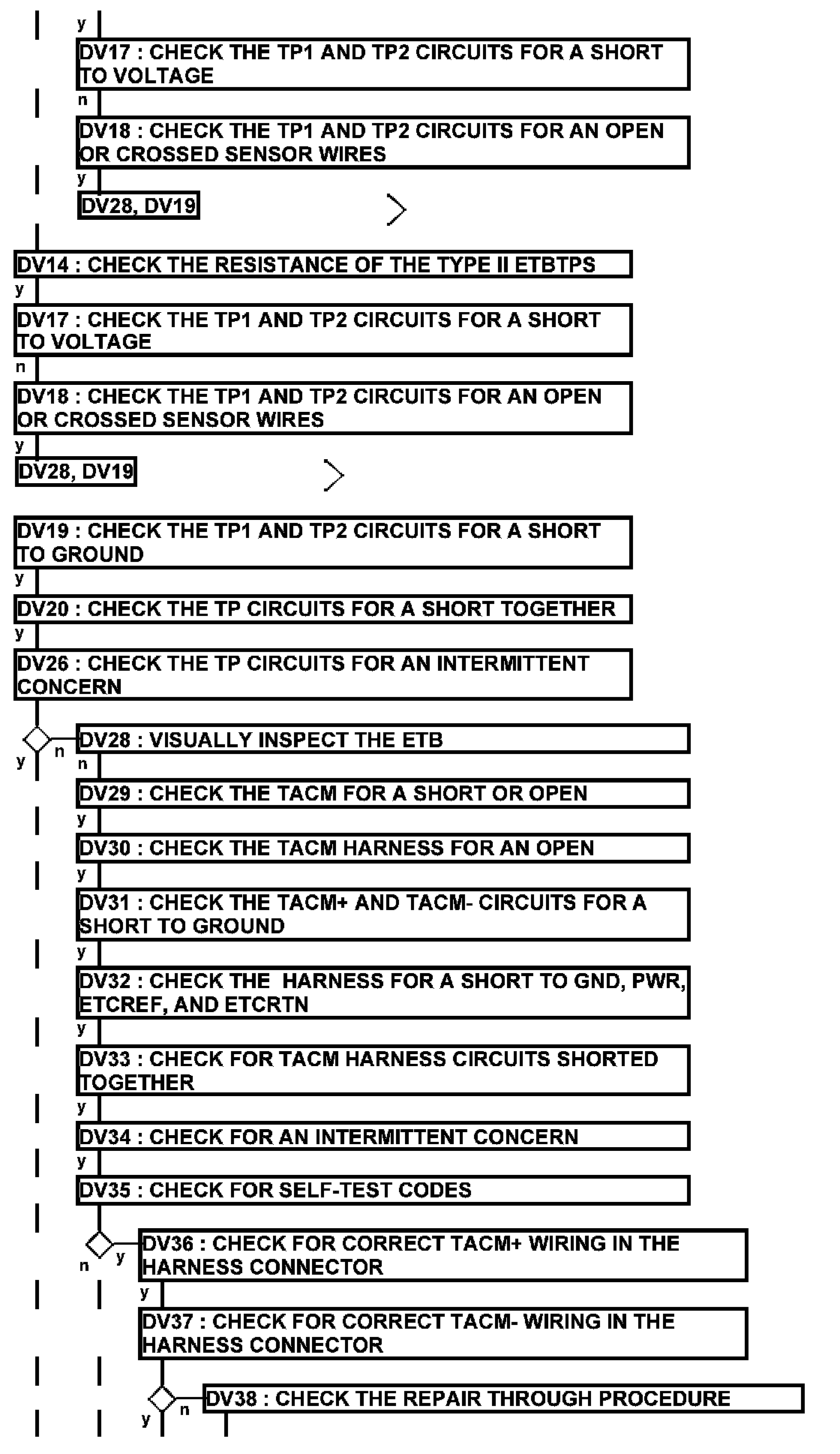

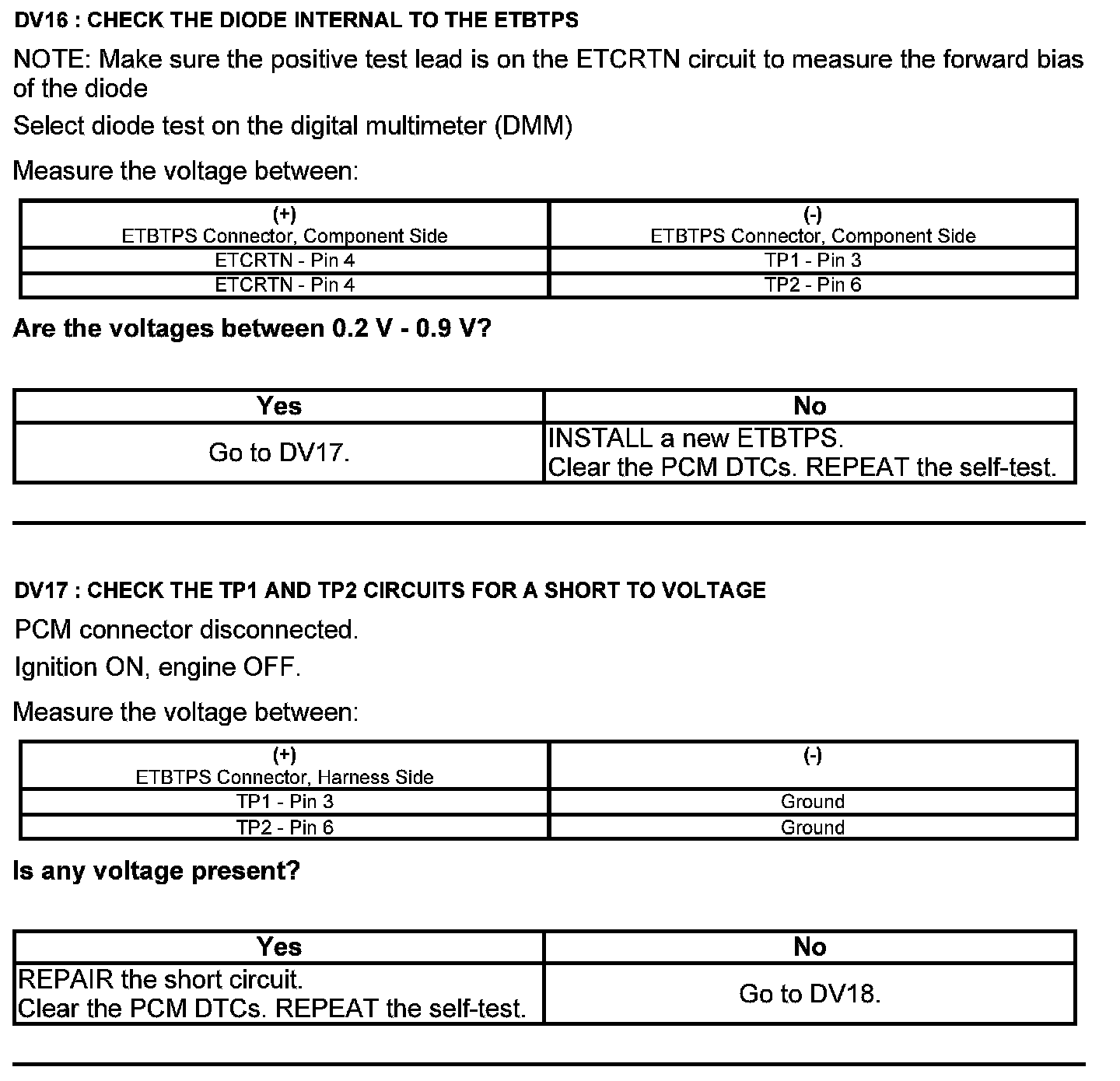

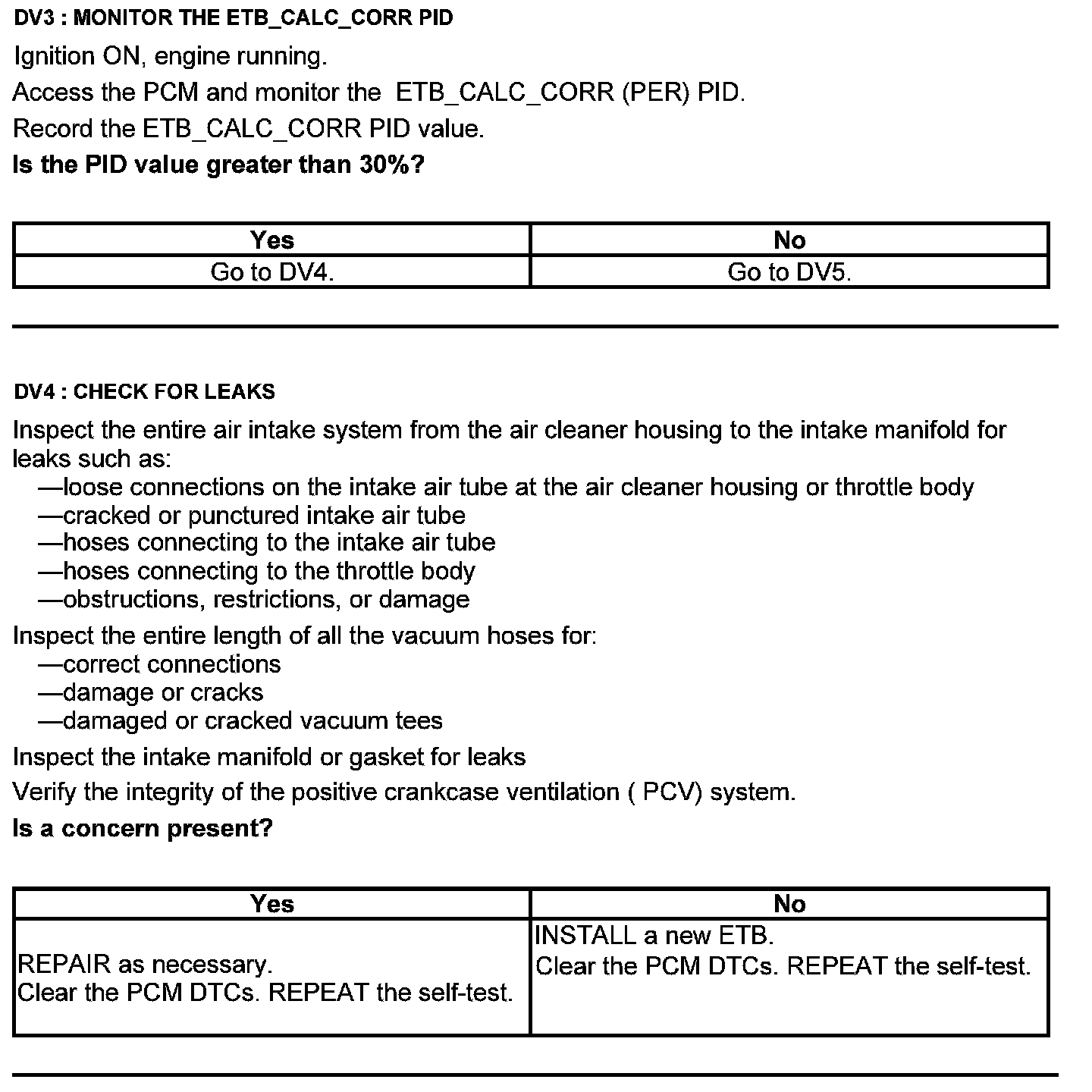

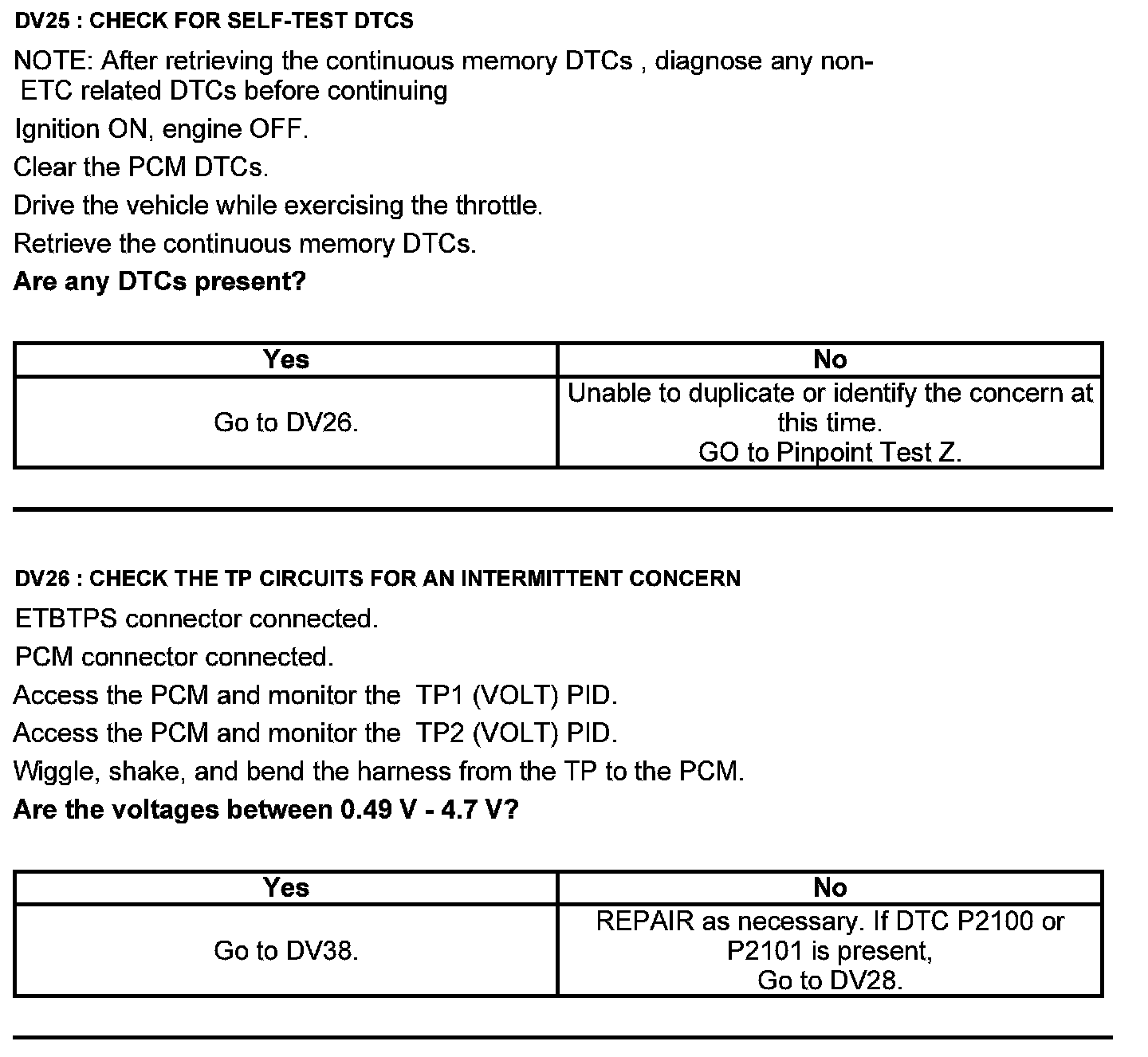

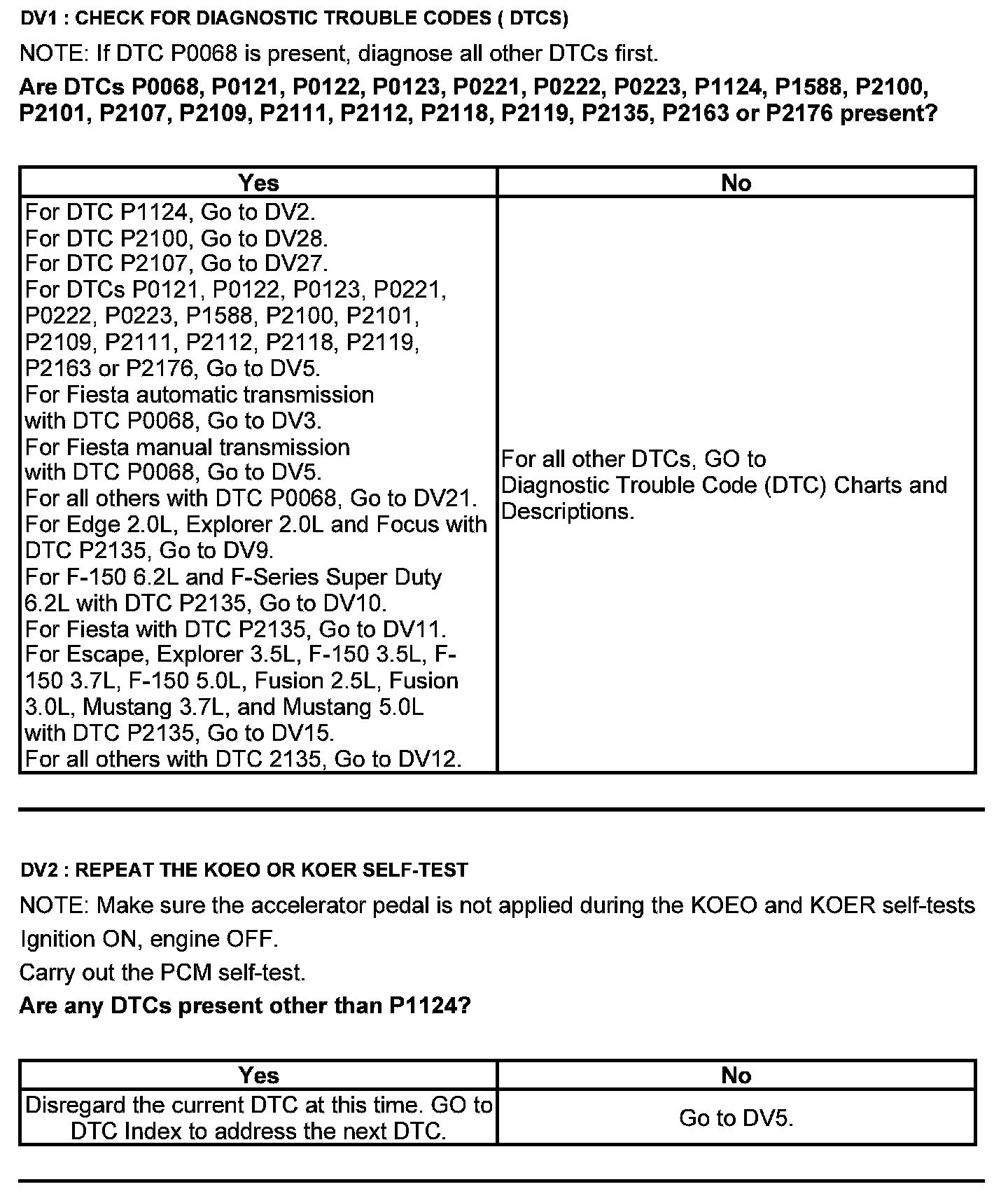

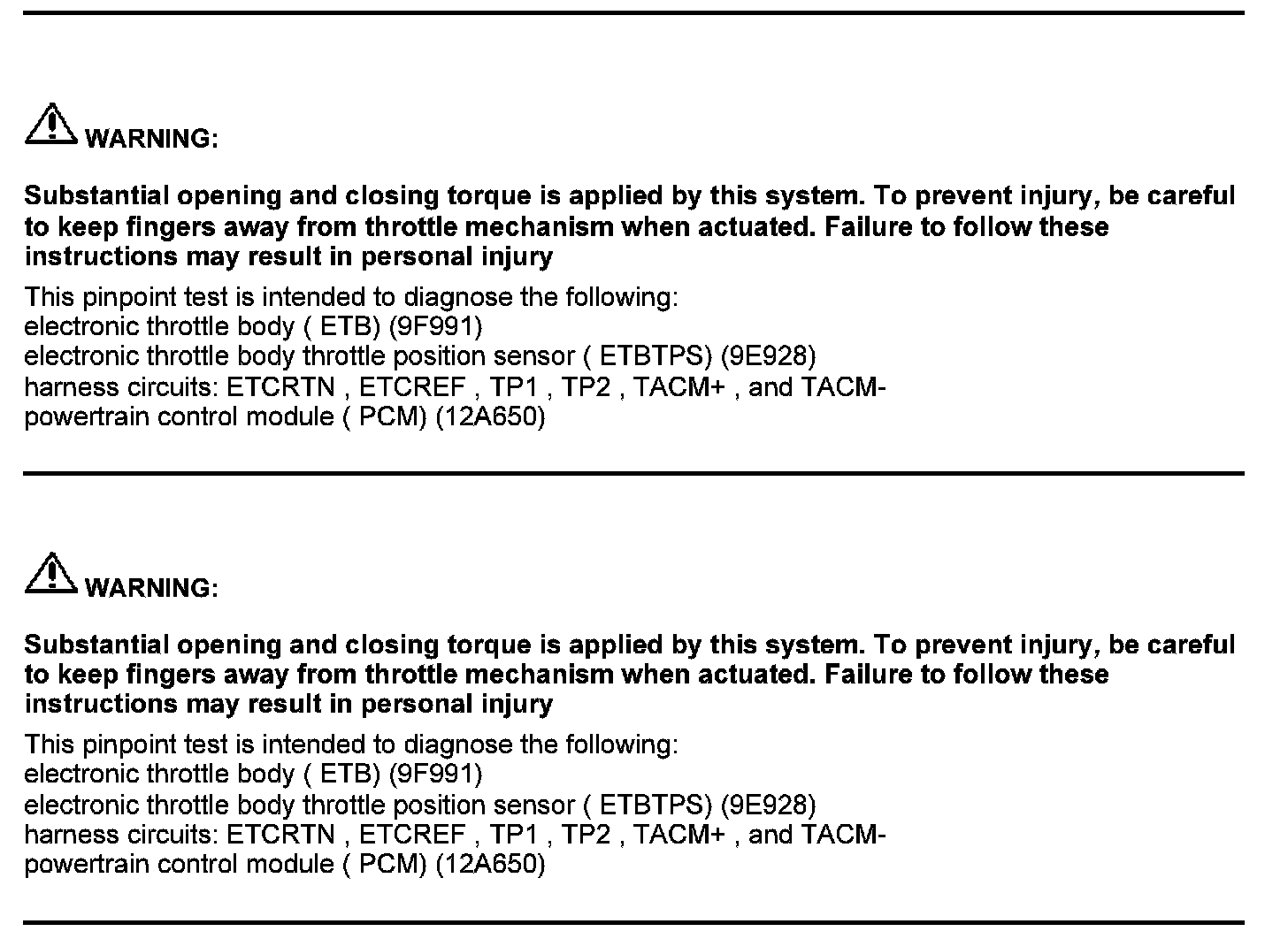

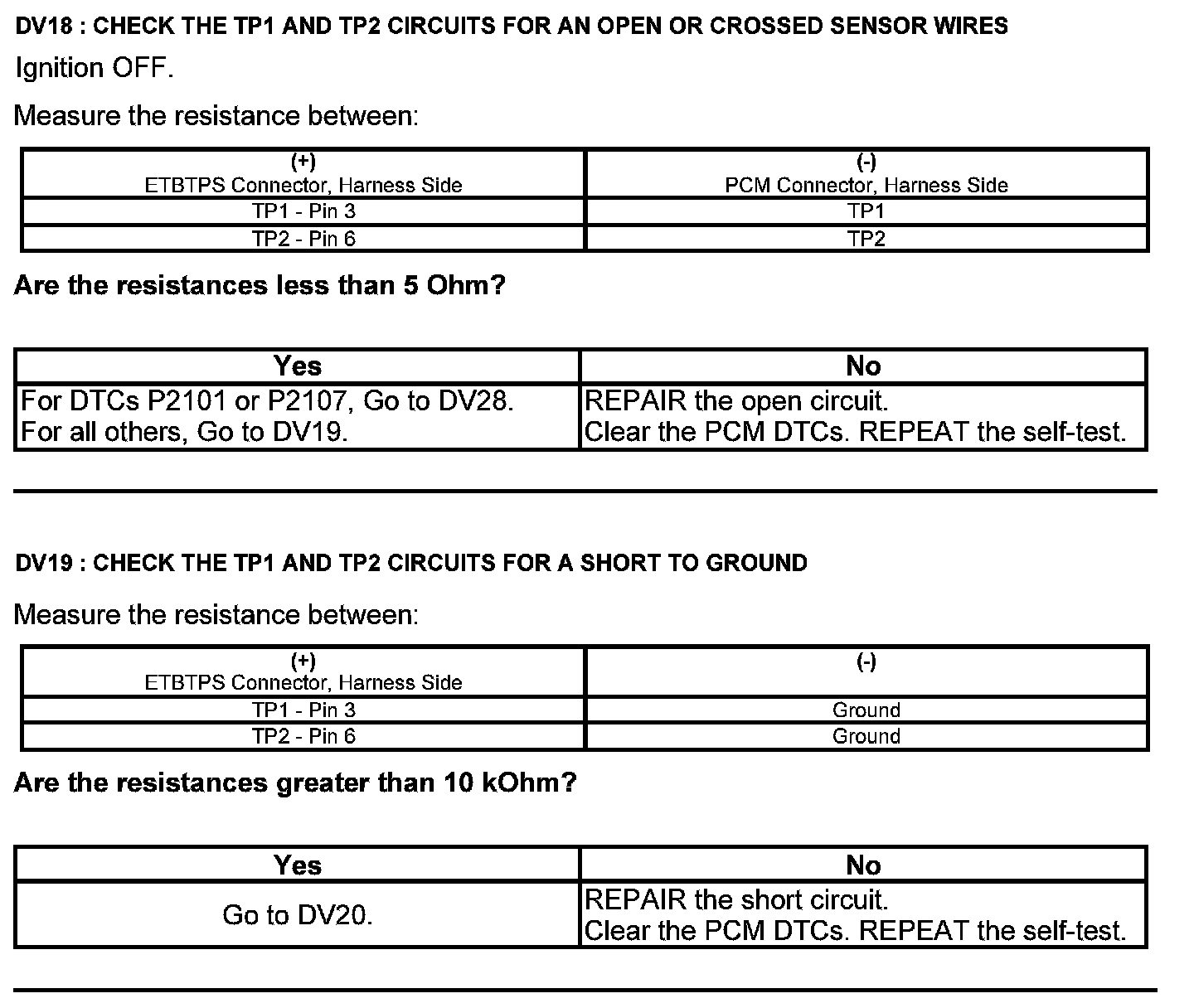

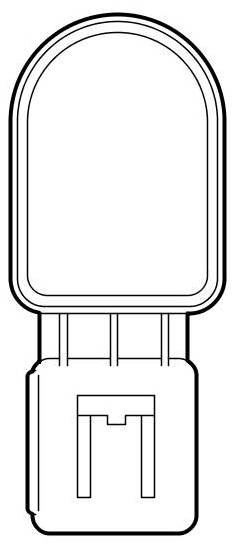

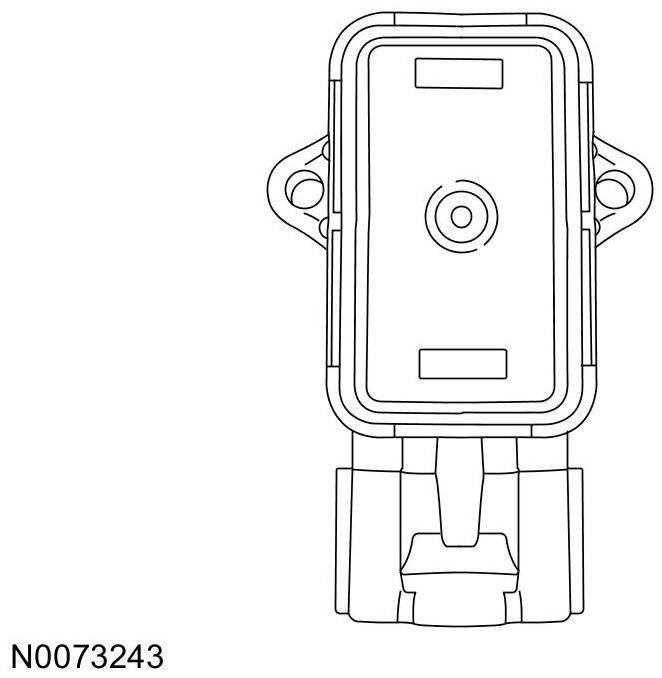

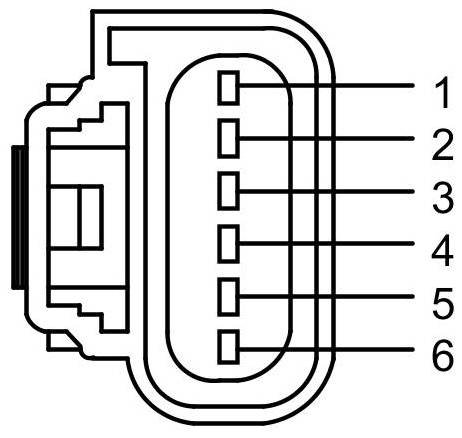

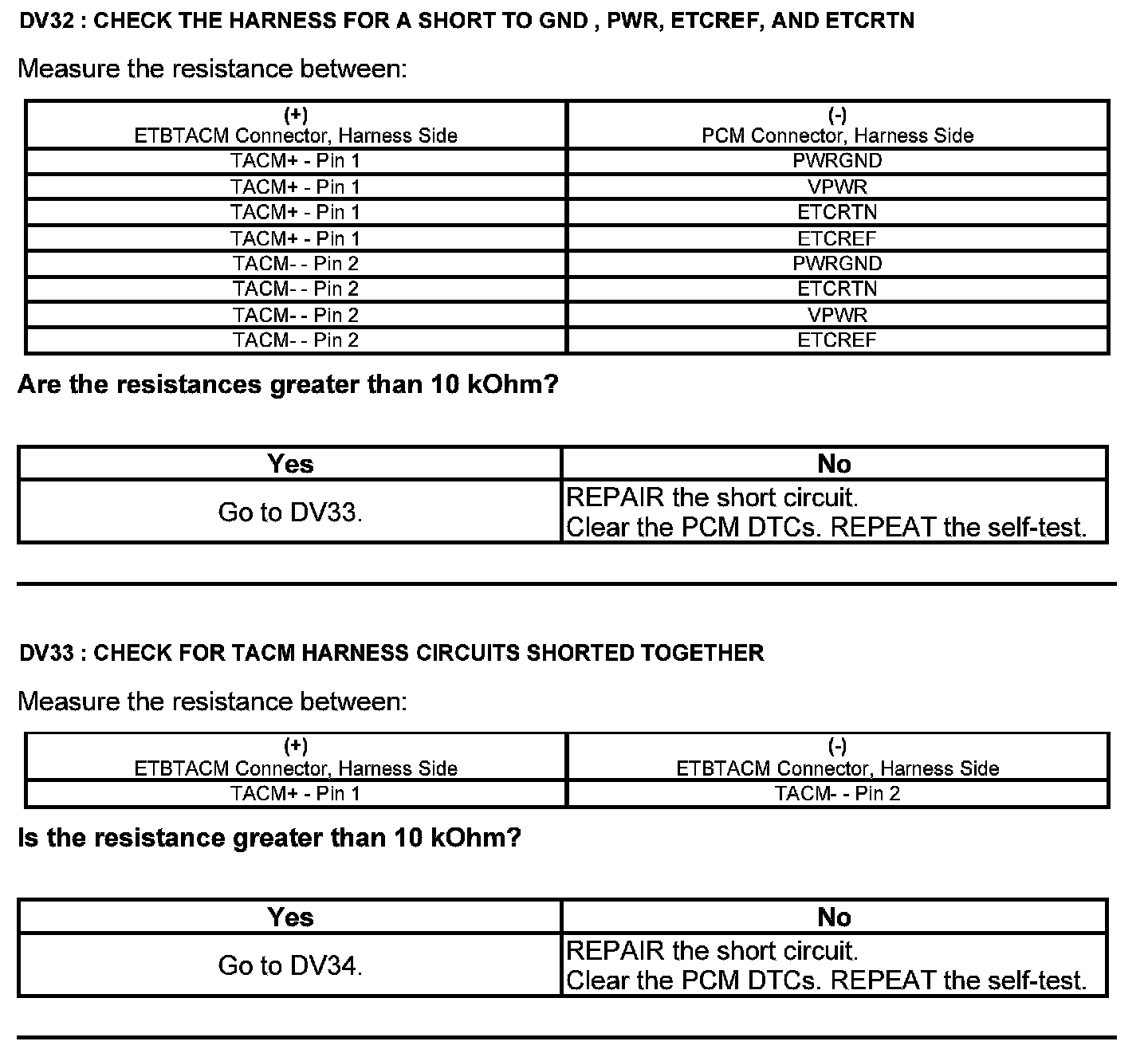

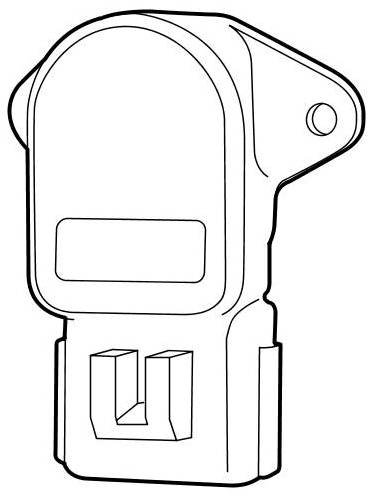

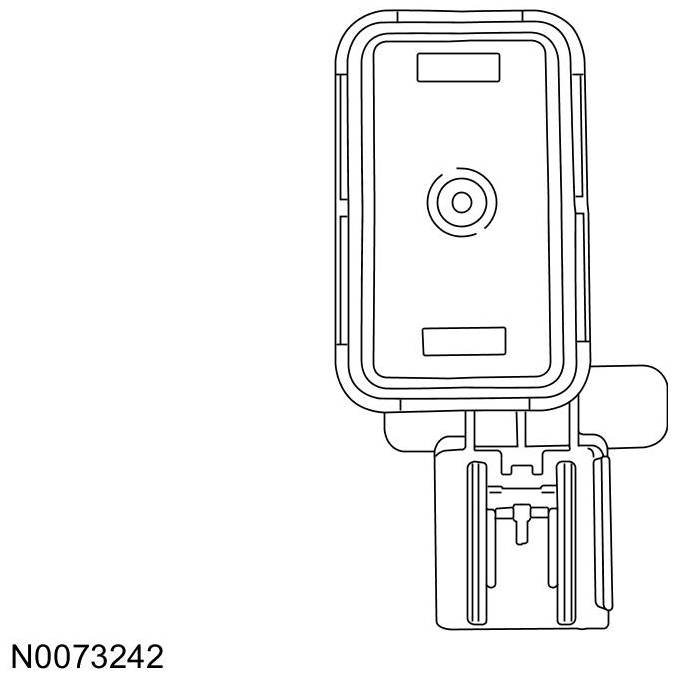

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector





Harness Side

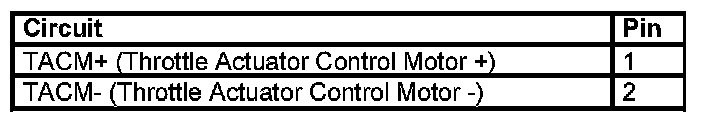

Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector





Harness Side
