Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DT: Power Steering Pressure (PSP) Sensor >> All Others

All Others

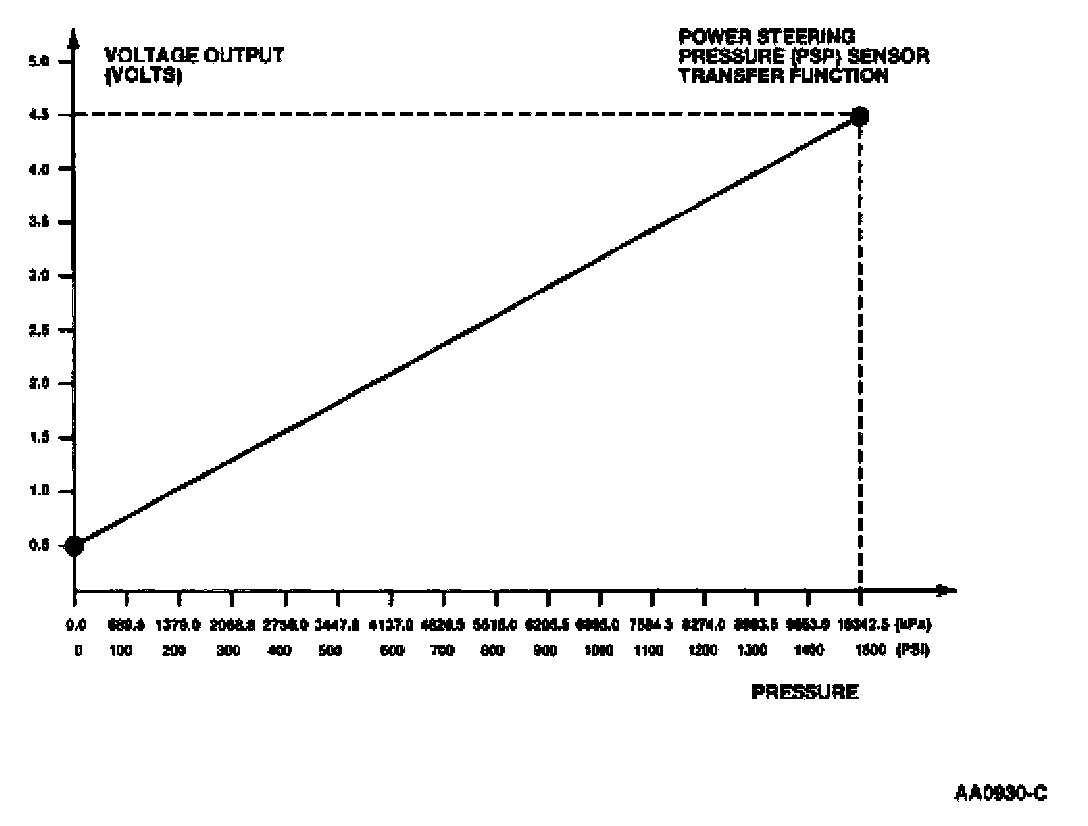

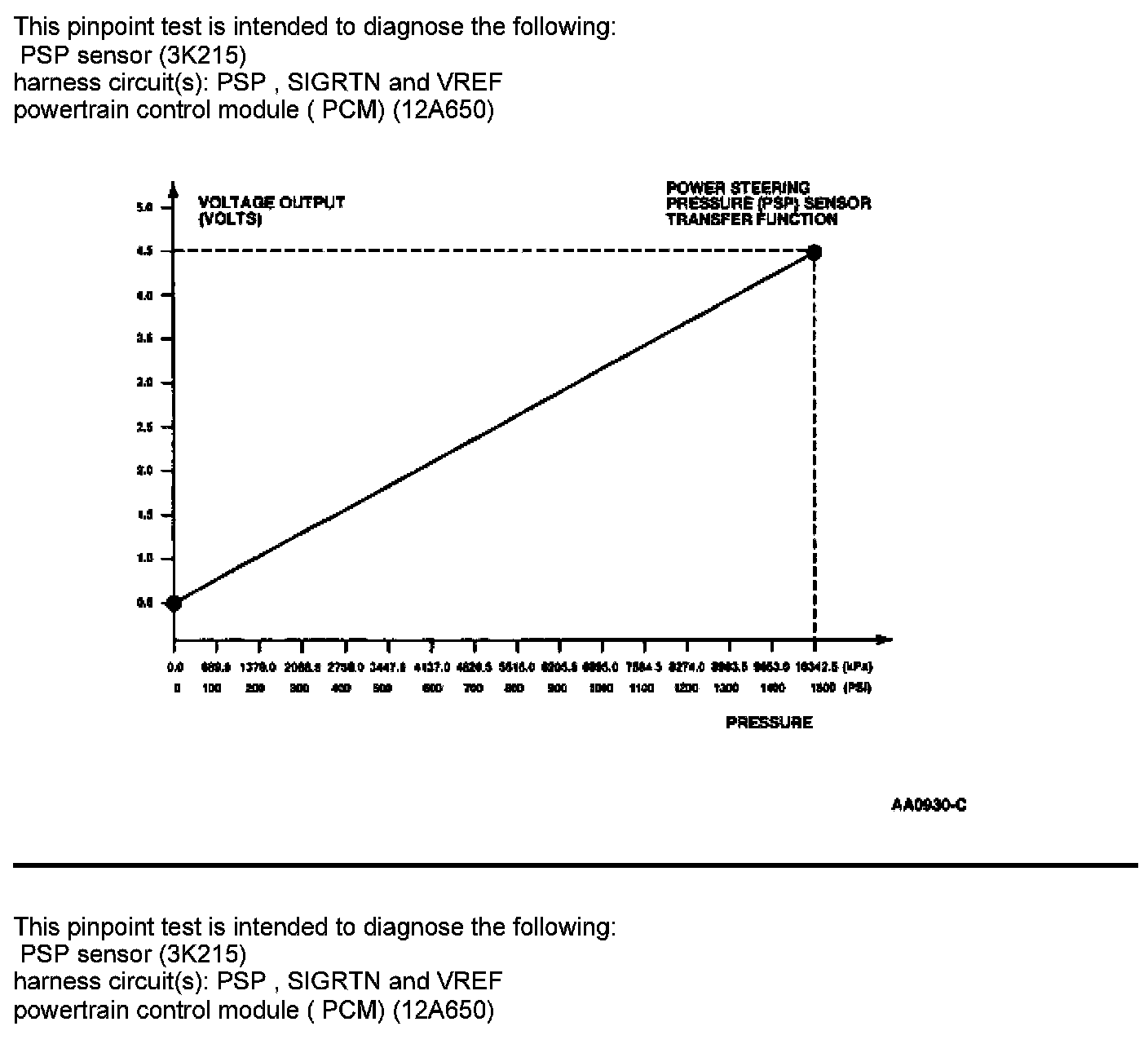

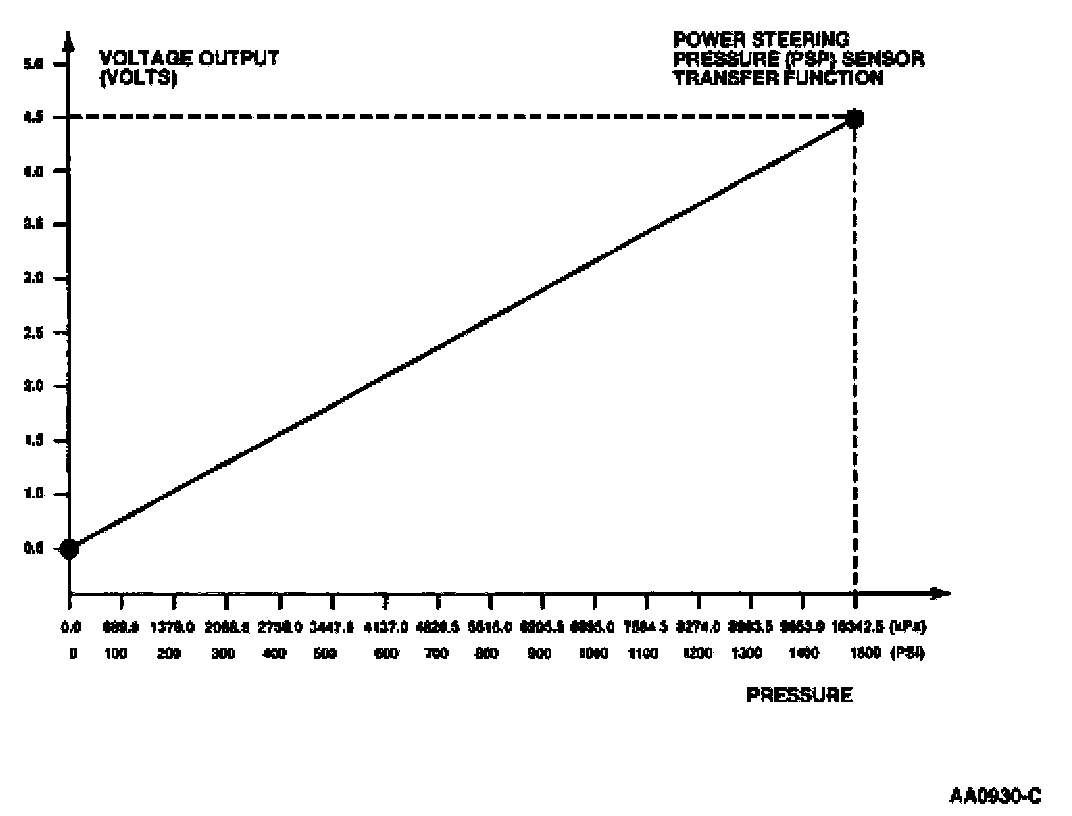

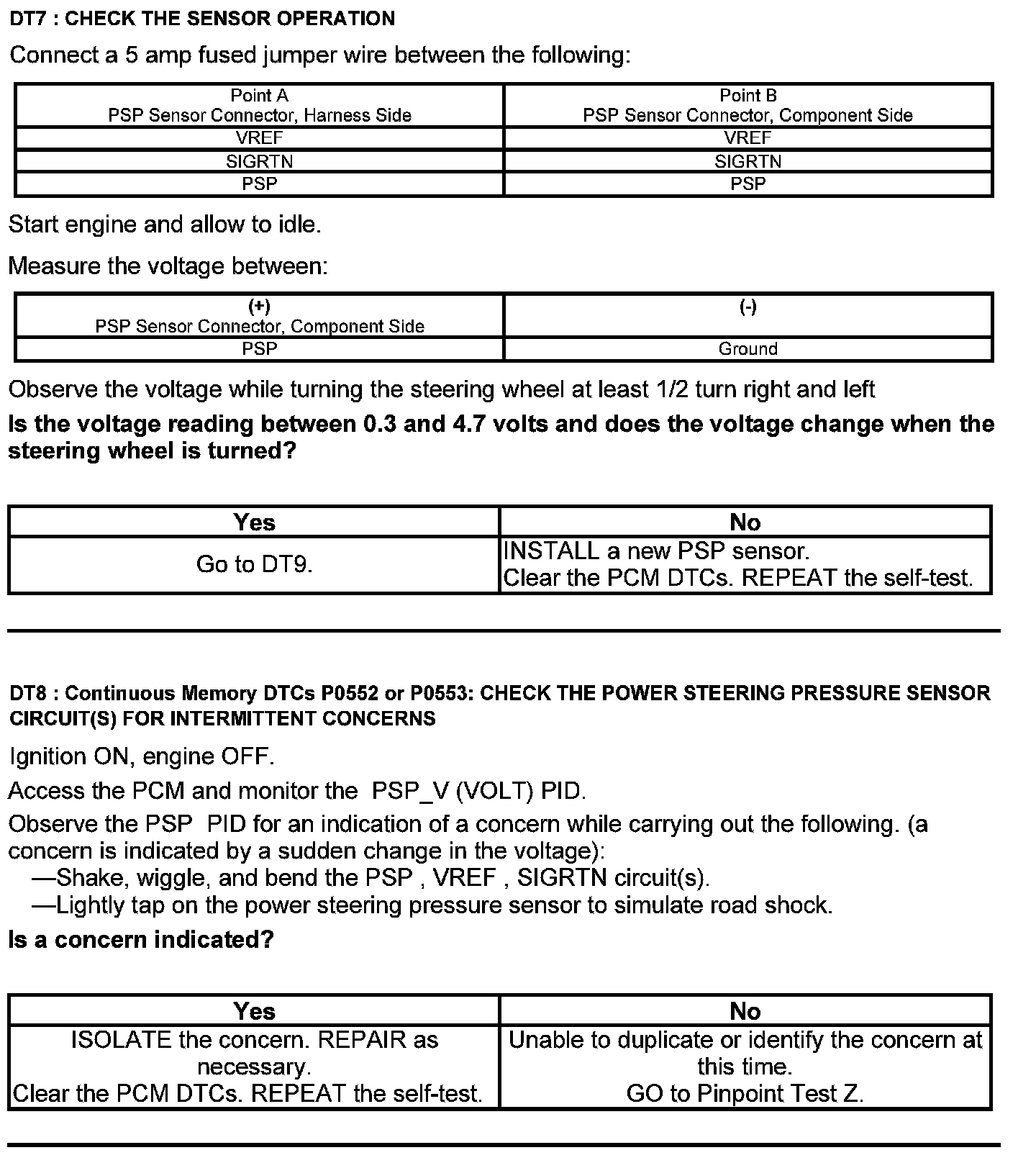

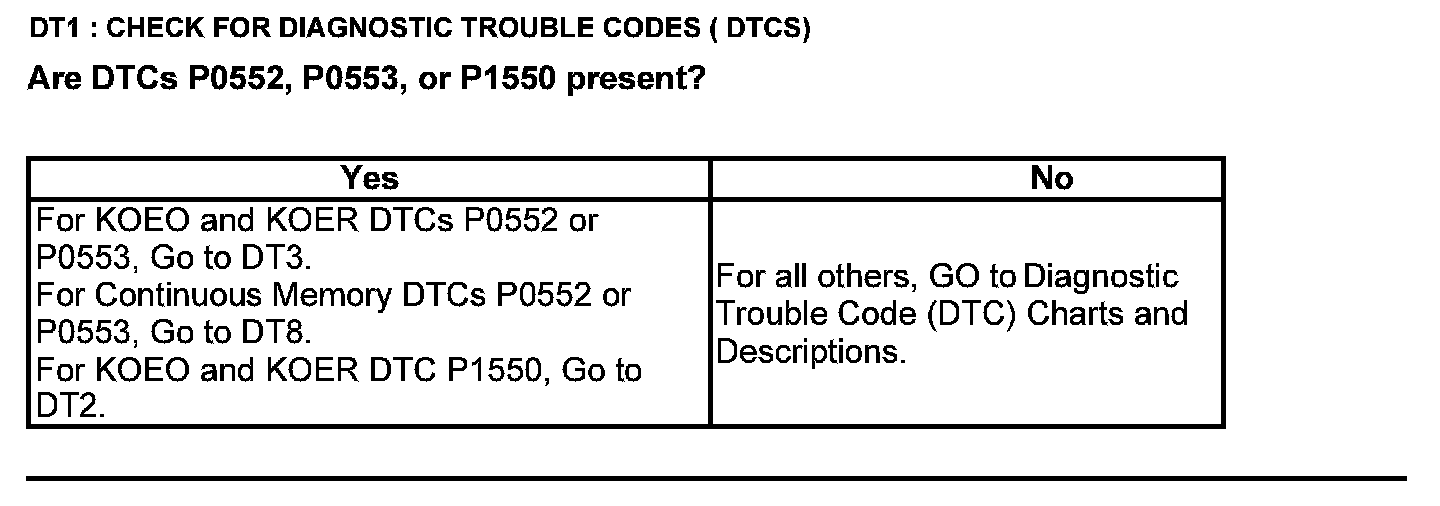

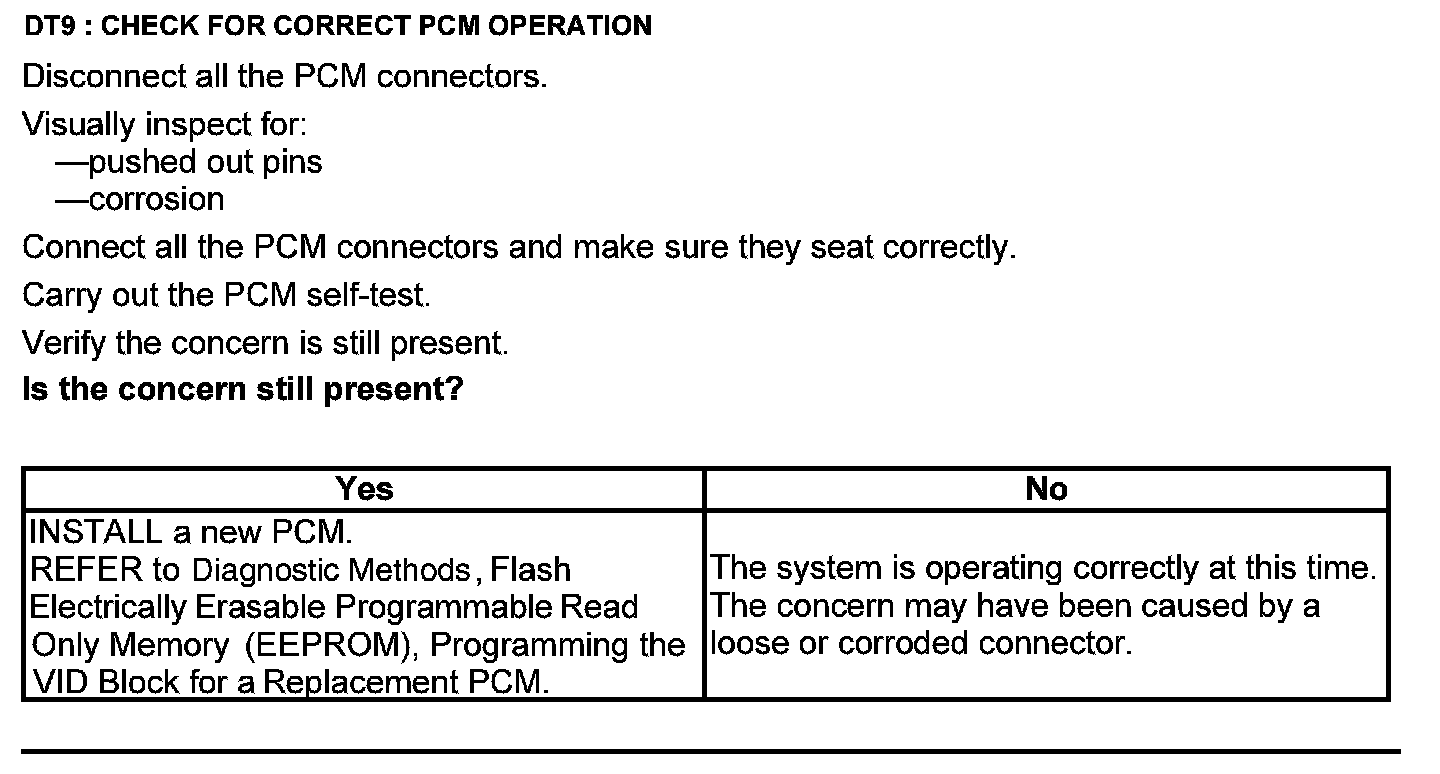

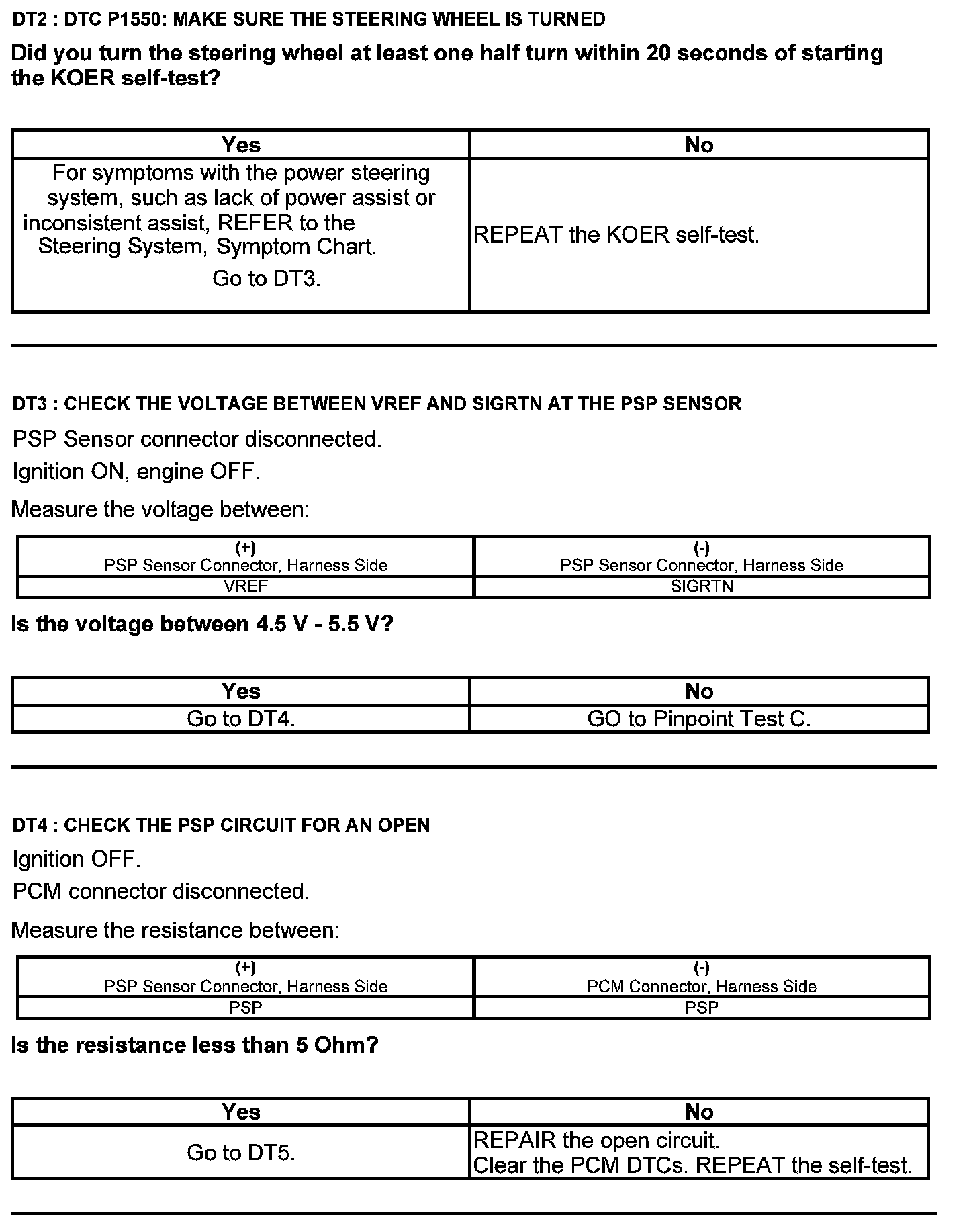

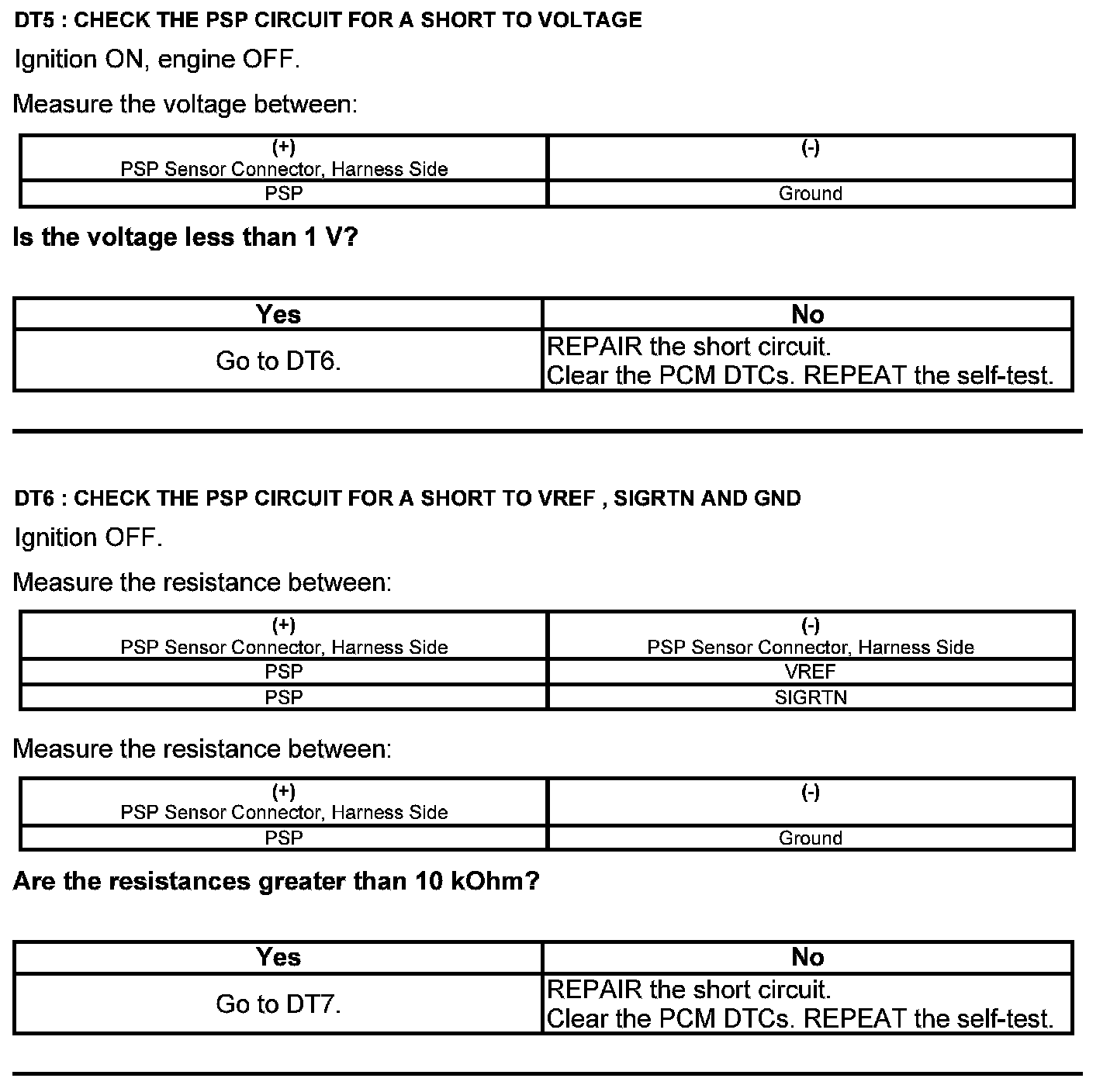

Power Steering Pressure (PSP) Sensor - All Others
