Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DR: Camshaft Position (CMP) Sensor >> All Others

All Others

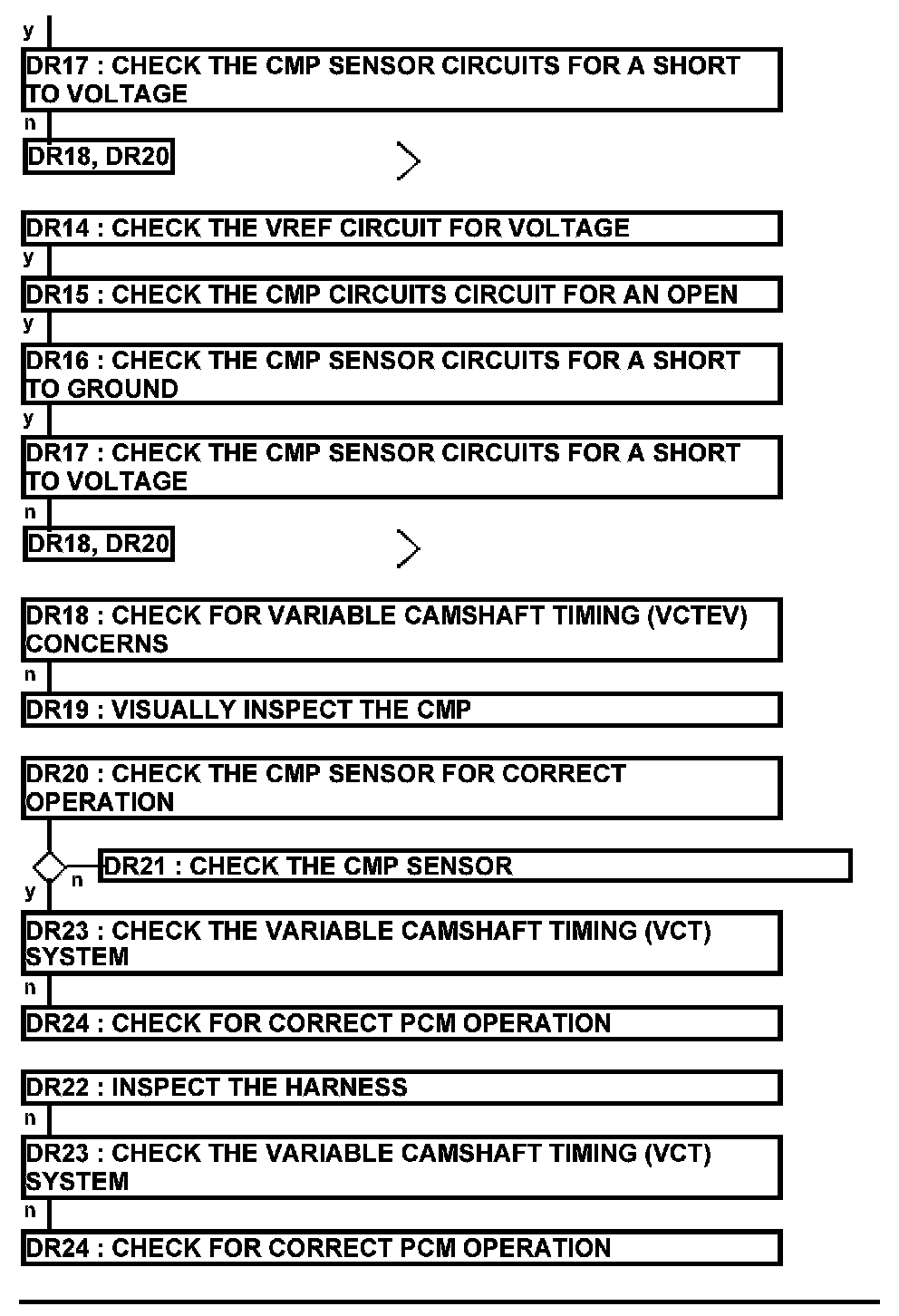

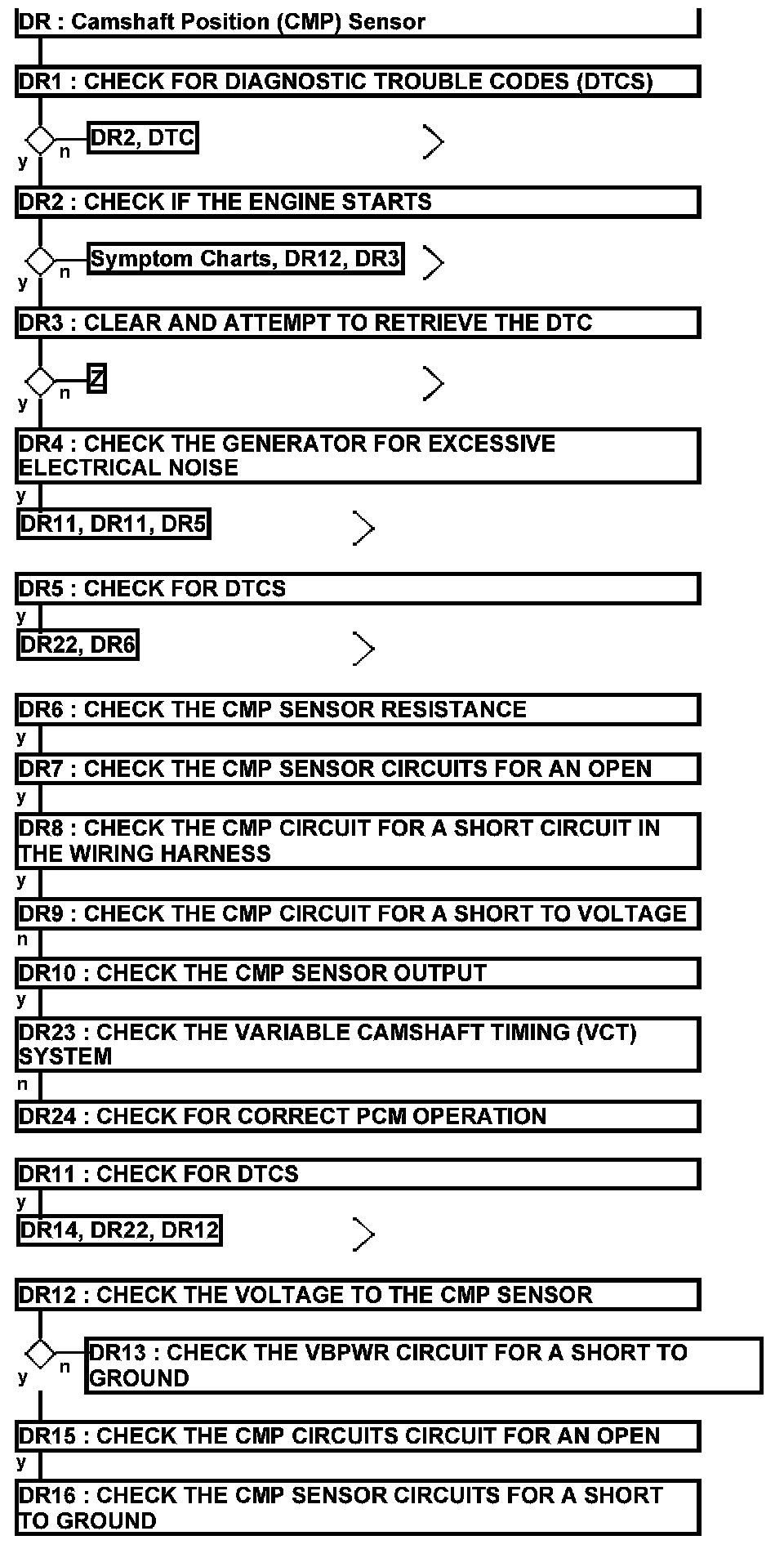

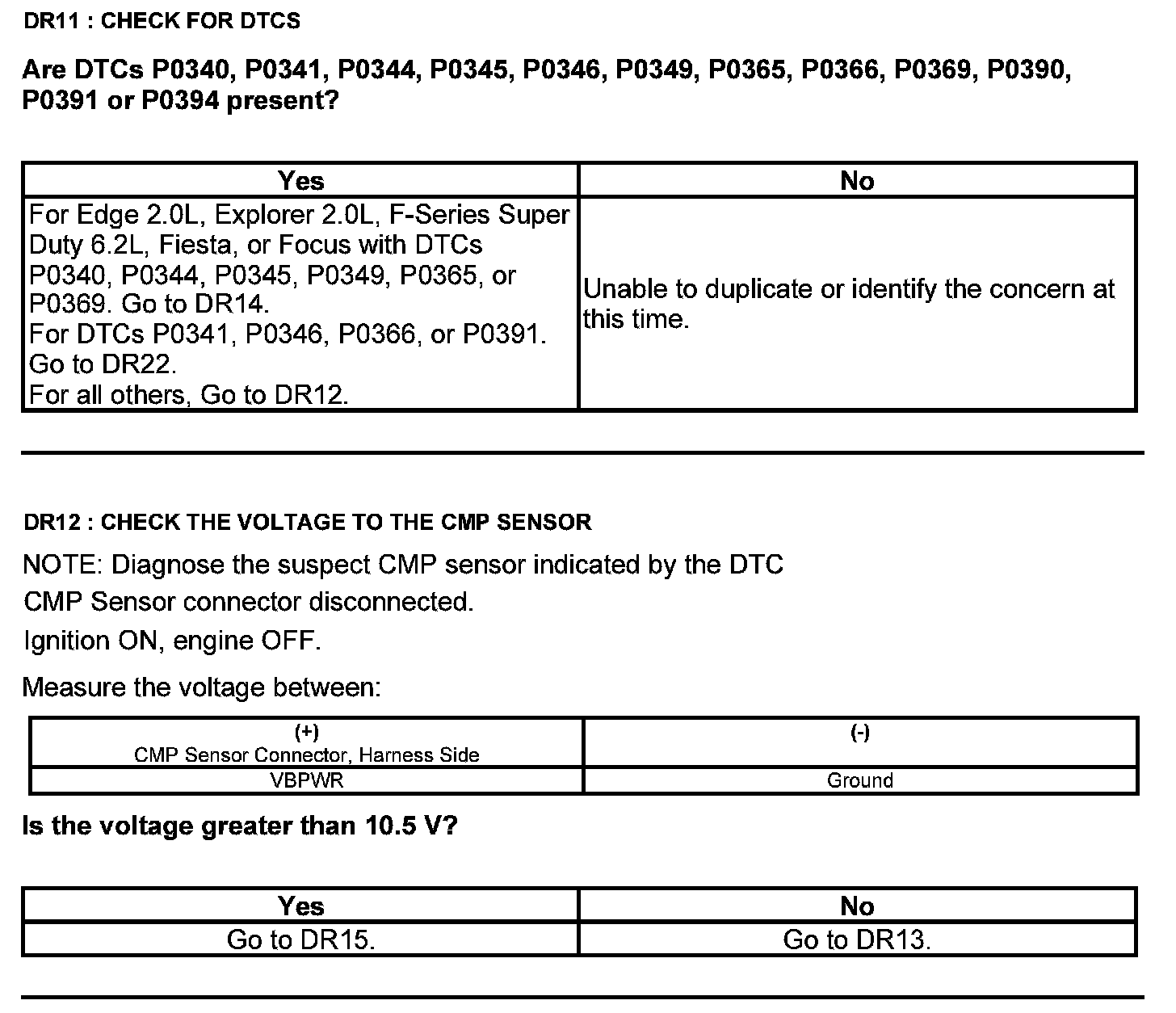

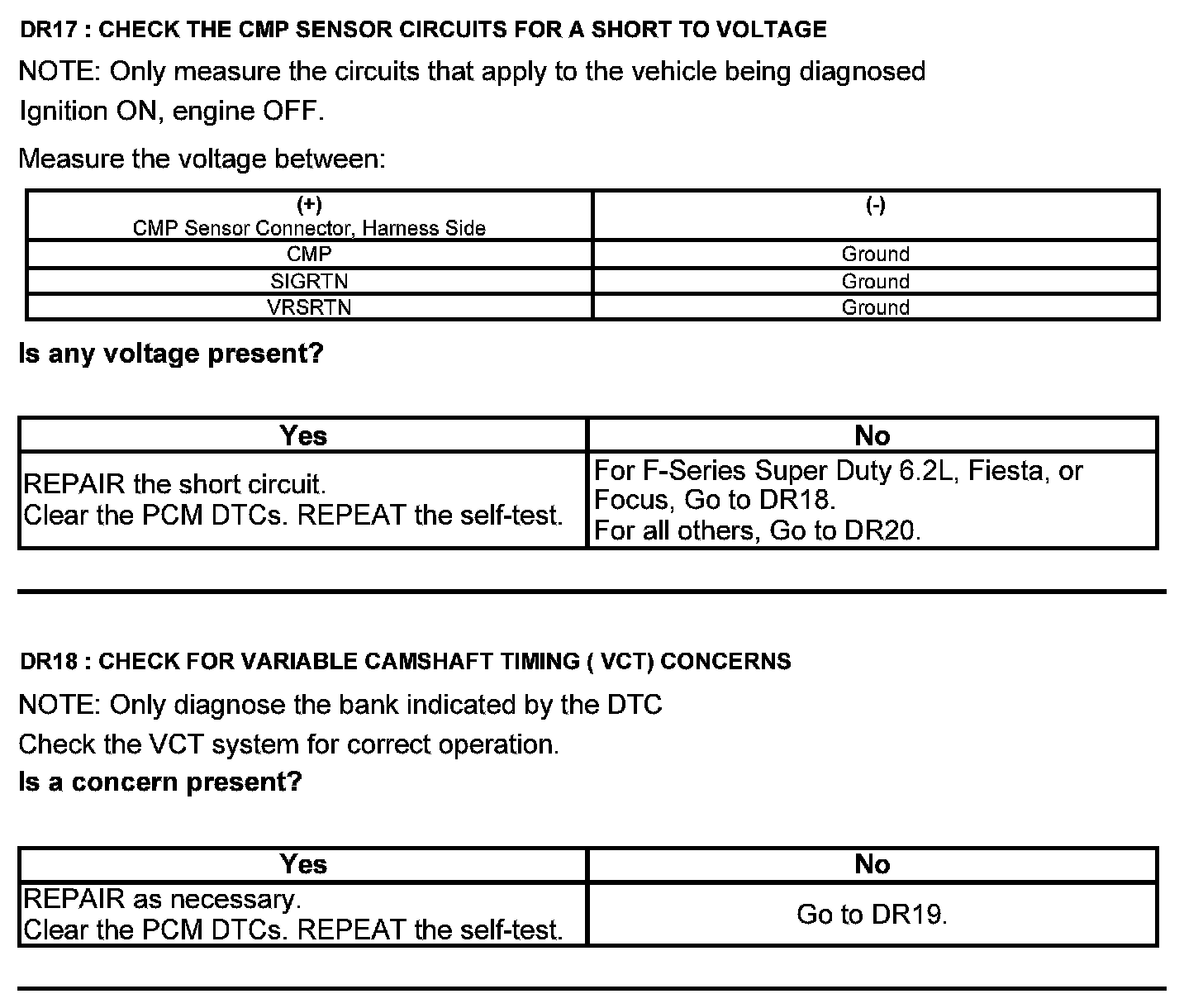

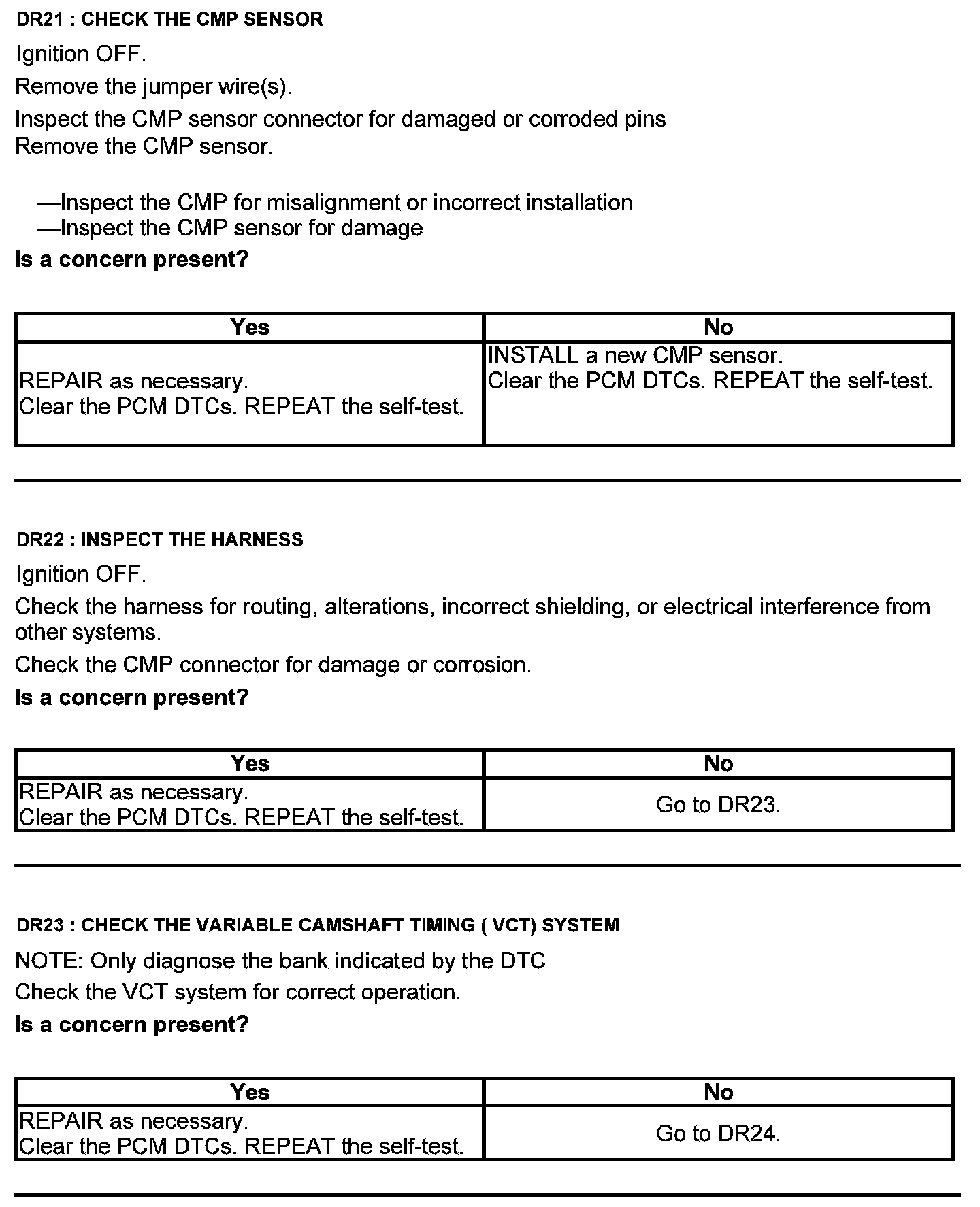

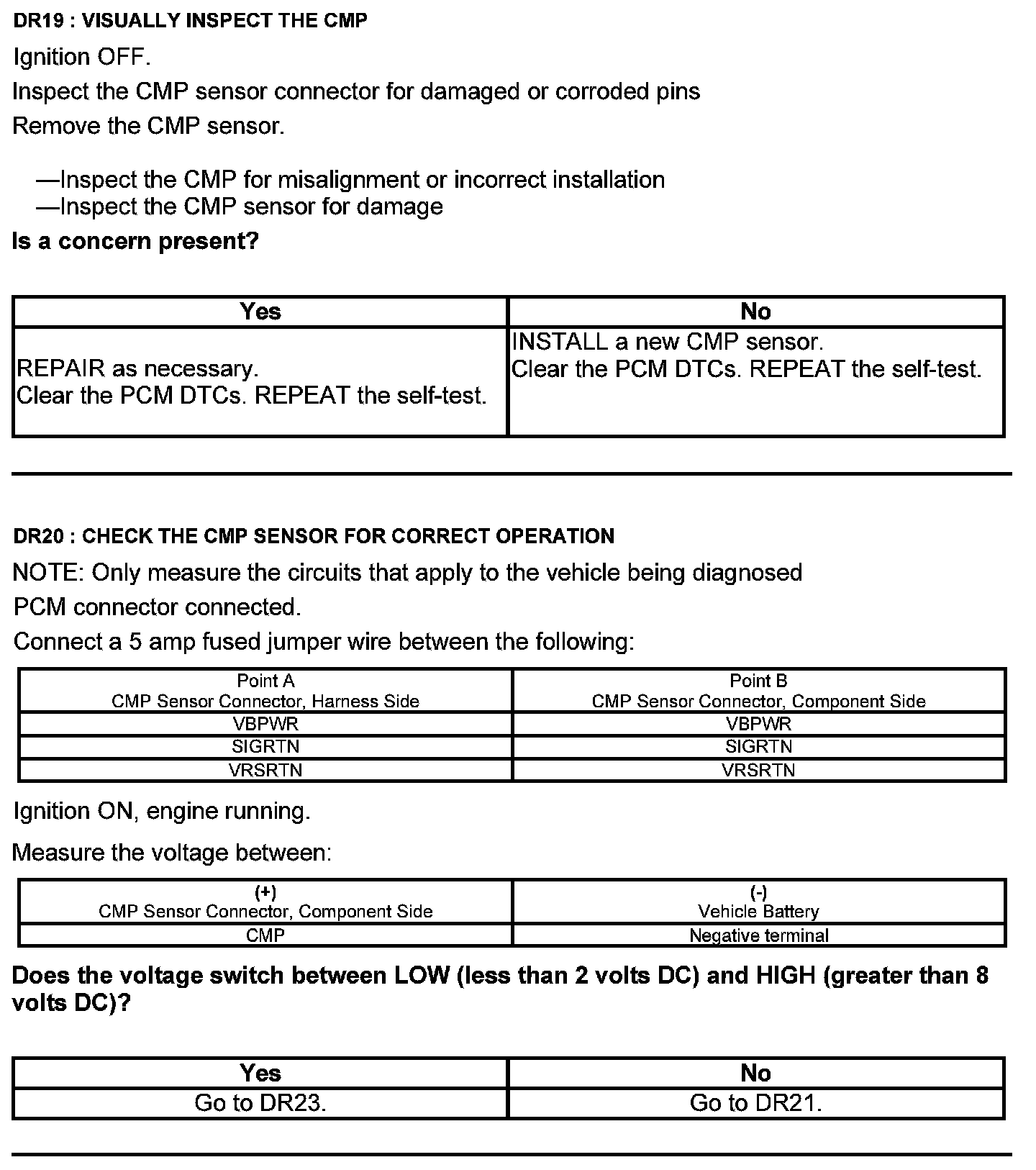

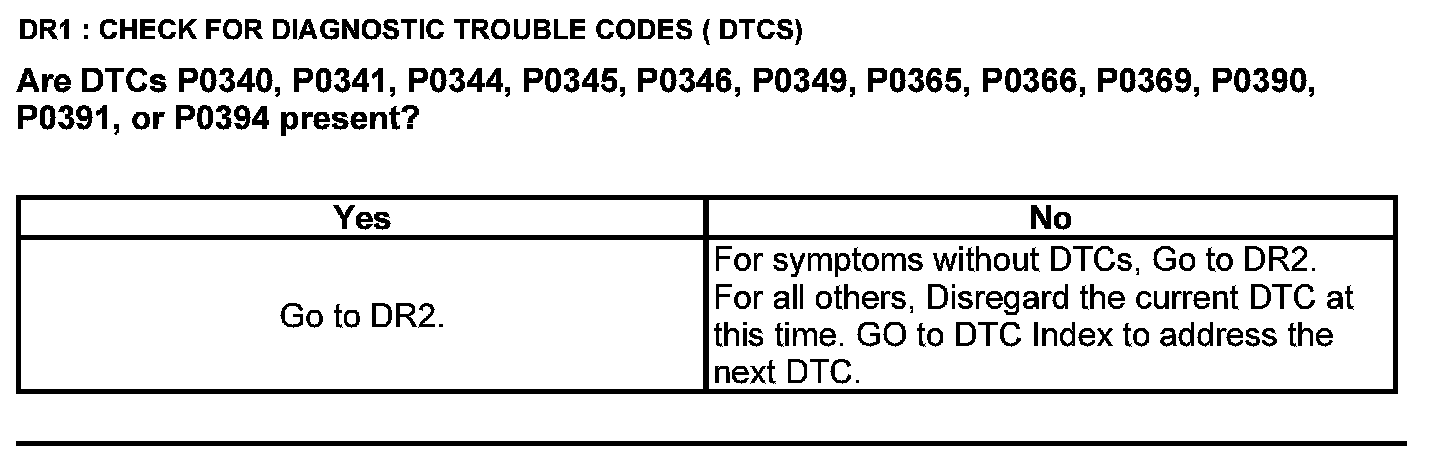

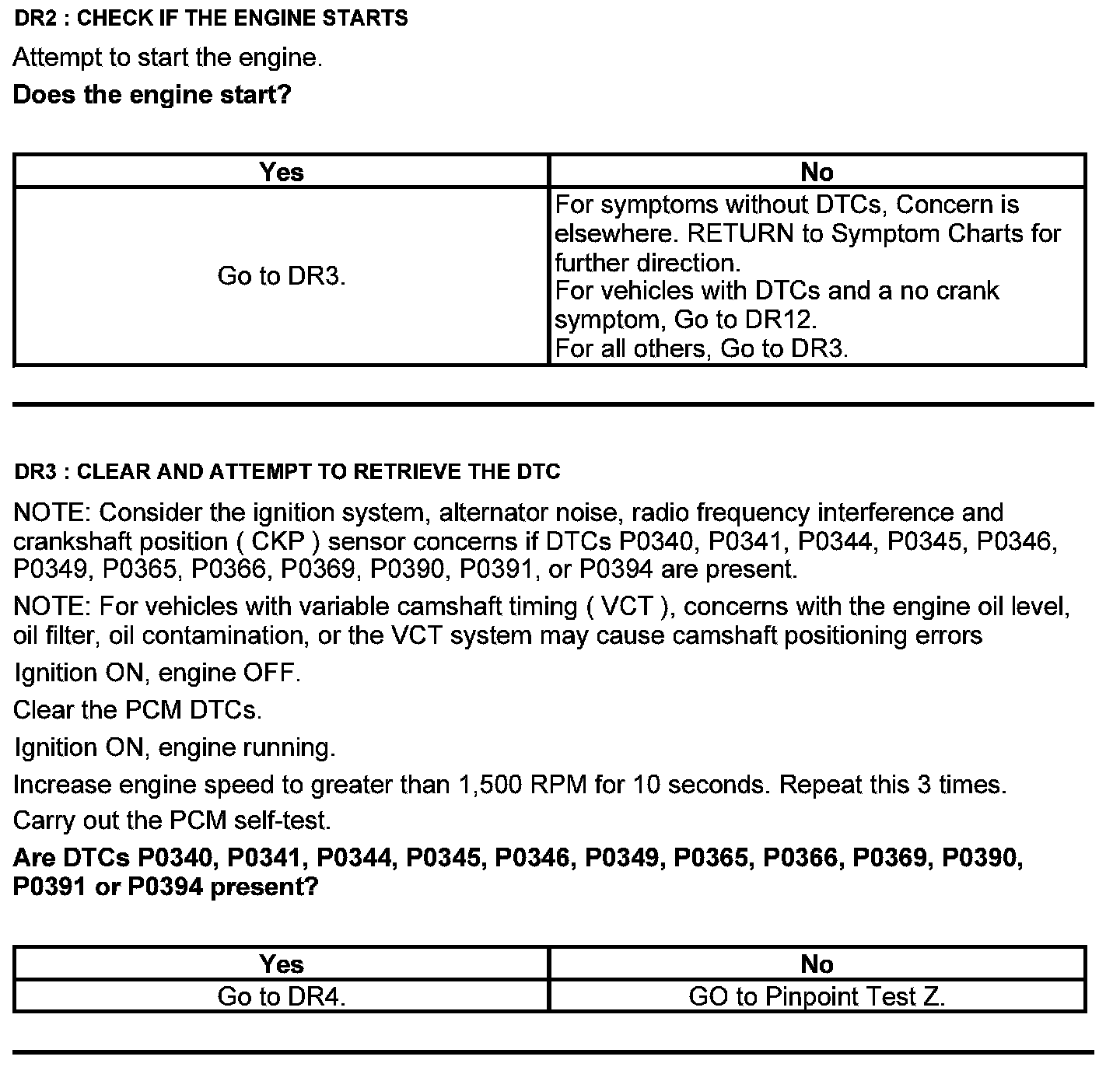

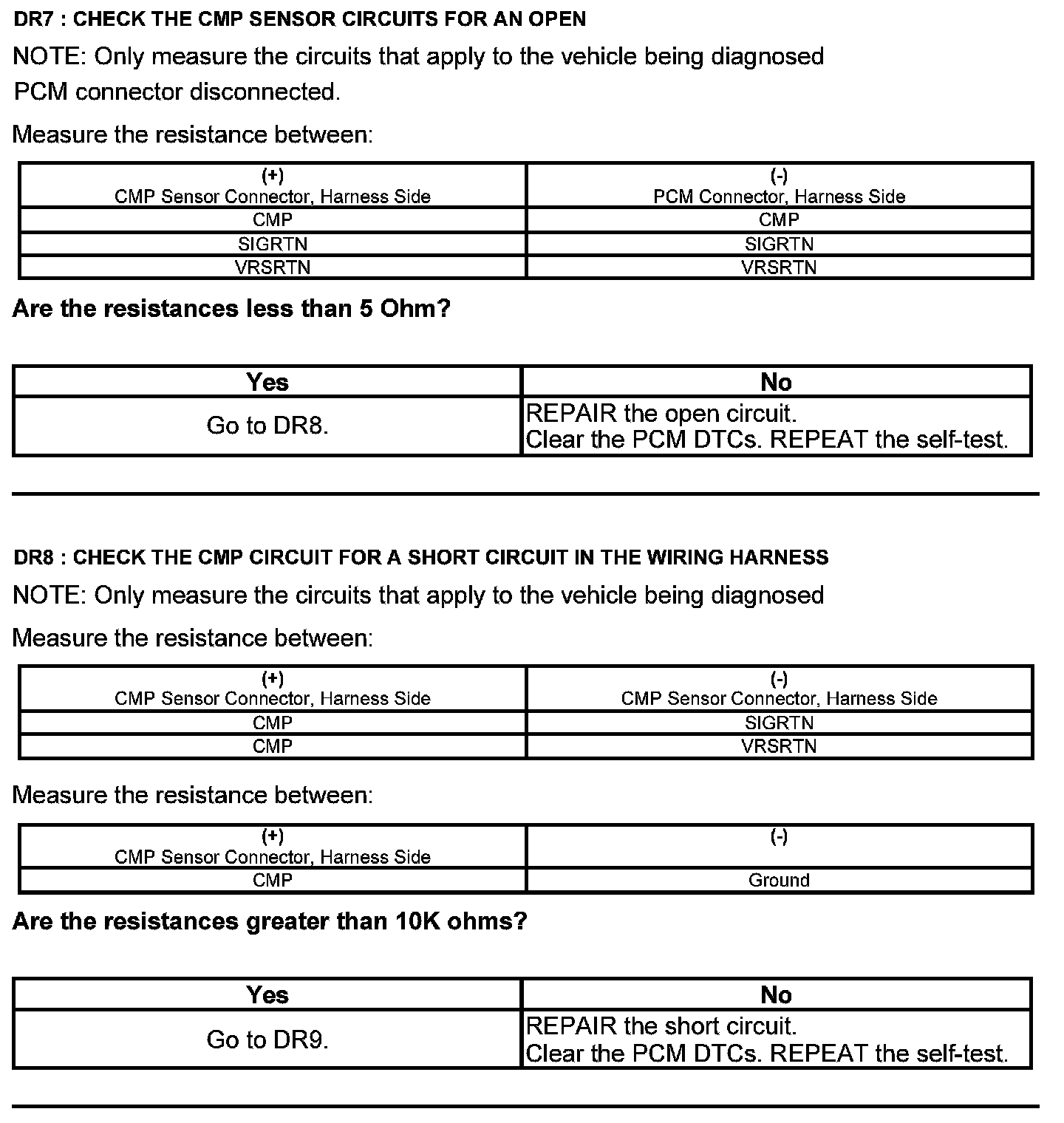

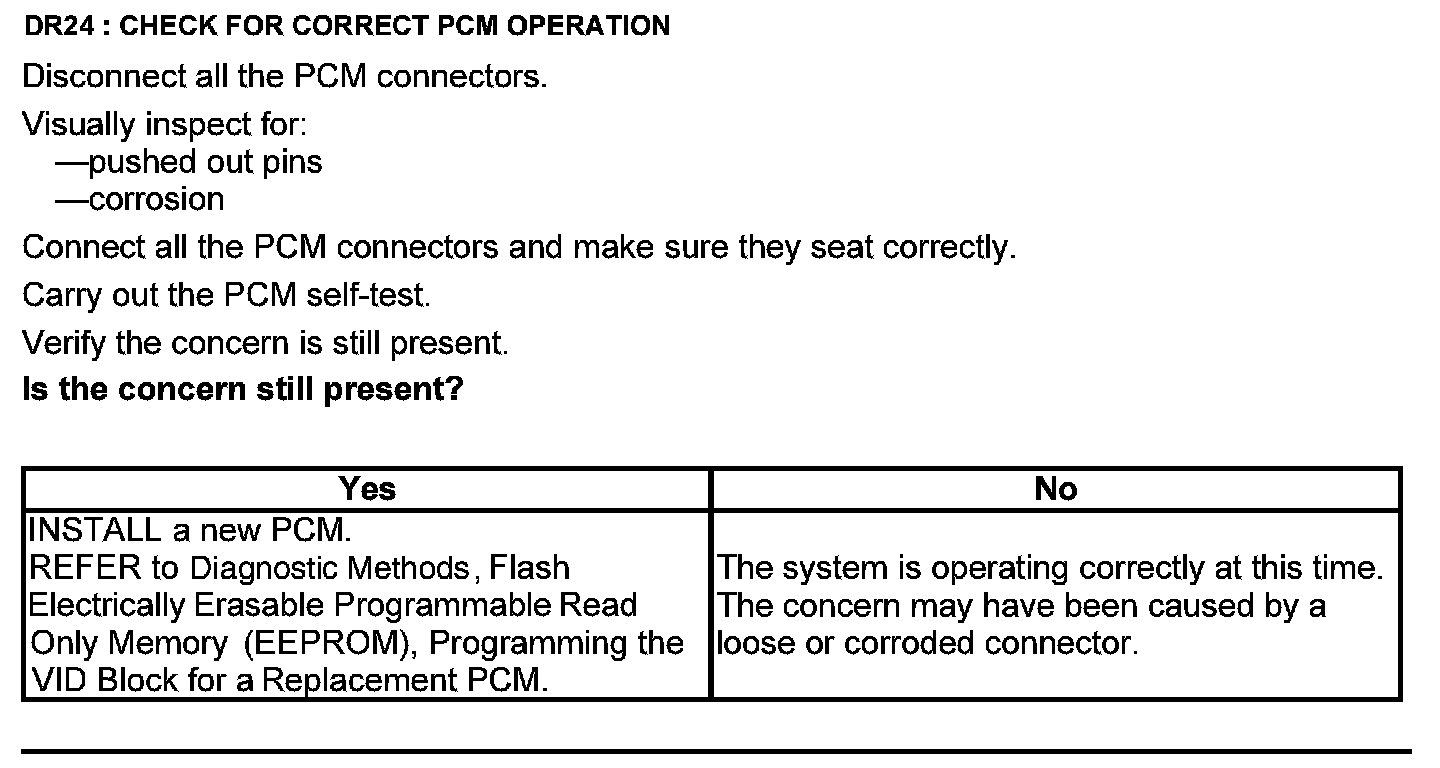

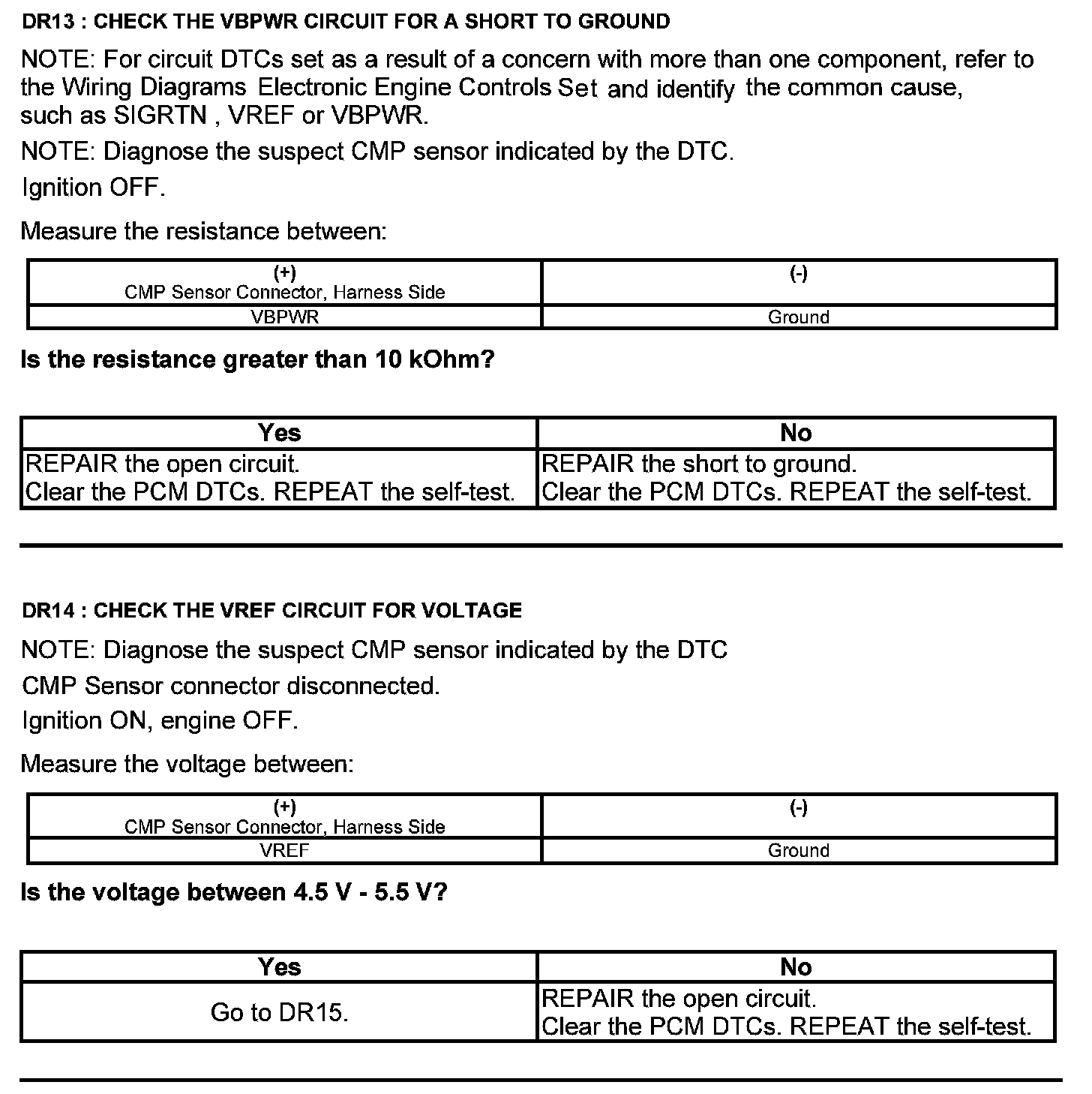

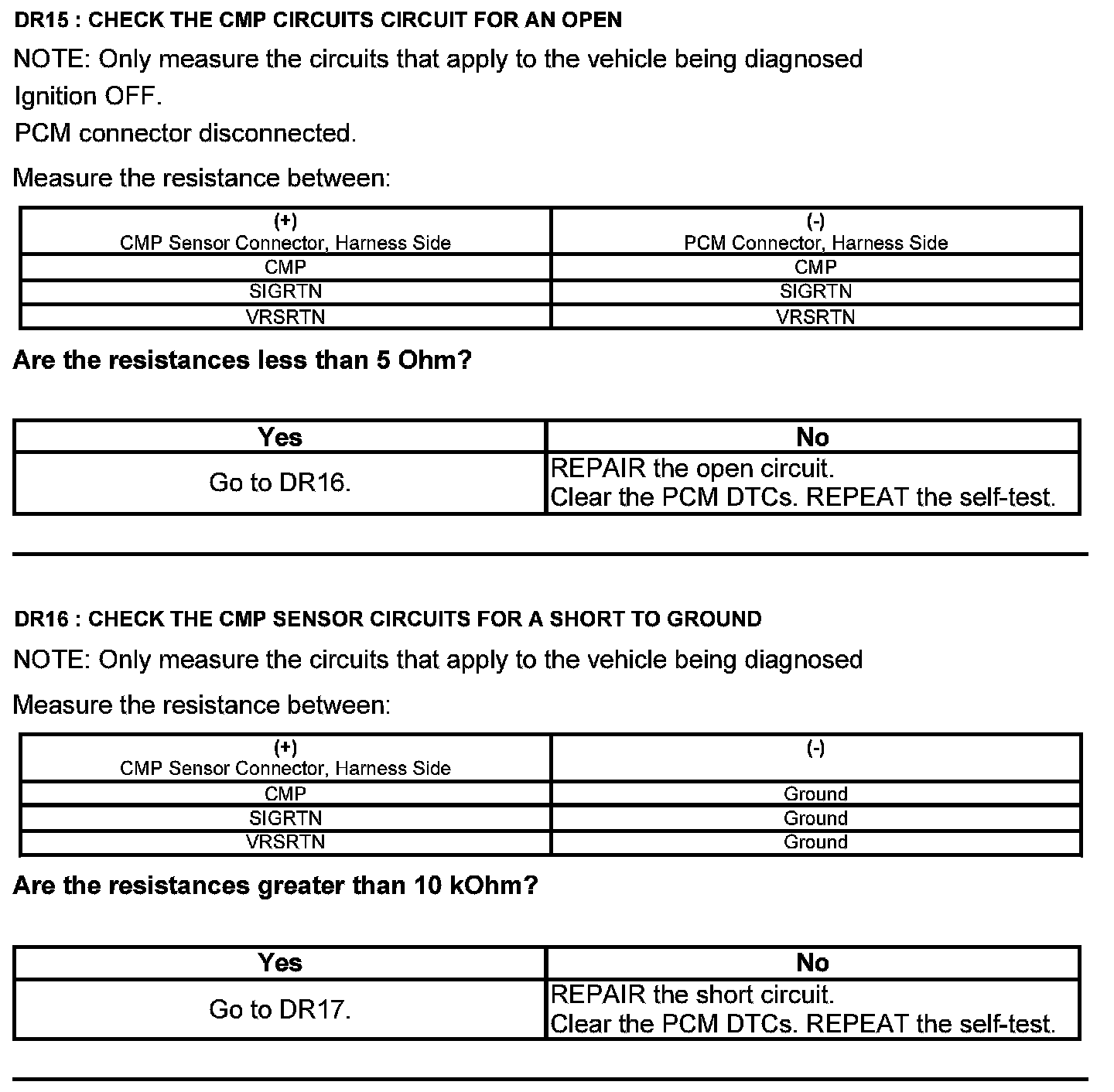

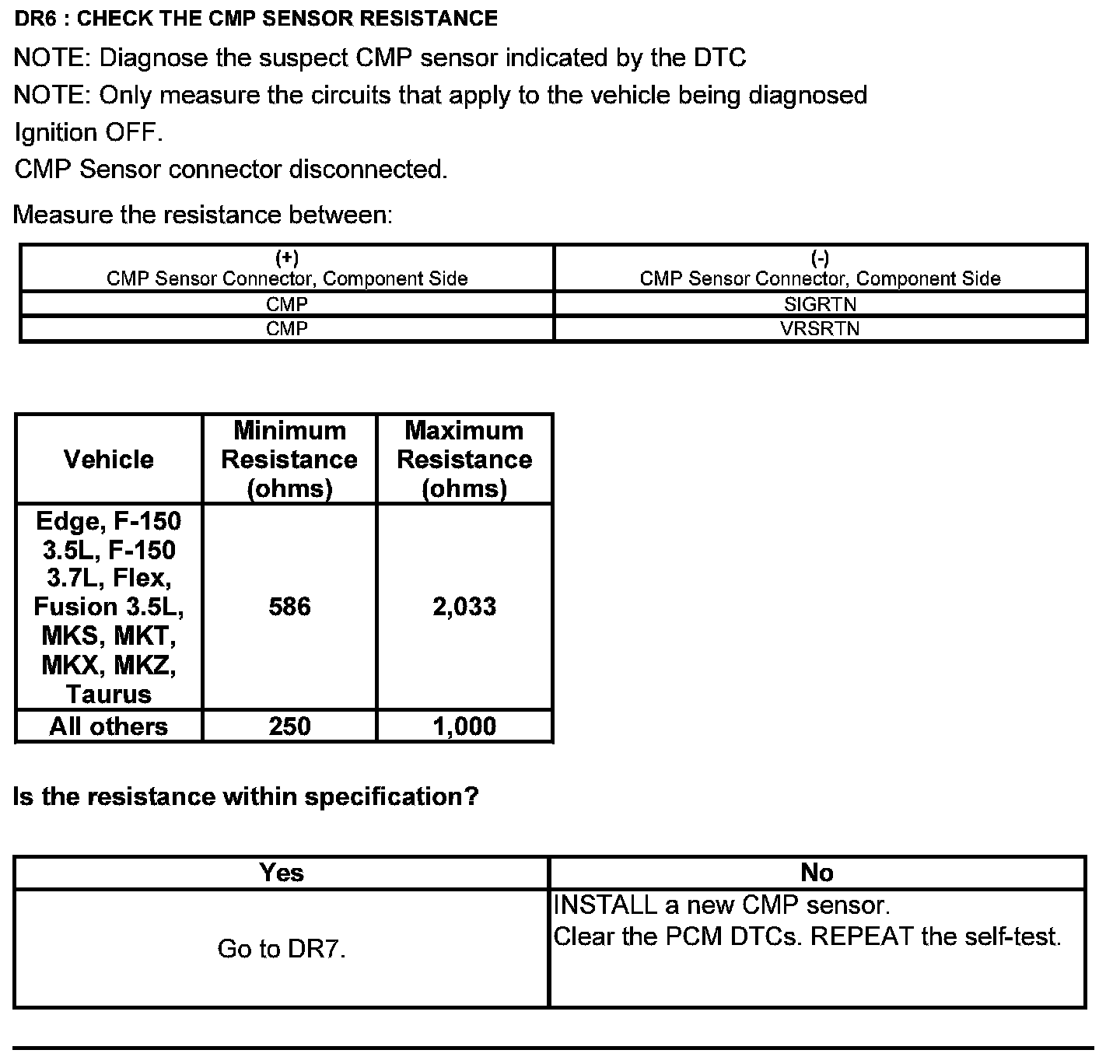

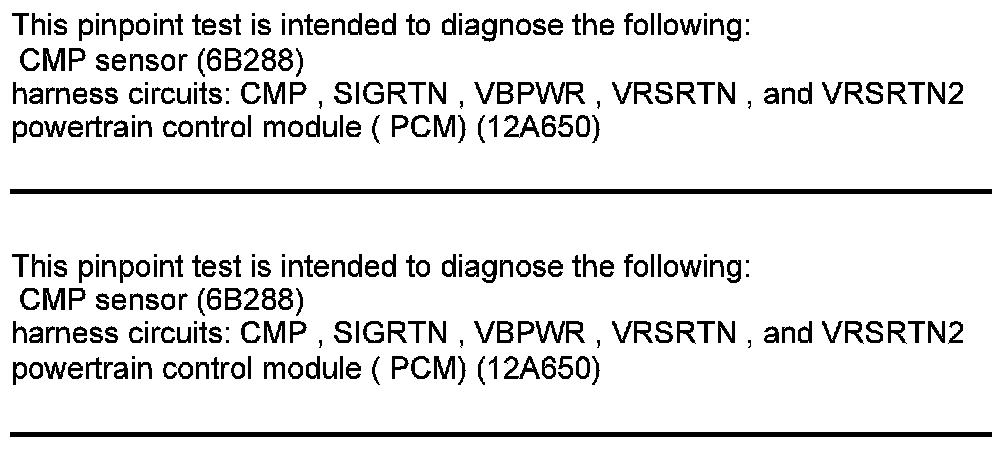

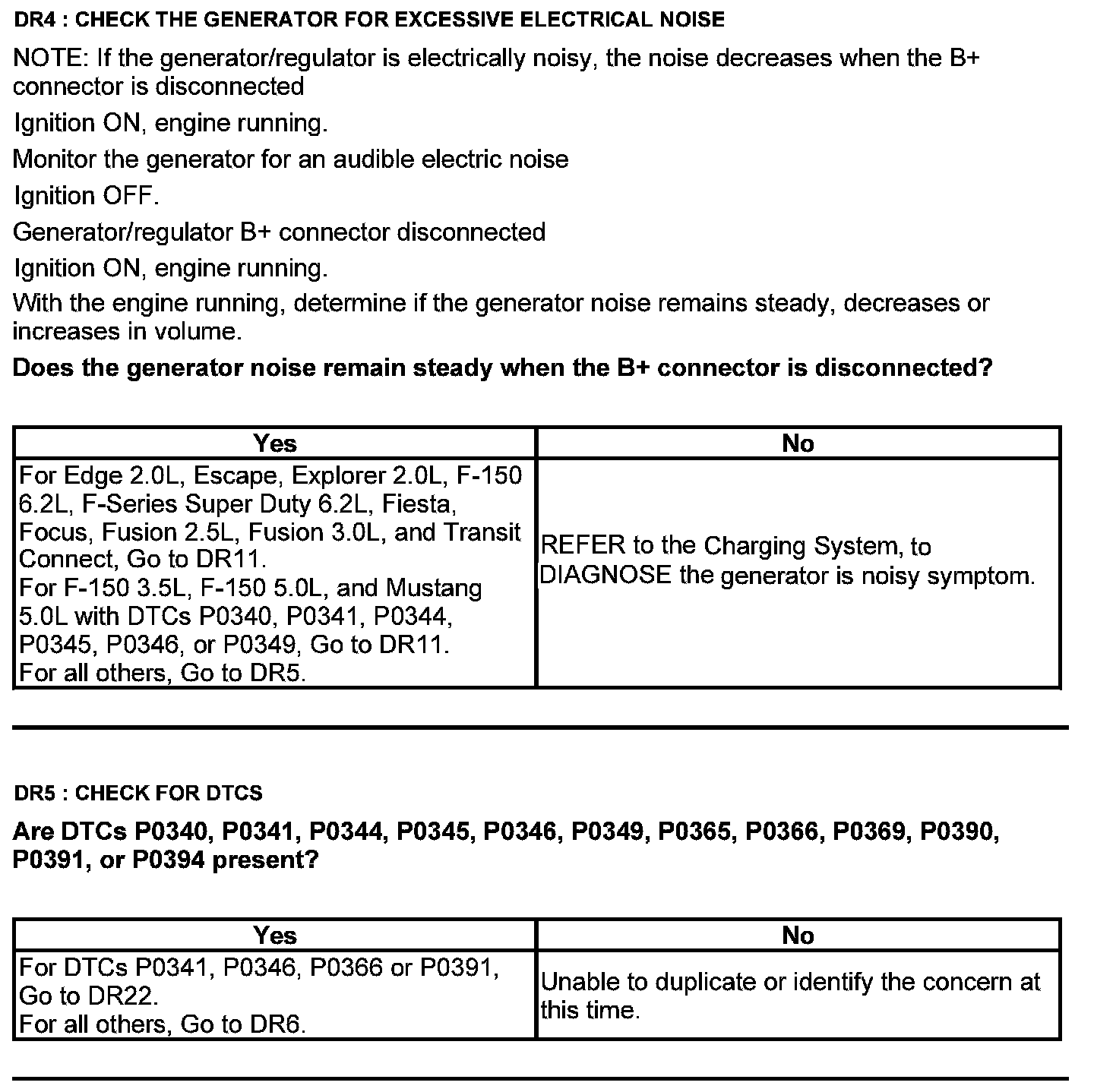

Camshaft Position (CMP) Sensor - All Others

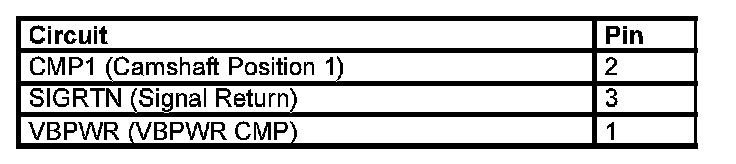

Camshaft Position 1 (CMP1) Sensor Connector
