Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DP: Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS) >> Automatic Transmission

Automatic Transmission

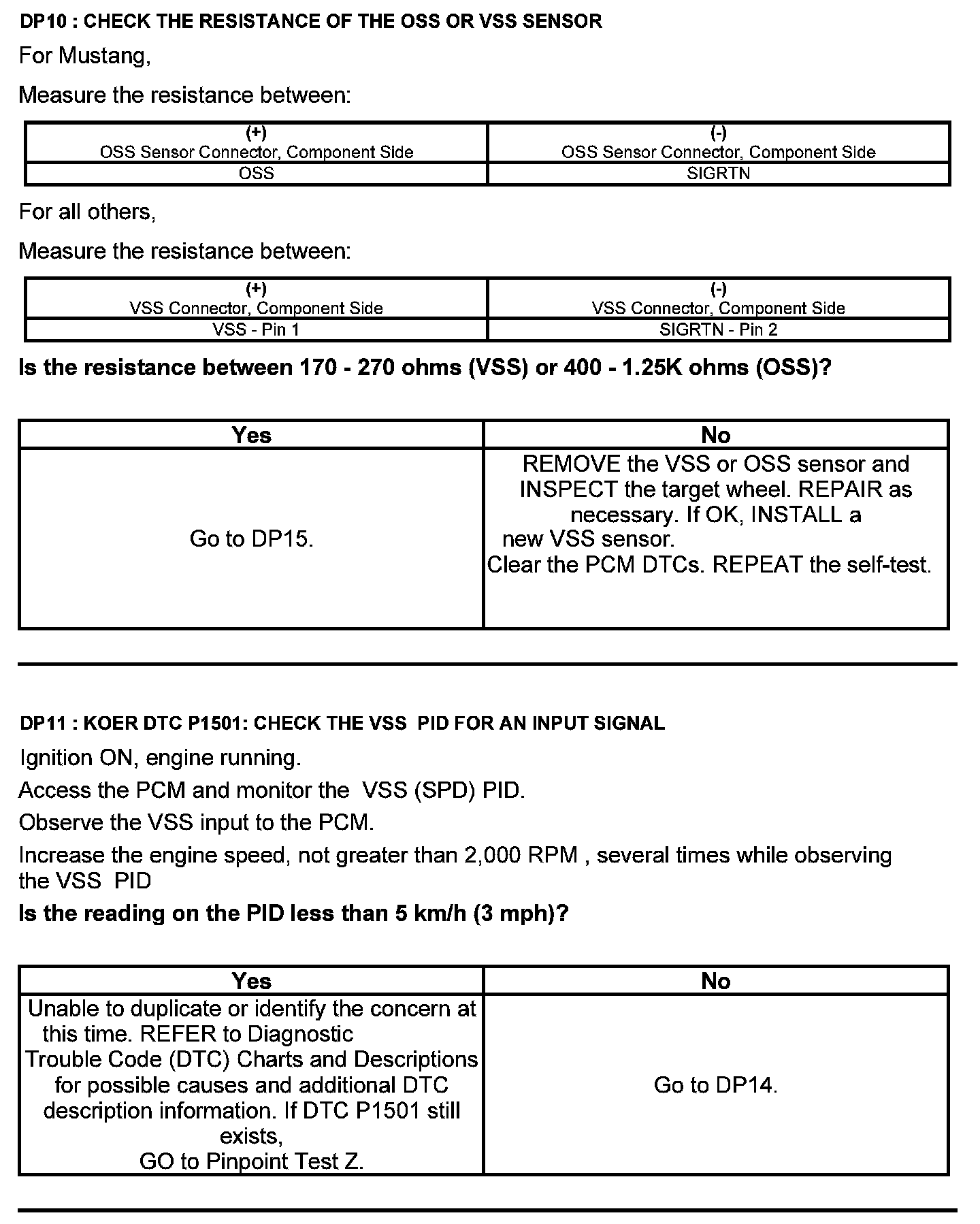

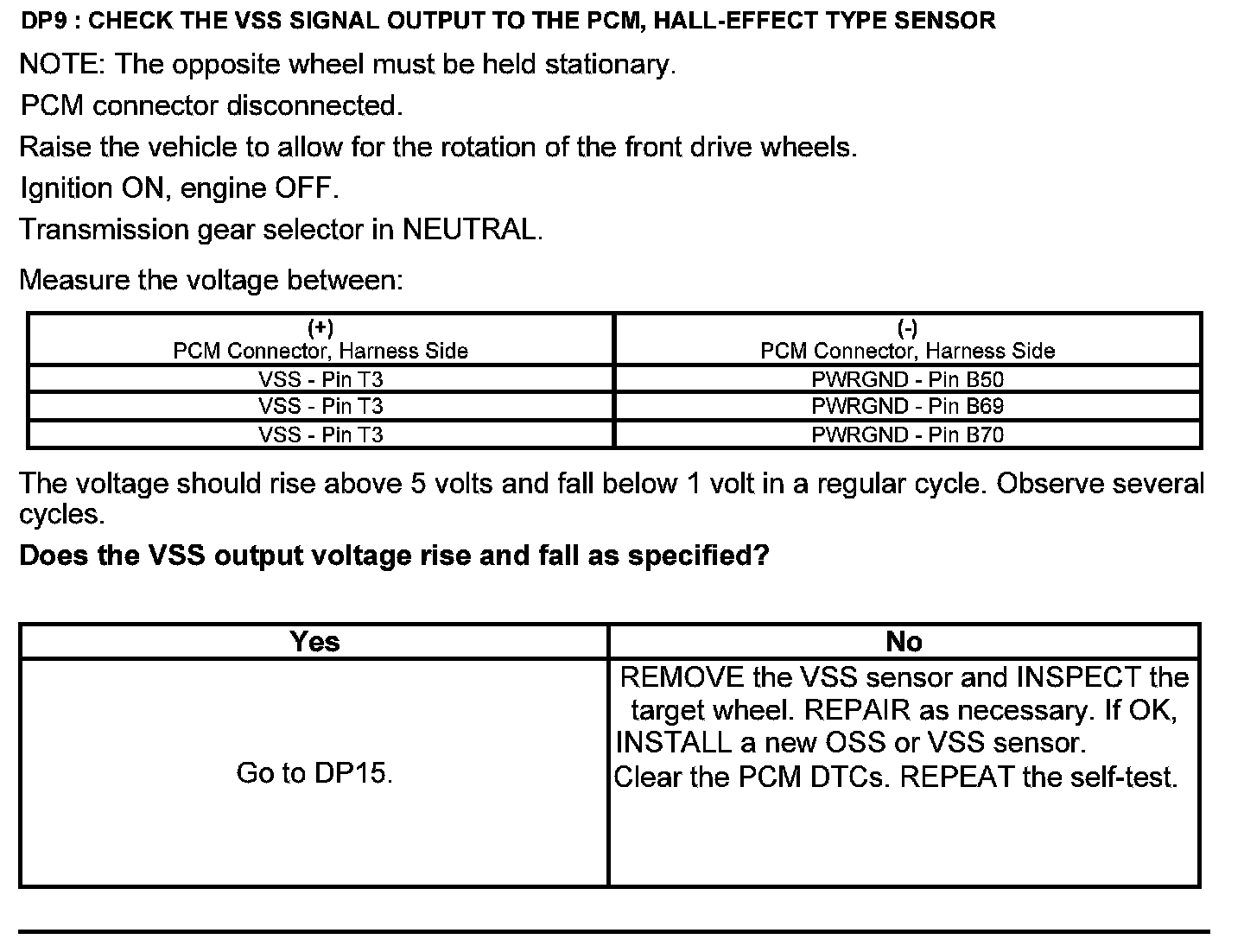

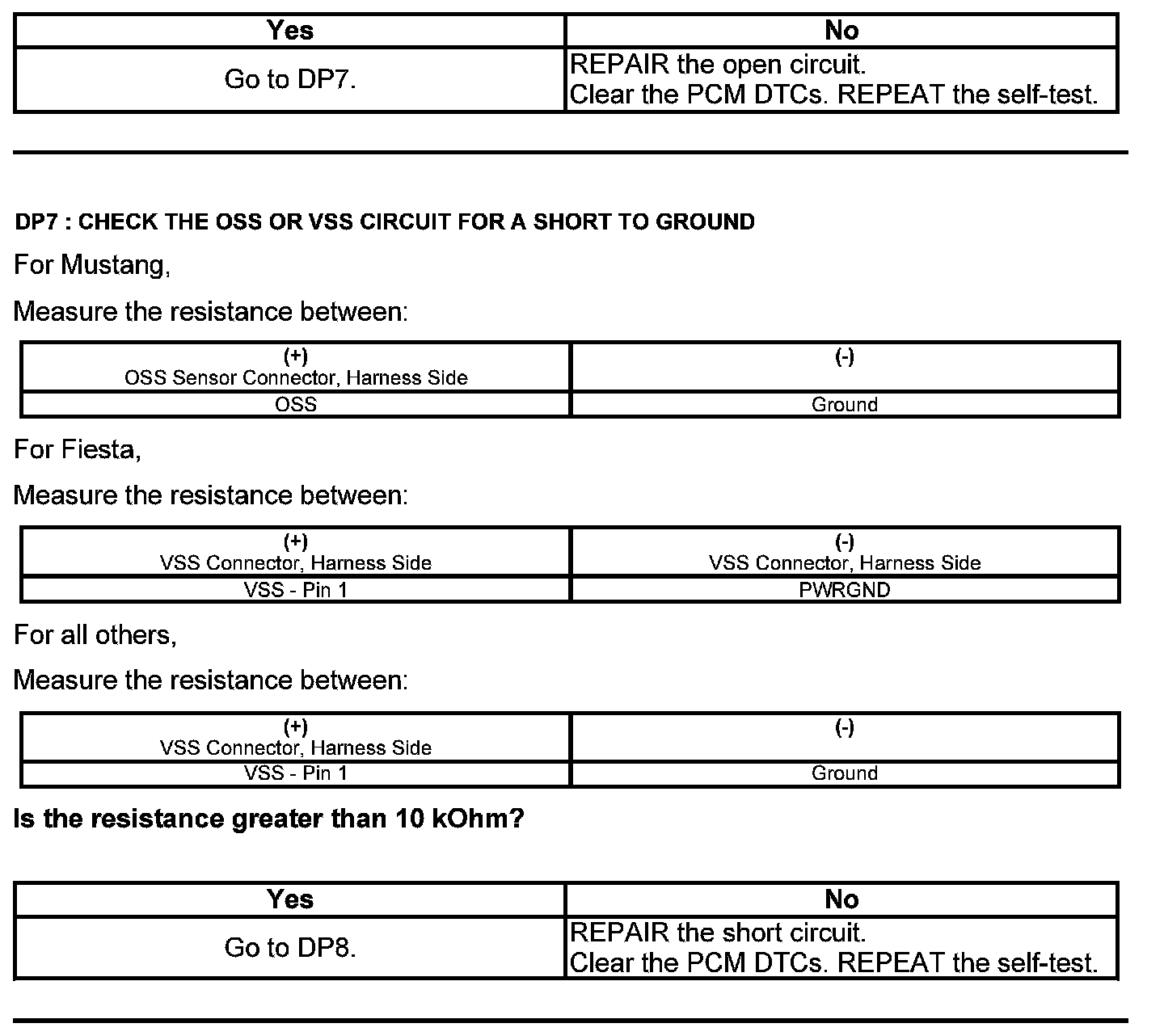

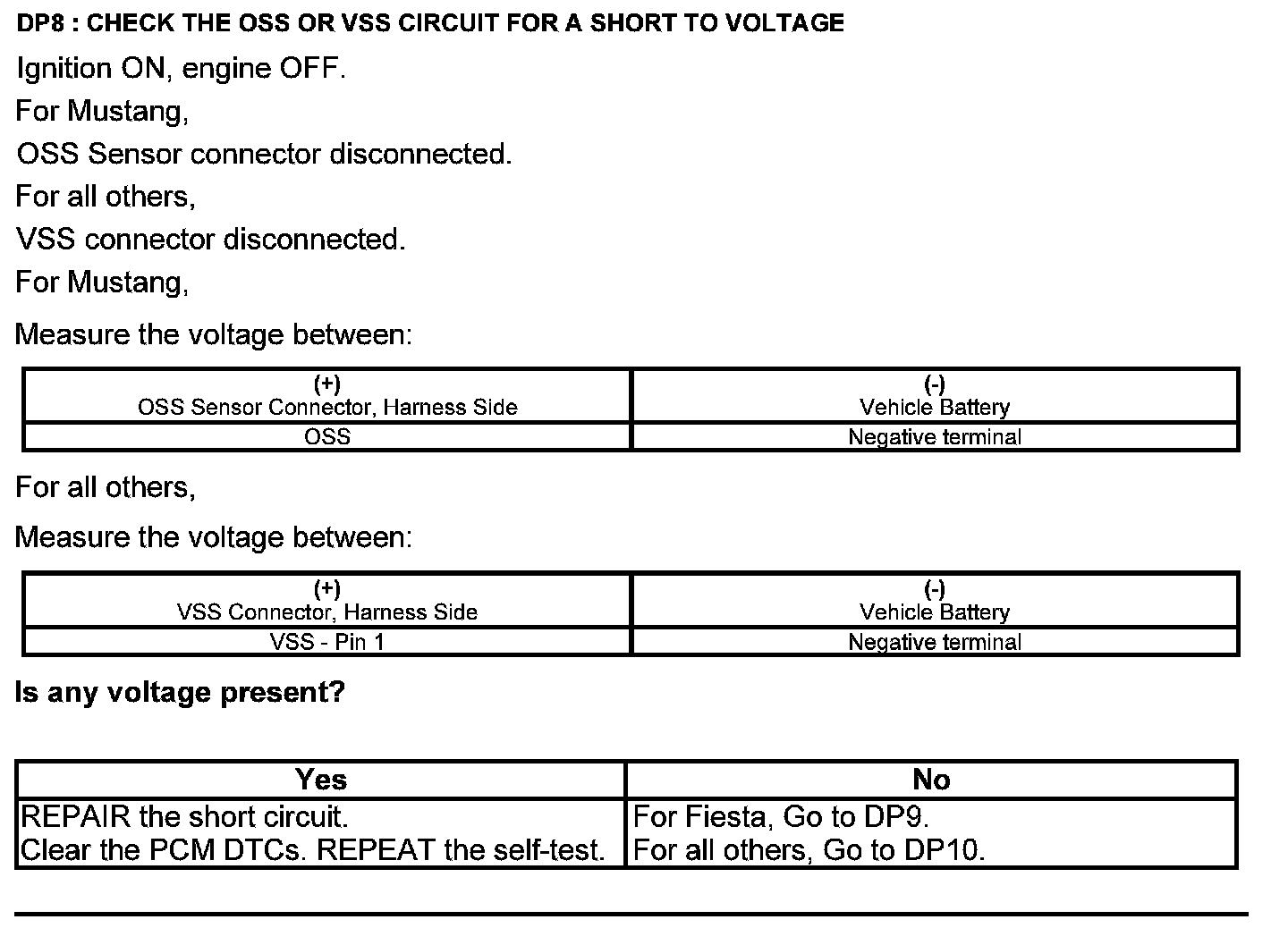

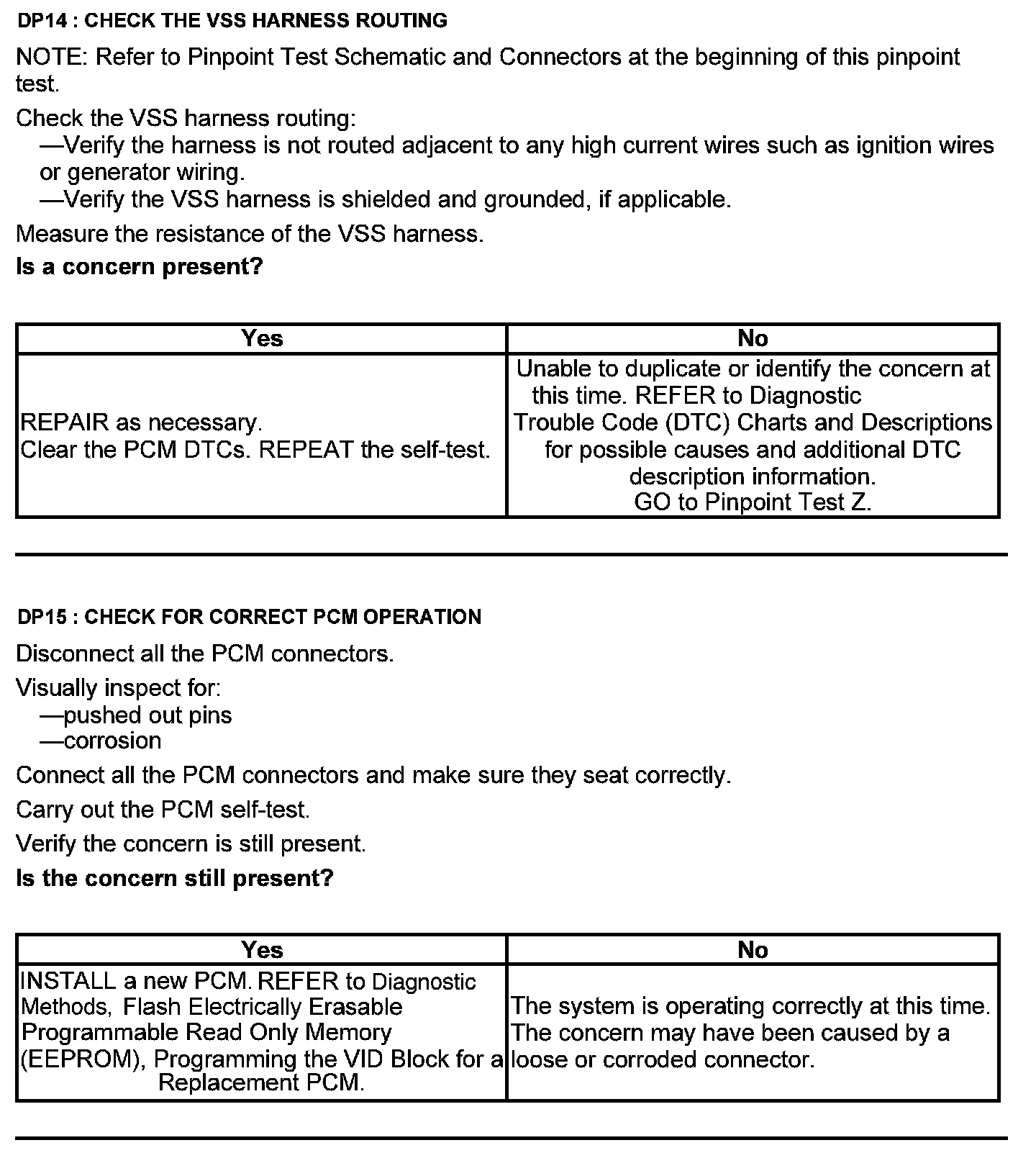

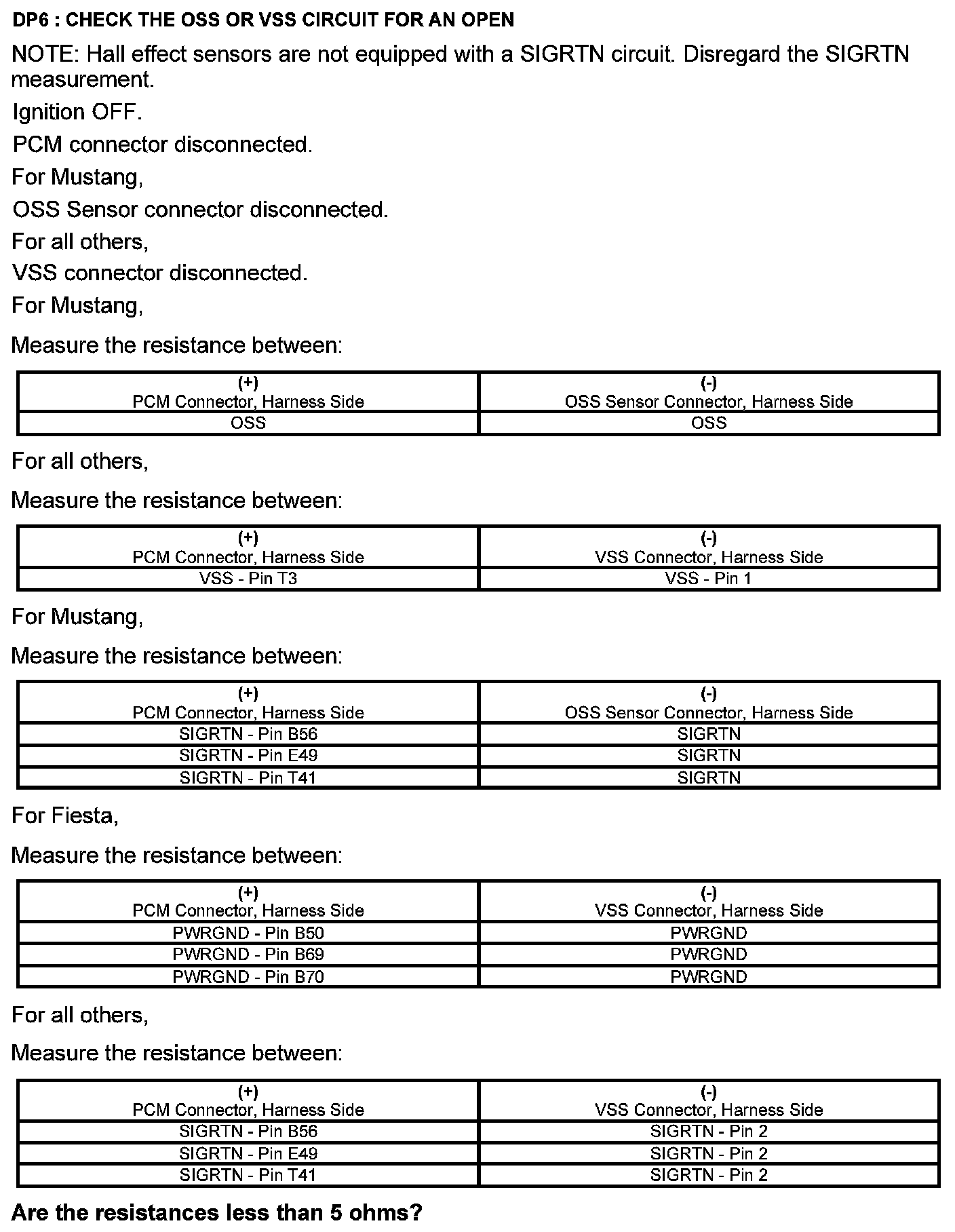

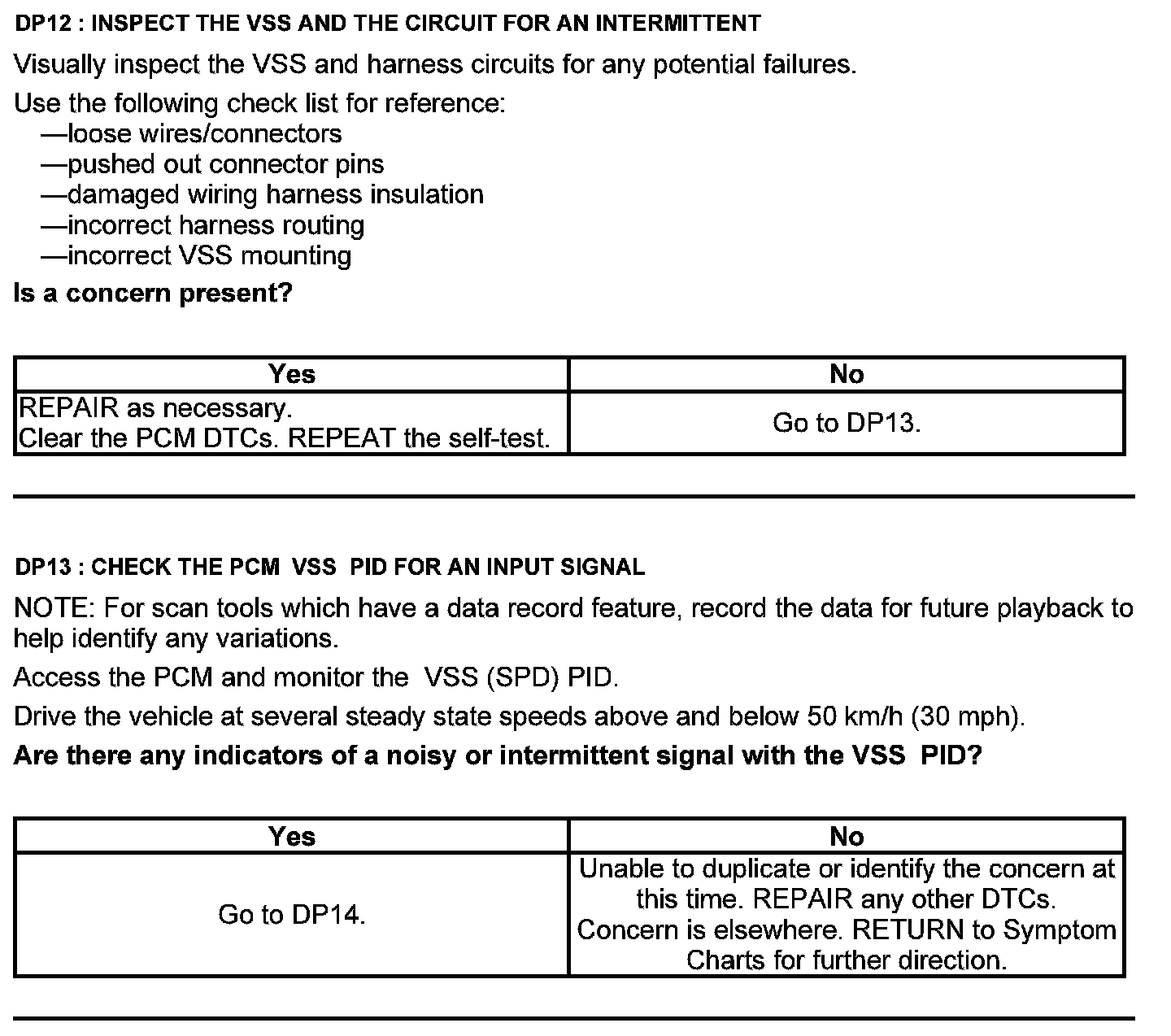

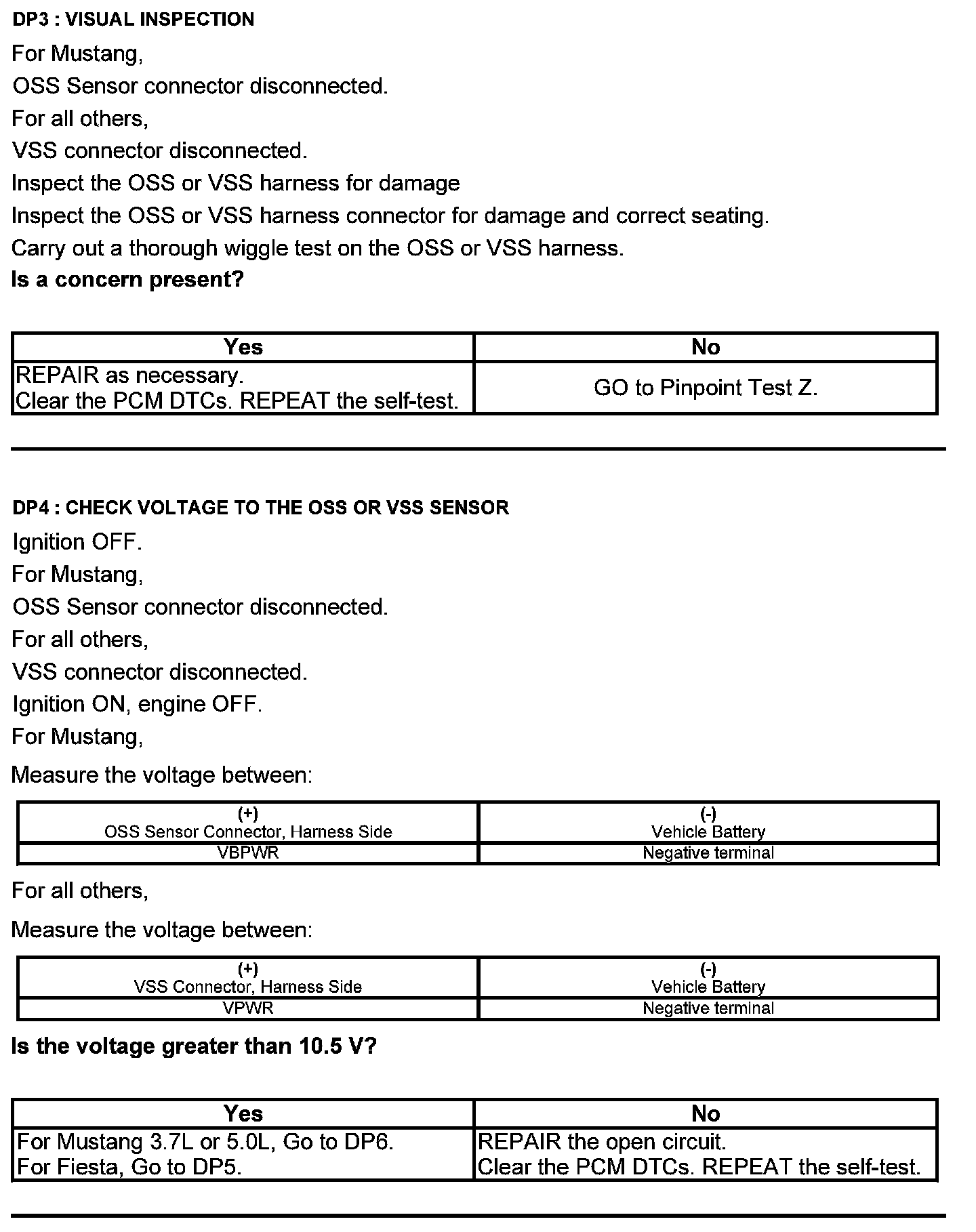

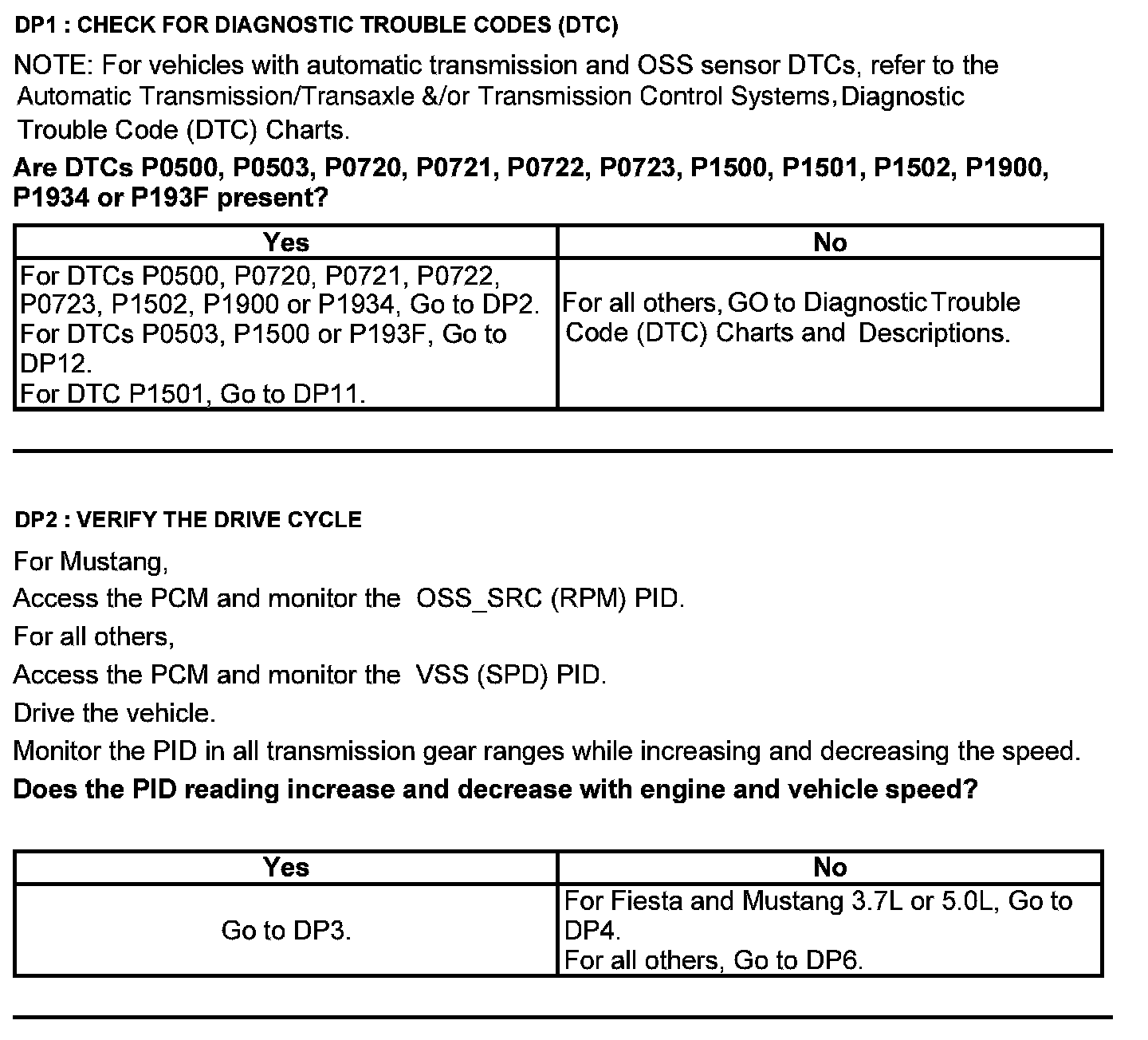

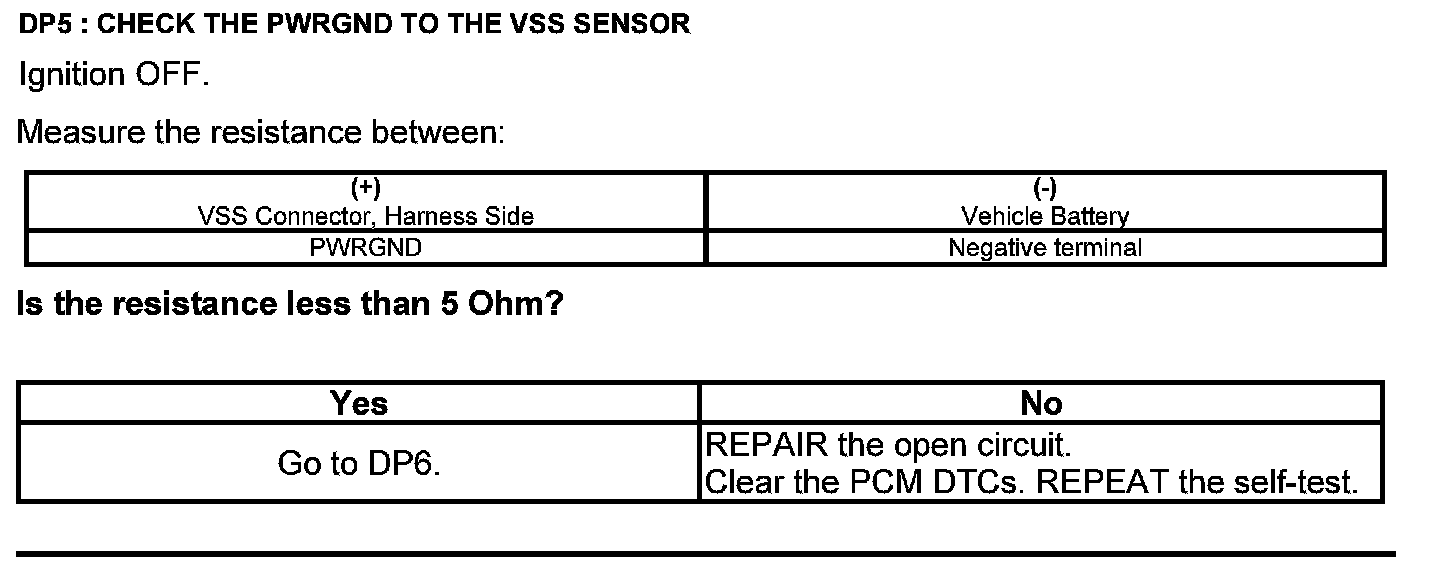

Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS) - Automatic Transmission

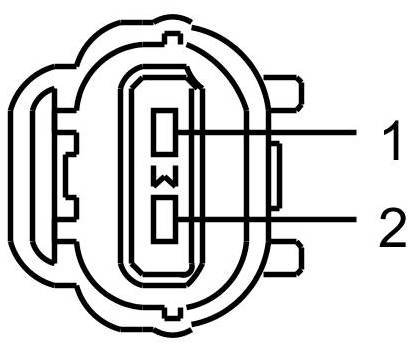

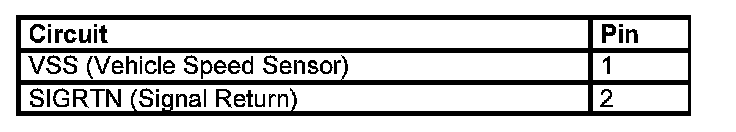

Vehicle Speed Sensor (VSS) Connector





Harness Side

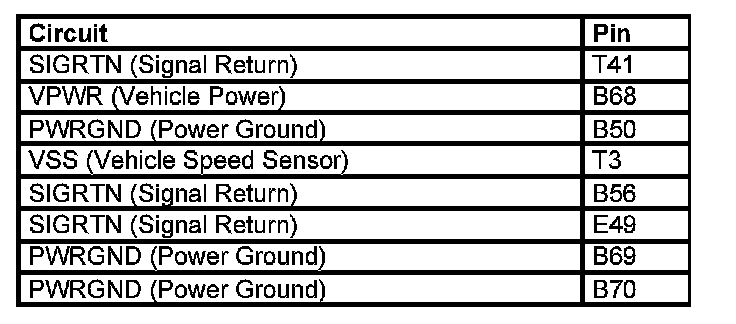

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
