Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DP: Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS) >> All Others

All Others

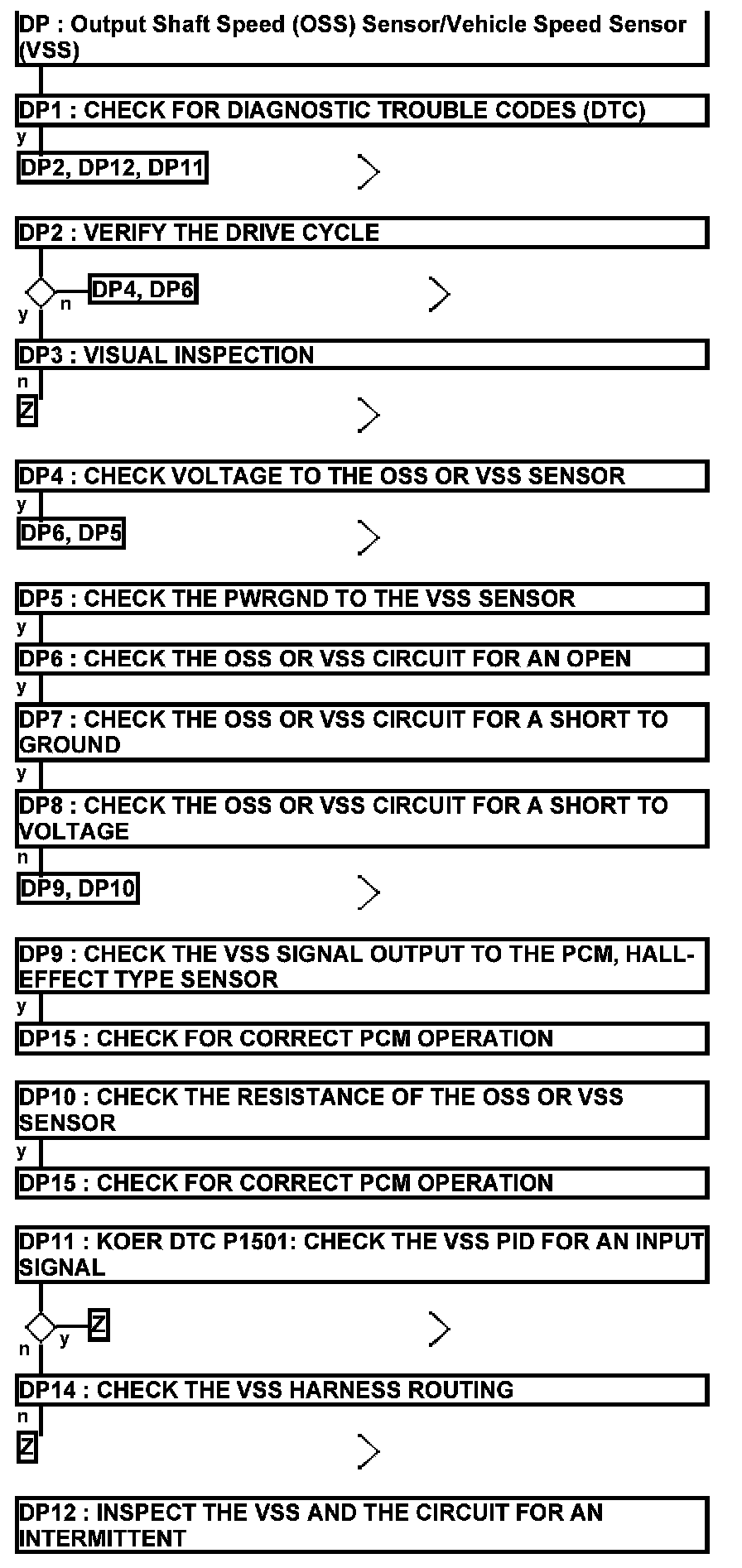

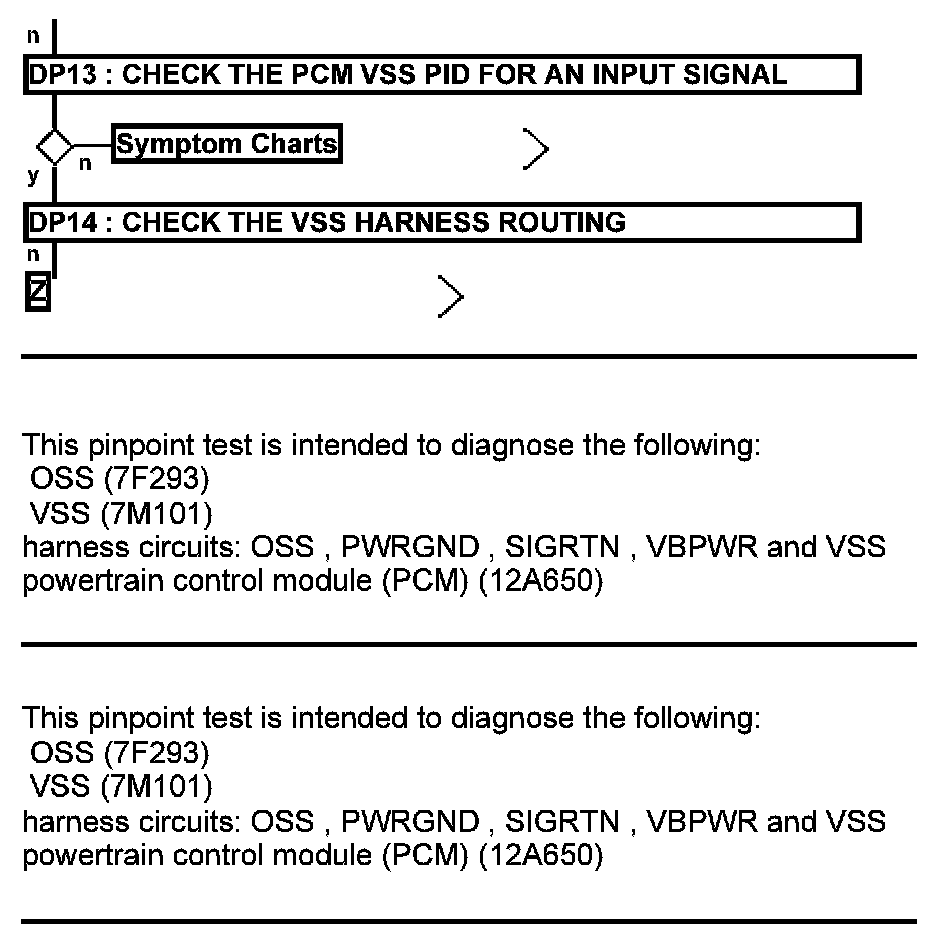

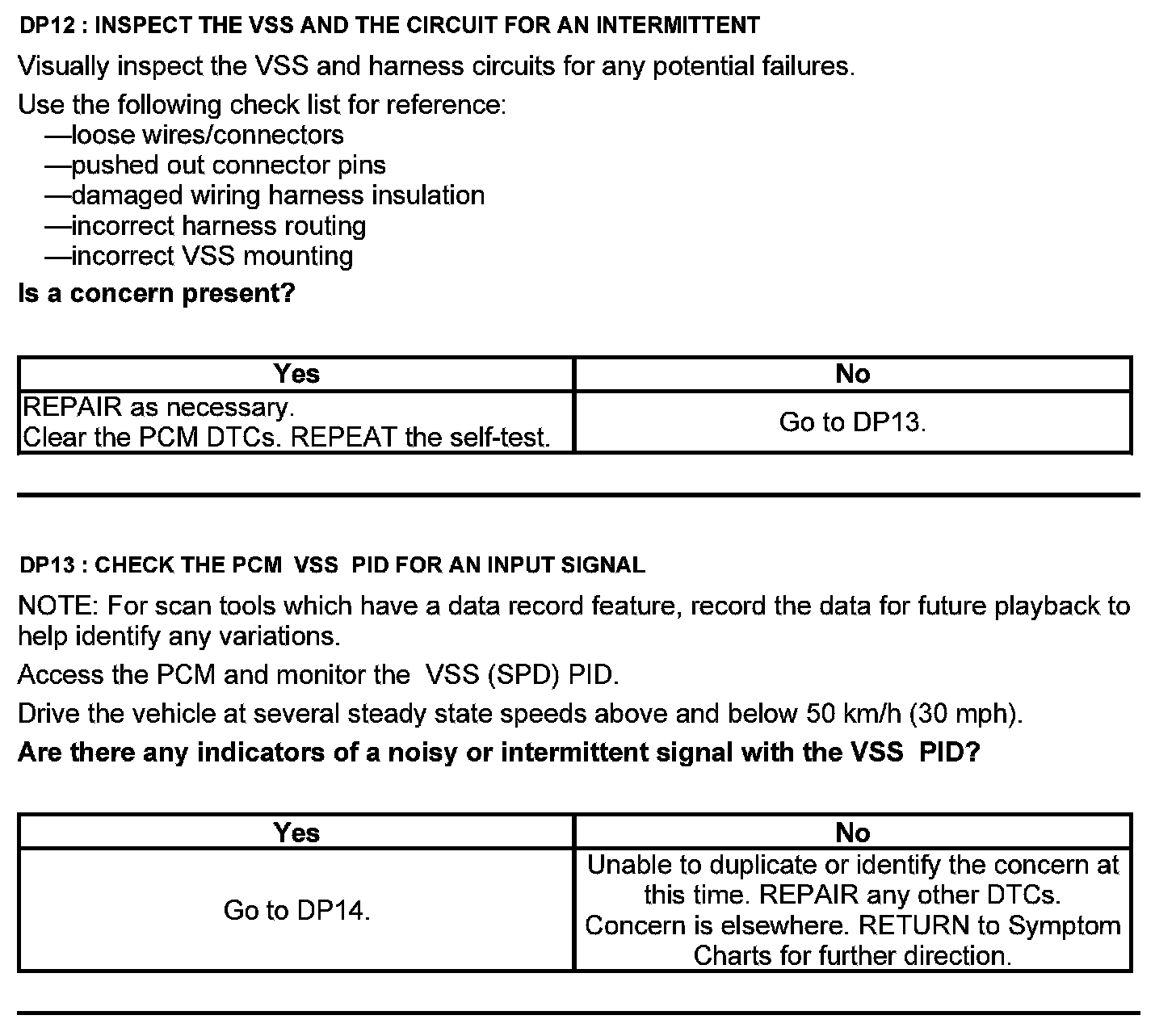

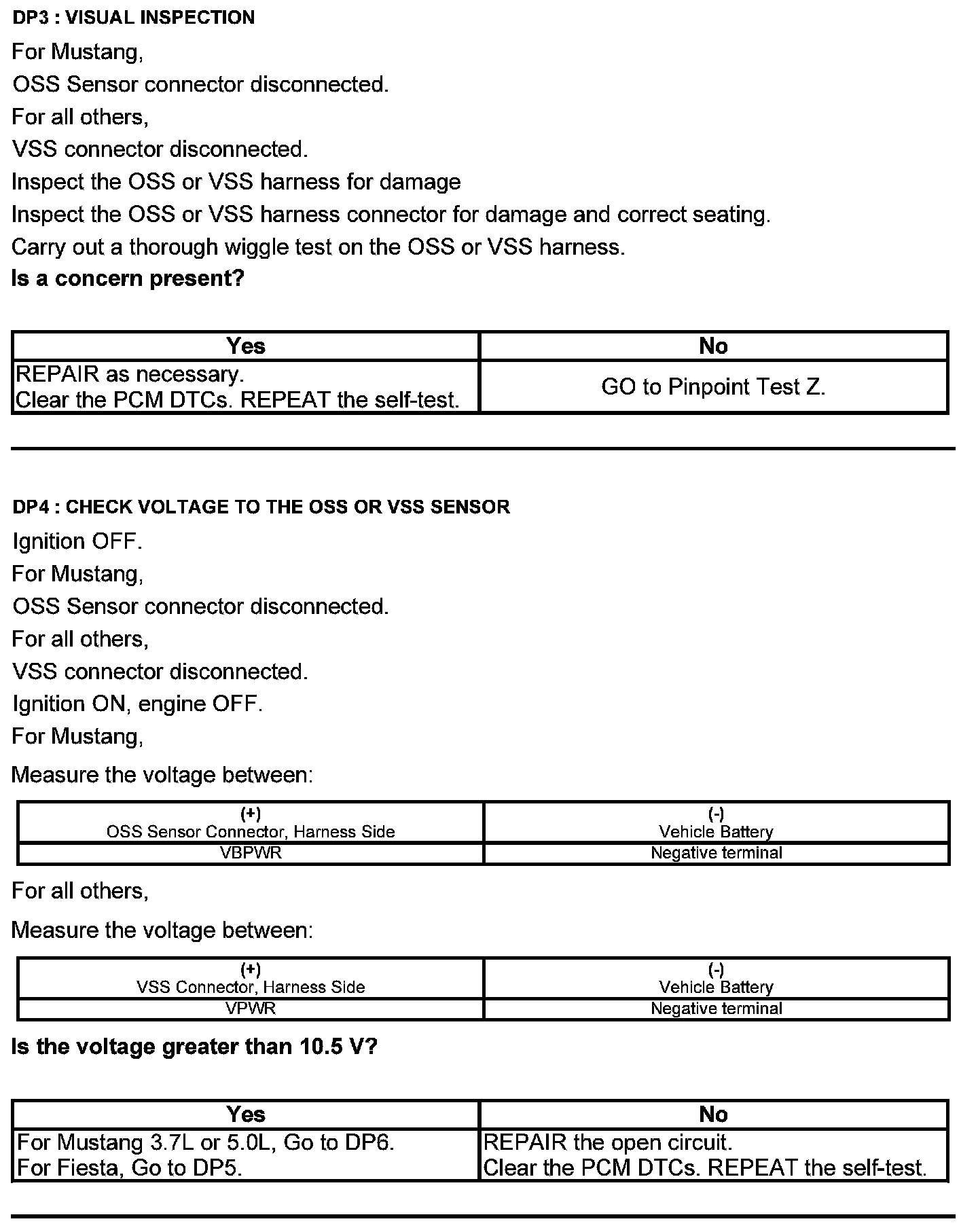

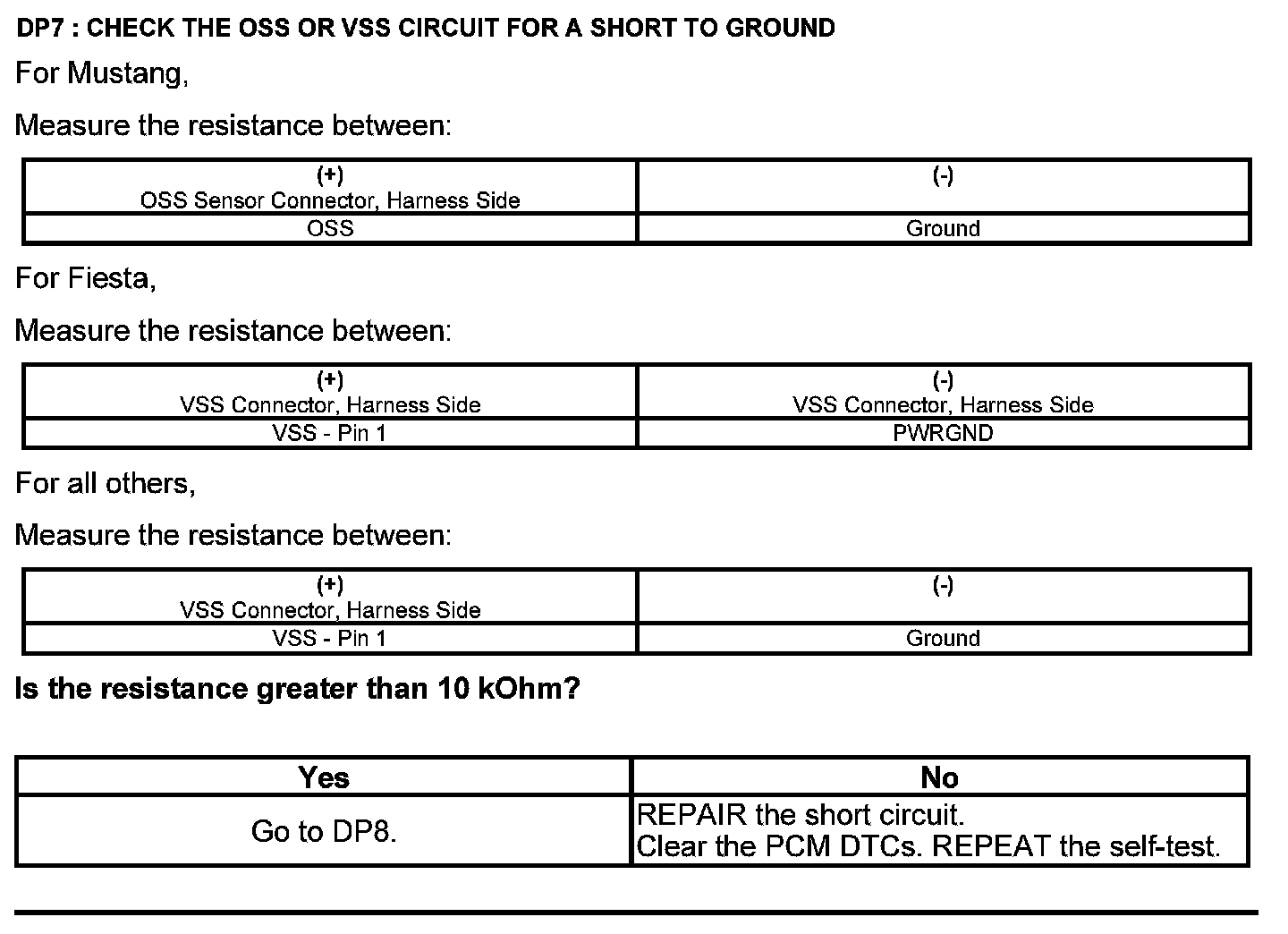

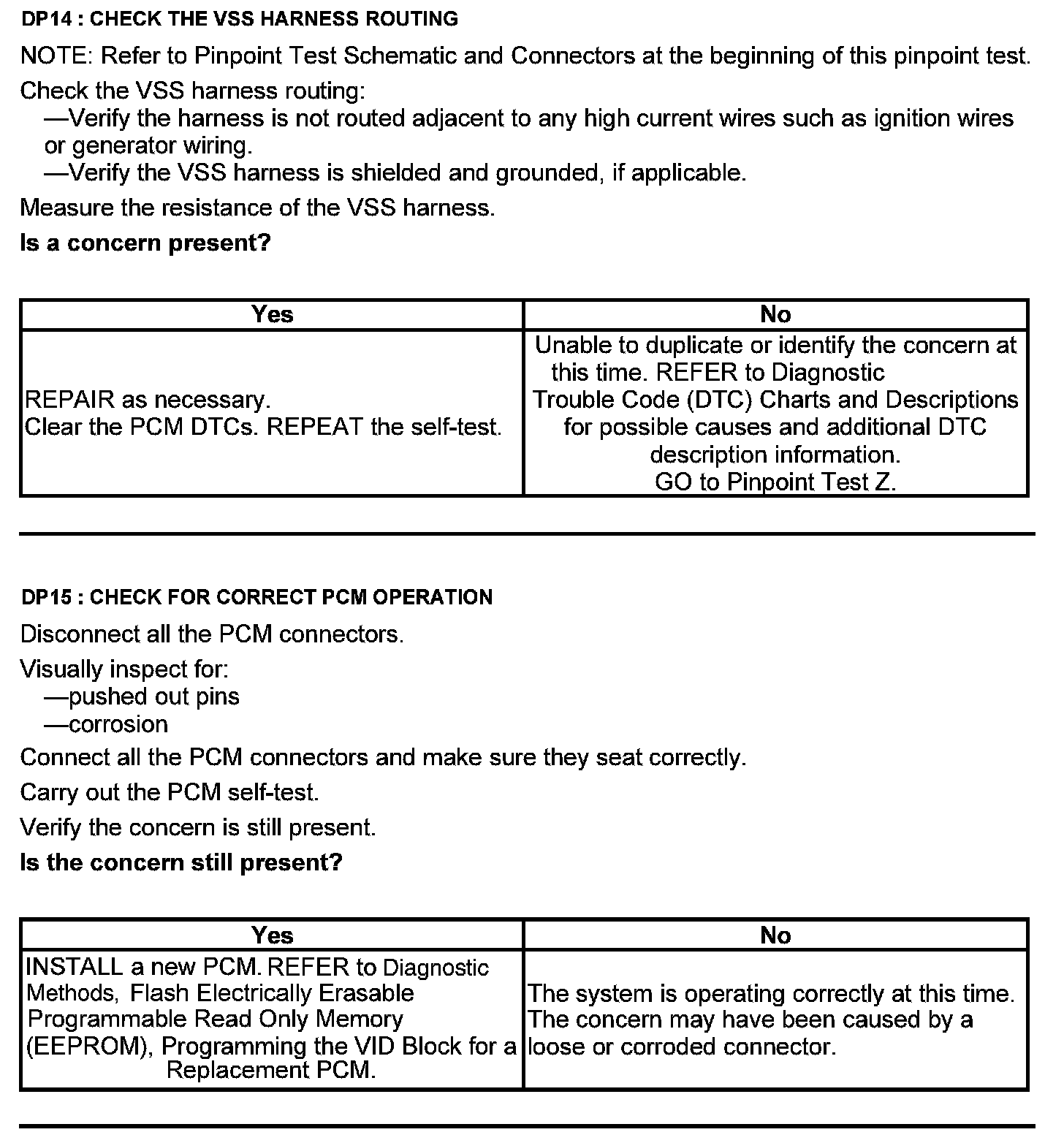

Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS) - All Others

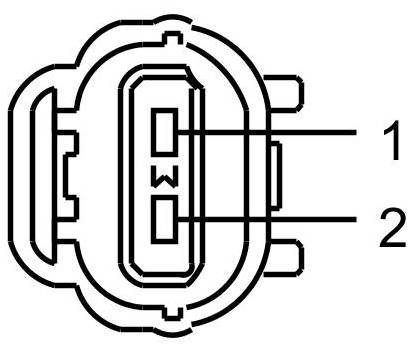

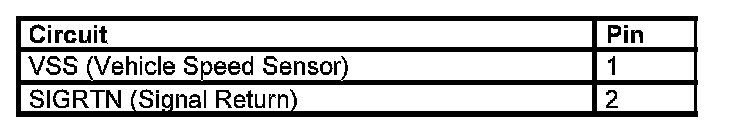

Vehicle Speed Sensor (VSS) Connector





Harness Side
