Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DL: Cylinder Head Temperature (CHT) Sensor >> Manual Transmission

Manual Transmission

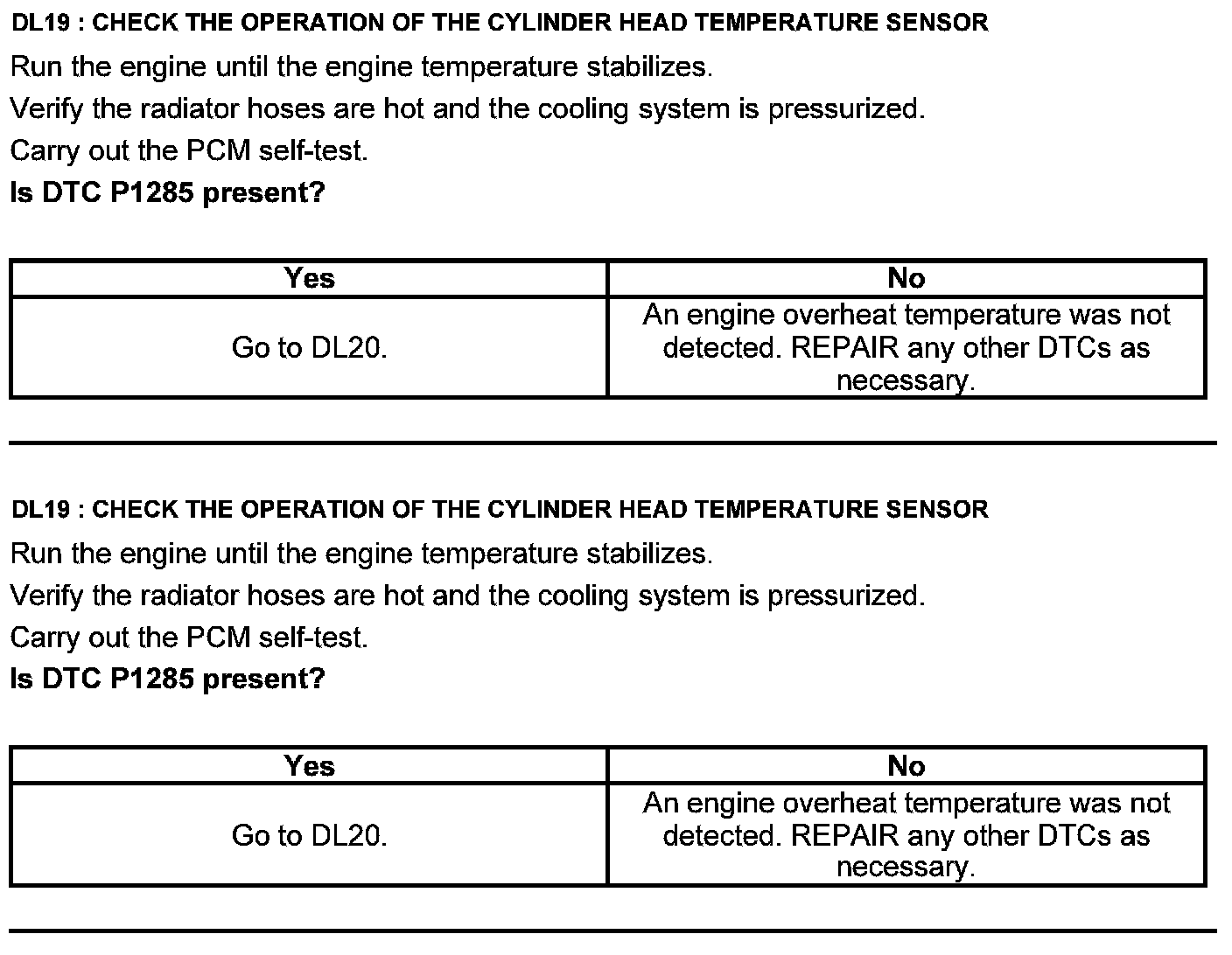

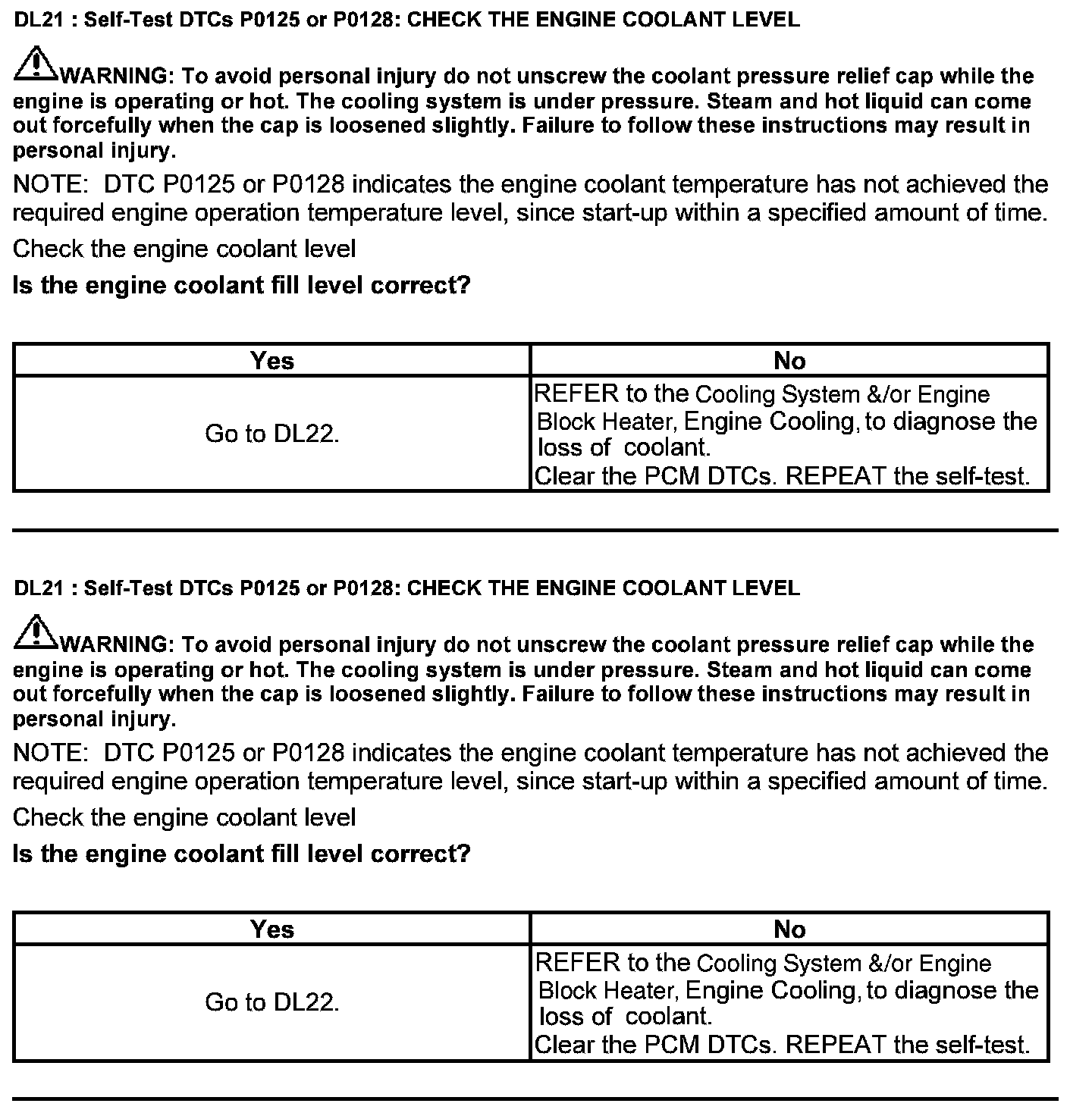

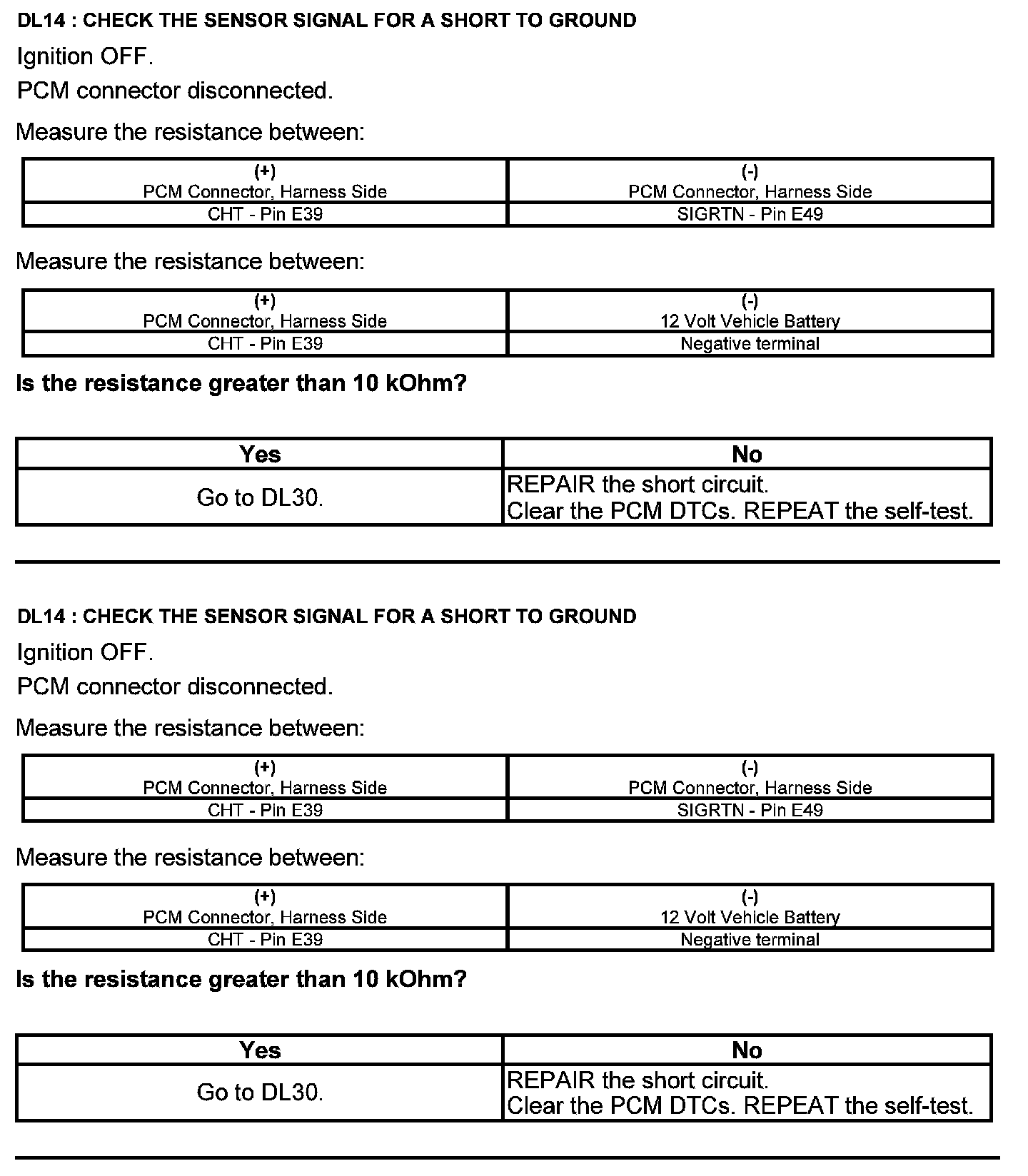

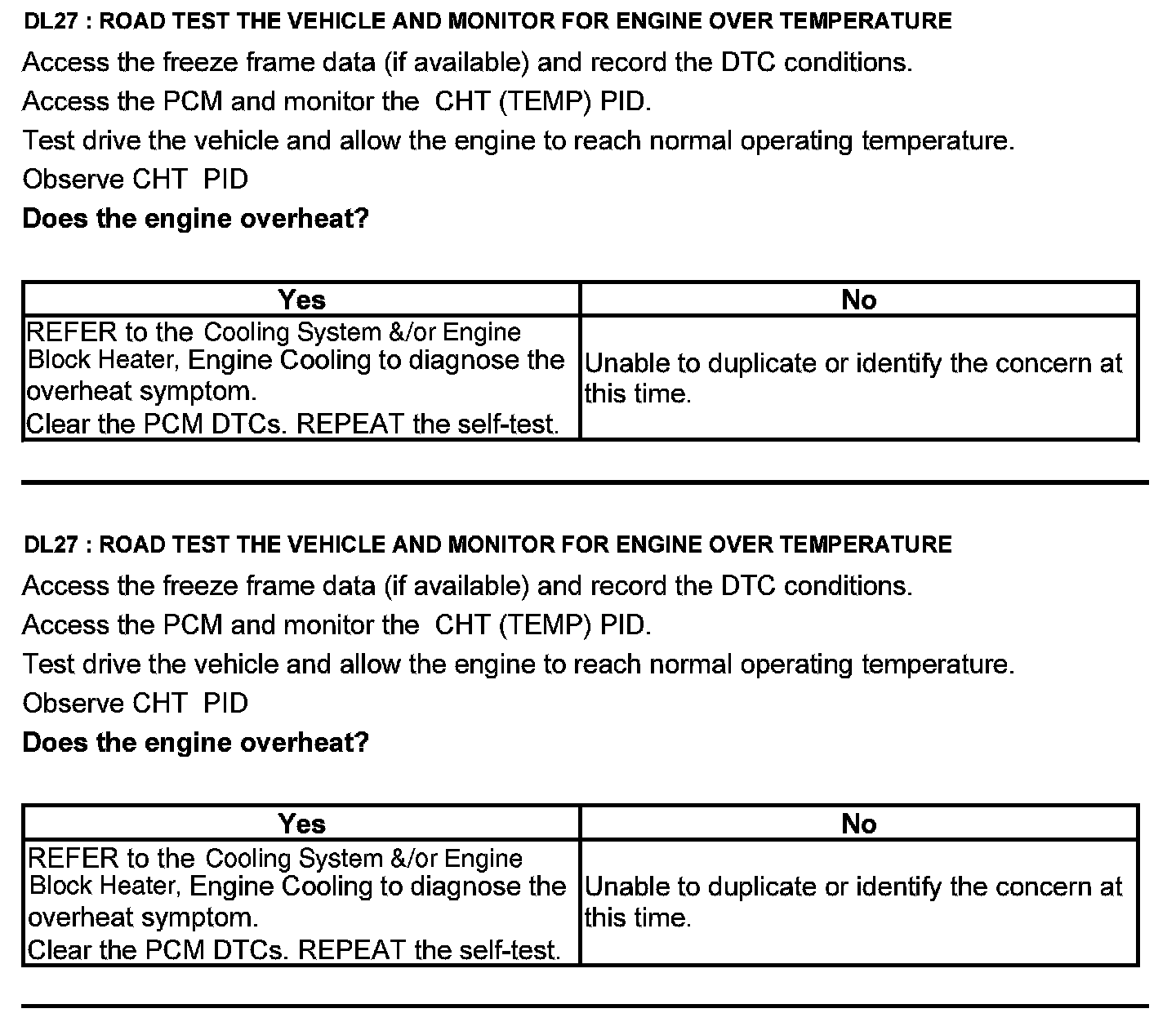

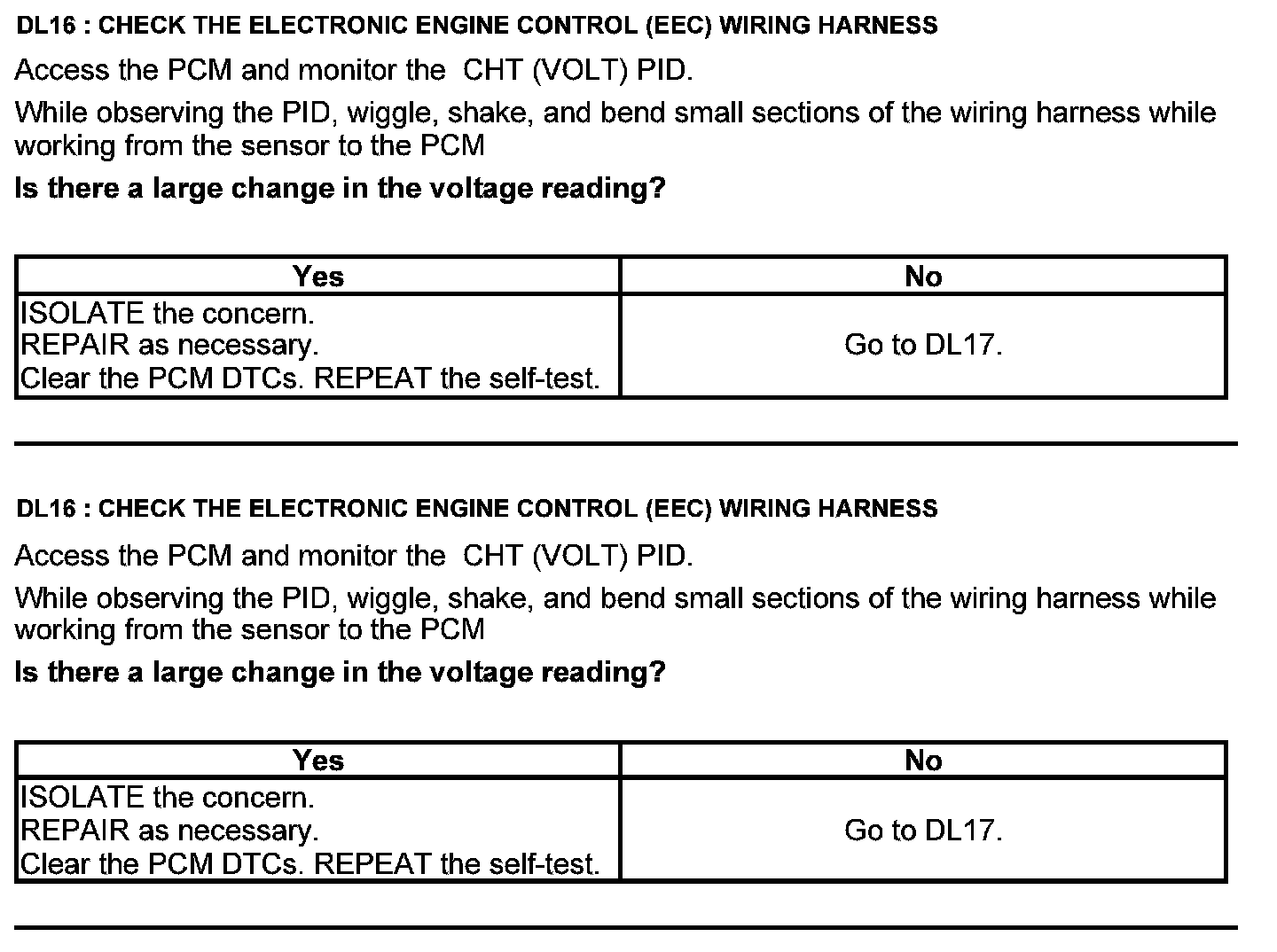

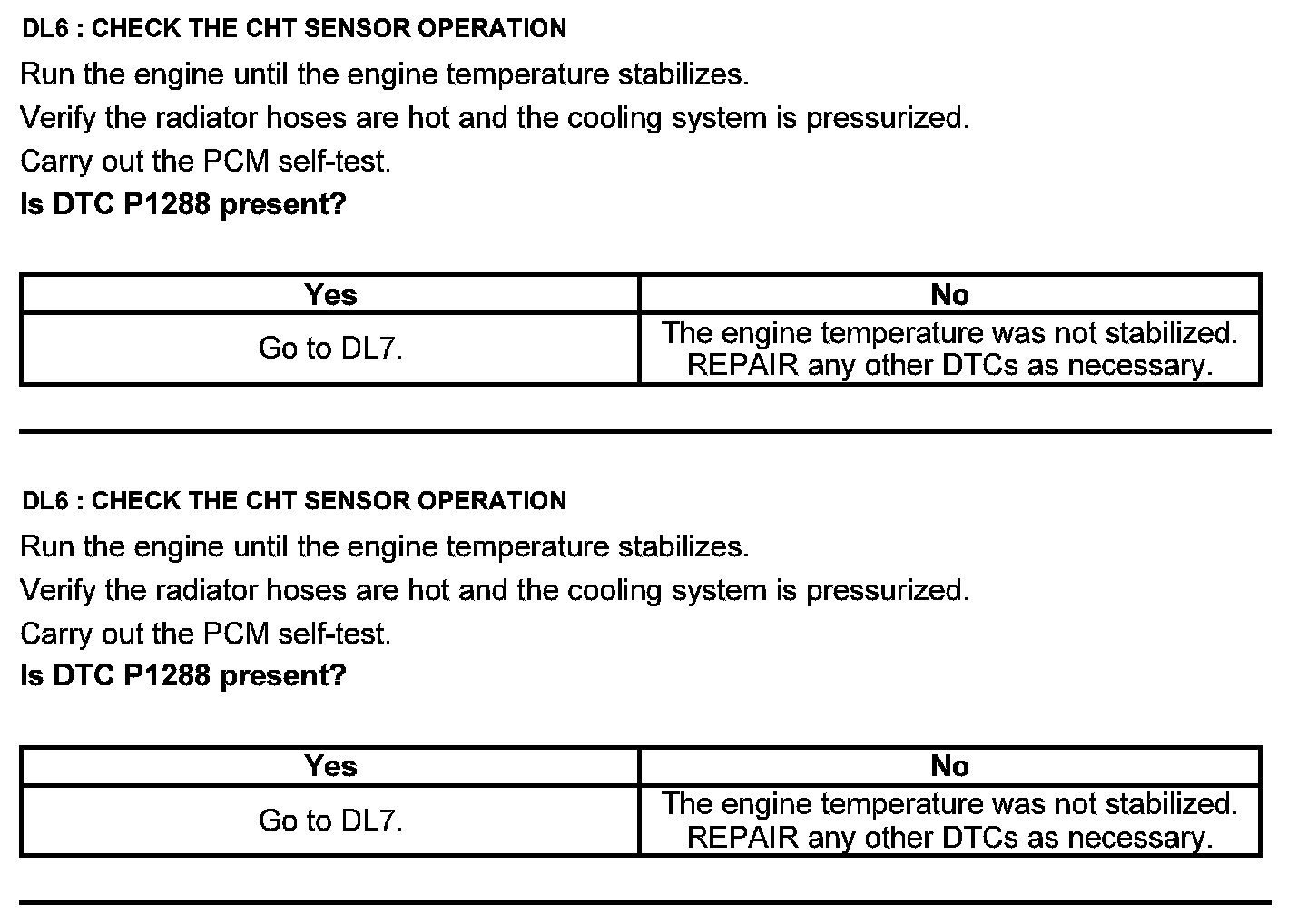

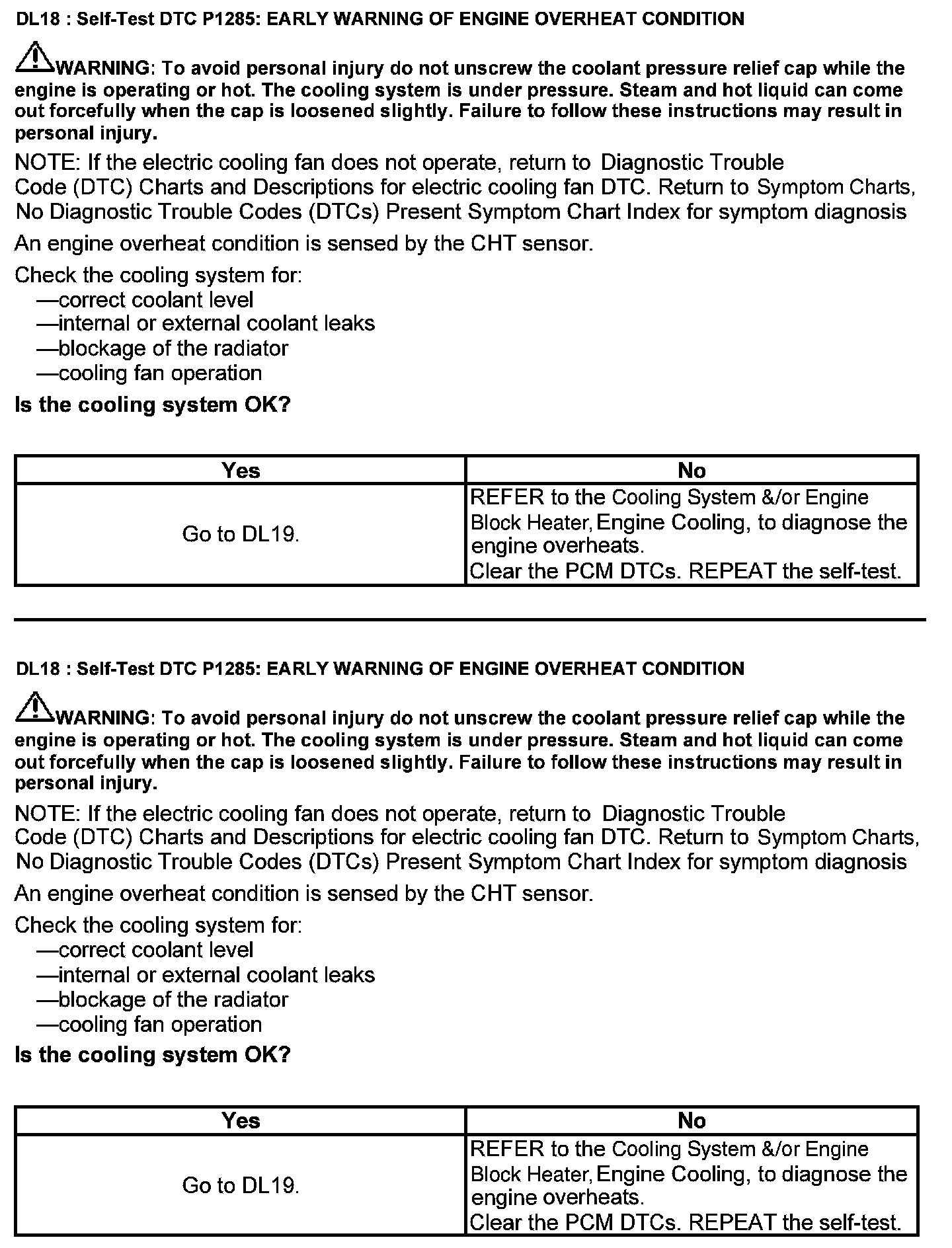

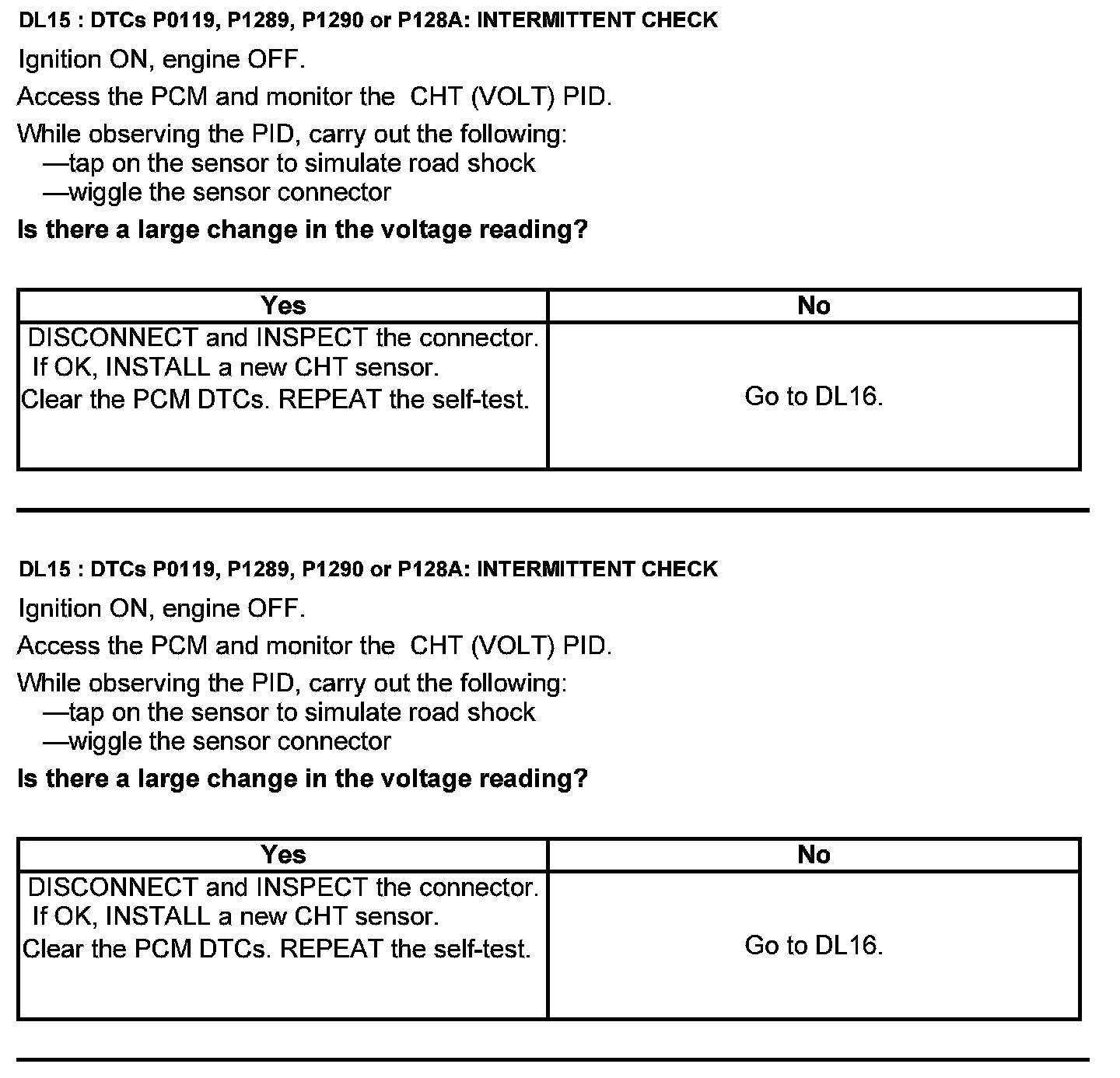

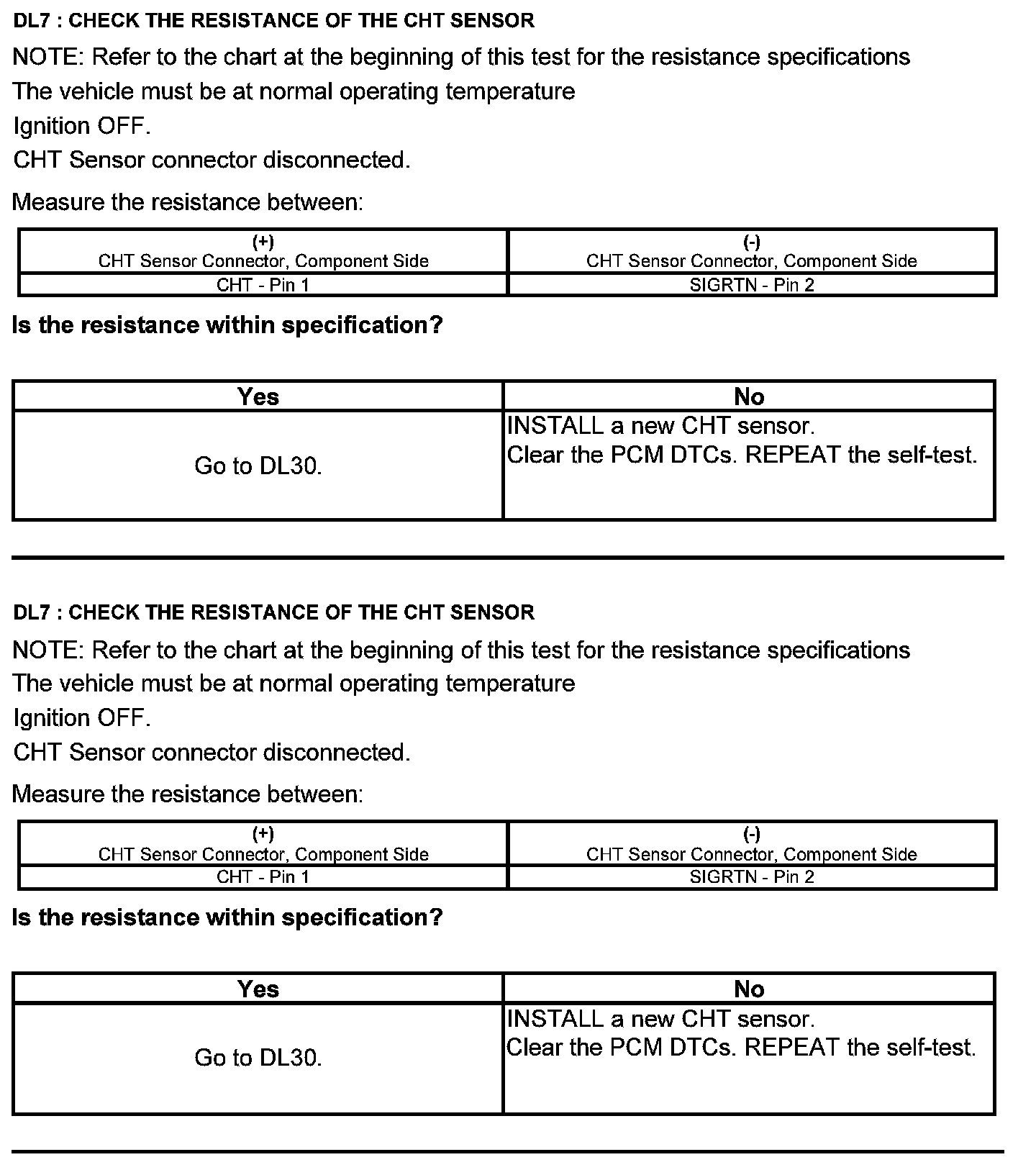

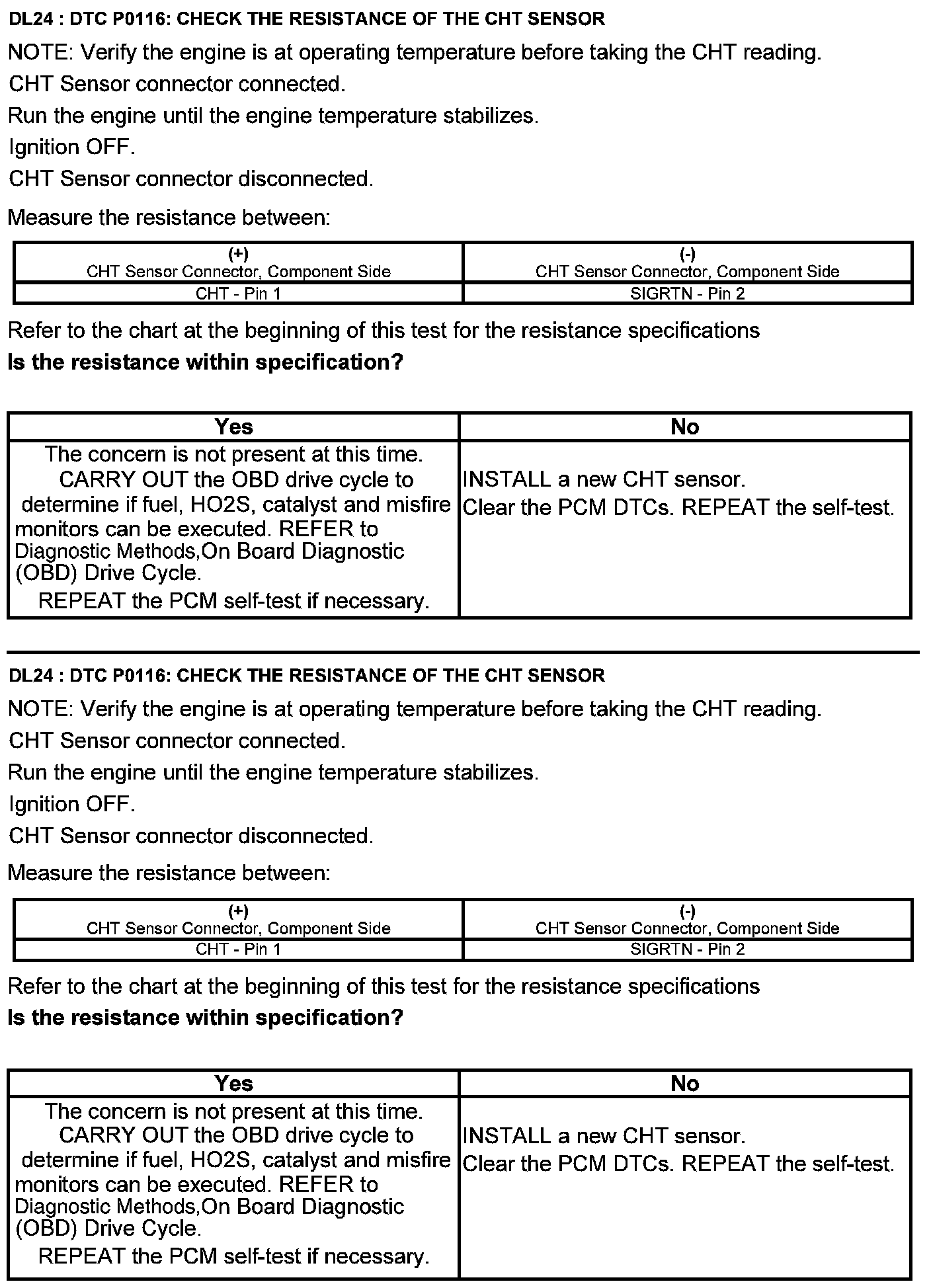

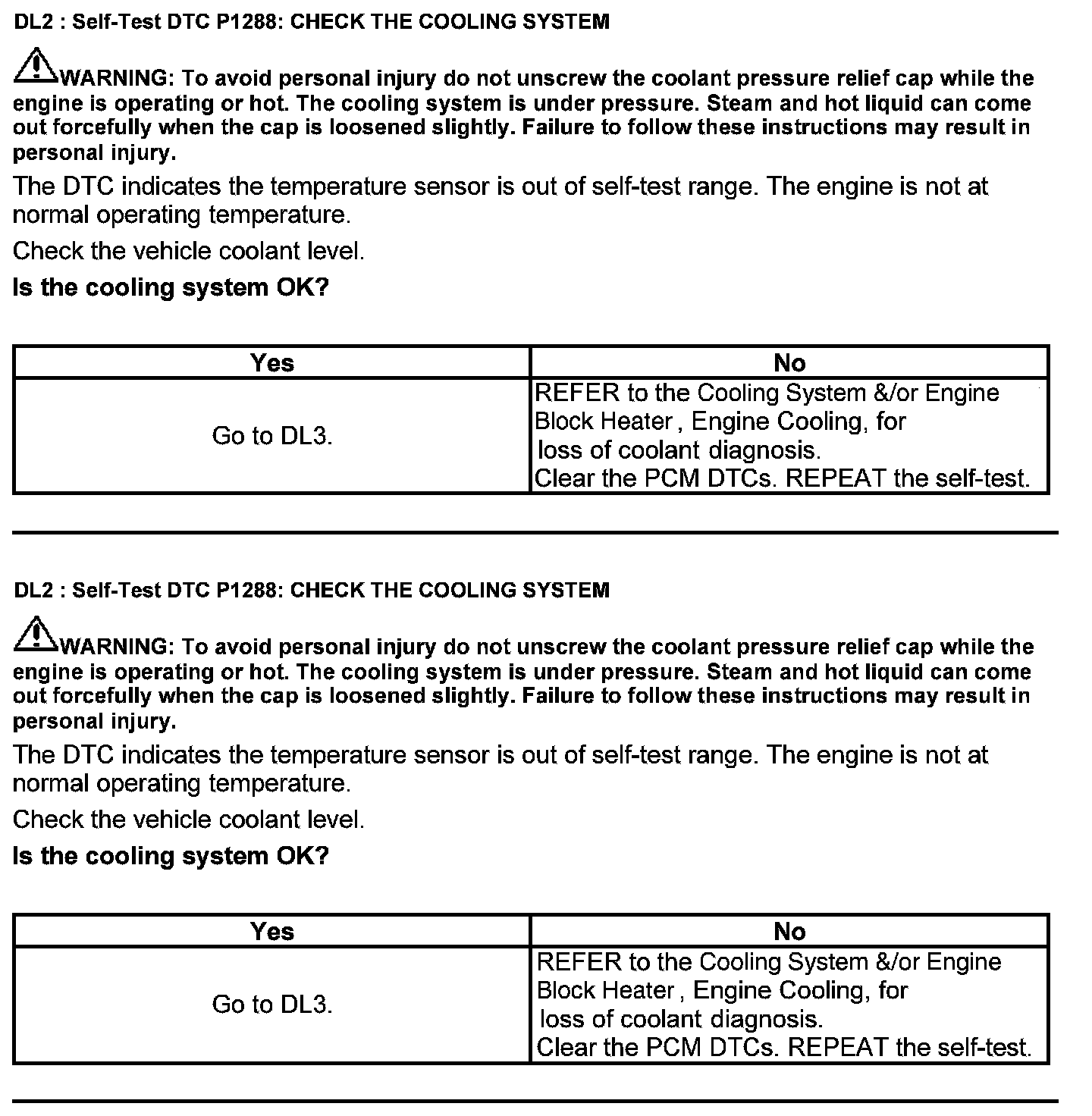

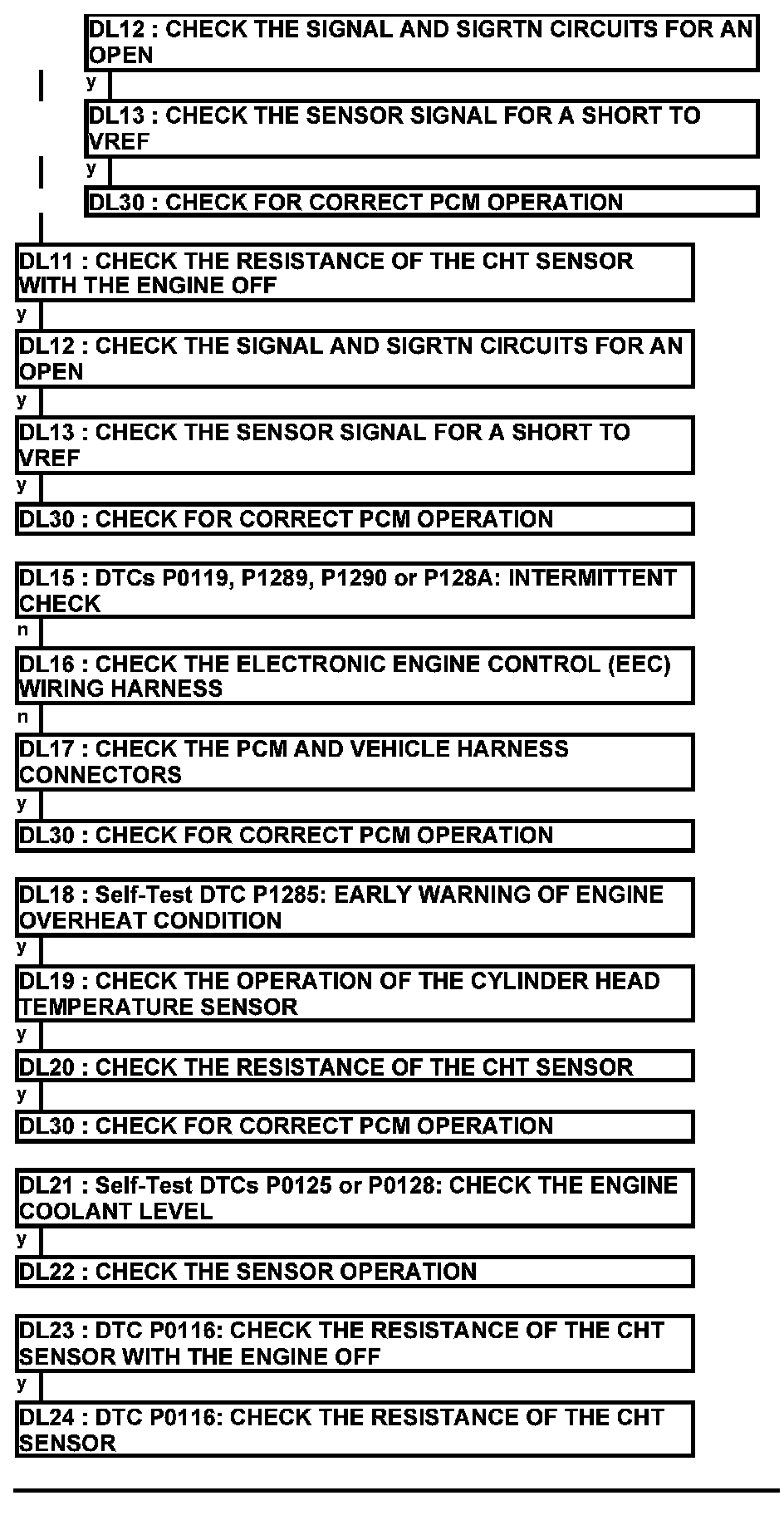

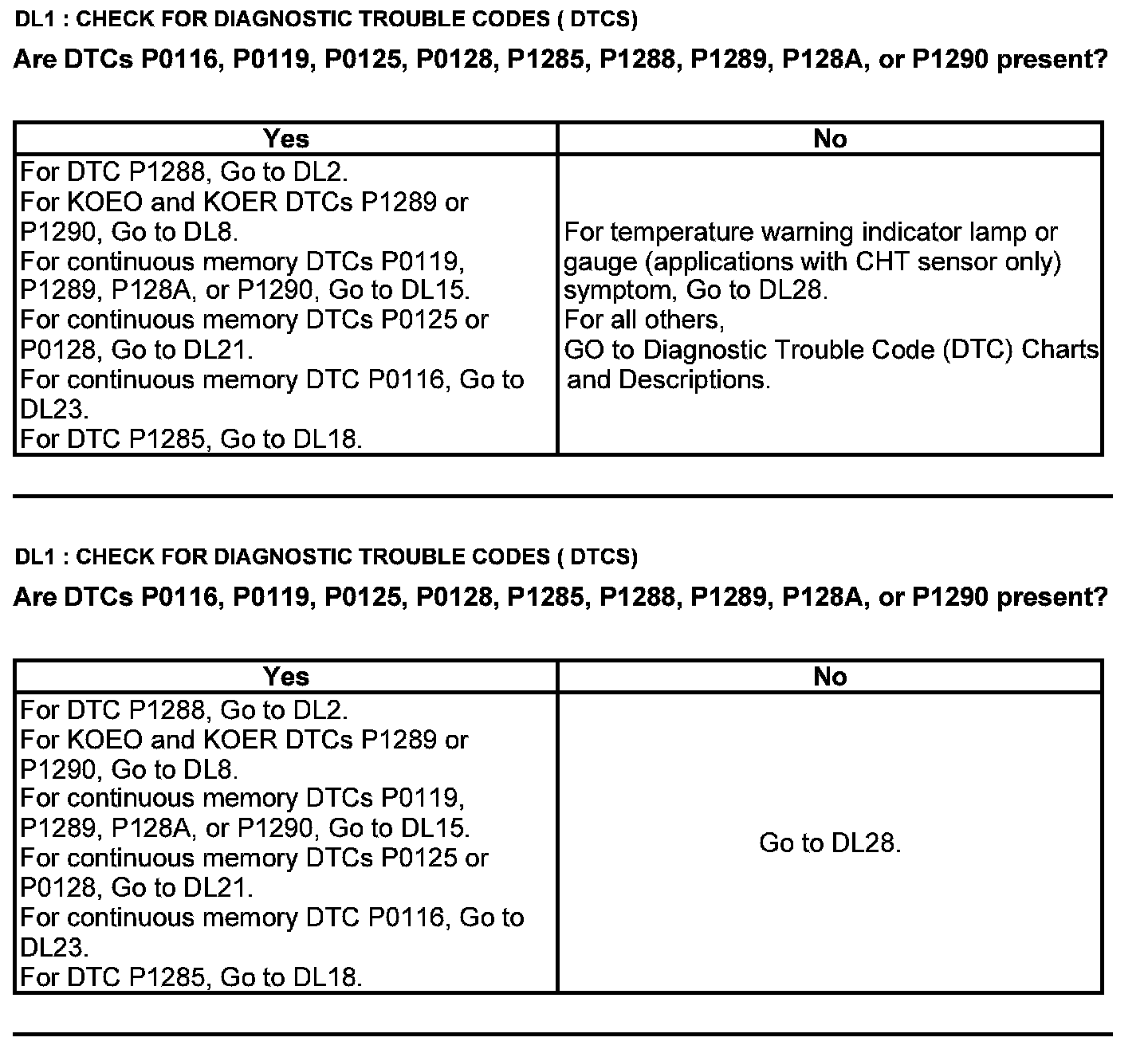

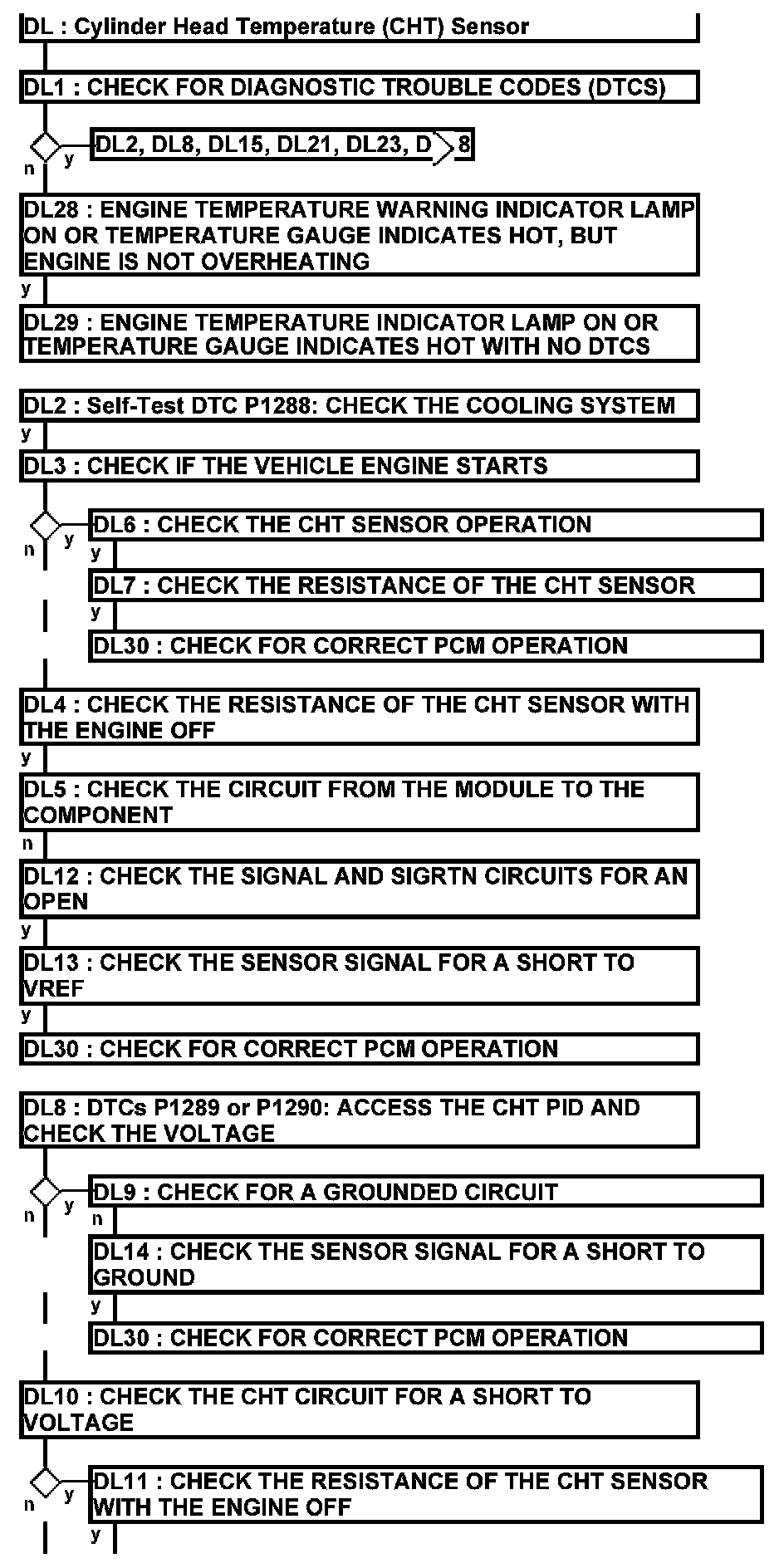

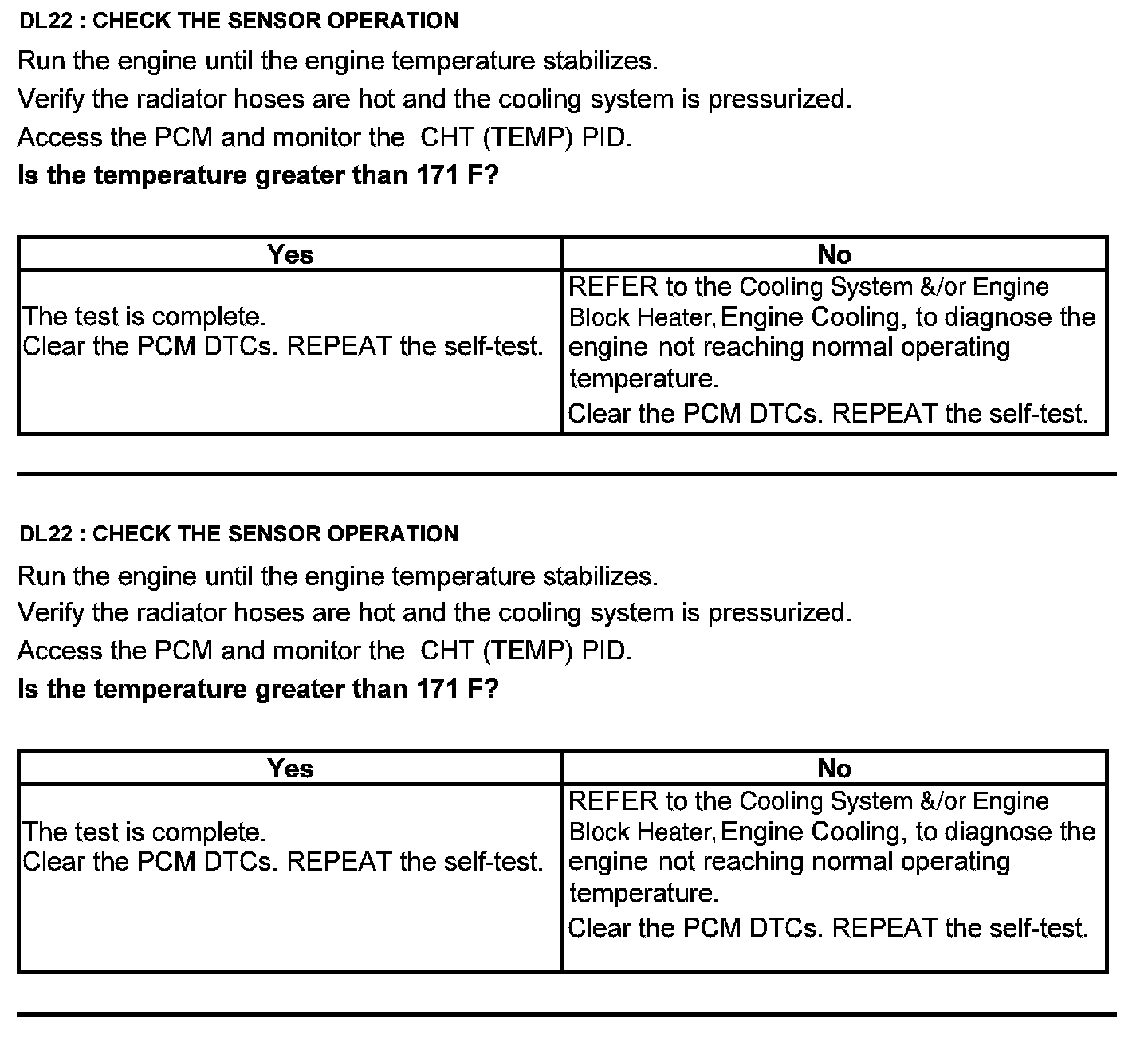

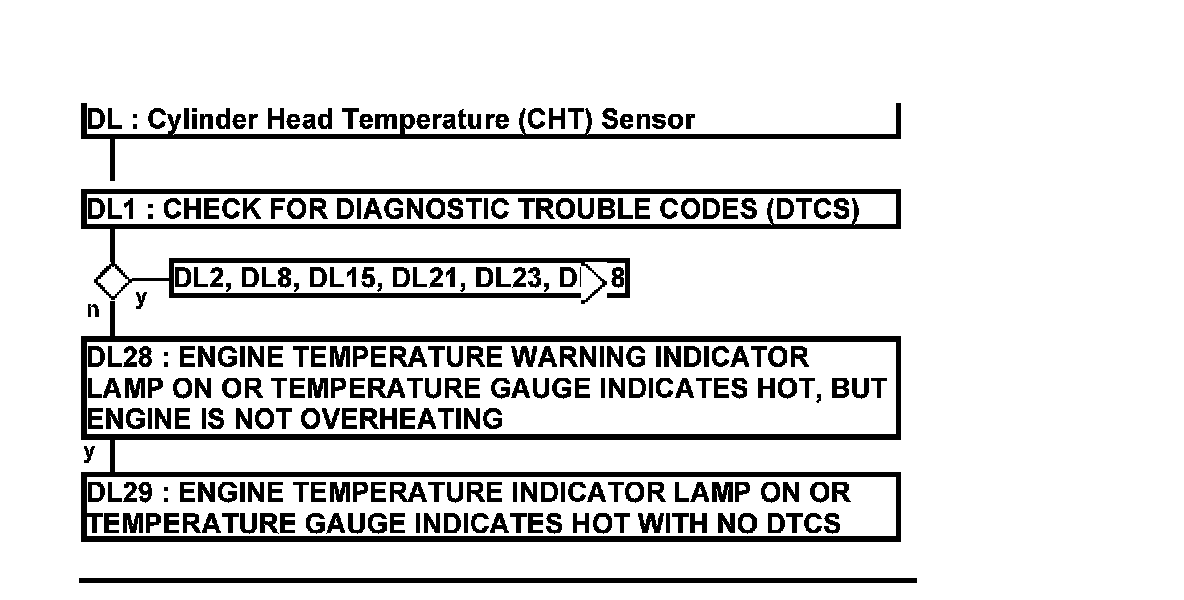

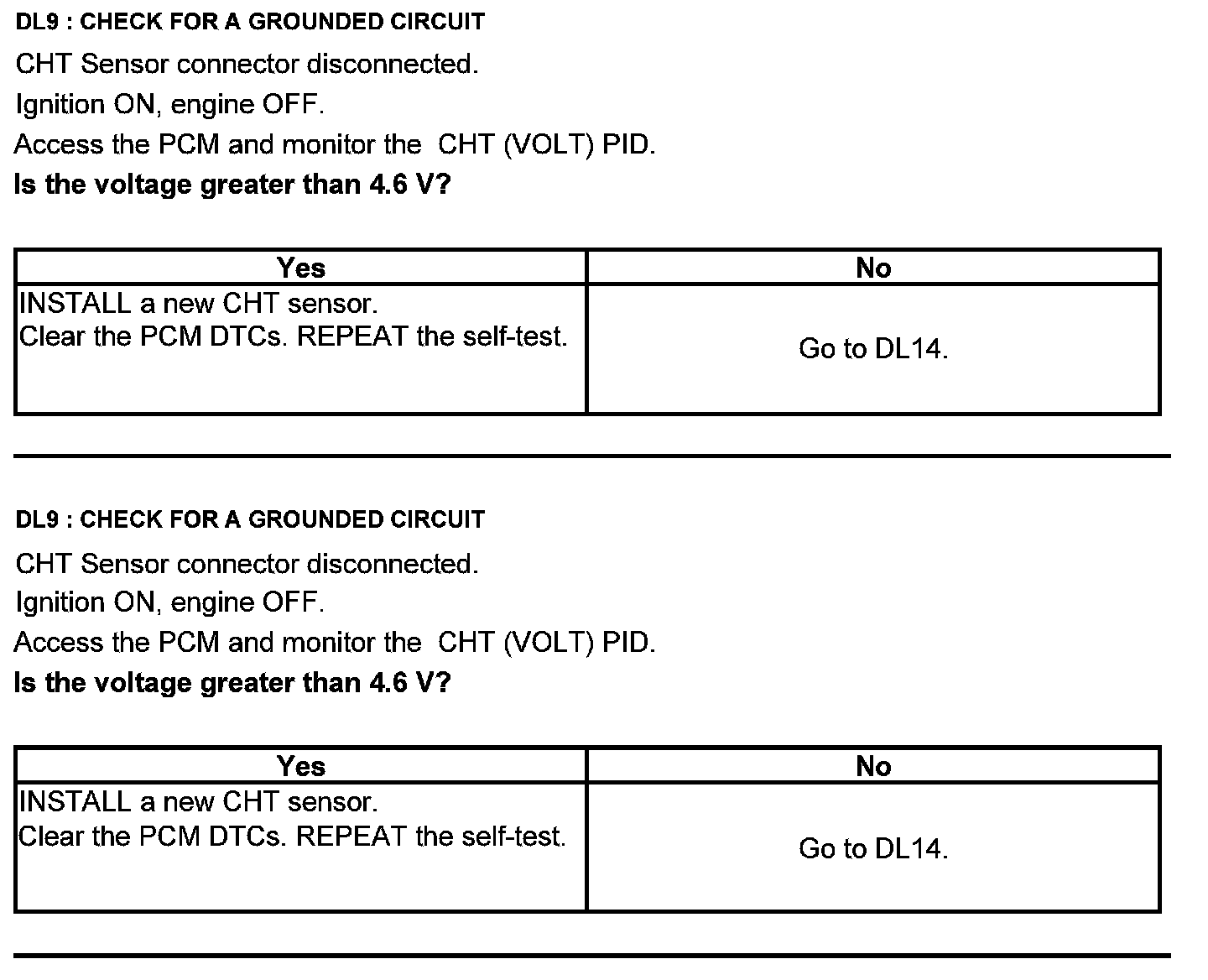

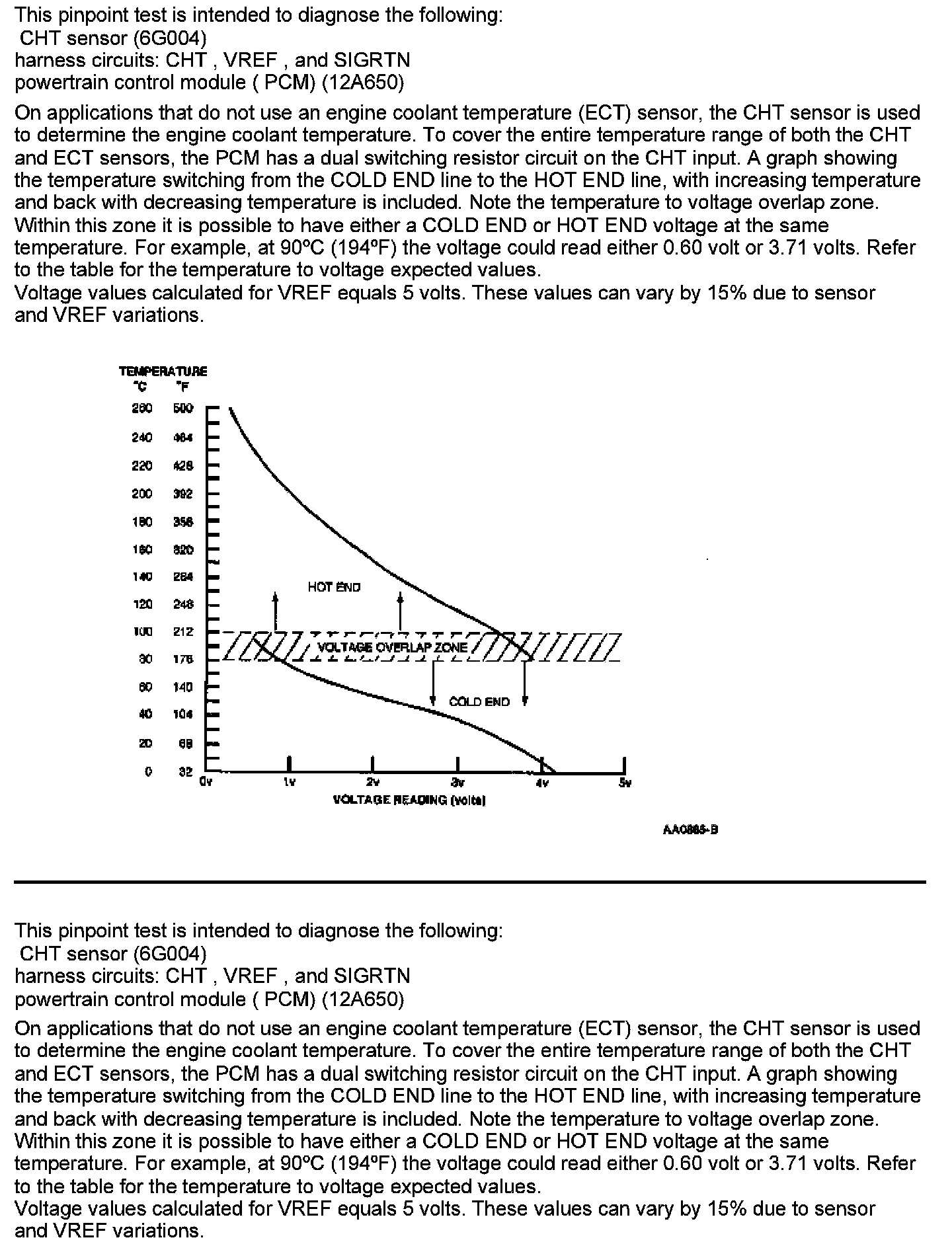

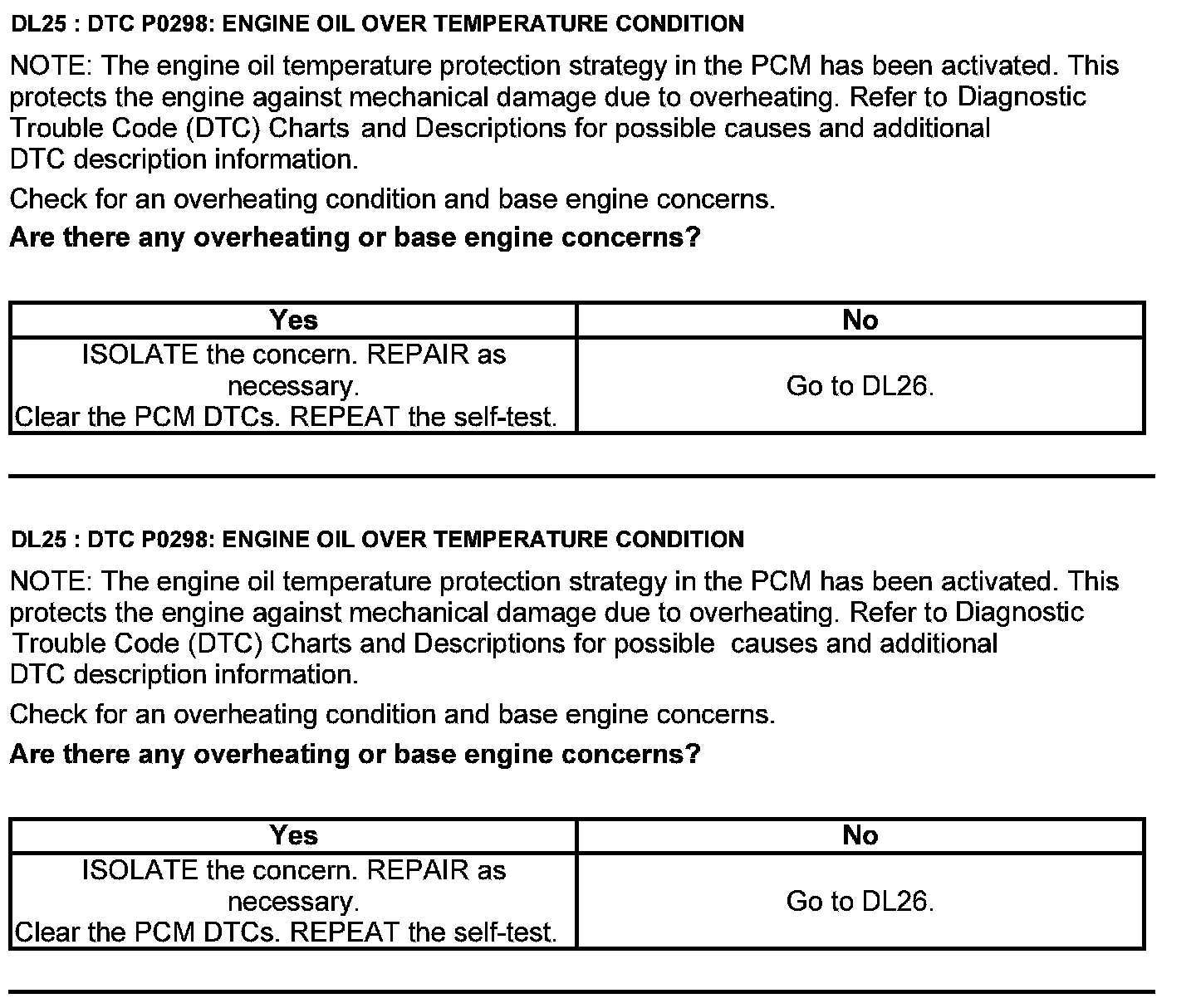

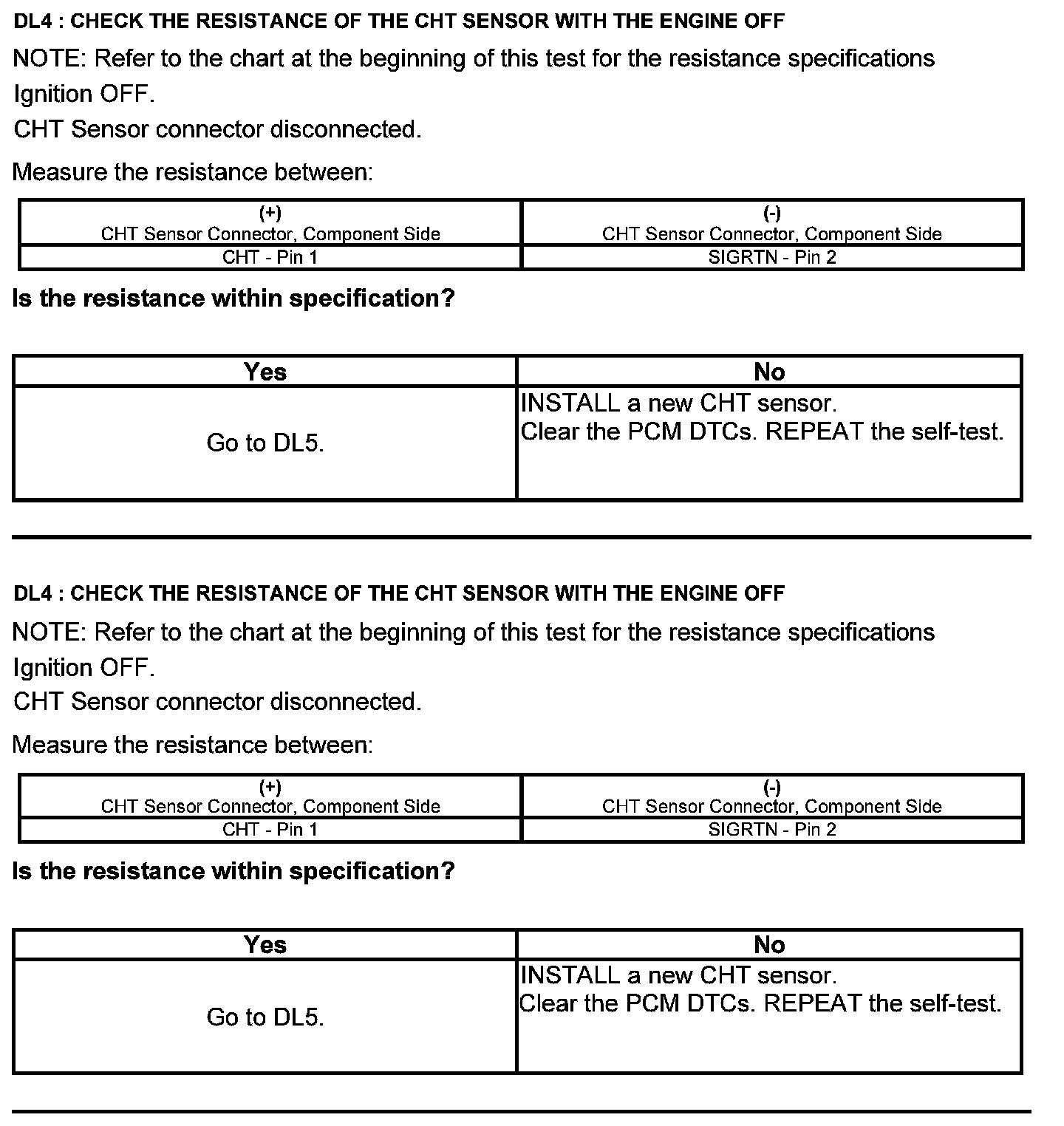

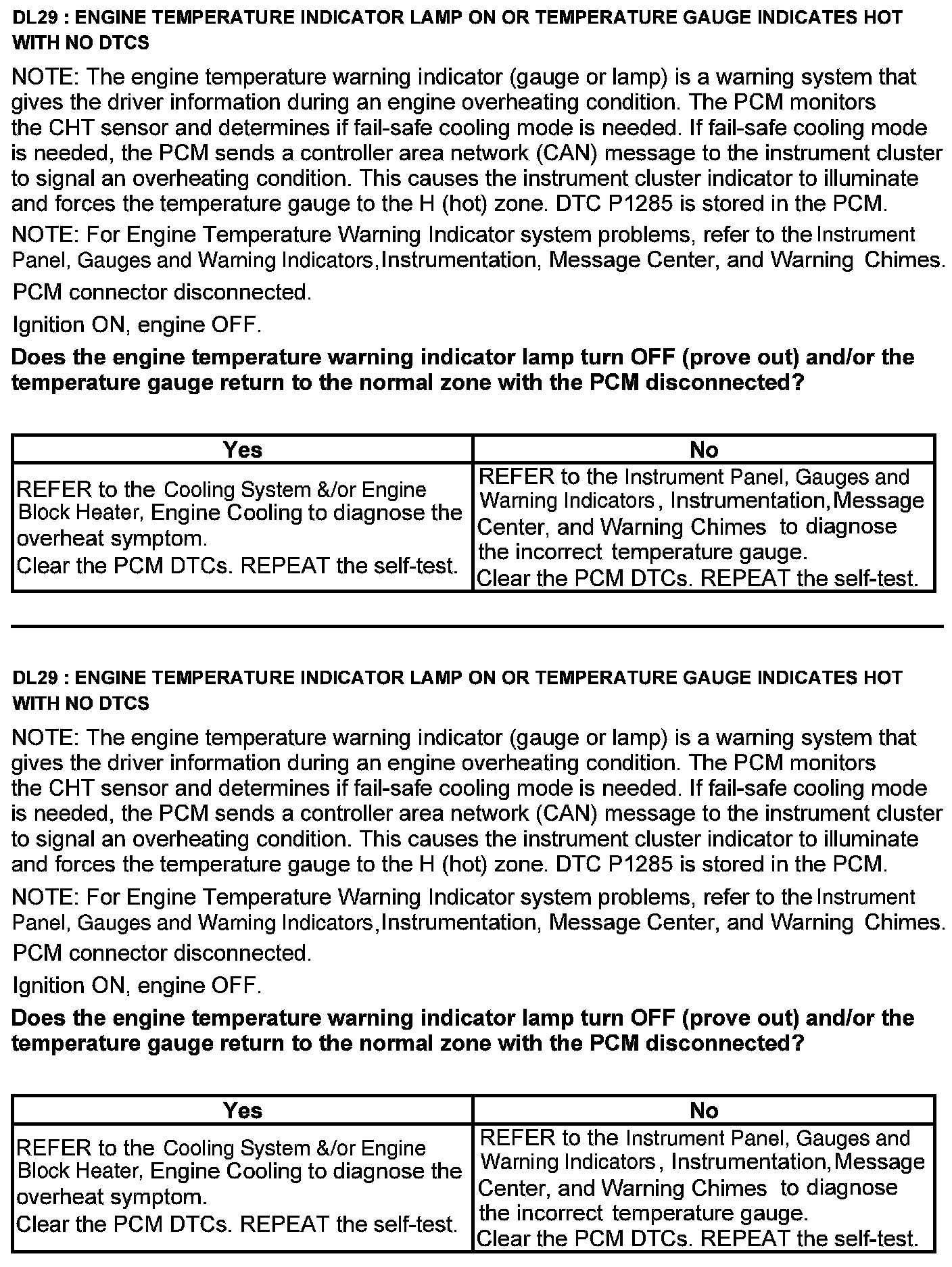

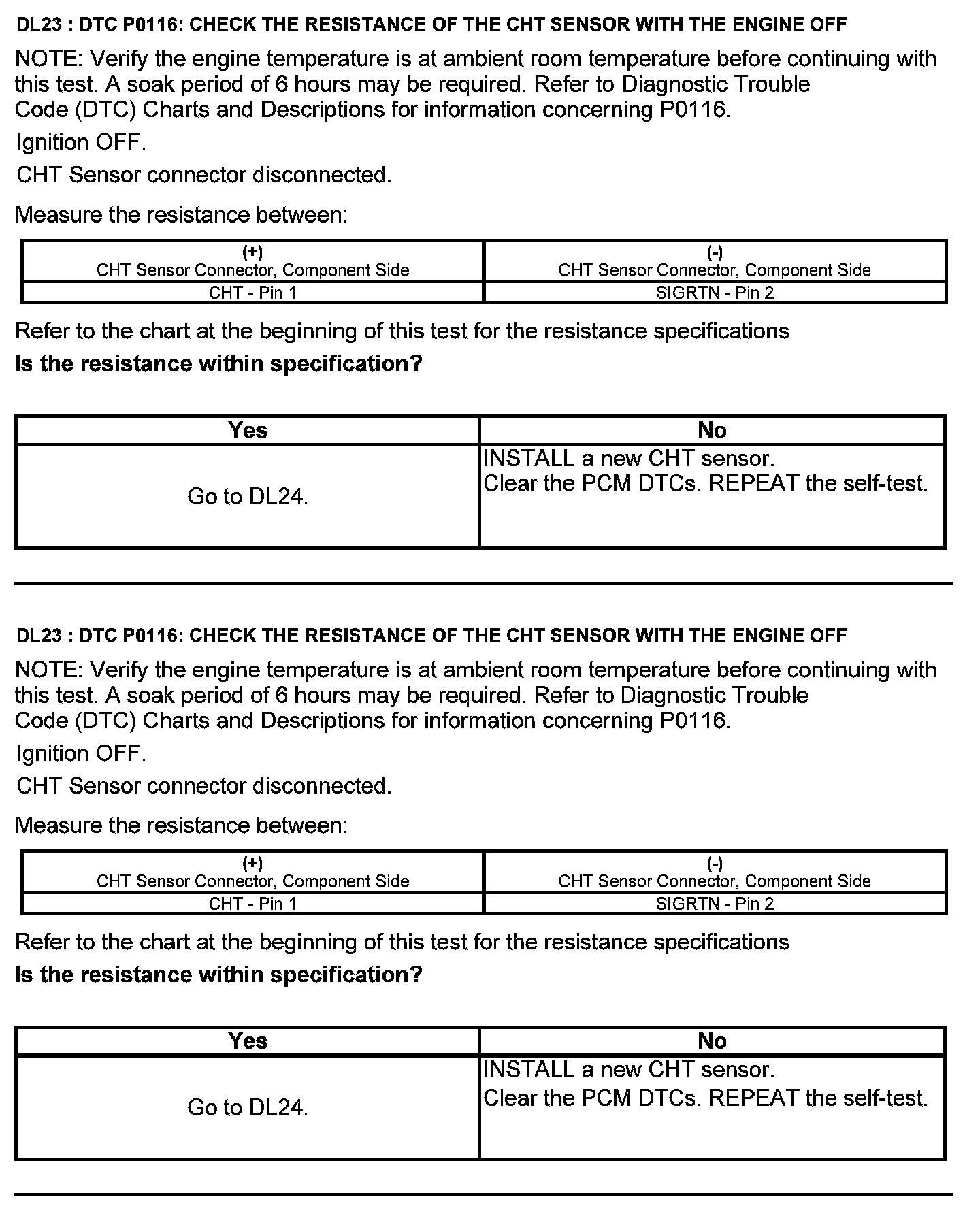

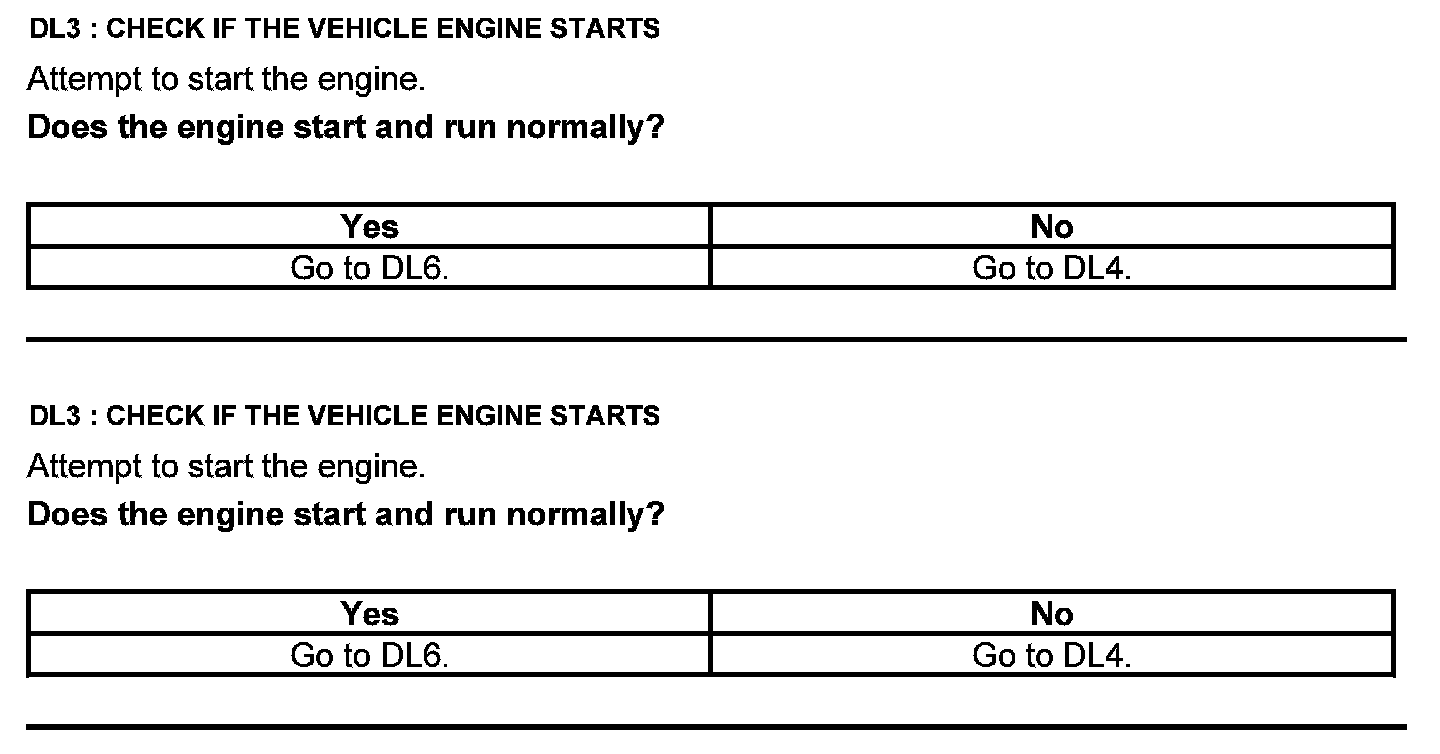

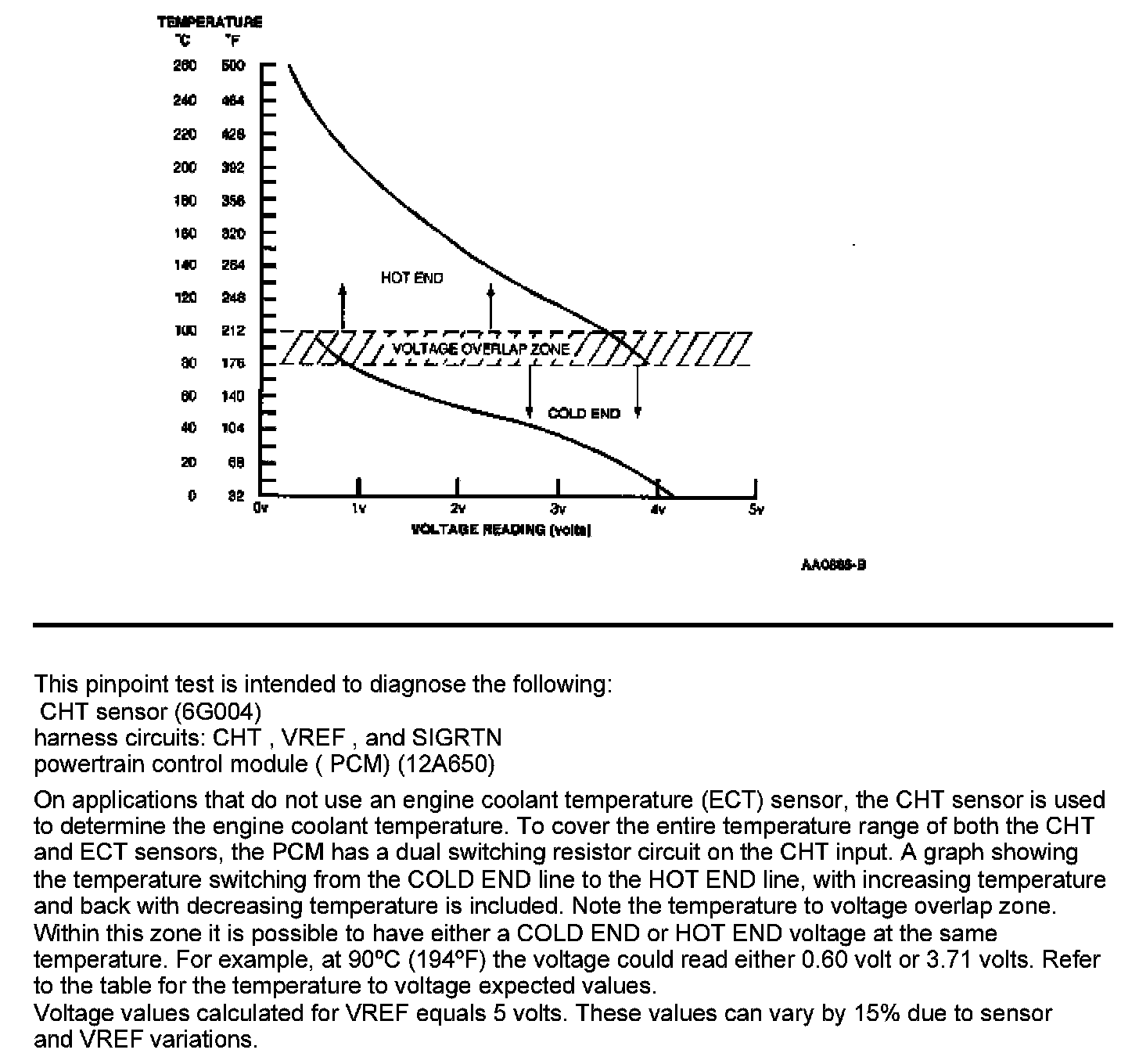

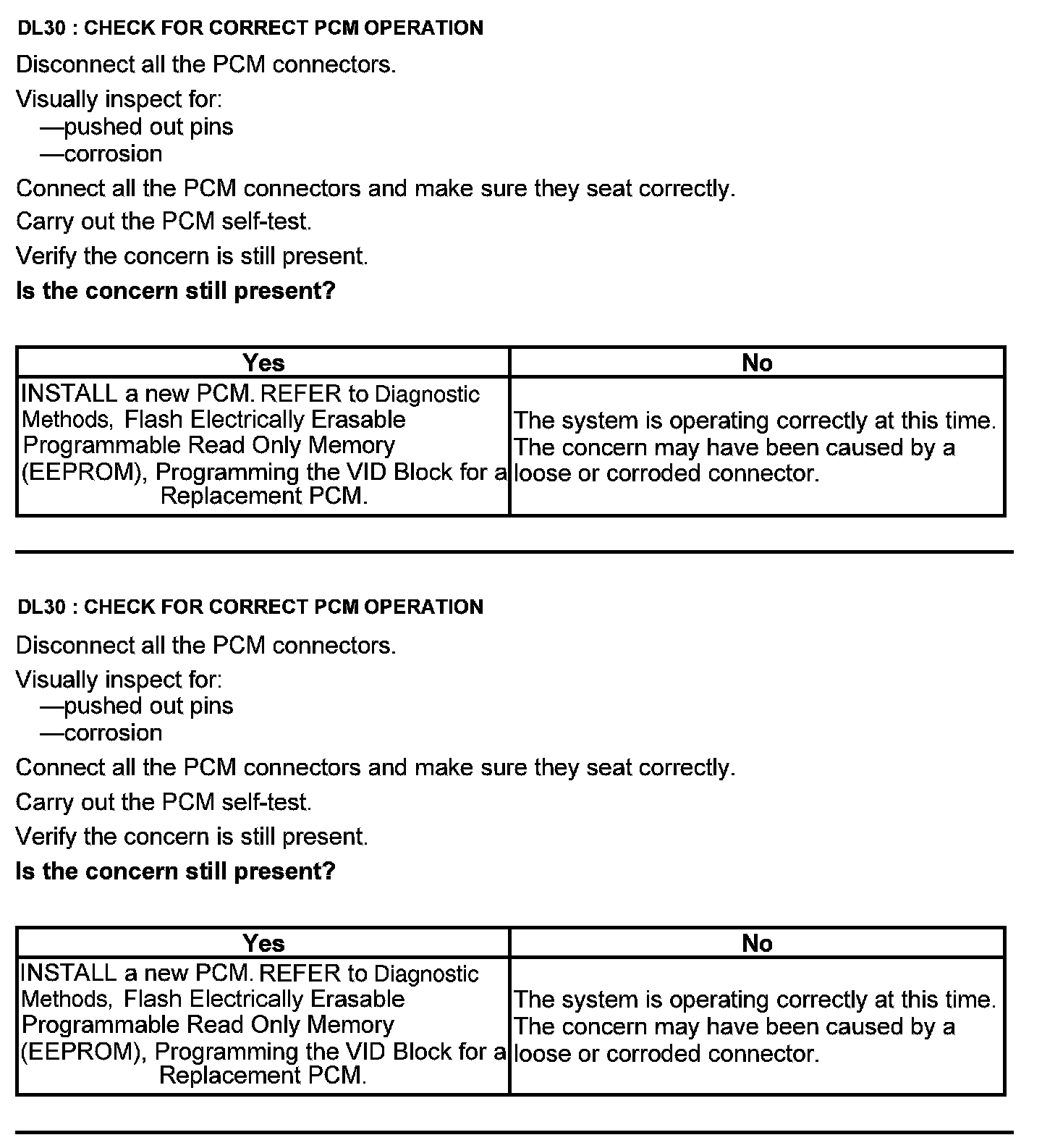

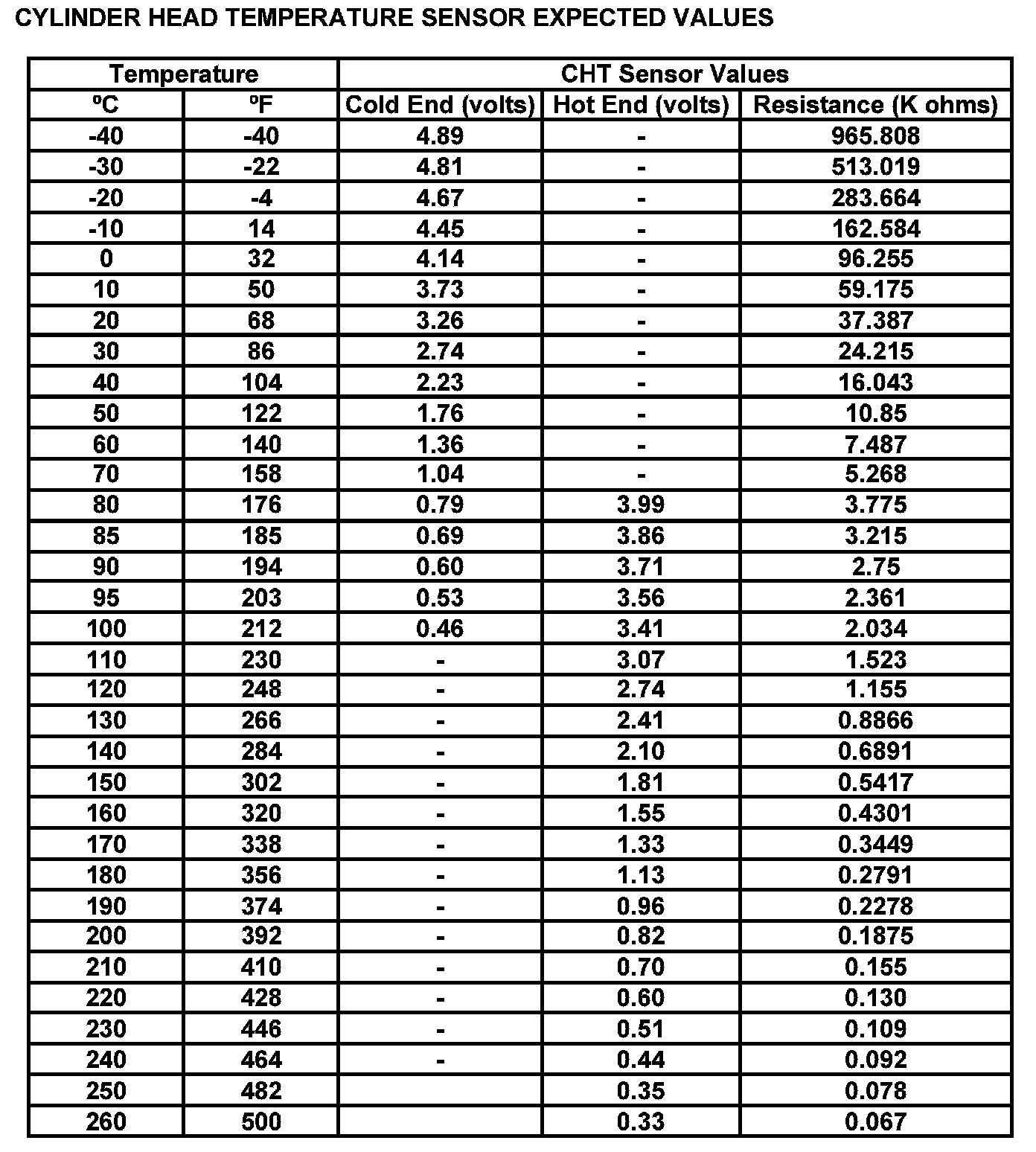

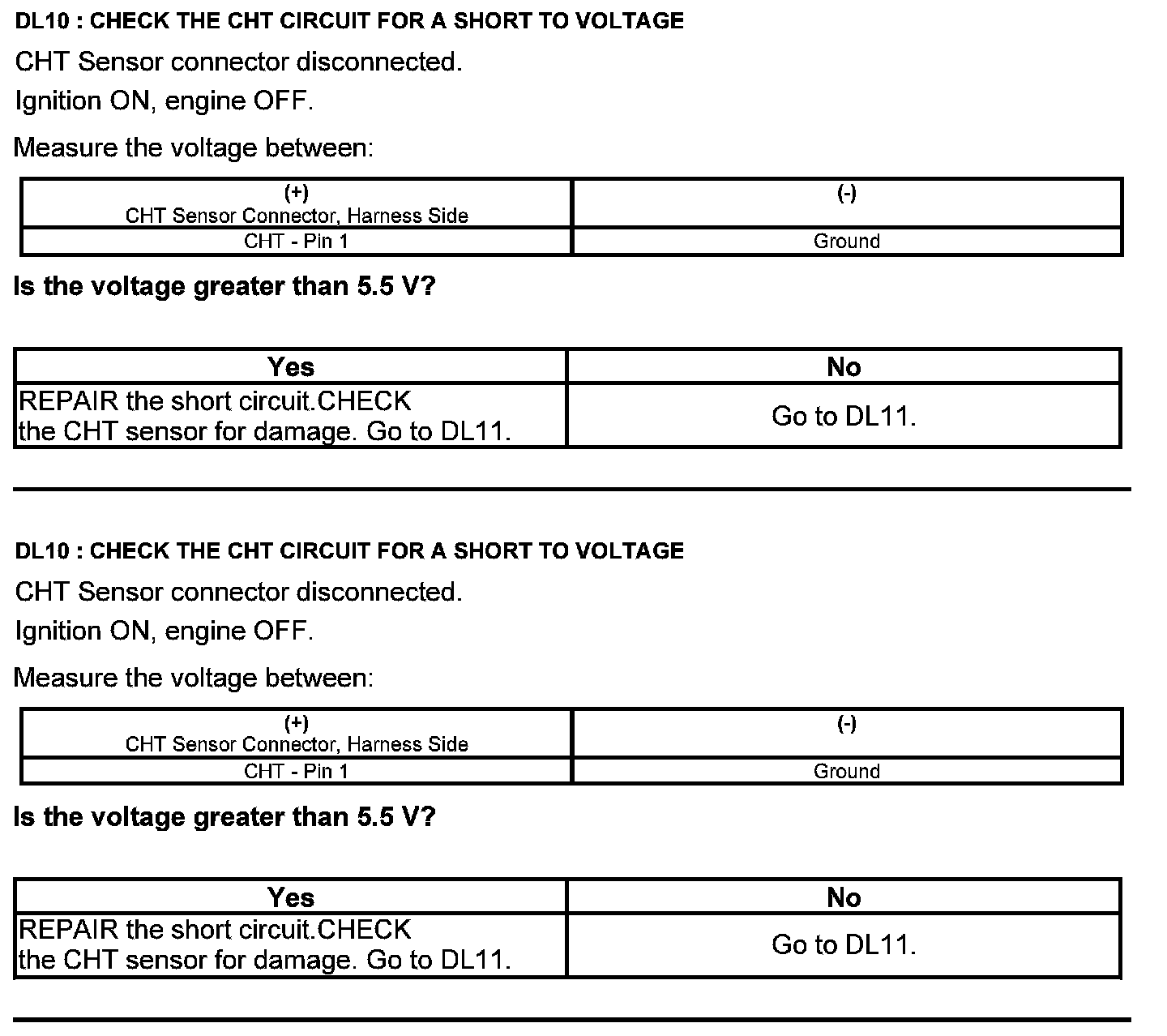

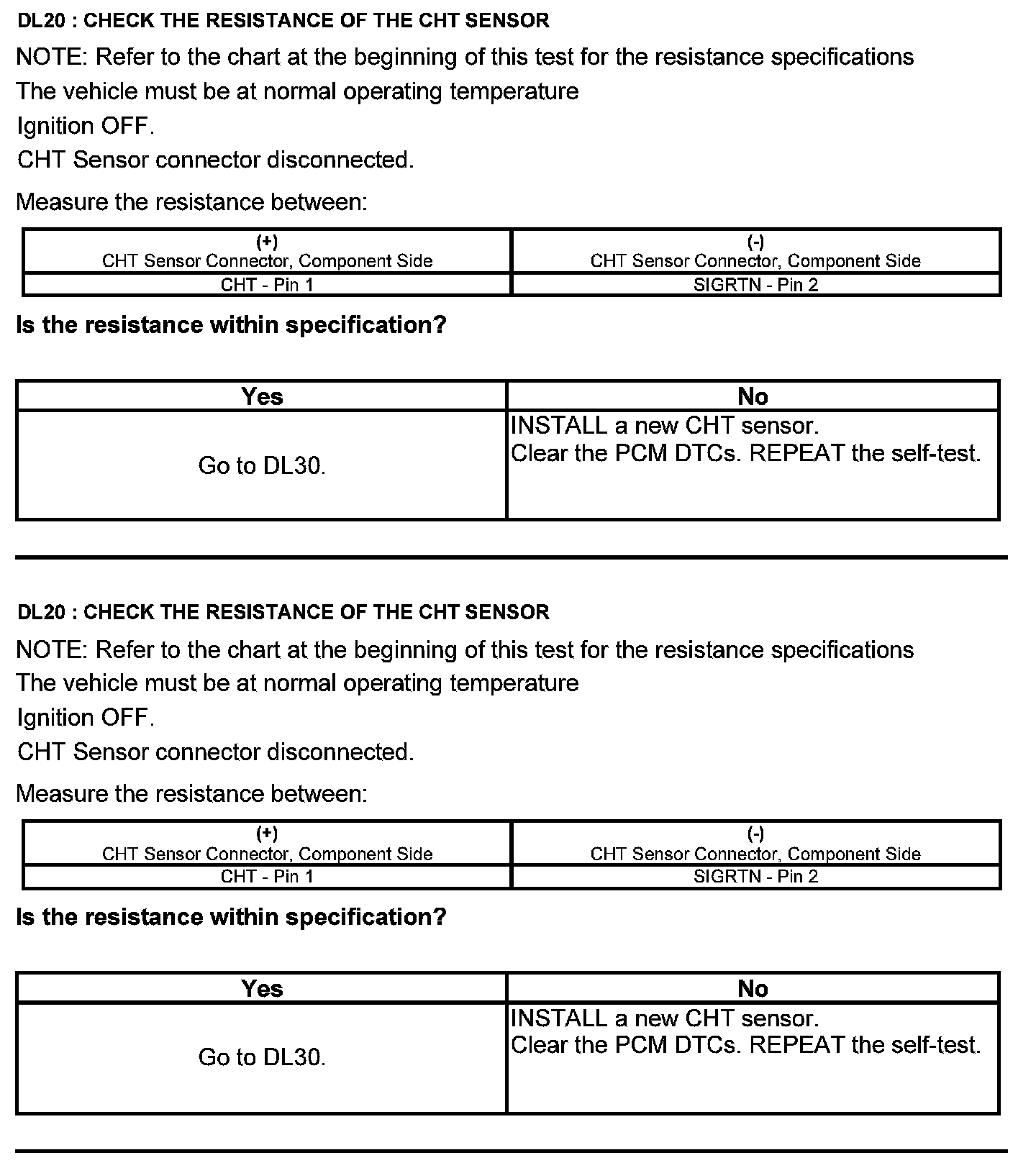

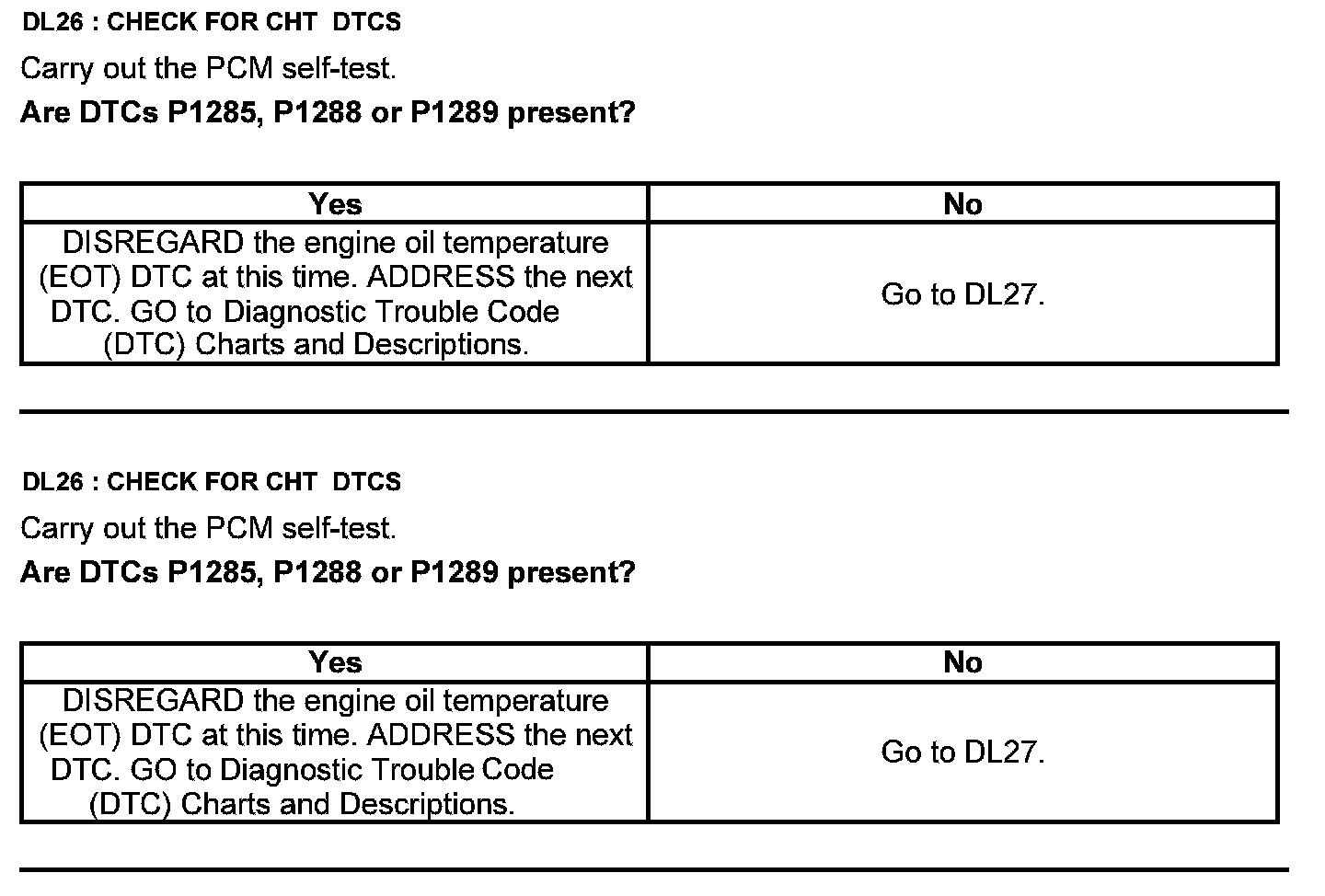

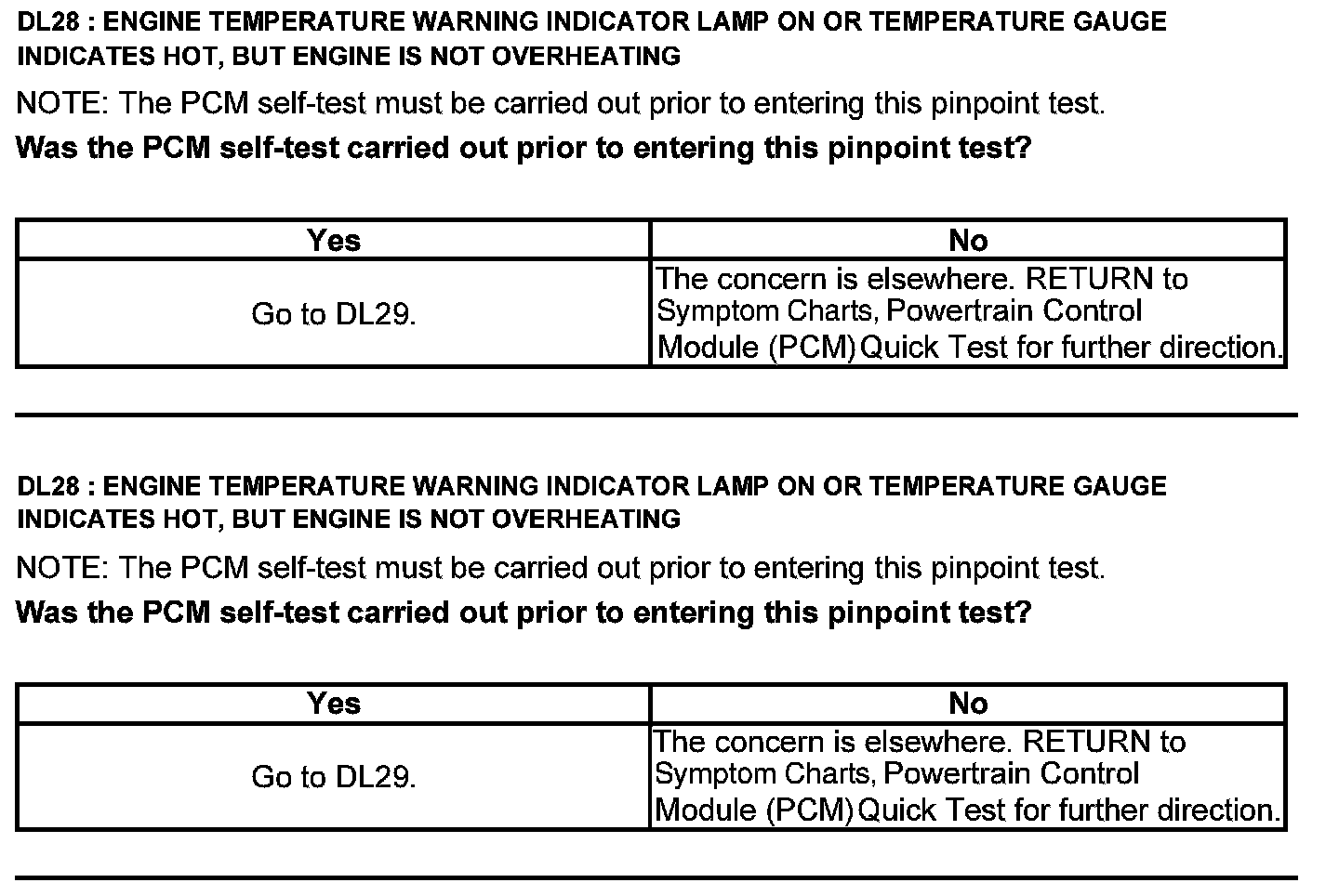

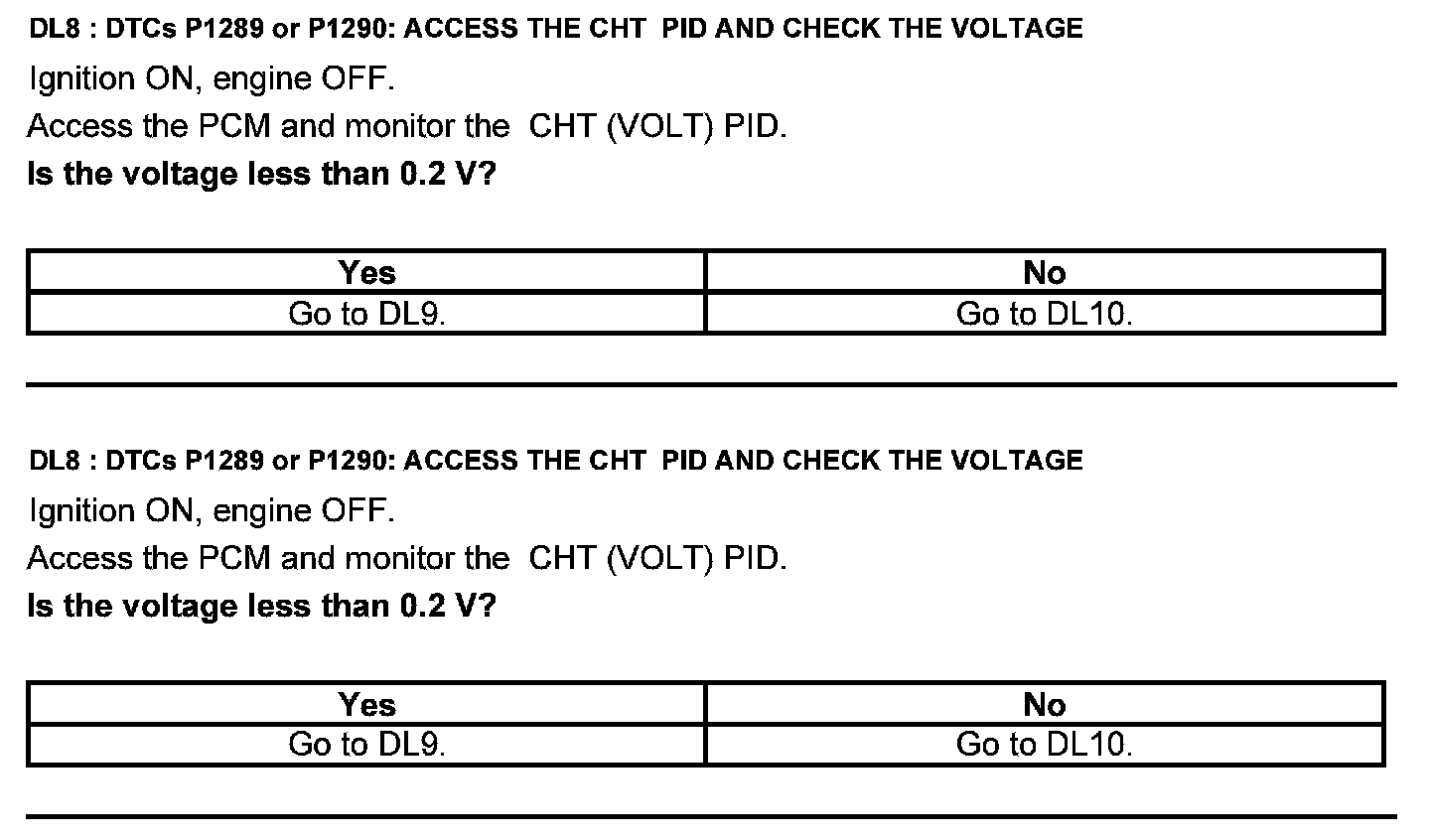

Cylinder Head Temperature (CHT) Sensor - Manual Transmission

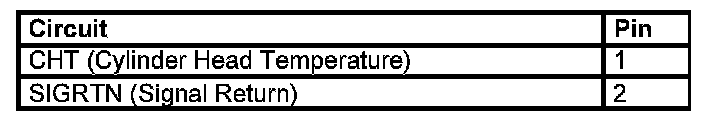

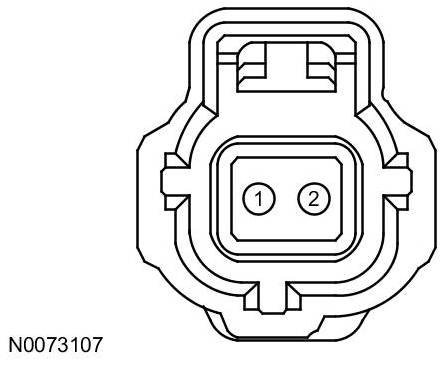

Cylinder Head Temperature (CHT) Sensor Connector





Harness Side

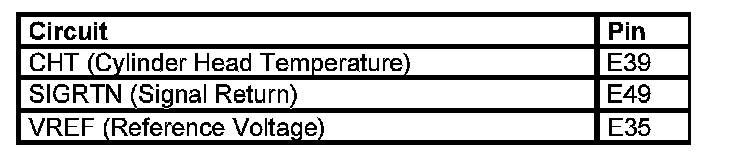

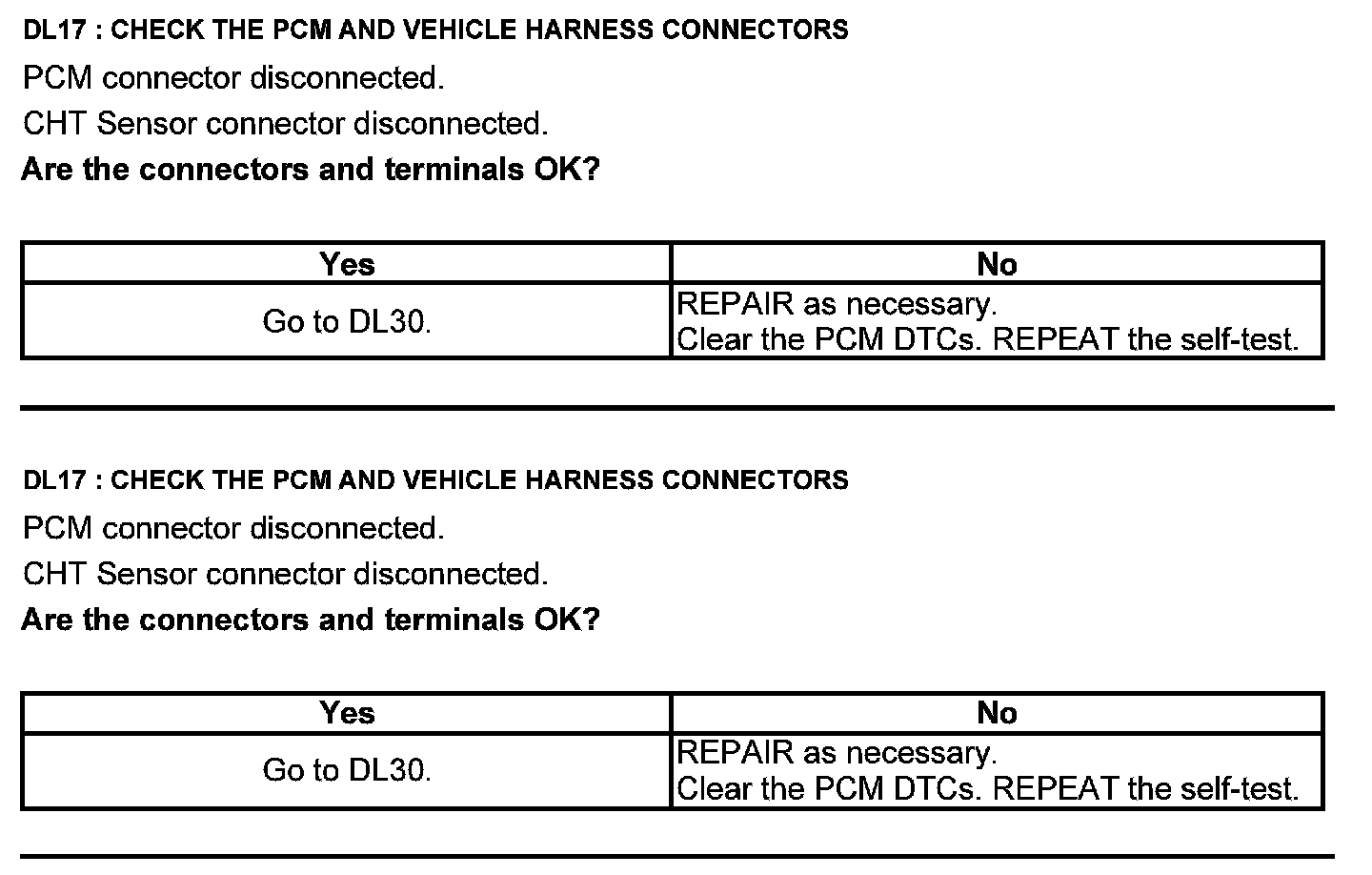

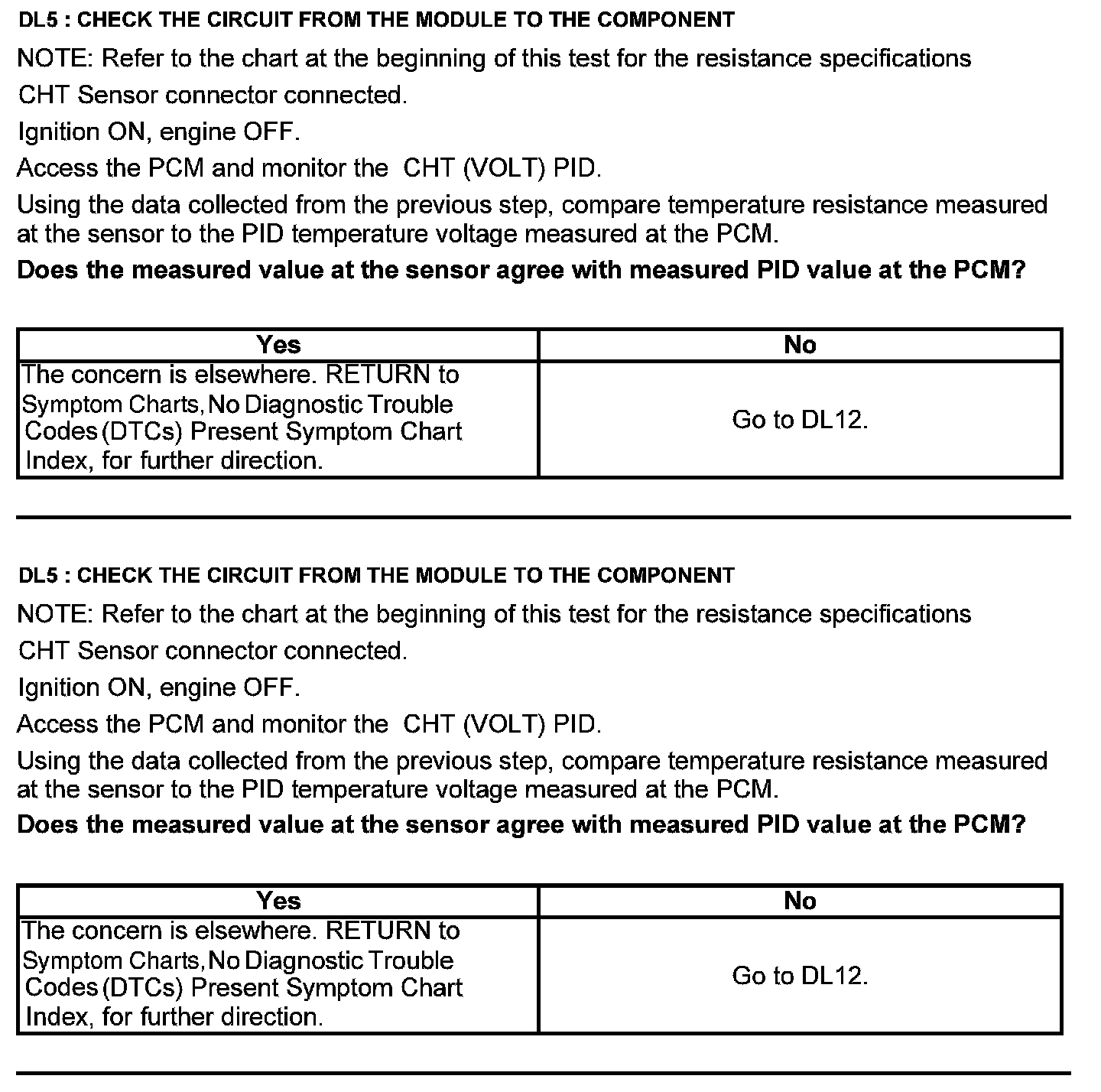

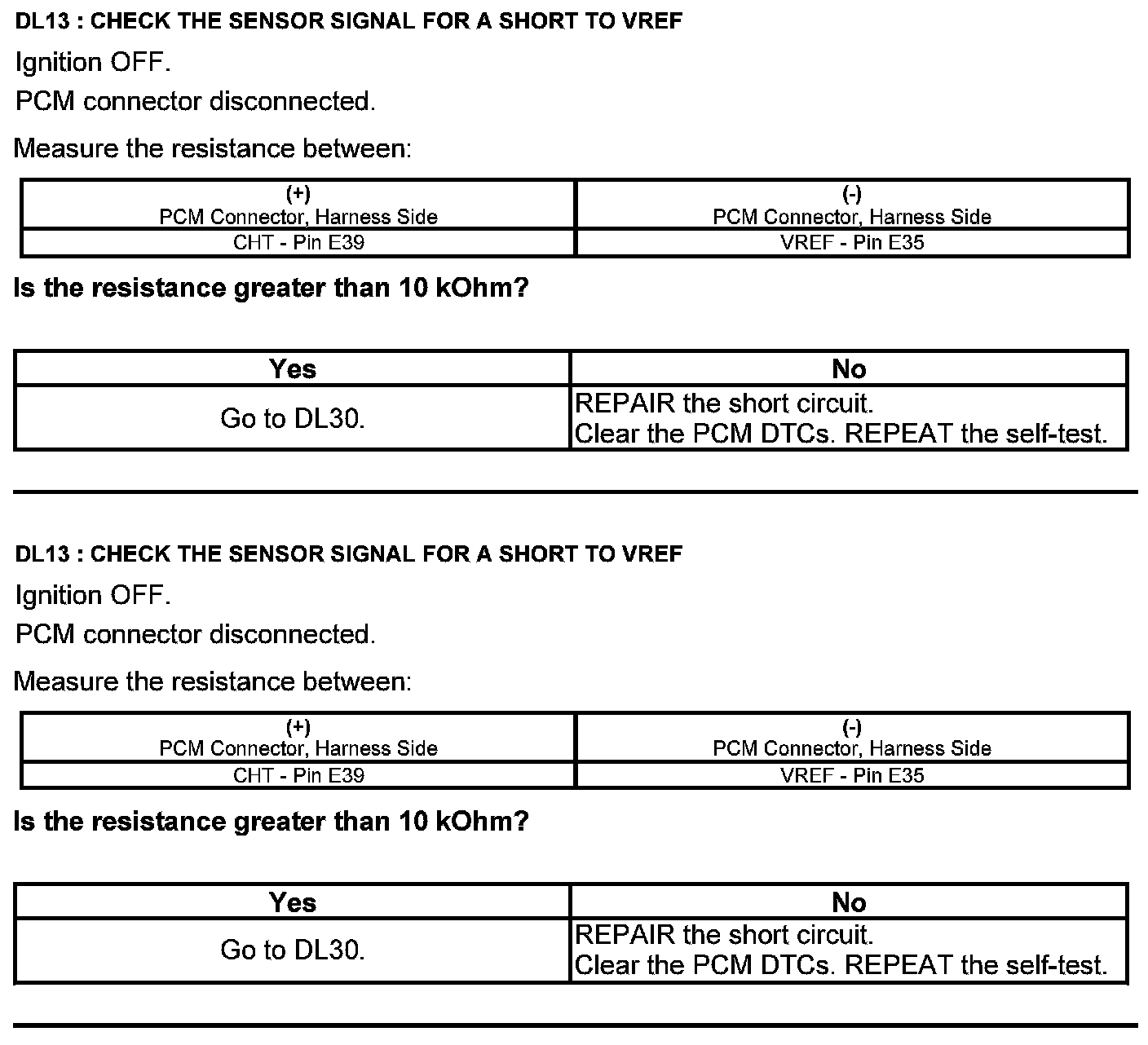

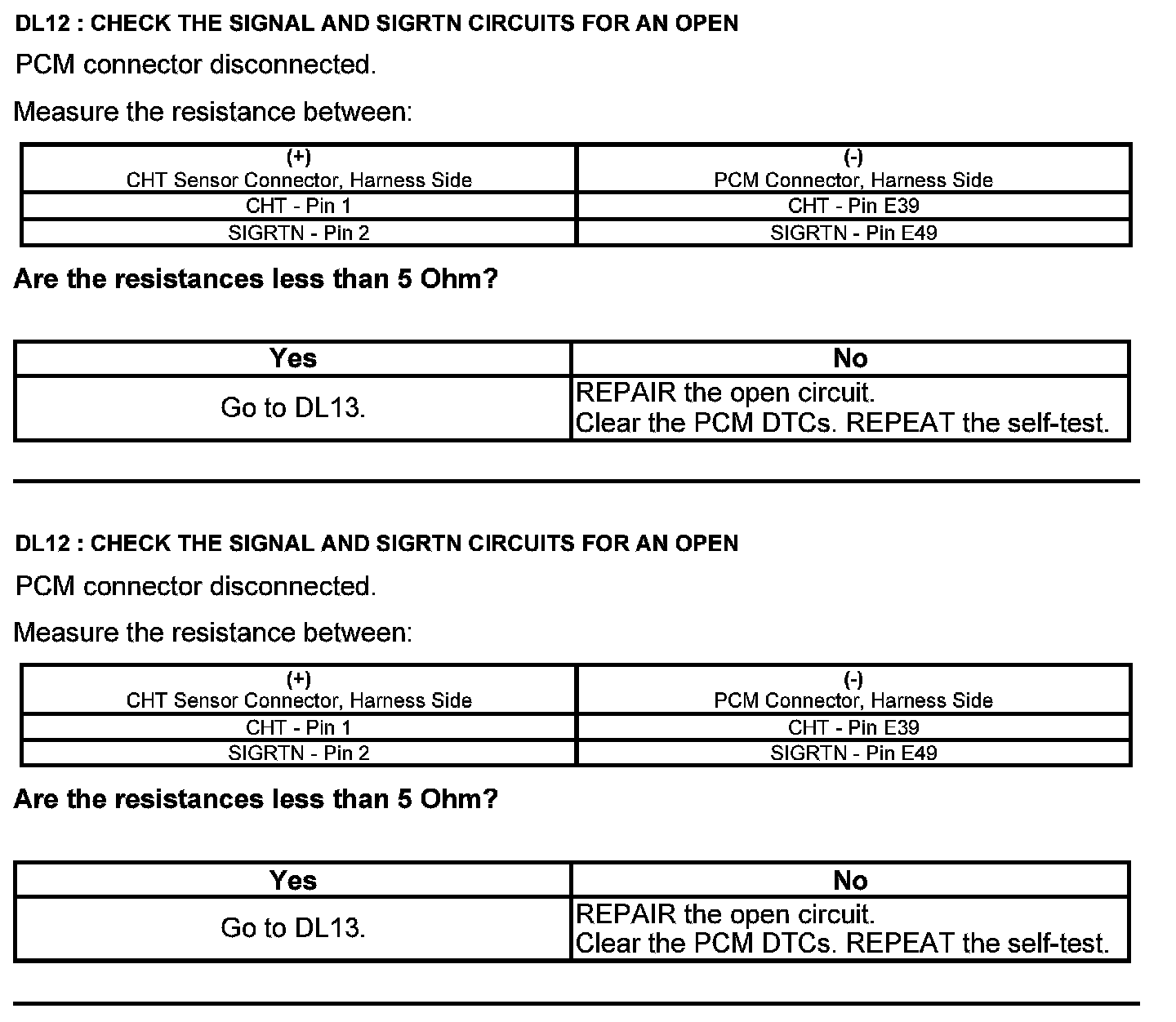

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
