Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DL: Cylinder Head Temperature (CHT) Sensor >> All Others

All Others

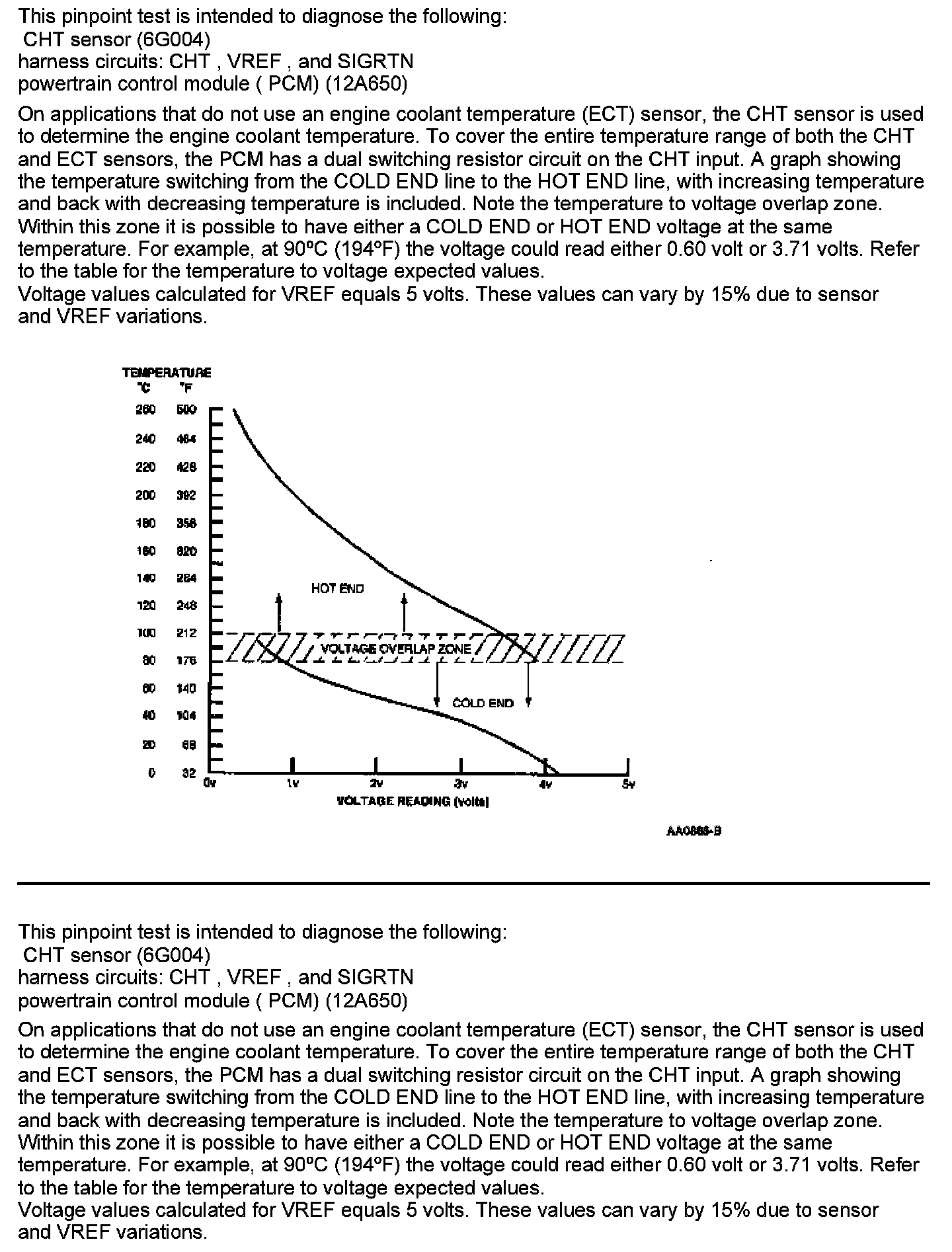

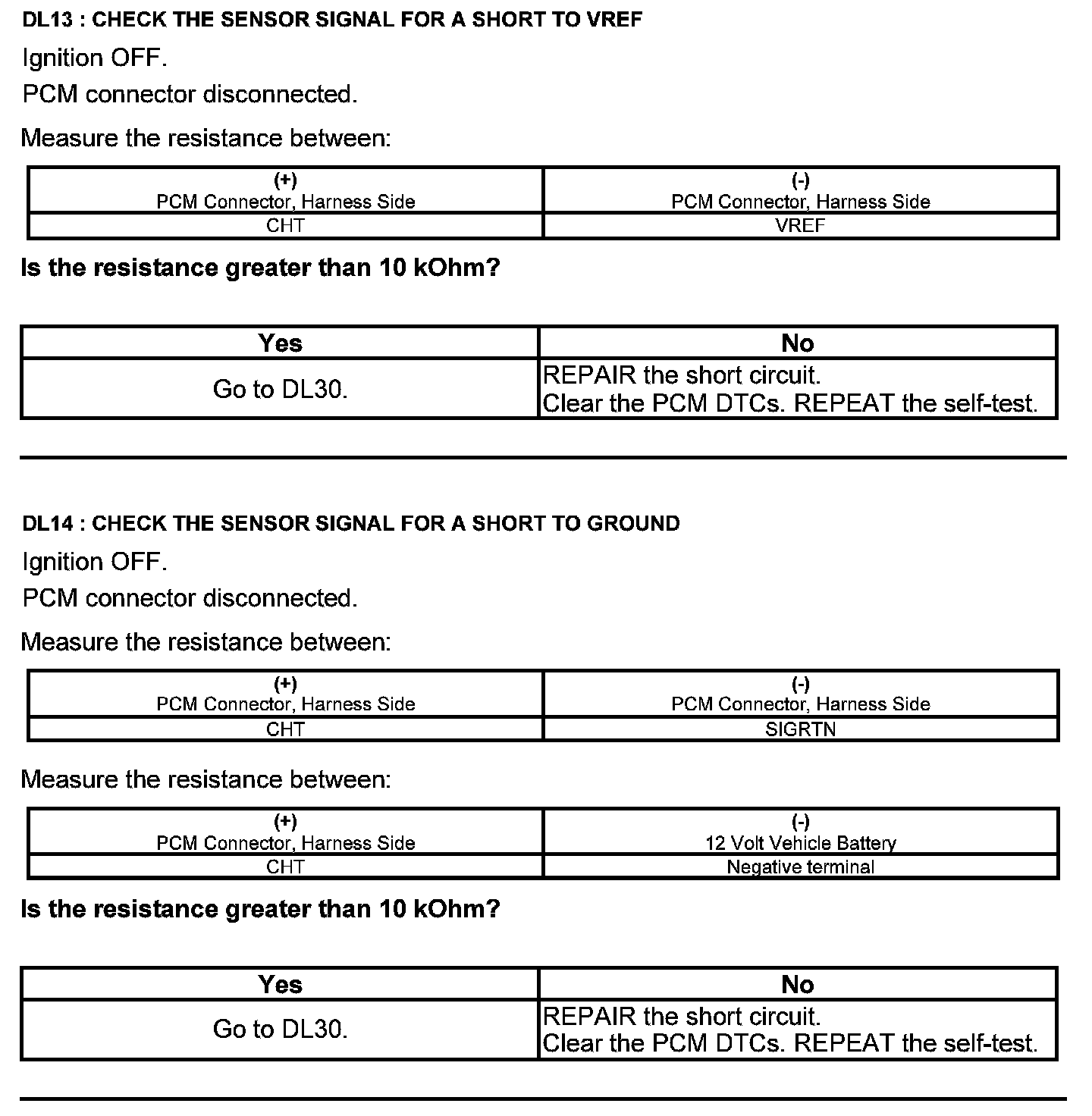

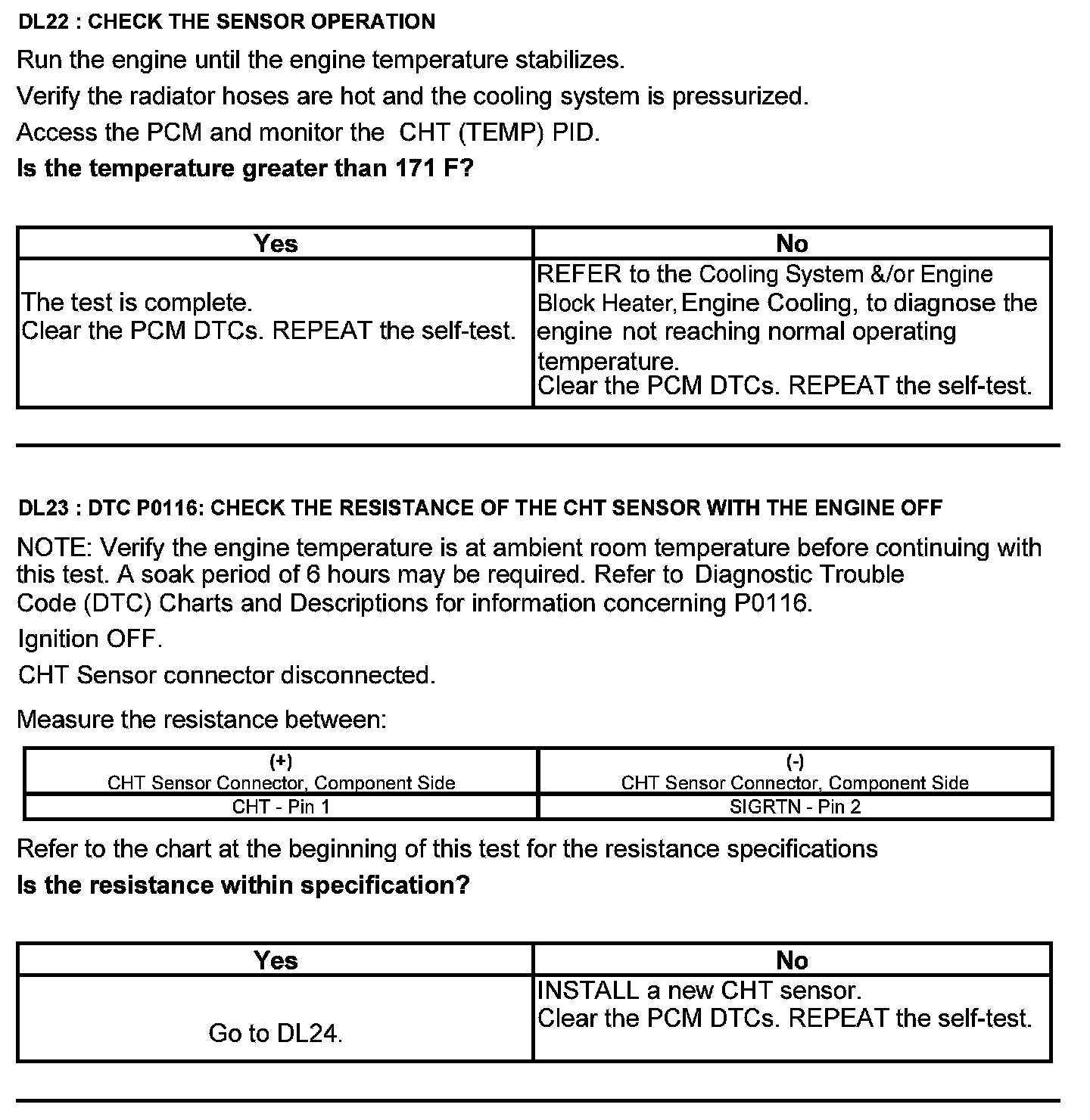

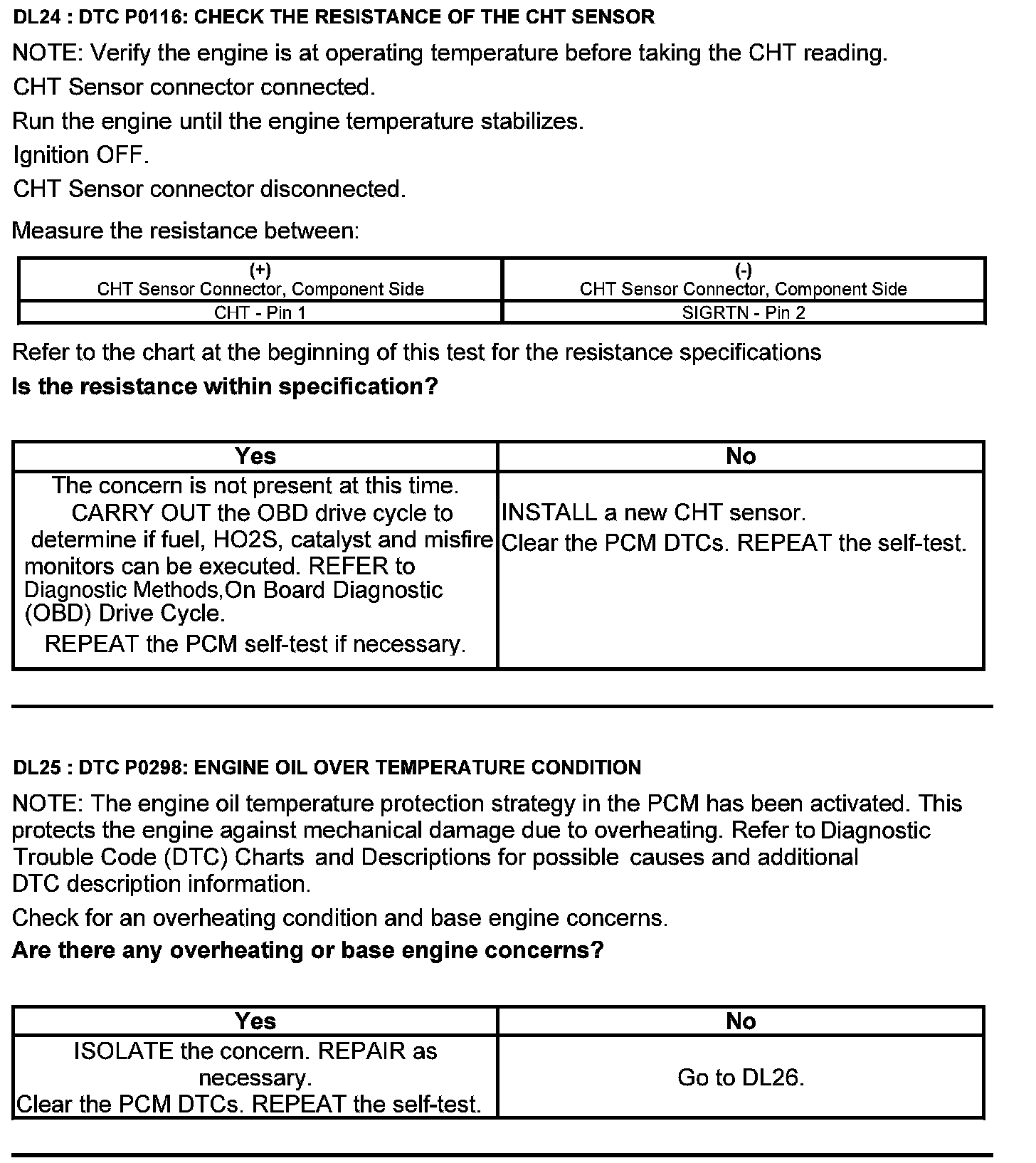

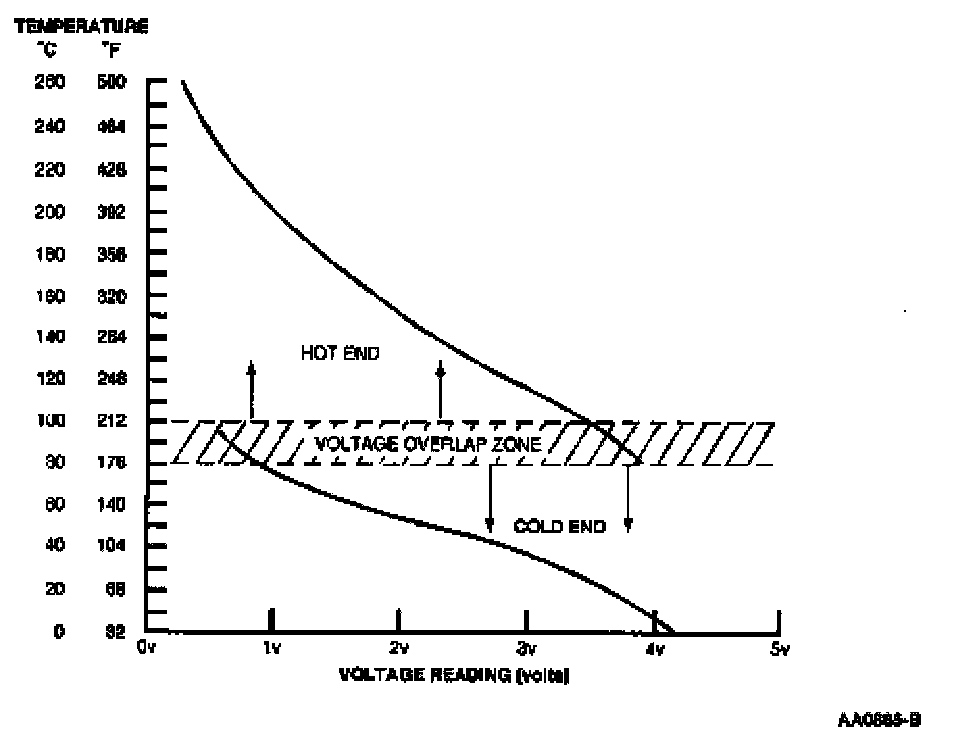

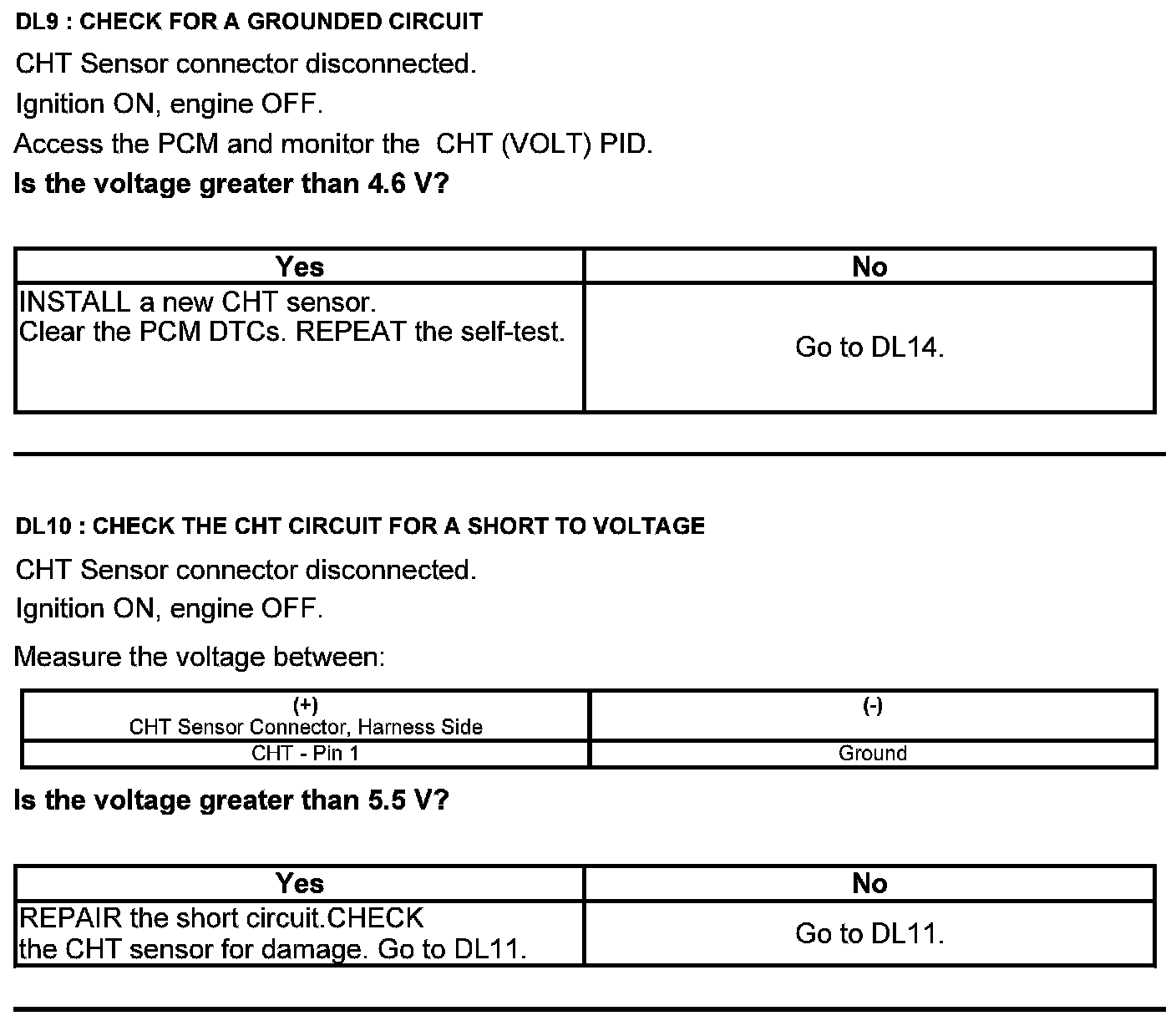

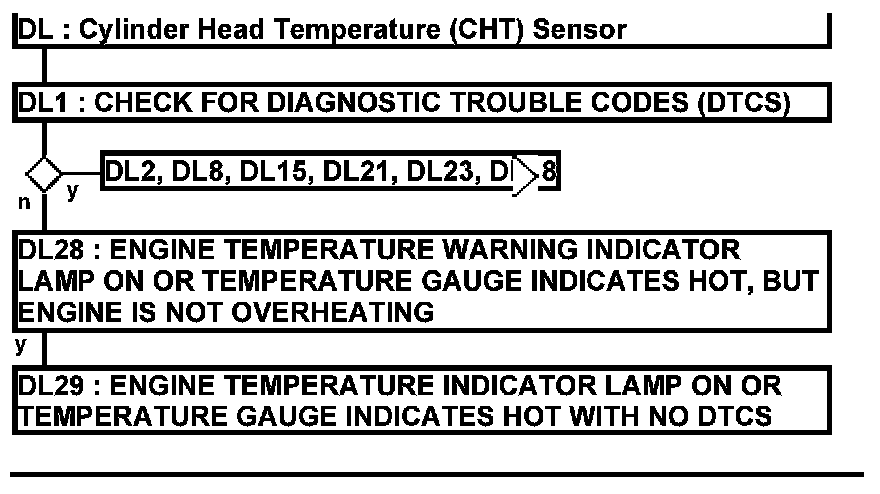

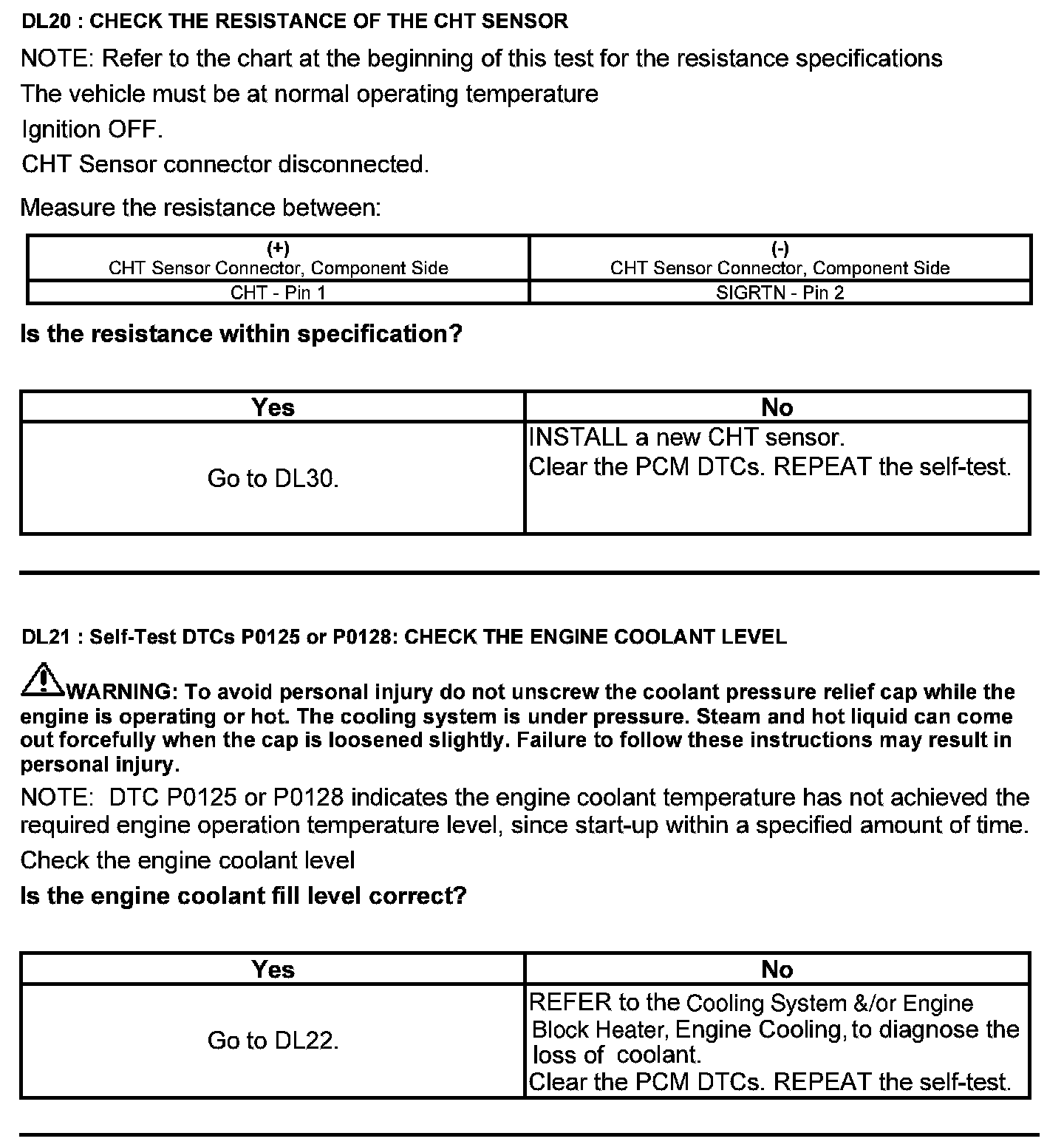

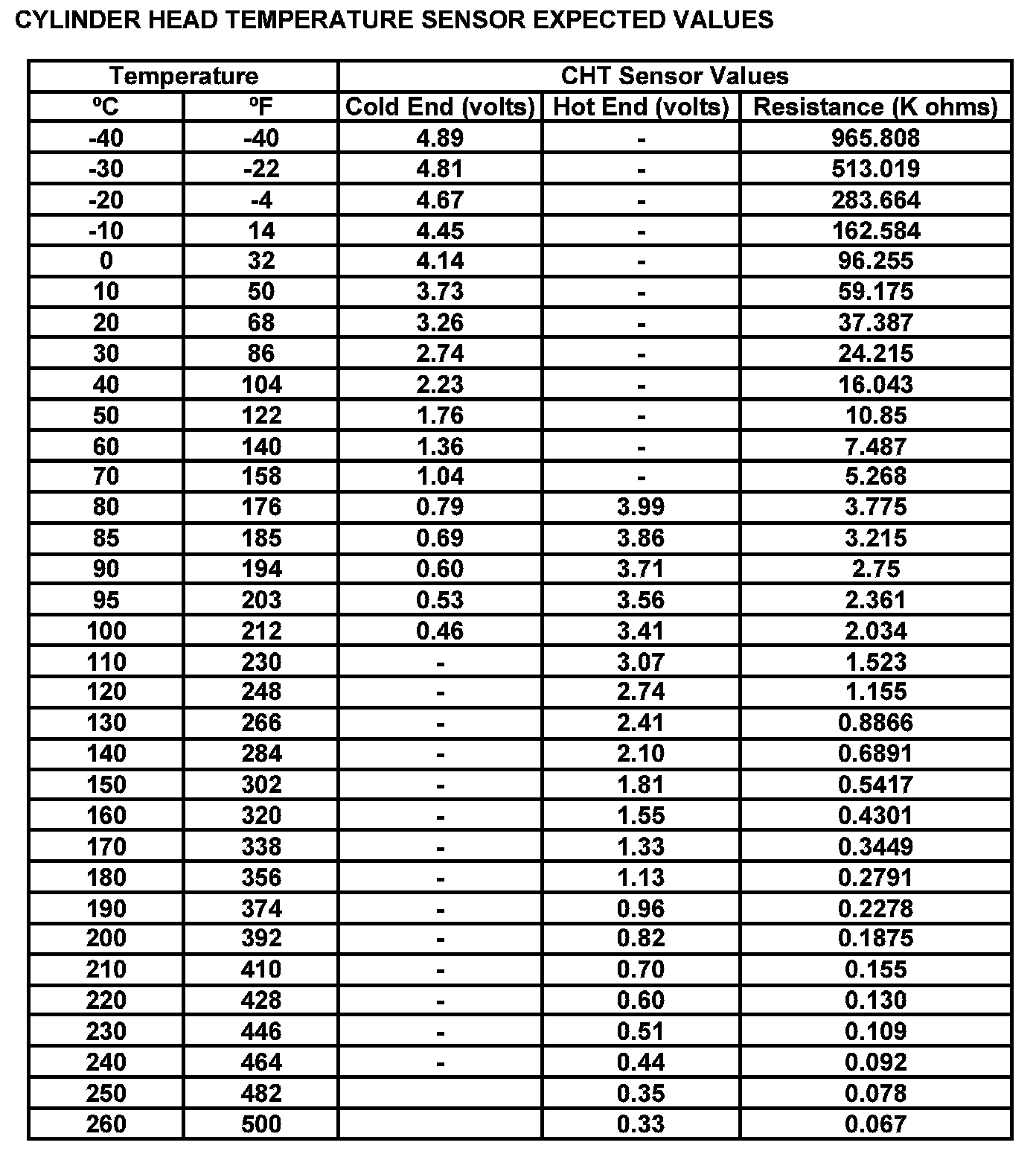

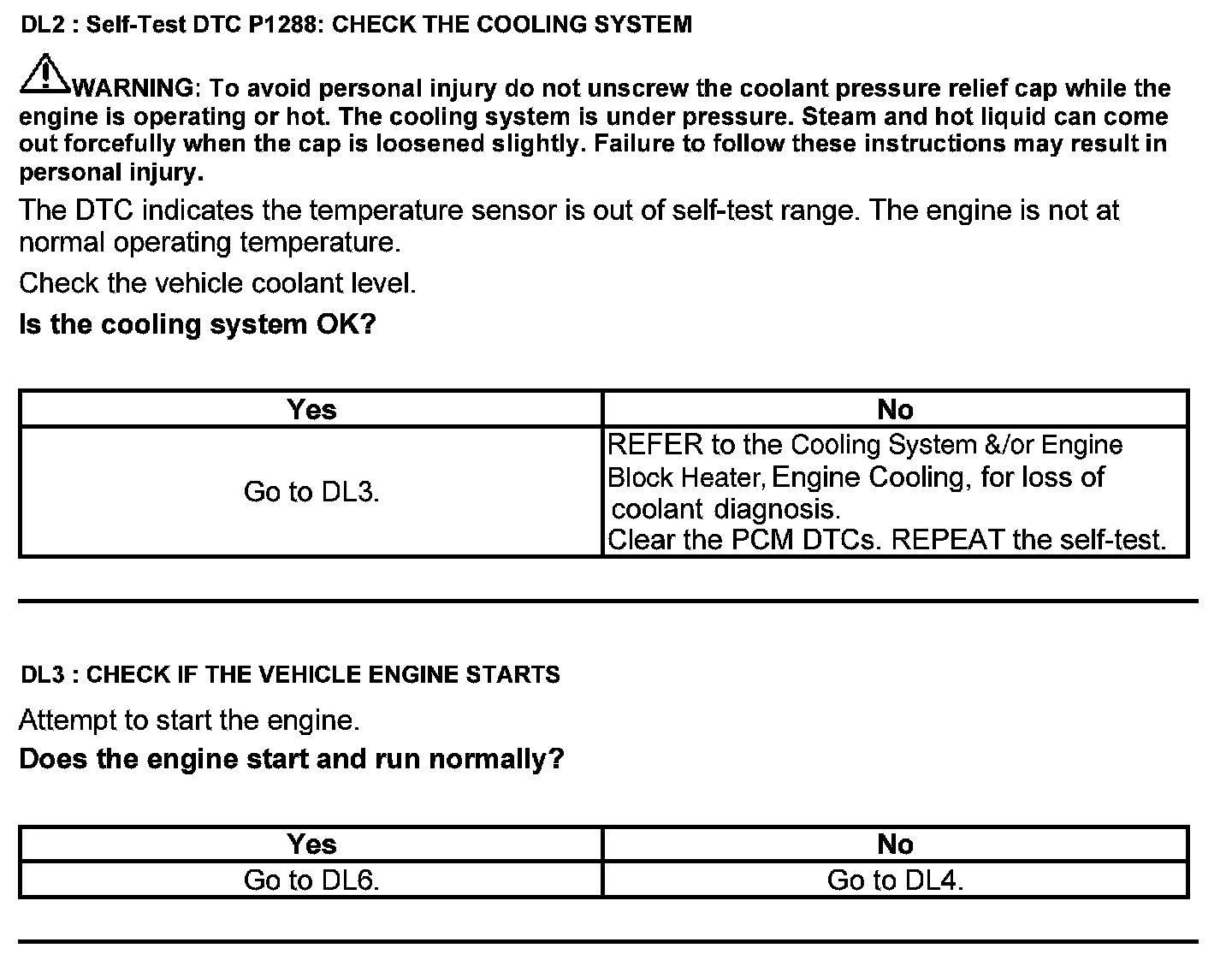

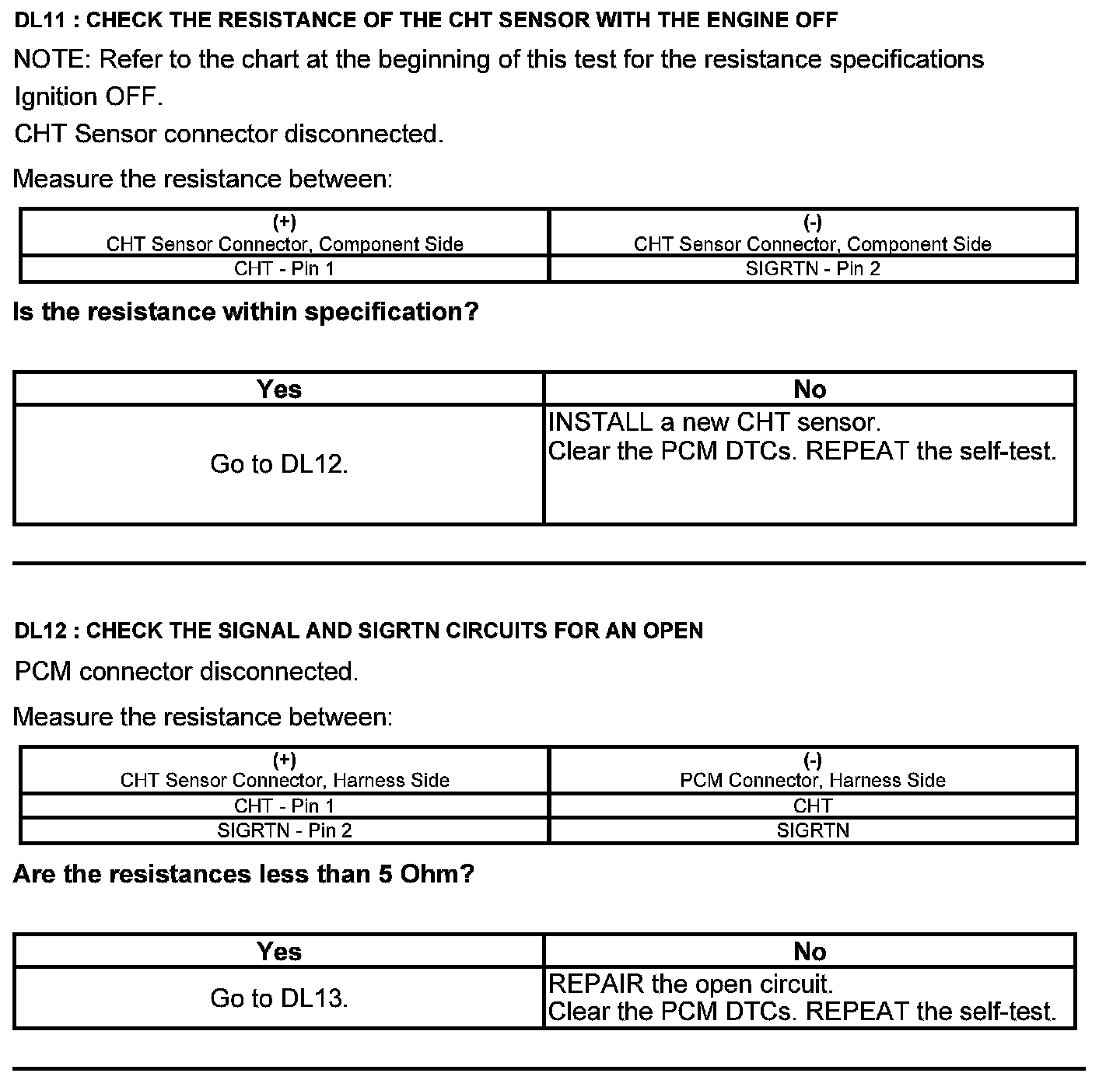

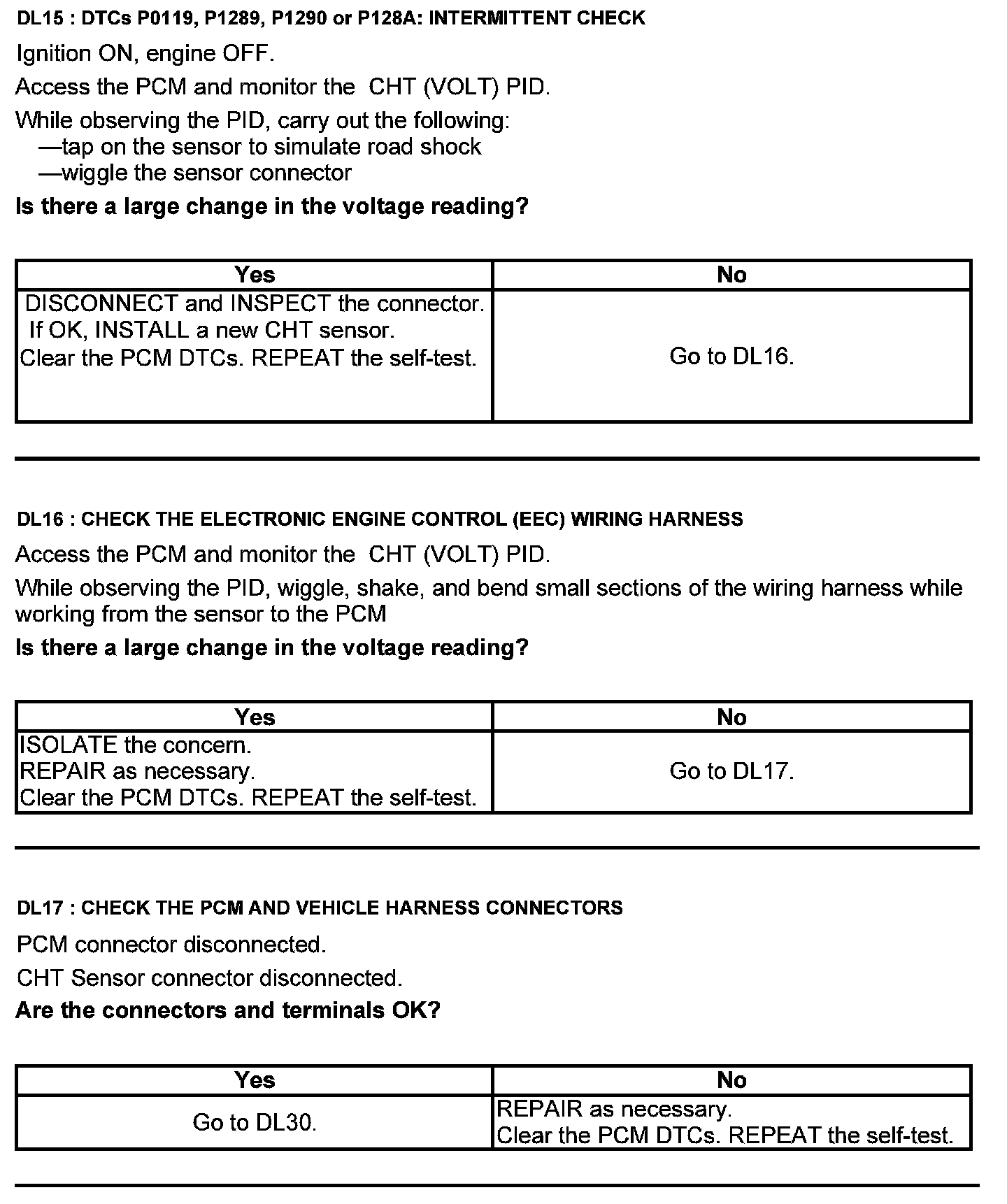

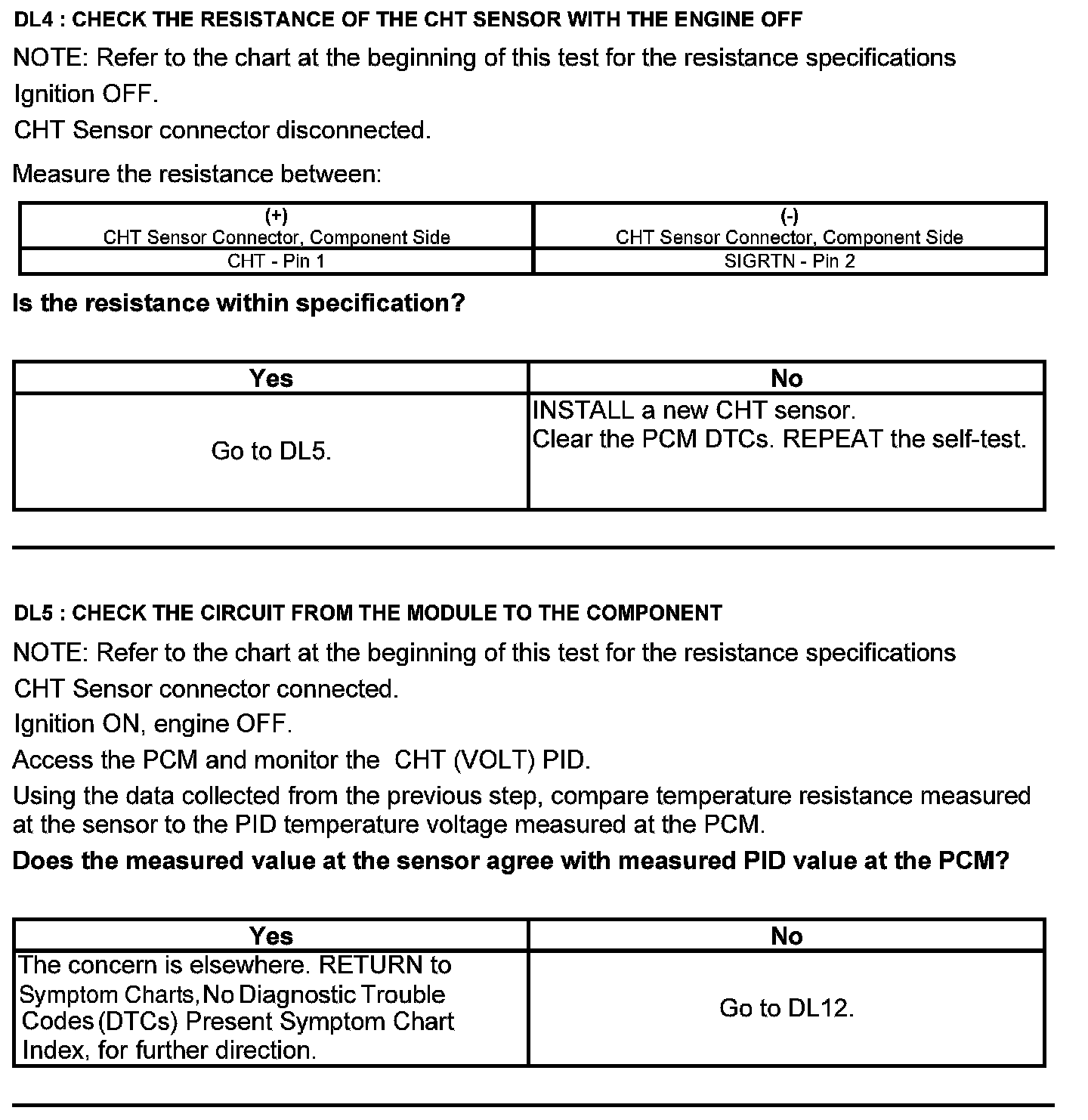

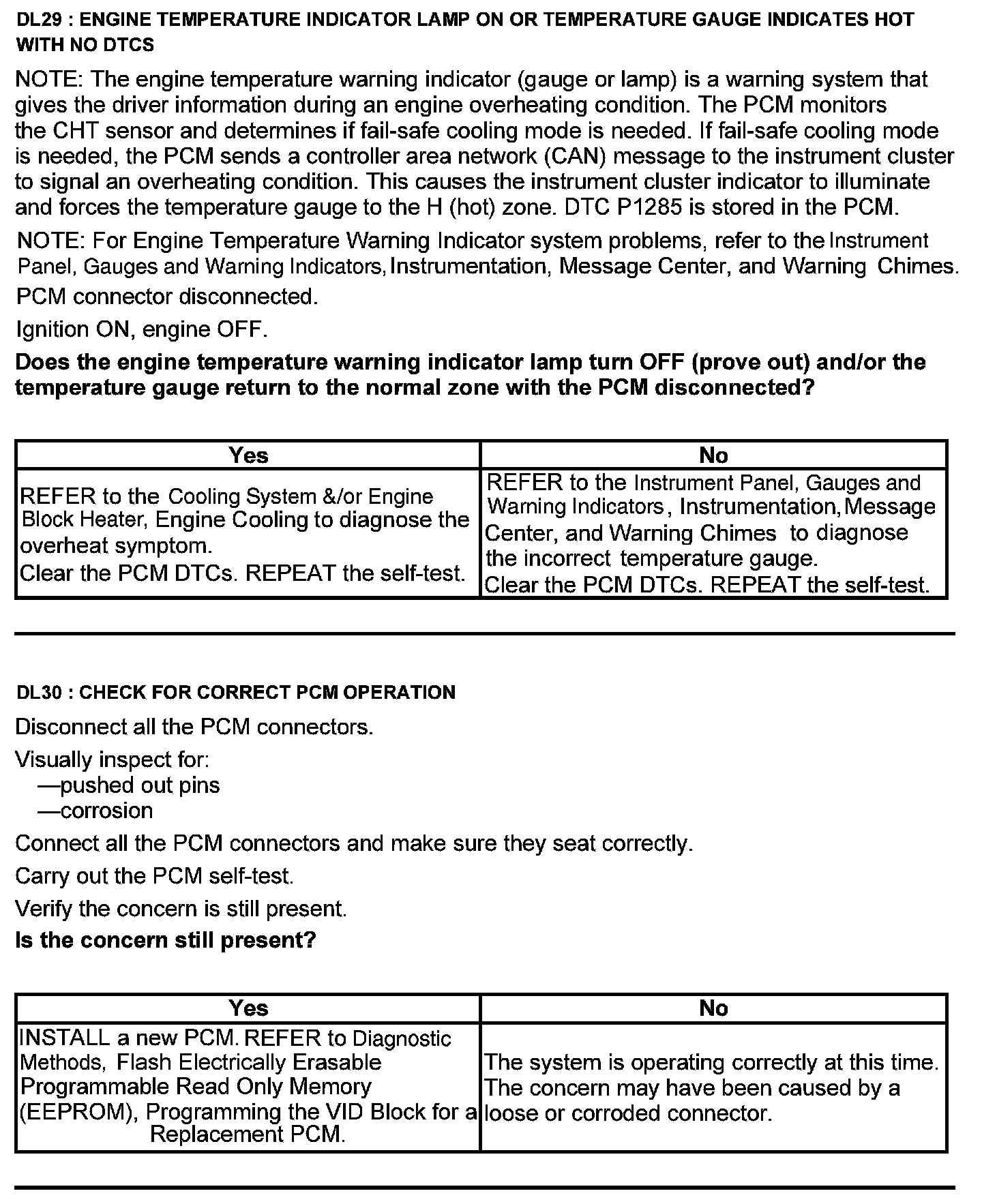

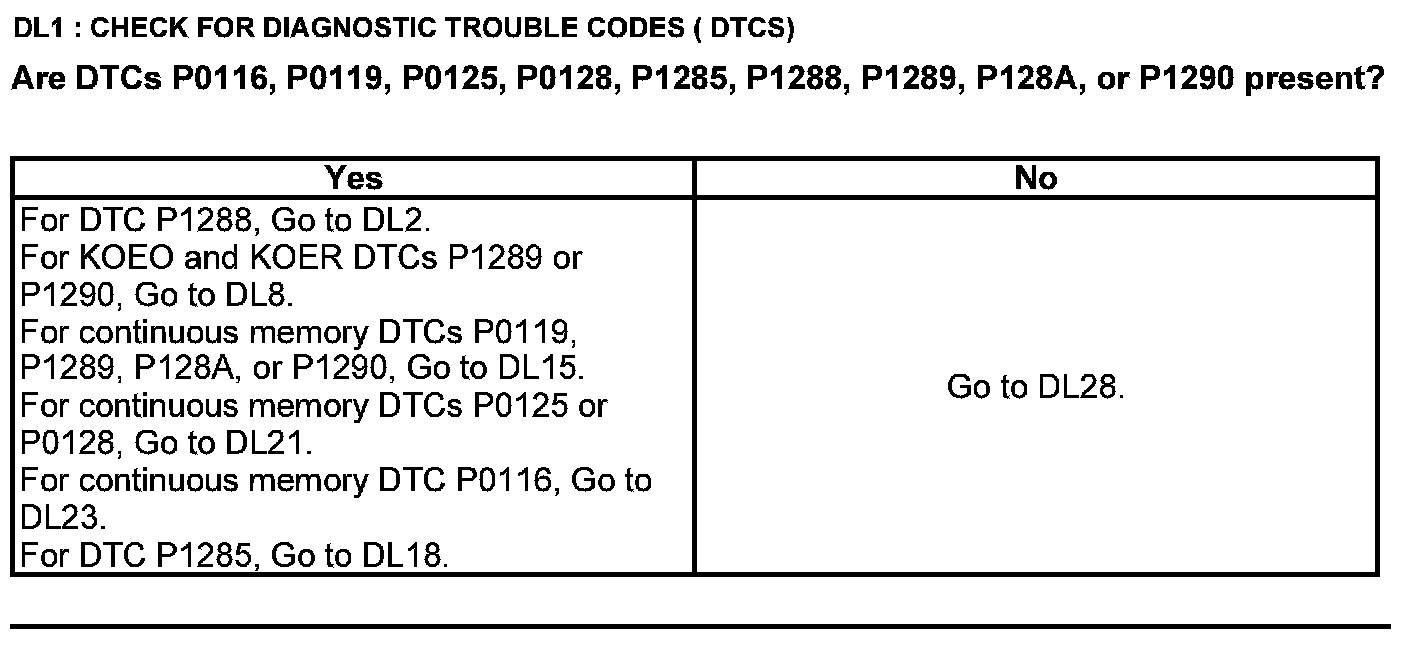

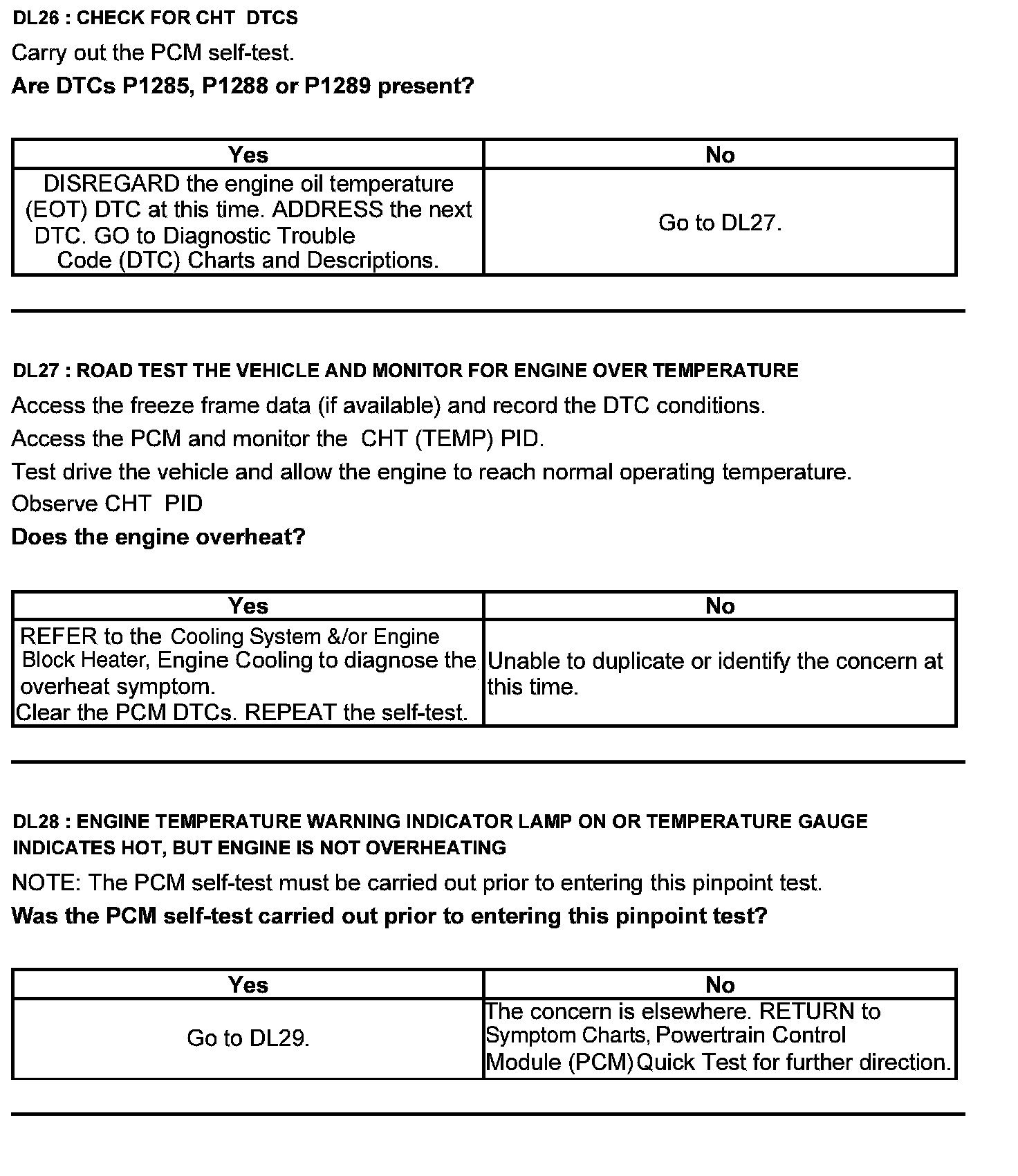

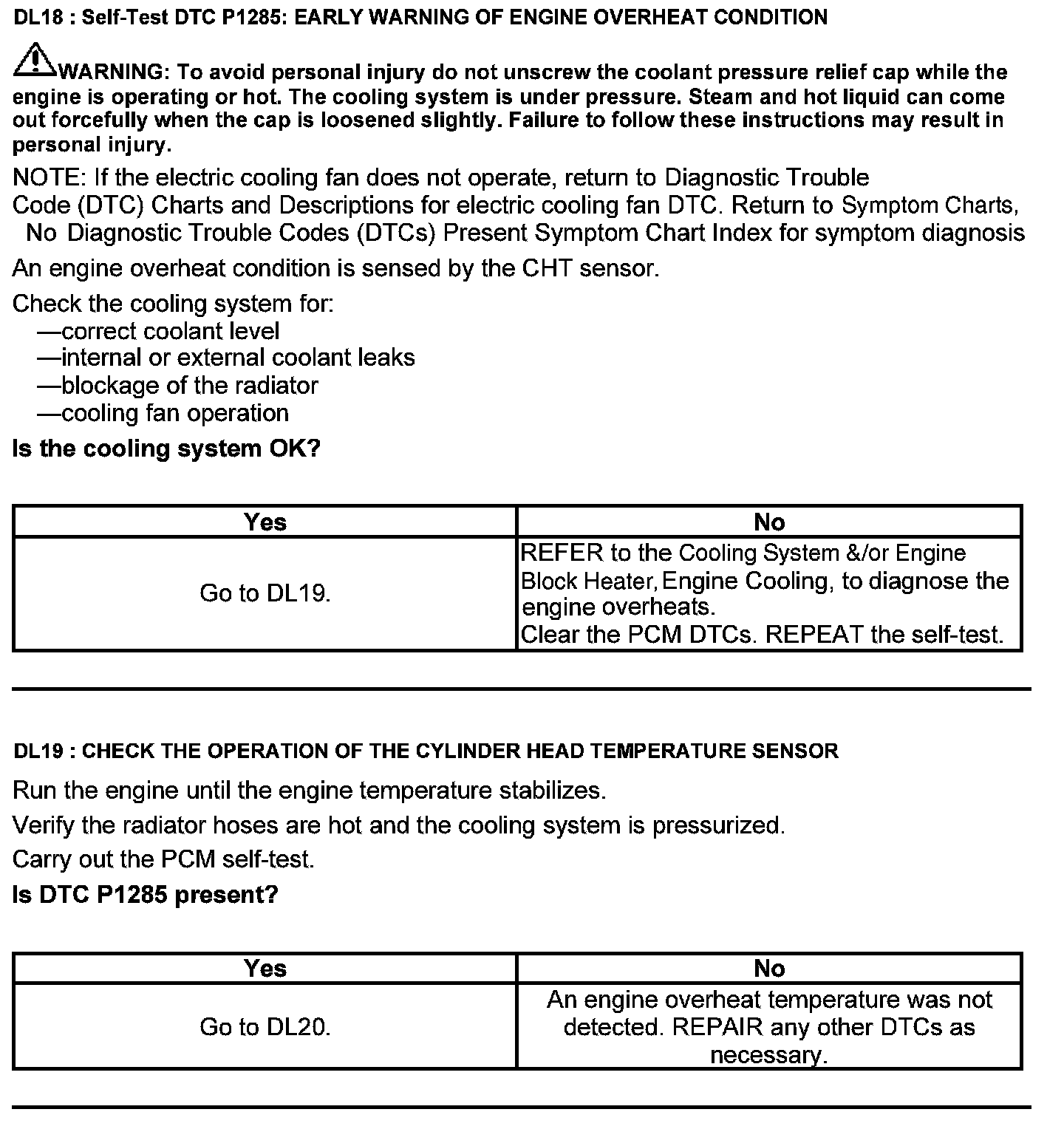

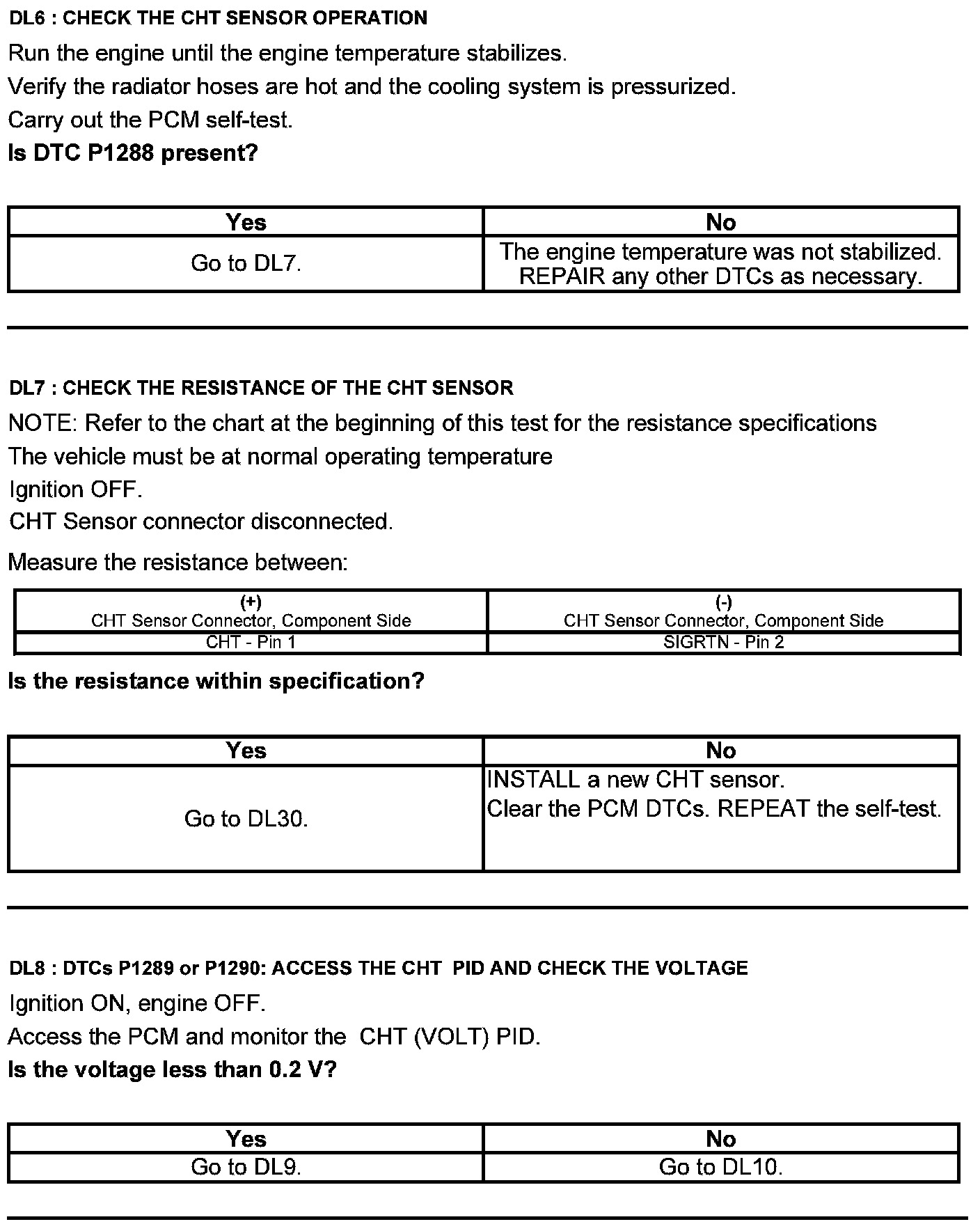

Cylinder Head Temperature (CHT) Sensor - All Others

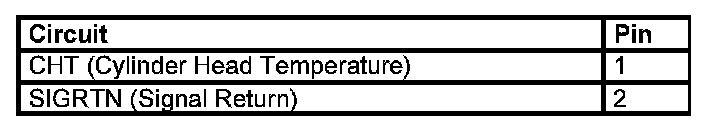

Cylinder Head Temperature (CHT) Sensor Connector





Harness Side
