Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DK: Accelerator Pedal Position (APP) Sensor >> All Others

All Others

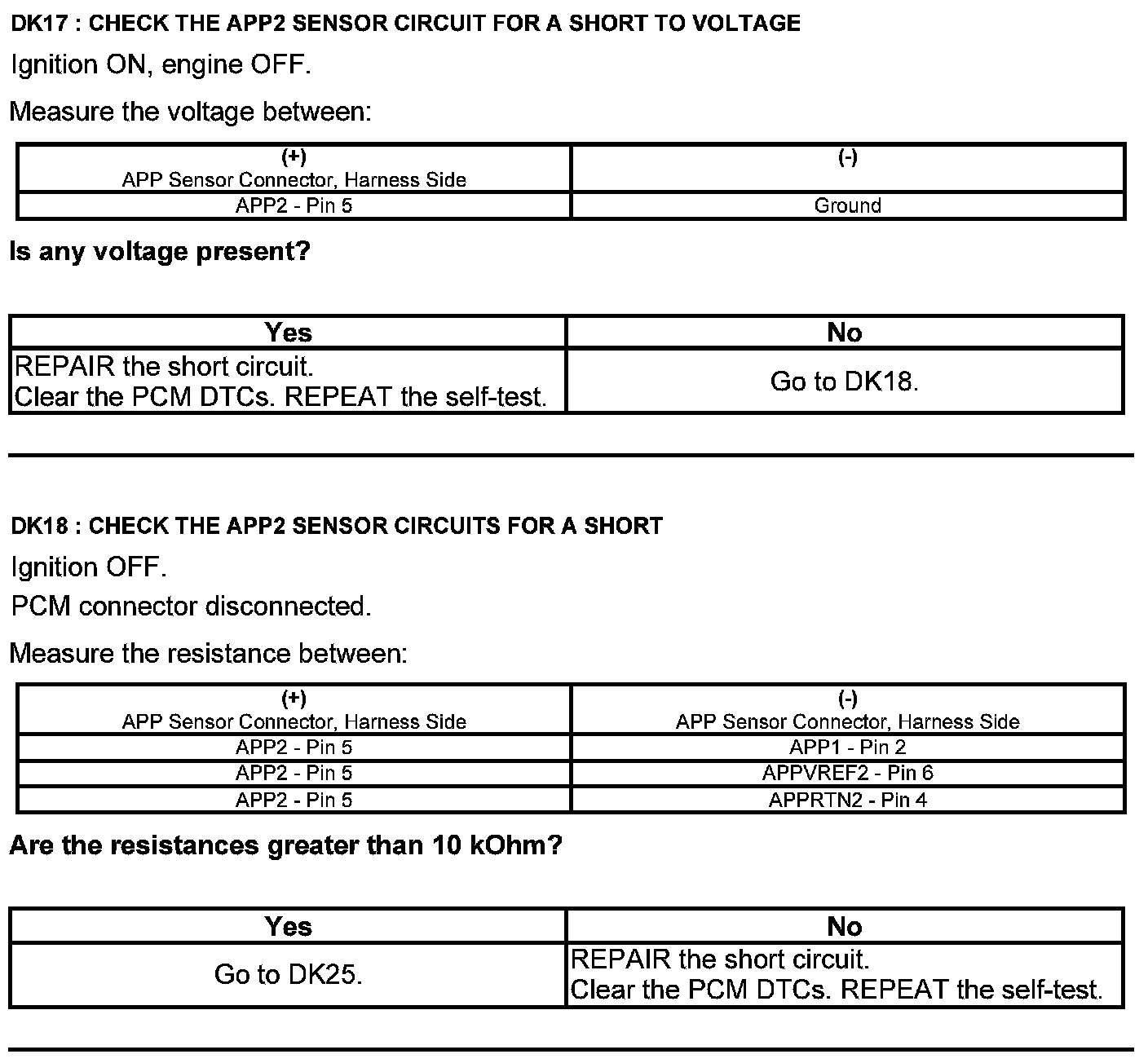

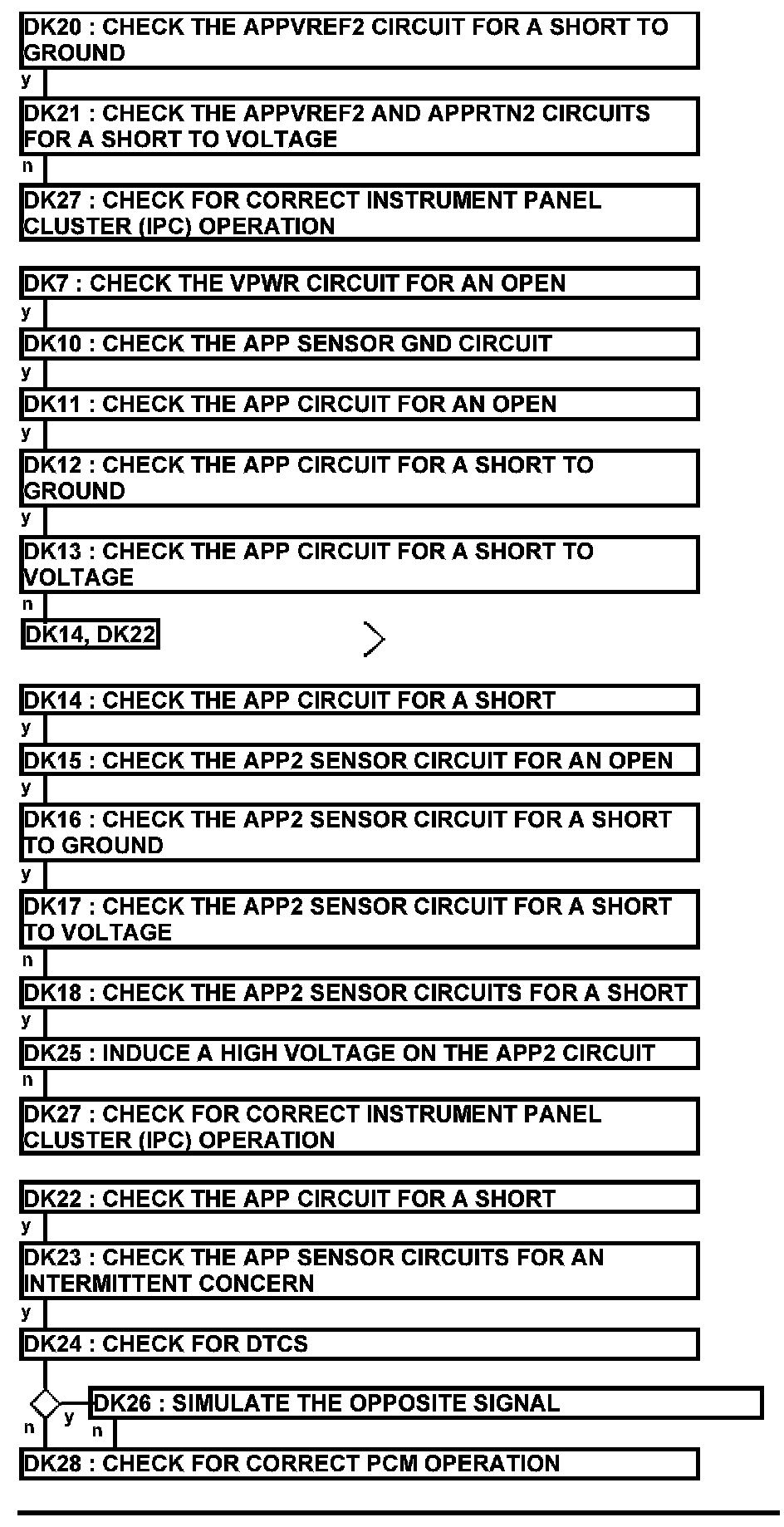

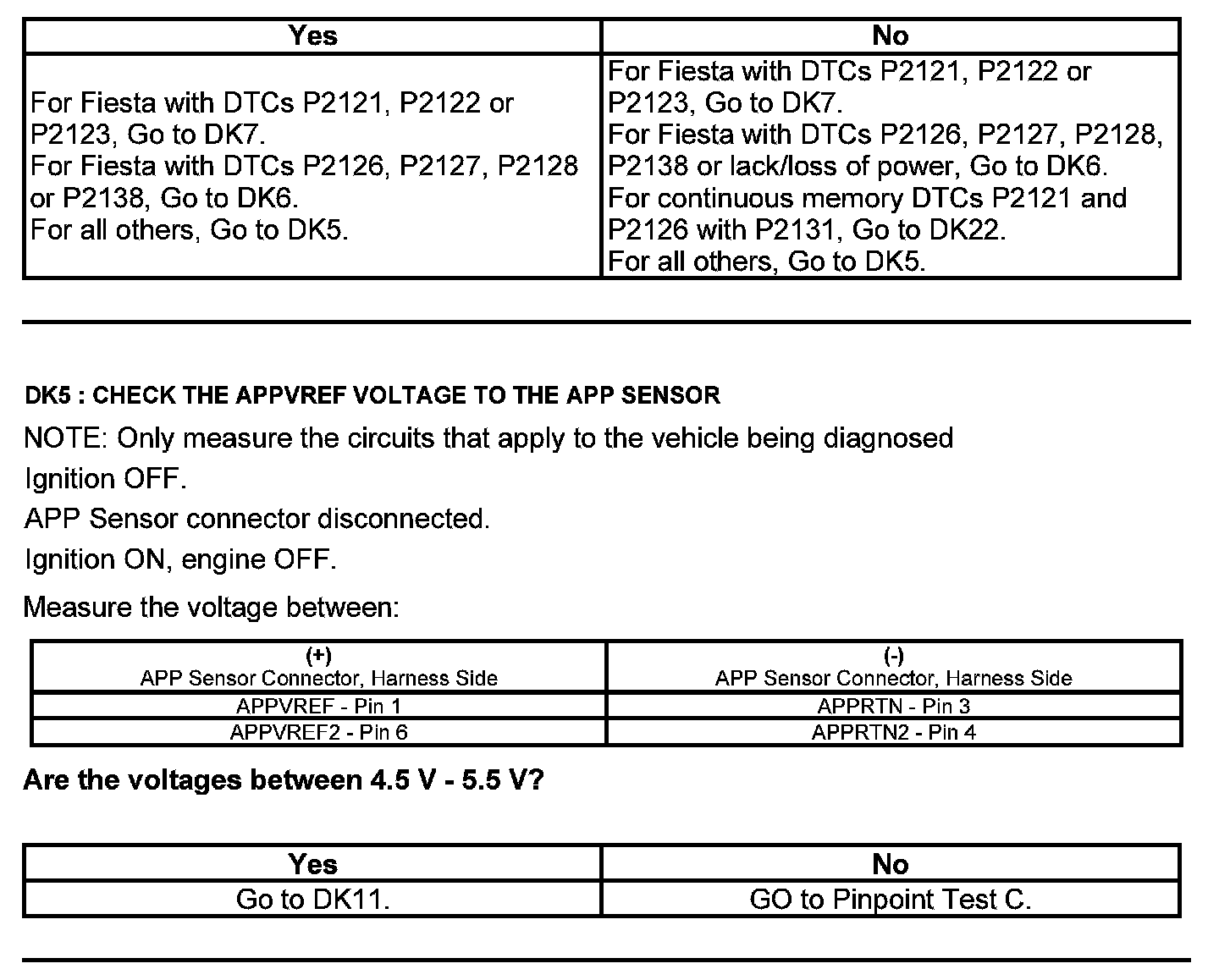

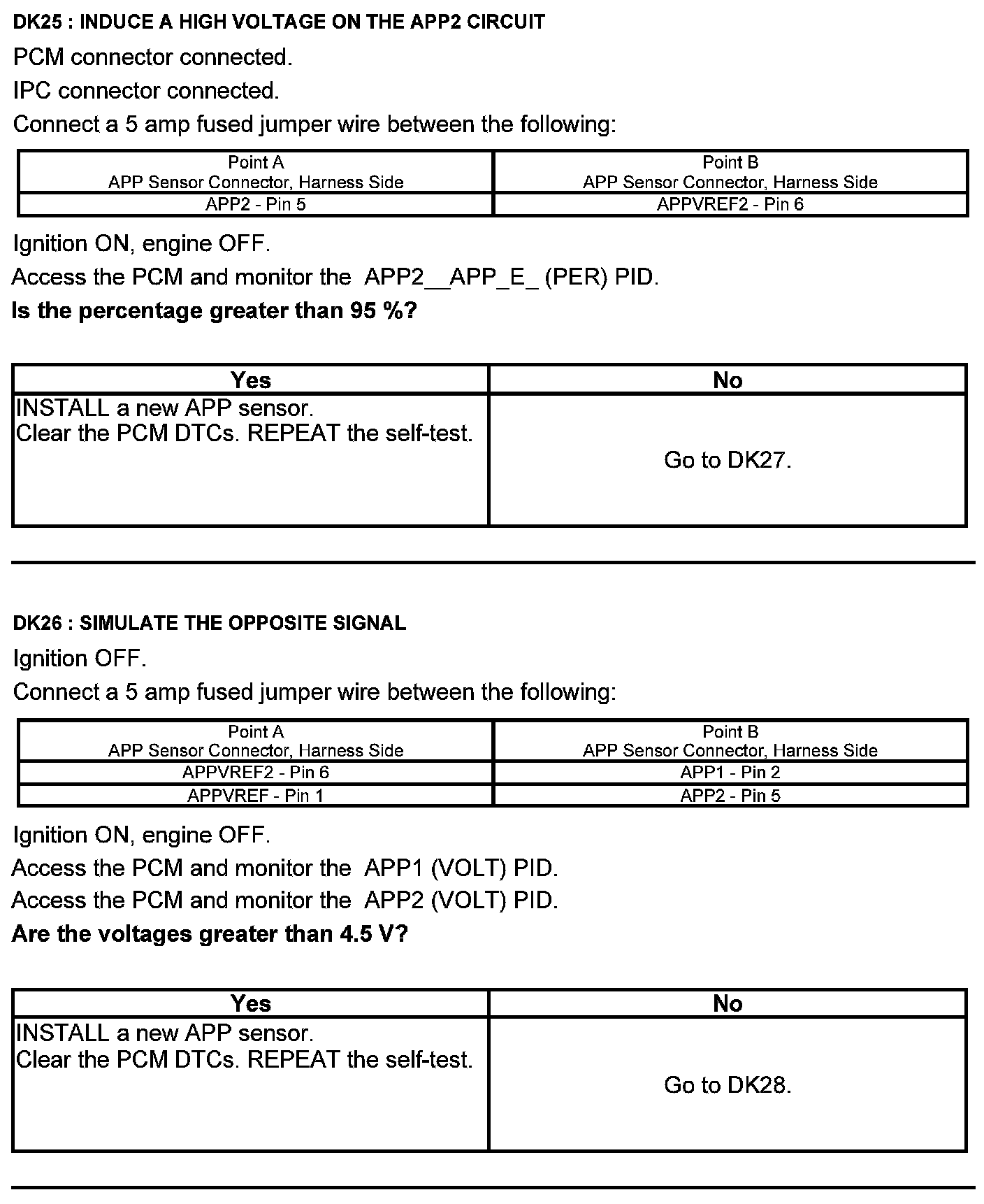

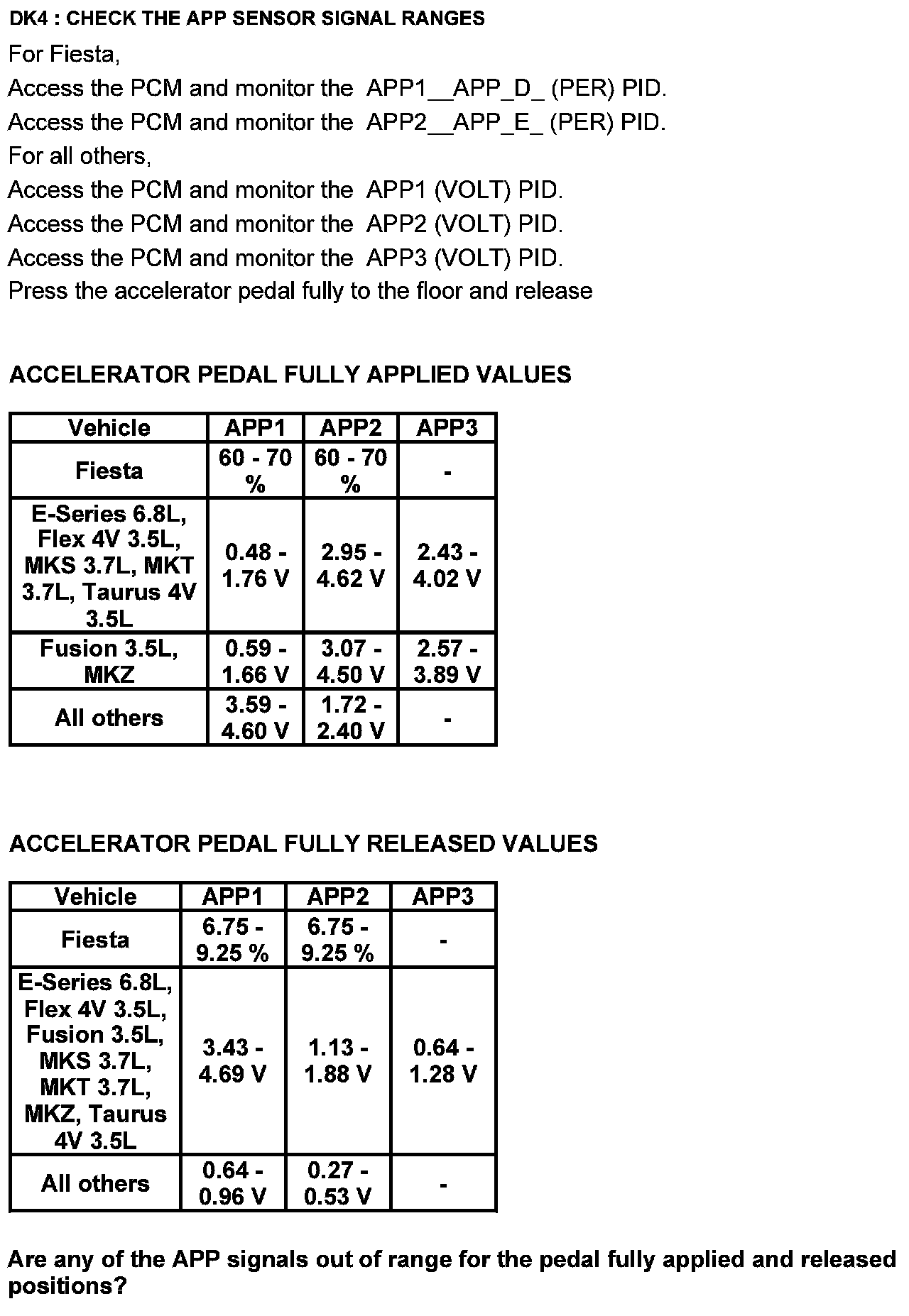

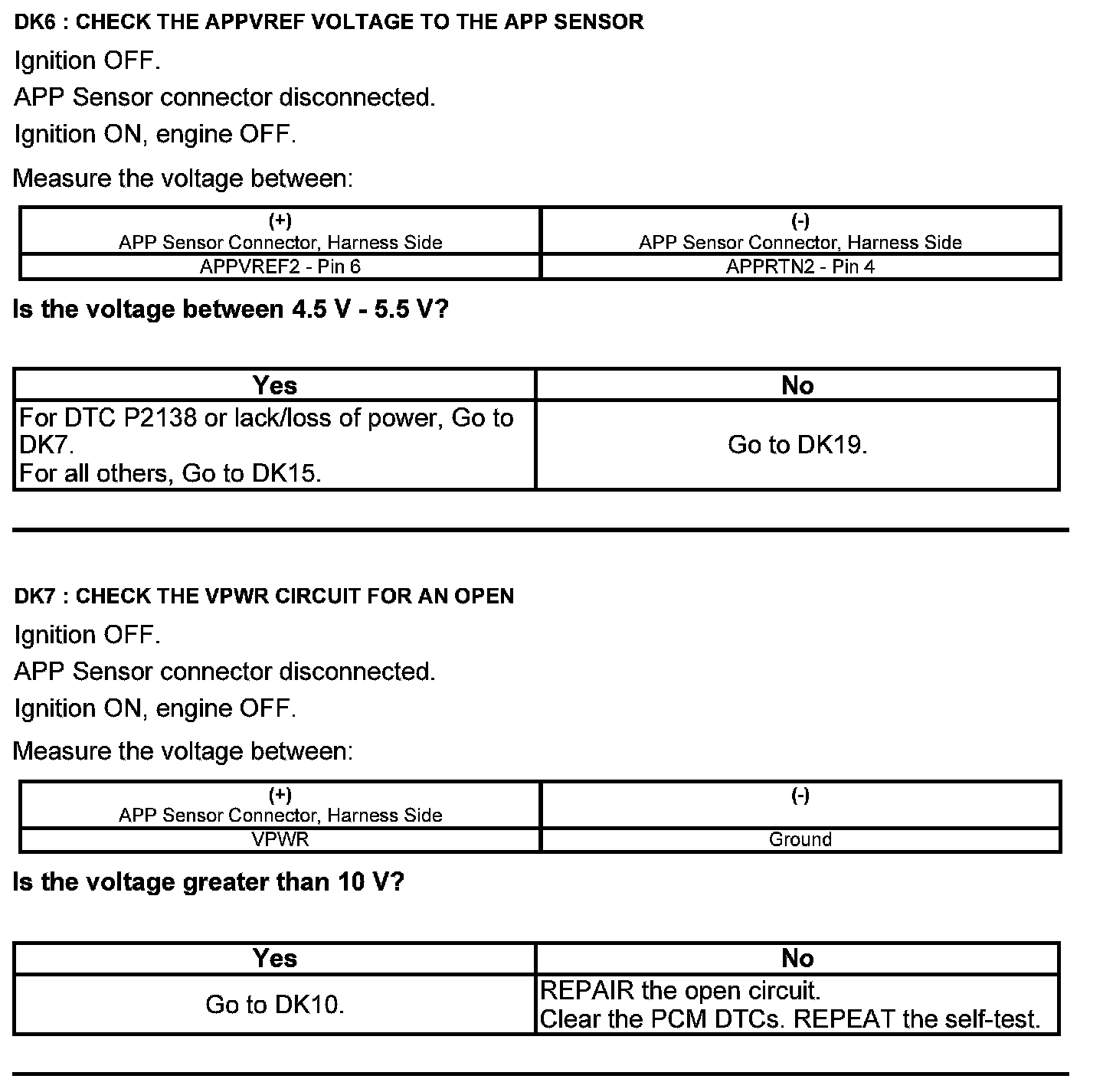

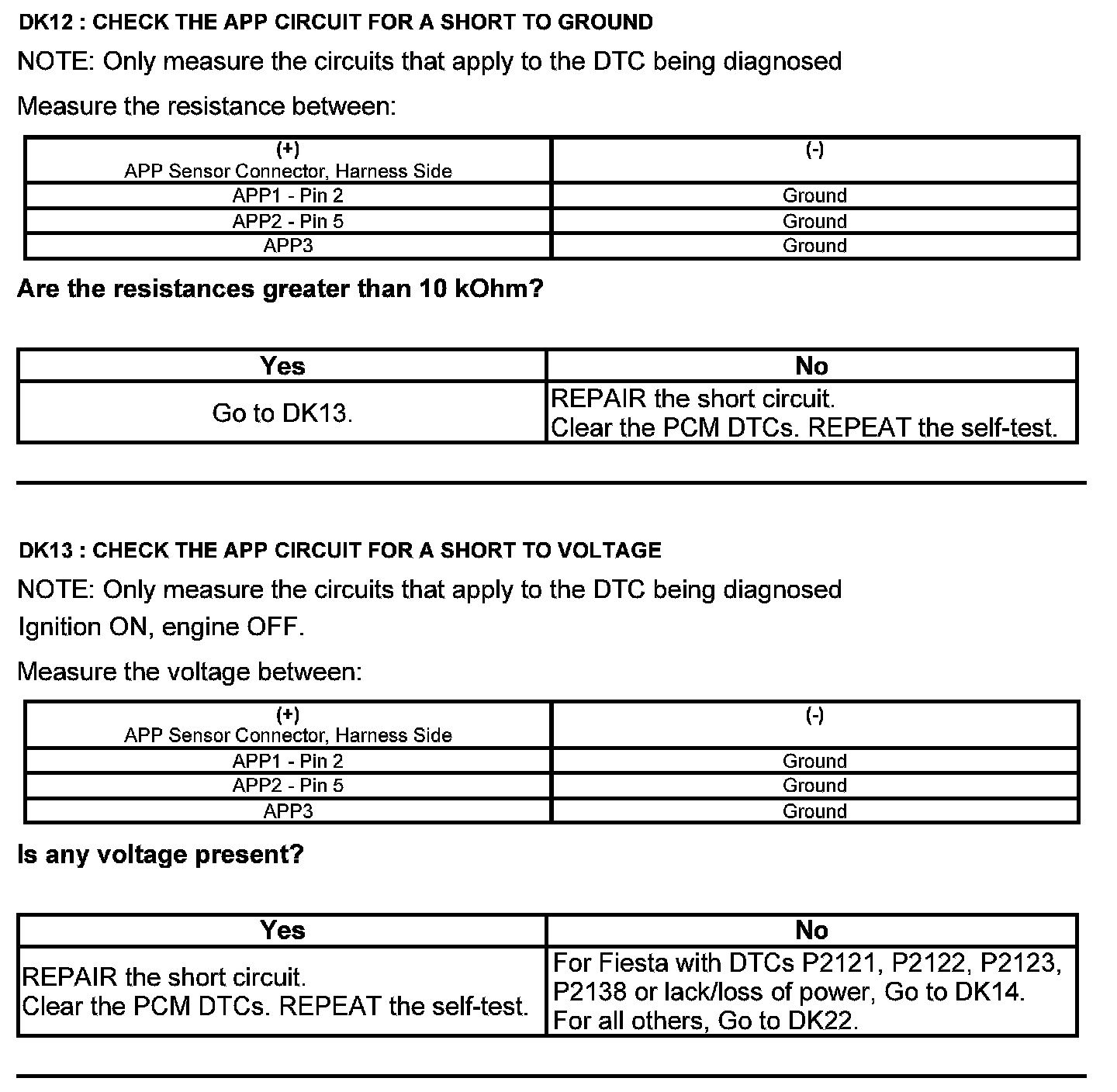

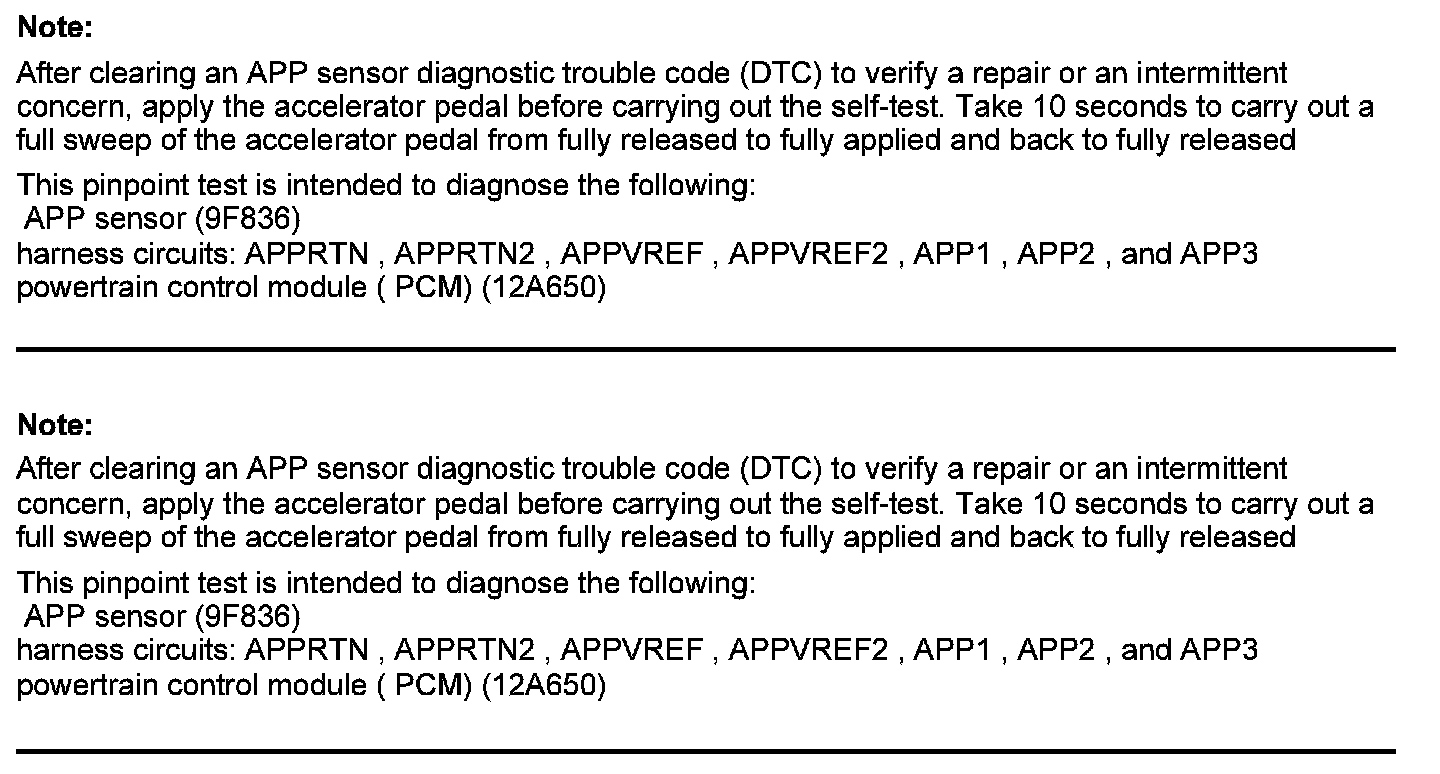

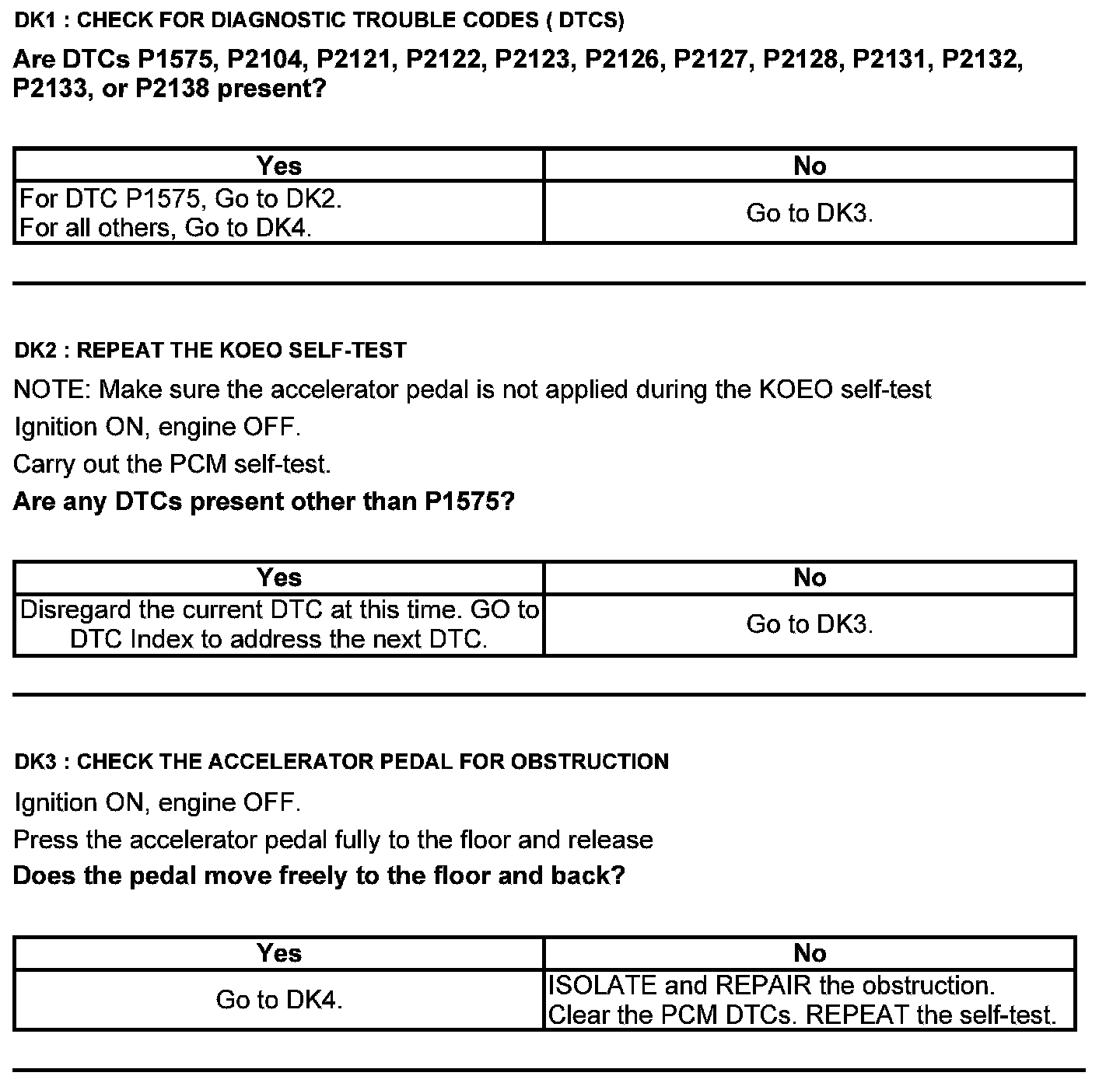

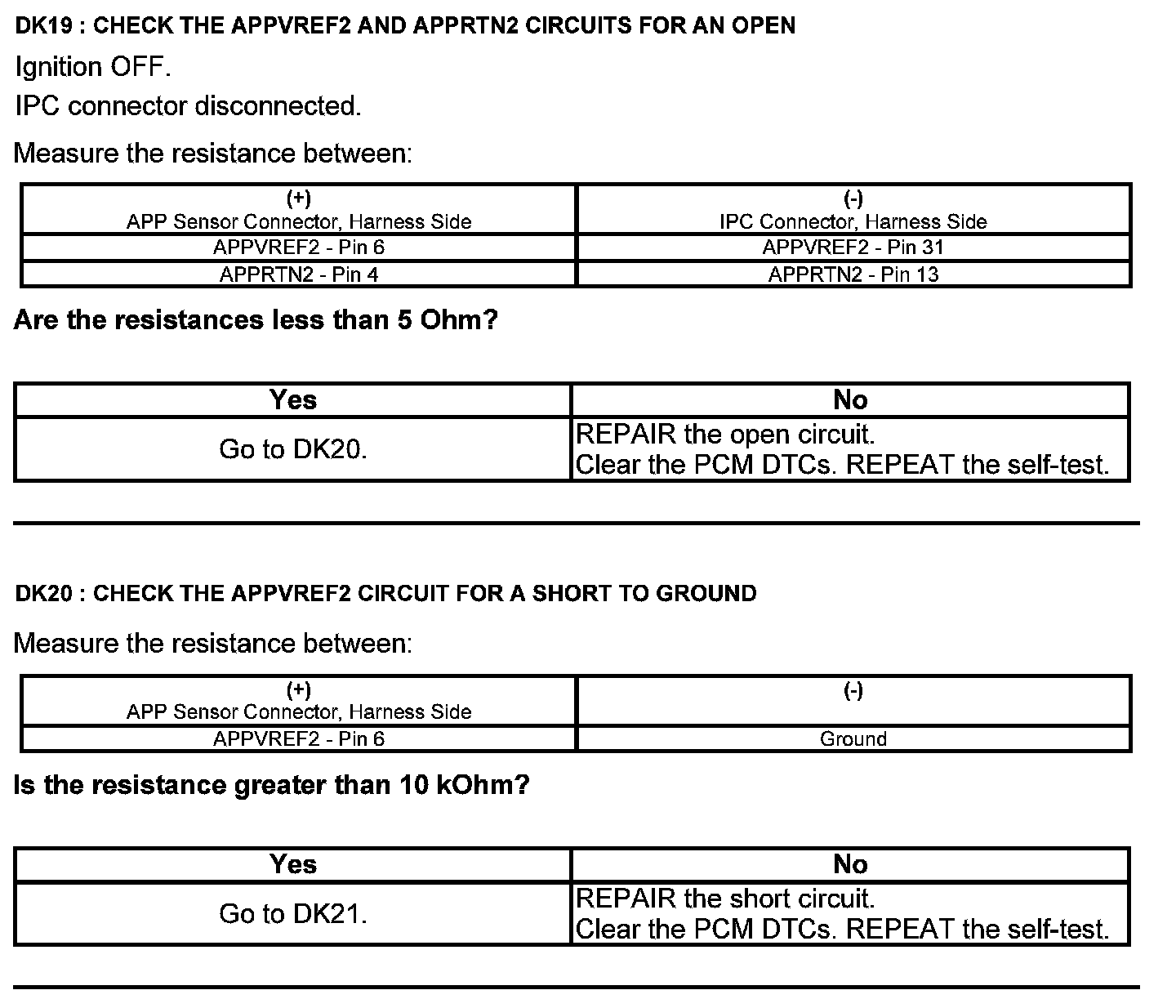

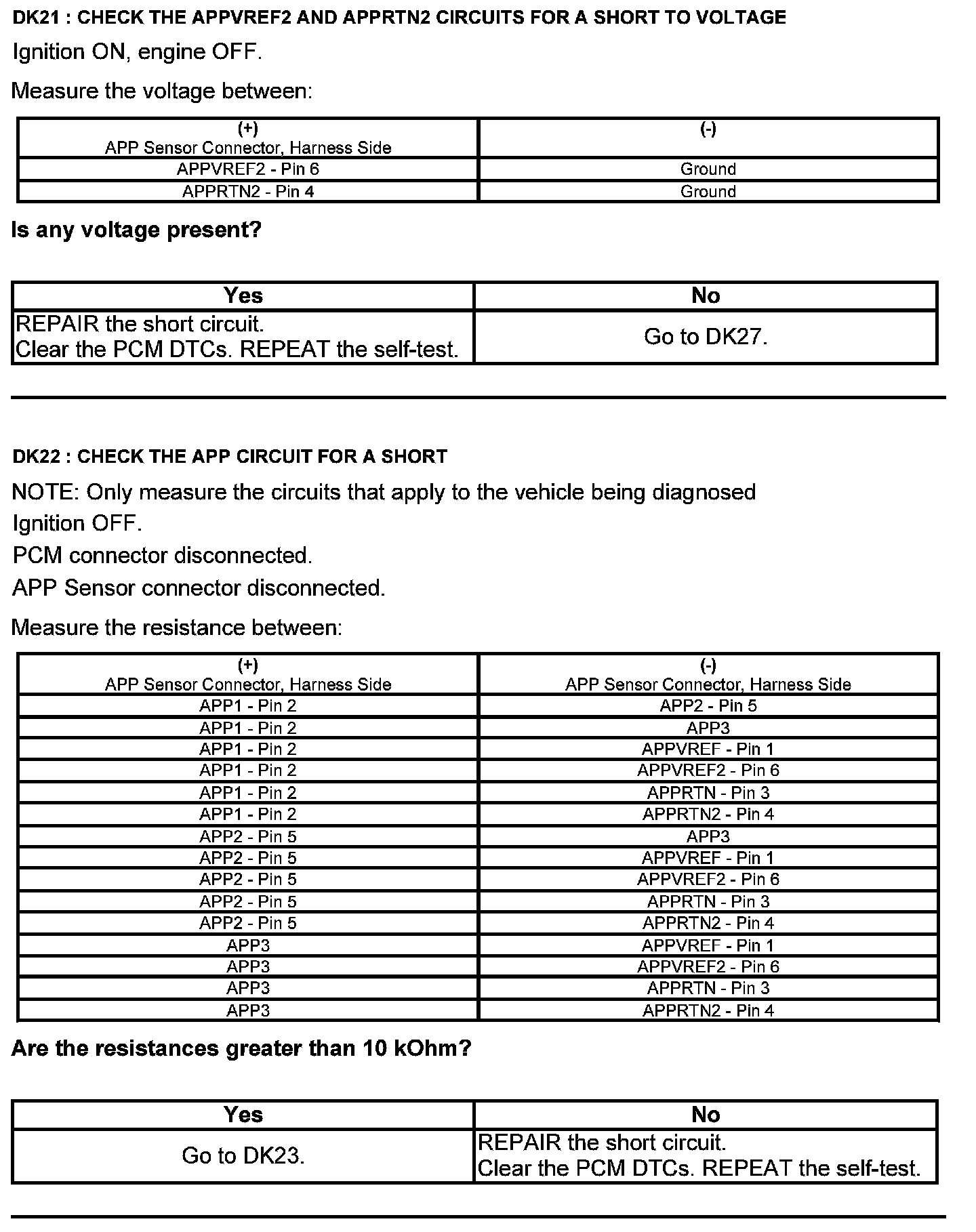

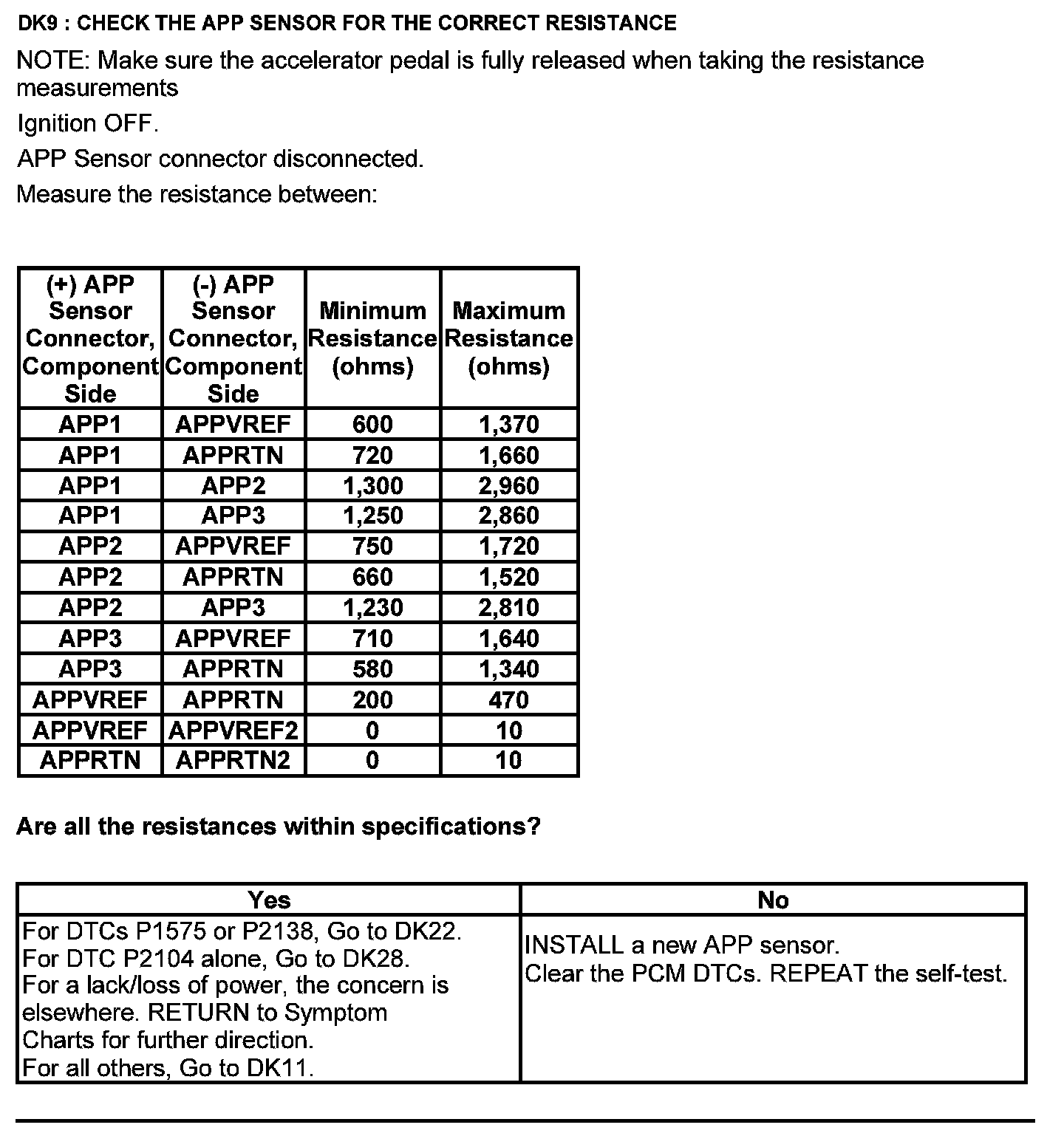

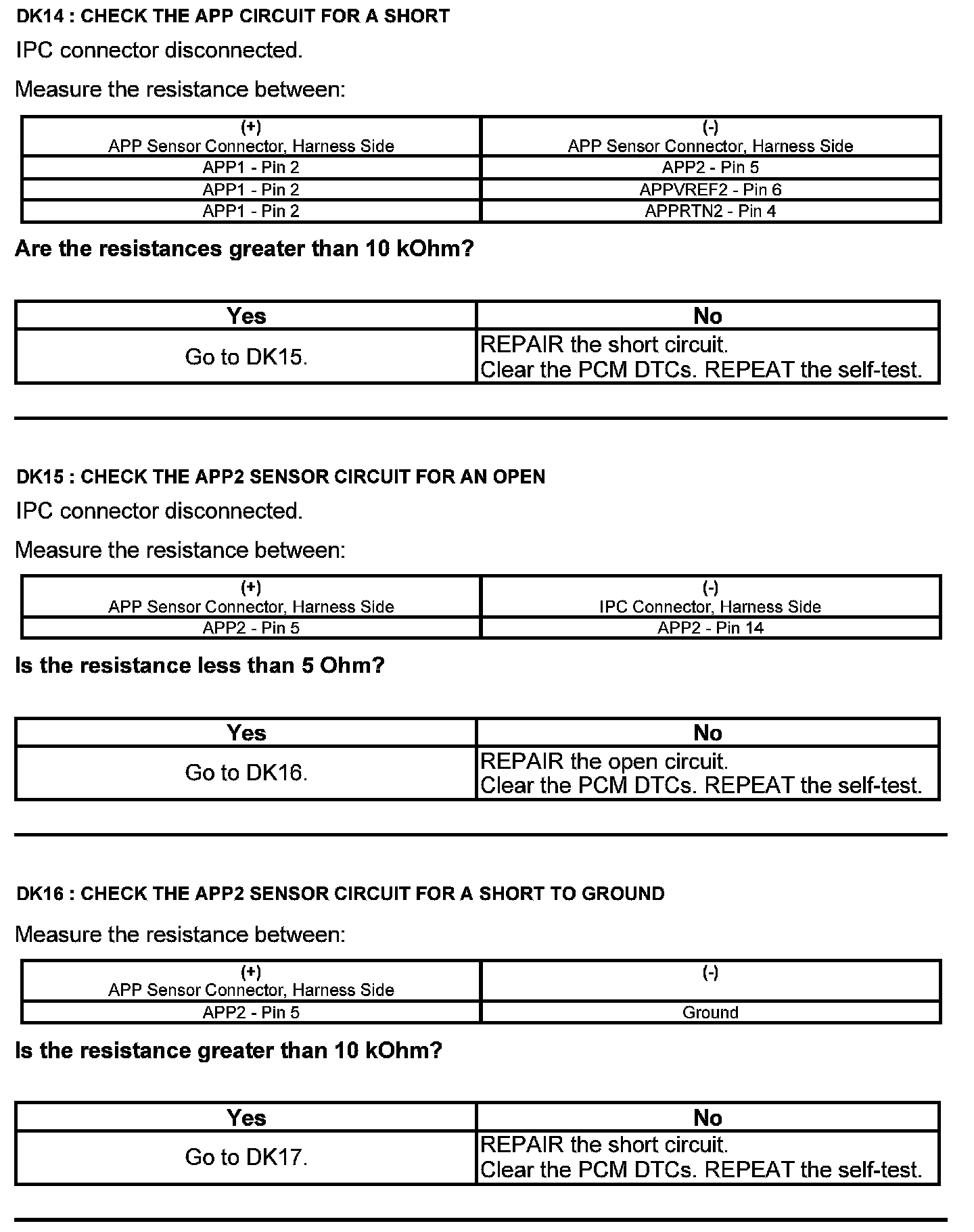

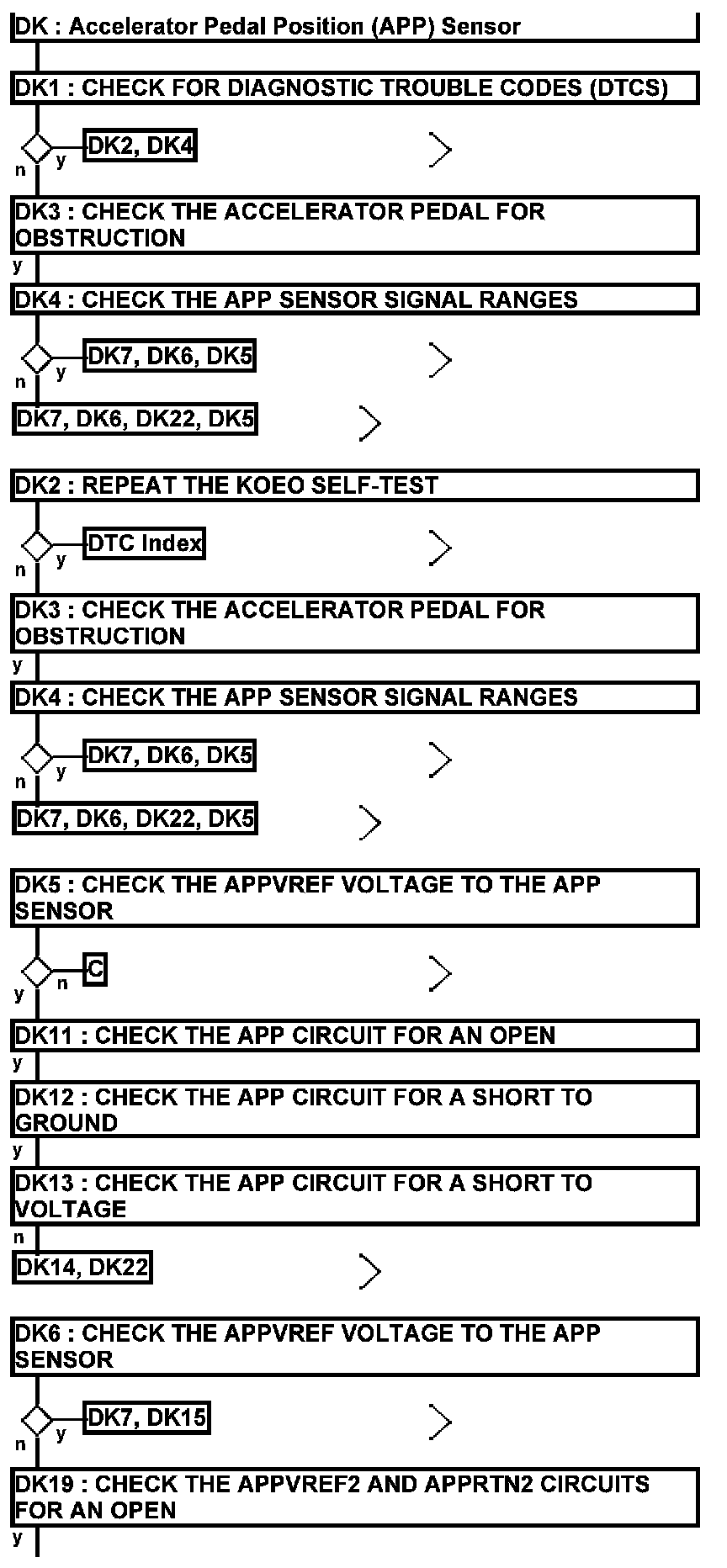

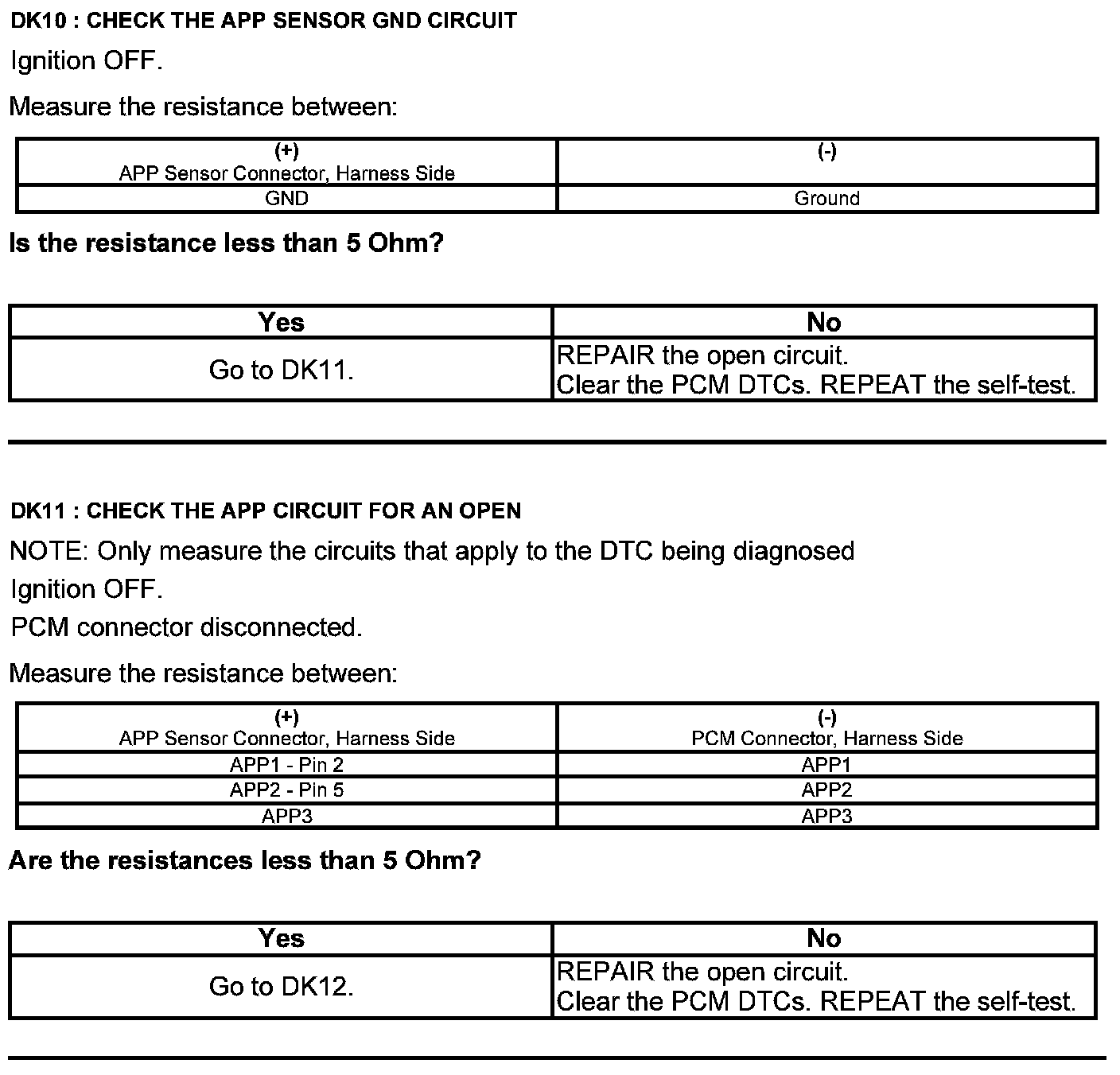

Accelerator Pedal Position (APP) Sensor - All Others

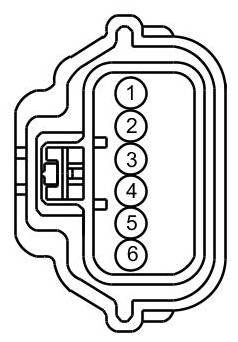

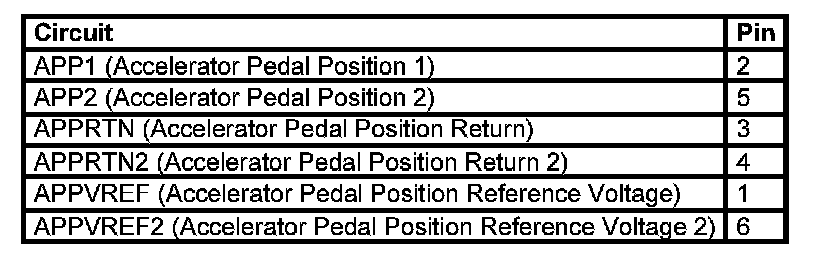

Accelerator Pedal Position (APP) Sensor Connector





Harness Side

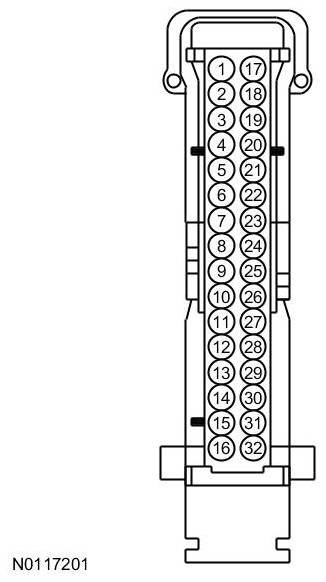

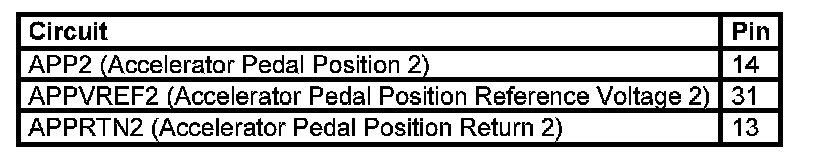

Instrument Panel Cluster (IPC) Connector





Harness Side
