Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DG: Knock Sensor (KS) >> Automatic Transmission

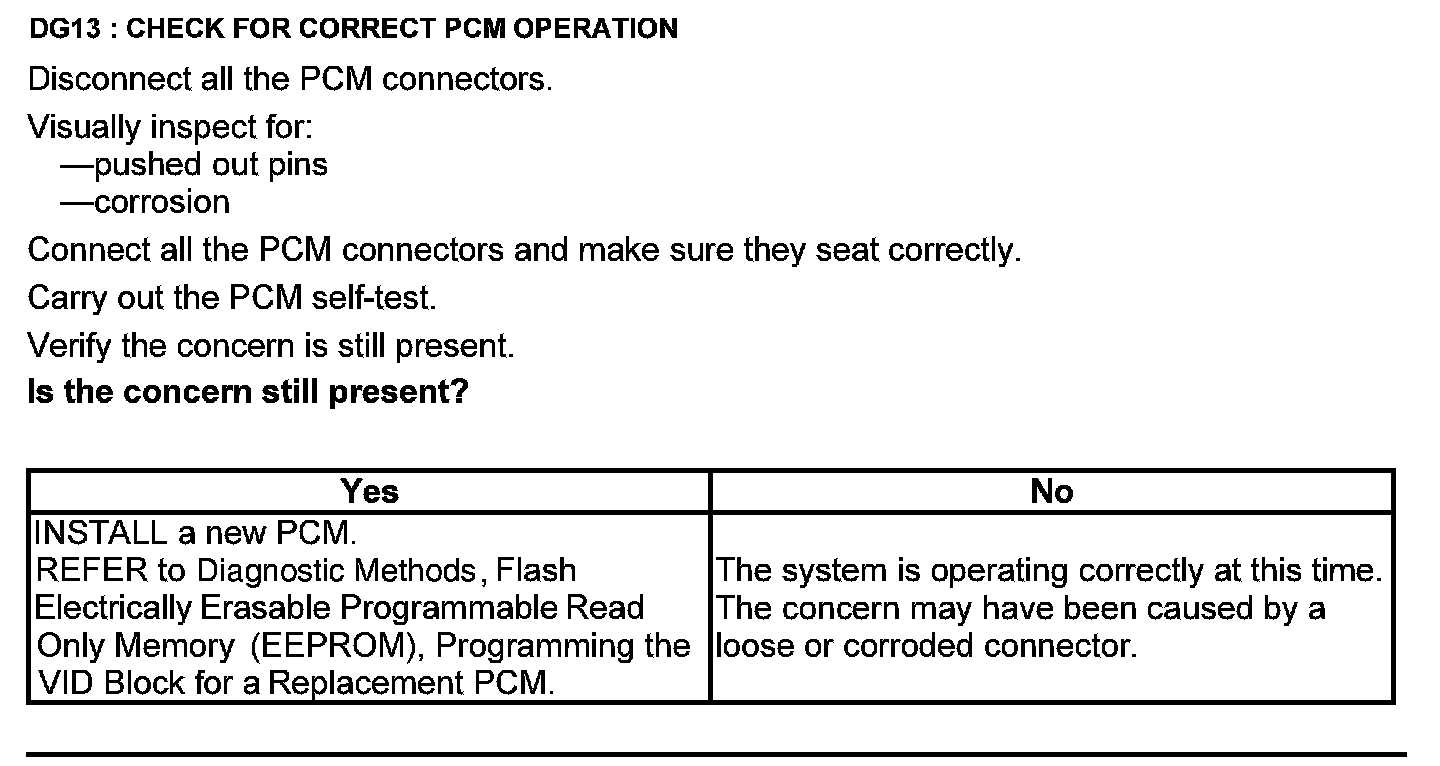

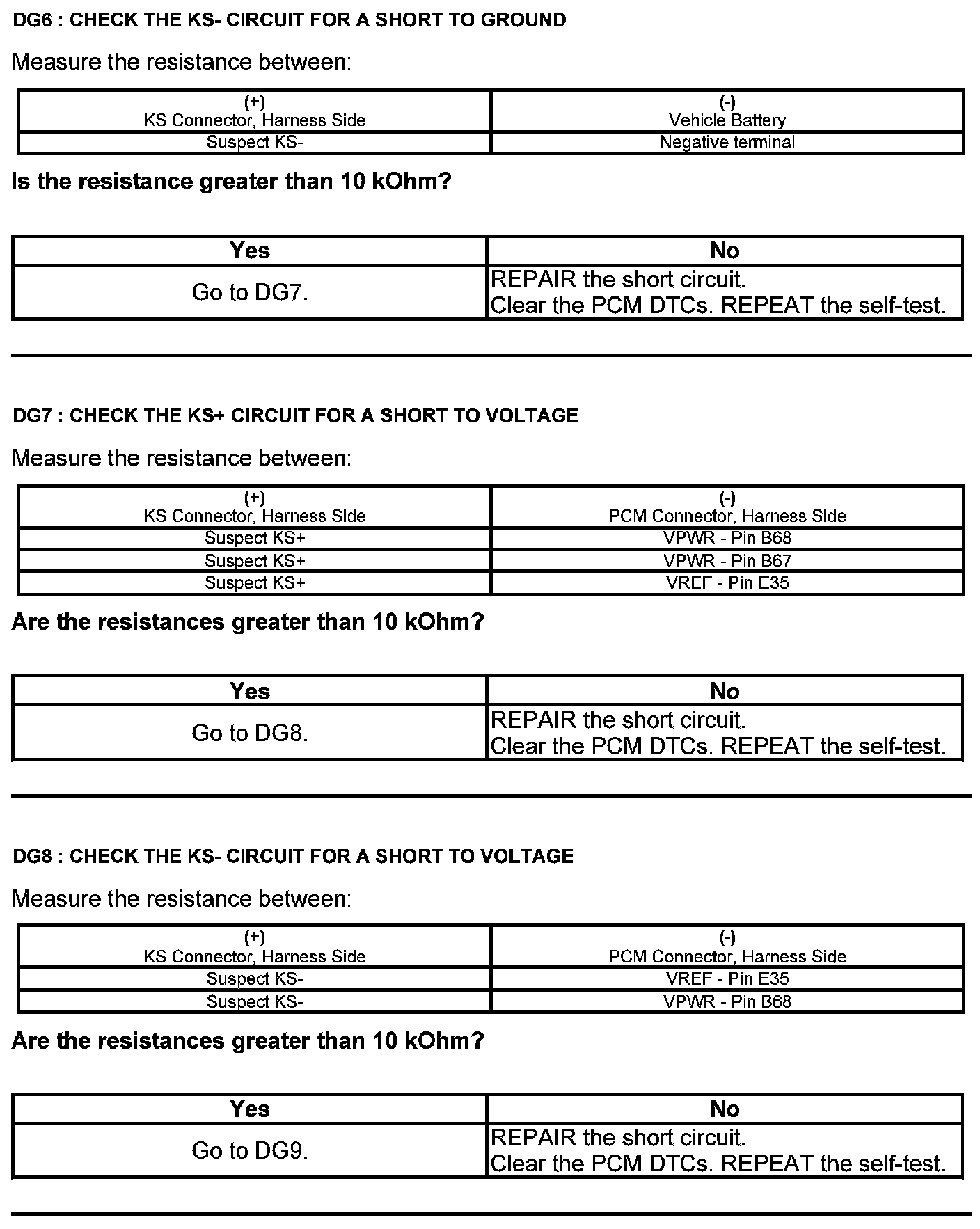

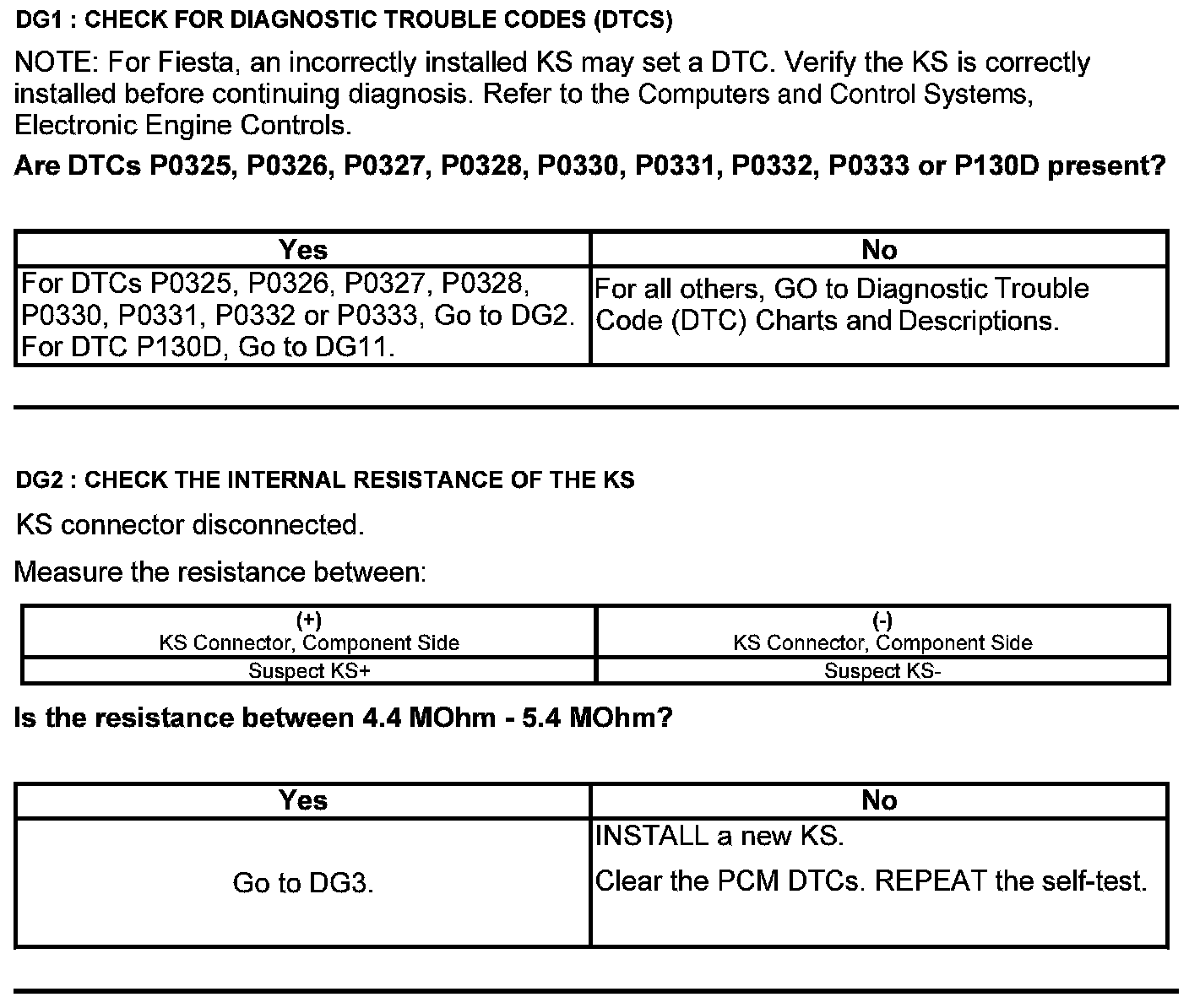

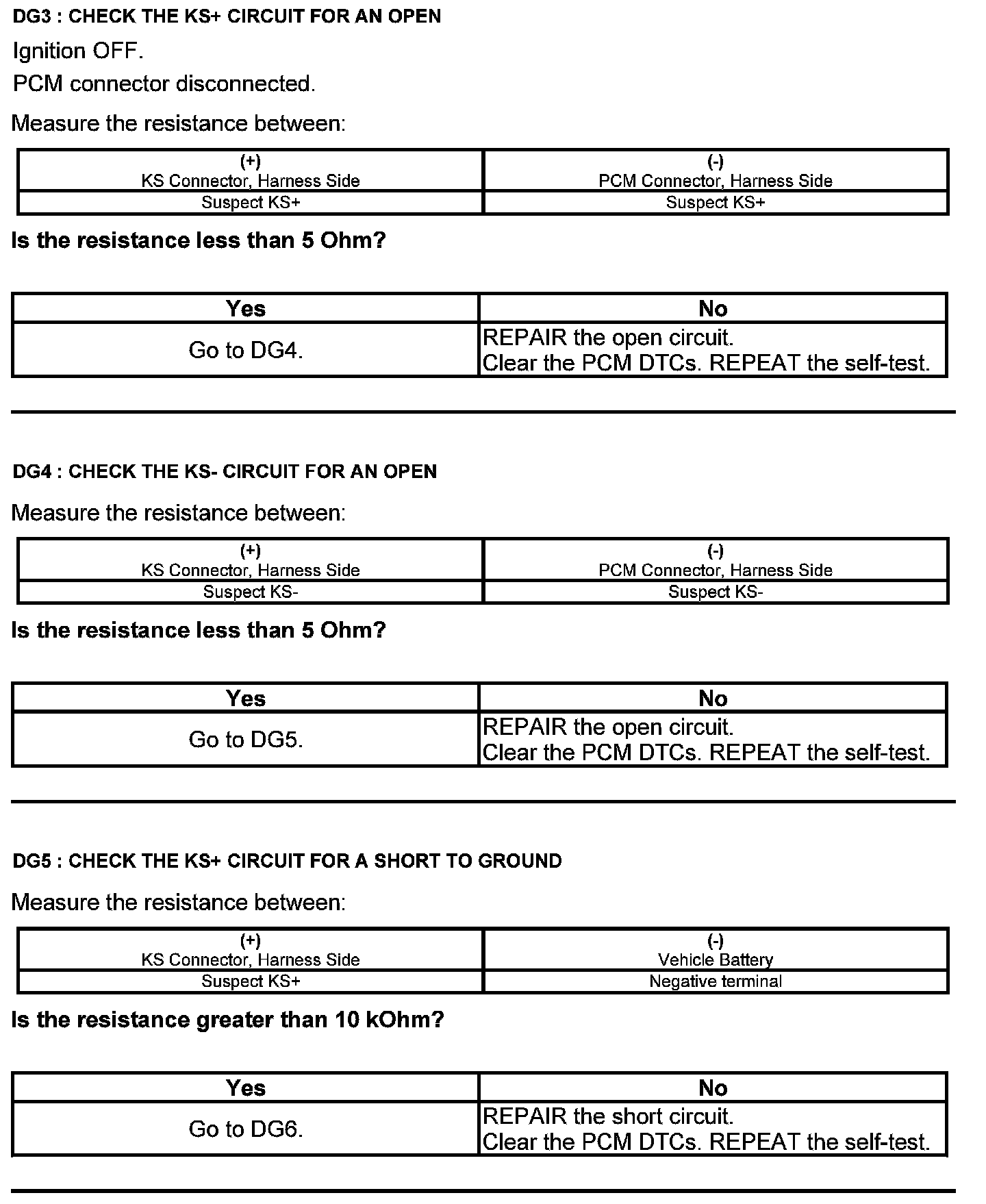

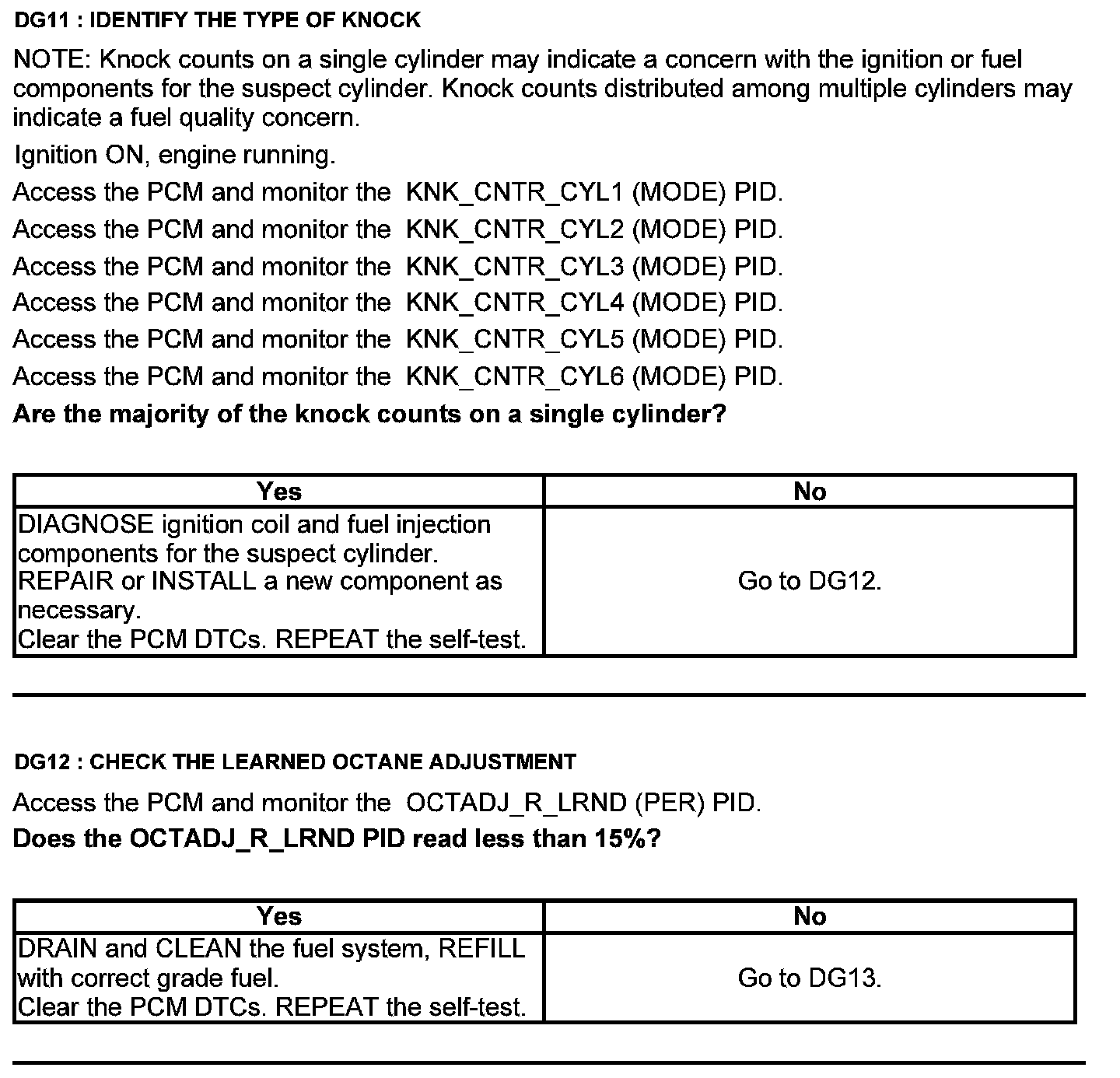

Automatic Transmission

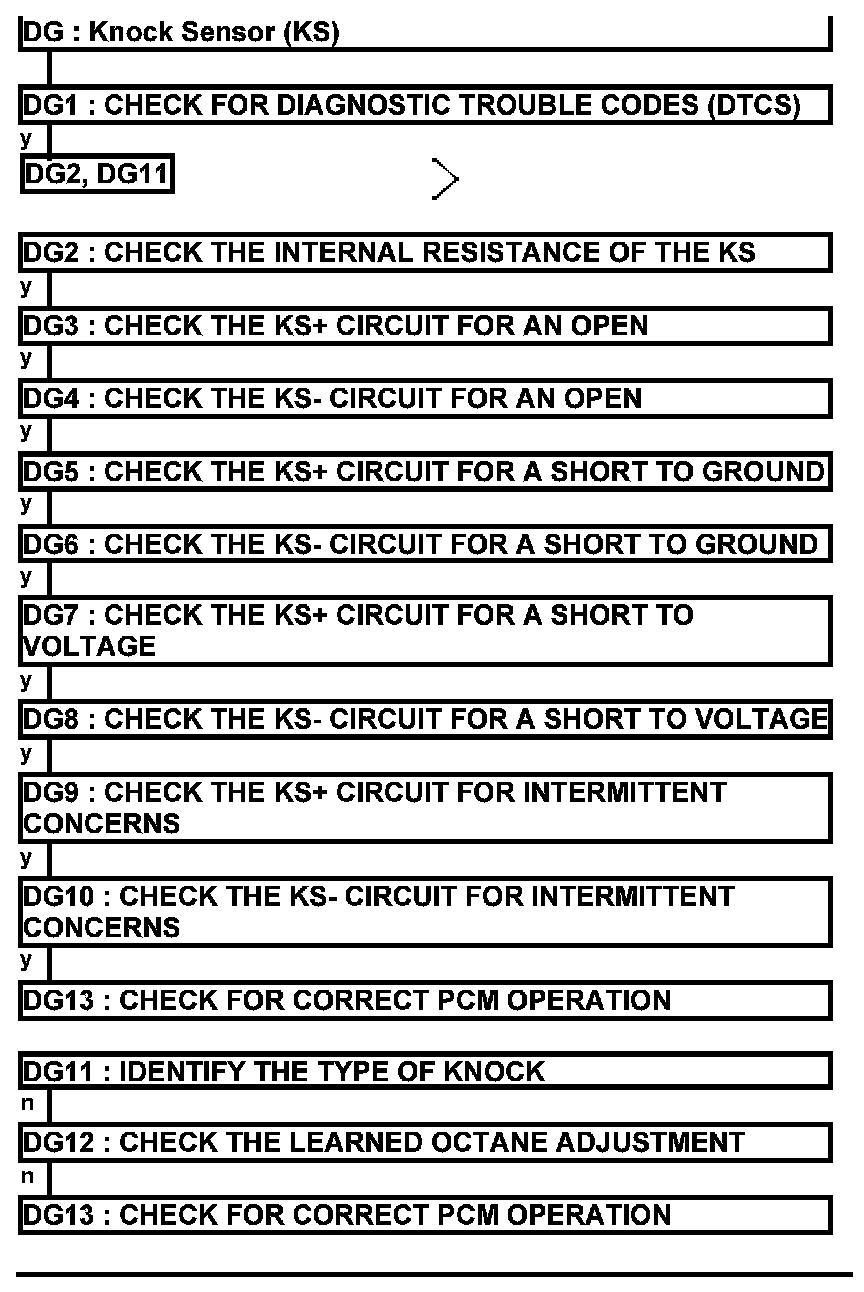

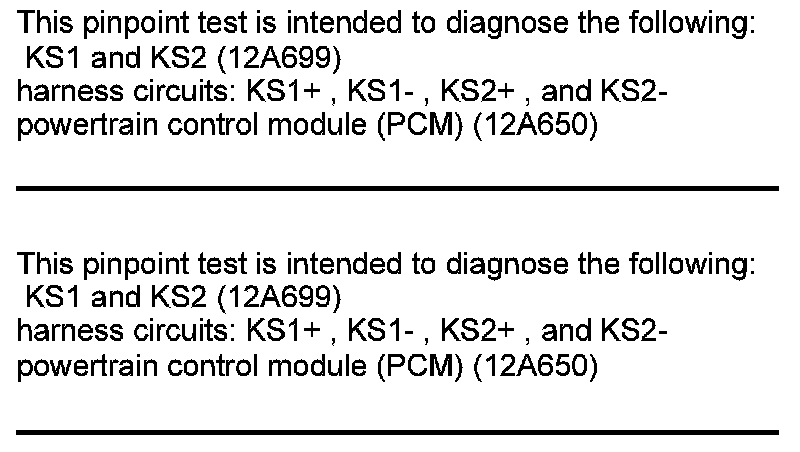

Knock Sensor (KS) - Automatic Transmission

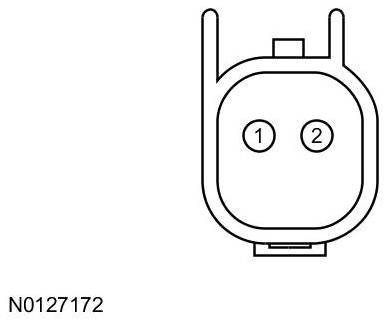

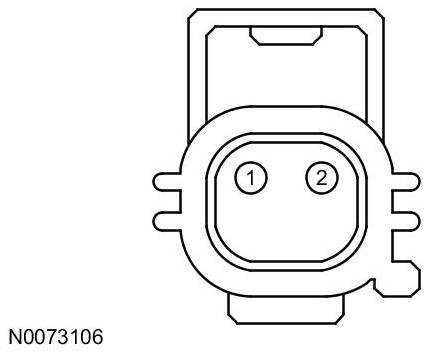

Knock Sensor 1 (KS1) Connector





Harness Side

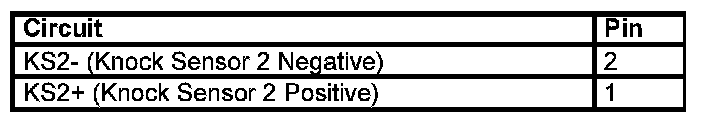

Knock Sensor 2 (KS2) Connector





Harness Side

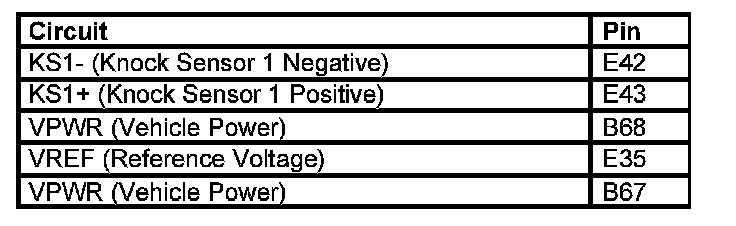

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
