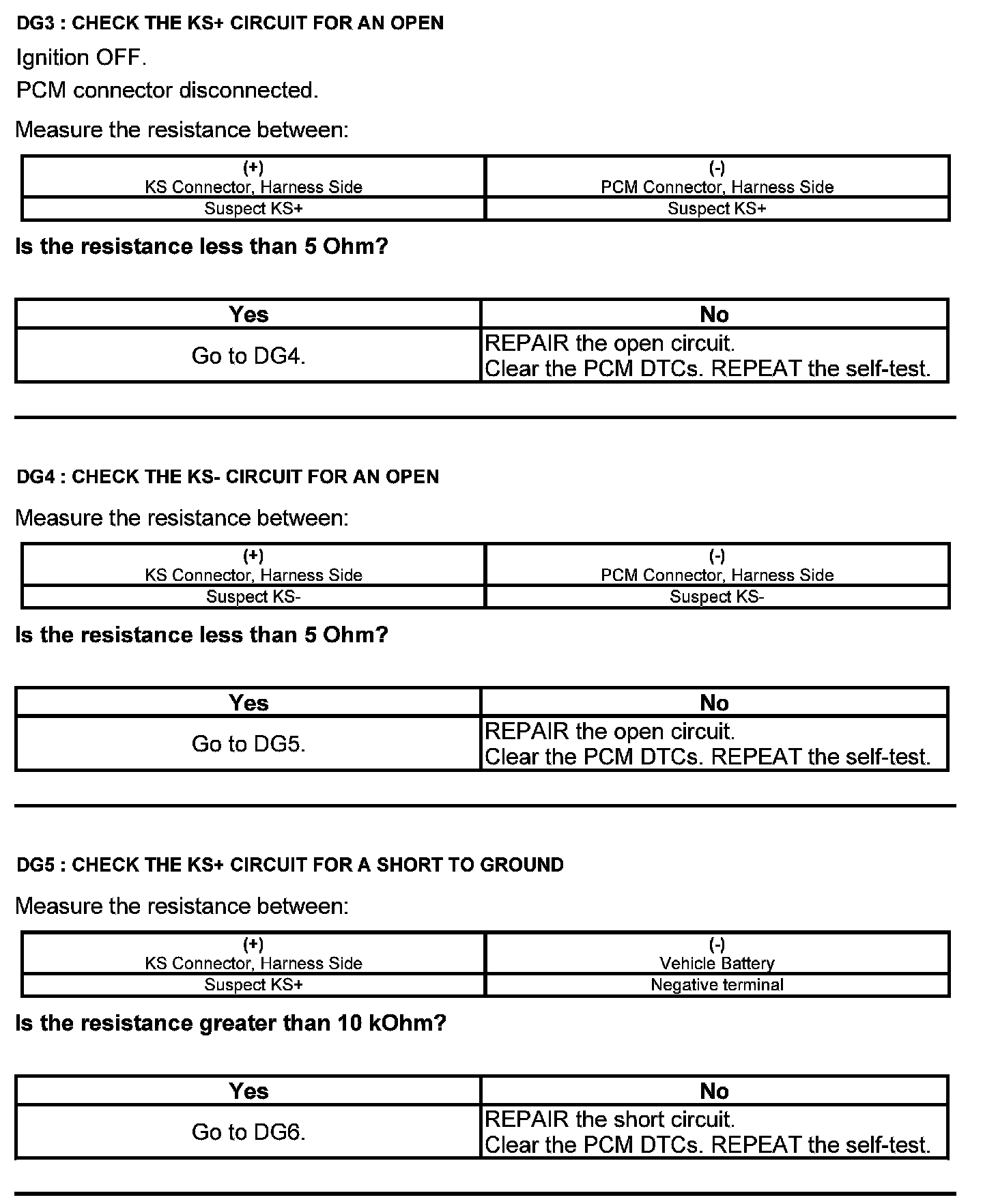

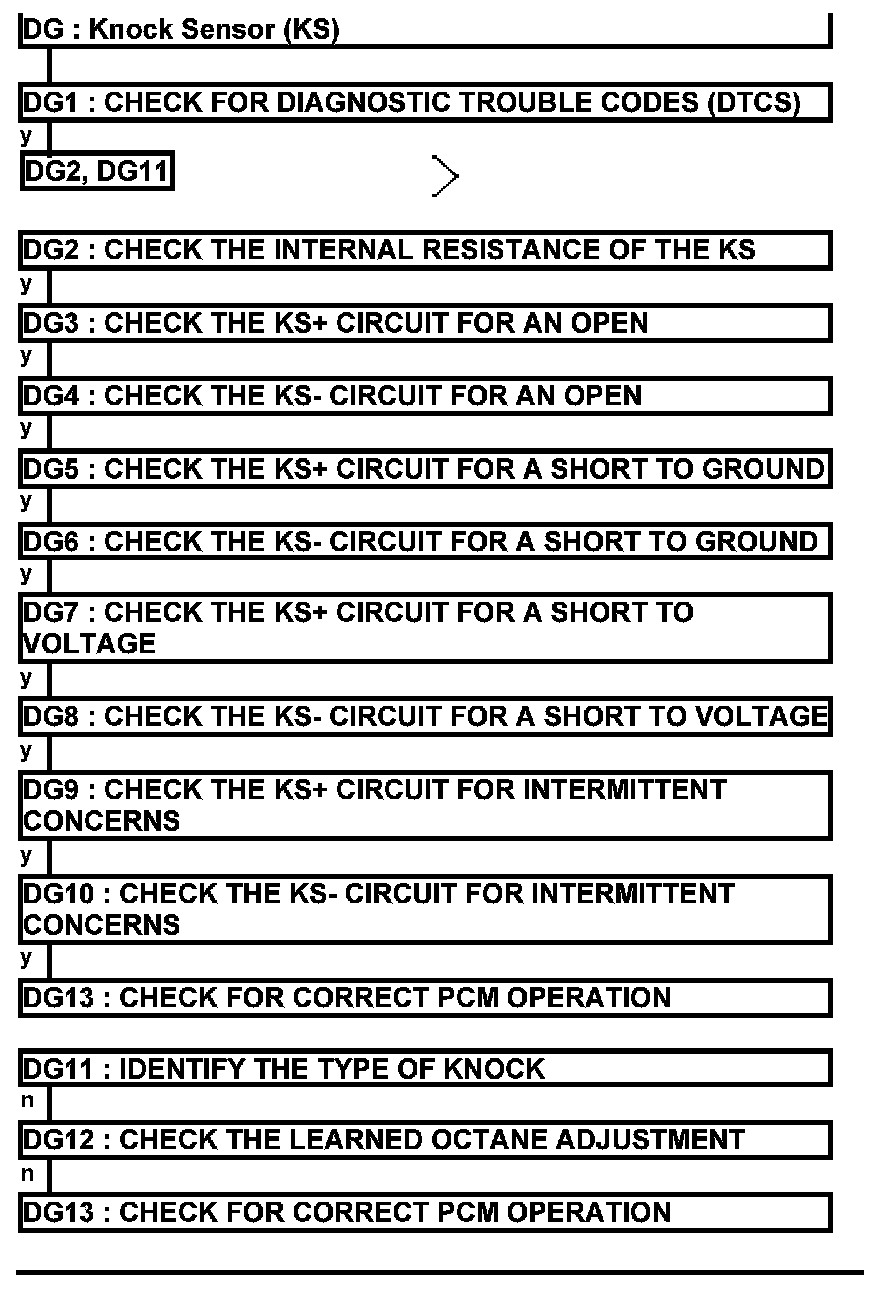

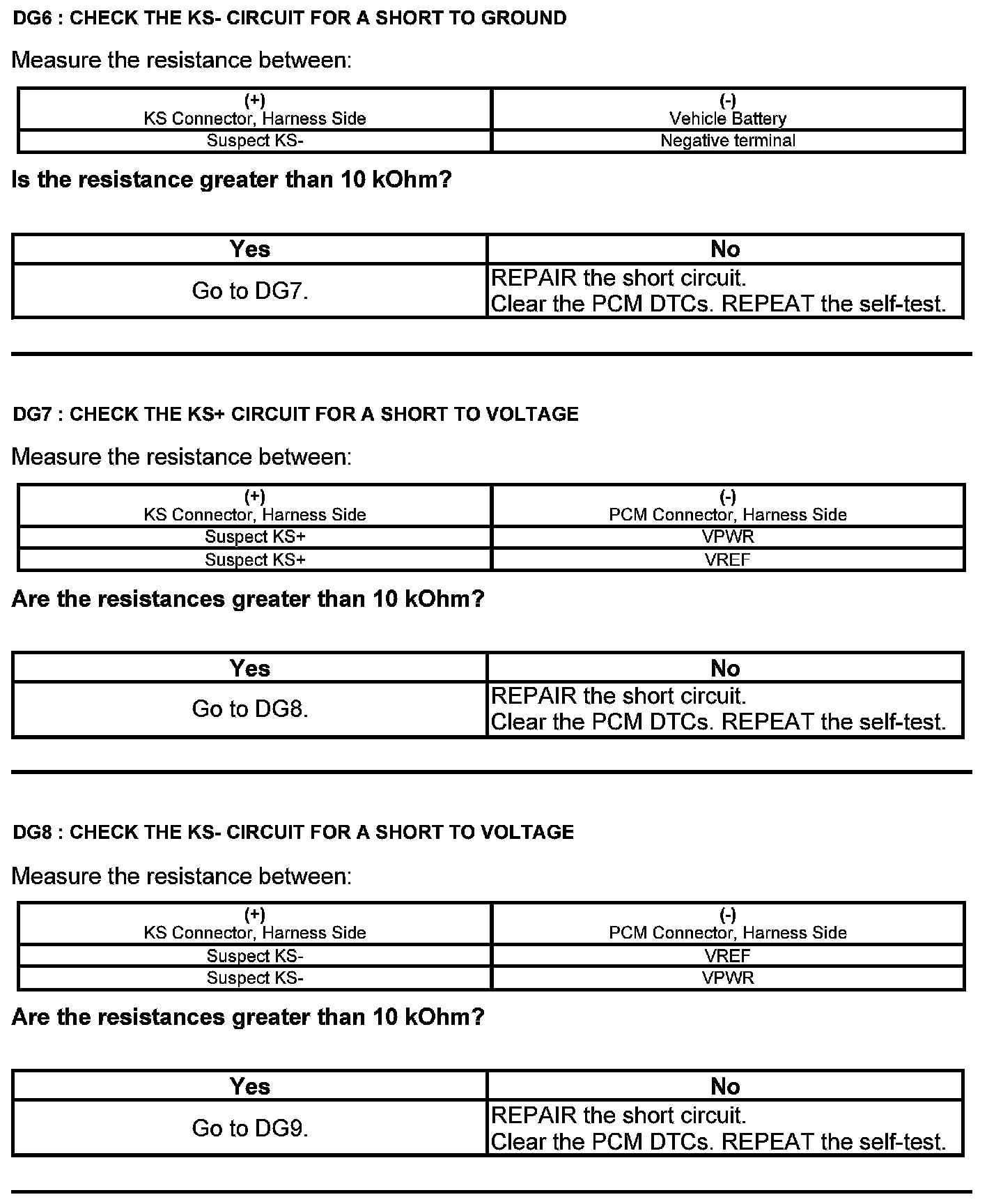

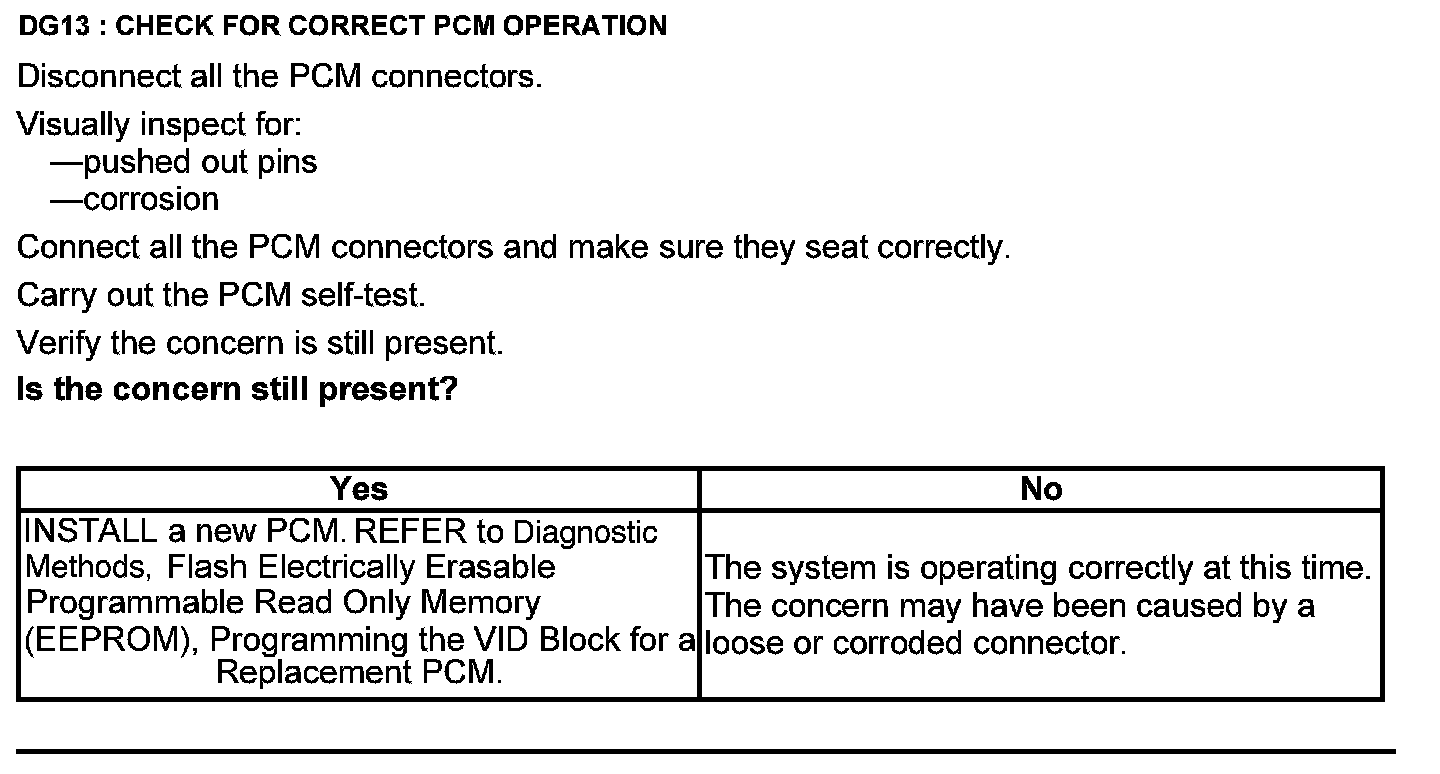

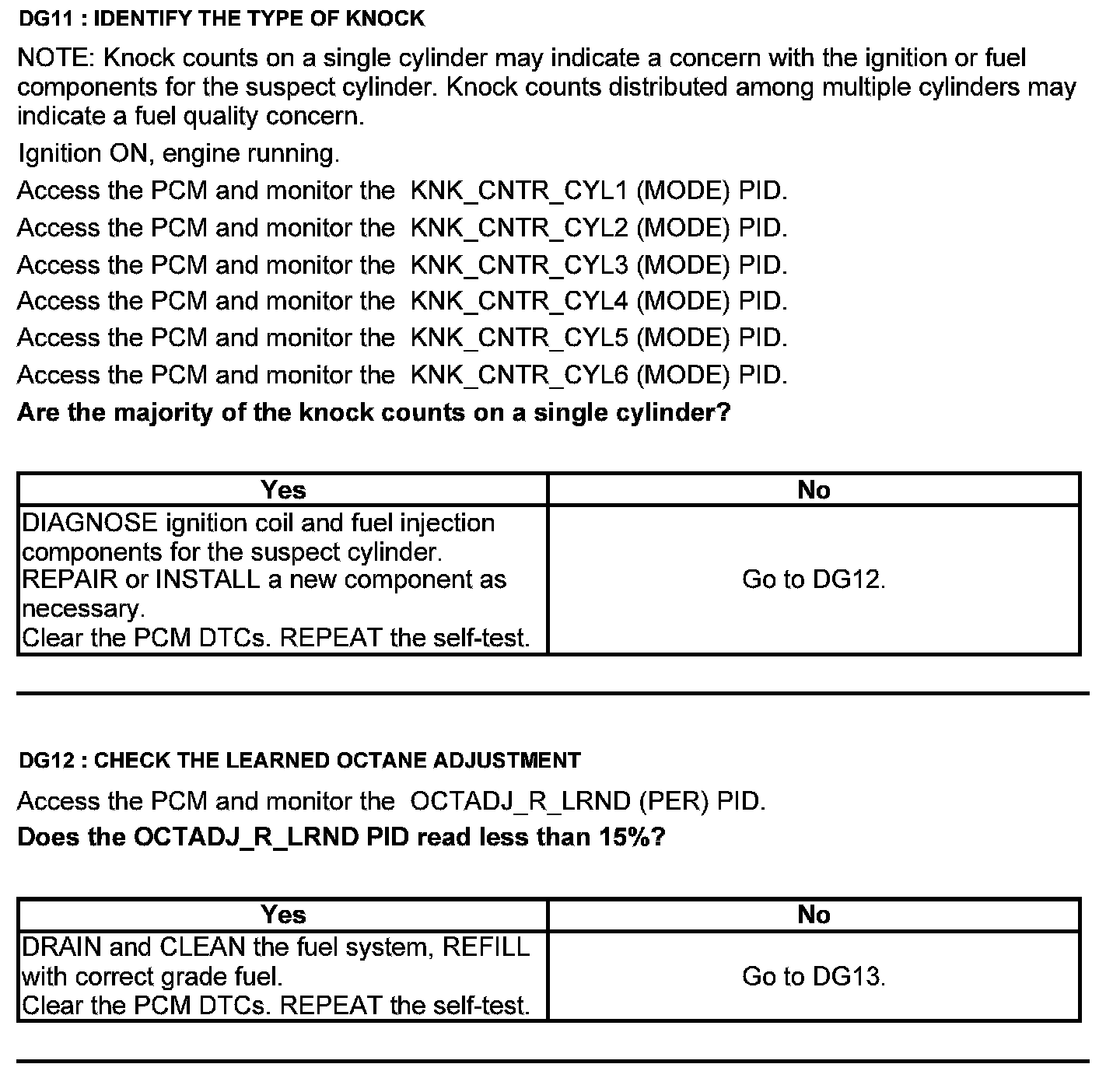

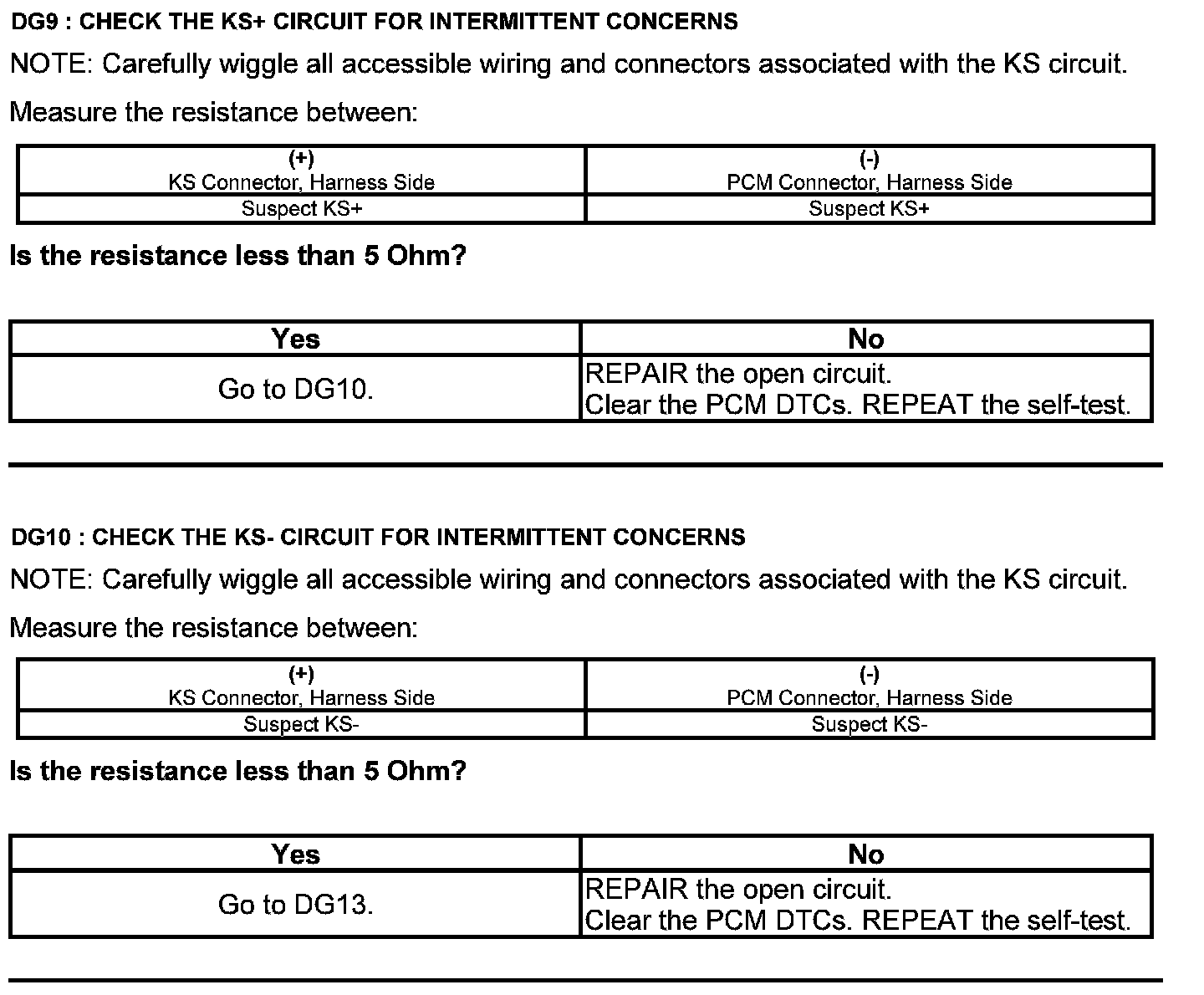

Test DG: Knock Sensor (KS)
>>
All Others
All Others

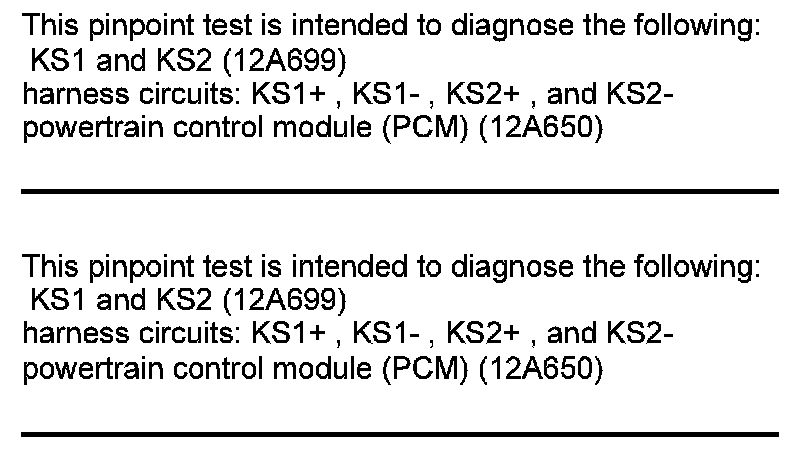

Knock Sensor (KS) - All Others

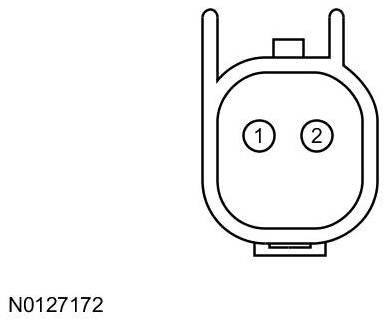

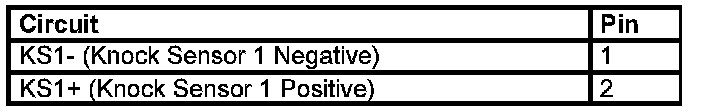

Knock Sensor
1 (KS1) Connector
Harness Side

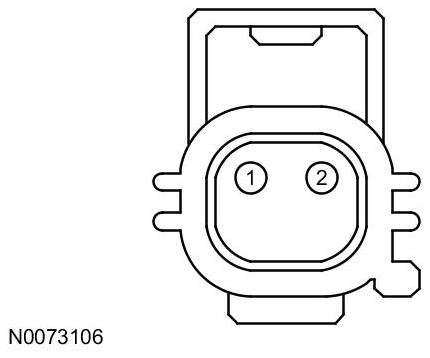

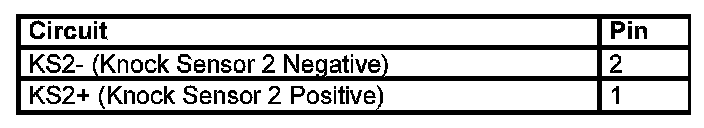

Knock Sensor
2 (KS2) Connector
Harness Side
