Manual Transmission

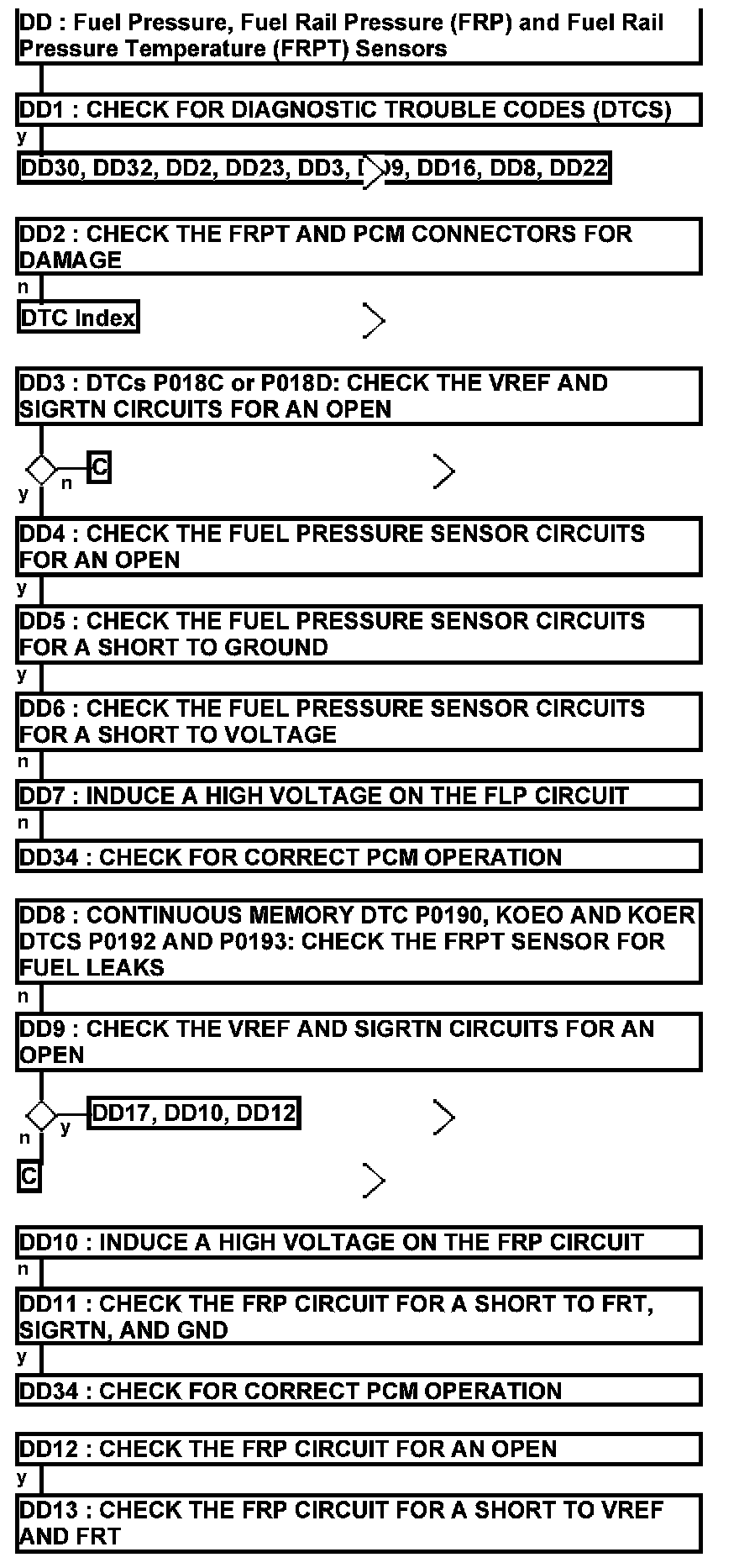

Fuel Pressure, Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors - Manual Transmission.

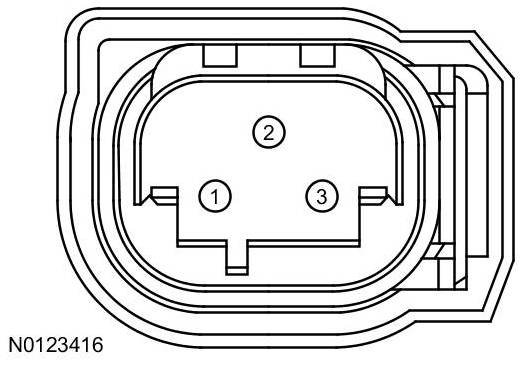

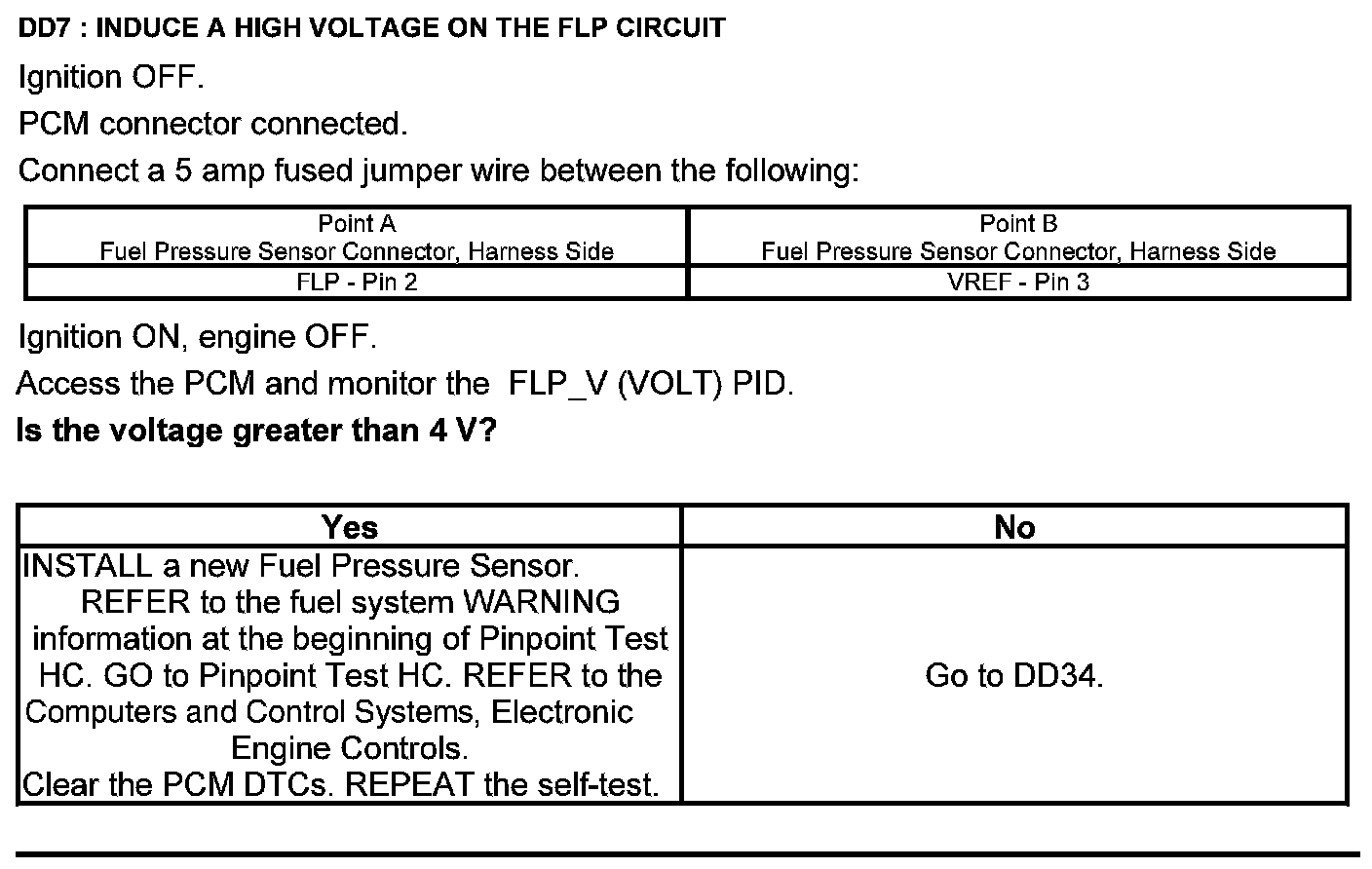

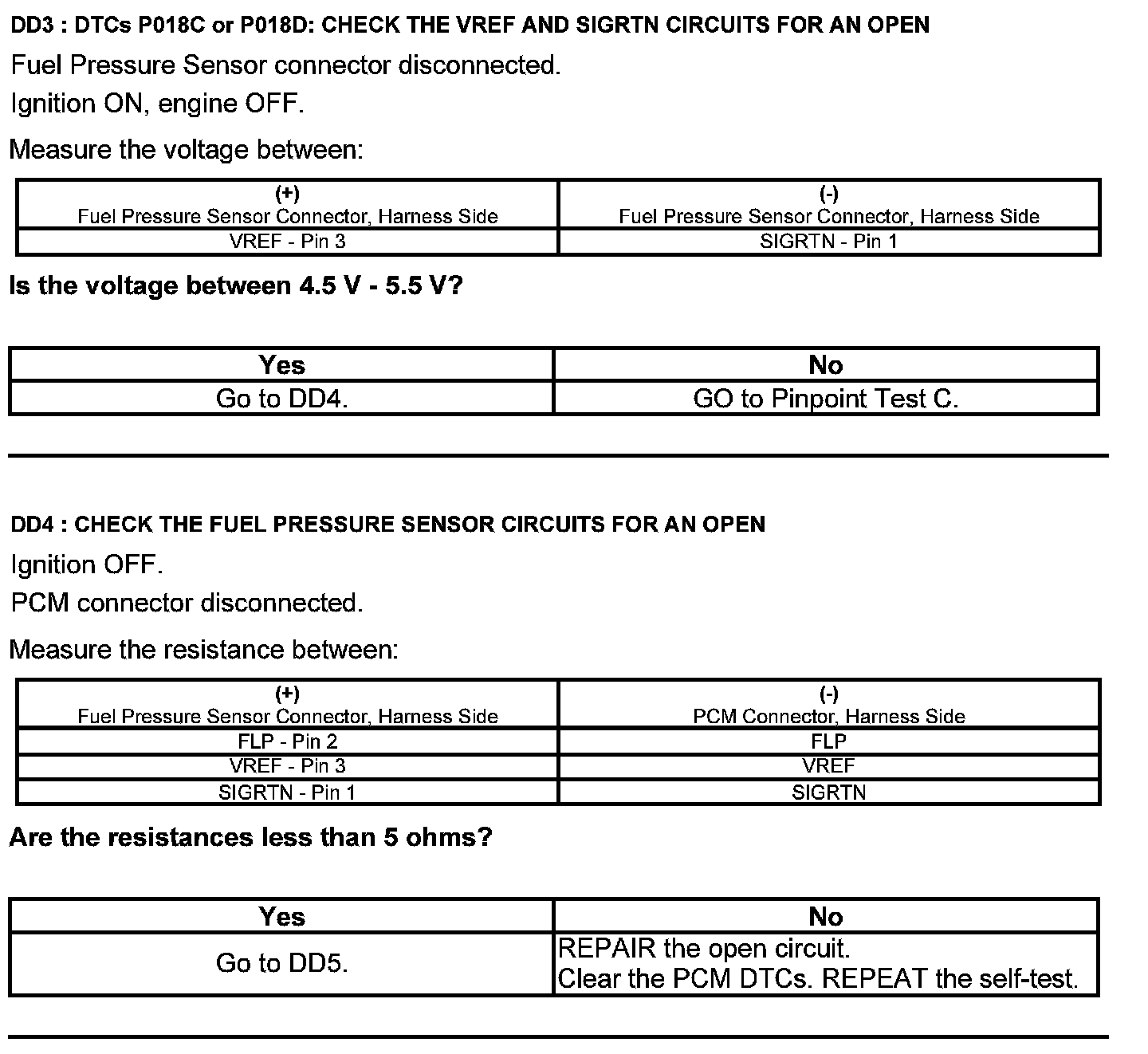

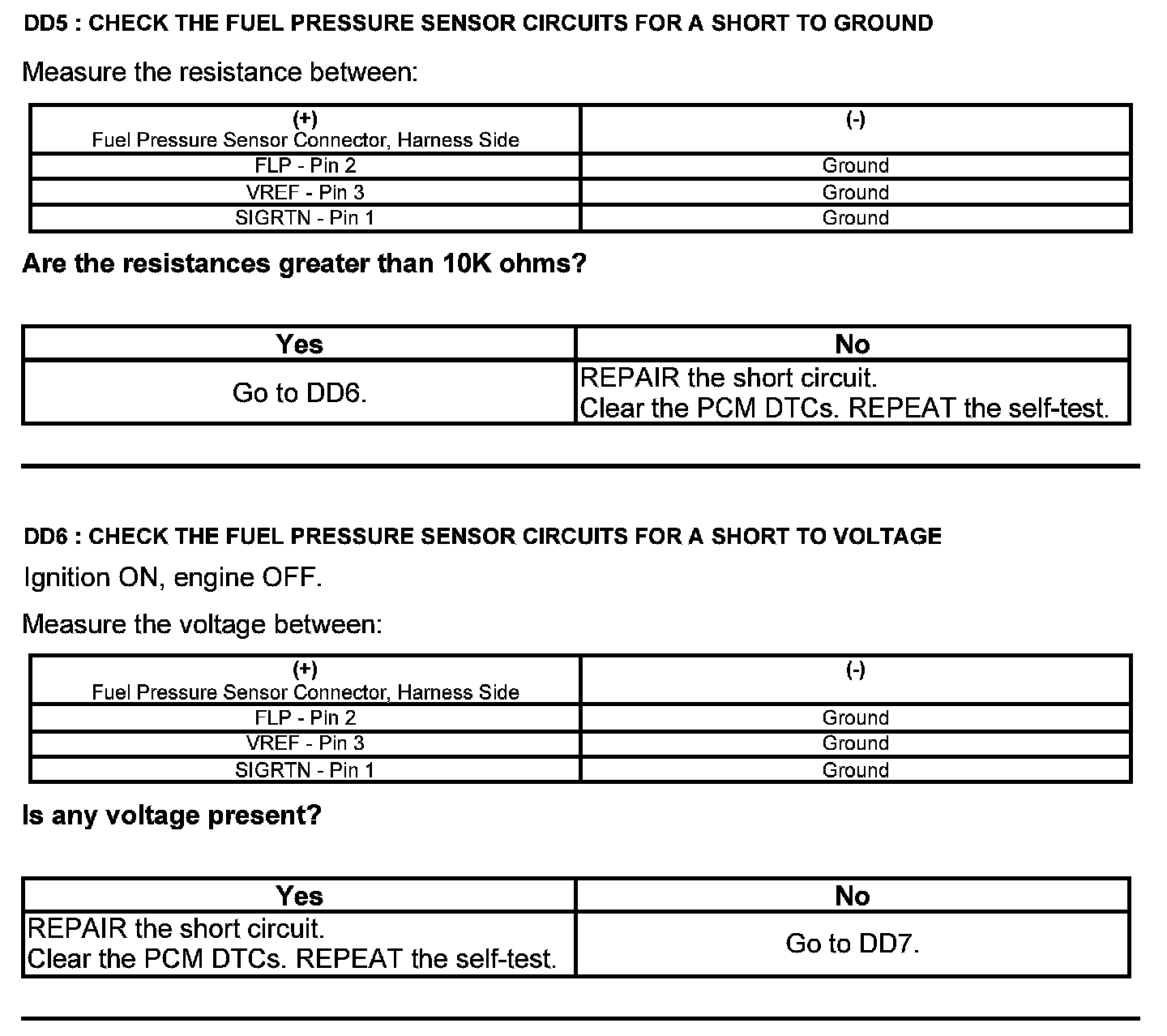

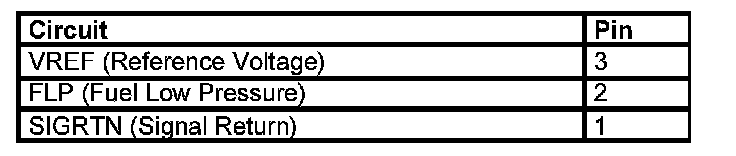

Fuel Pressure Sensor Connector
Harness Side

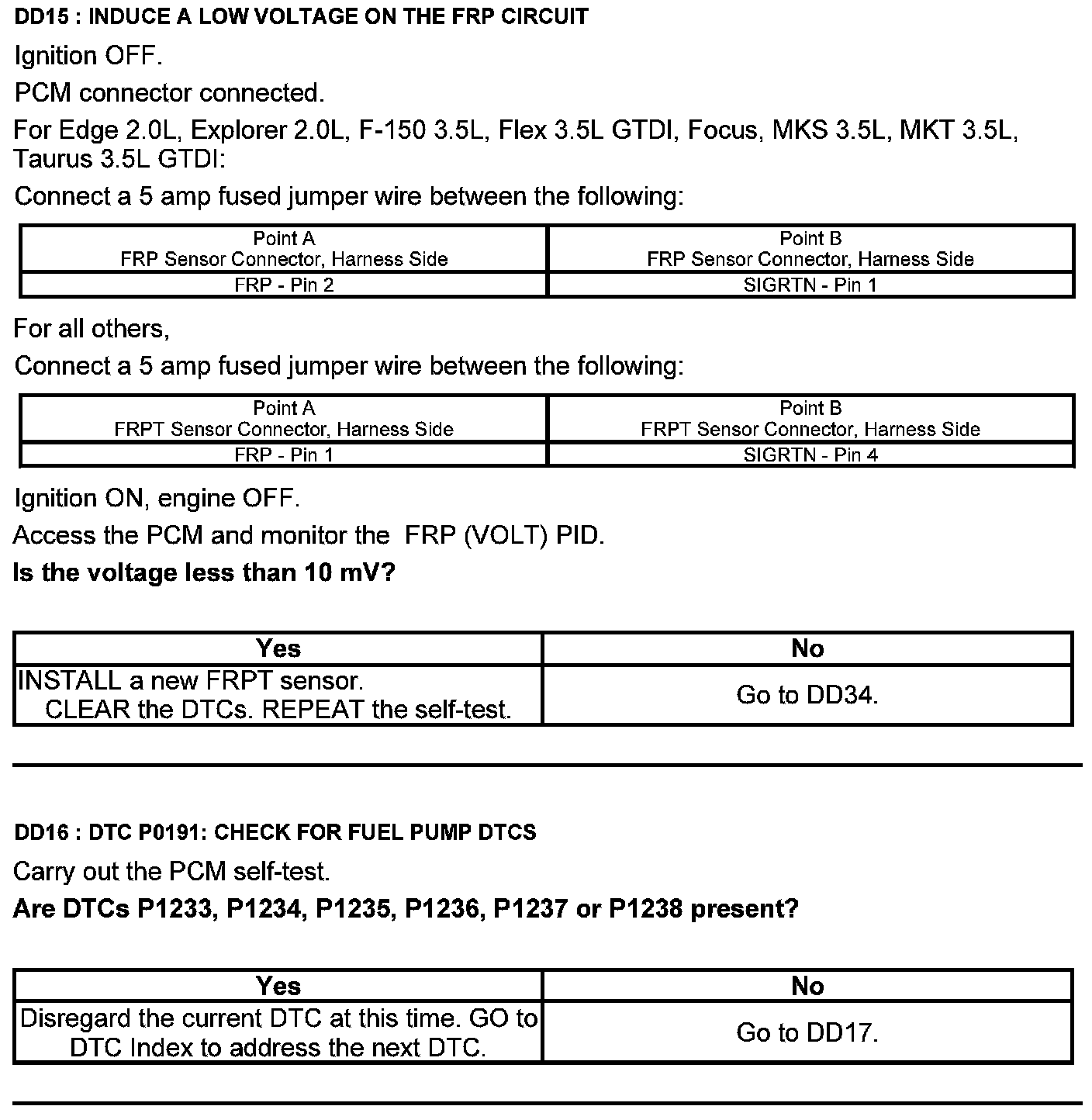

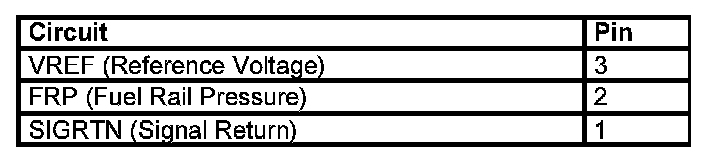

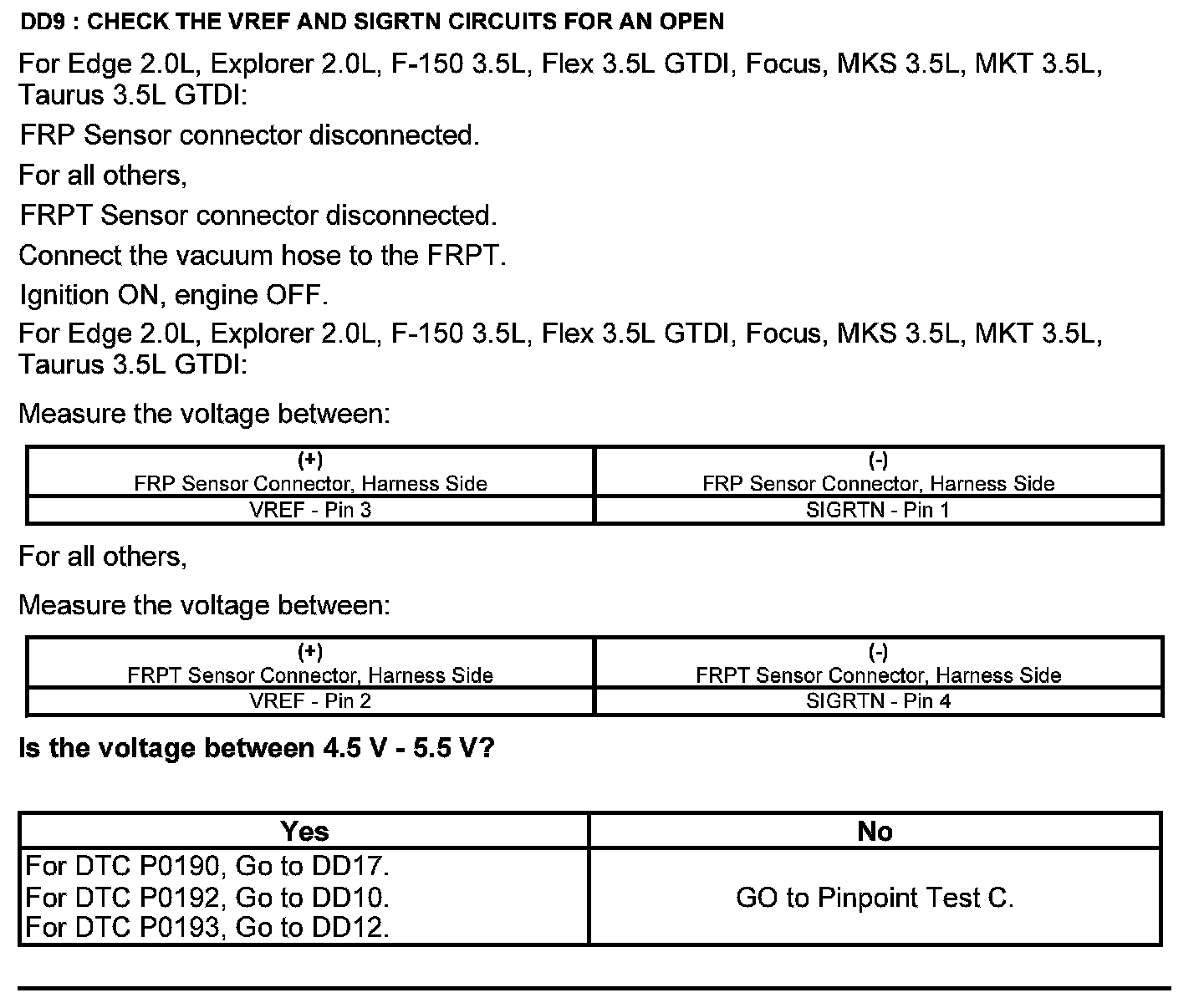

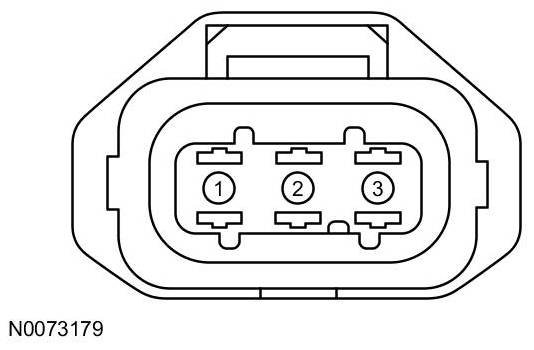

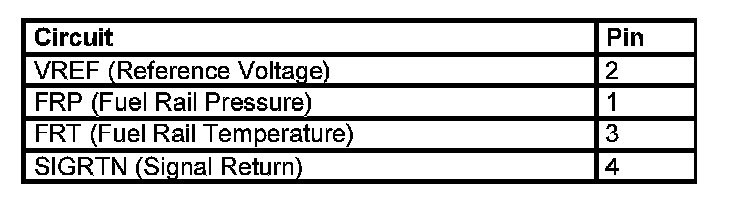

Fuel Rail Pressure (FRP) Sensor Connector
Harness Side

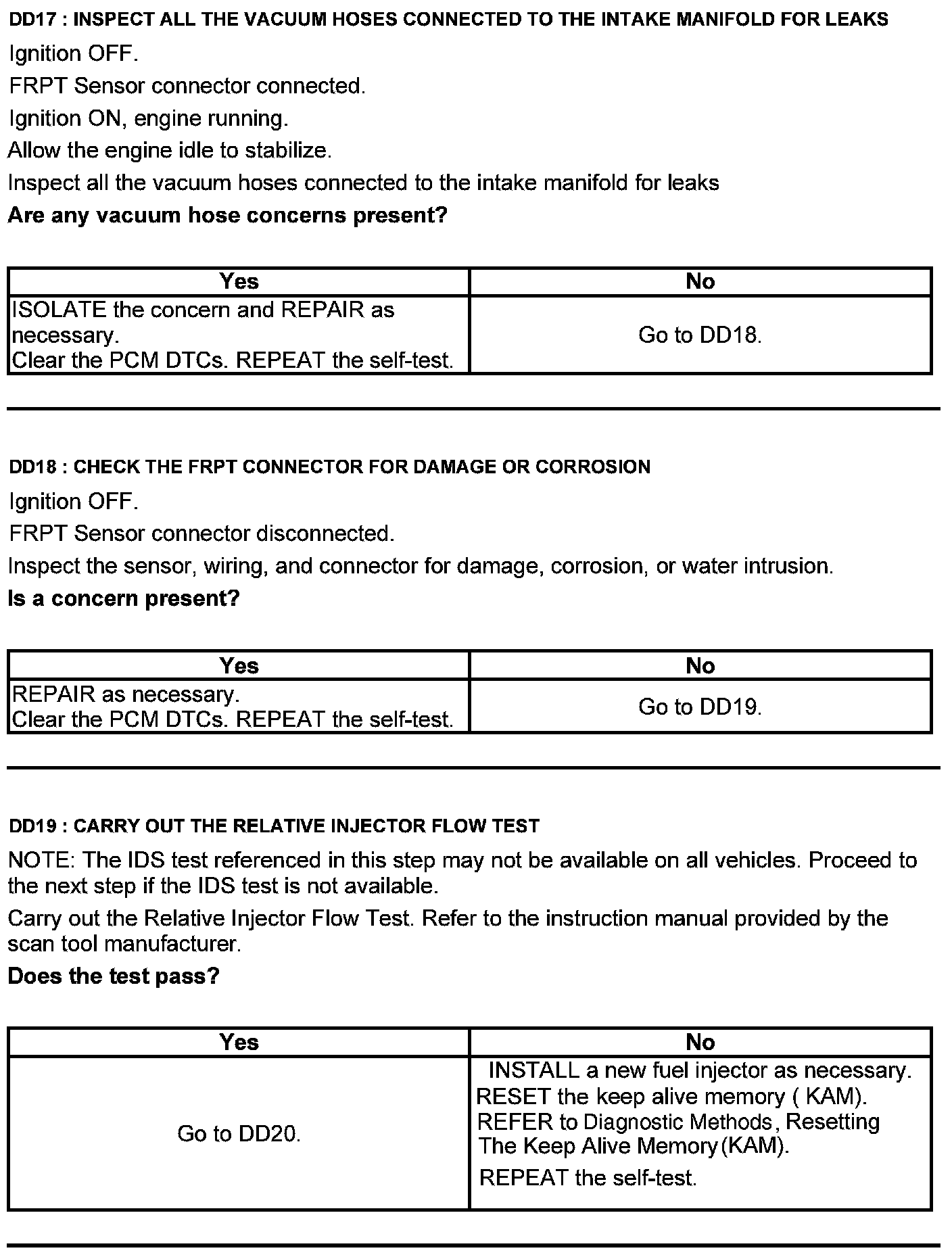

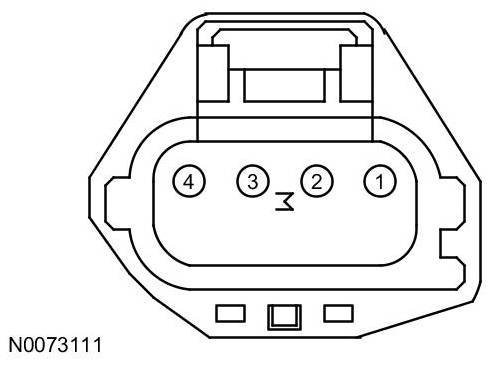

Fuel Rail Pressure Temperature (FRPT) Sensor Connector
Harness Side

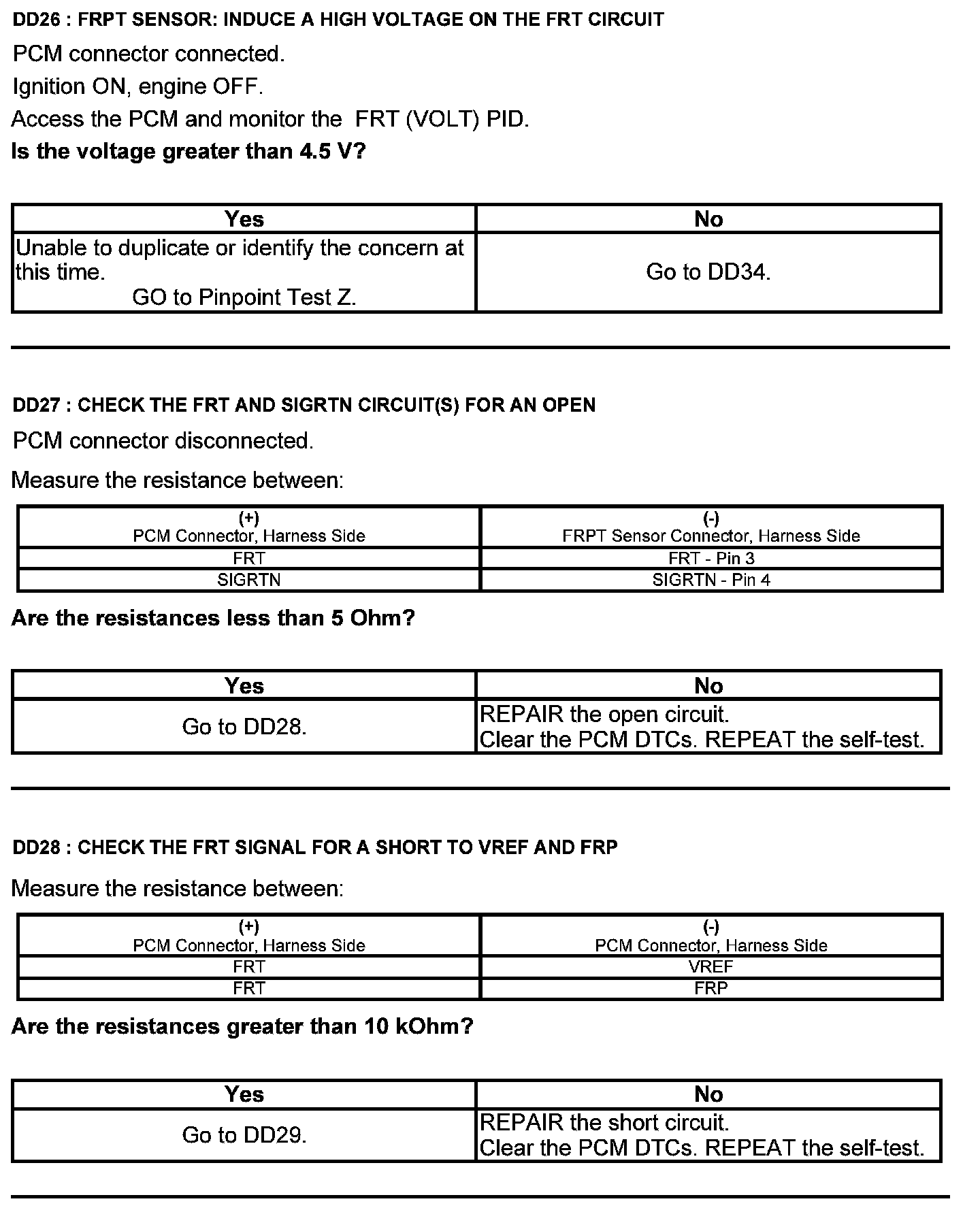

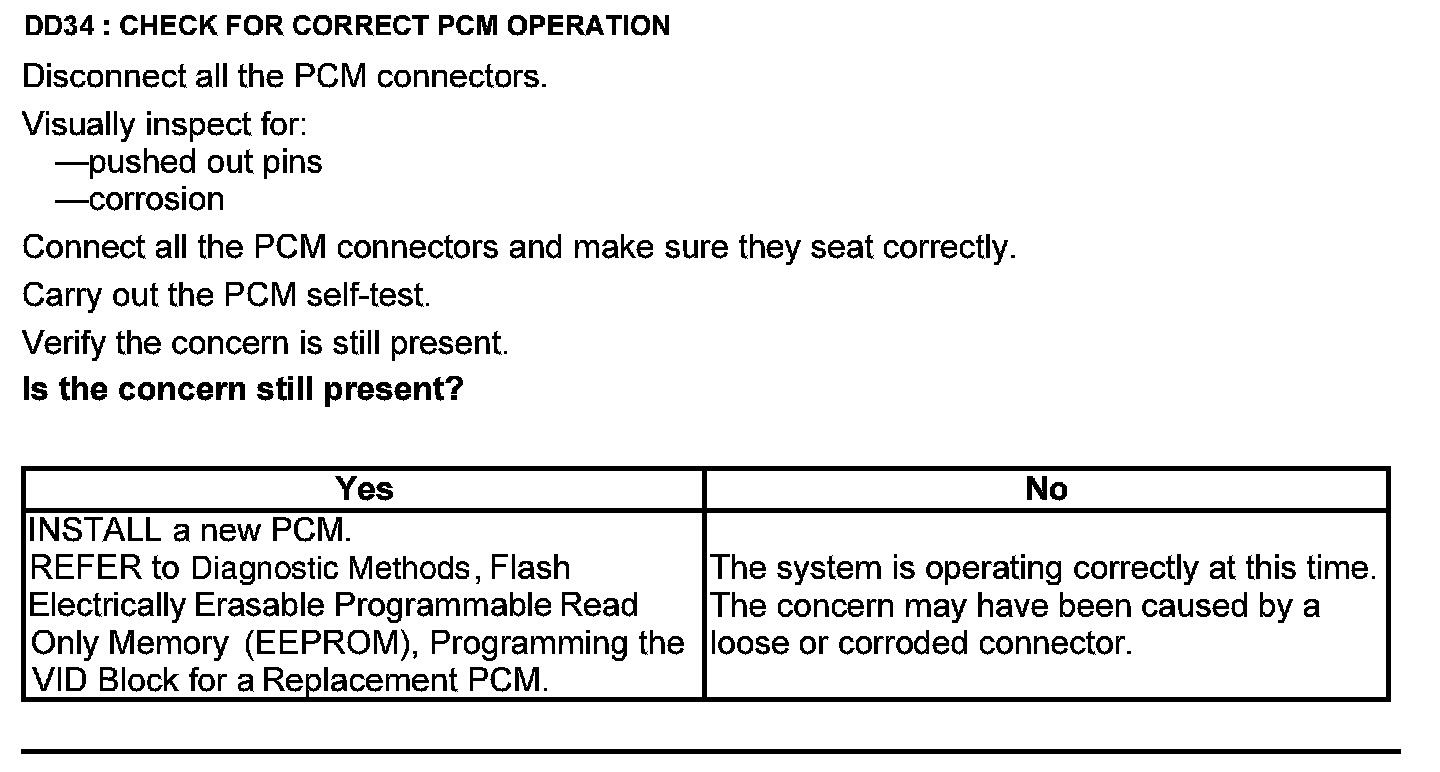

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
