Automatic Transmission

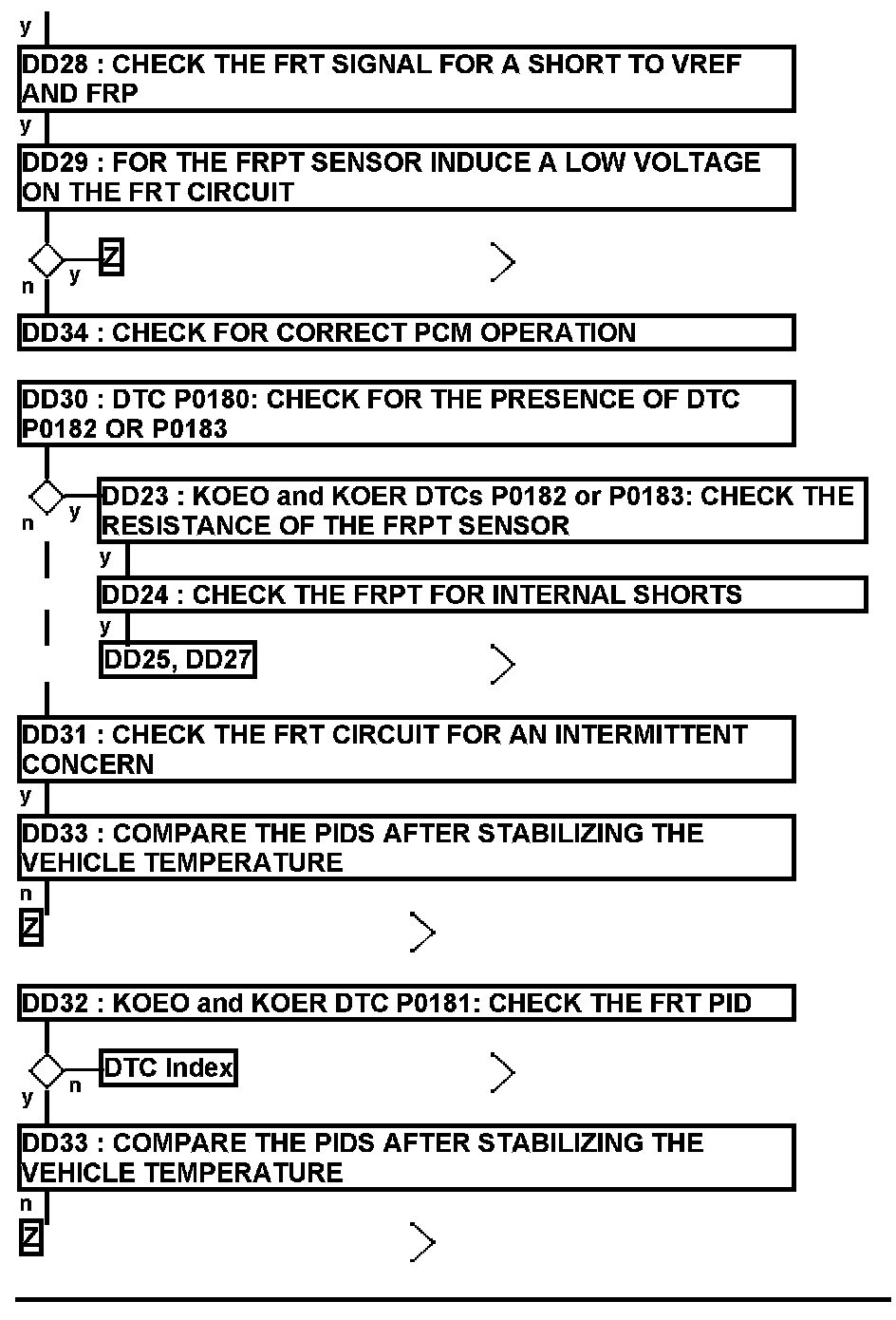

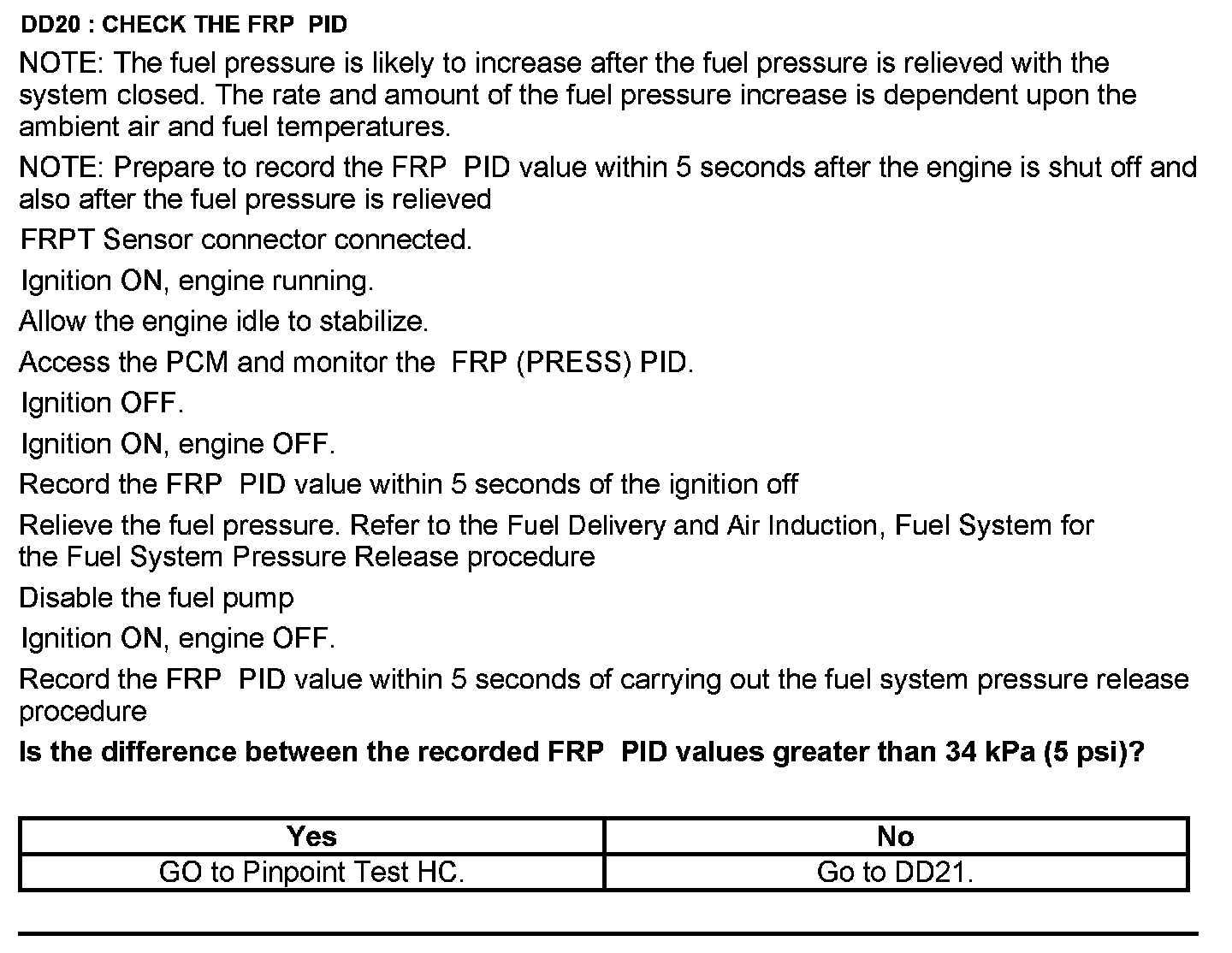

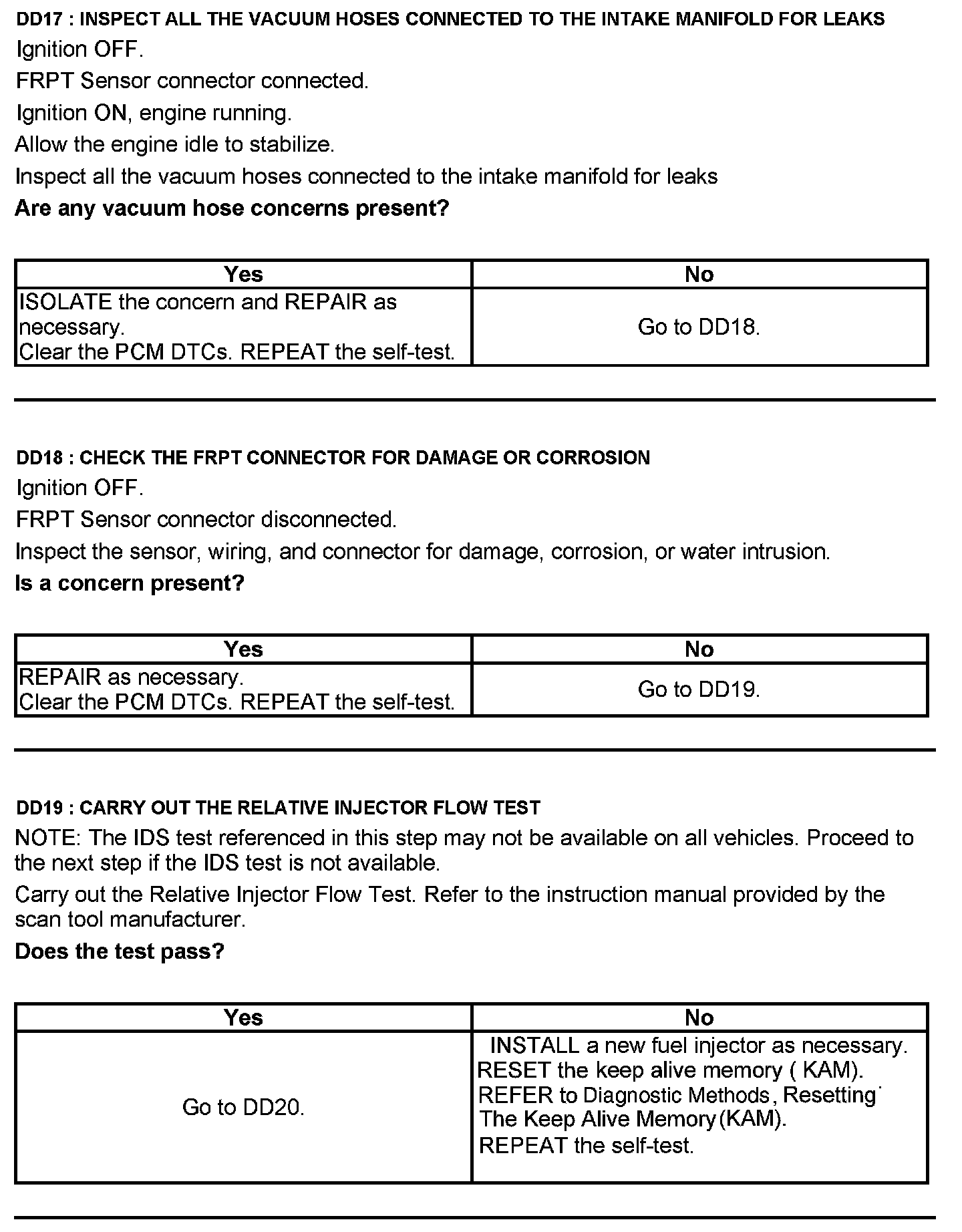

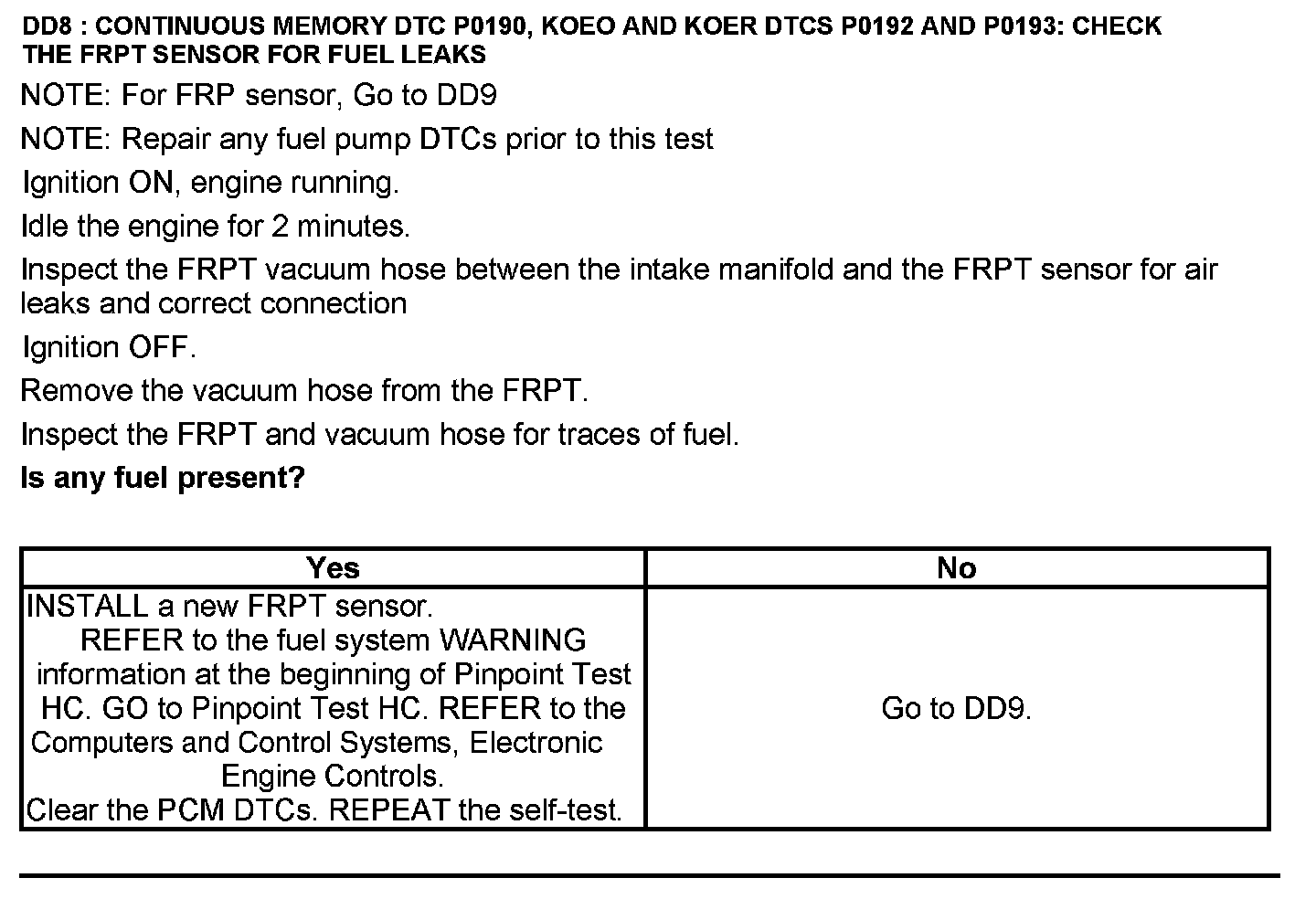

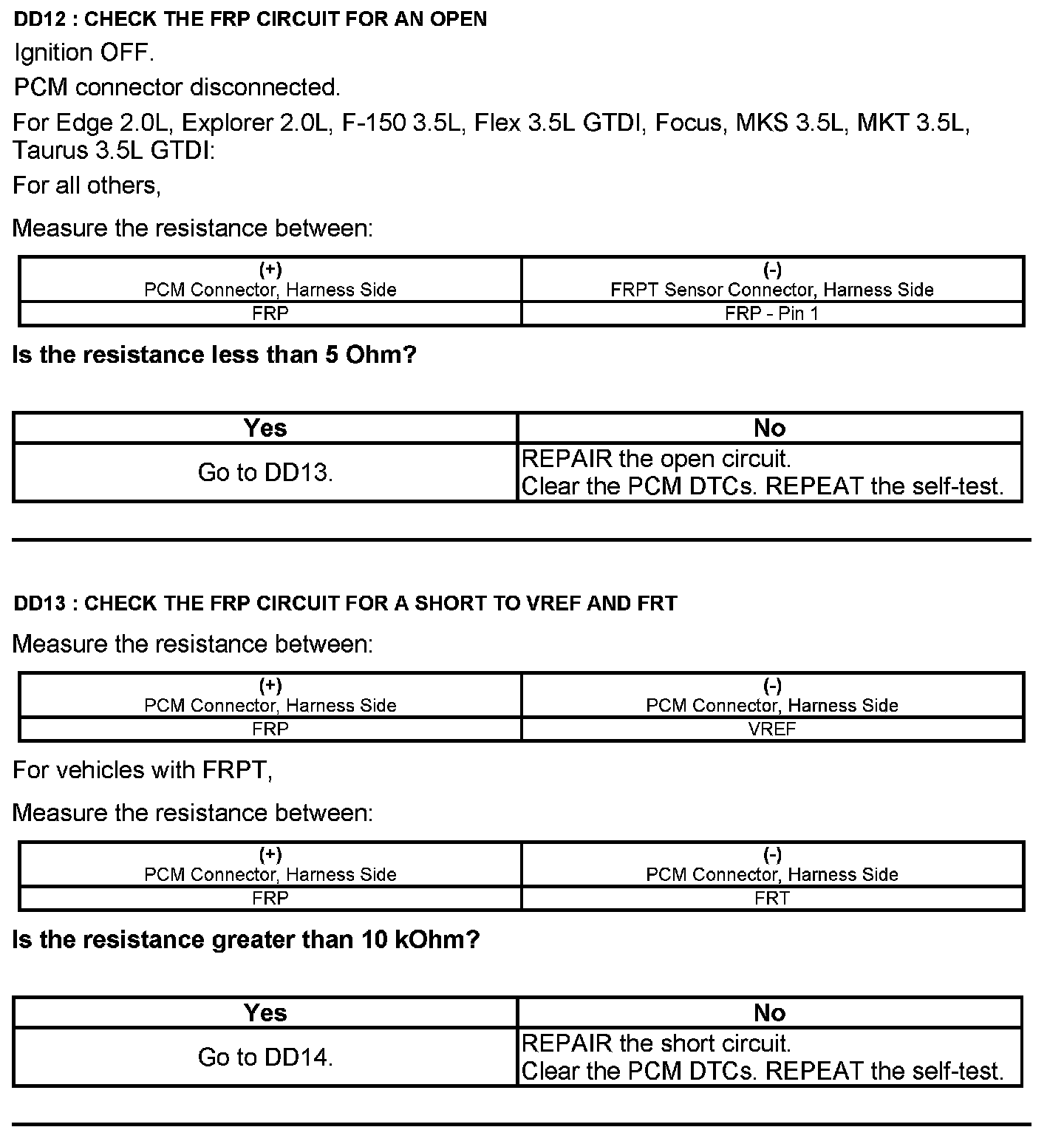

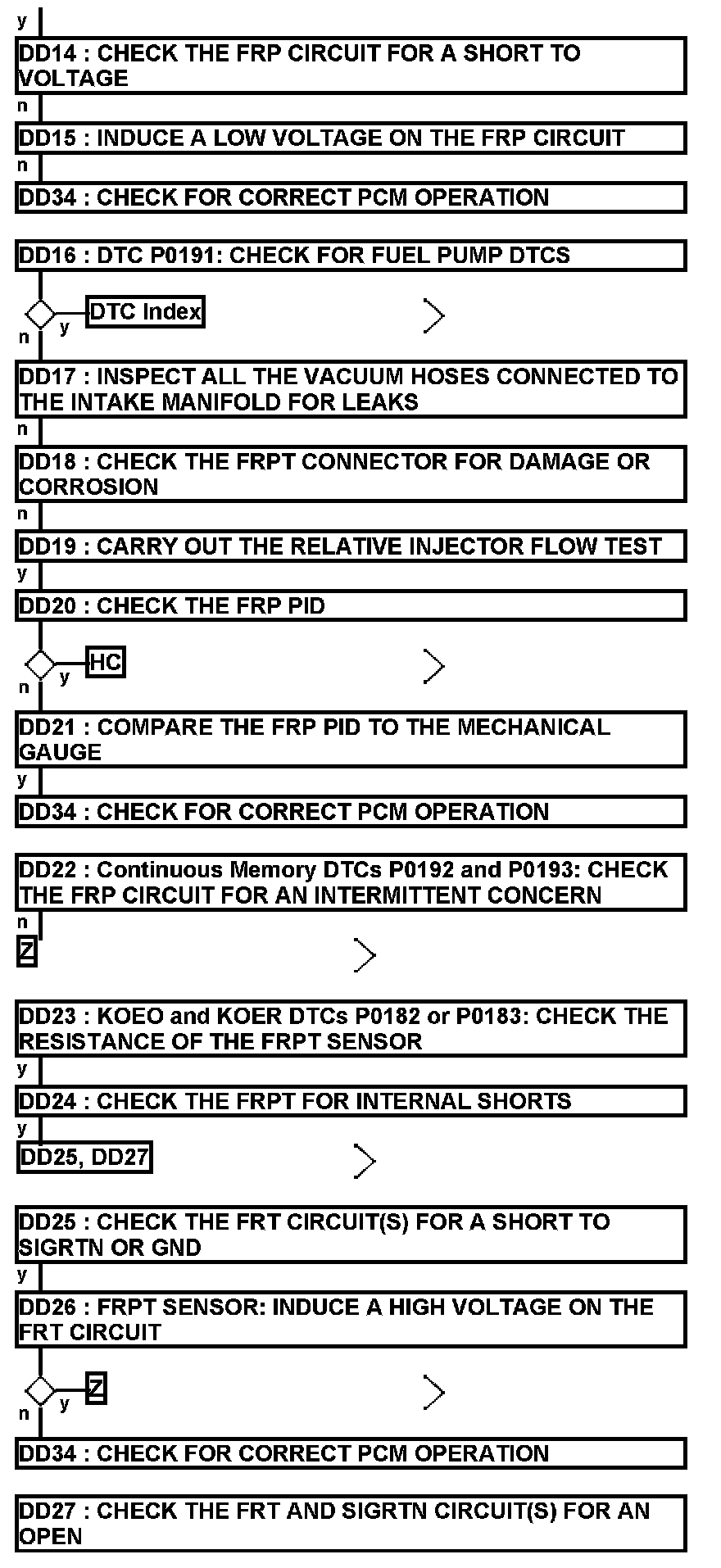

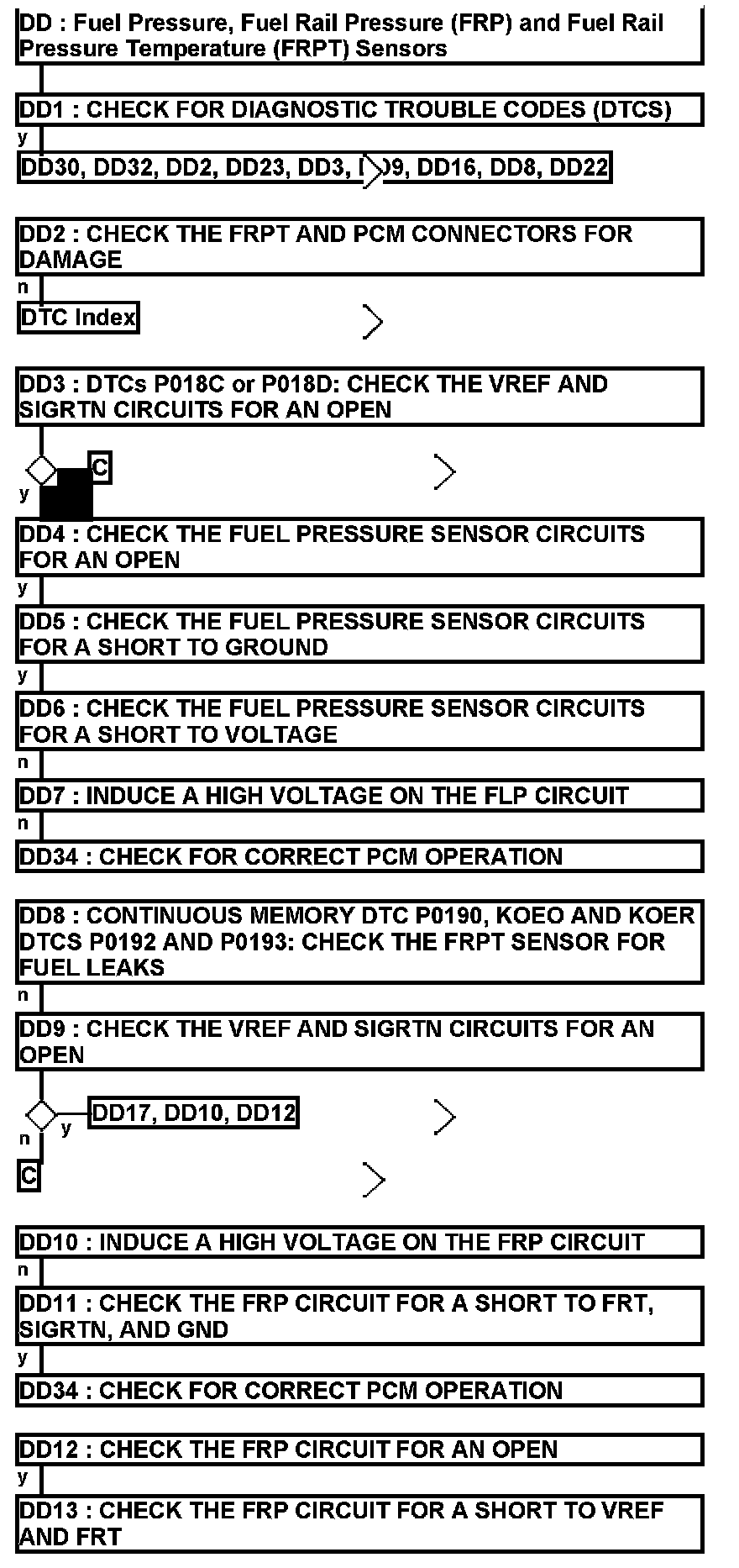

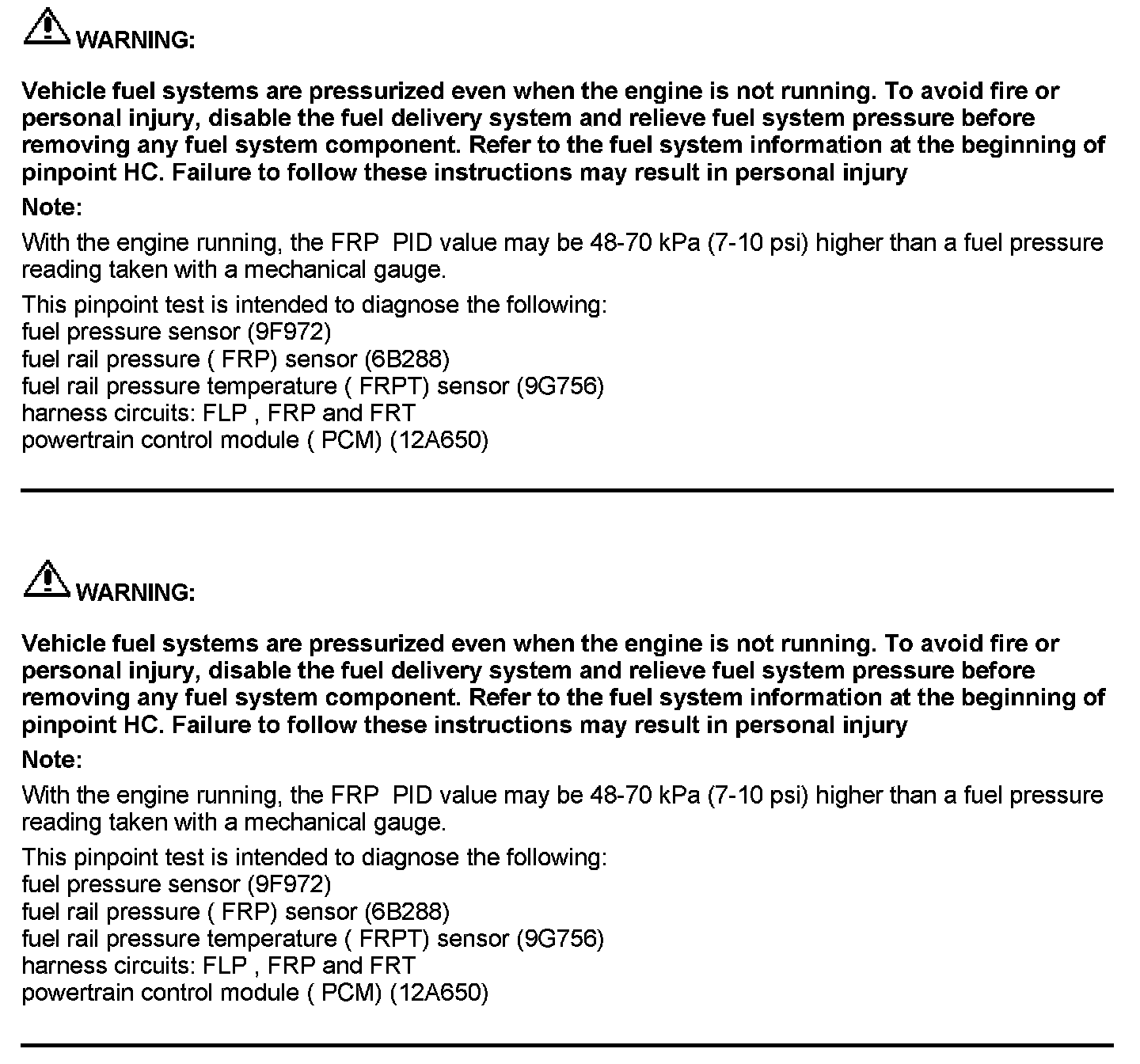

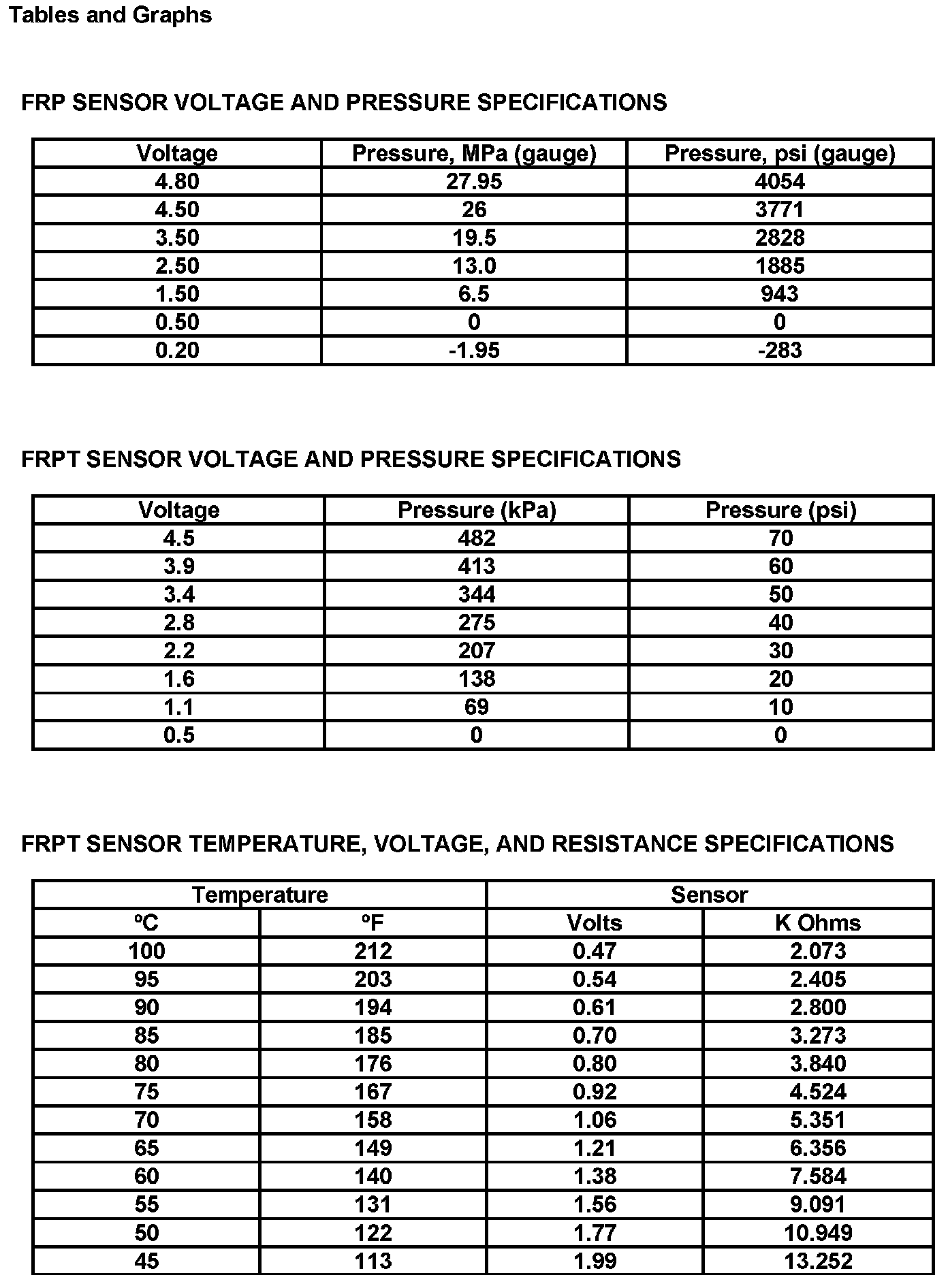

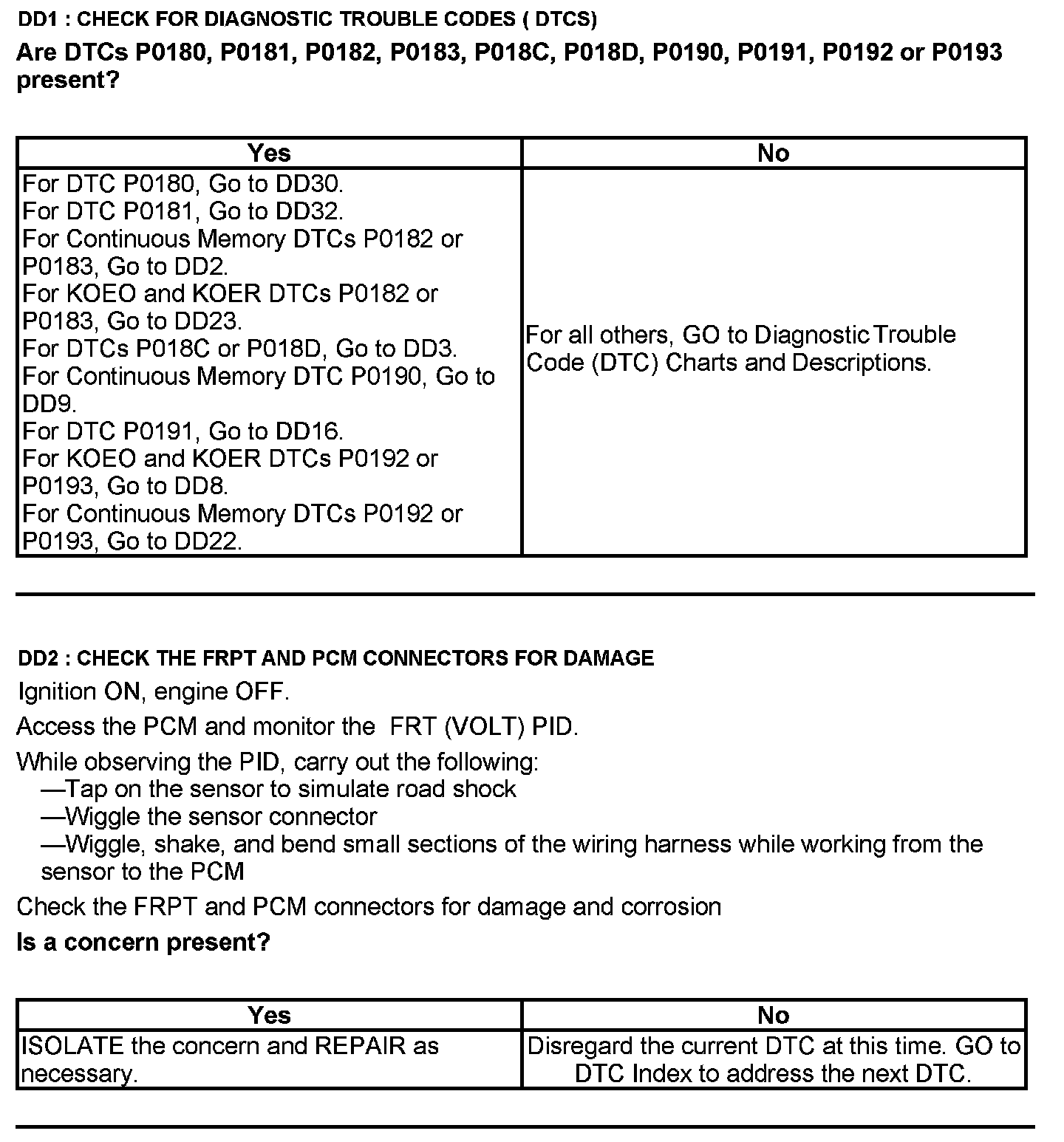

Fuel Pressure, Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors - Automatic Transmission.

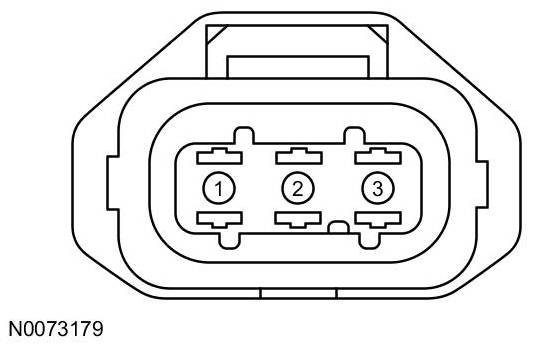

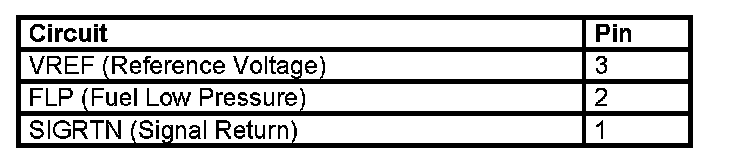

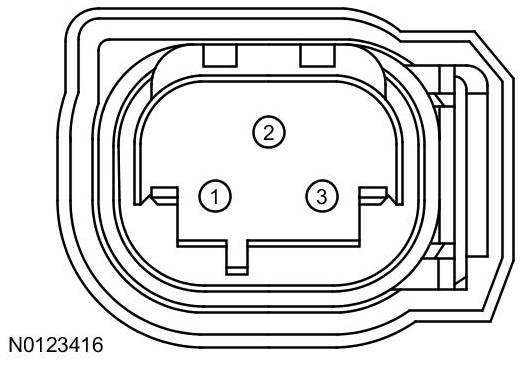

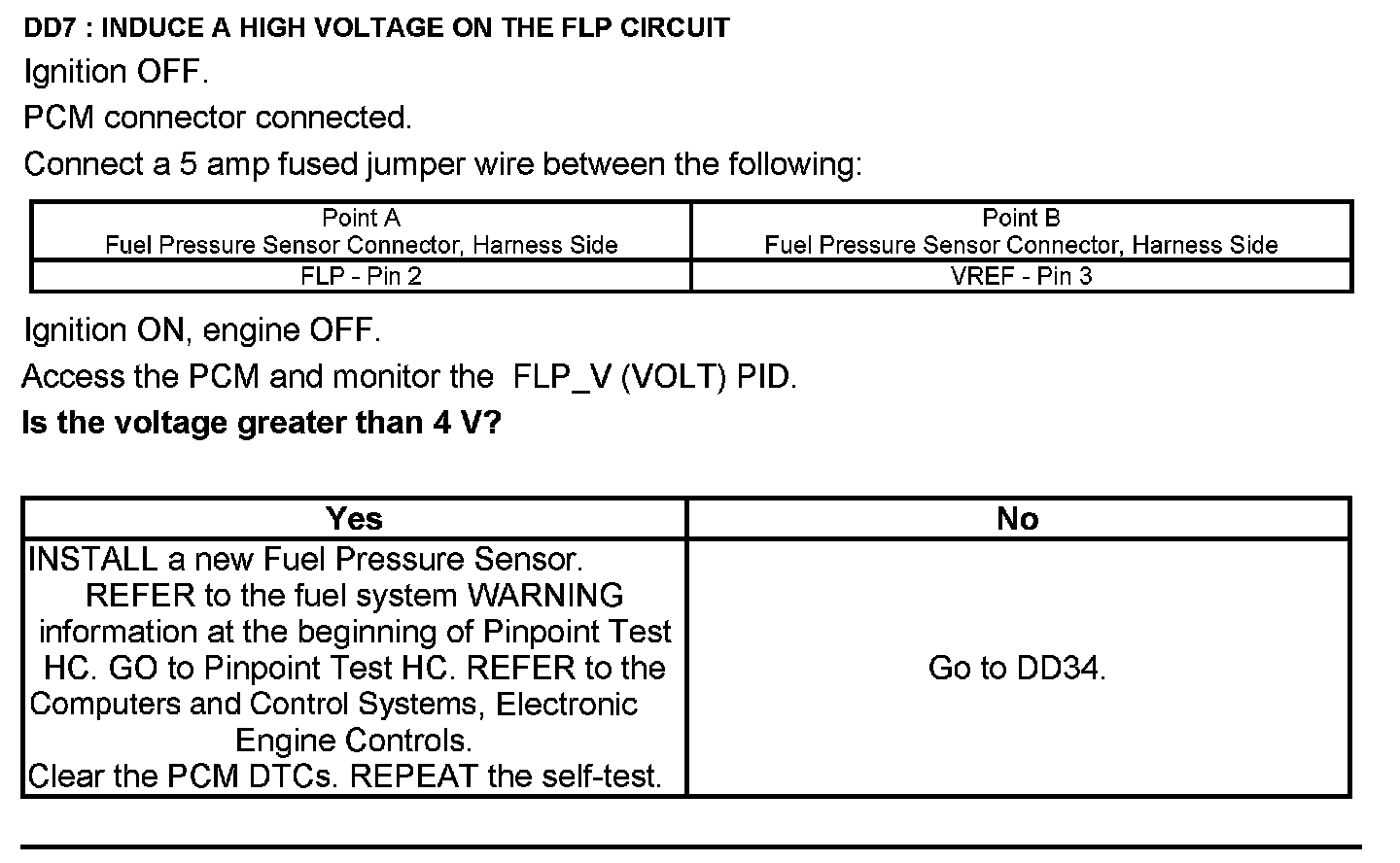

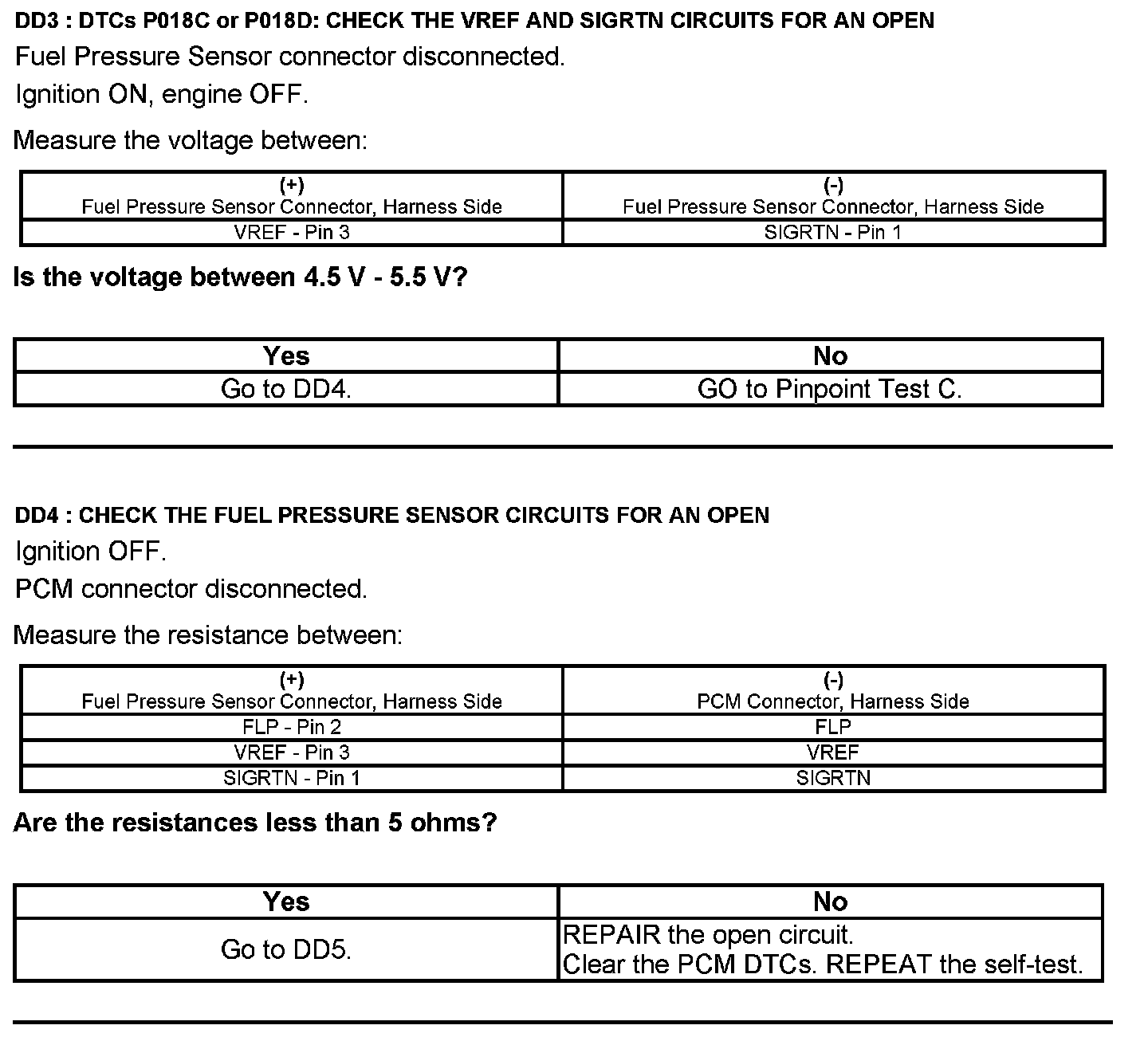

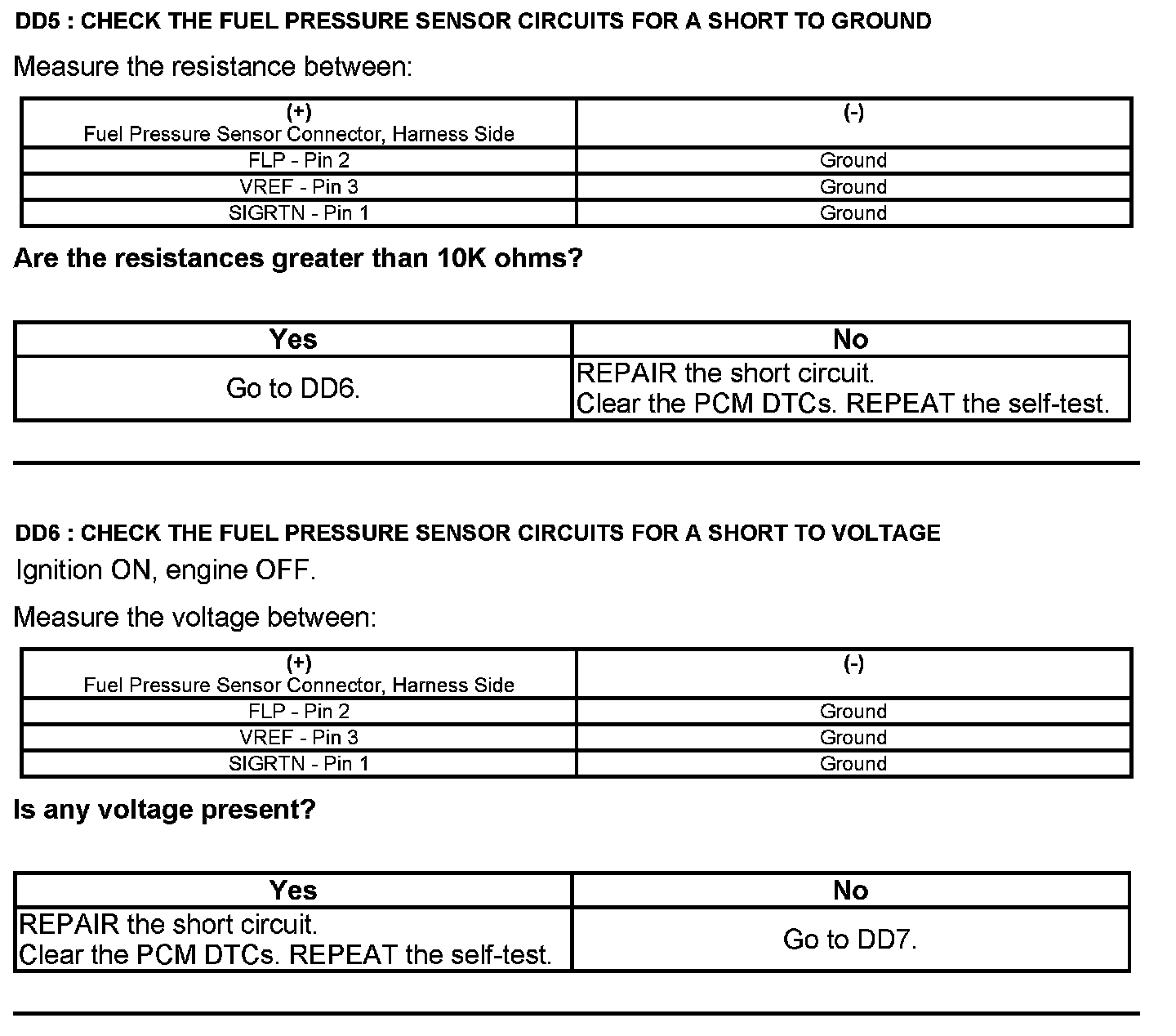

Fuel Pressure Sensor Connector





Harness Side

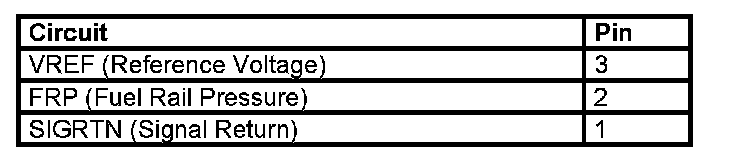

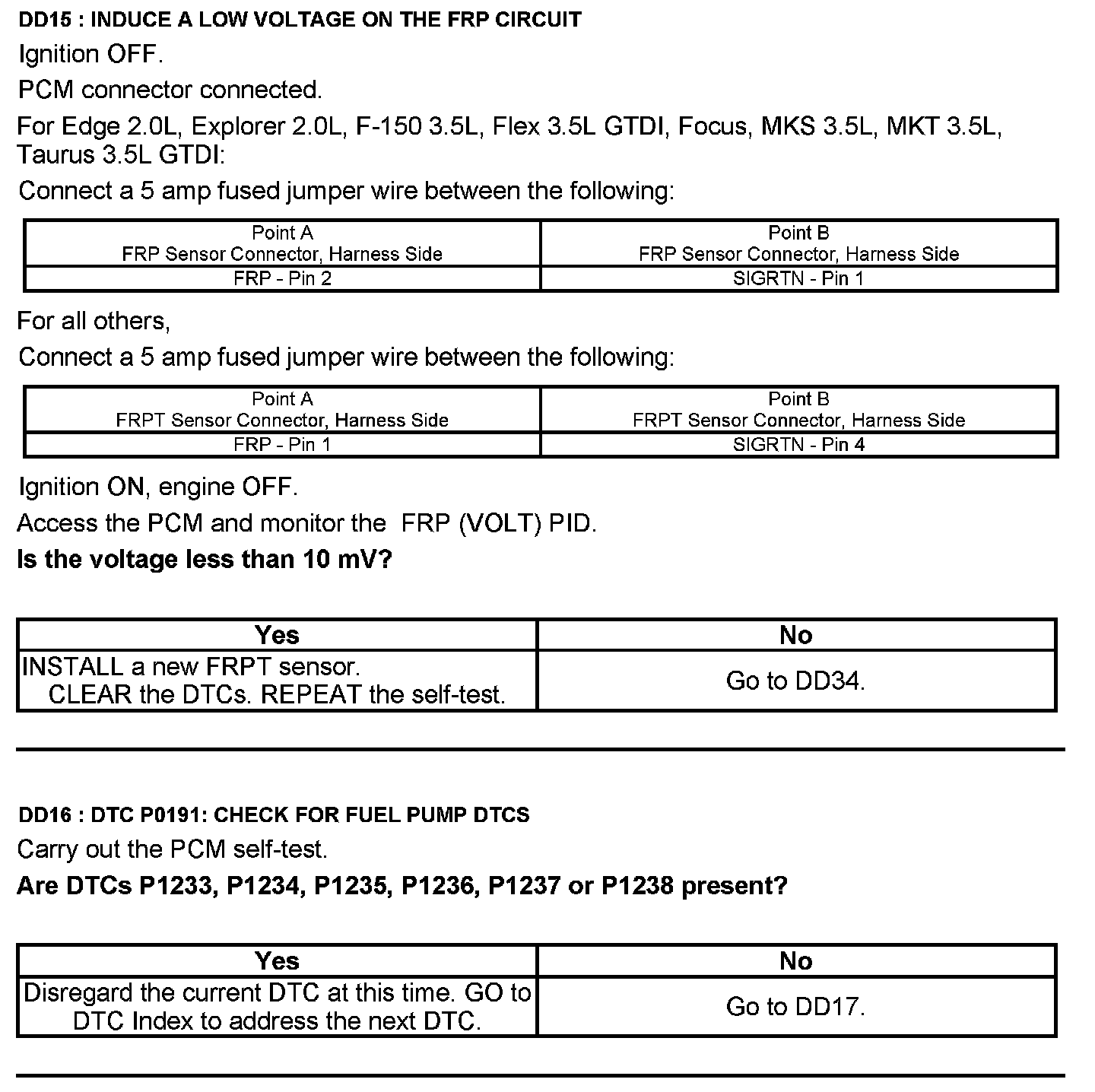

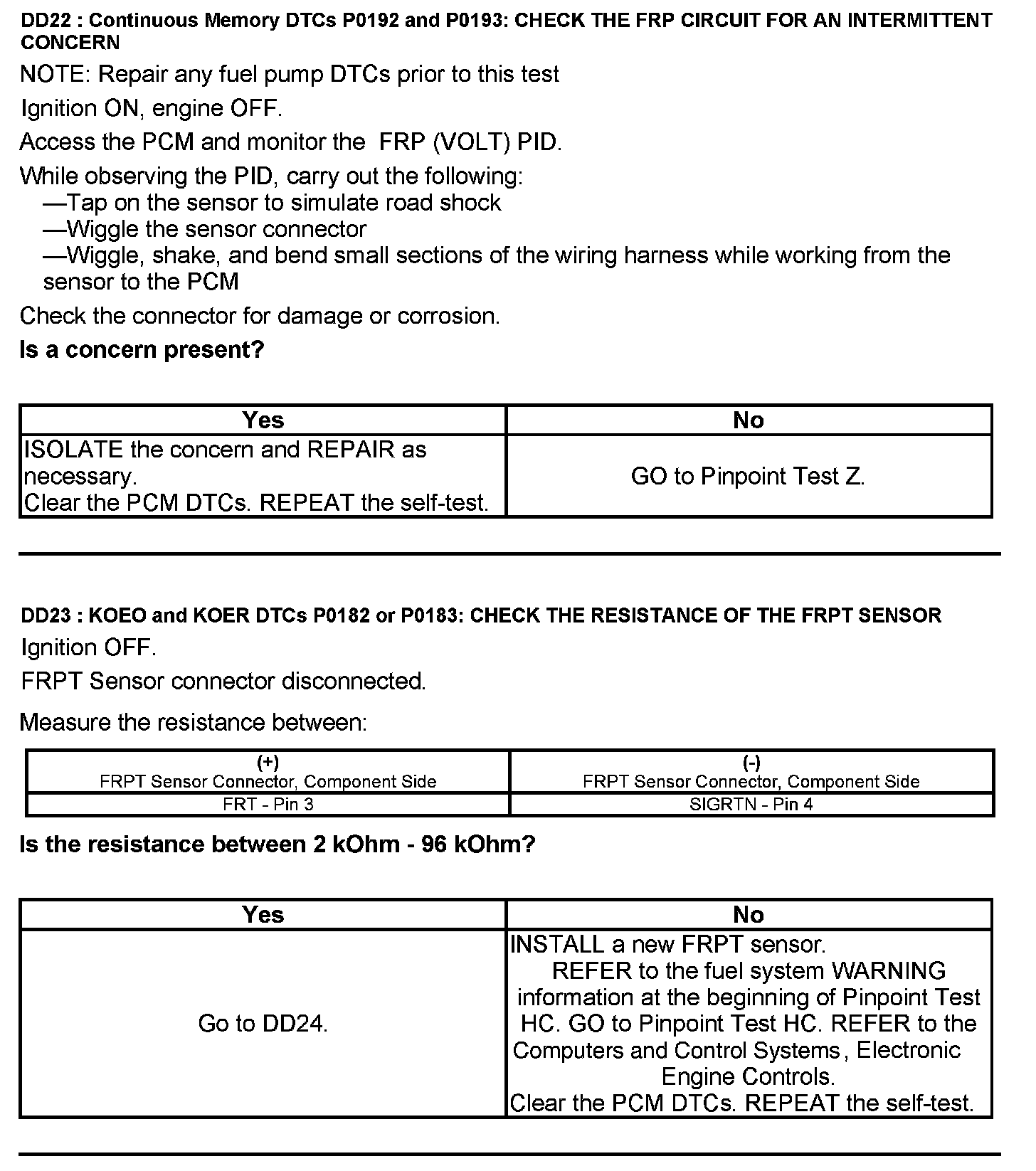

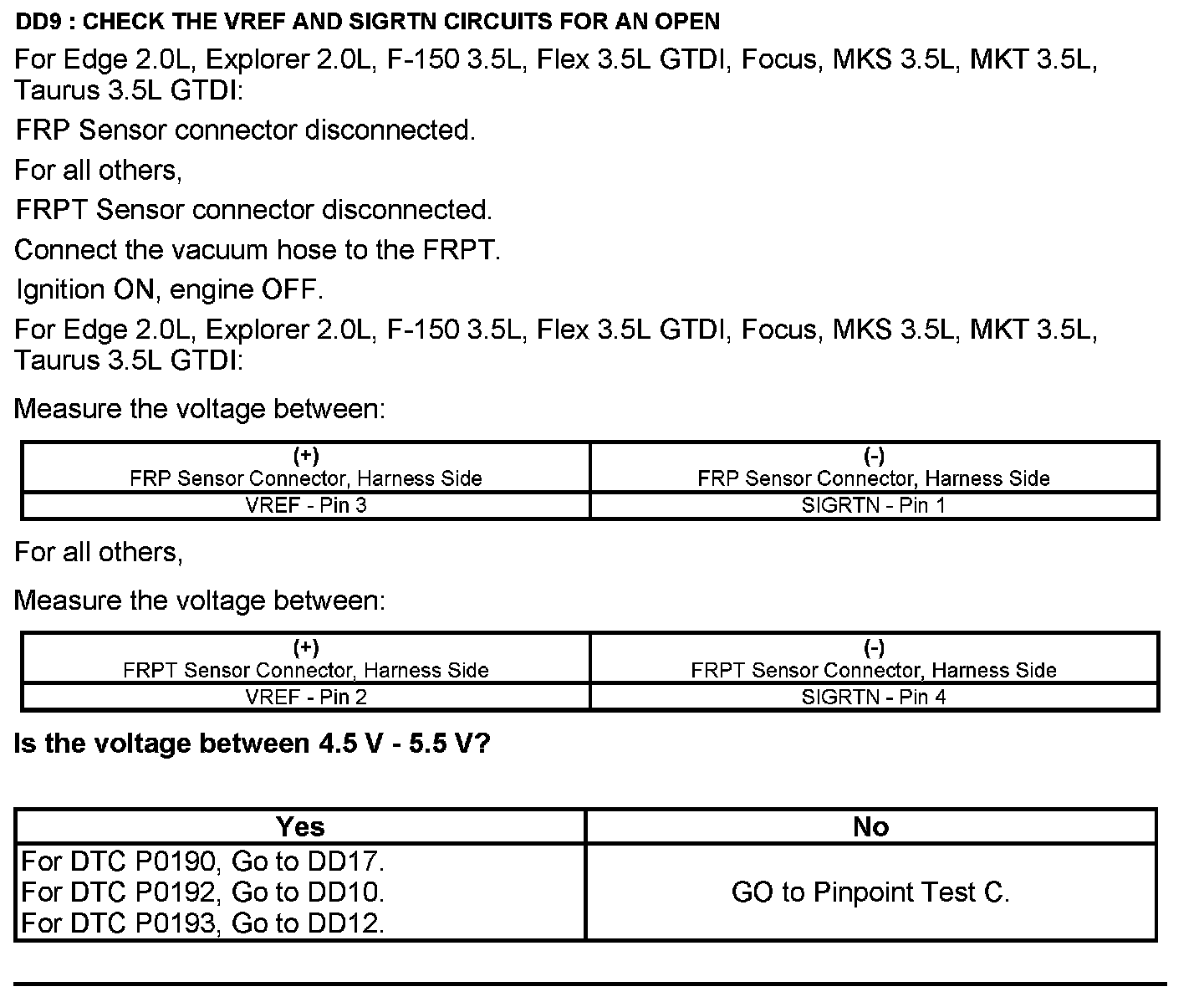

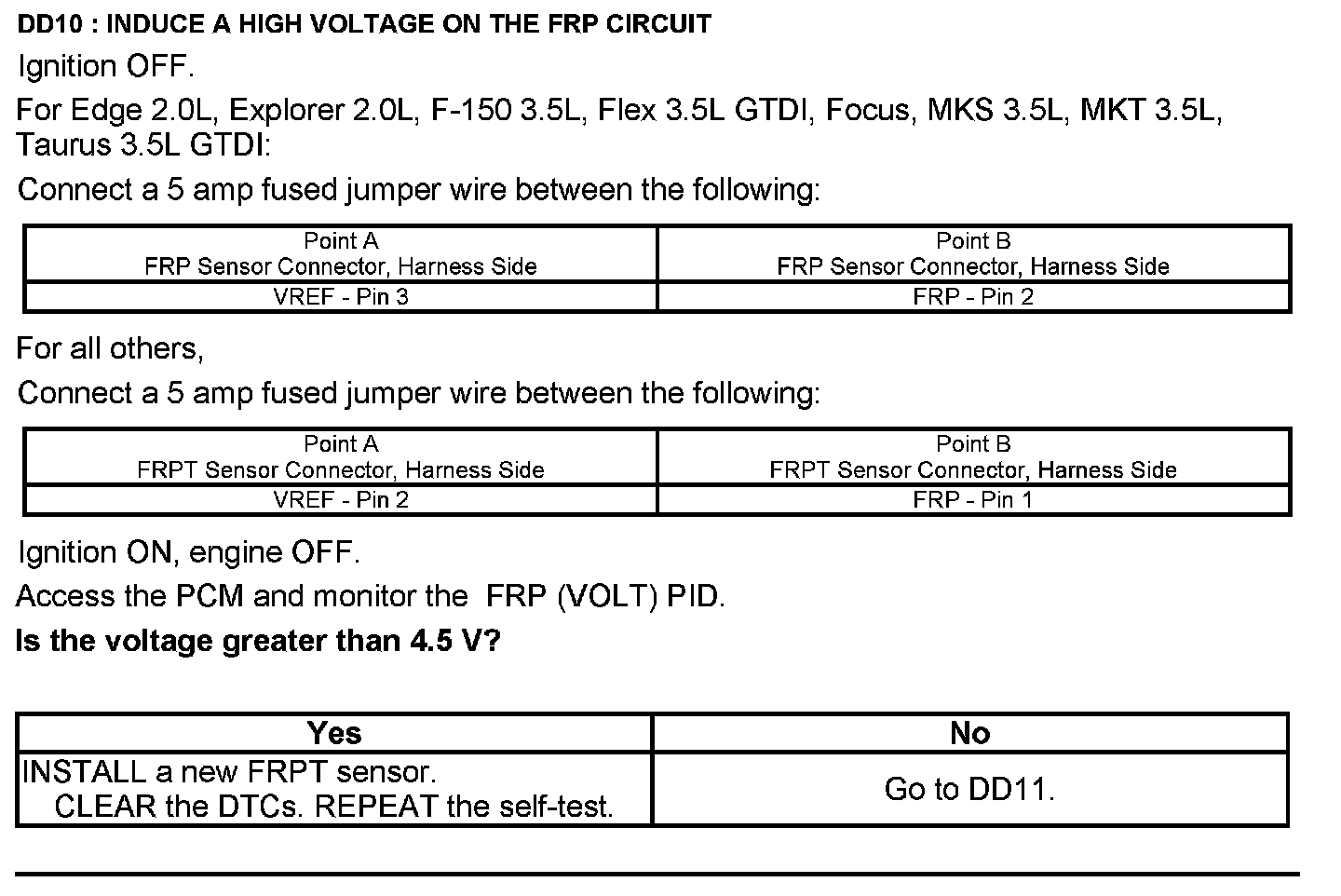

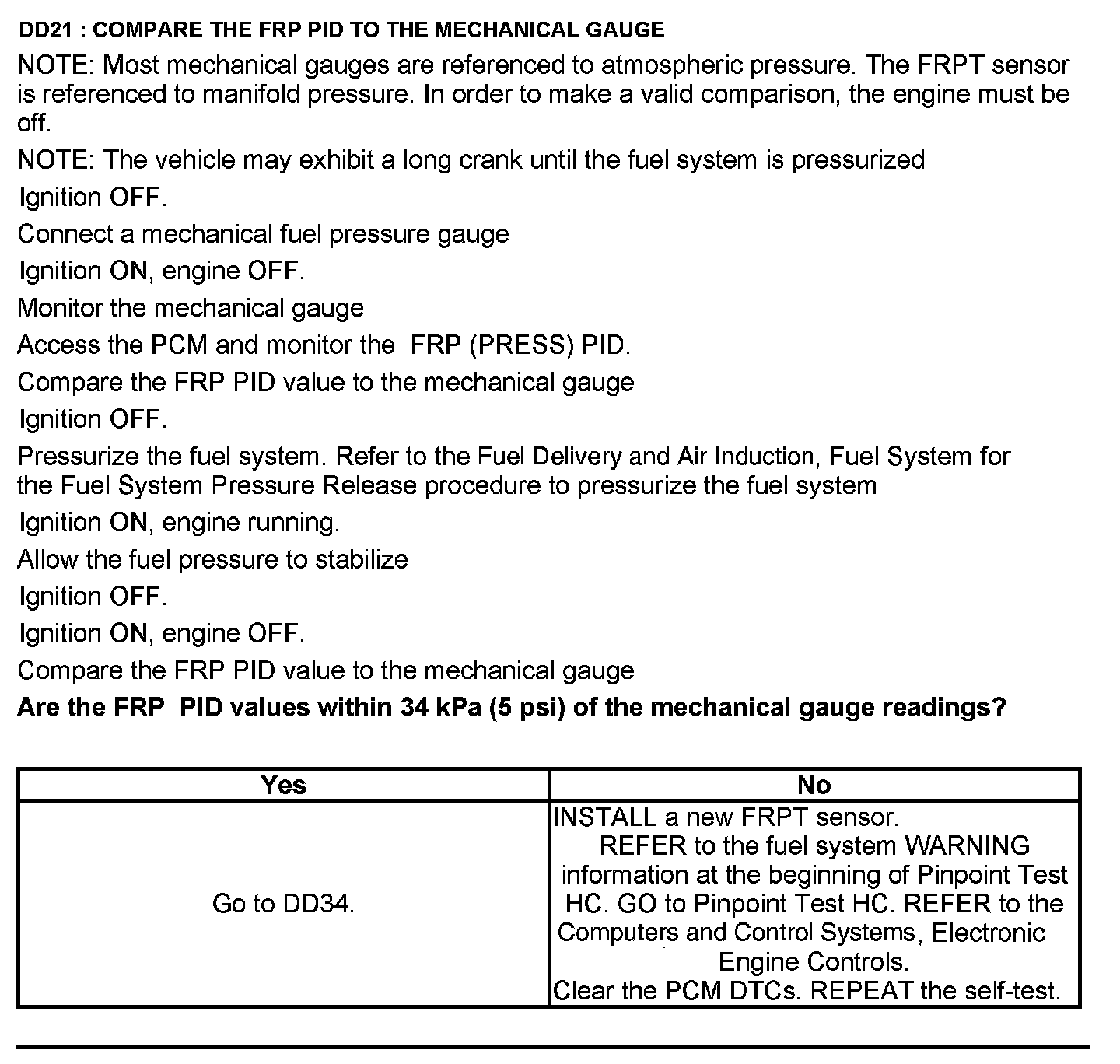

Fuel Rail Pressure (FRP) Sensor Connector





Harness Side

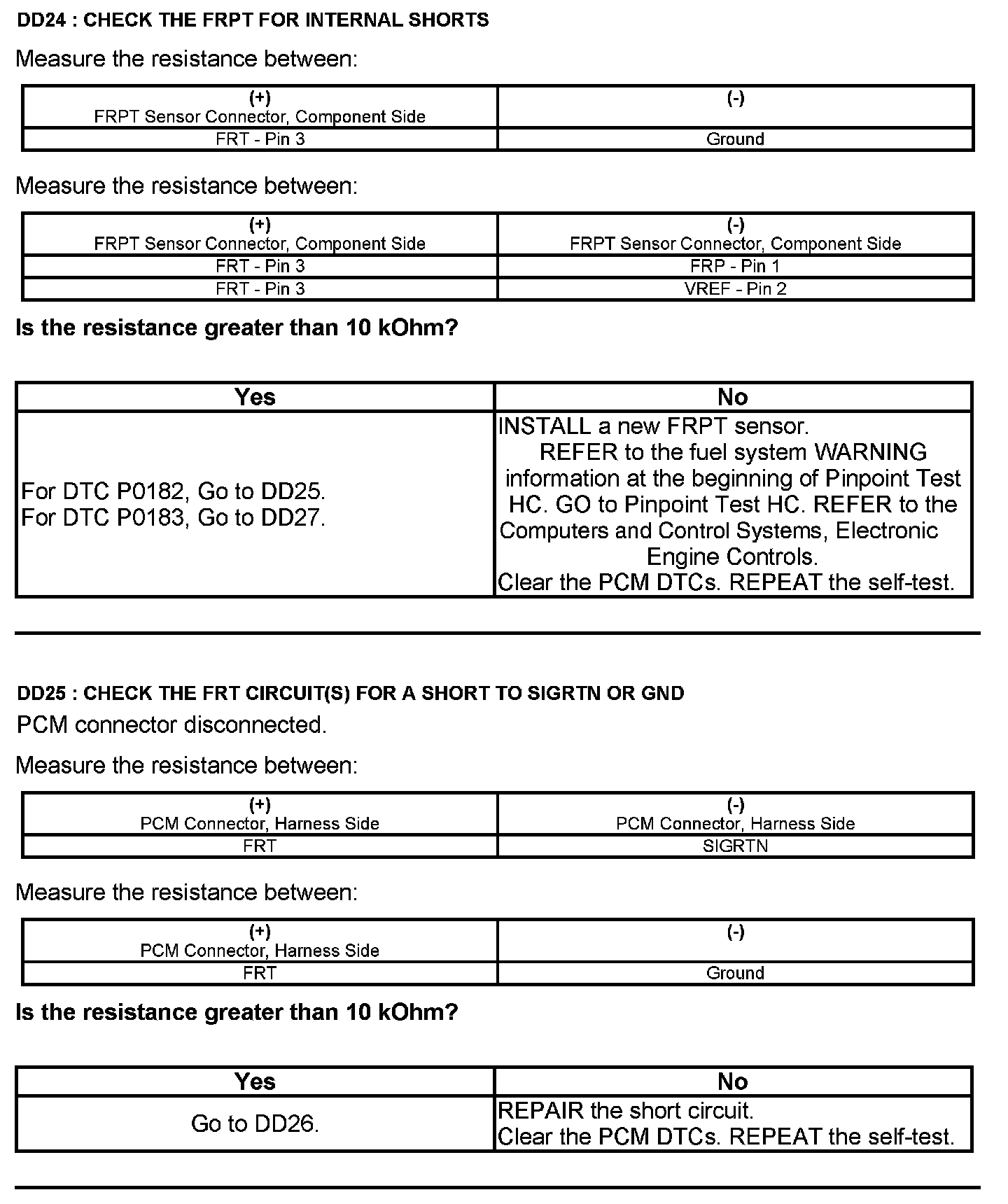

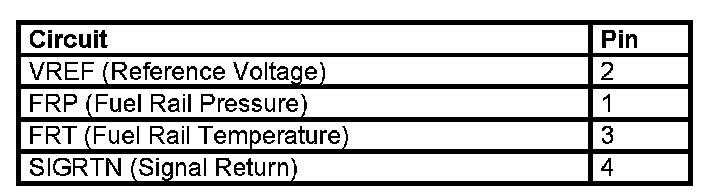

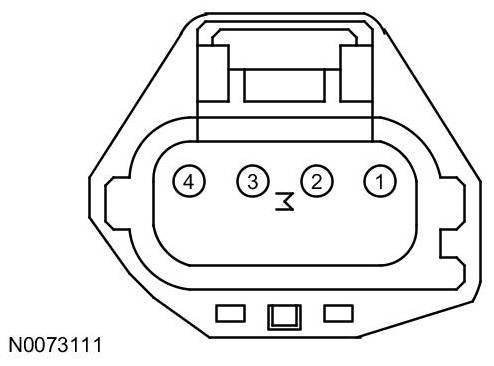

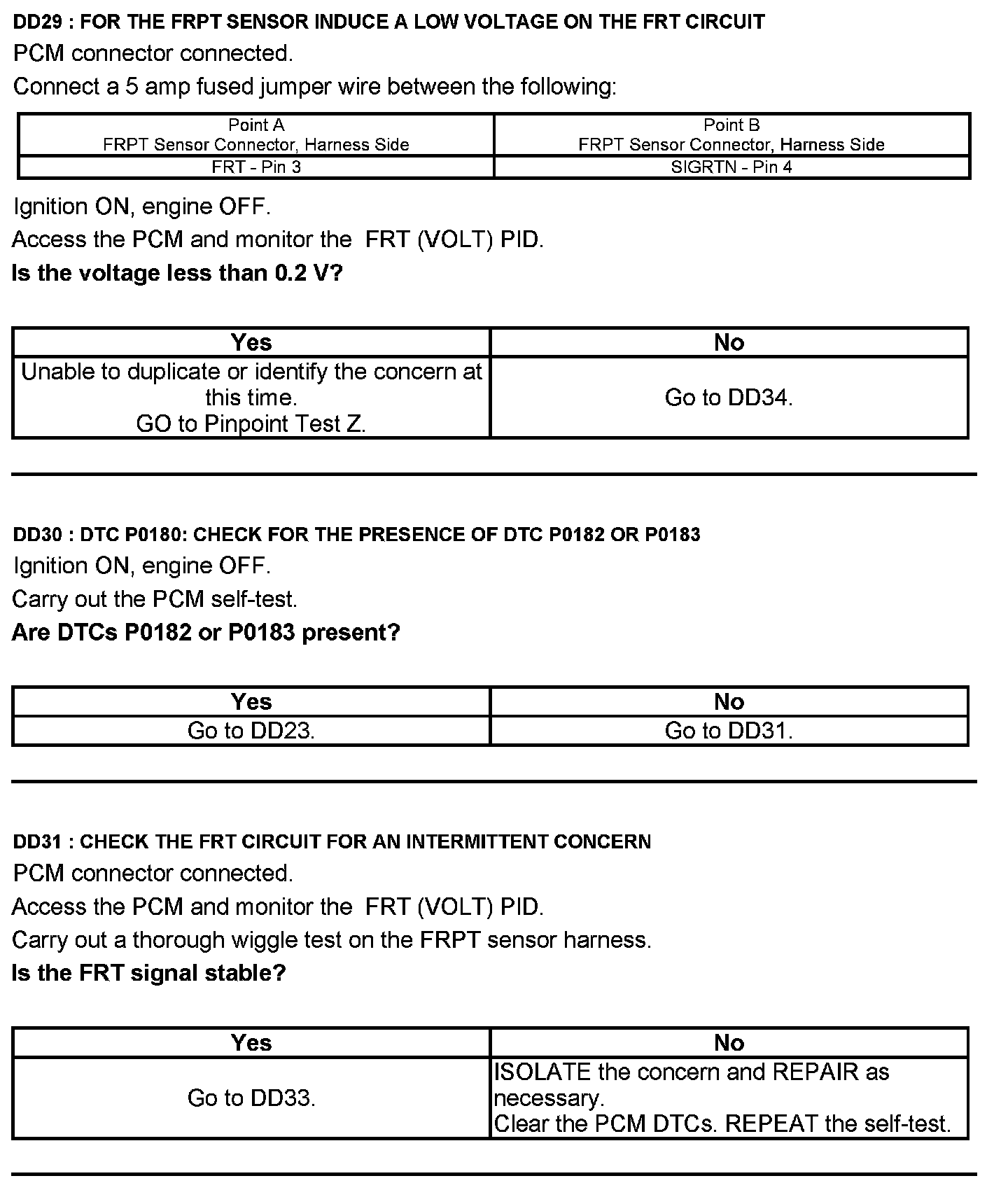

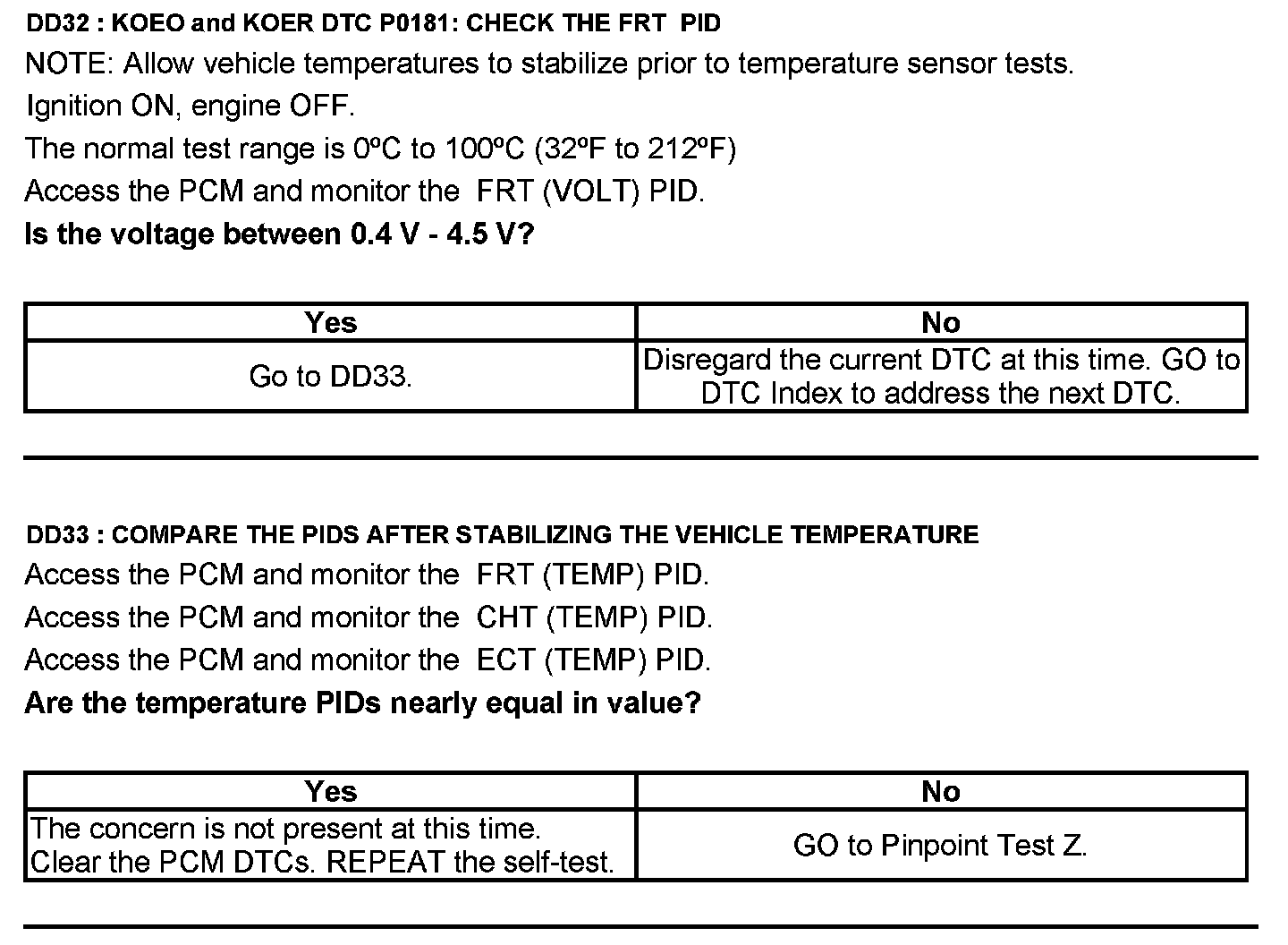

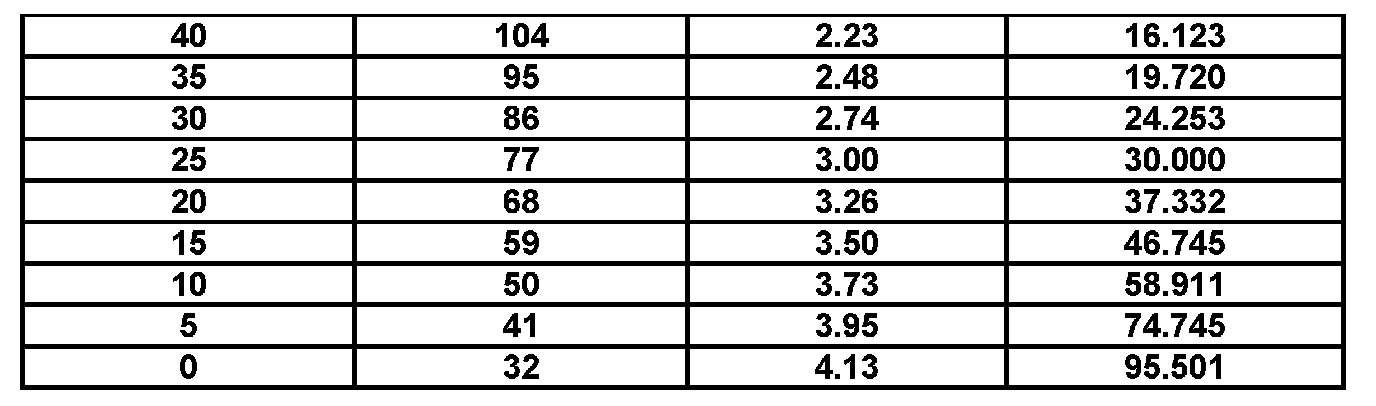

Fuel Rail Pressure Temperature (FRPT) Sensor Connector





Harness Side

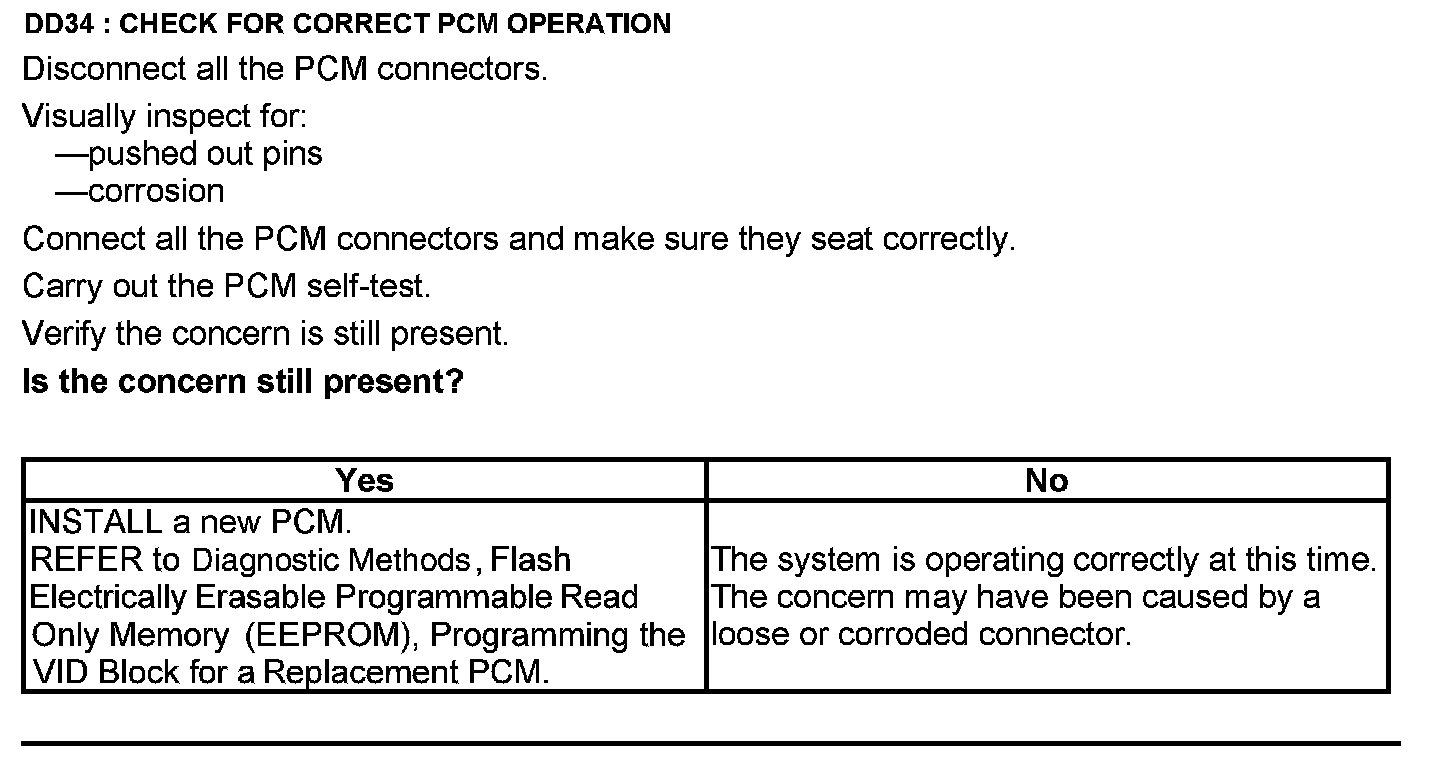

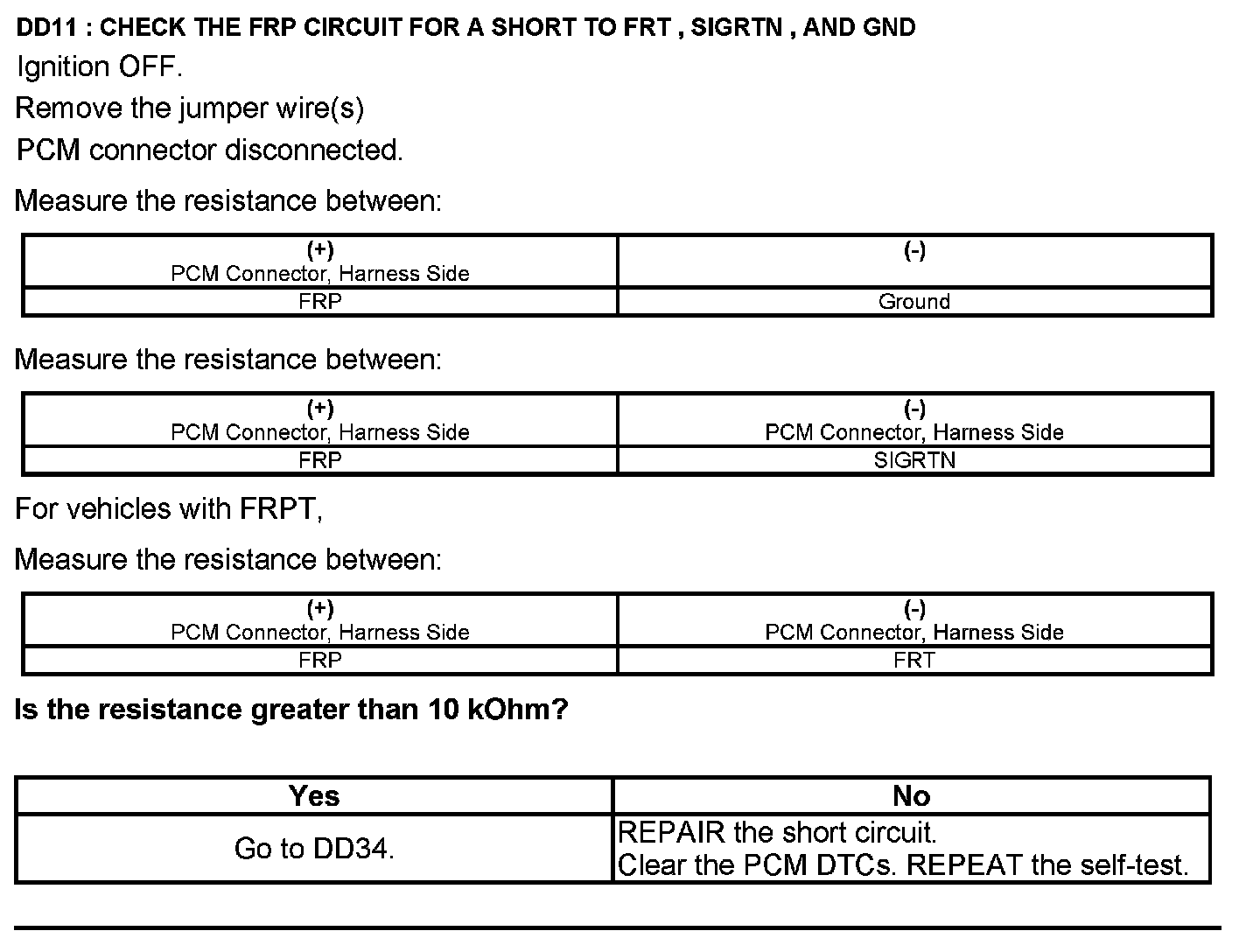

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
