All Others

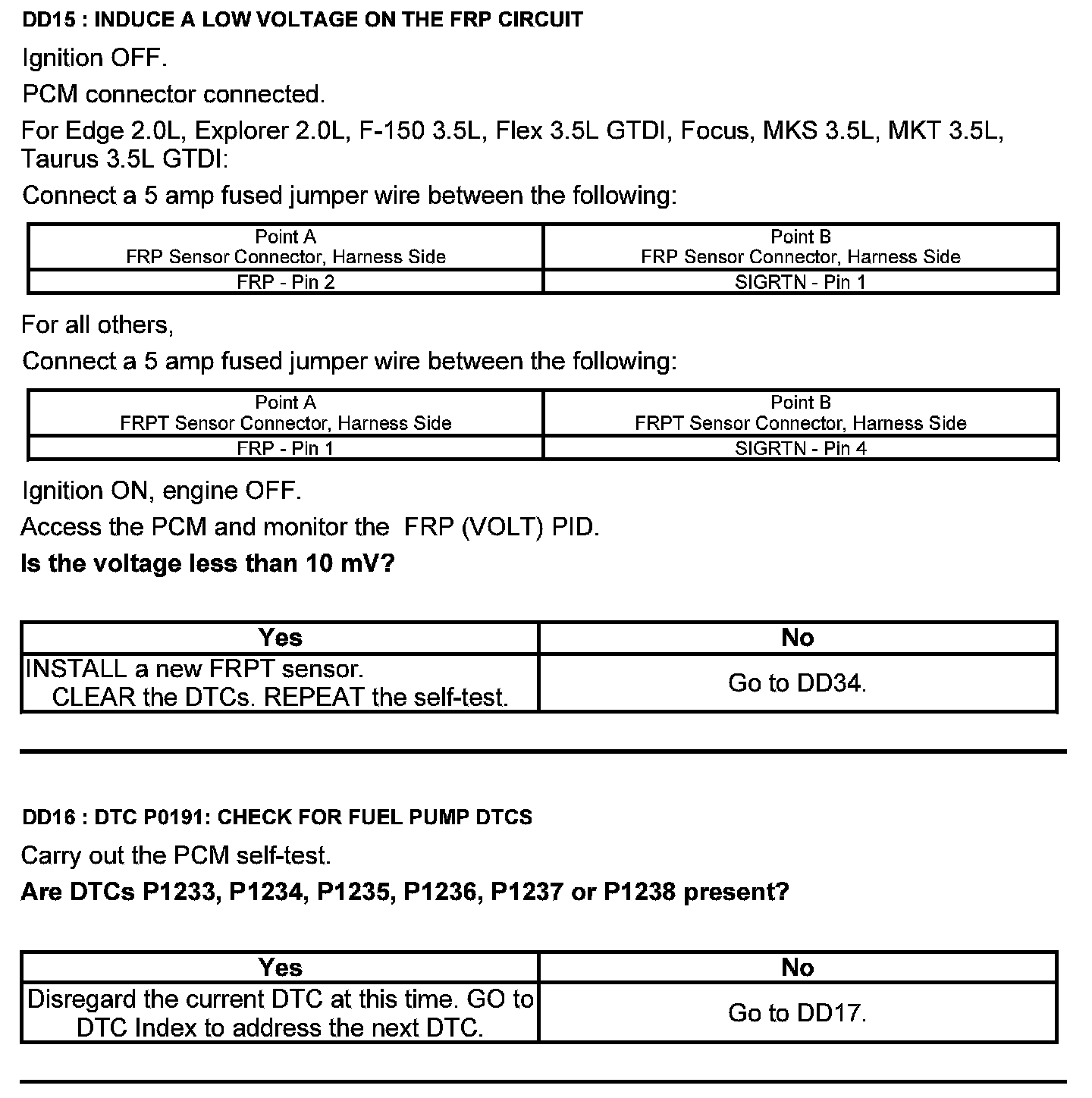

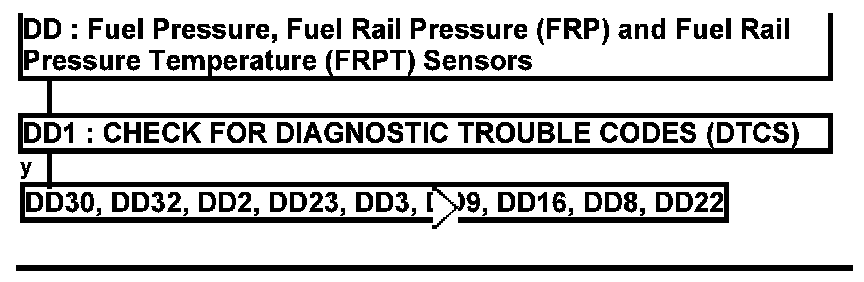

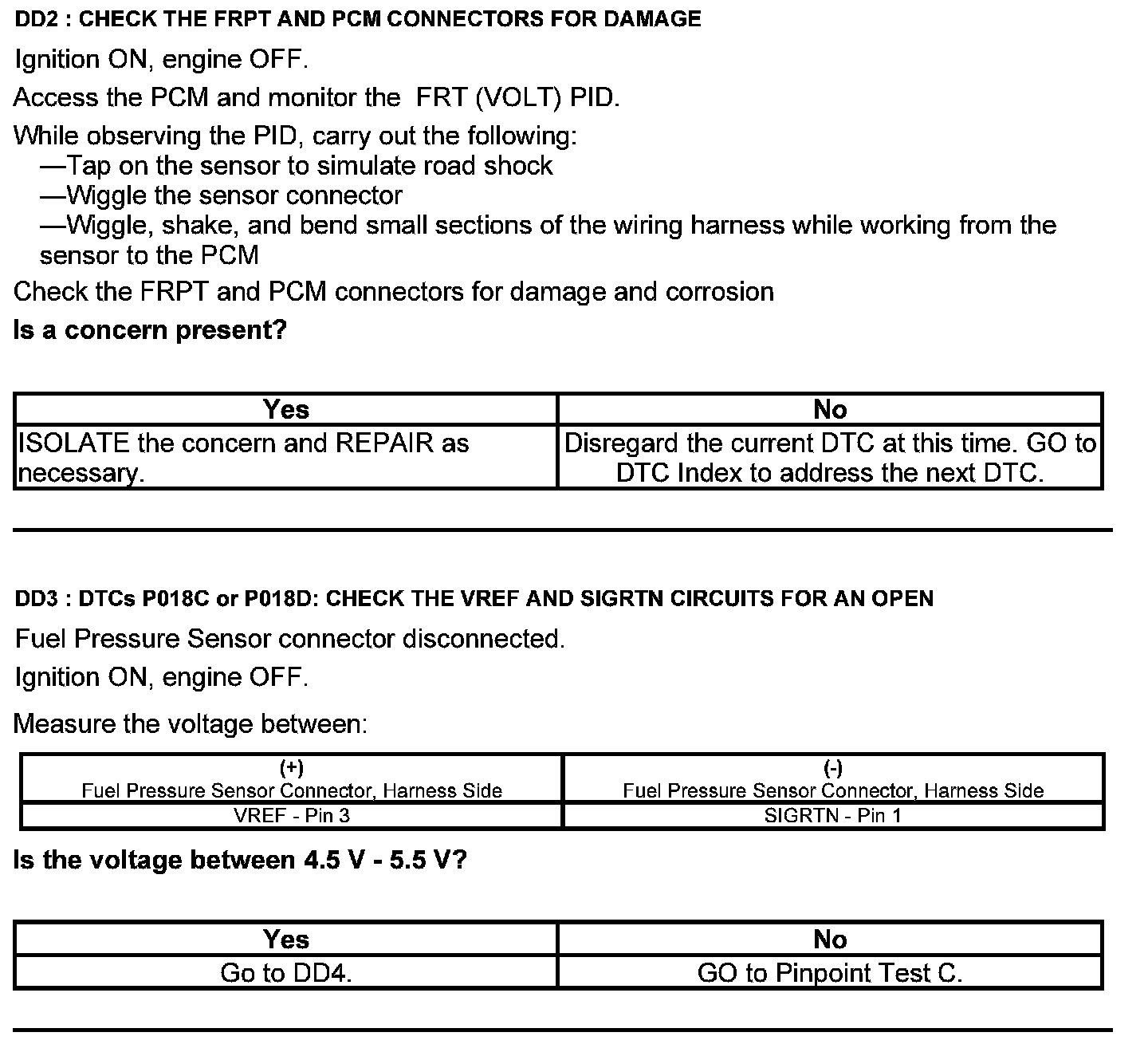

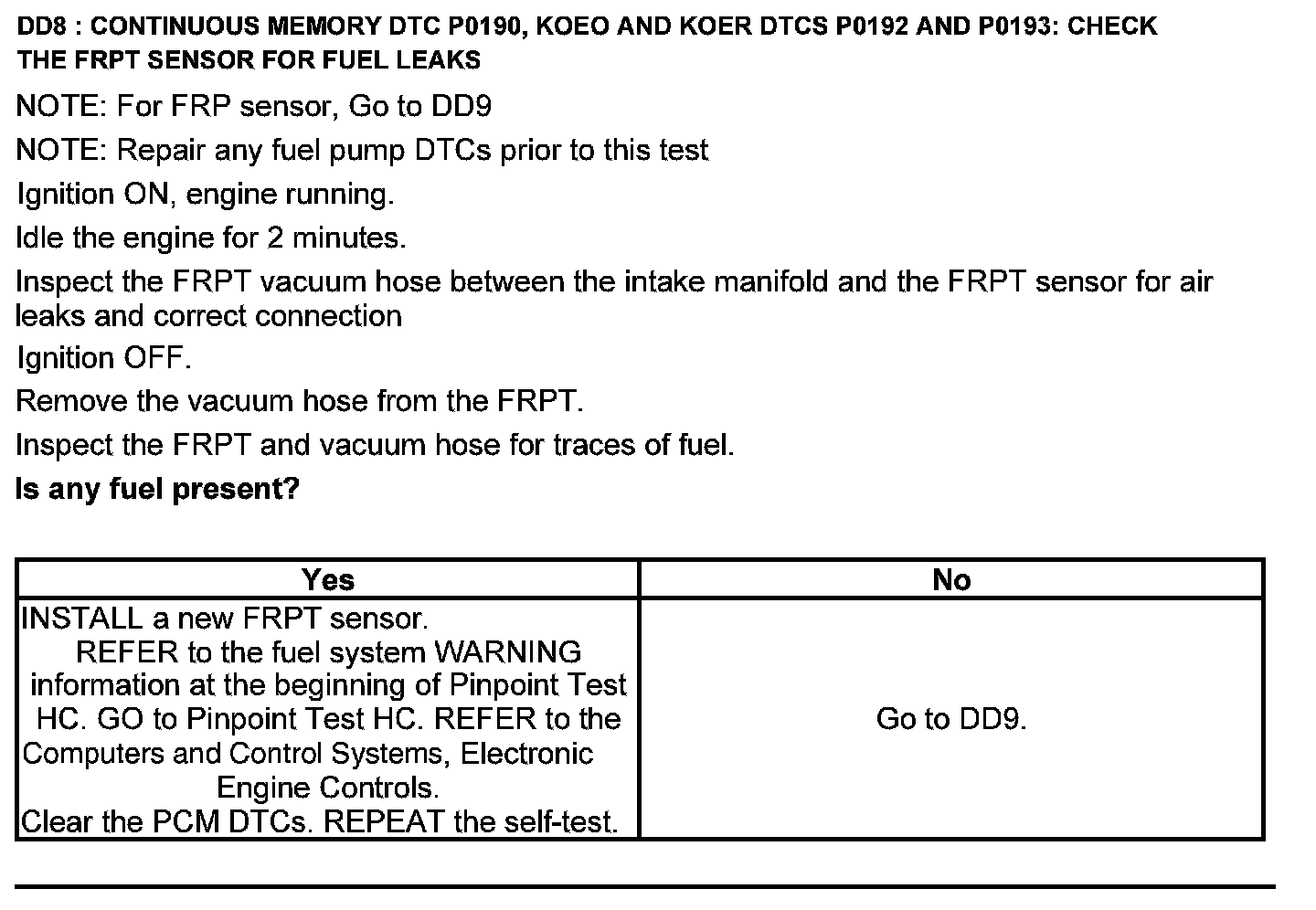

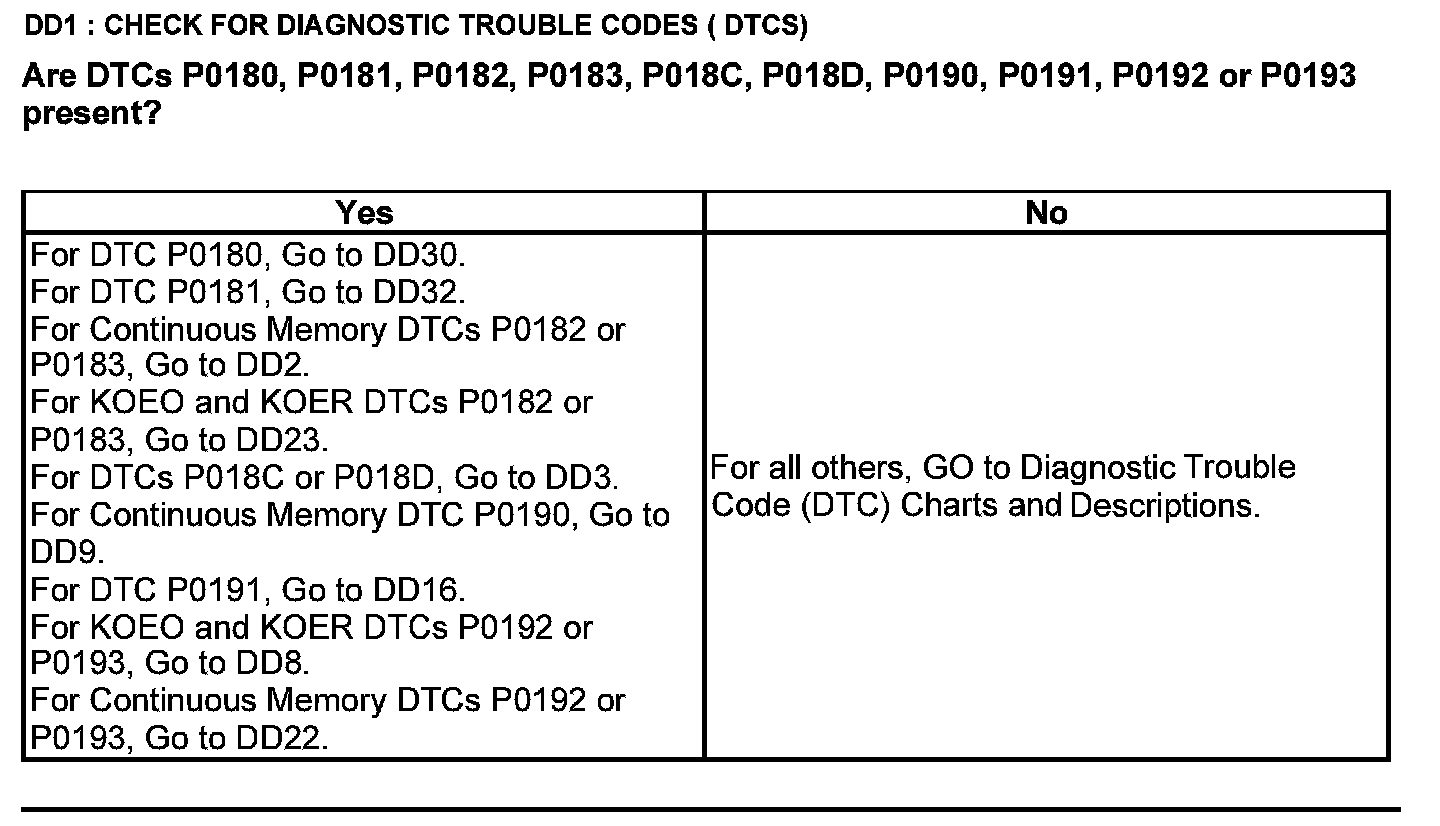

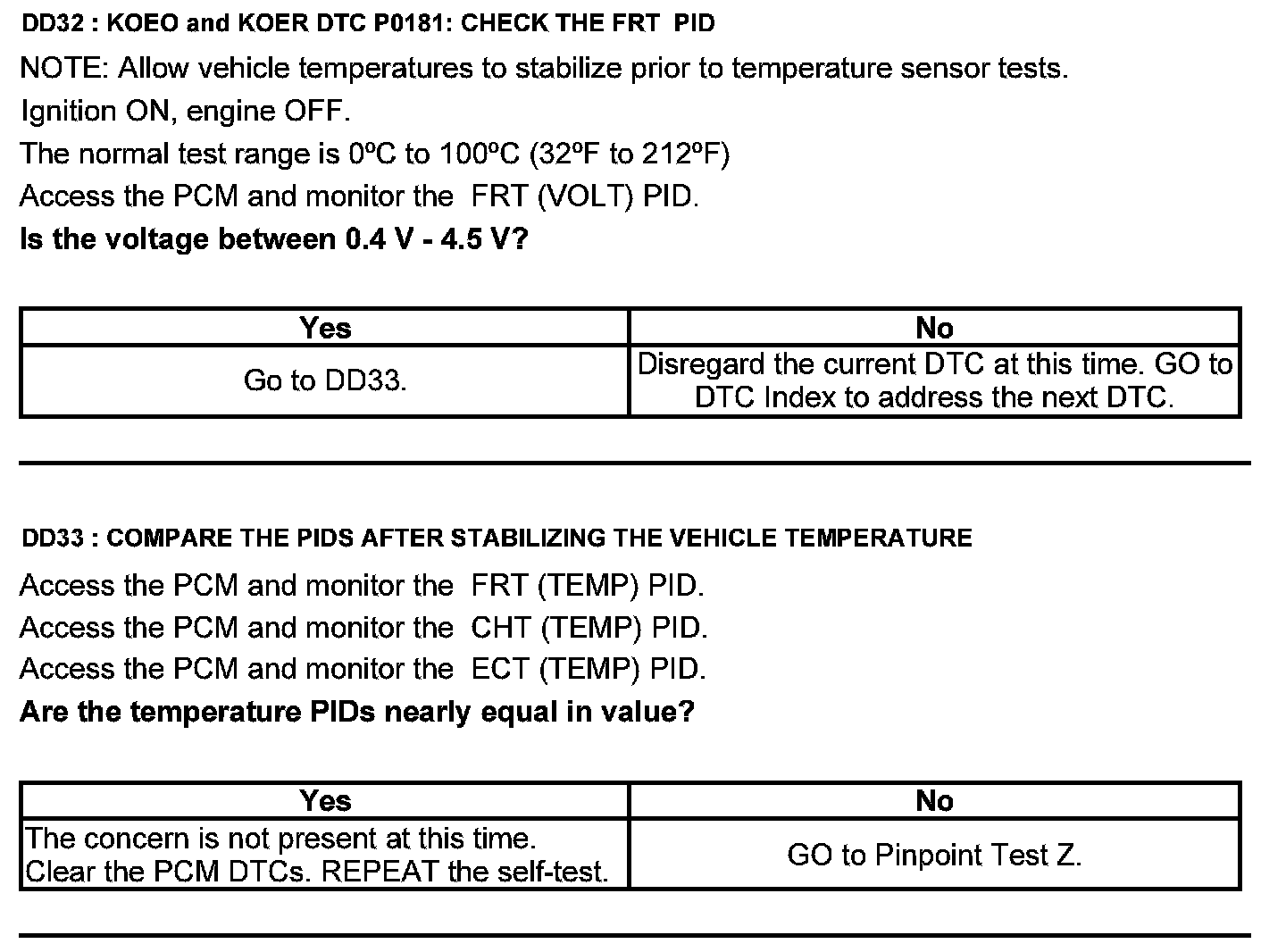

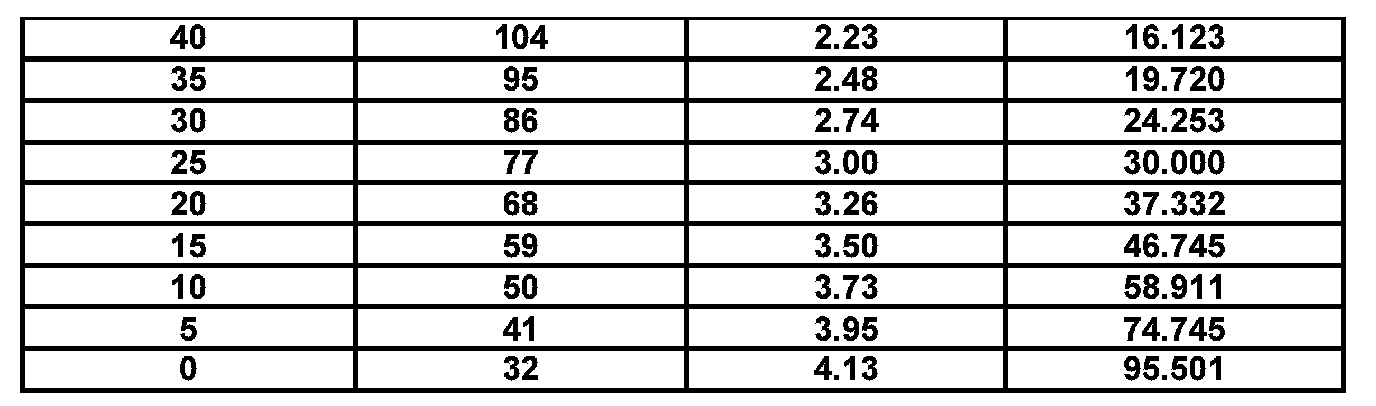

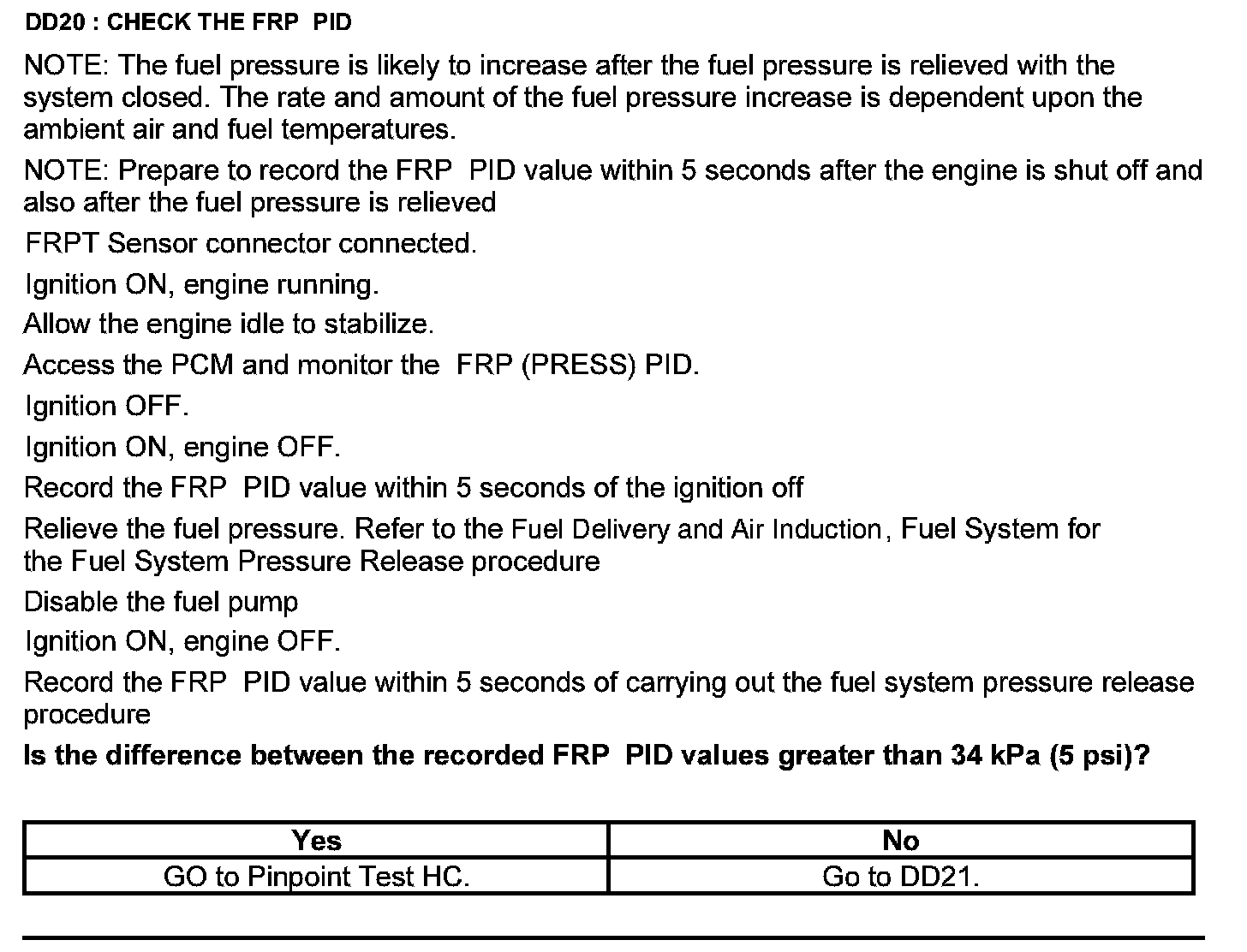

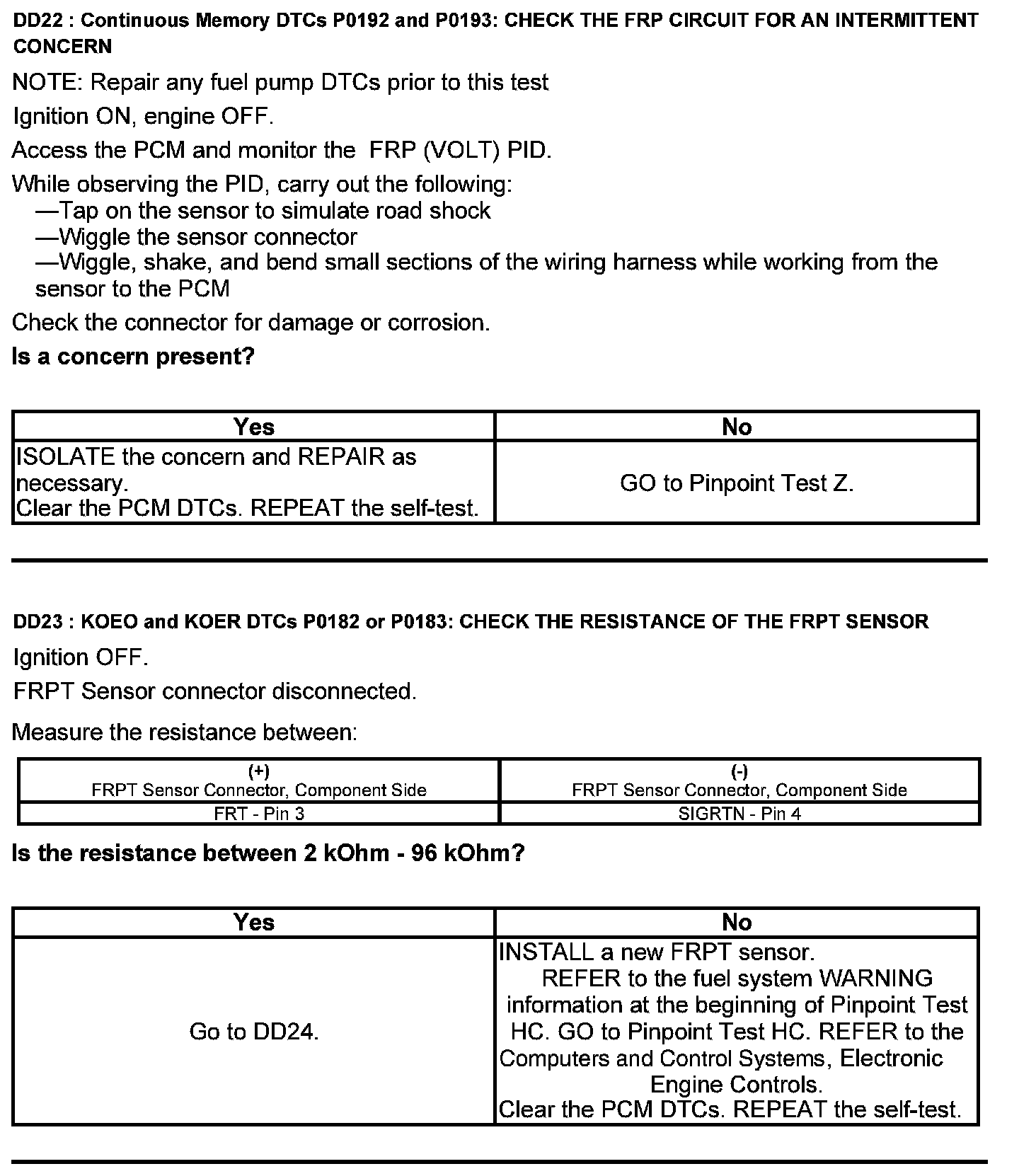

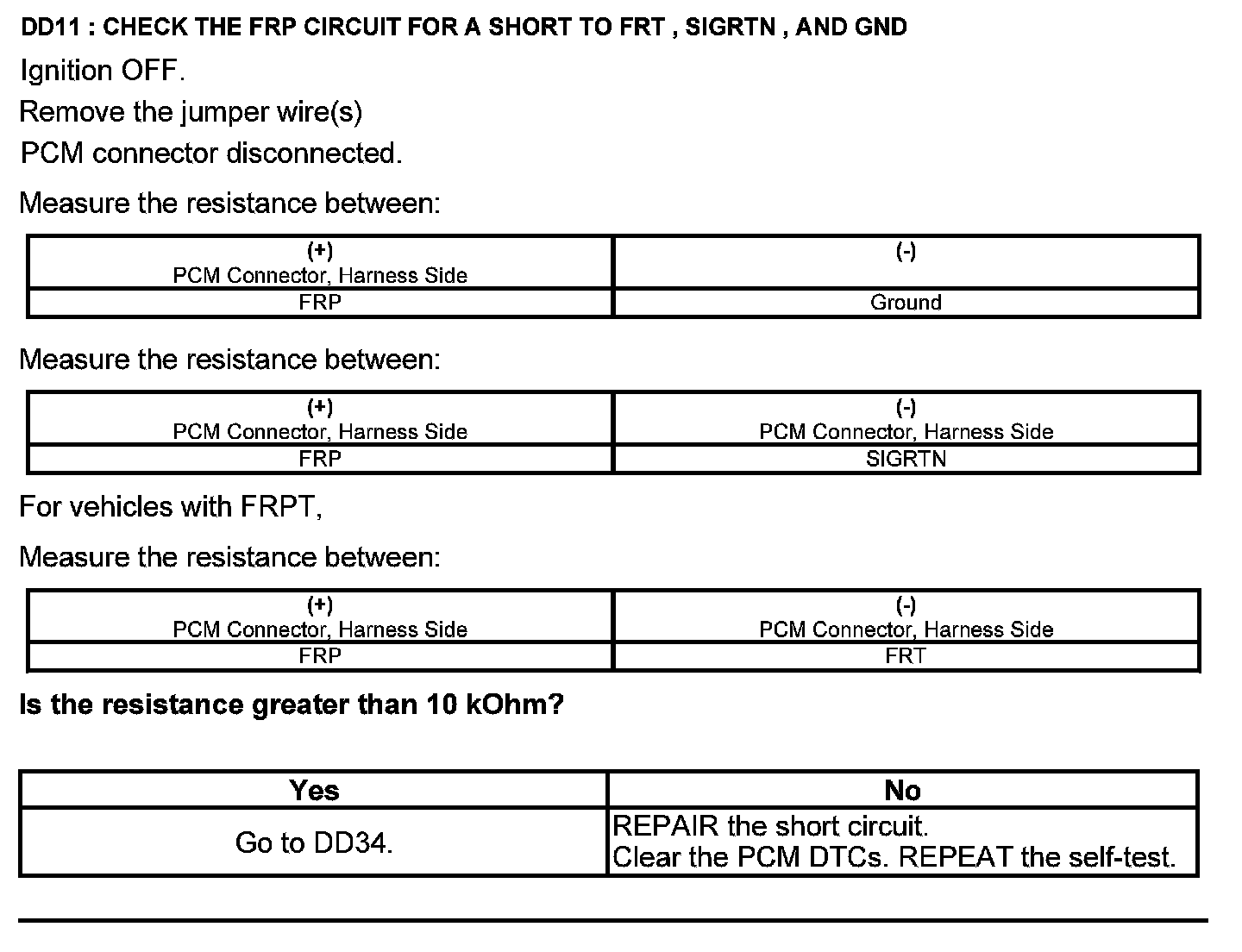

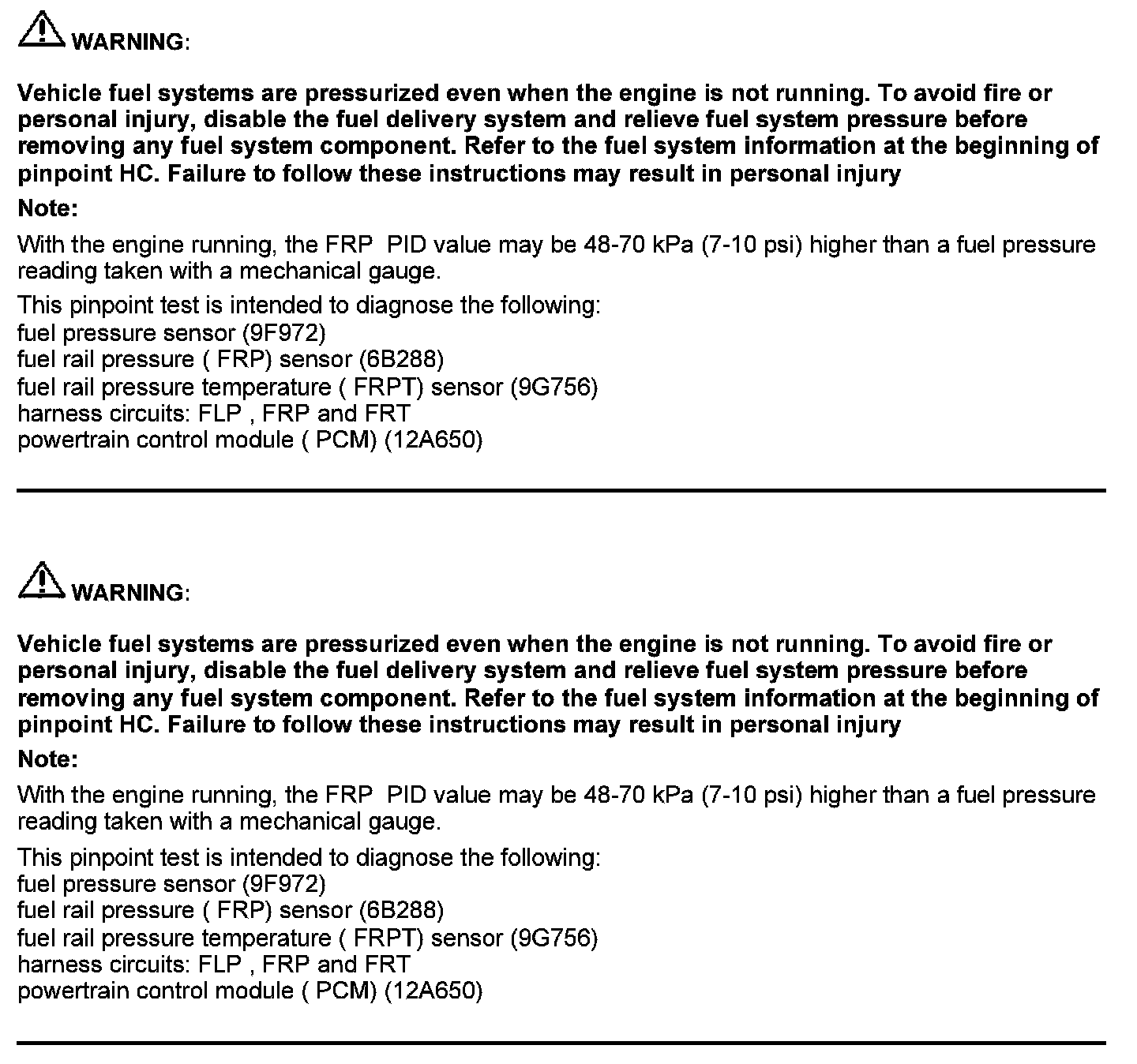

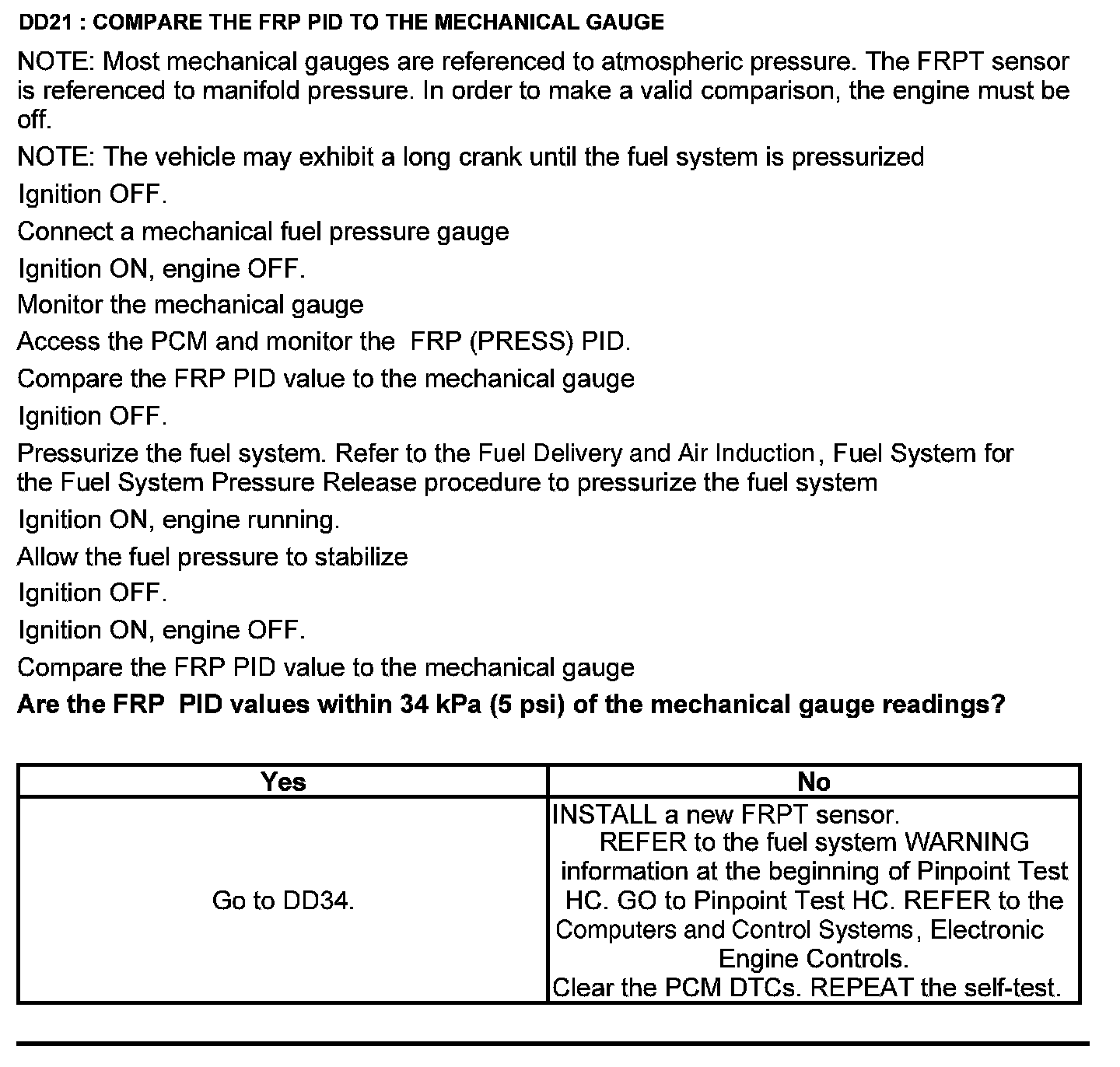

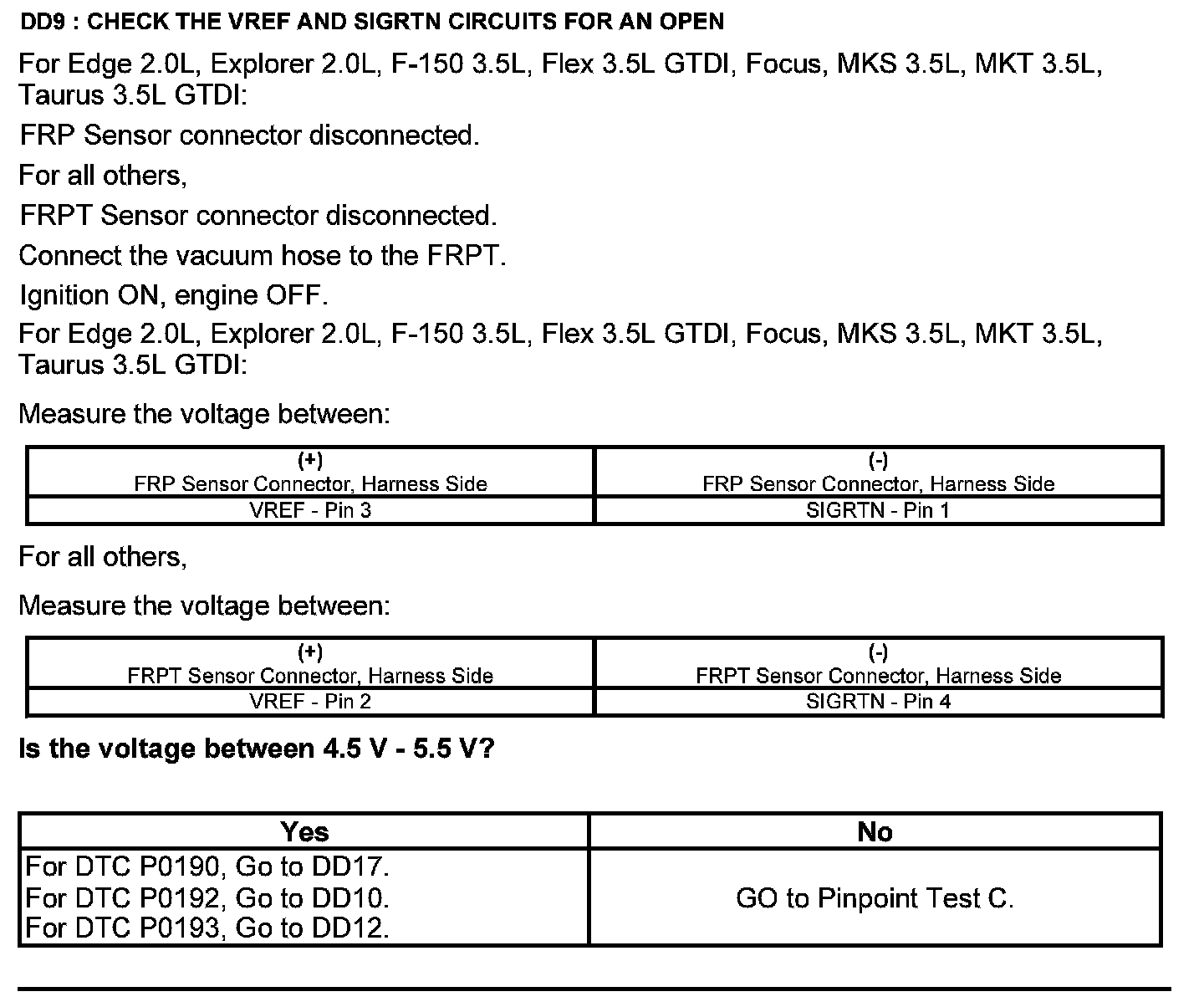

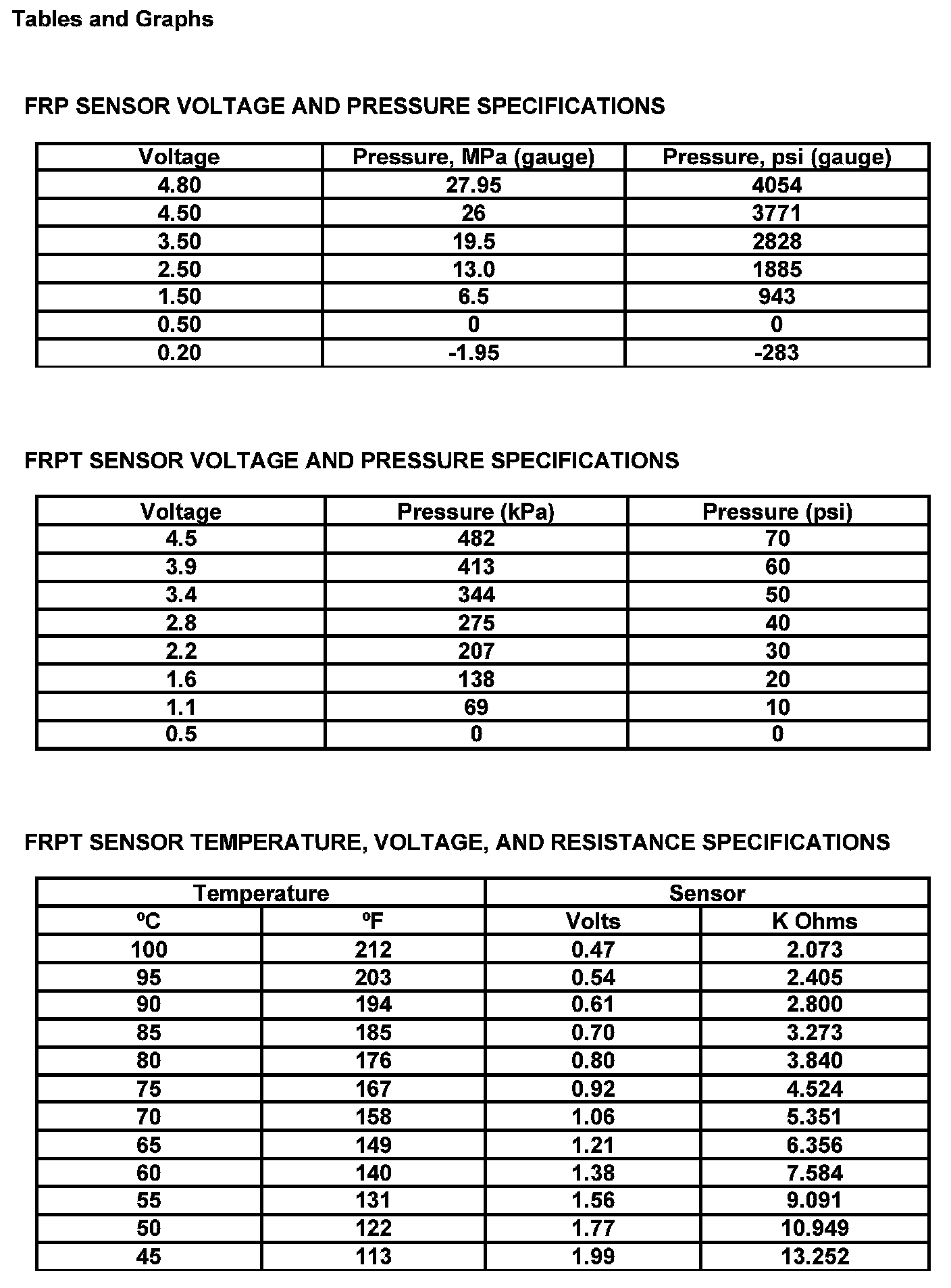

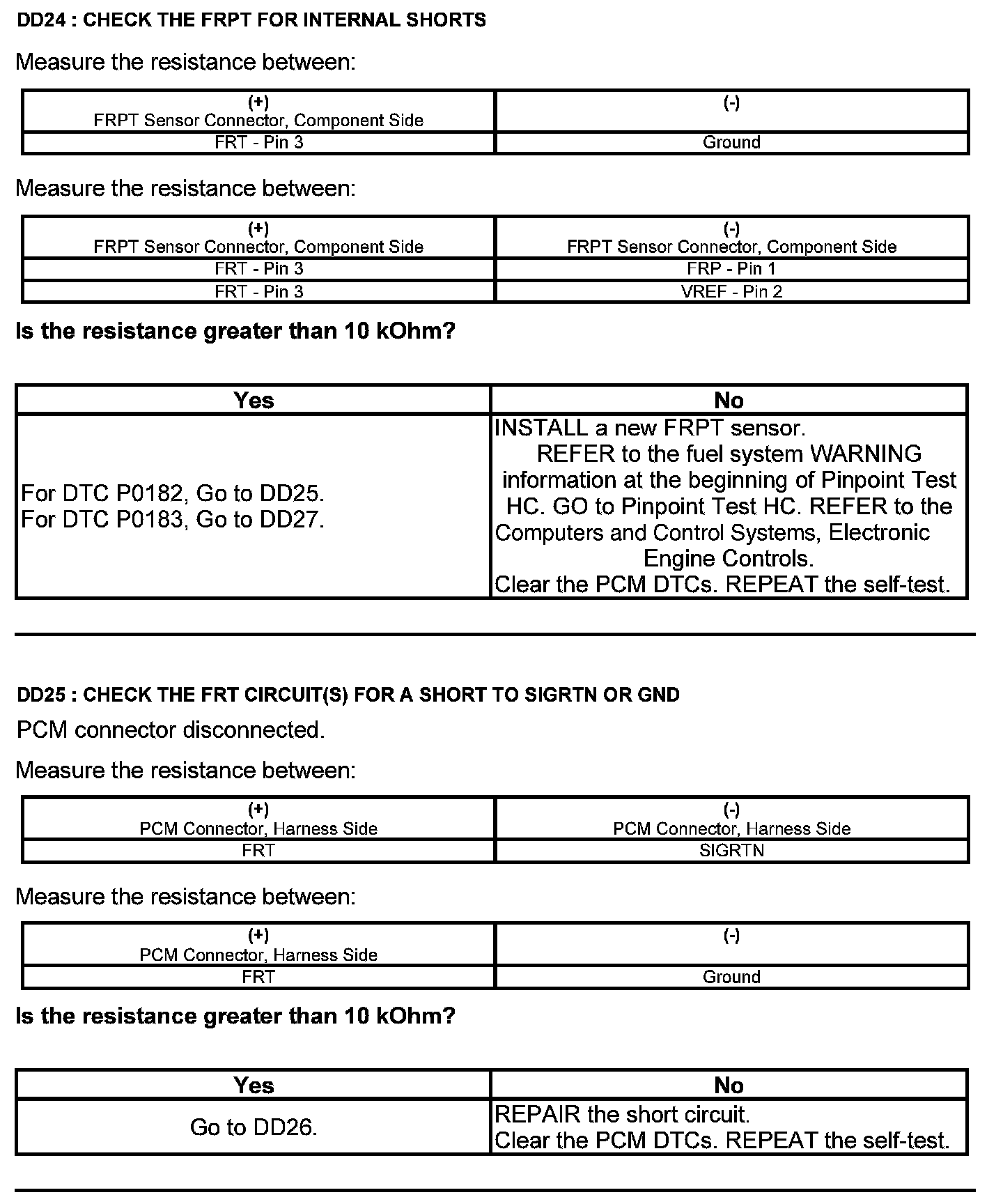

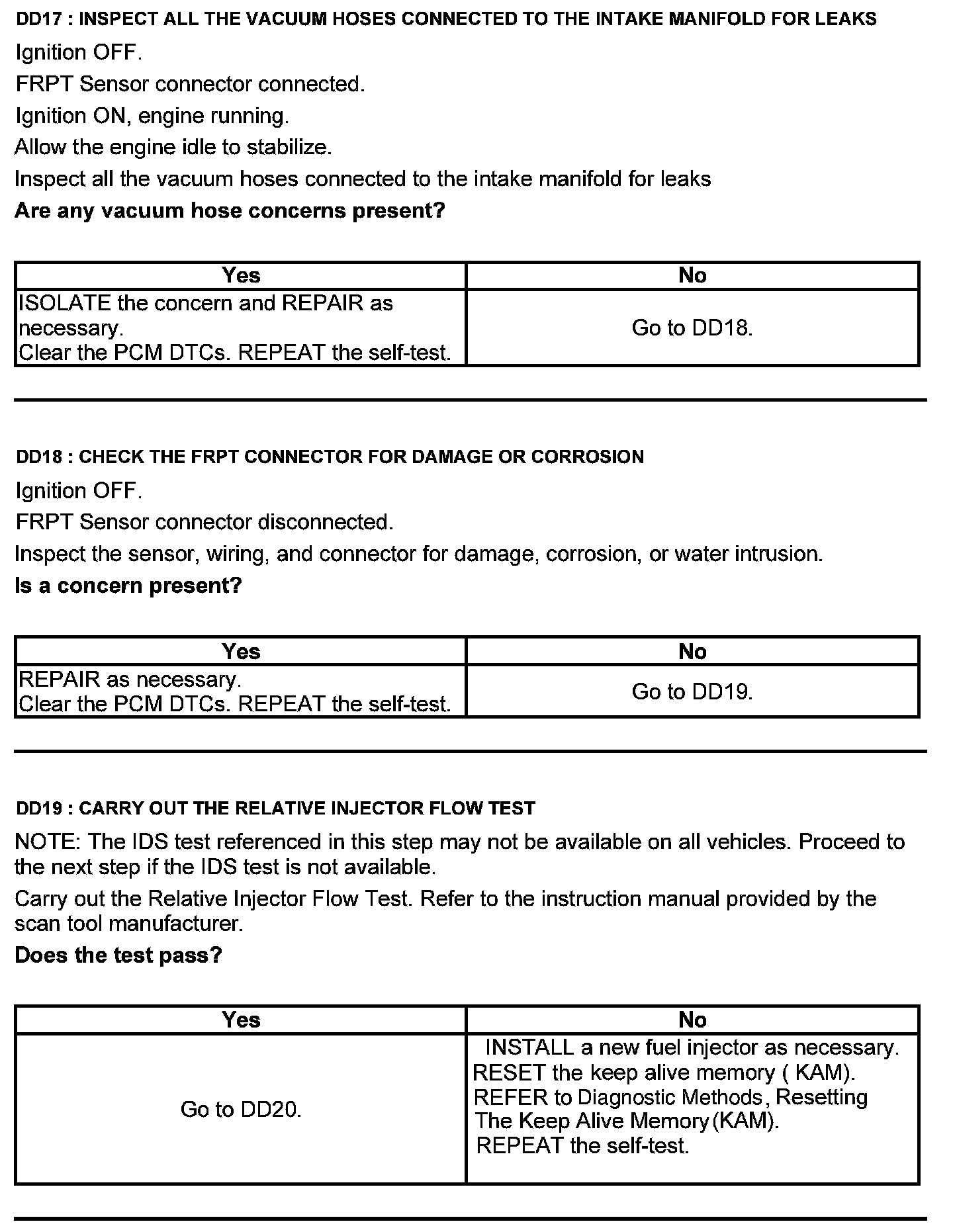

Fuel Pressure, Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors - All Others.

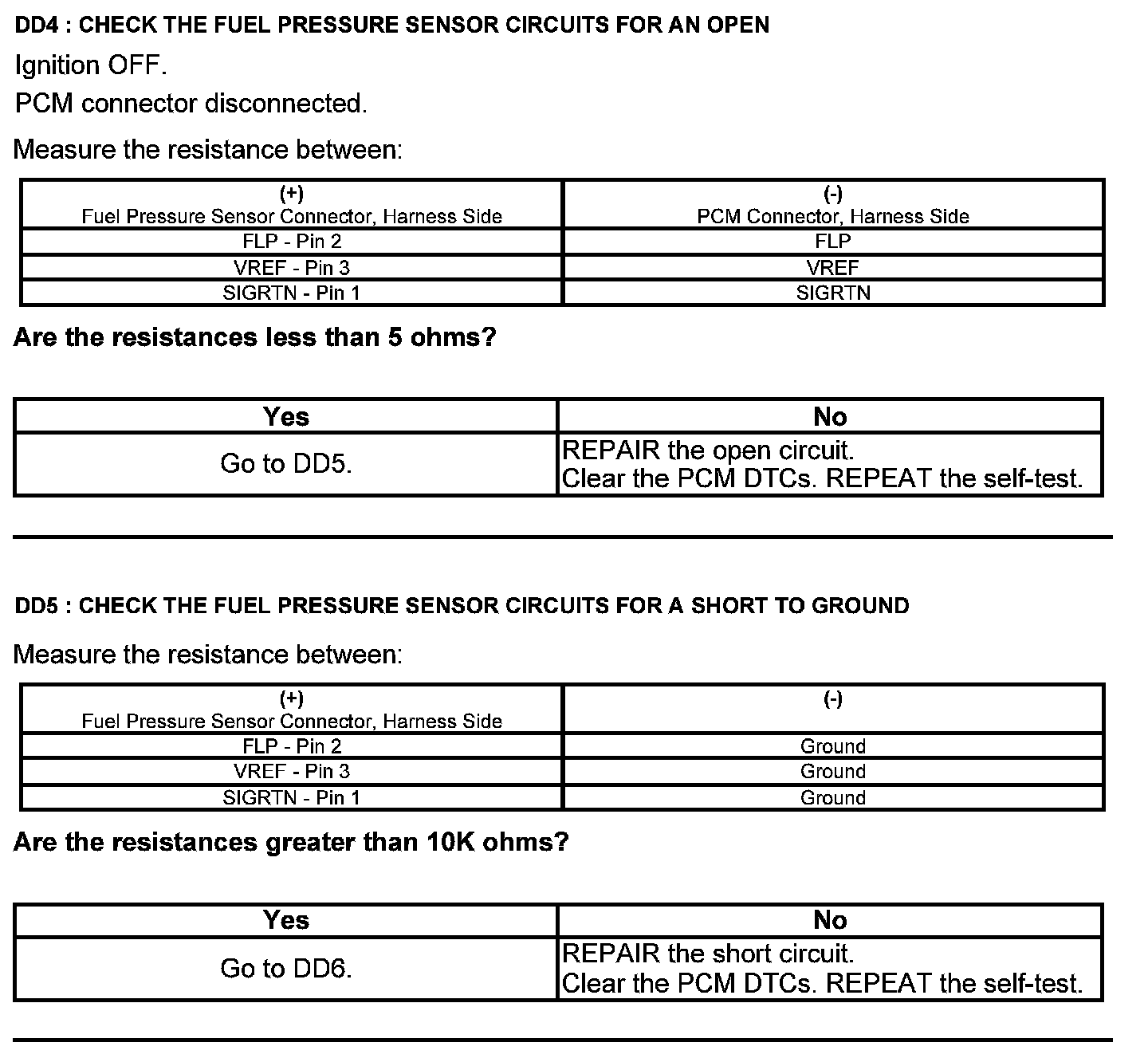

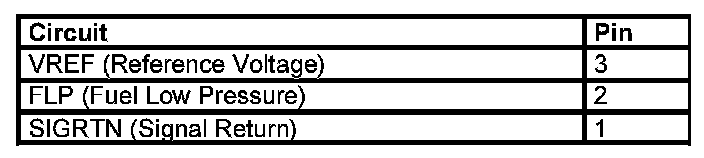

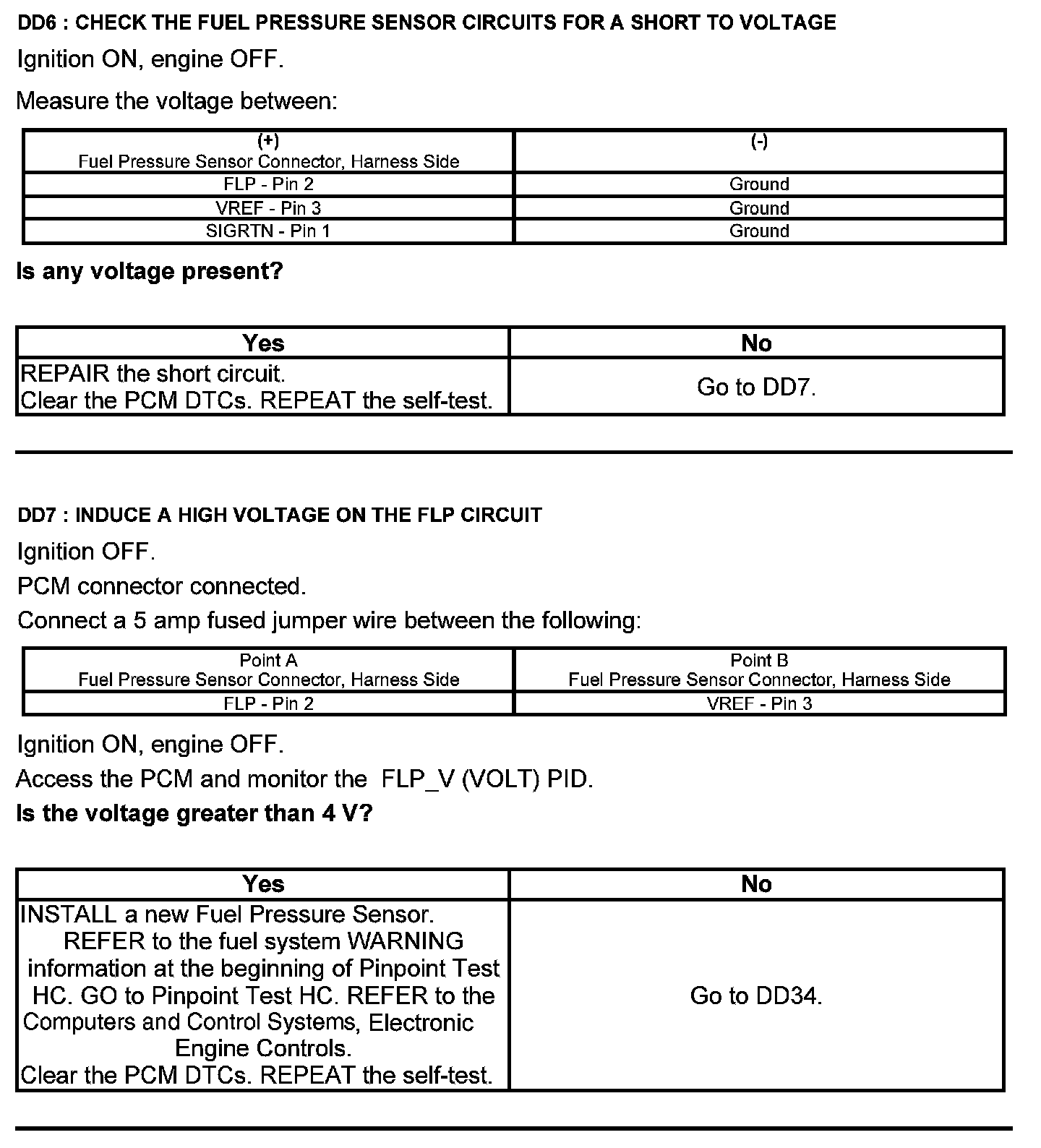

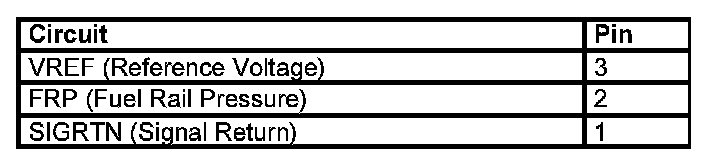

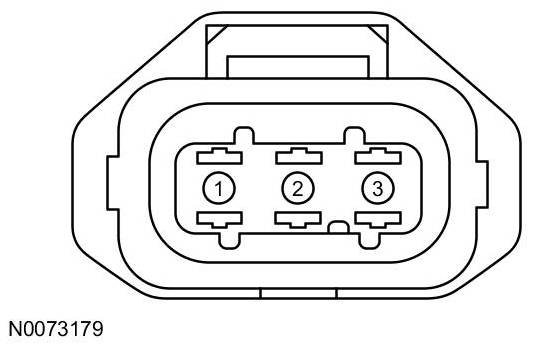

Fuel Pressure Sensor Connector





Harness Side

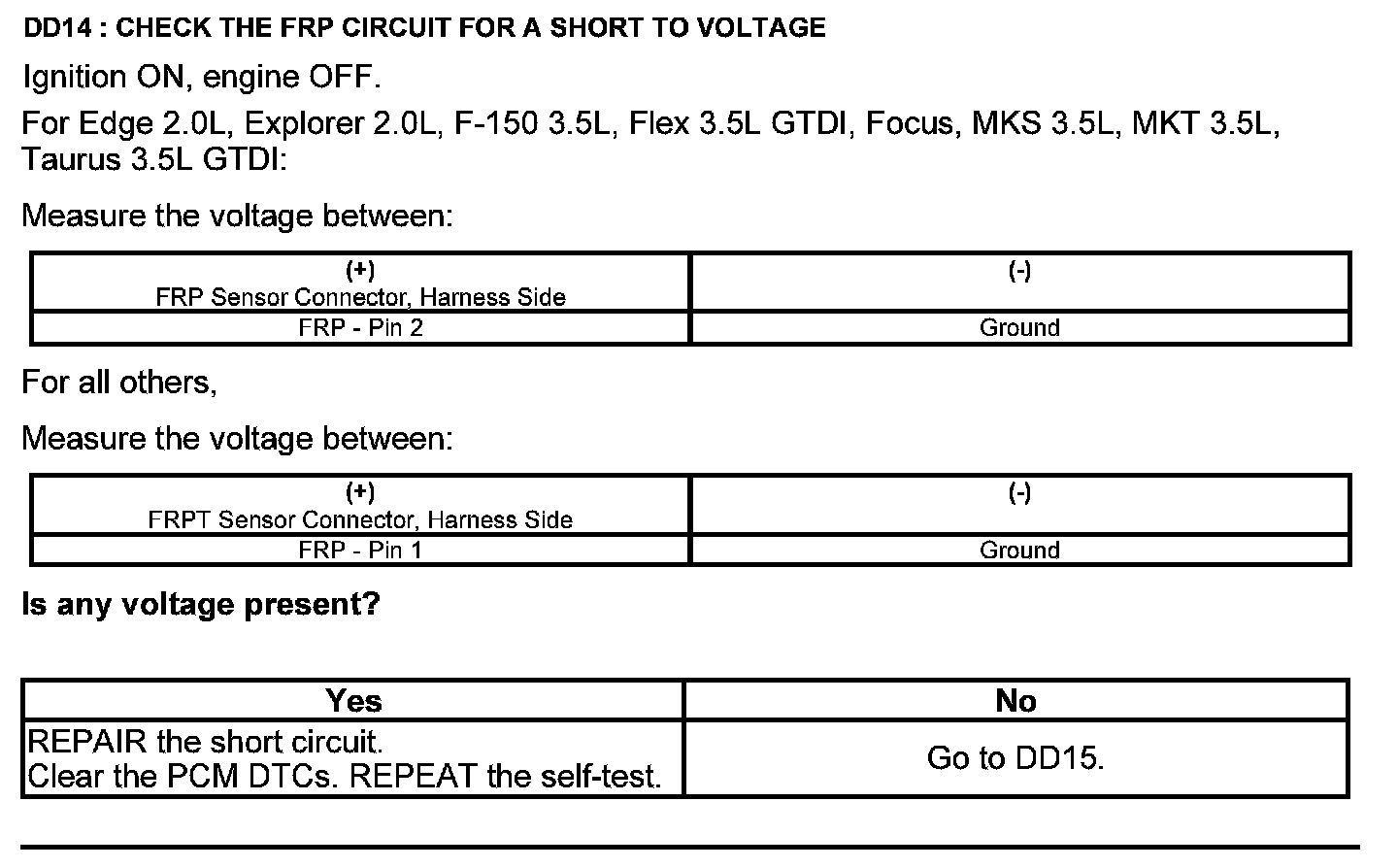

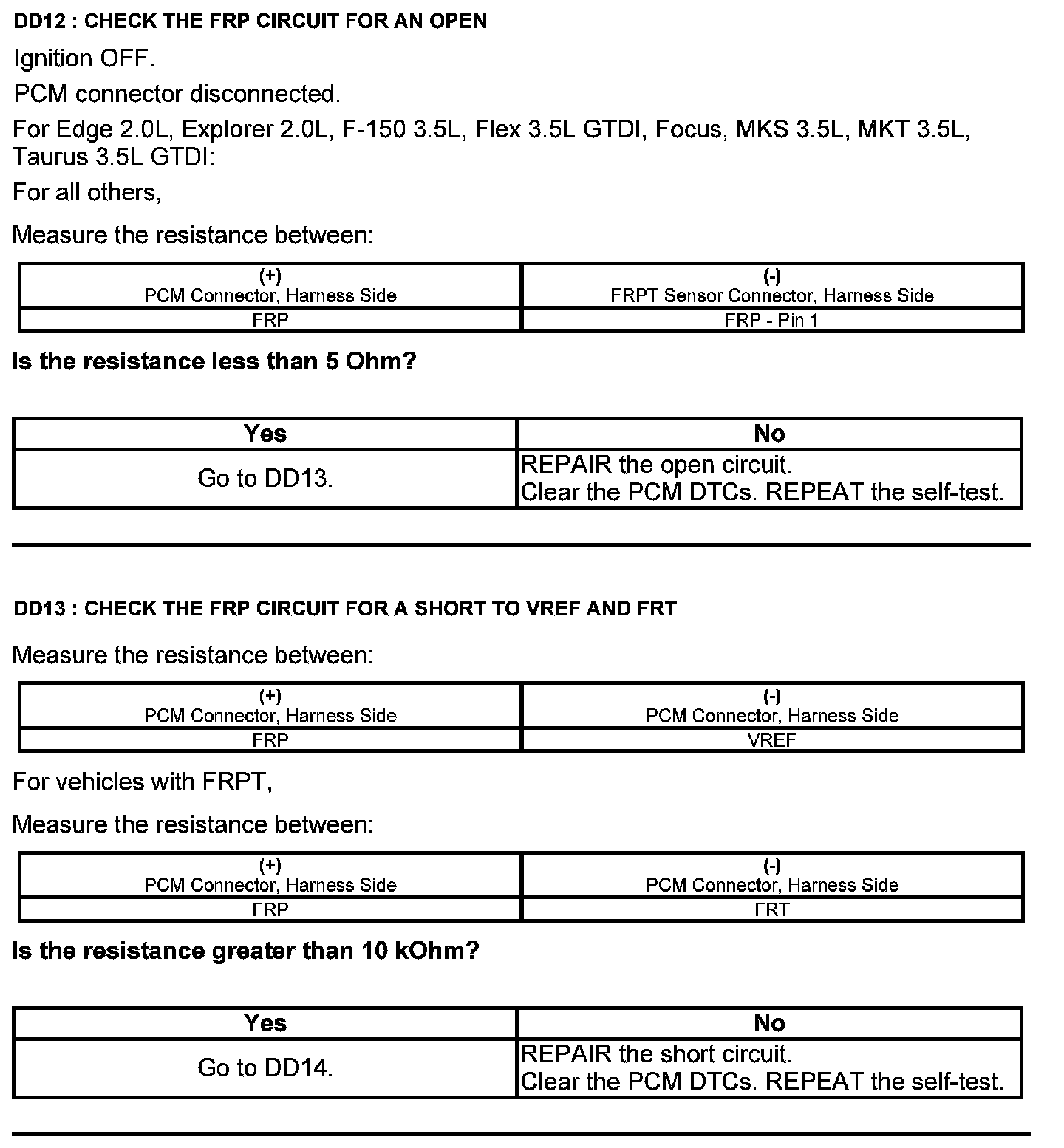

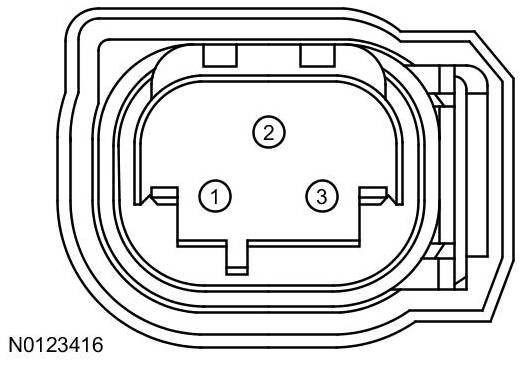

Fuel Rail Pressure (FRP) Sensor Connector





Harness Side

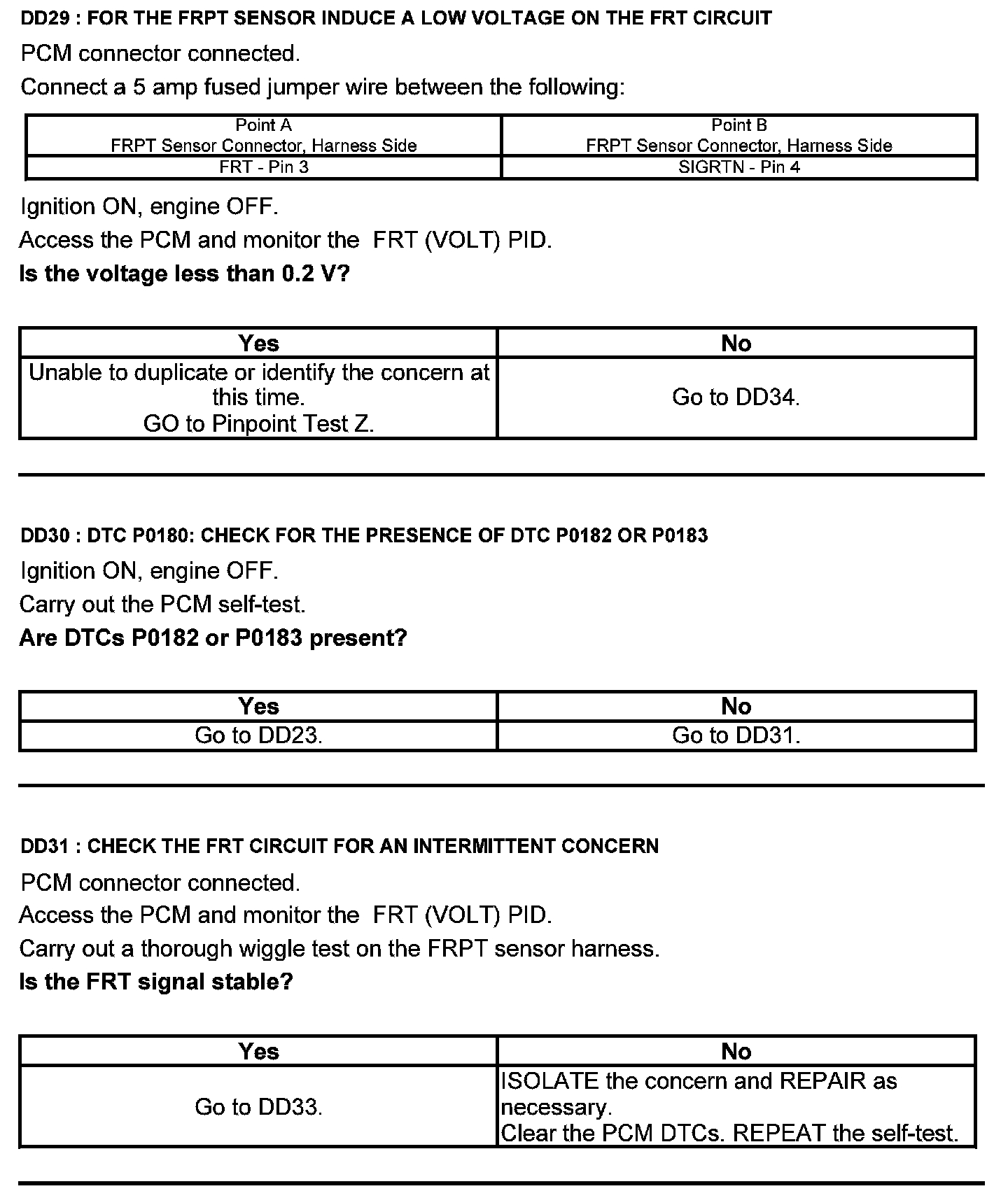

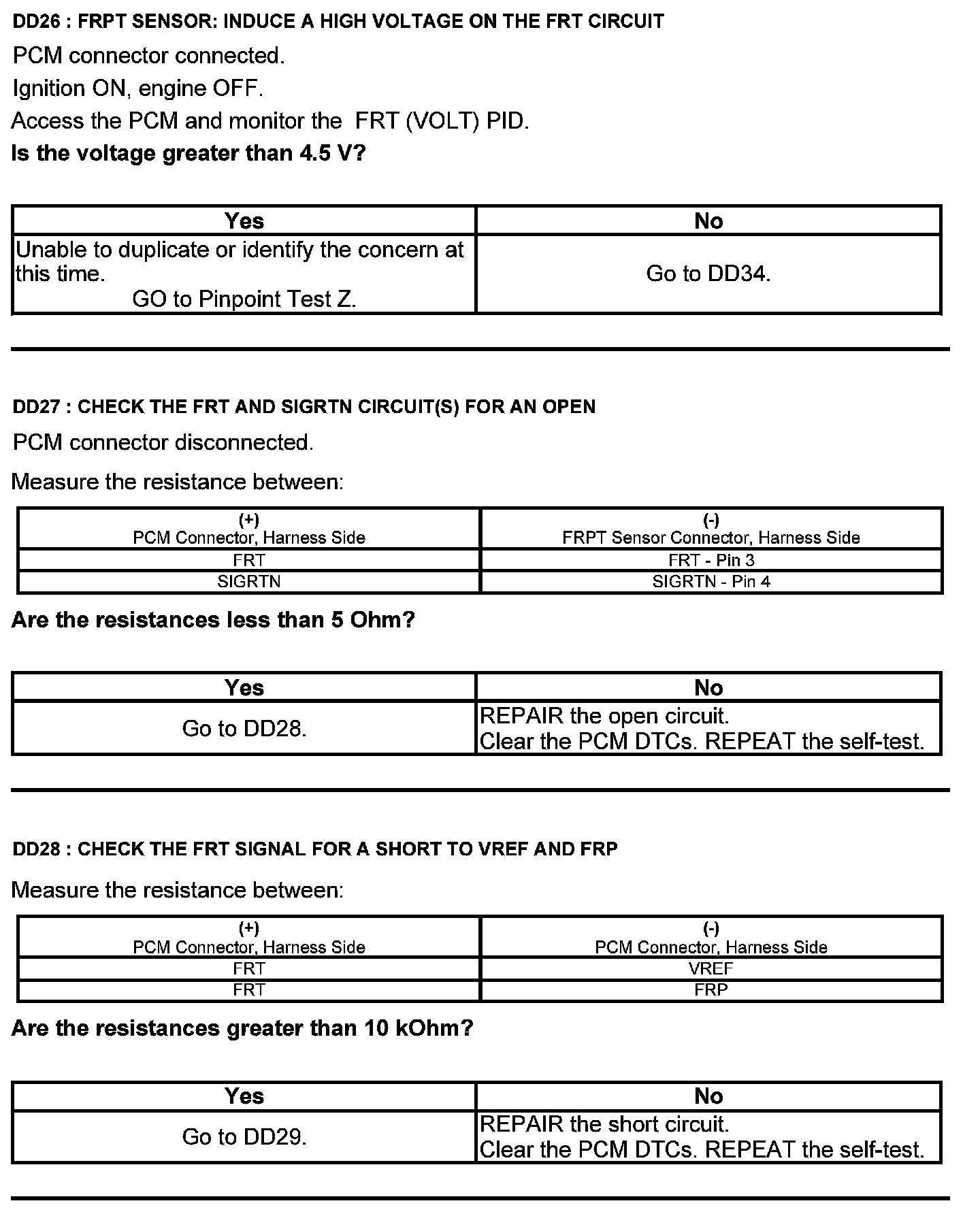

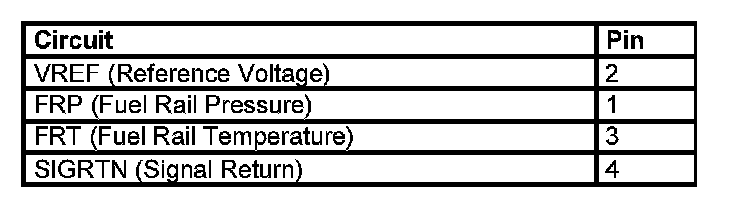

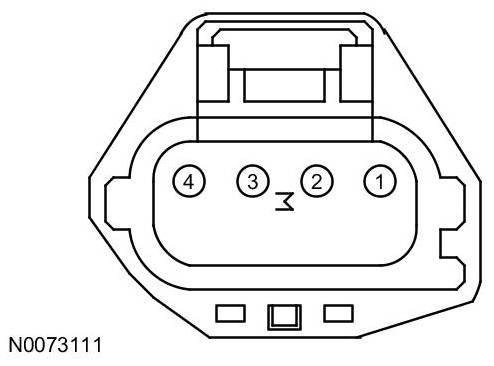

Fuel Rail Pressure Temperature (FRPT) Sensor Connector





Harness Side
