Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DC: Mass Airflow (MAF) Sensor >> Automatic Transmission

Automatic Transmission

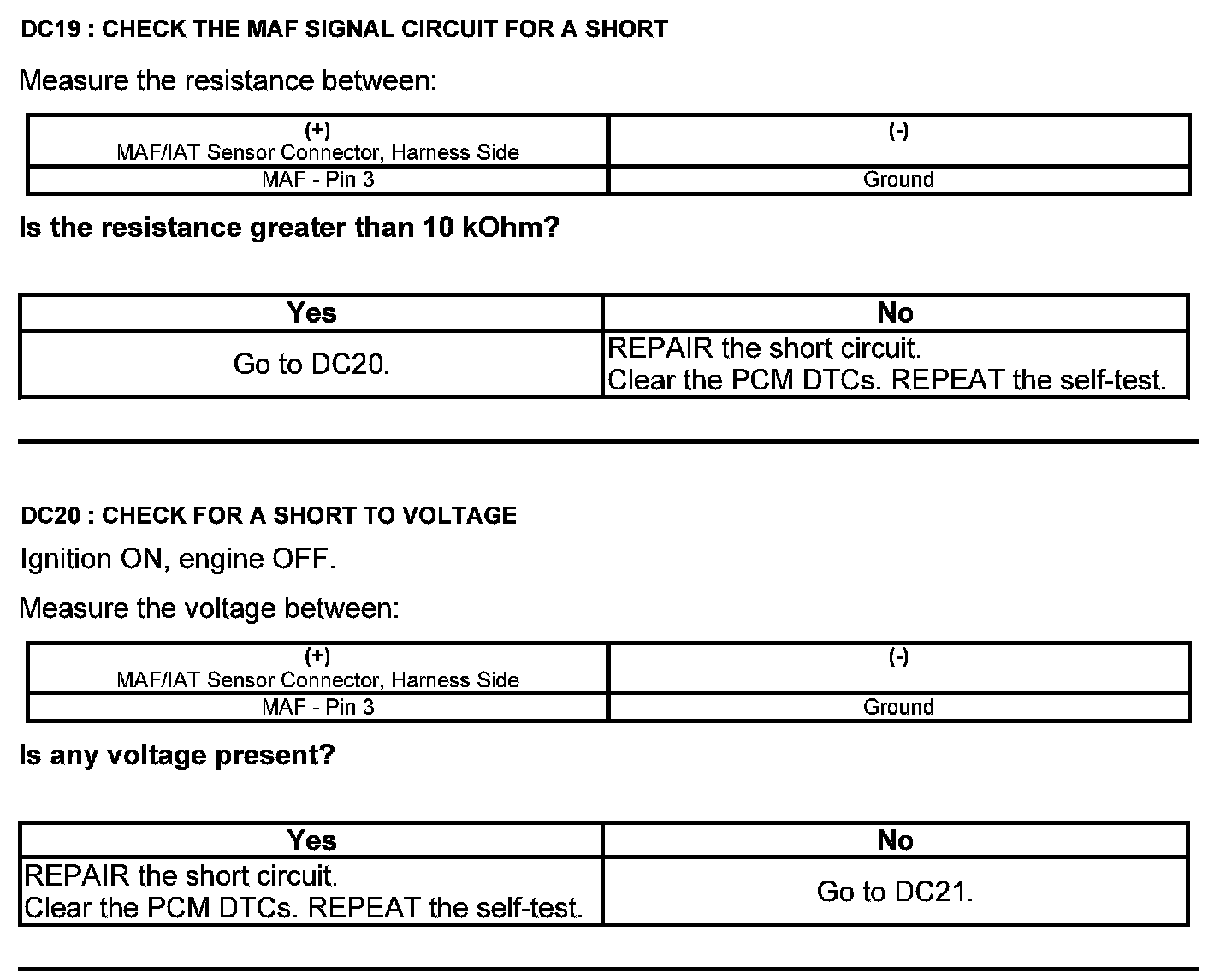

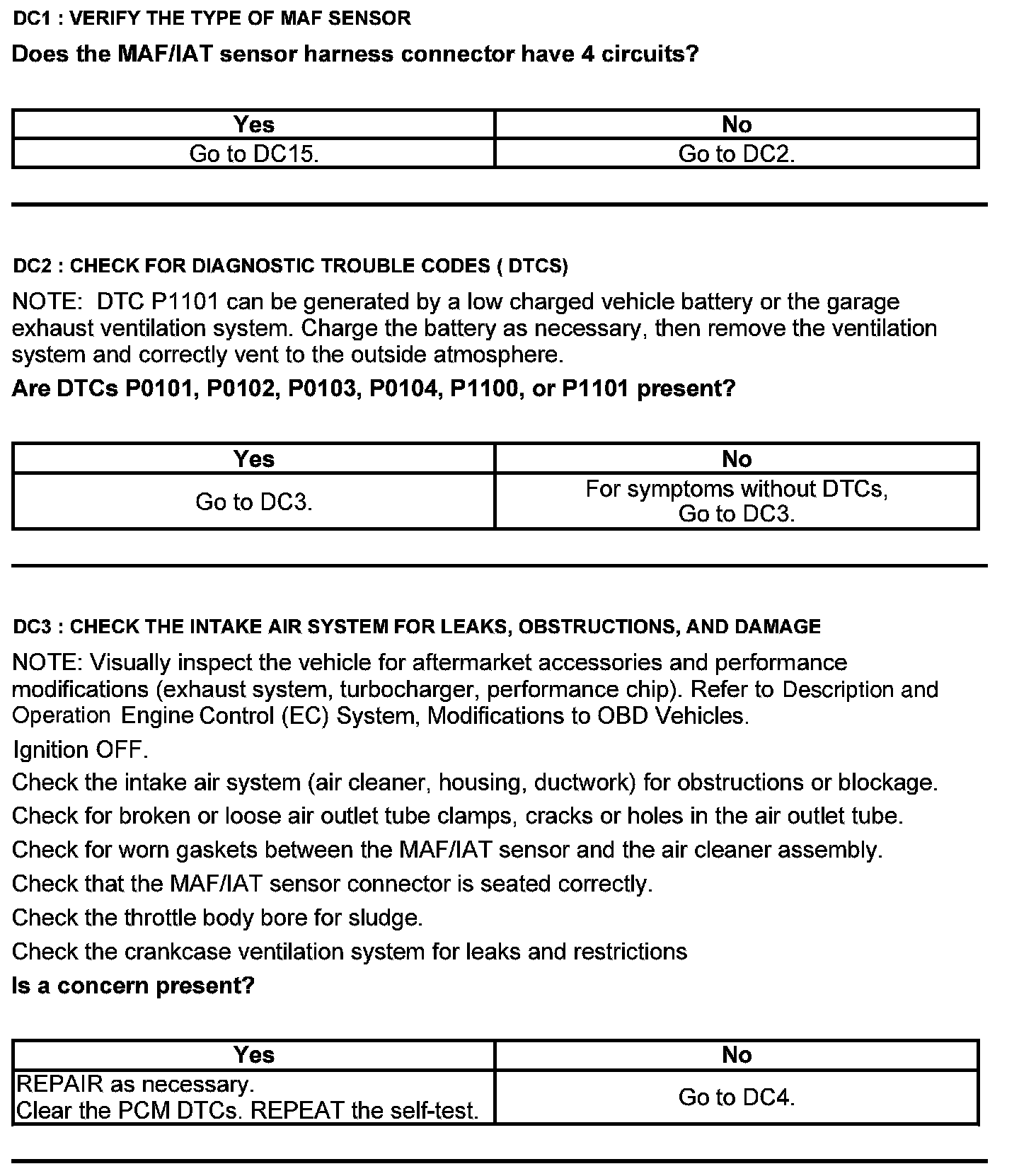

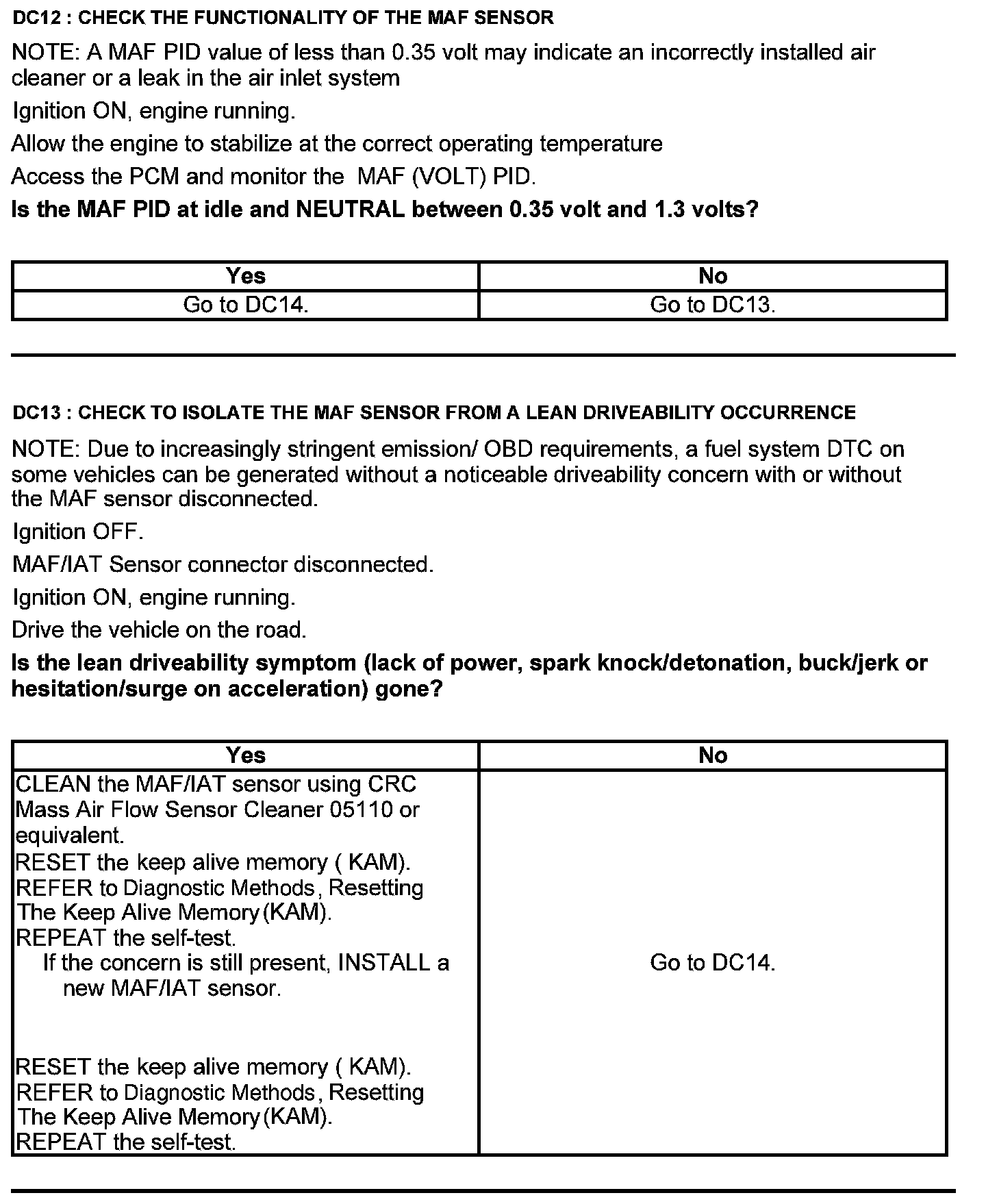

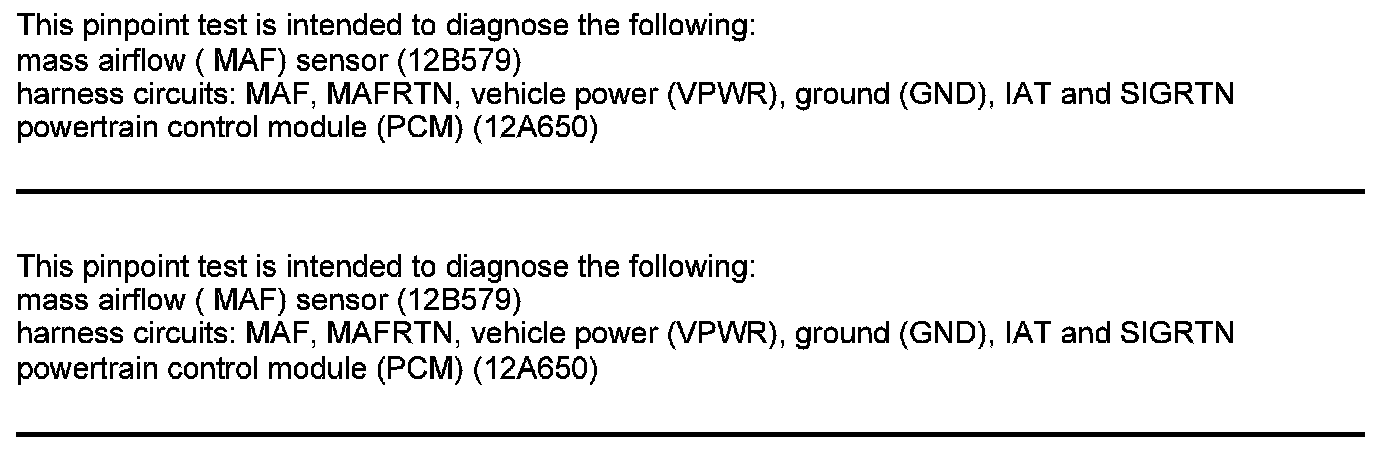

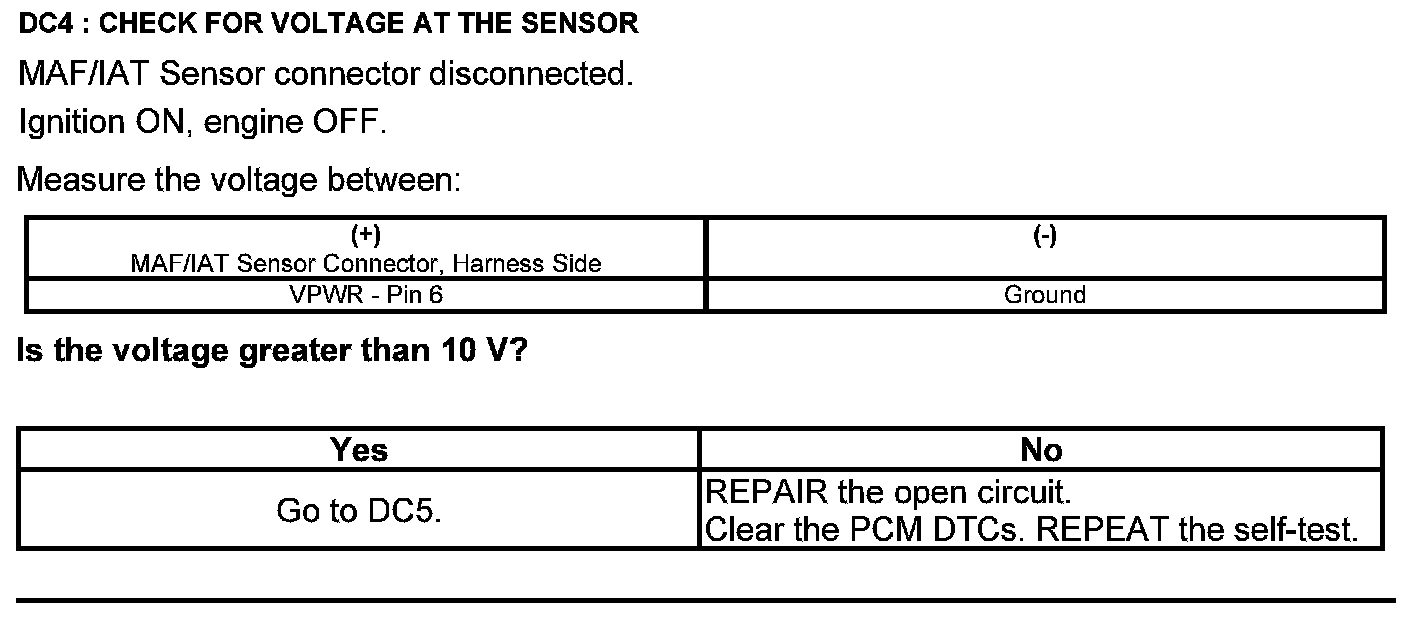

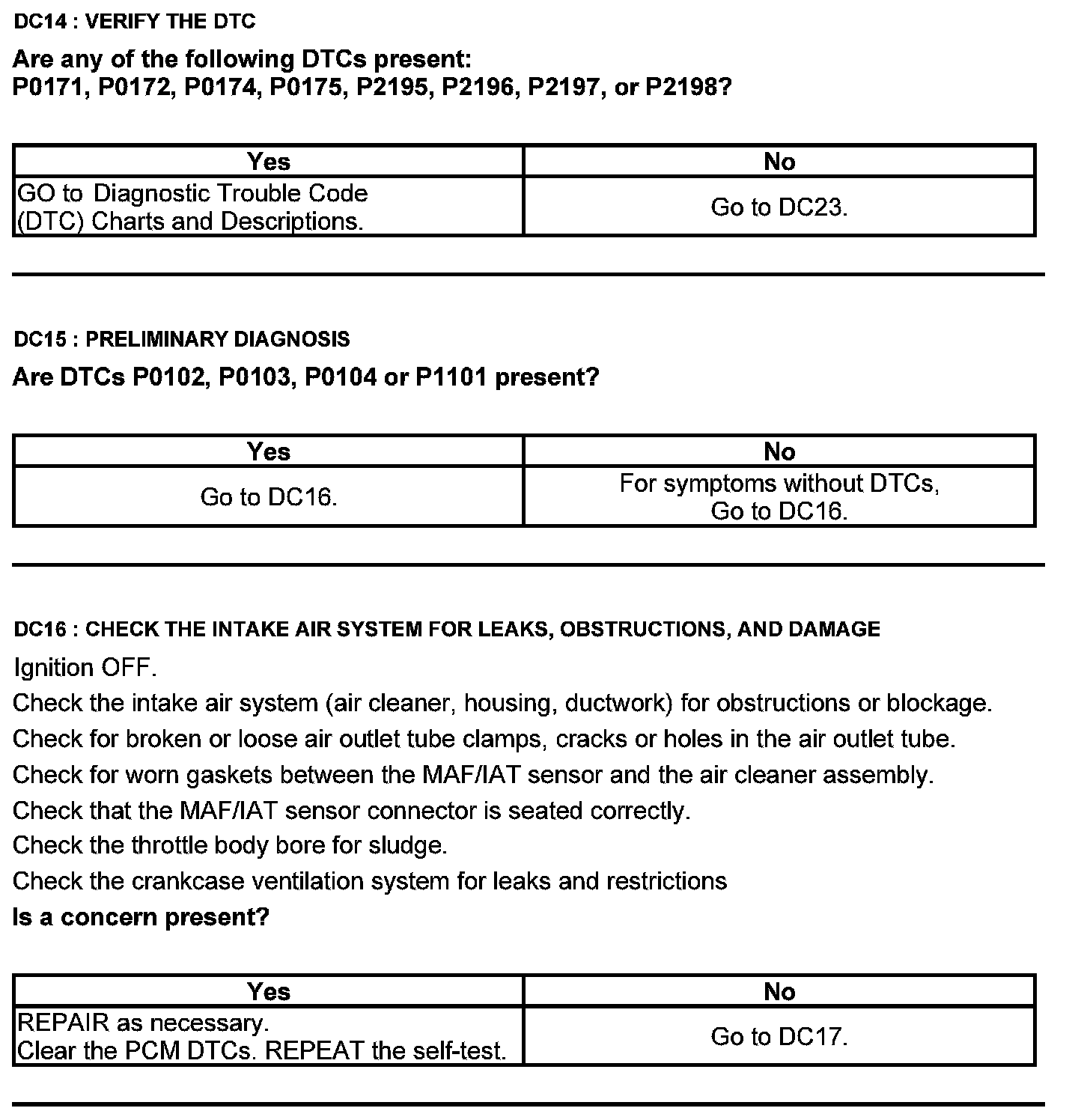

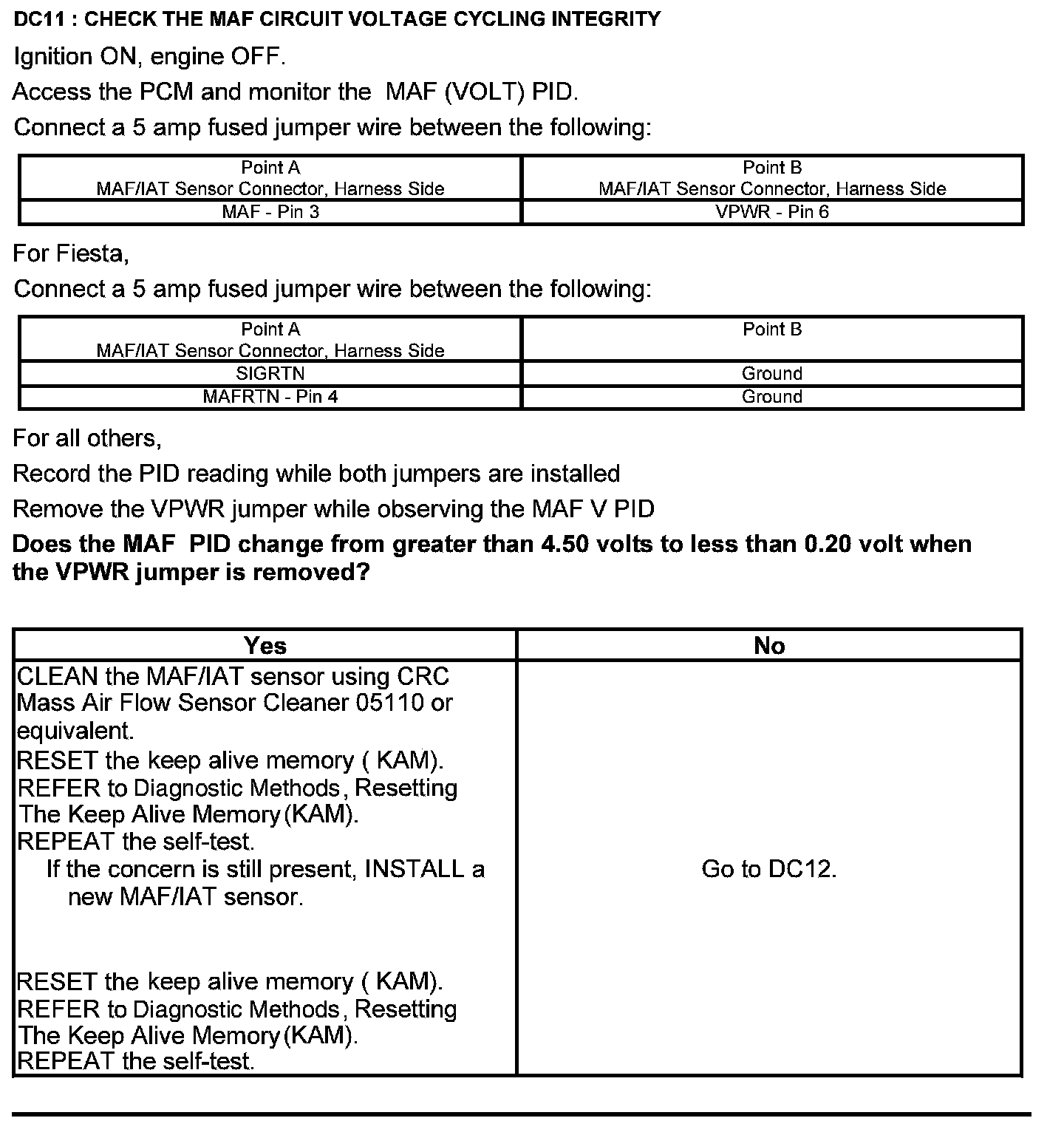

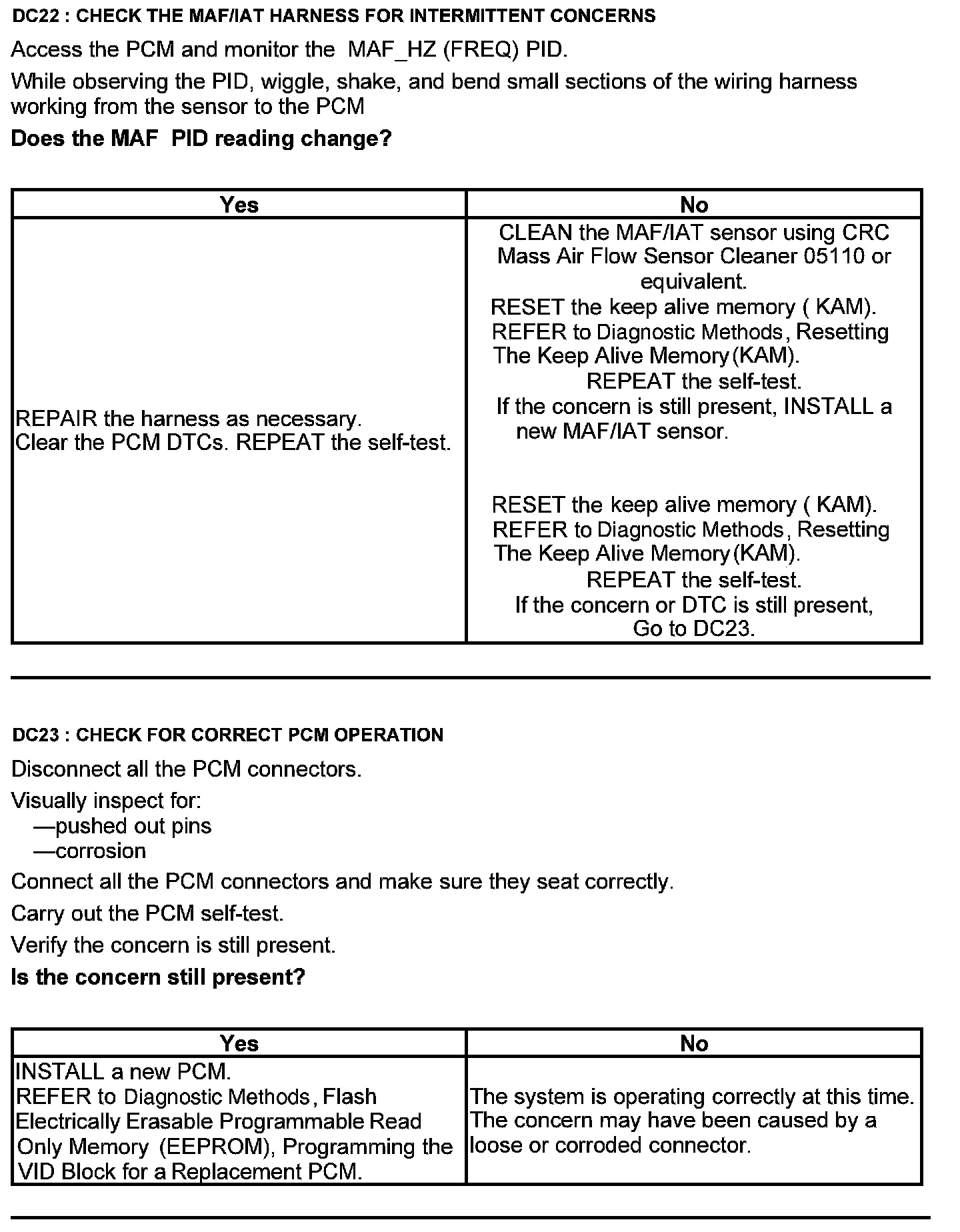

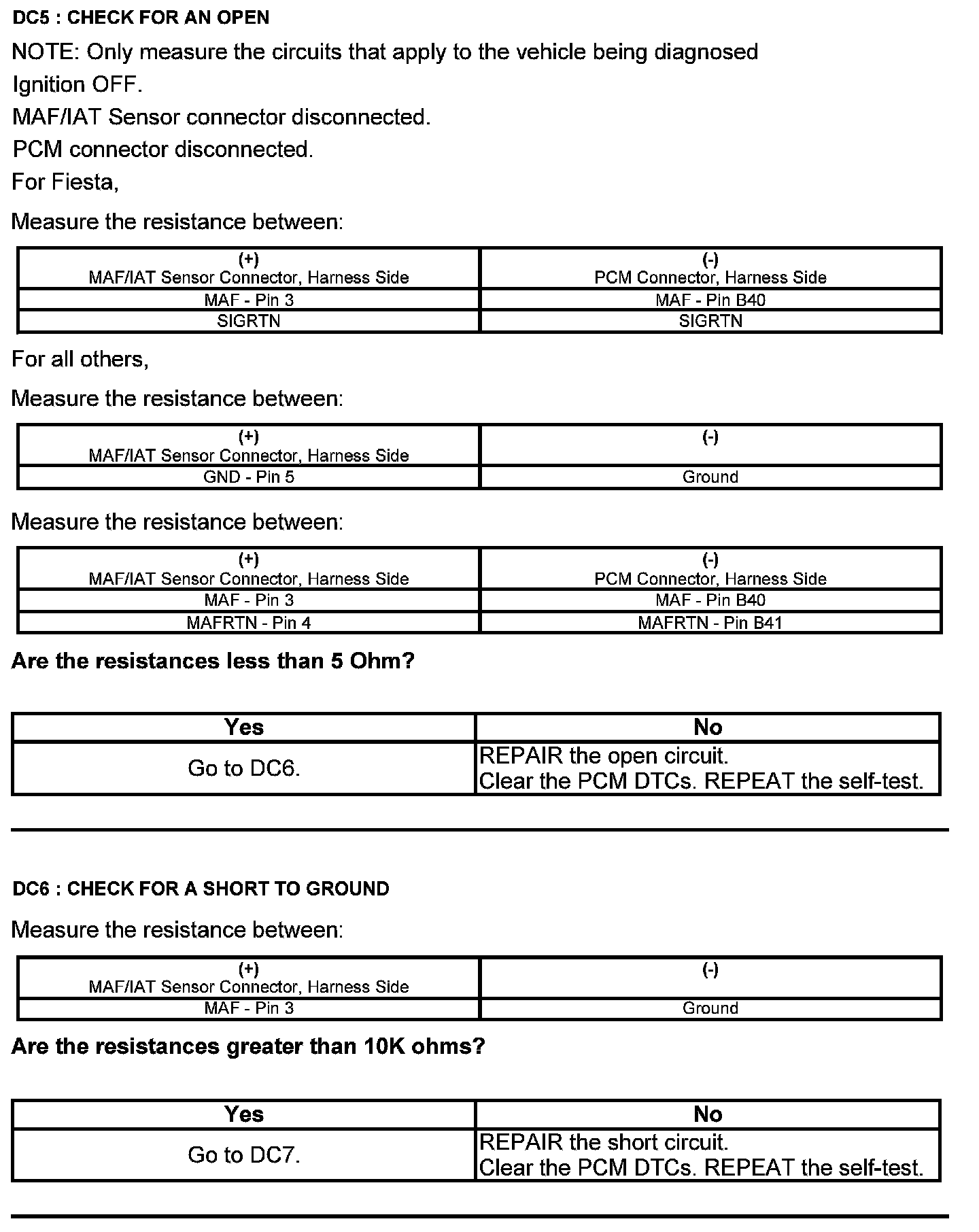

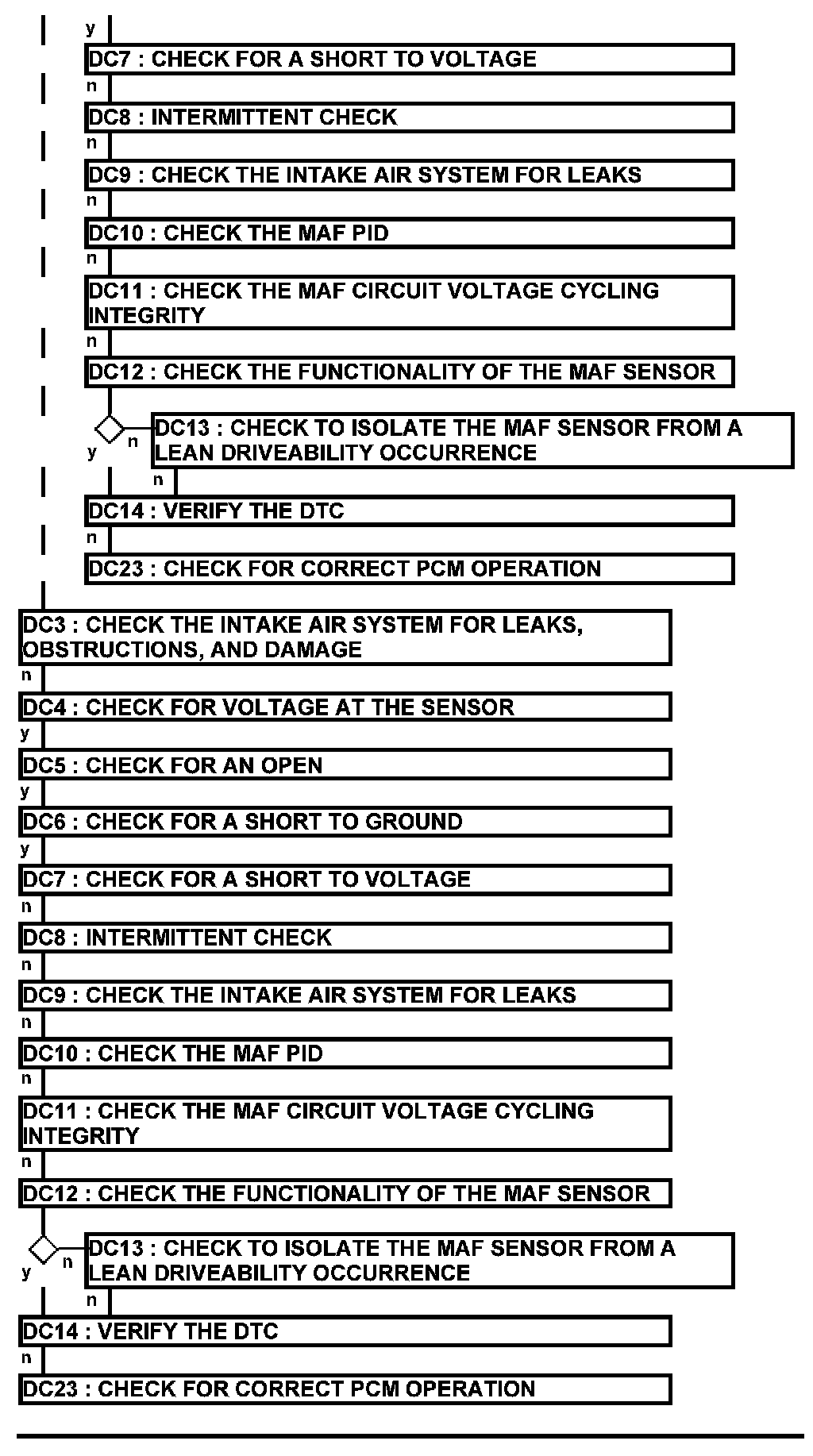

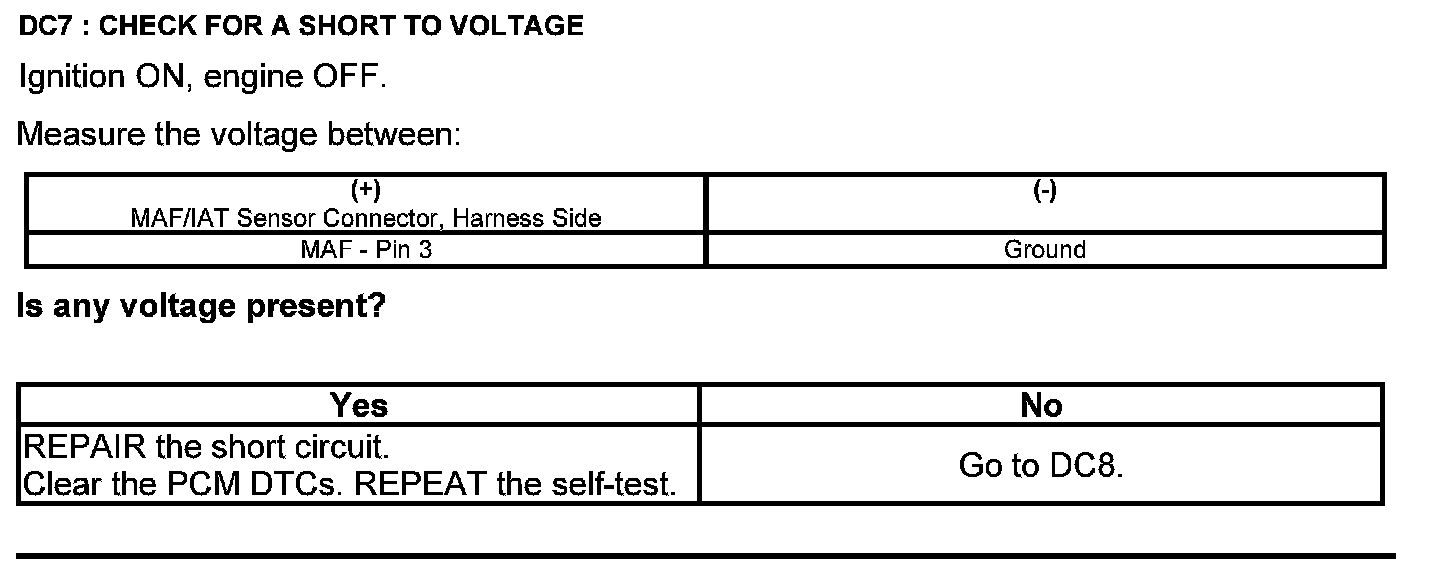

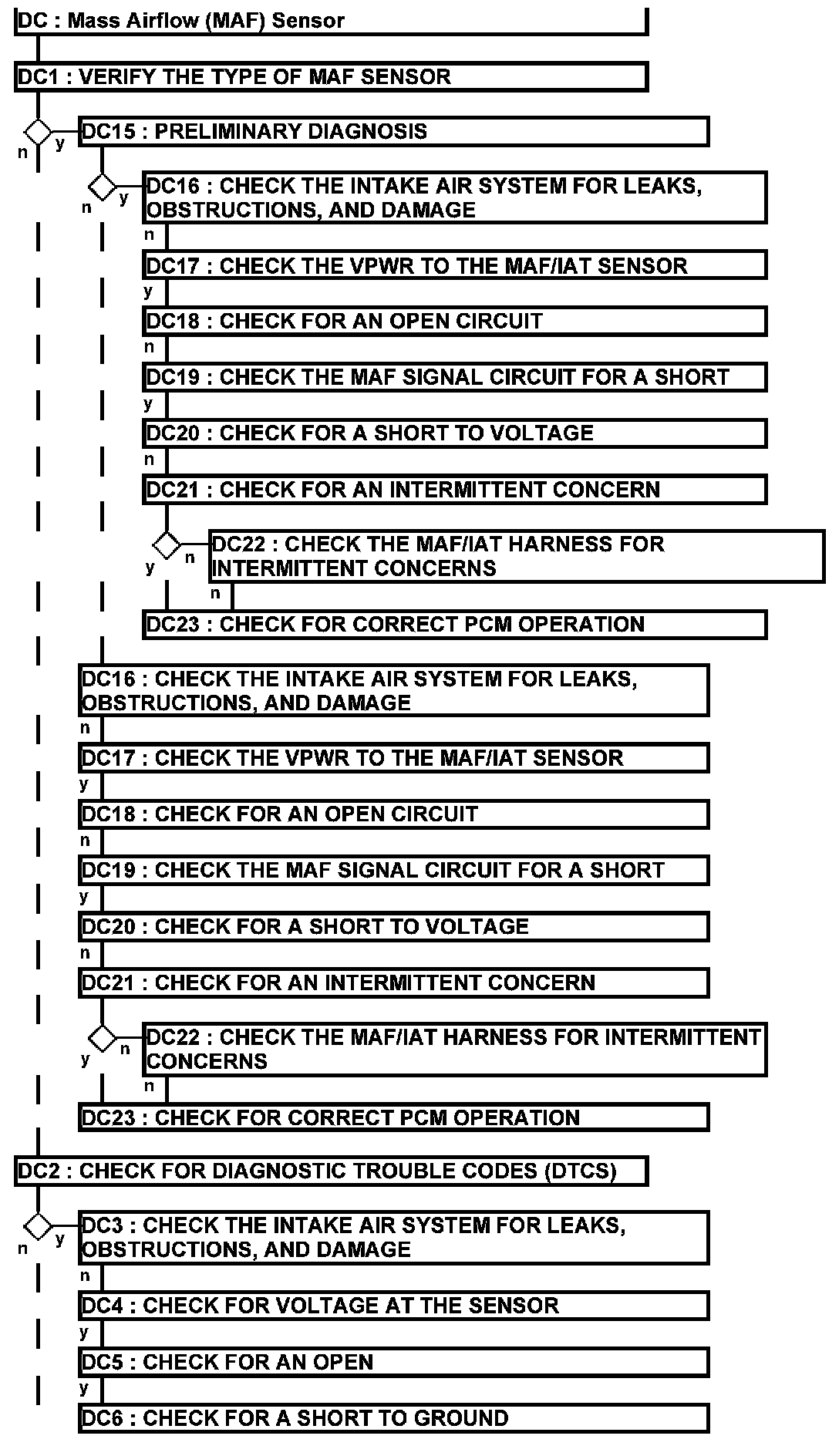

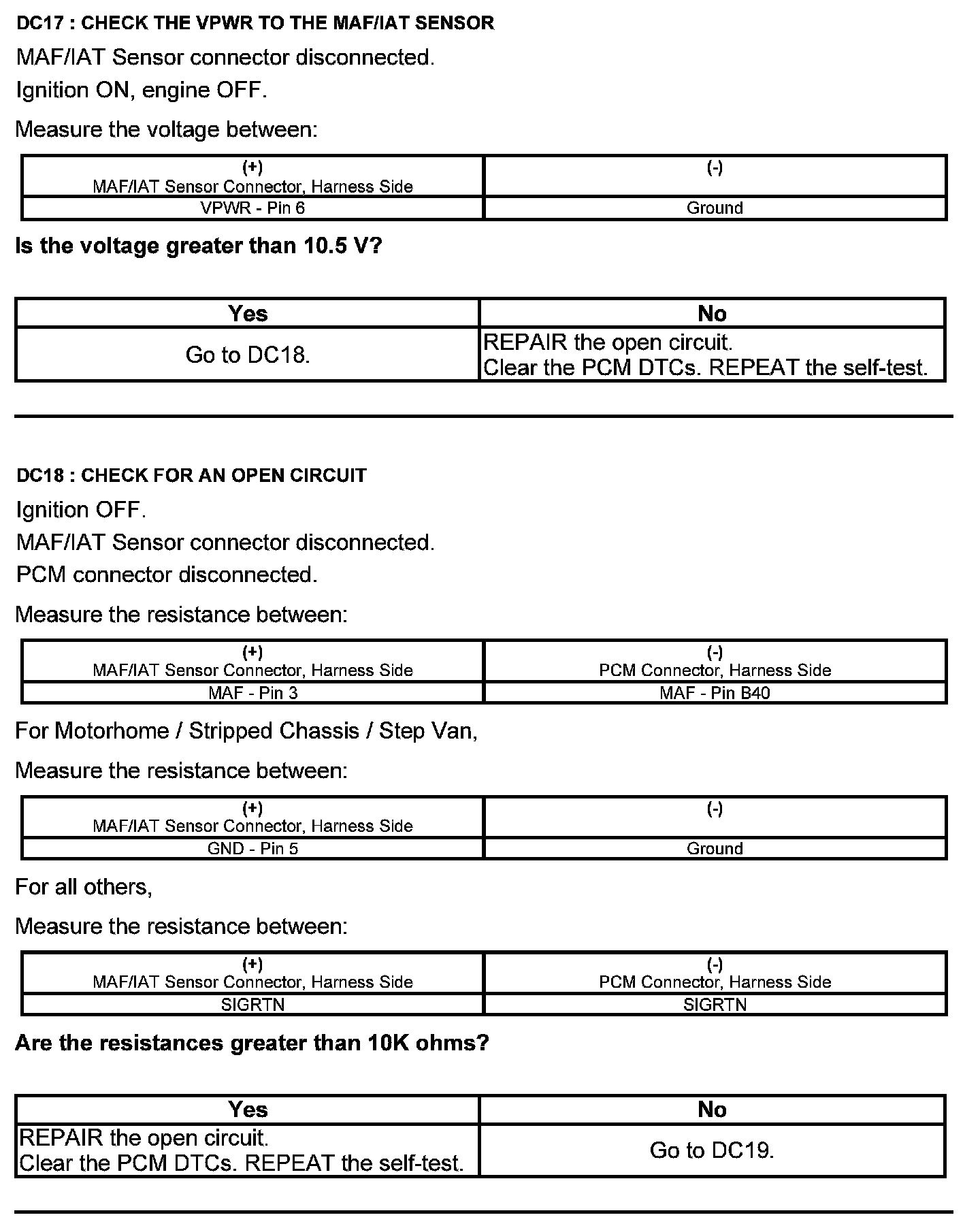

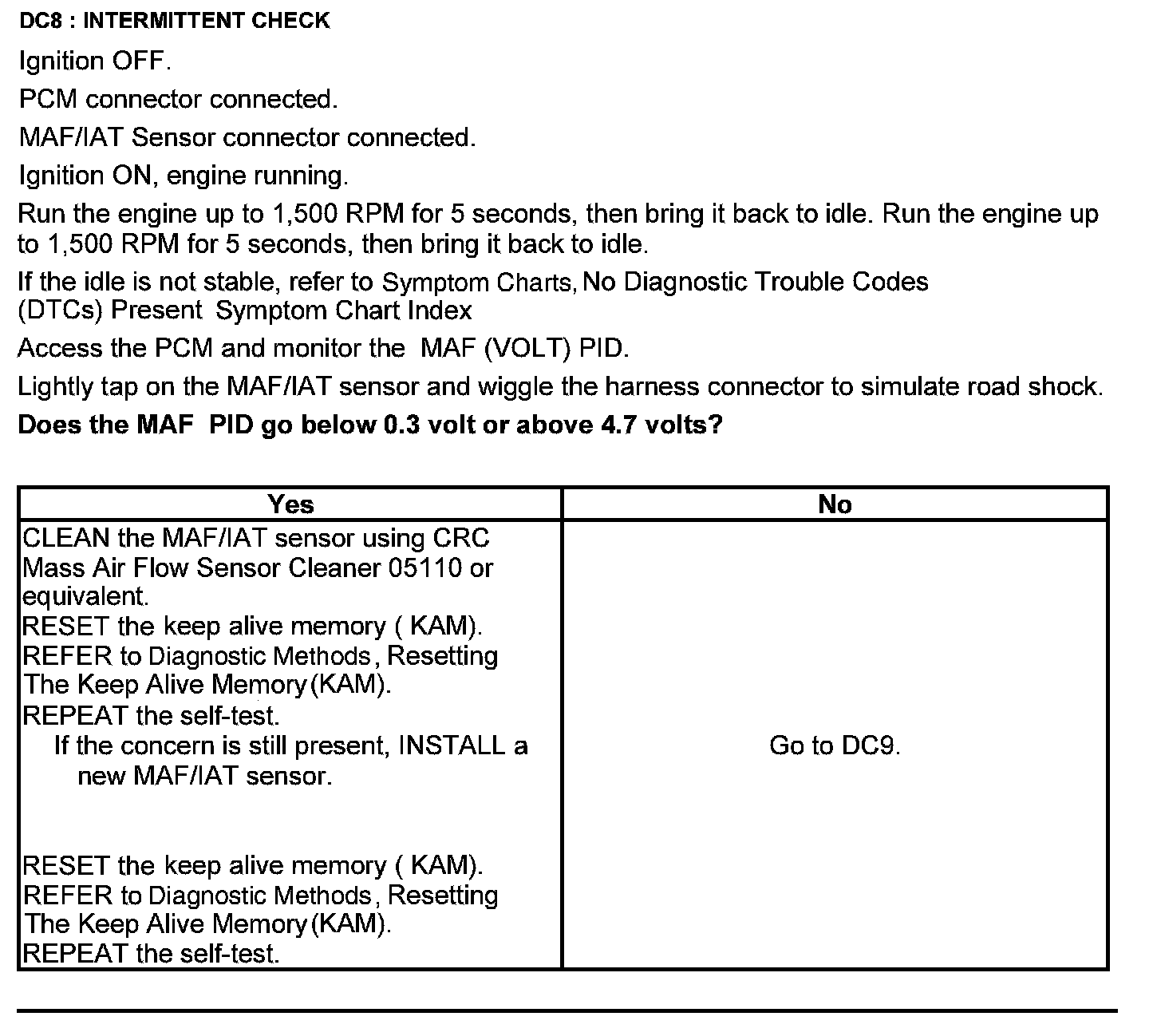

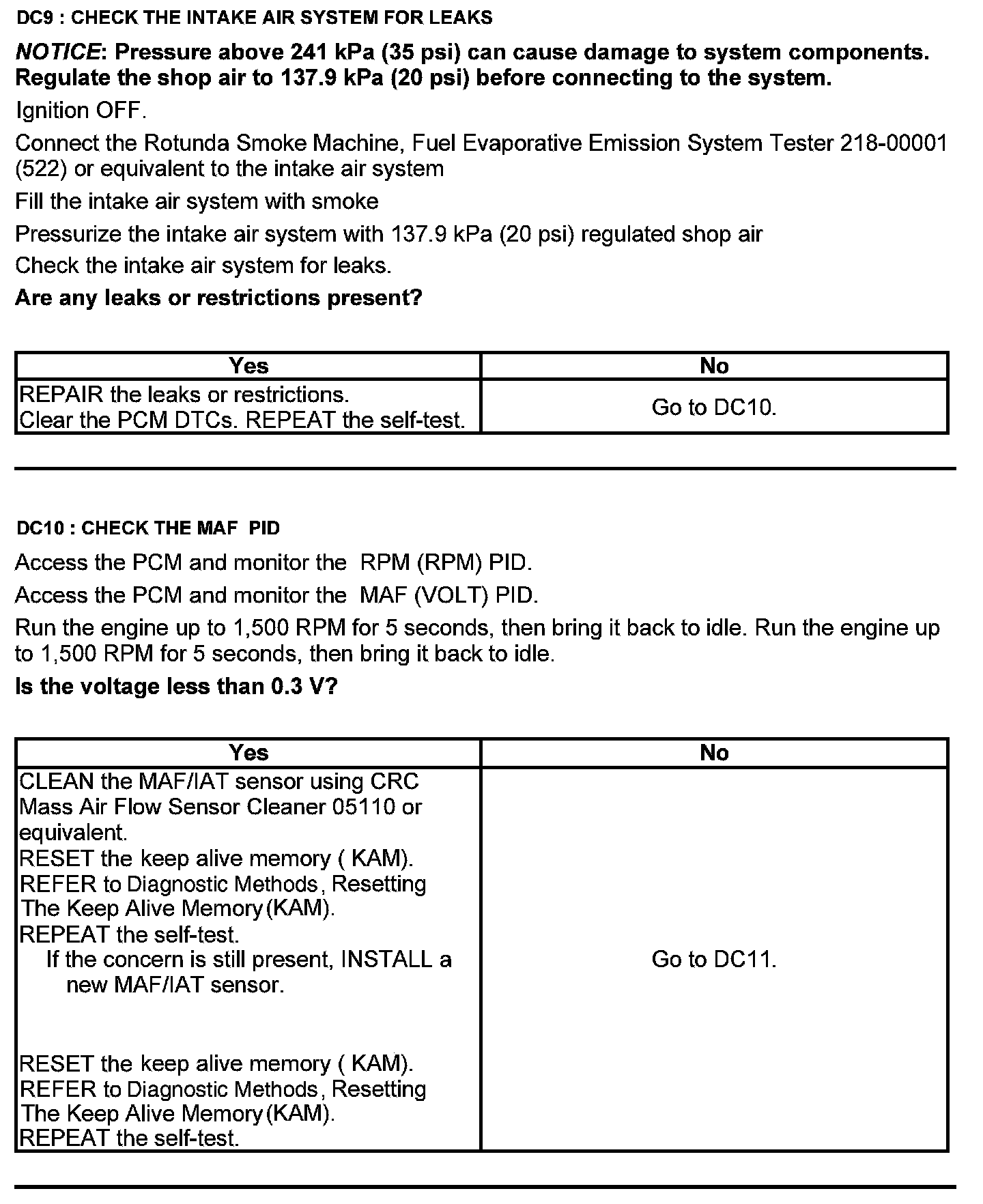

Mass Airflow (MAF) Sensor - Automatic Transmission

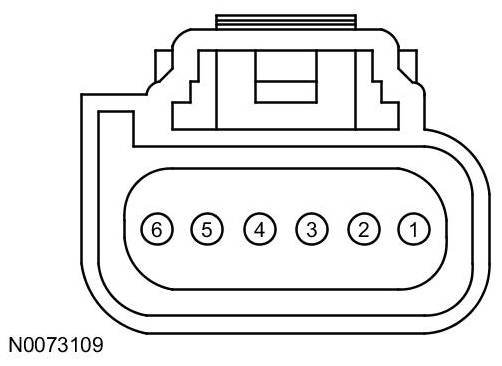

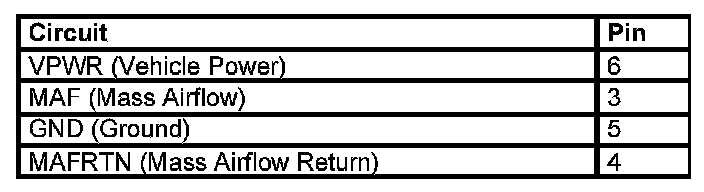

Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector





Harness Side

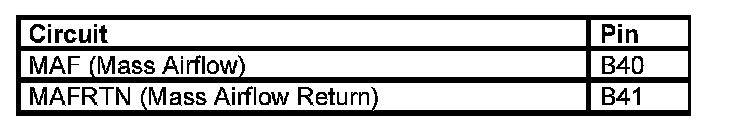

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
