Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DA: Intake Air Temperature (IAT) Sensor >> All Others

All Others

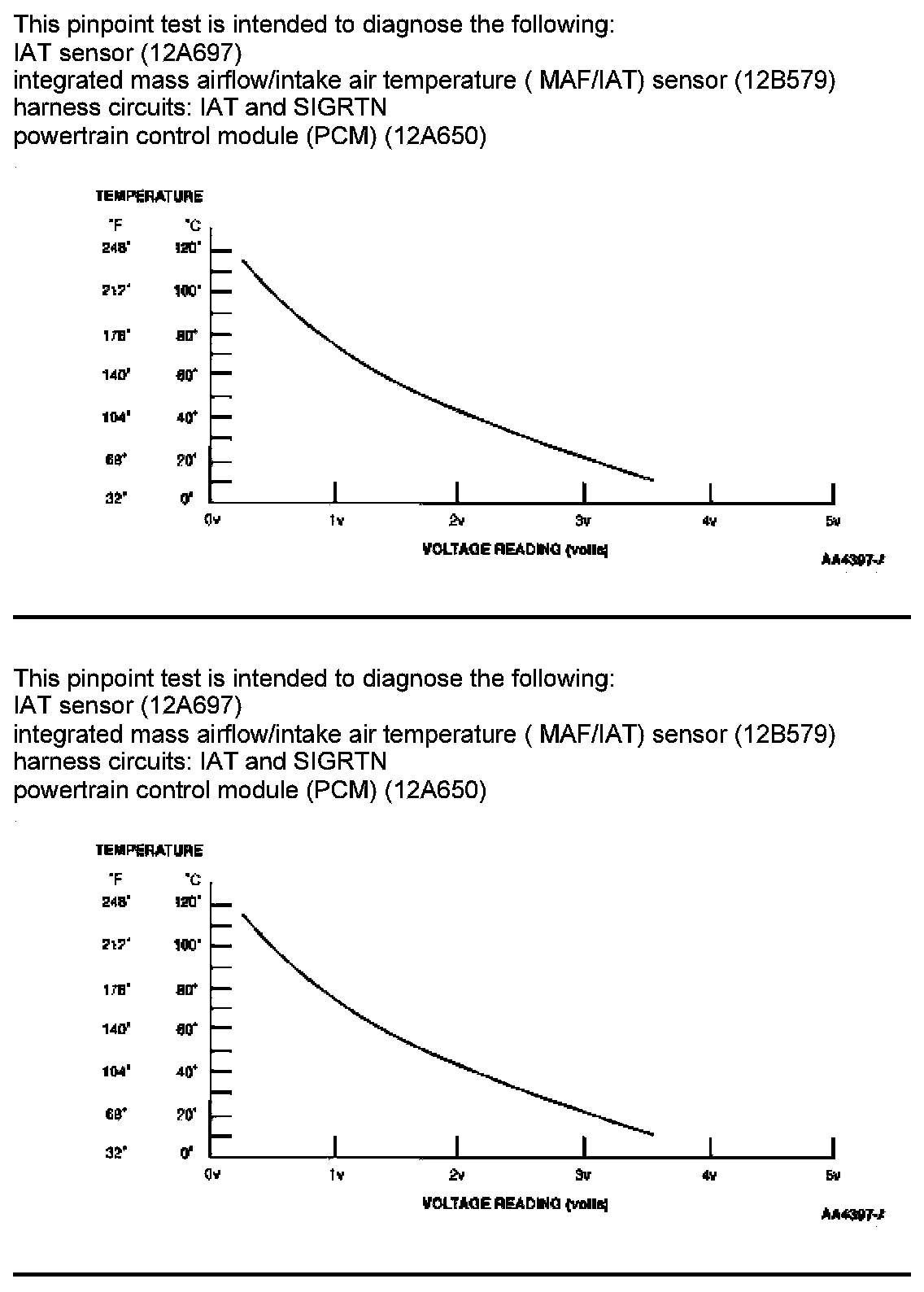

Intake Air Temperature (IAT) Sensor - All Others.

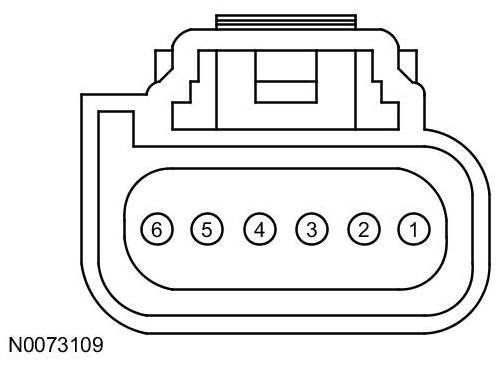

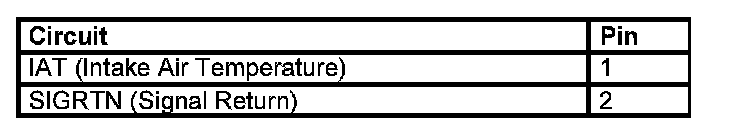

Intake Air Temperature (IAT) Sensor Connector





Harness Side
