Brake Booster Travel Sensor

Brake Booster Travel Sensor - Hybrid





Removal and Installation

1. Remove the Motor Electronics Cooling System (MECS) expansion tank nut and bolt, position the tank aside.
- To install, tighten the nut and bolt to 12 Nm (106 lb-in).






2. Disconnect the brake booster travel sensor electrical connector.

3. Release the brake booster travel sensor retainer ring and remove the travel sensor.





4. To install, reverse the removal procedure.

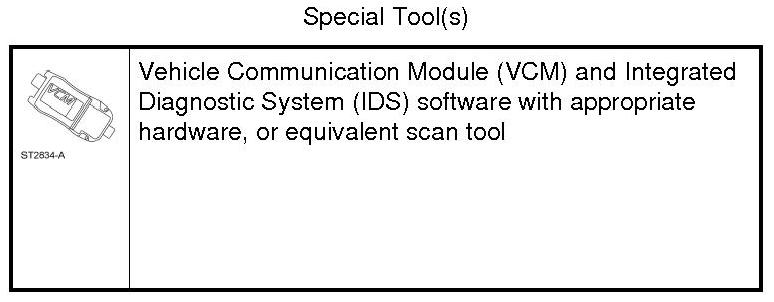

5. Following the scan tool instructions, carry out the Multi-Calibration Routine.
