Home >> Ford >> 2012 >> Fusion FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DW: Heated Oxygen Sensor (HO2S) >> Manual Transmission

Manual Transmission

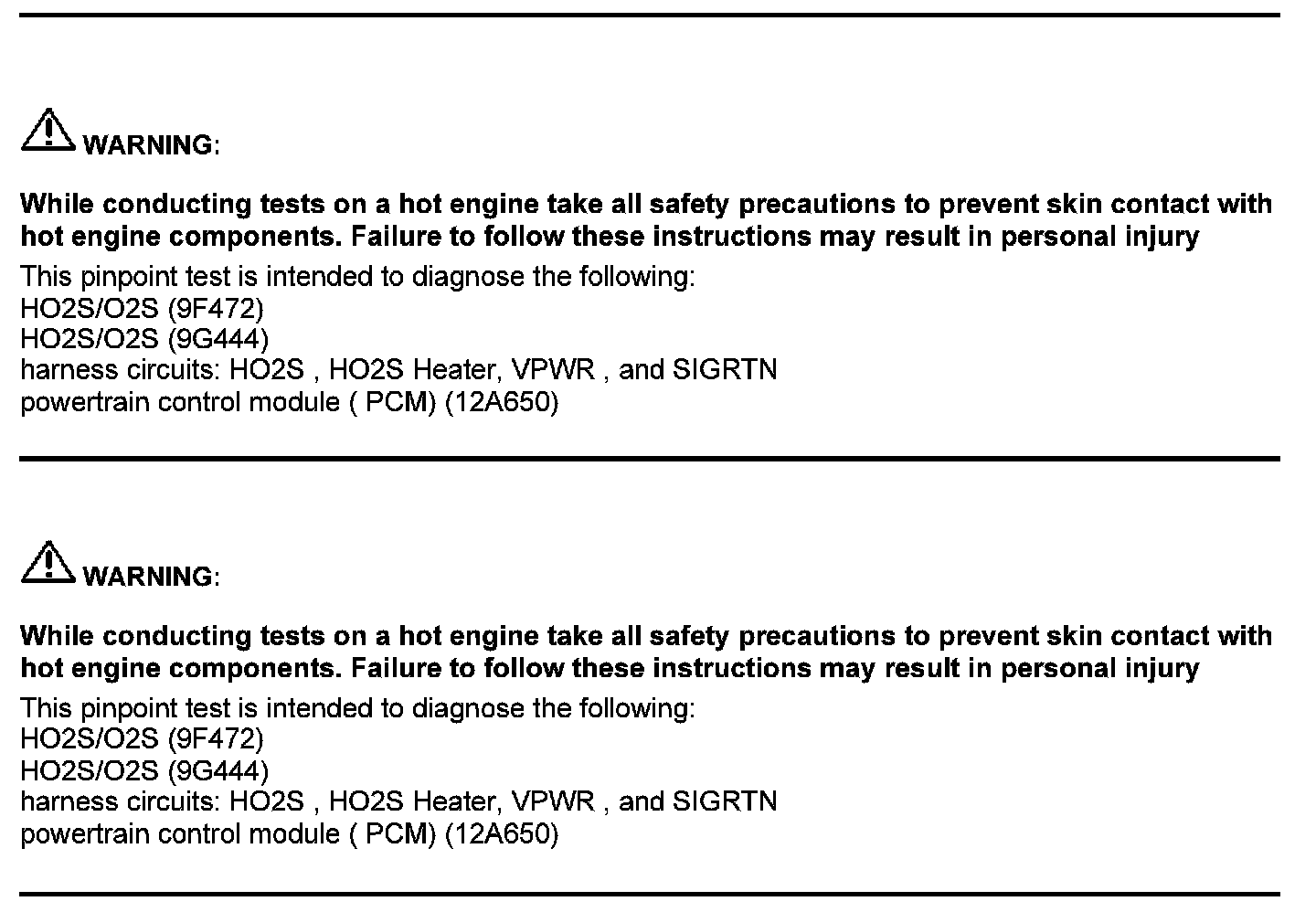

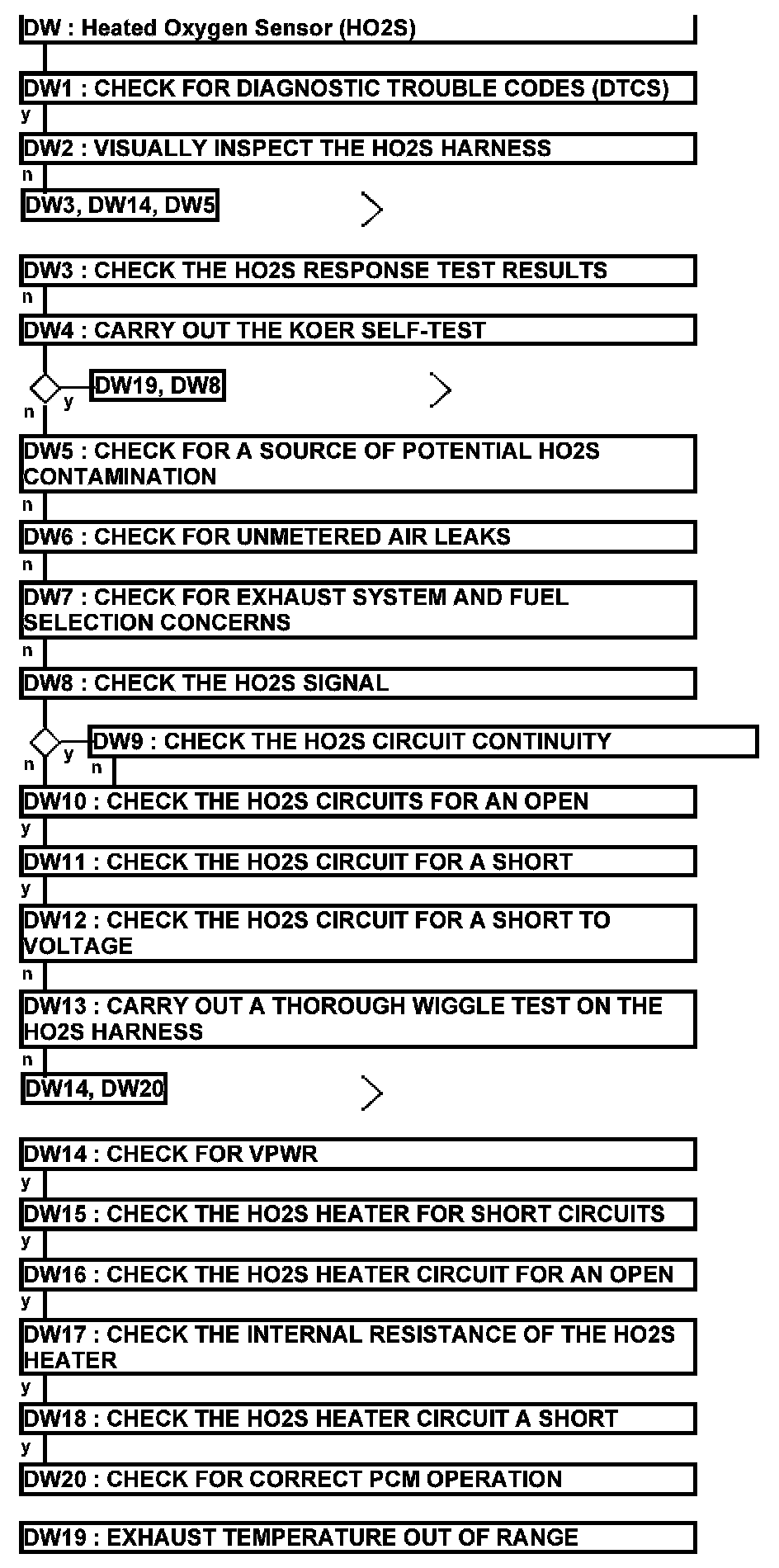

Heated Oxygen Sensor (HO2S) - Manual Transmission

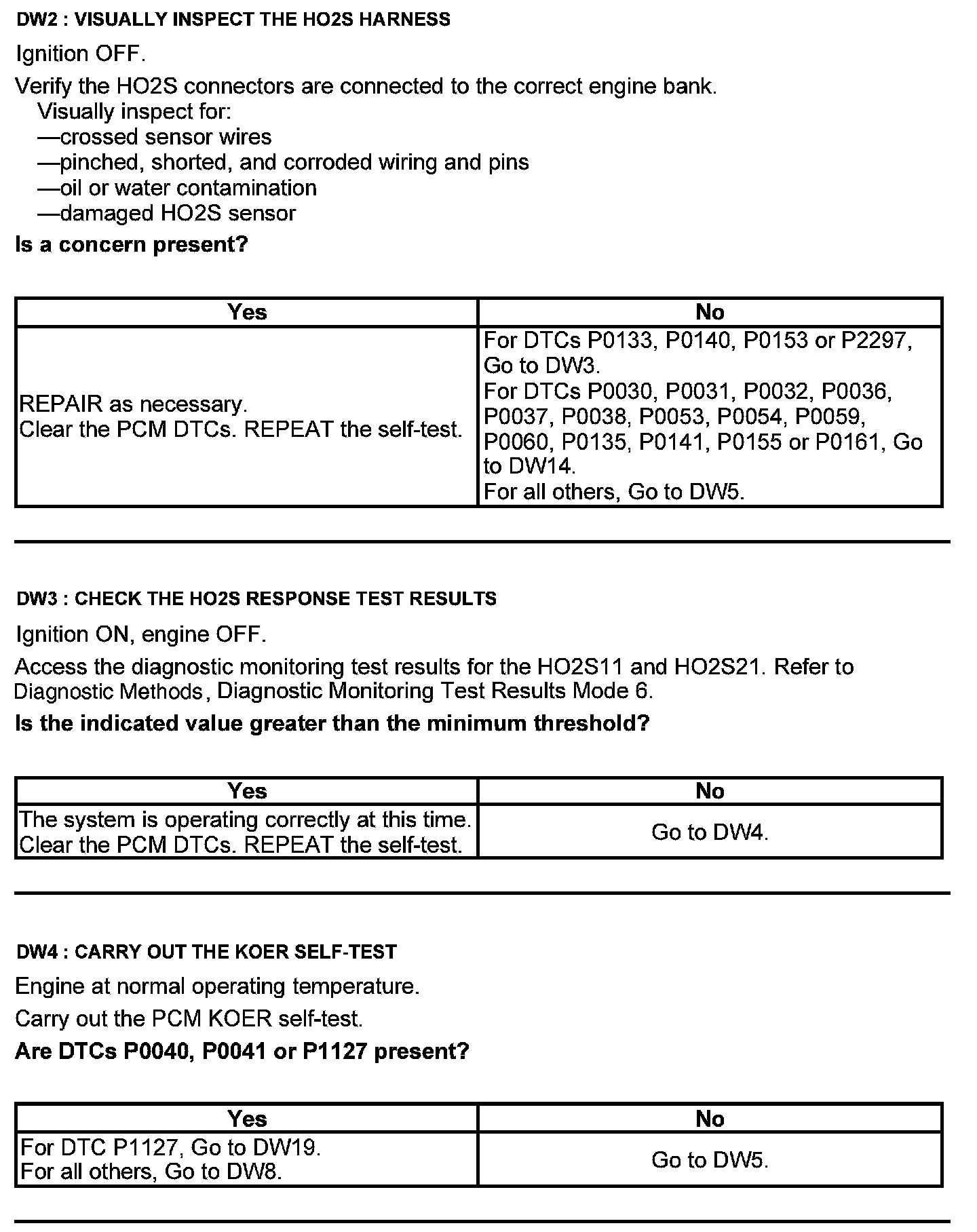

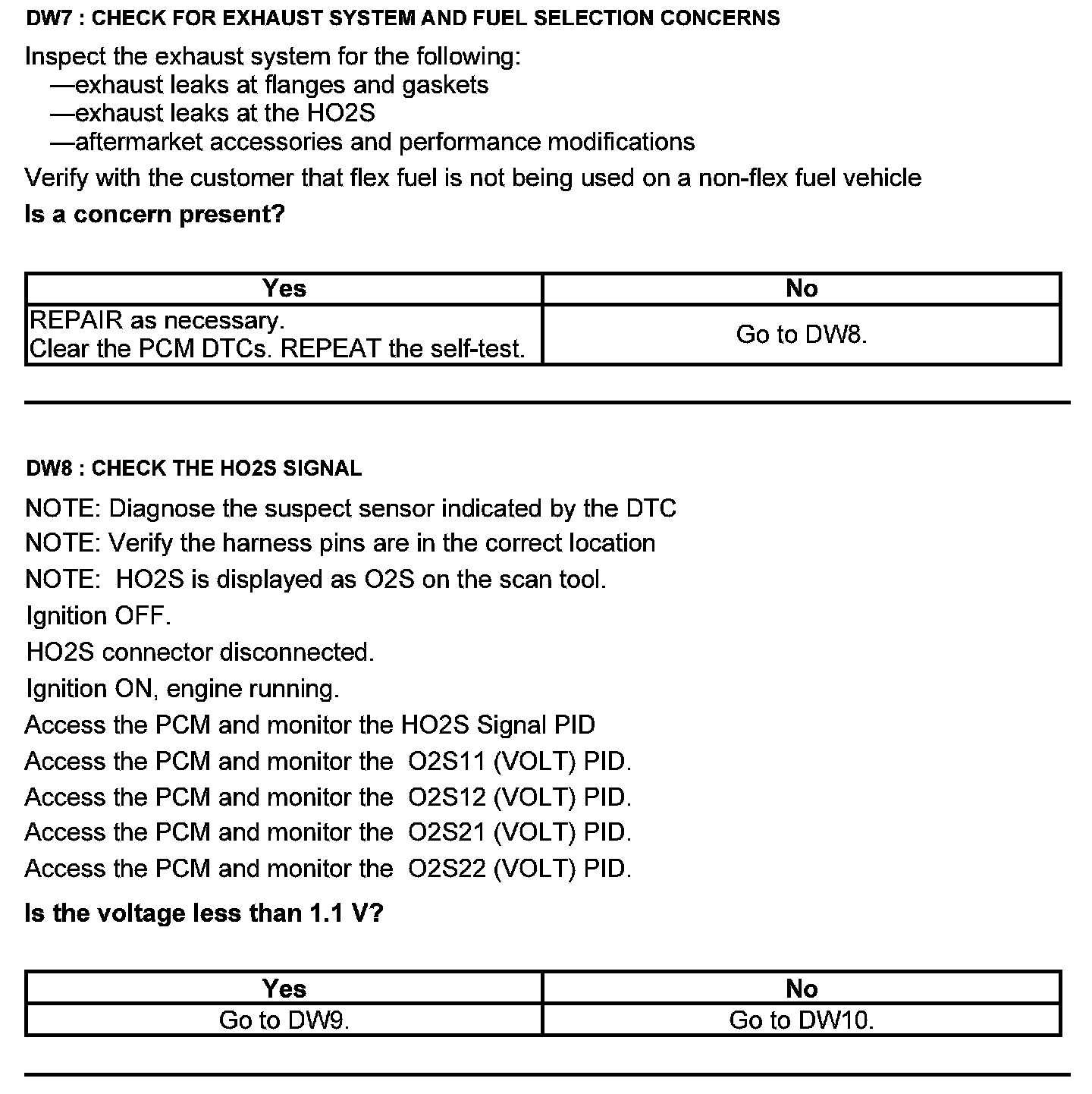

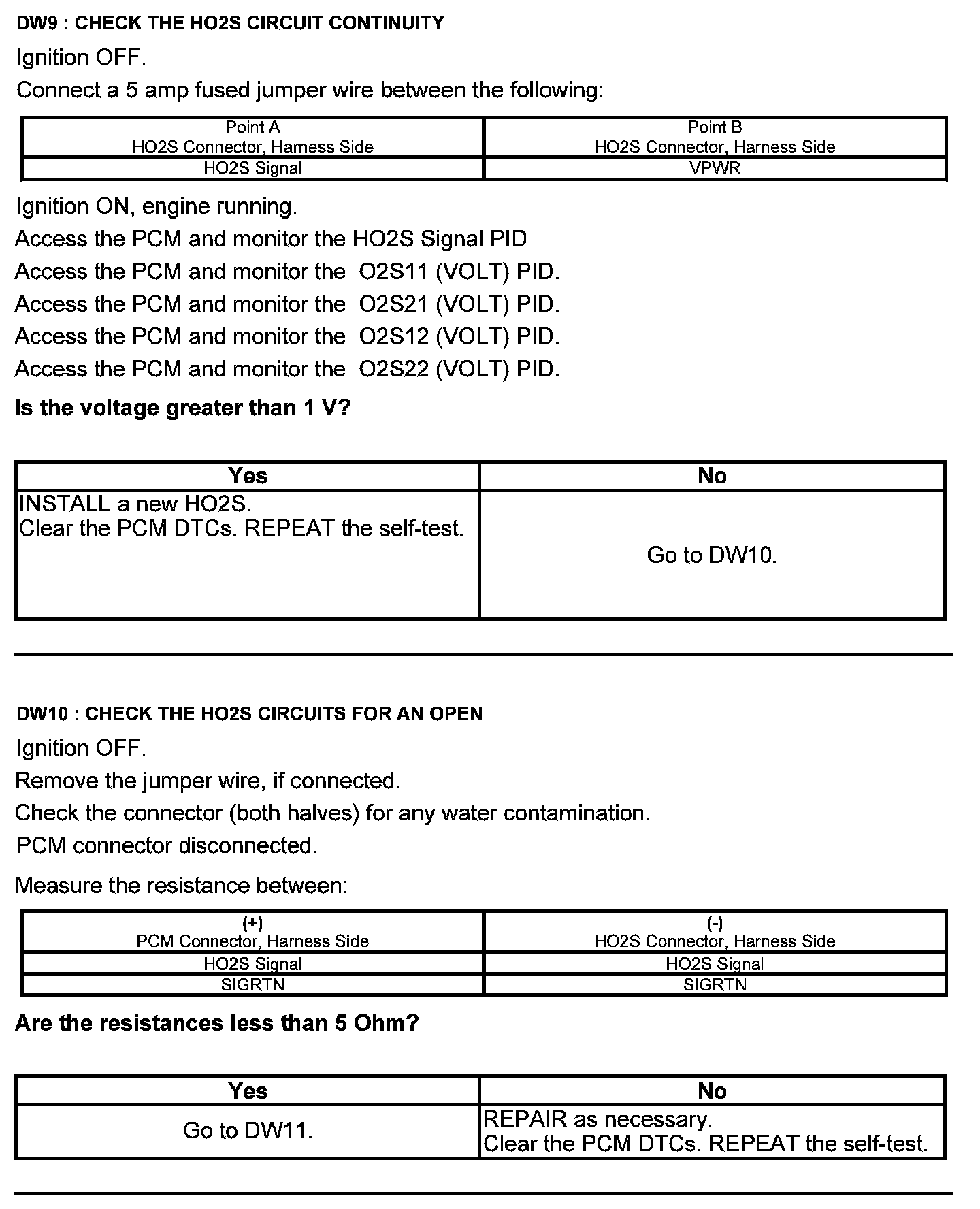

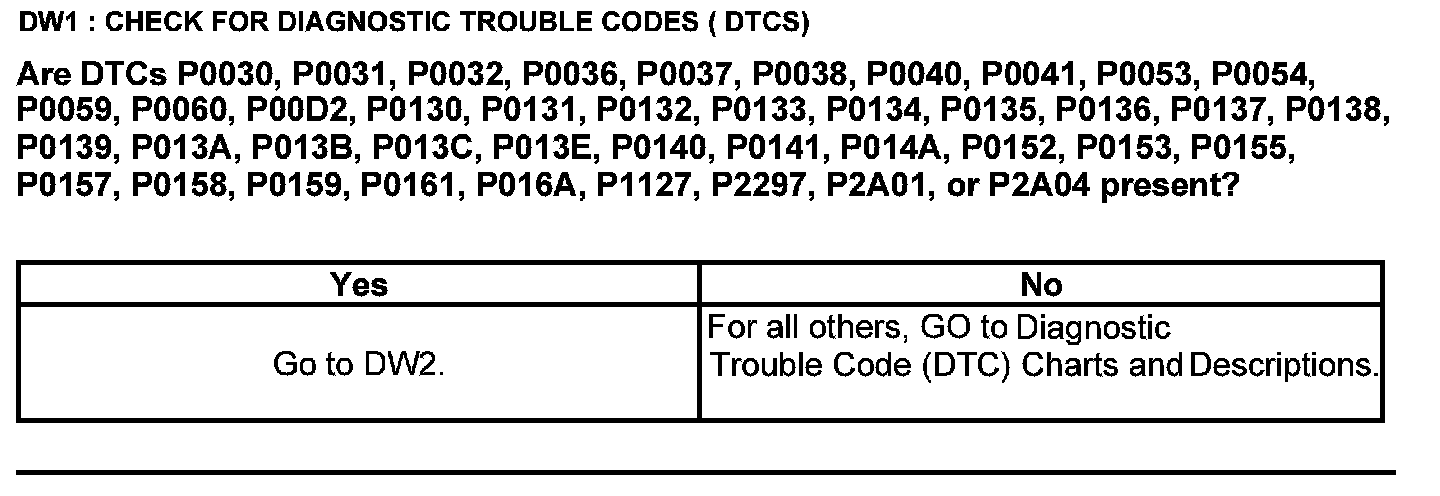

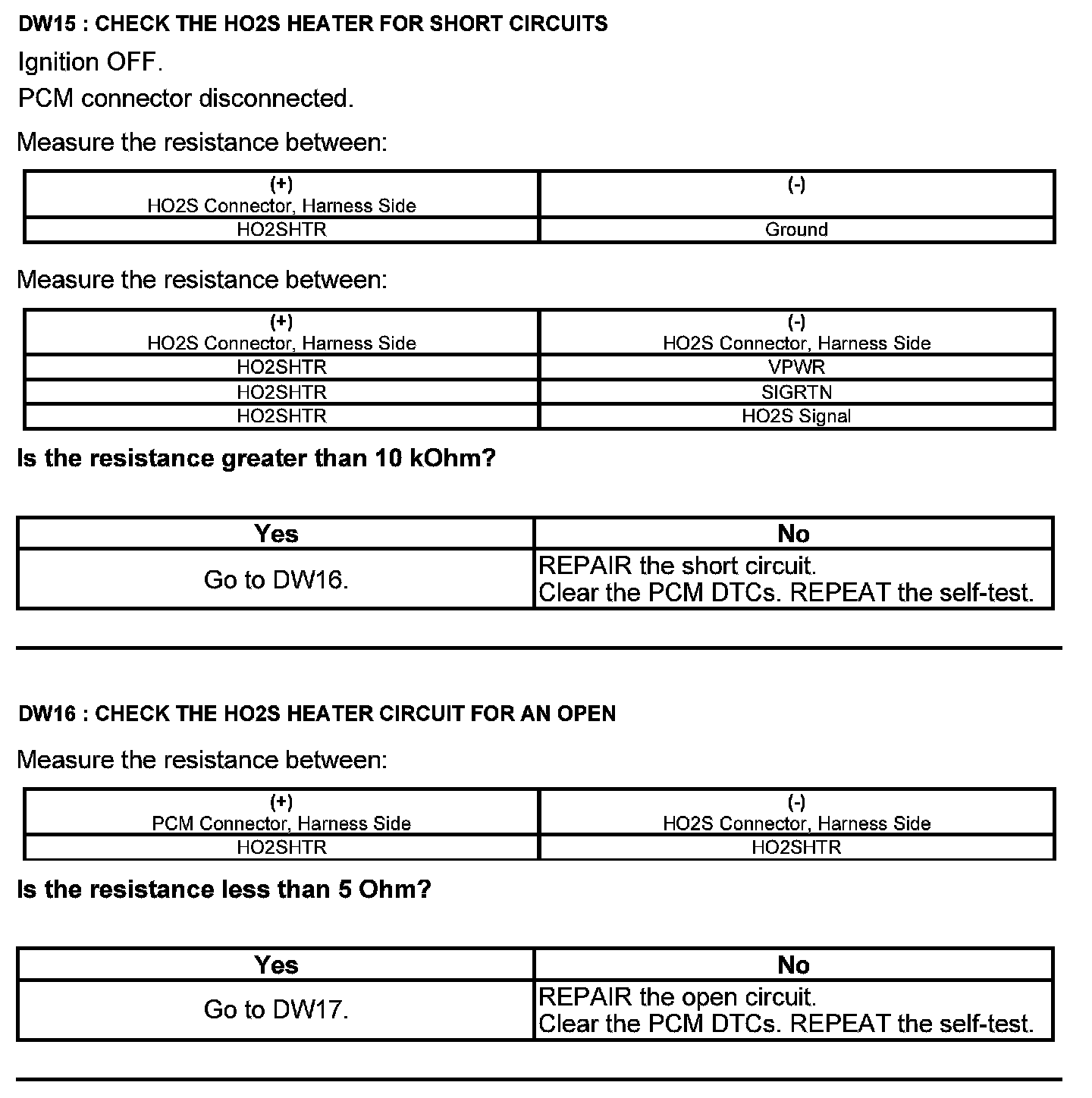

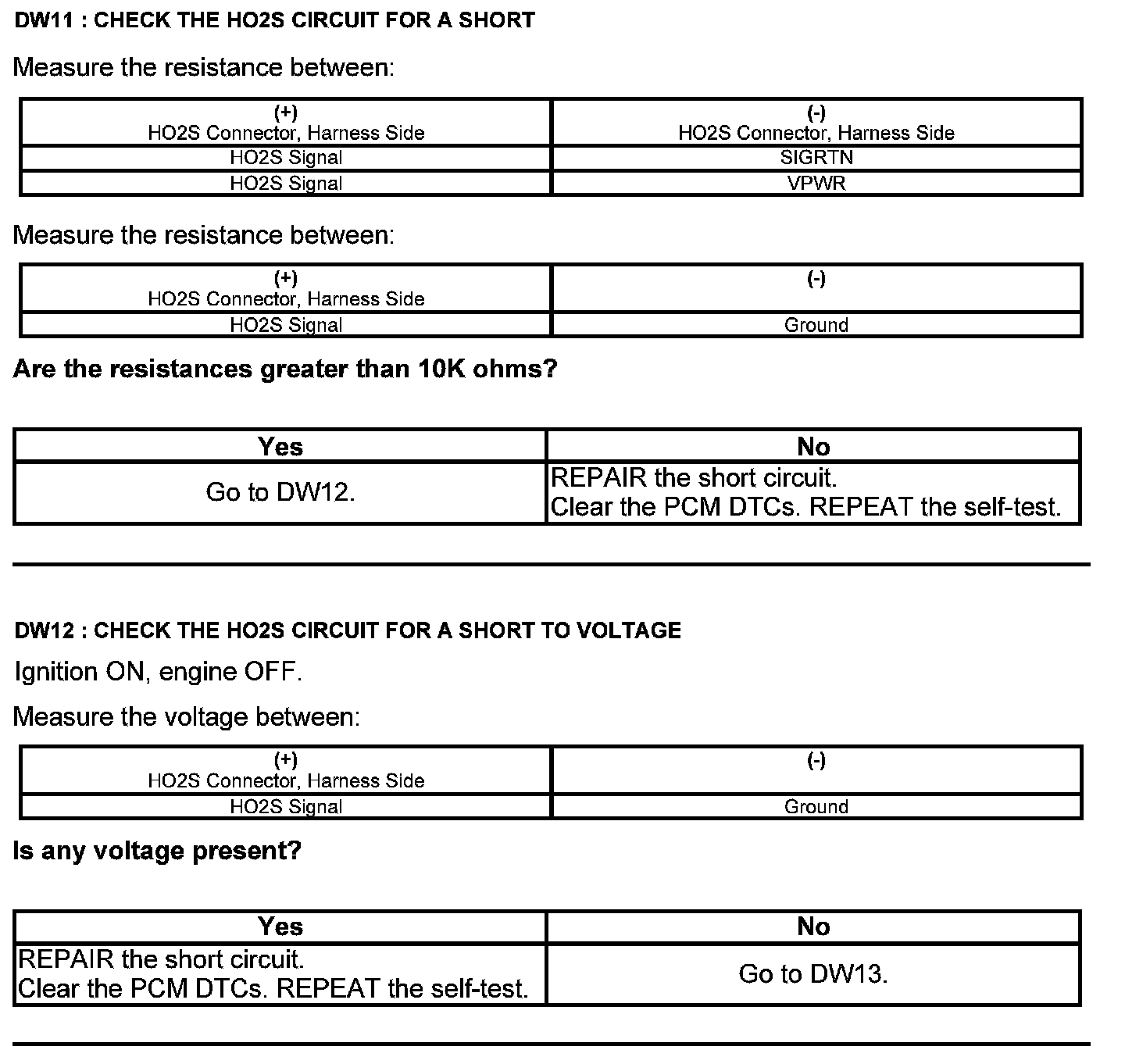

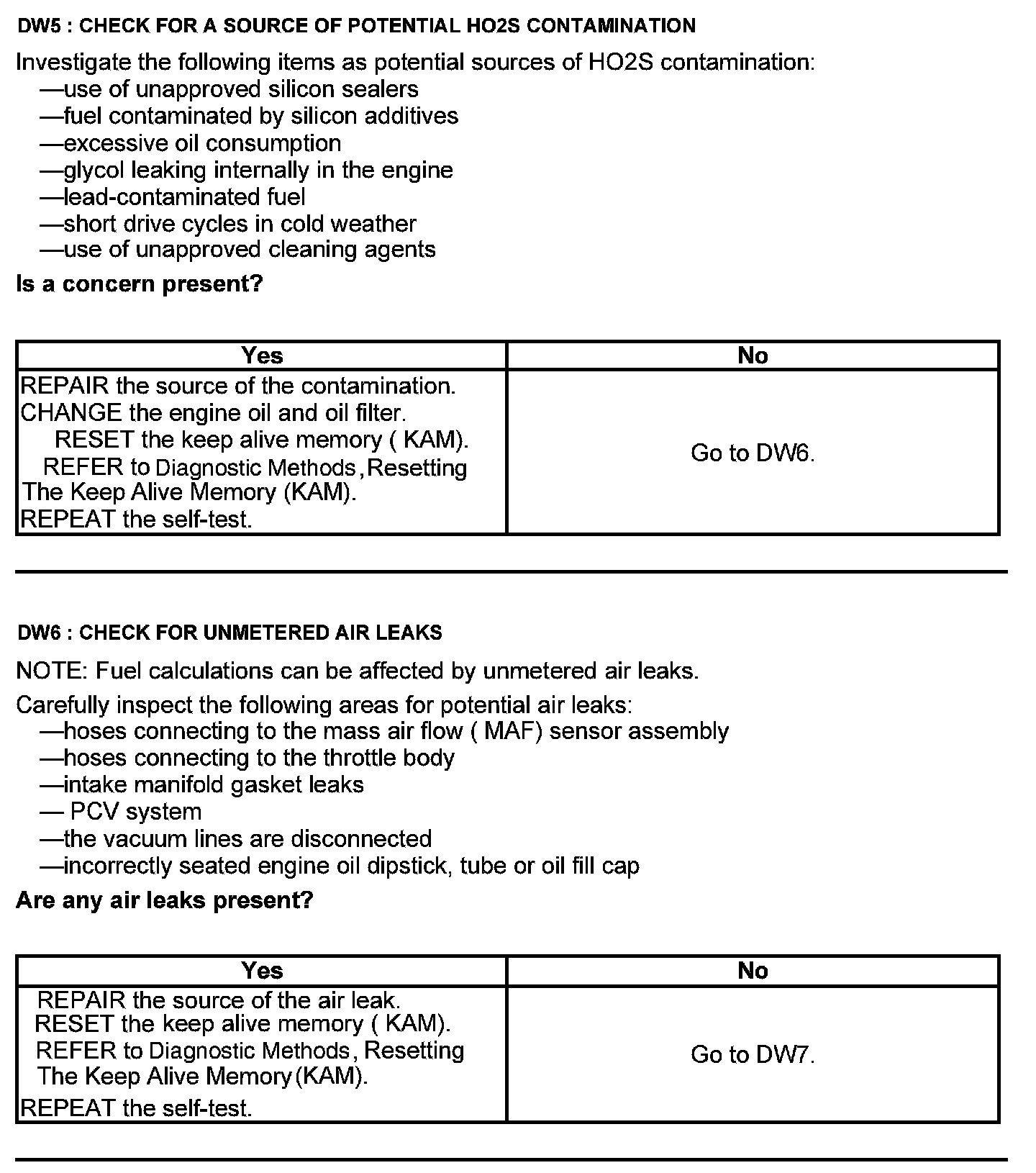

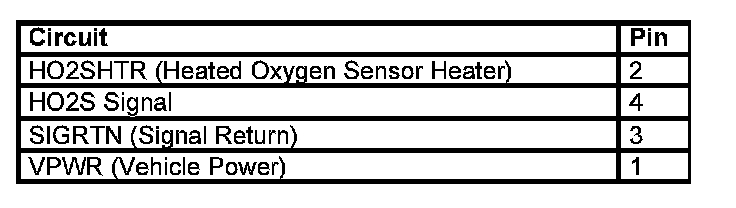

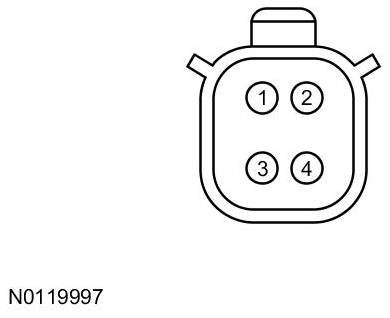

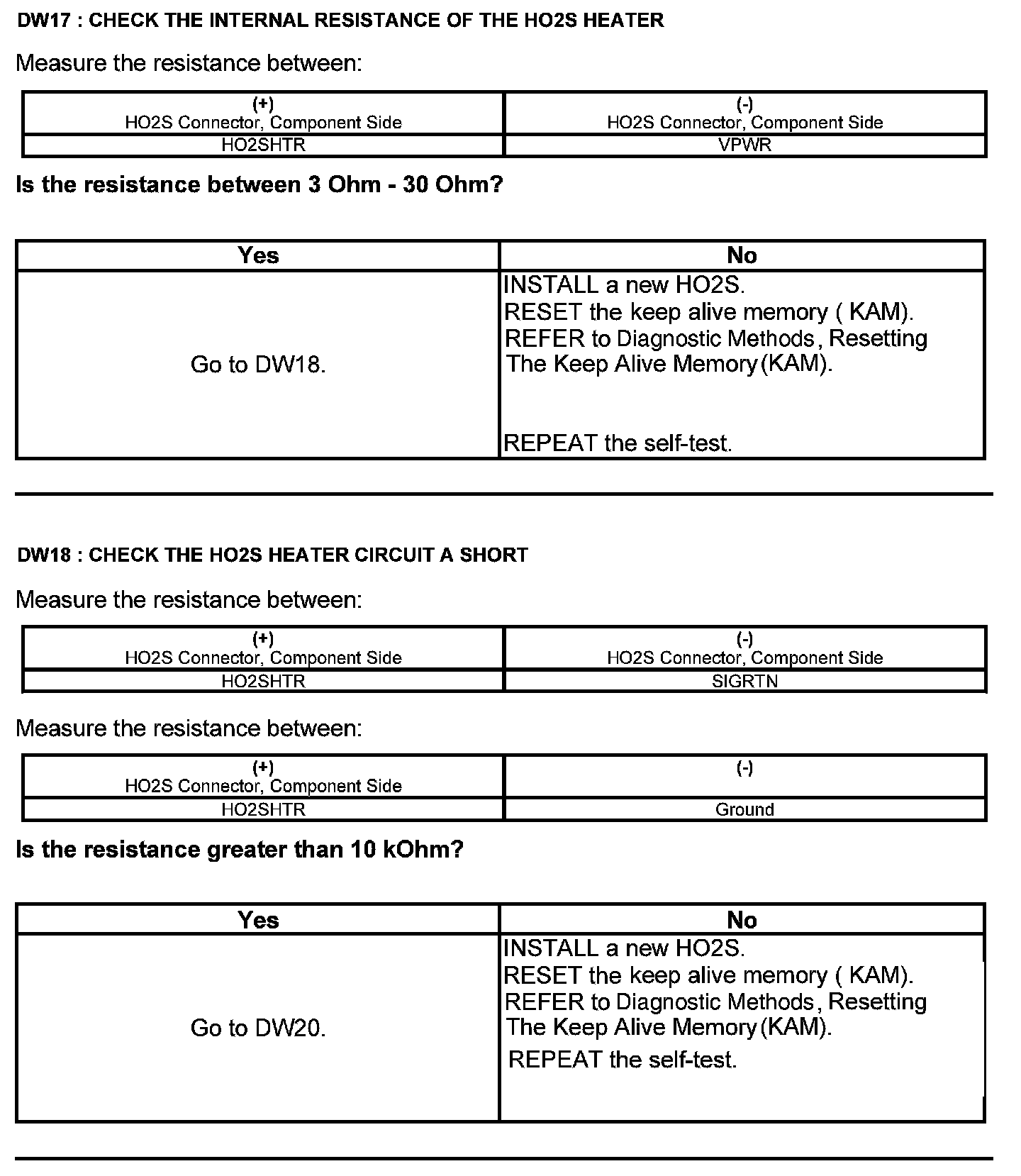

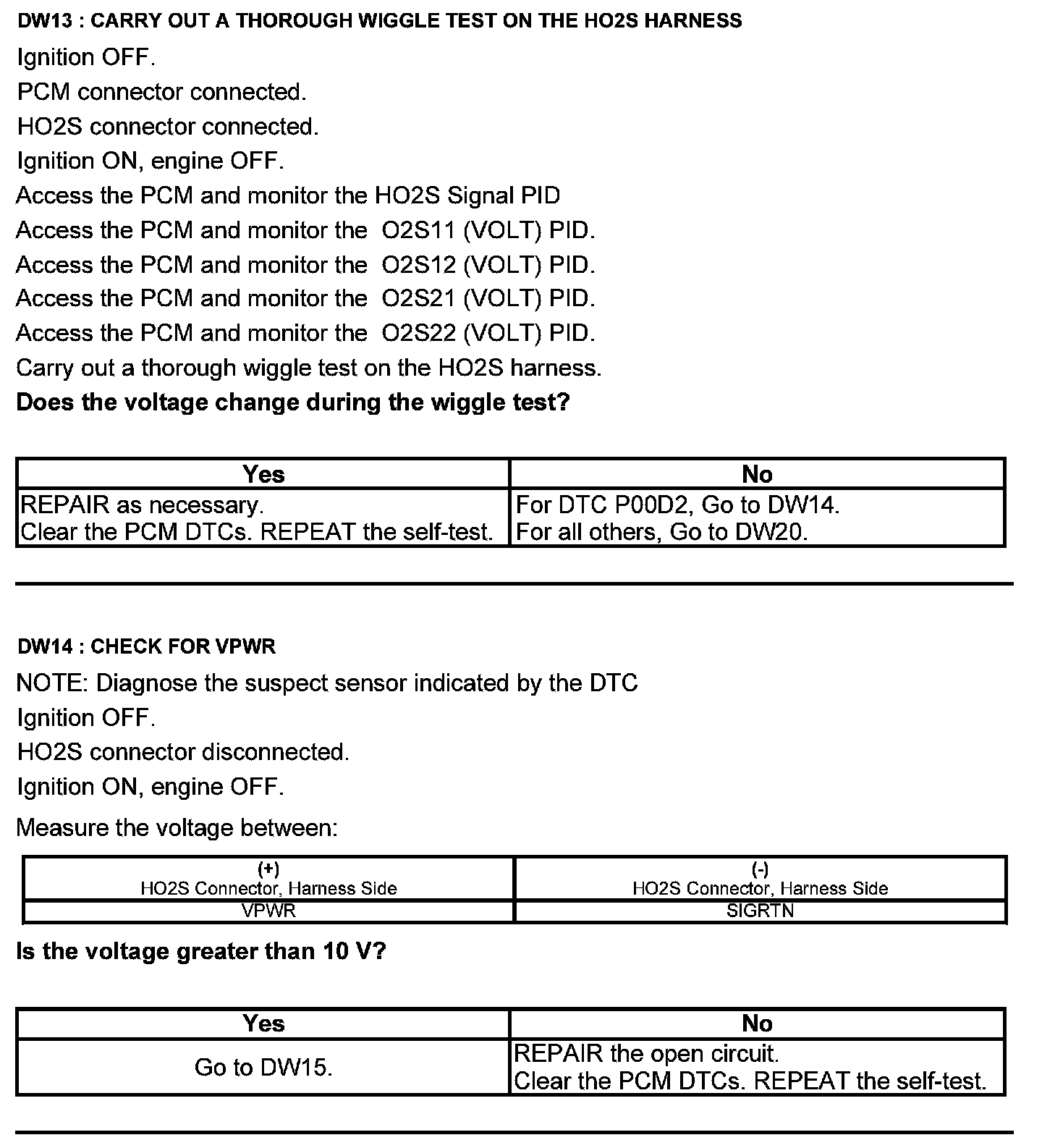

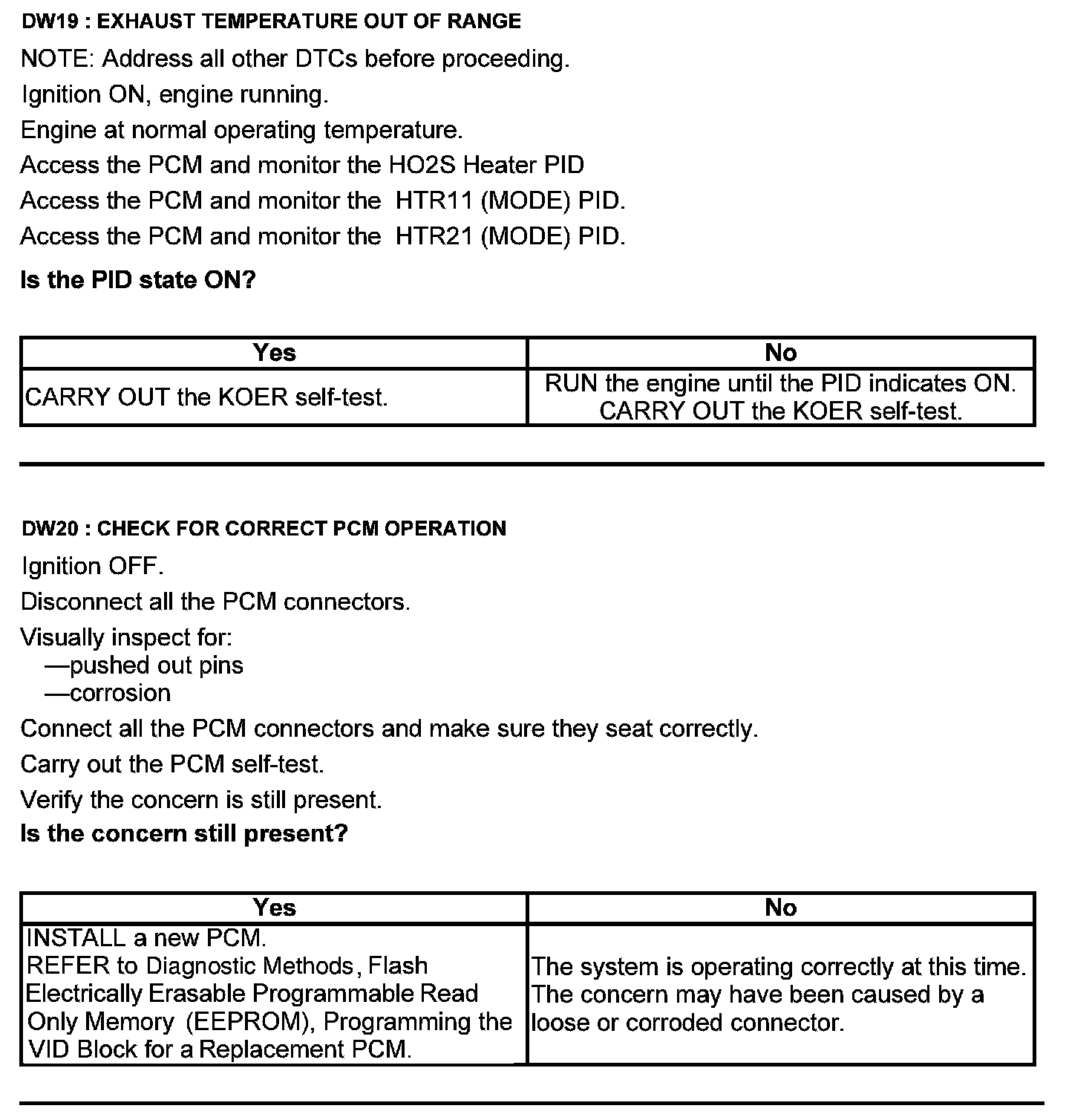

Heated Oxygen Sensor-Rear (HO2S-Rear) Connector - The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown.





Harness Side
