Home >> Ford >> 2012 >> Fusion FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DU: Intake Air Temperature 2 (IAT2) Sensor >> All Others

All Others

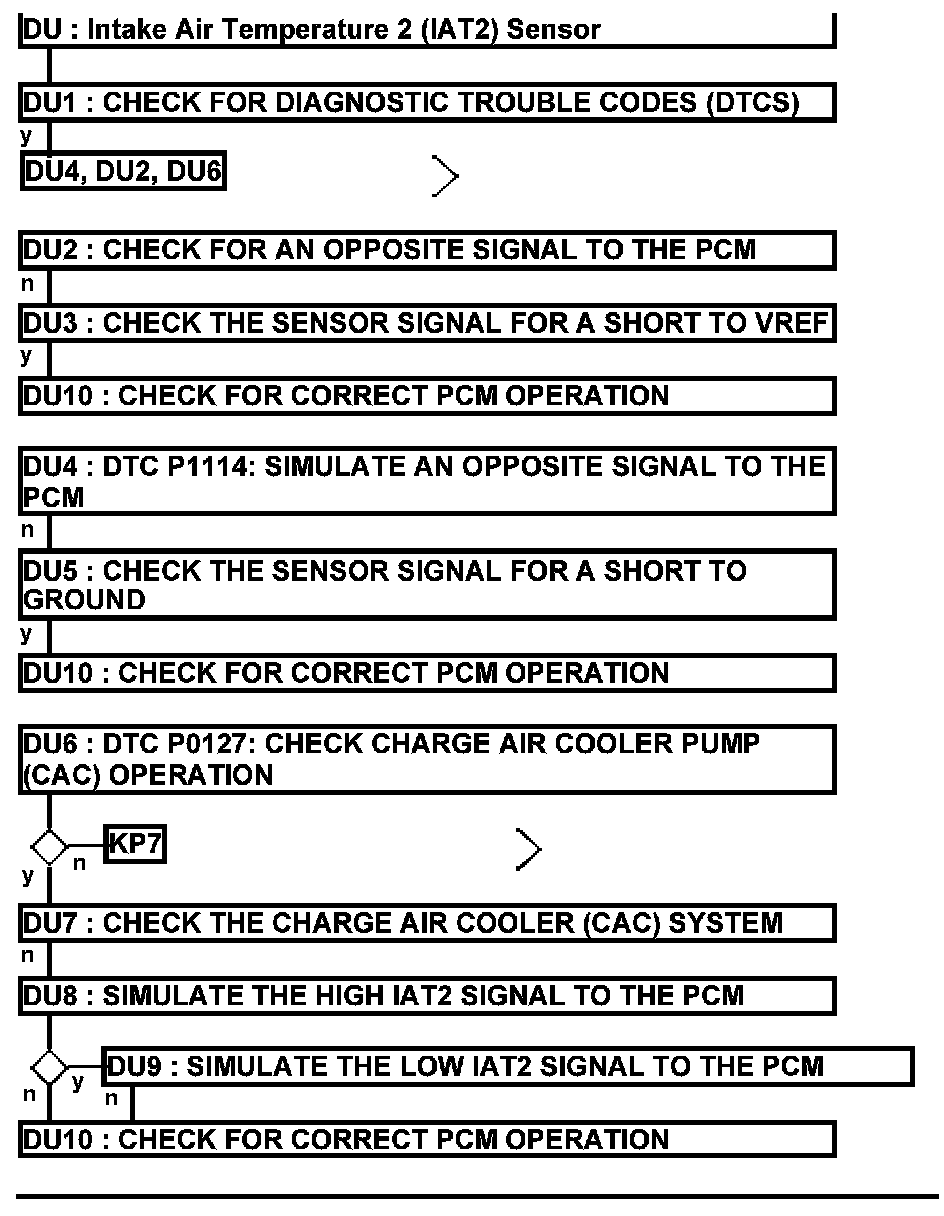

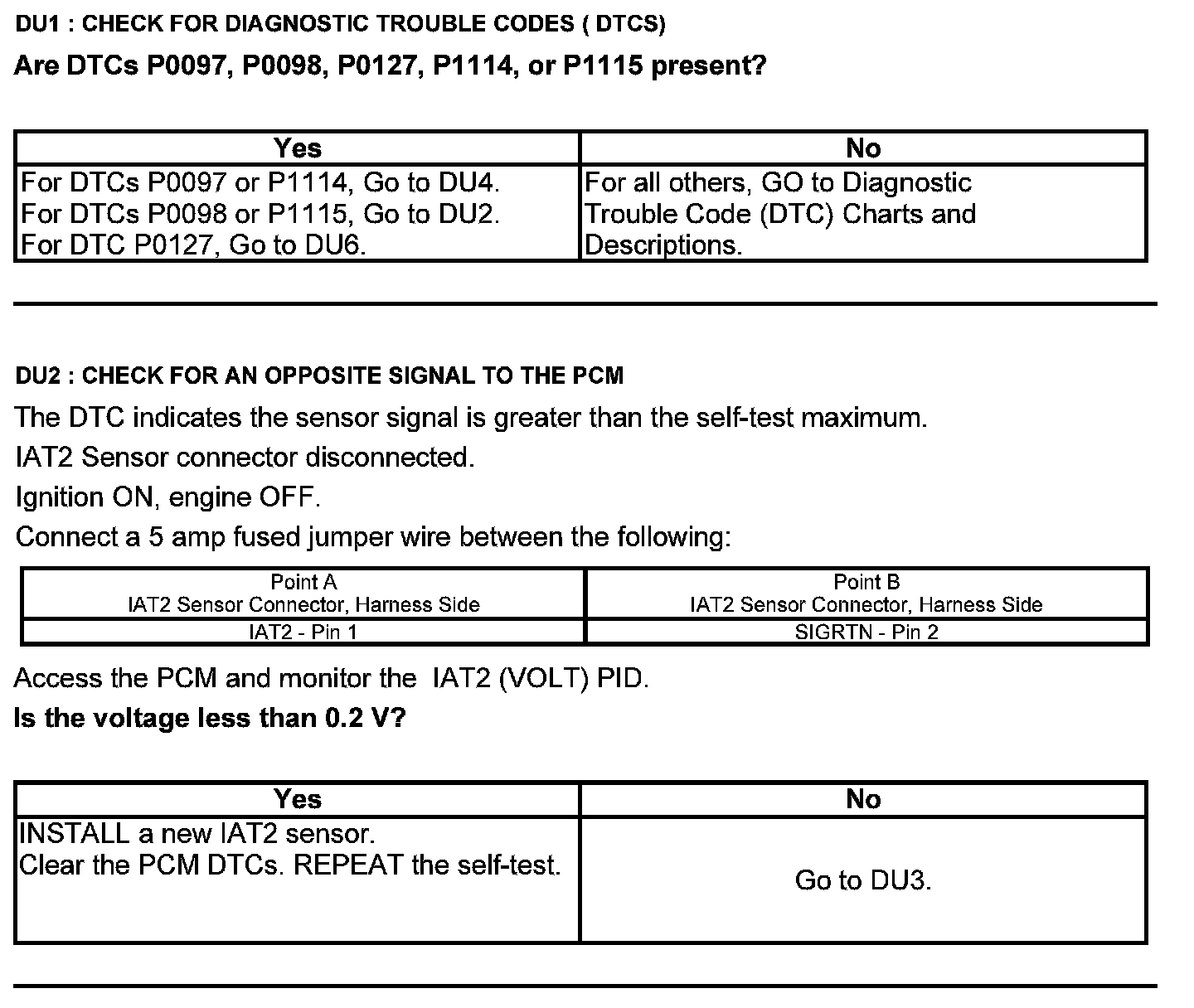

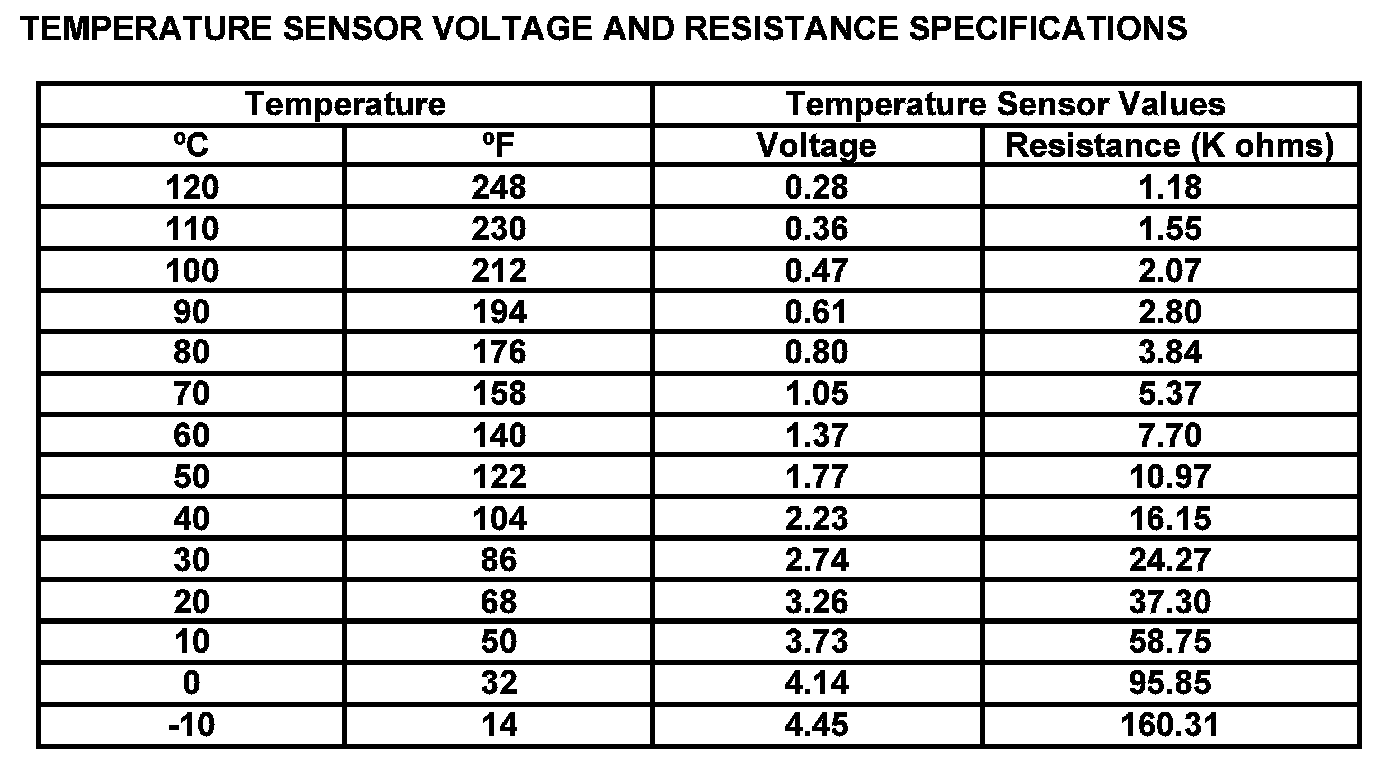

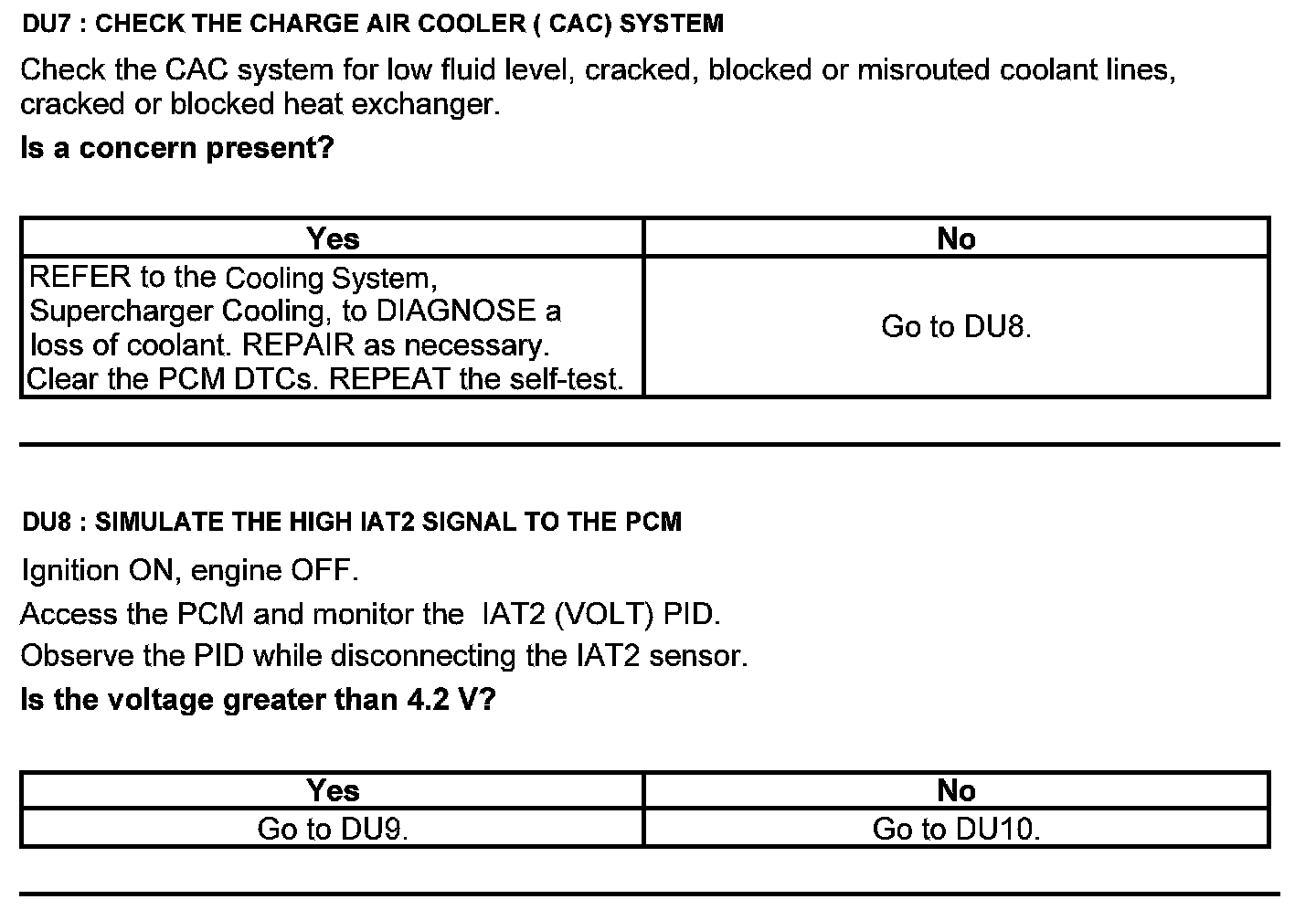

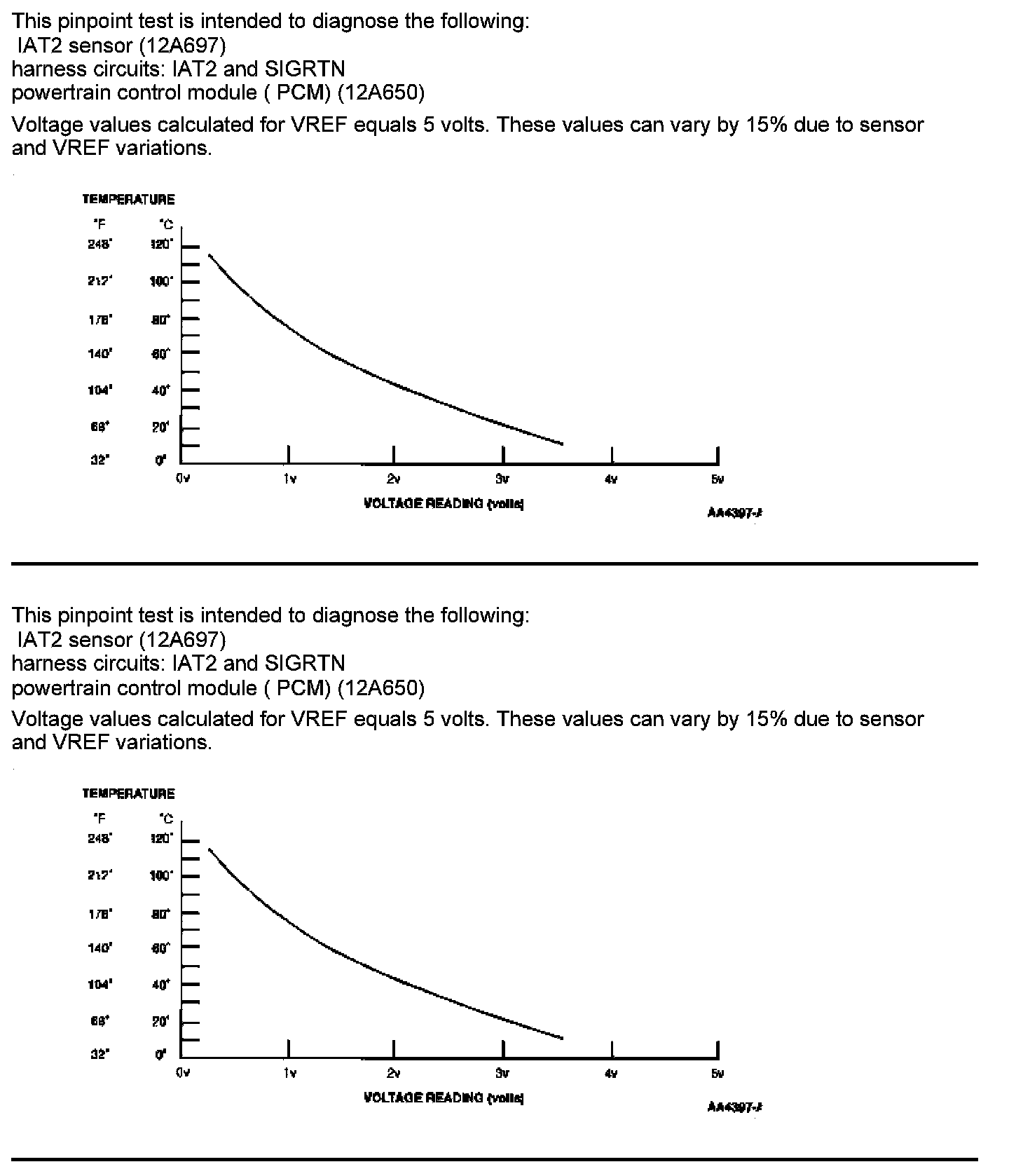

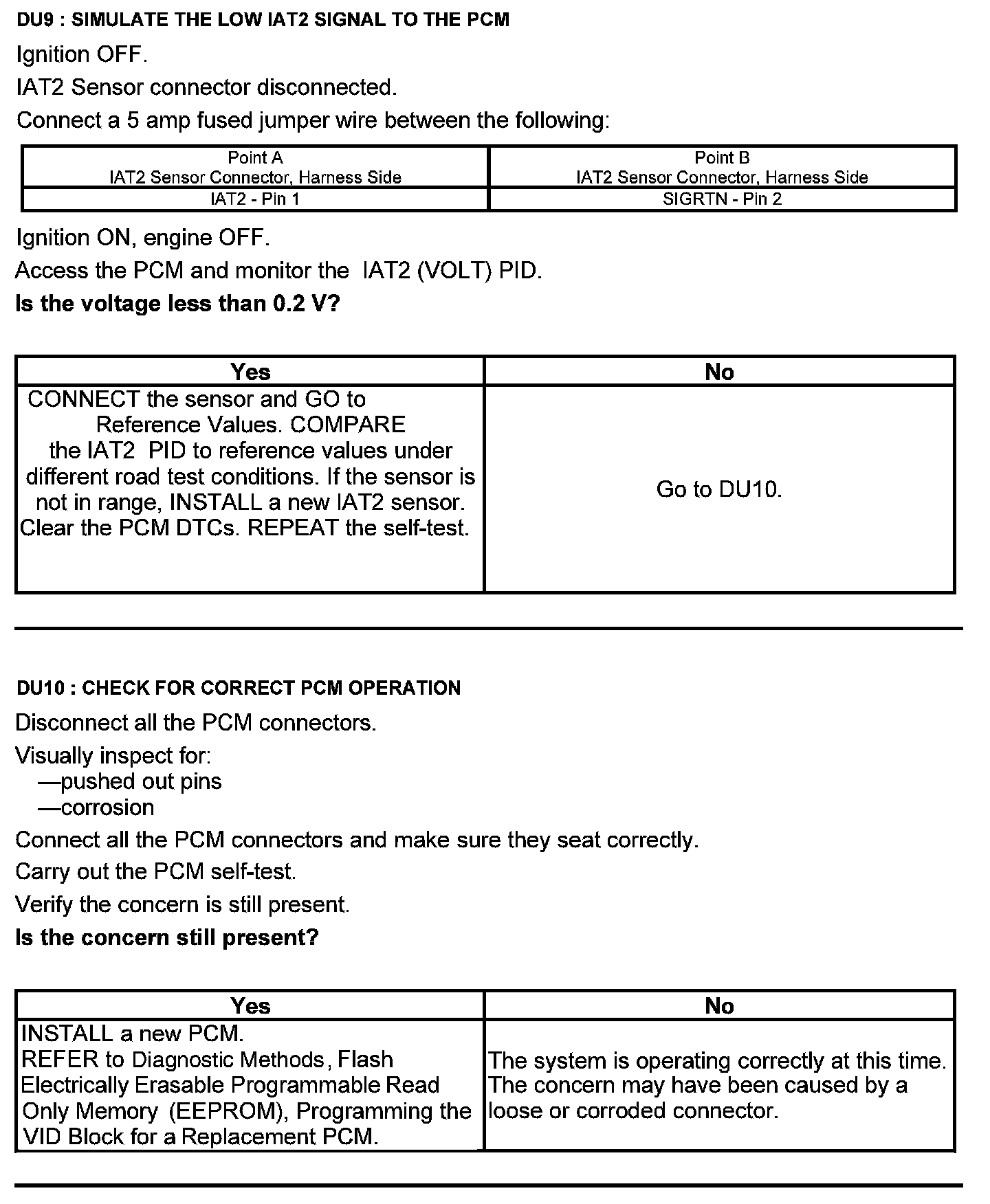

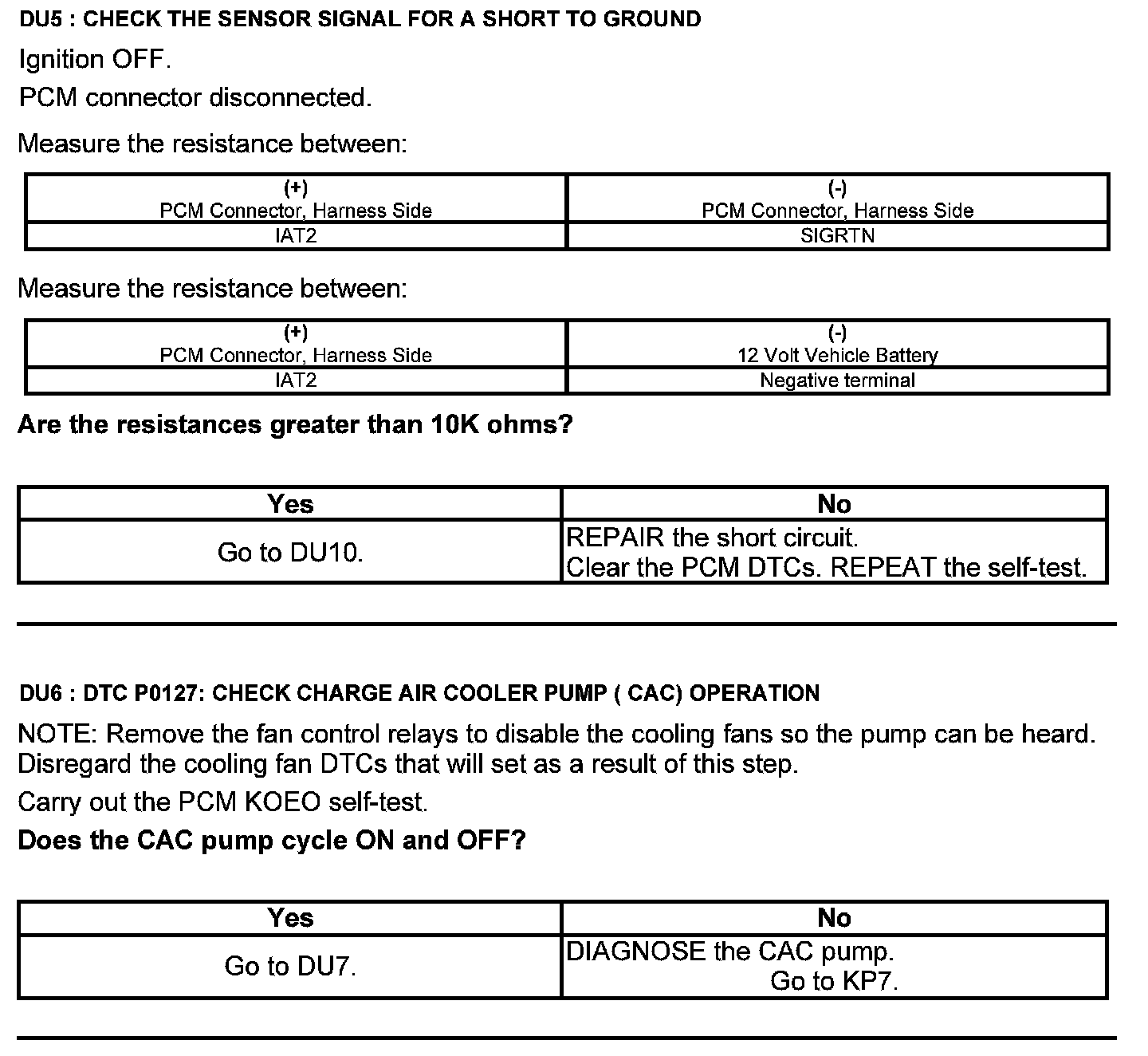

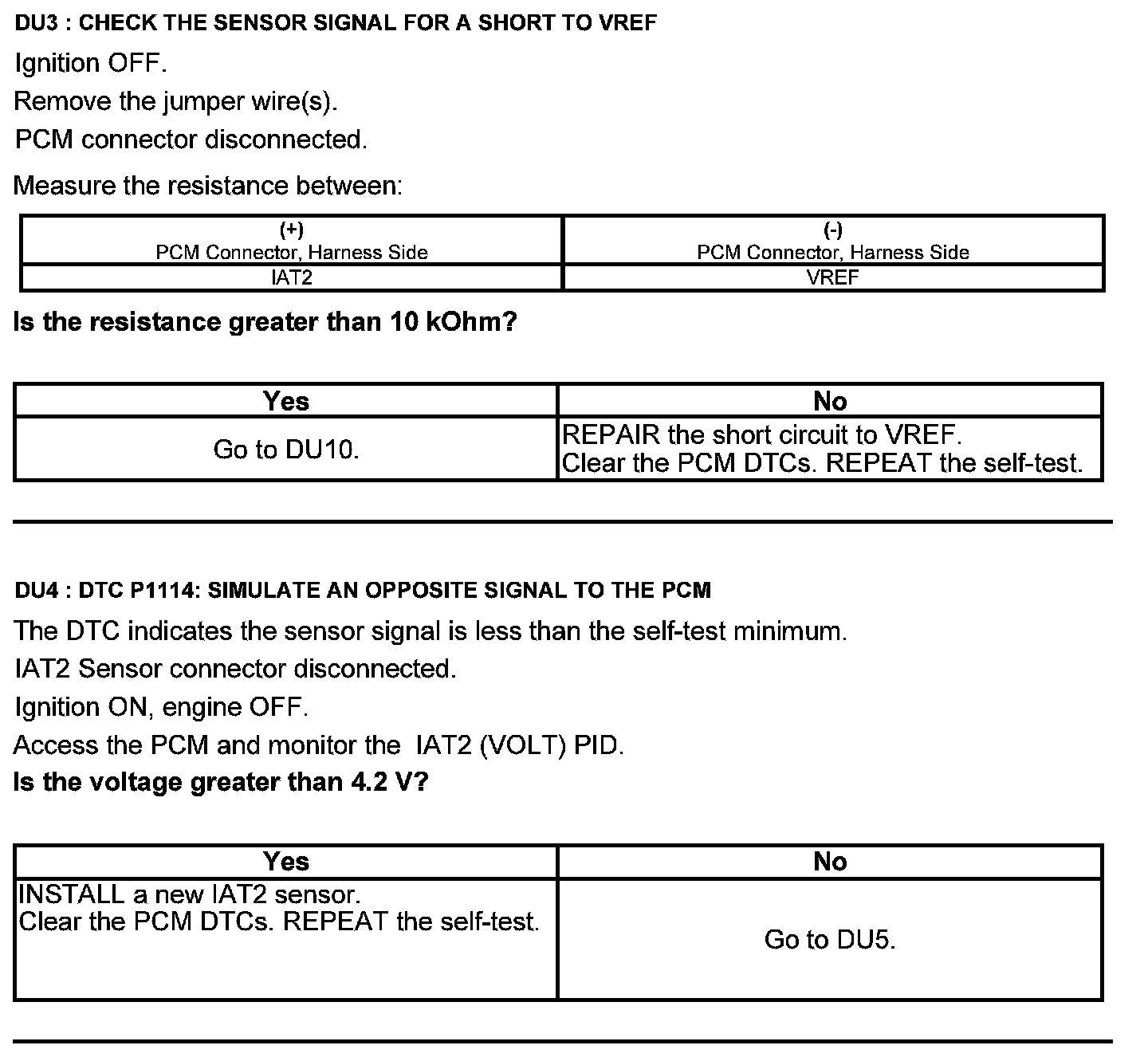

Intake Air Temperature 2 (IAT2) Sensor - All Others

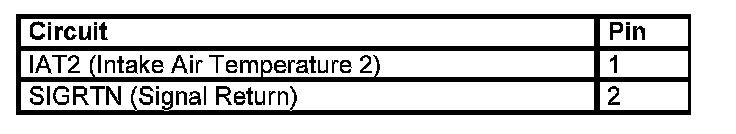

Intake Air Temperature 2 (IAT2) Sensor Connector





Harness Side
