Home >> Ford >> 2012 >> Fusion FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> Test TI: DTC P1A08: Generator Mode Signal

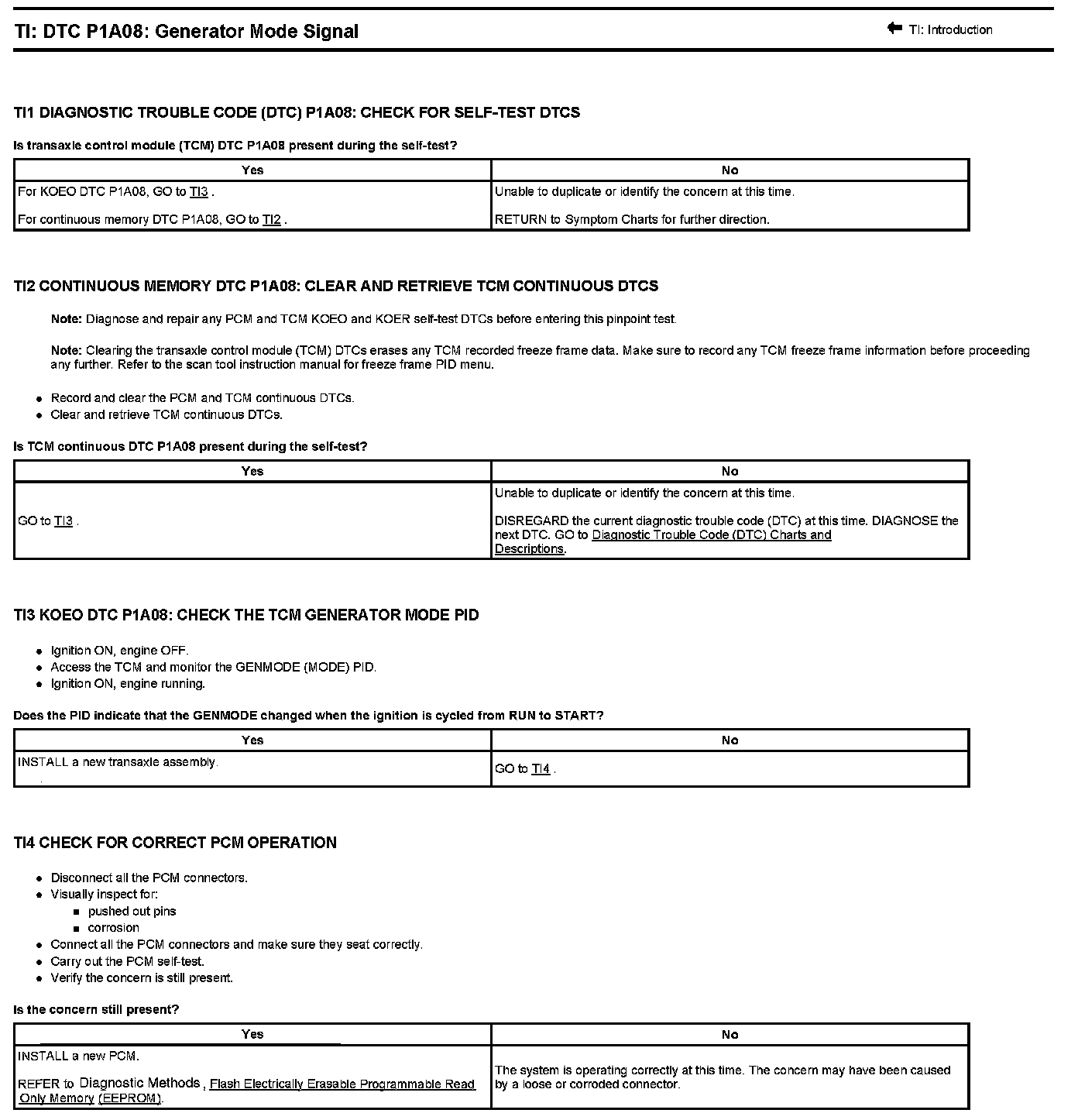

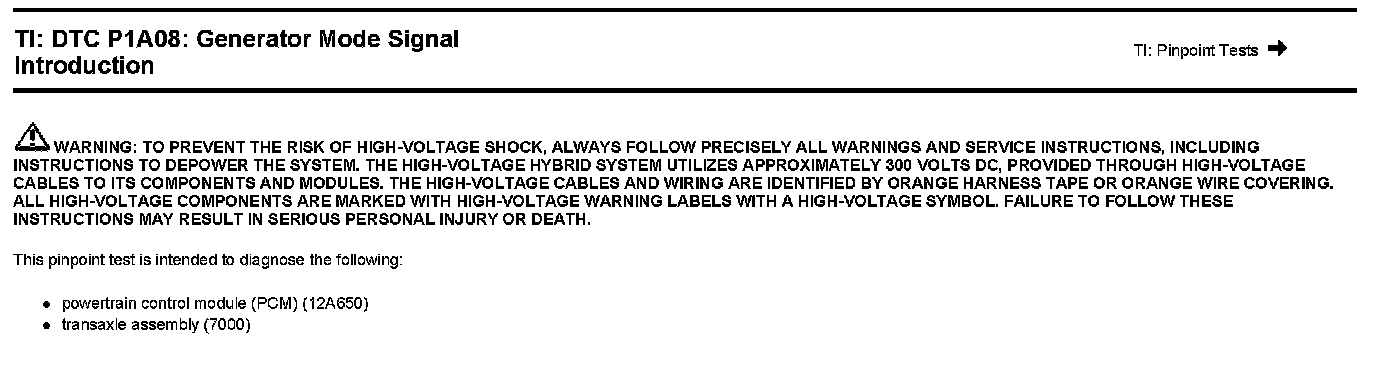

Test TI: DTC P1A08: Generator Mode Signal

TI: DTC P1A08: GENERATOR MODE SIGNAL
