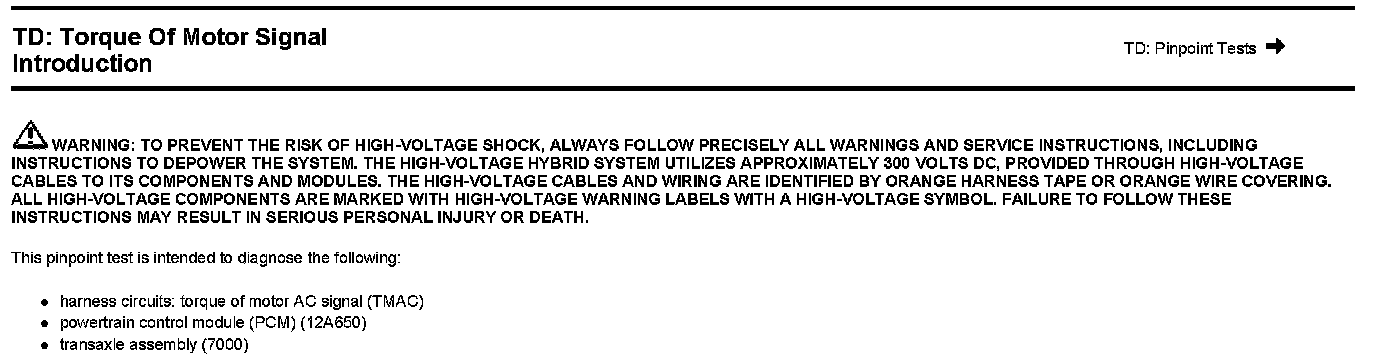

Test TD: Torque Of Motor Signal
Test TD: Torque Of Motor Signal

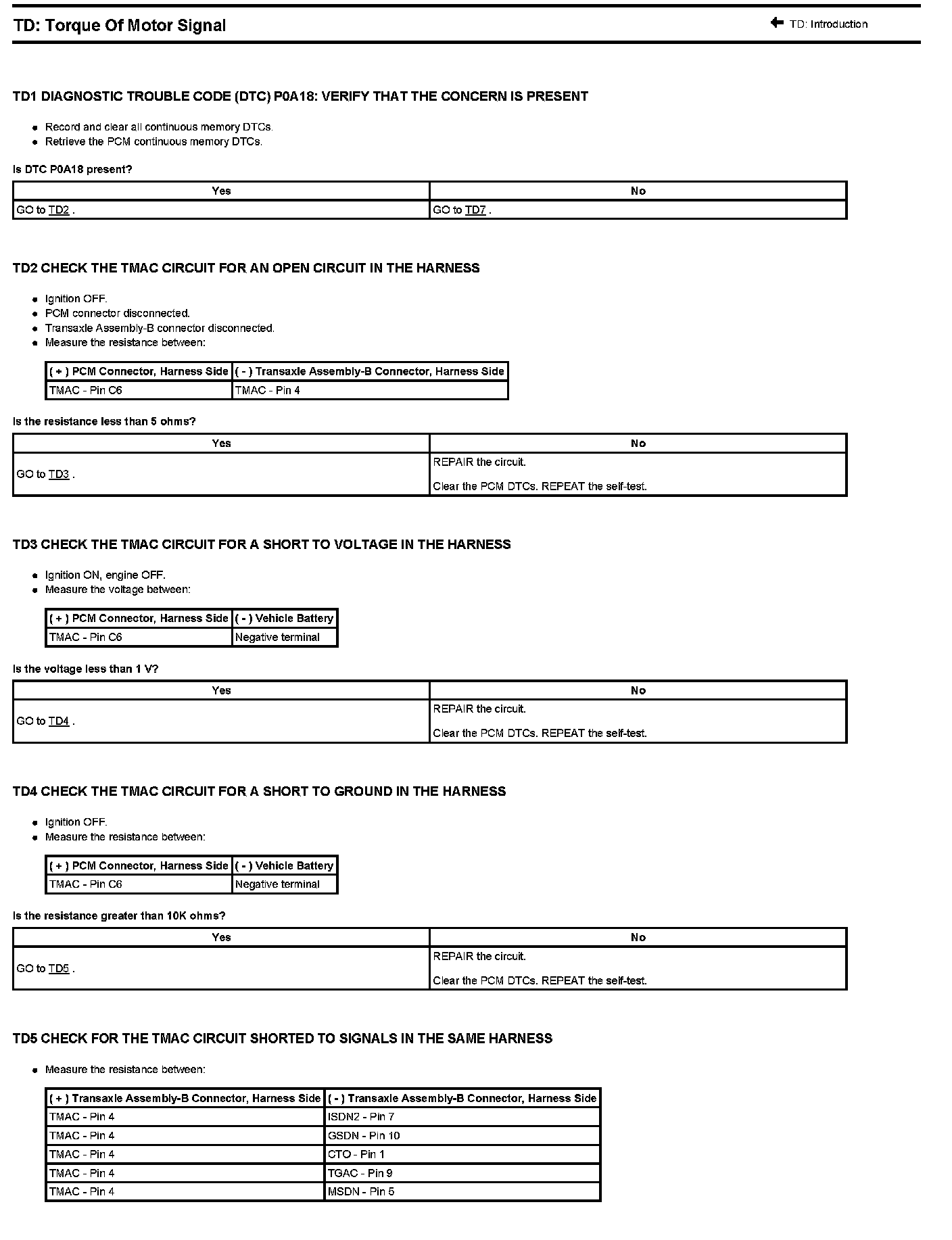

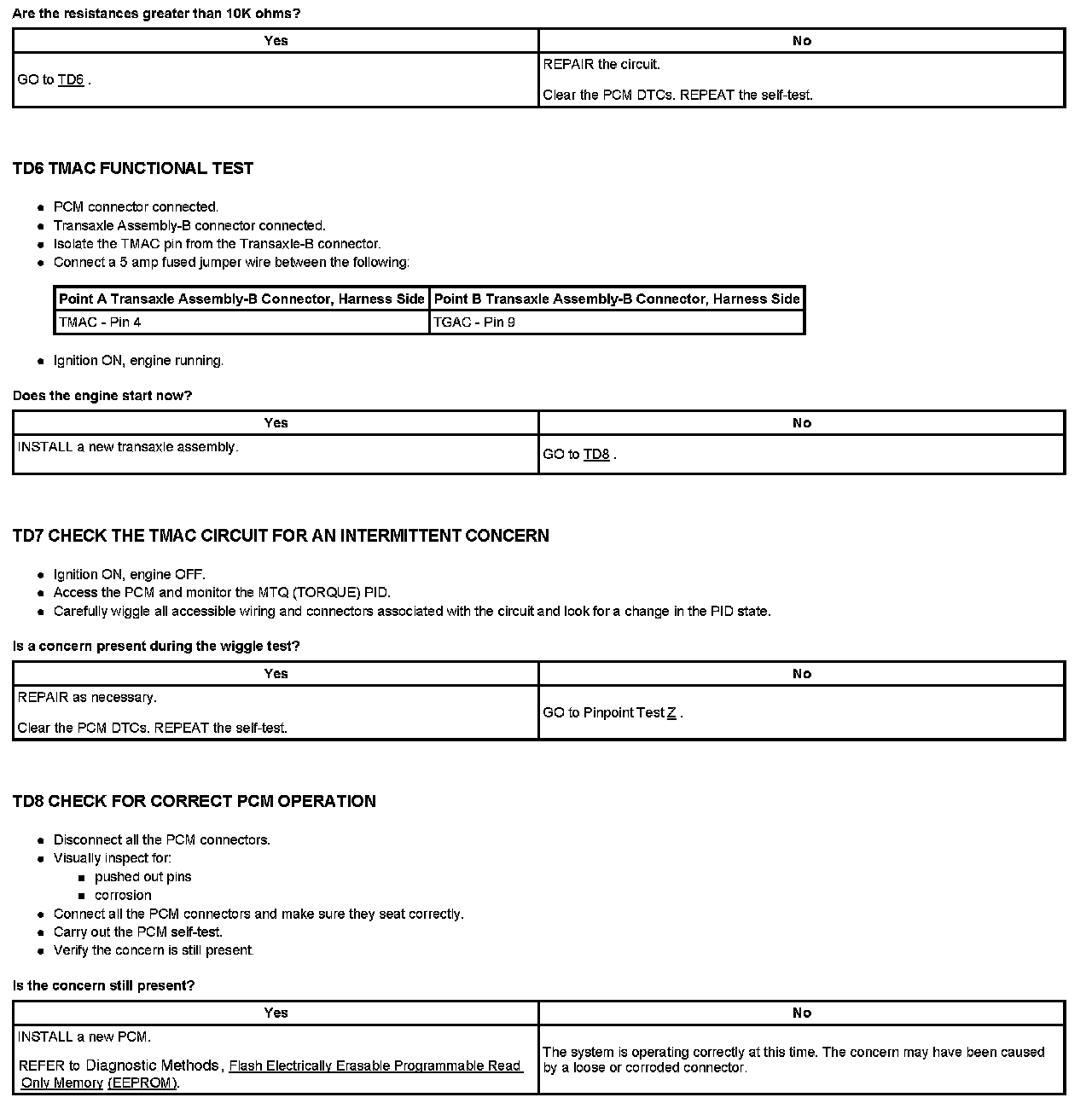

TD: TORQUE OF MOTOR SIGNAL

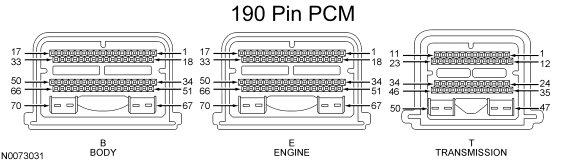

Powertrain Control Module (PCM) Connector

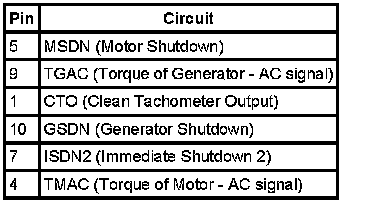

Transaxle Assembly-B Connector
