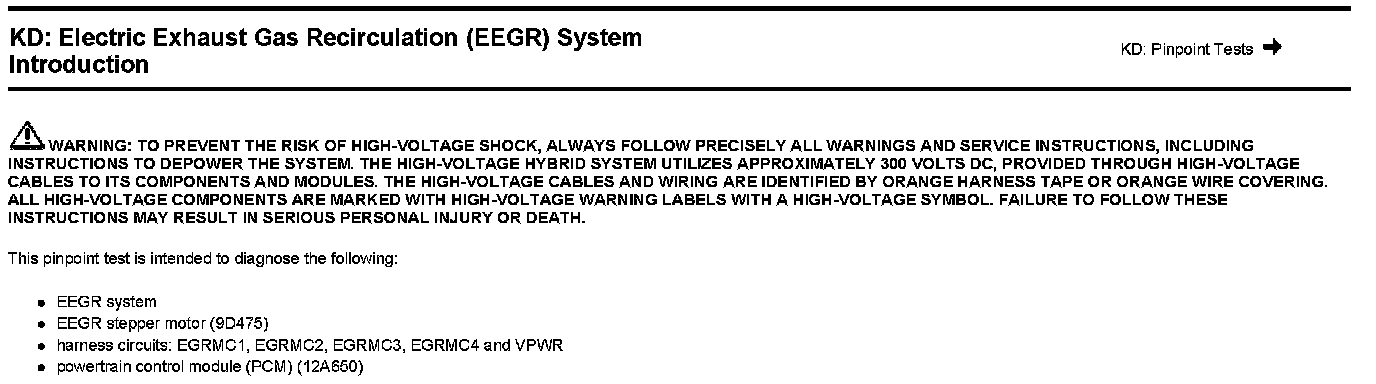

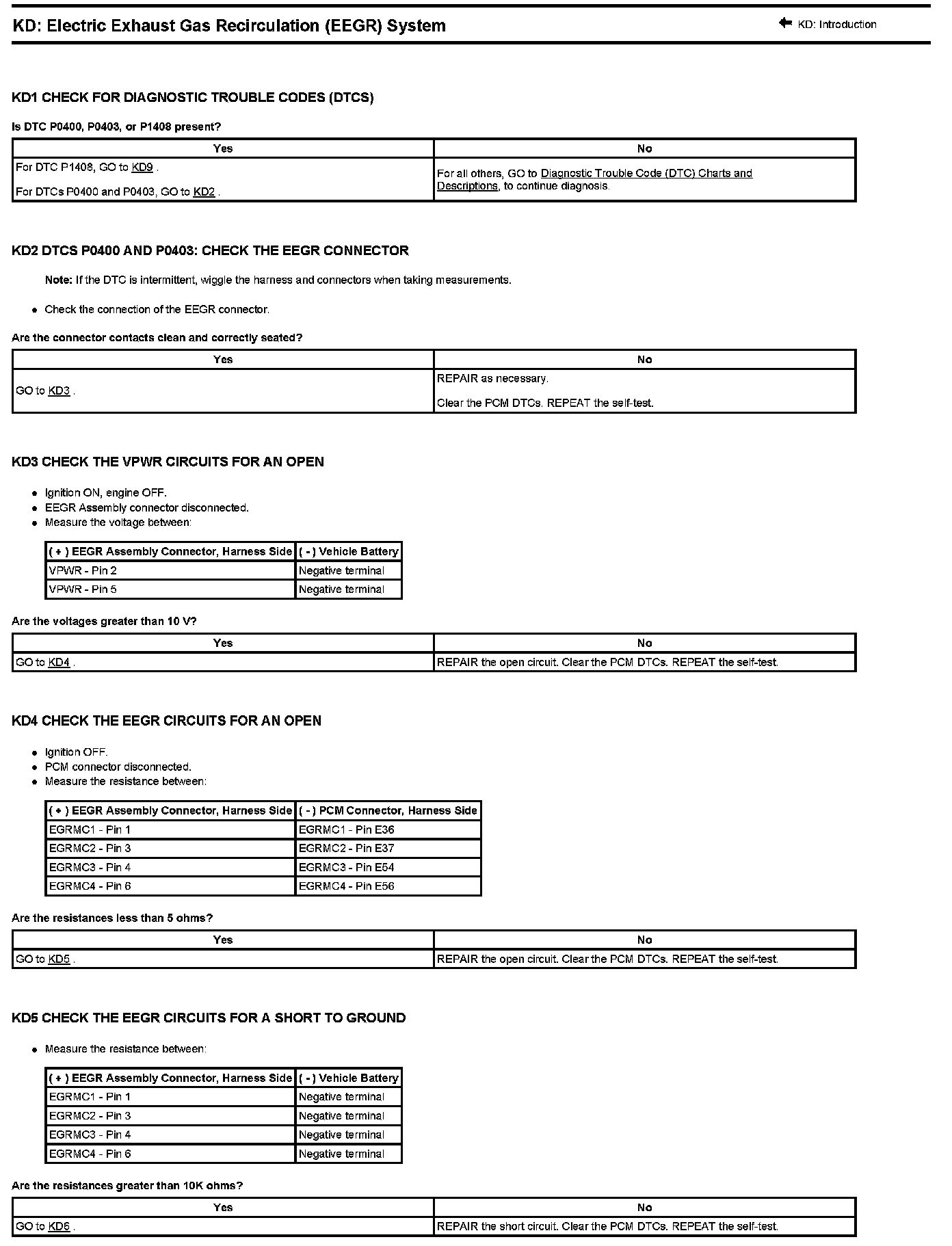

Test KD: Electric Exhaust Gas Recirculation (EEGR) System

KD: ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) SYSTEM

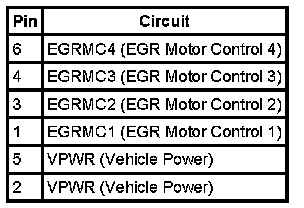

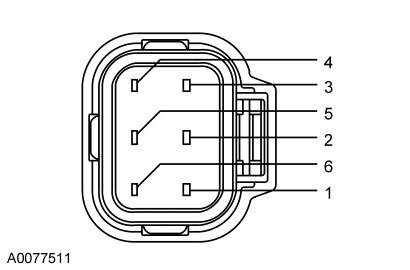

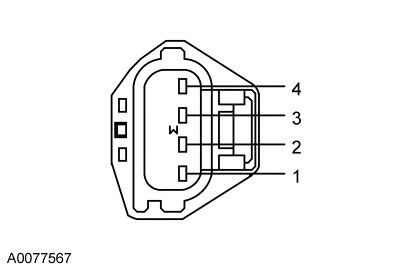

Electric Exhaust Gas Recirculation (EEGR) Assembly Connector

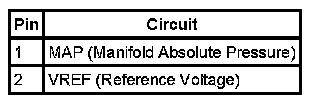

Manifold Absolute Pressure (MAP) Sensor Connector

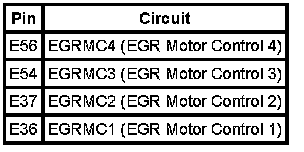

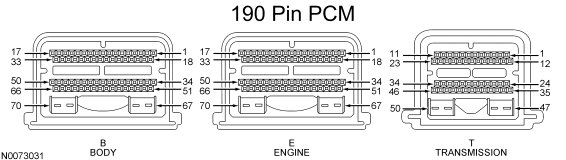

Powertrain Control Module (PCM) Connector
