Test DG: Knock Sensor (KS)

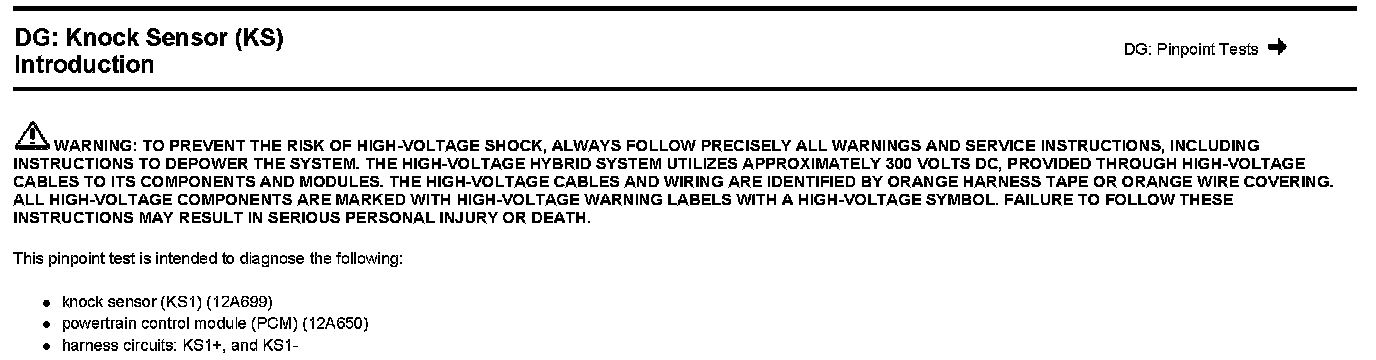

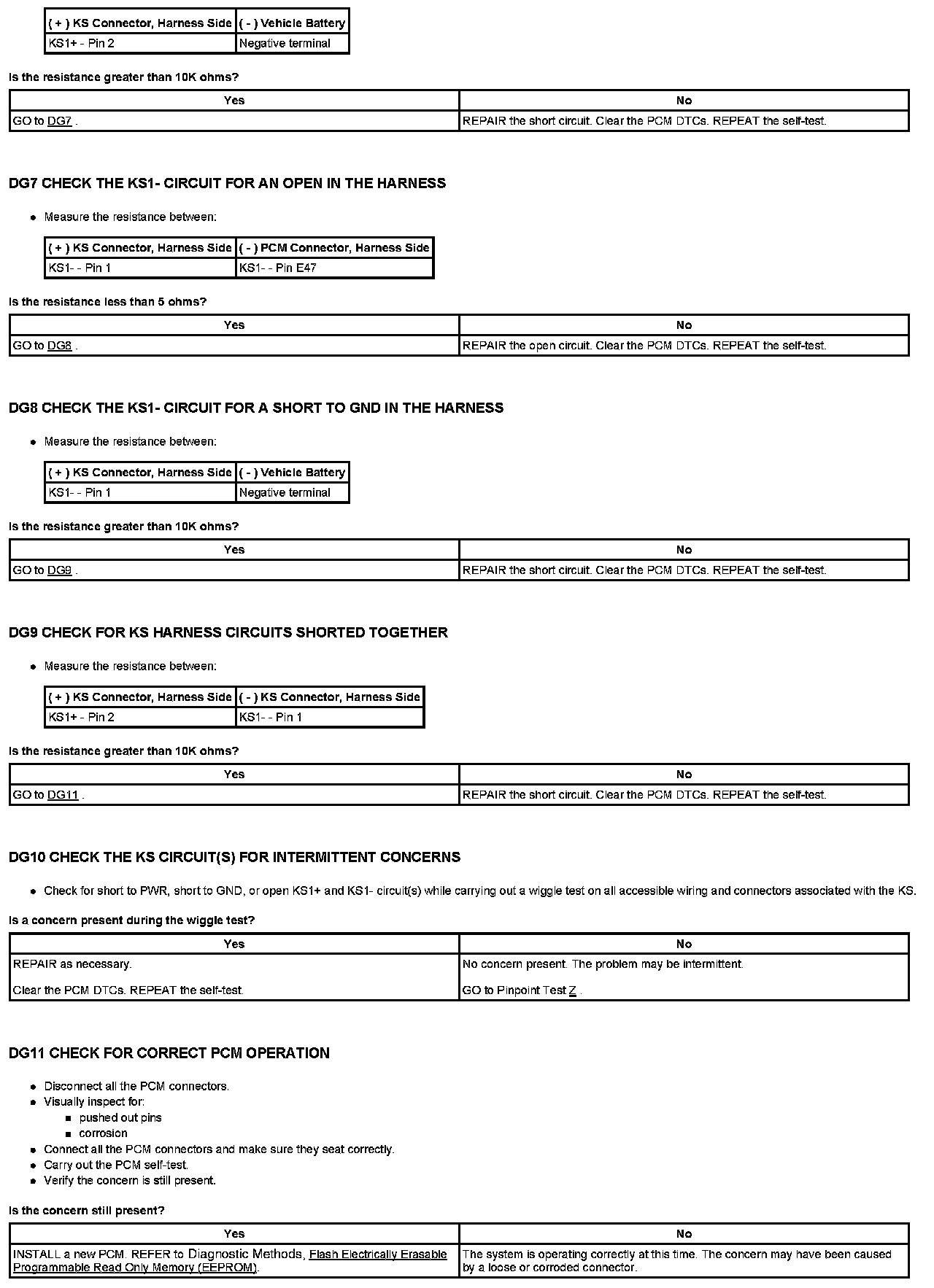

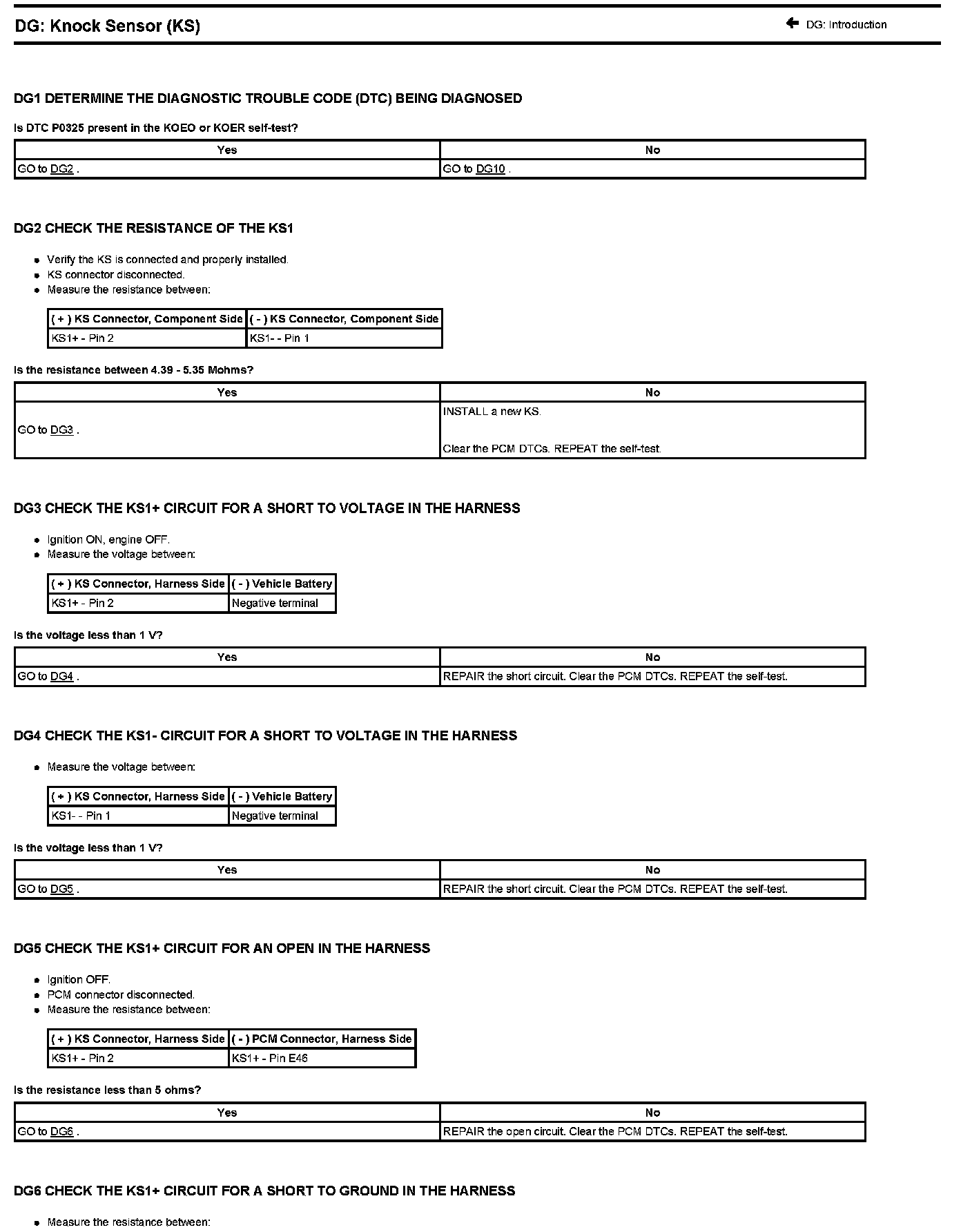

DG: KNOCK SENSOR (KS)







Knock Sensor (KS) Connector

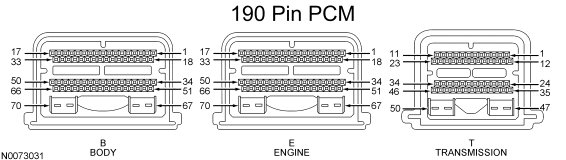

Powertrain Control Module (PCM) Connector
