Engine Lubrication




Engine Lubrication Components - Exploded View

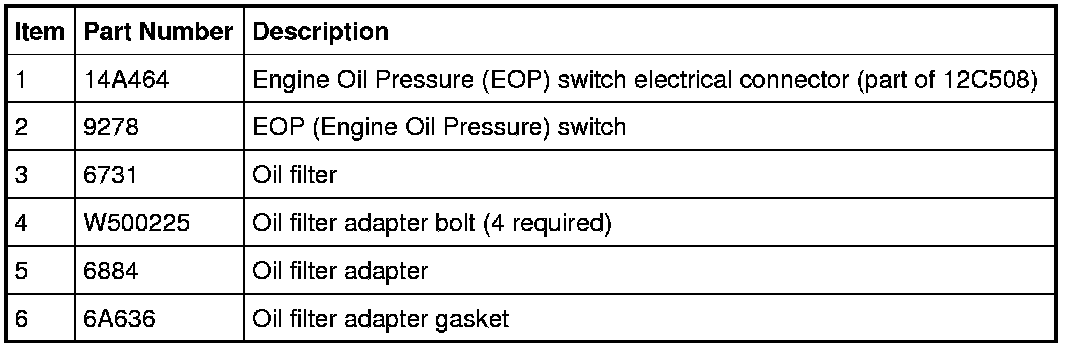

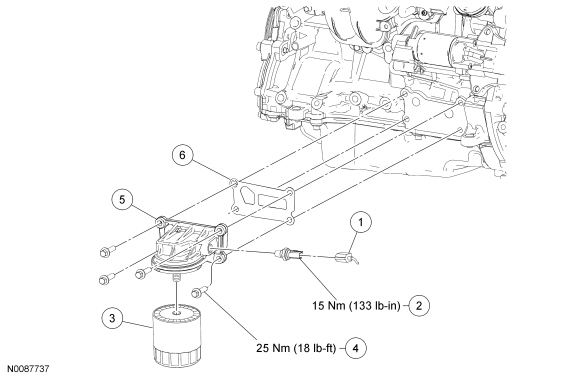

Oil Filter Adapter, Oil Filter and Engine Oil Pressure (EOP) Switch

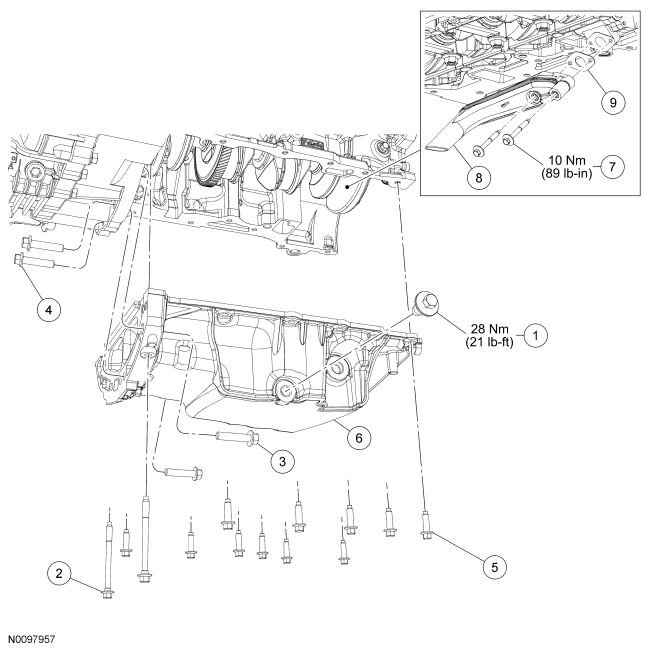

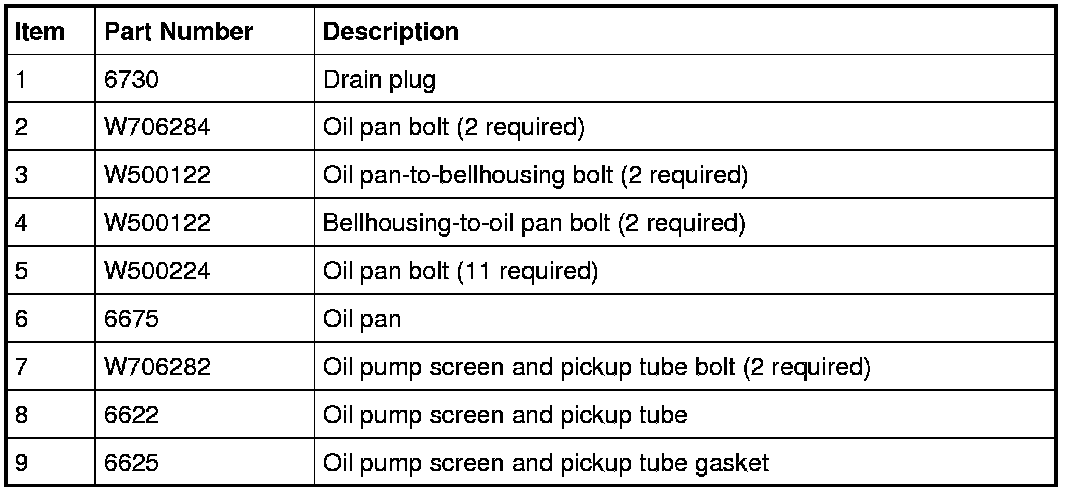

Oil Pan, Oil Pump Screen and Pickup Tube

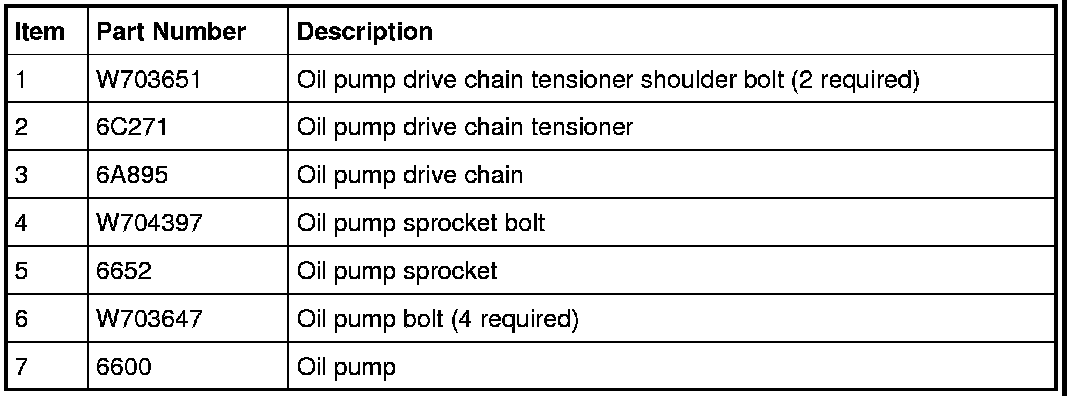

Oil Pump
