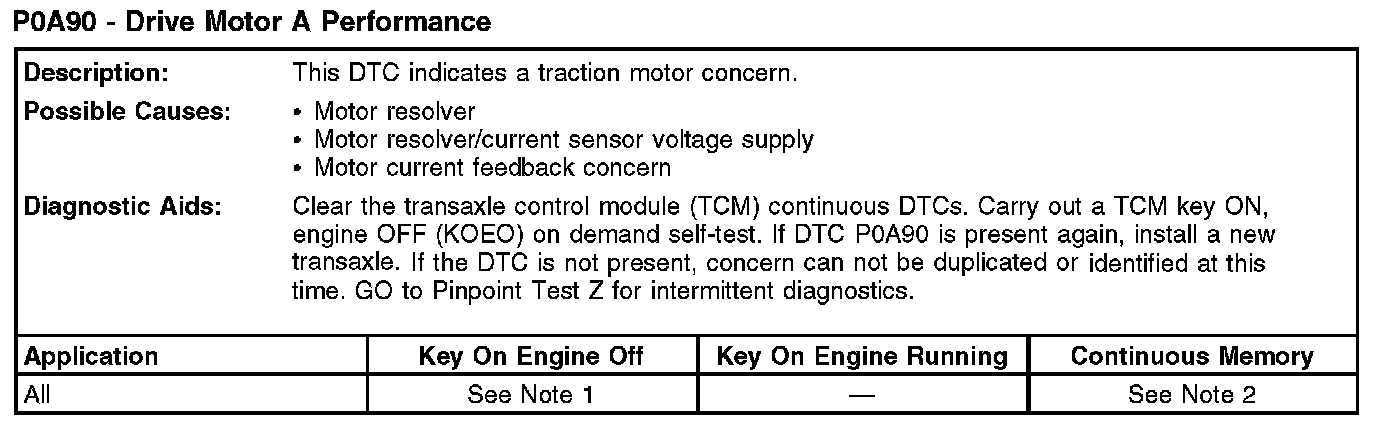

P0A90

NOTE:
- Refer to diagnostic/repair information to diagnose the body and chassis DTCs.
- An X equals any number 0 through 9 or the letter A through F.







NOTE 2: Clear the transaxle control module (TCM) continuous DTCs. Carry out a TCM key ON engine OFF (KOEO) on demand self-test. If DTC P0A90 is present again, install a new transaxle. If the DTC is not present, concern can not be duplicated or identified at this time. Go to PPT Z in Pinpoint Tests for intermittent diagnostics.
