Transfer Case - Power Transfer Unit (PTU)
Transfer Case - Power Transfer Unit (PTU)
Specifications

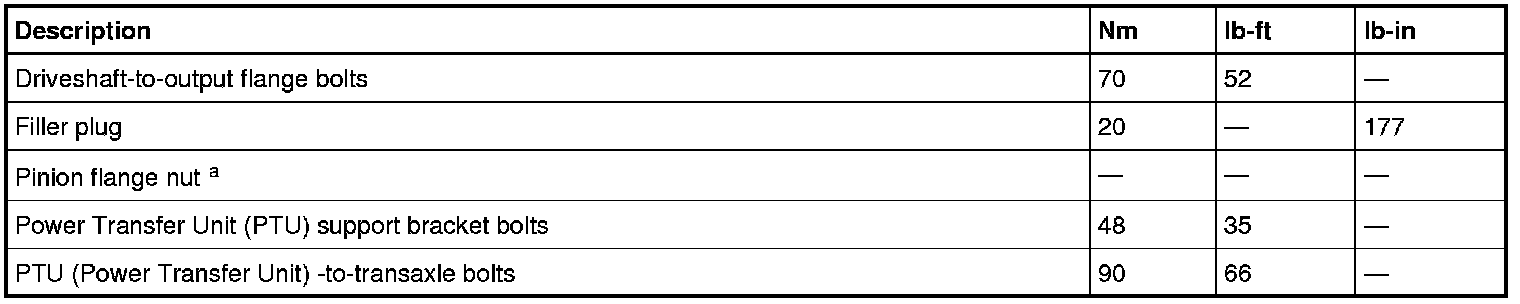

Torque Specifications
a Refer to the procedure.
