Flexplate

Flexplate





Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the transaxle.

3. Remove the bolts and the flexplate.
- To install, tighten to 80 Nm (59 lb-ft).


4. To install, reverse the removal procedure.

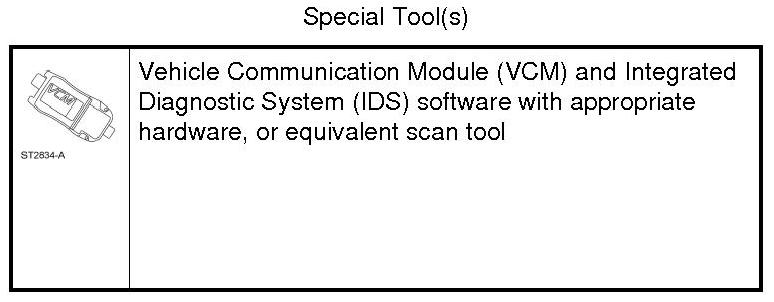

5. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
