Home
>>
Ford
>>
2012
>>
Fusion AWD V6-3.0L Flex Fuel
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatically Shifted Manual Transmission/Transaxle
>>
Diagrams
>>
Connector Views
>>

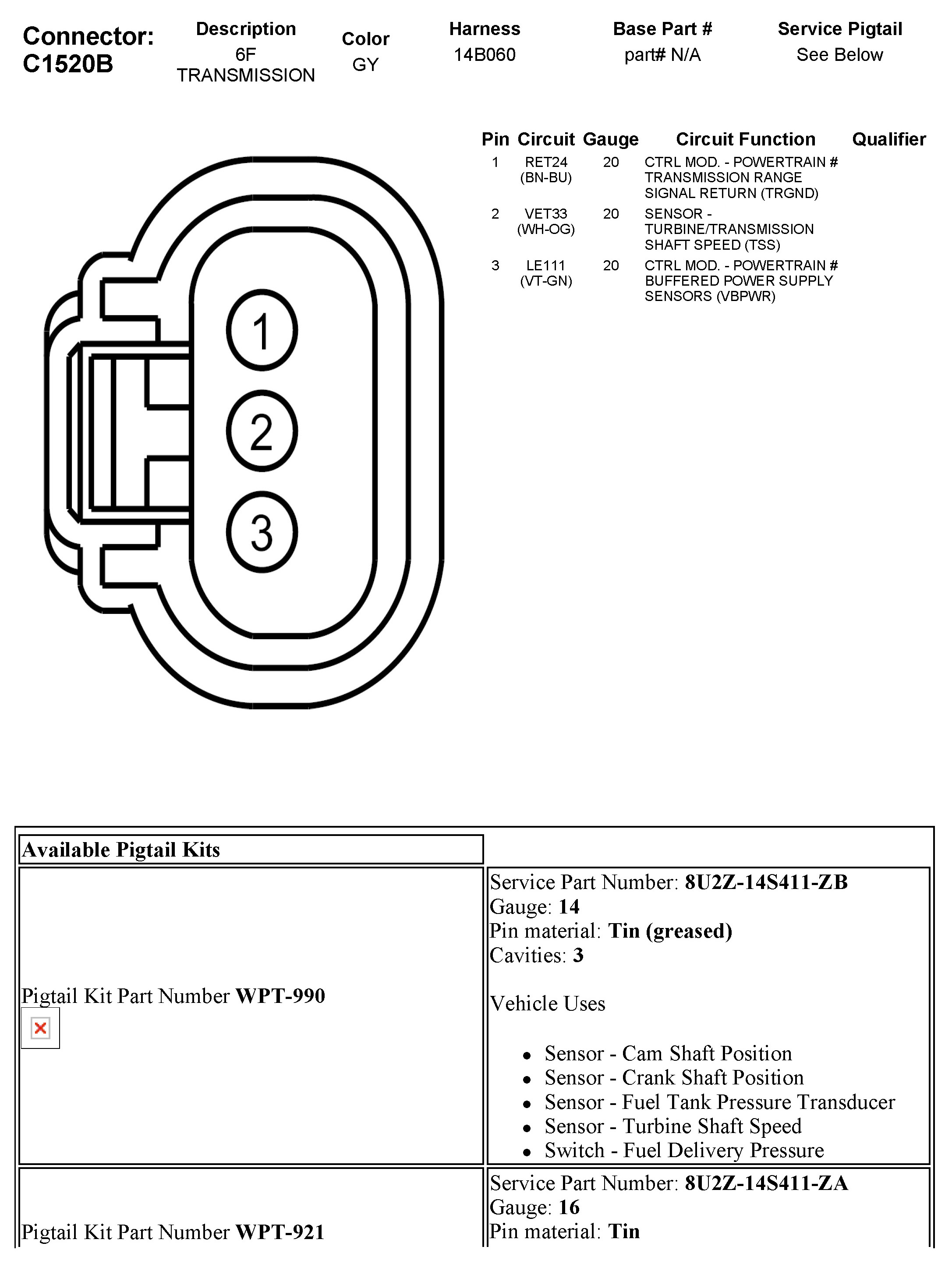

C1520B 6F Transmission
C1520B 6F Transmission
