Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Automatic Transaxle/Transmission - 6F35 >> Diagnostic Routines >> Shift Concerns: 210/310 - 249/349 >> 212/312, Timing - Erratic/Hunting

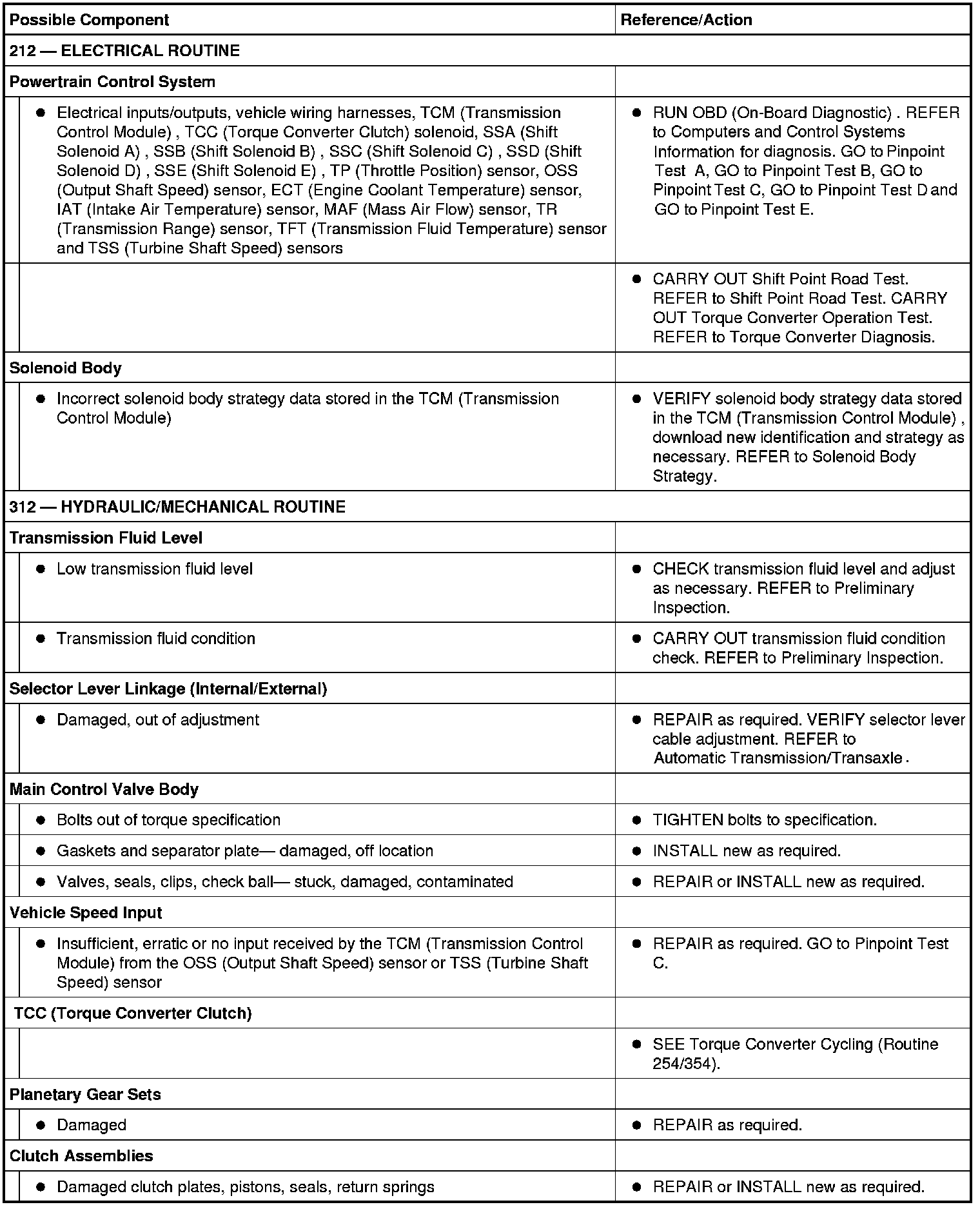

212/312, Timing - Erratic/Hunting




Diagnosis By Symptom

Diagnostic Routines

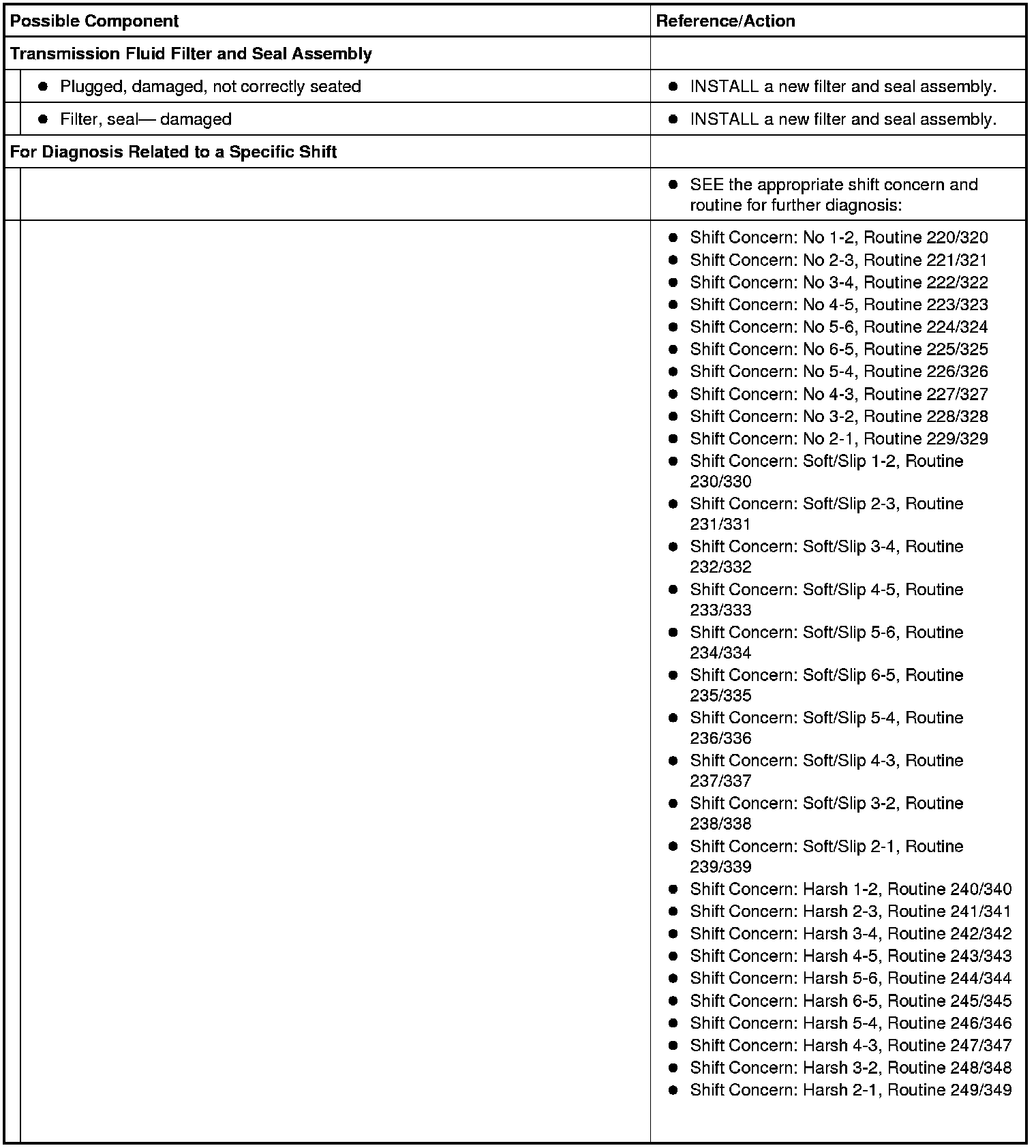

Shift Concerns: Timing - Erratic/Hunting
