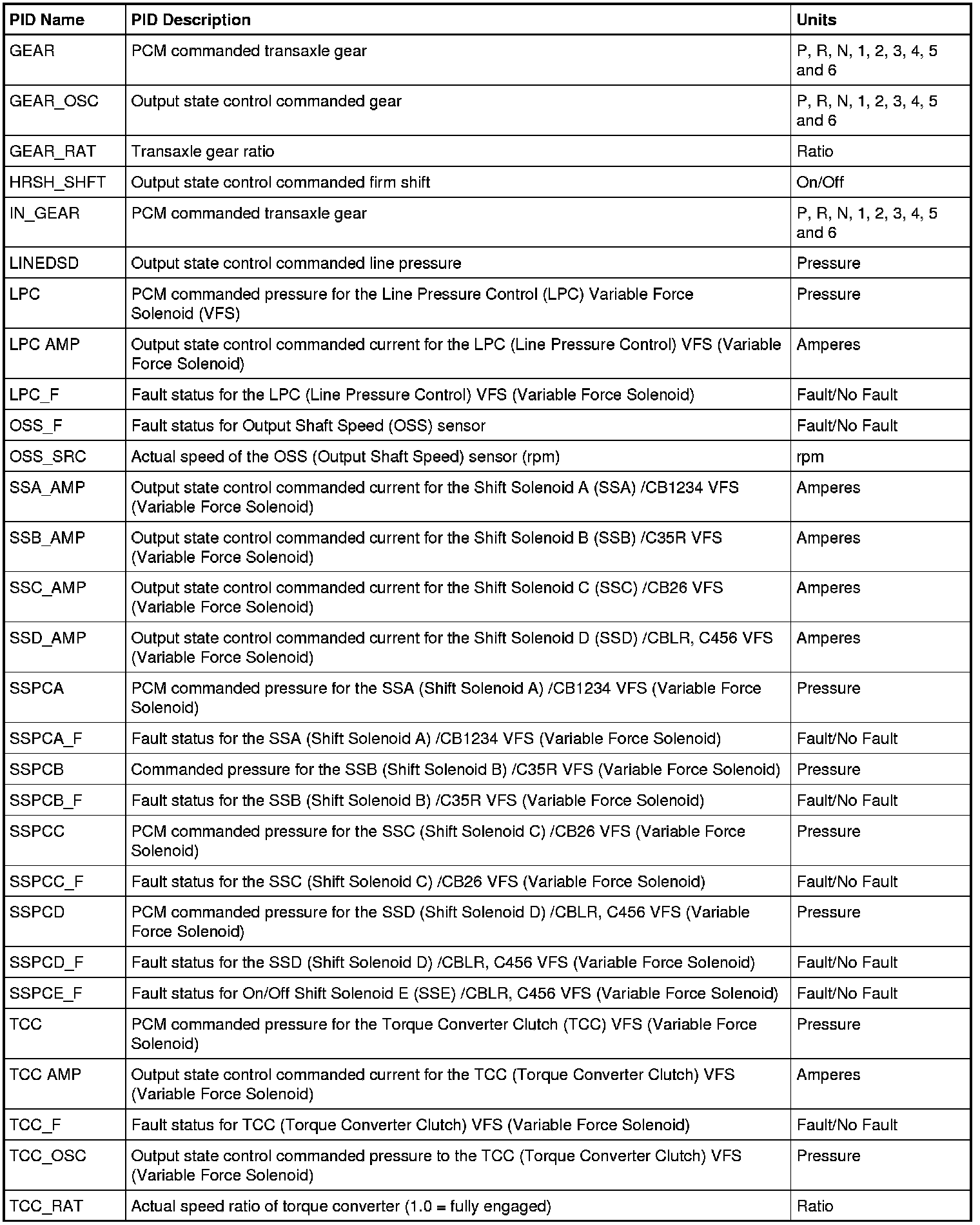

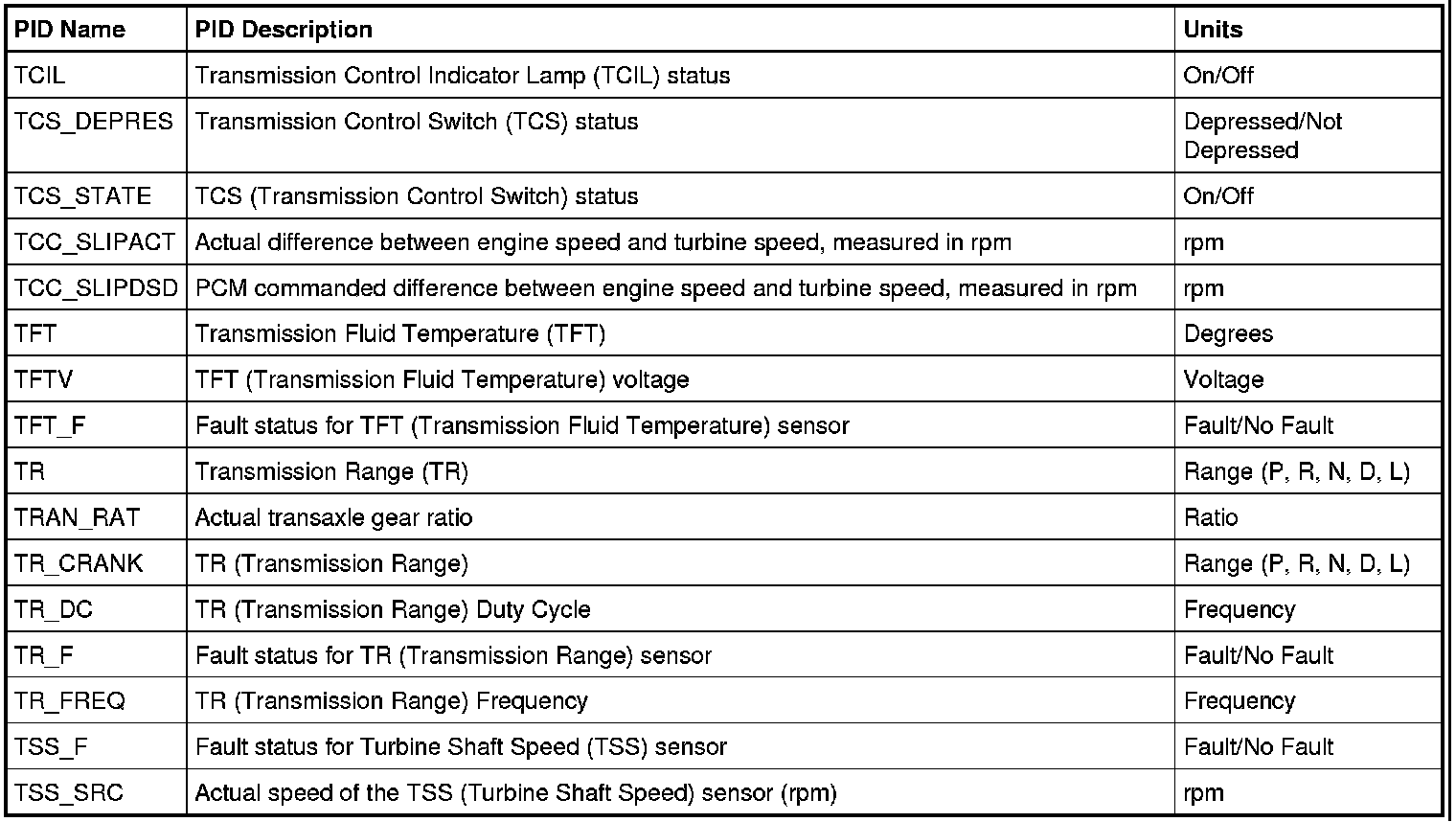

Diagnostic Parameters Identification (PID) Chart




Diagnostic Parameters Identification (PID) Chart
