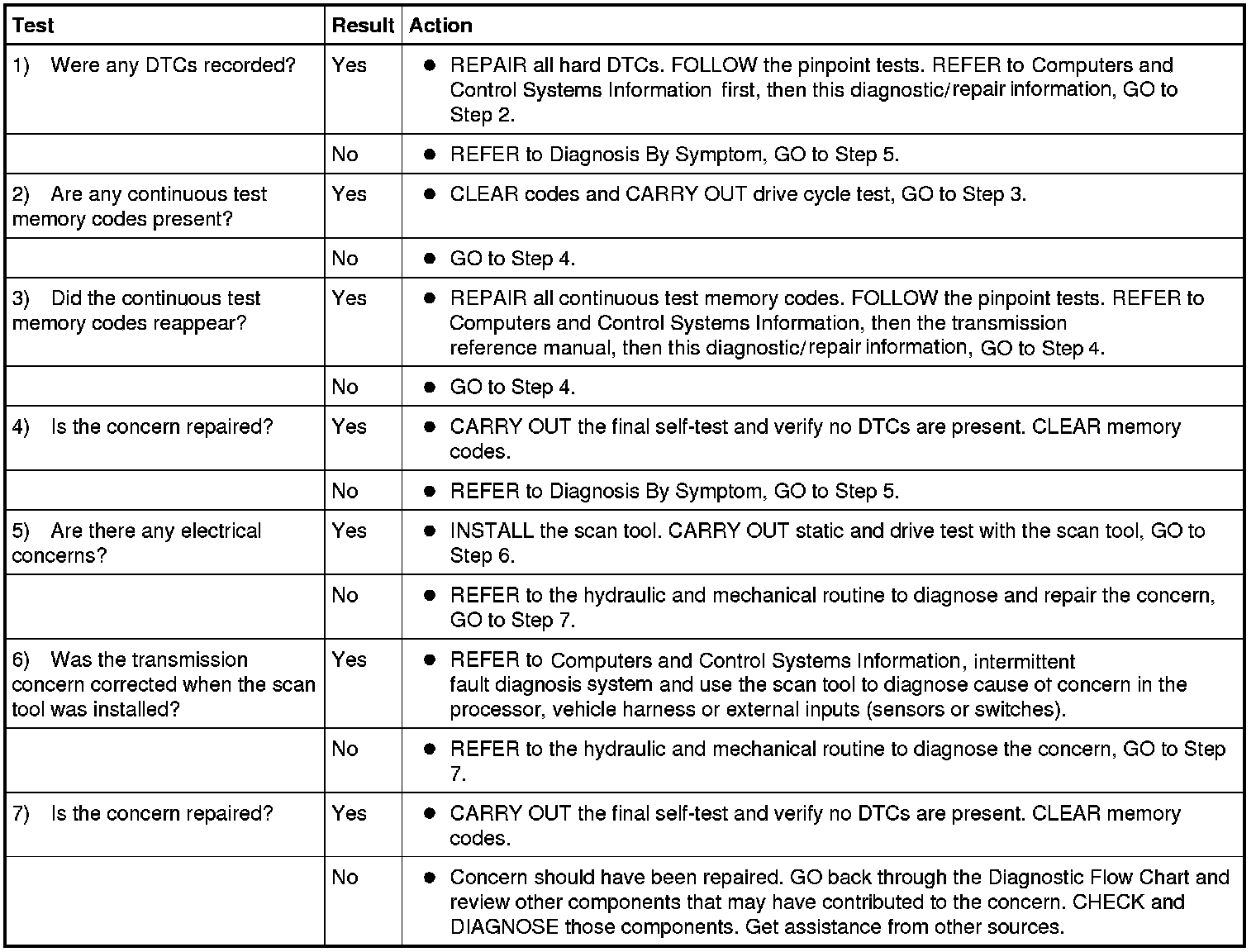

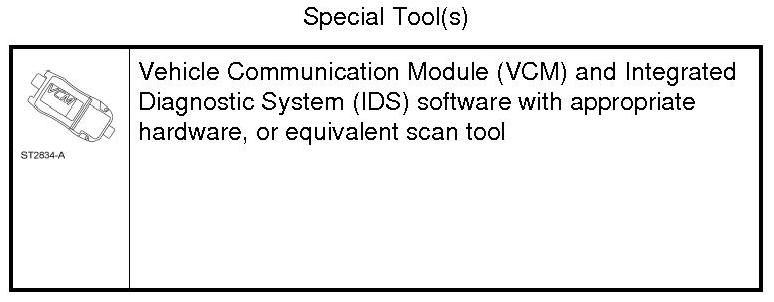

Diagnostic Flow Chart





Prior to carrying out the flow test, the following items should be checked:

- Know and understand the customer concern.

- Verify the concern by operating the vehicle.

- Check the transmission fluid level and condition.

- Check for non-factory installed items and verify correct installation.

- Check the selector lever linkage adjustments.

- Check TSB messages for vehicle concerns.

- Carry out both KOEO (Key ON Engine OFF) and KOER (Key ON Engine Running) self-test. Visual Inspection

- Record all DTCs.
