Halfshaft Seal - RH

Halfshaft Seal - RH, All Wheel Drive (AWD)

















Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the Power Transfer Unit (PTU).

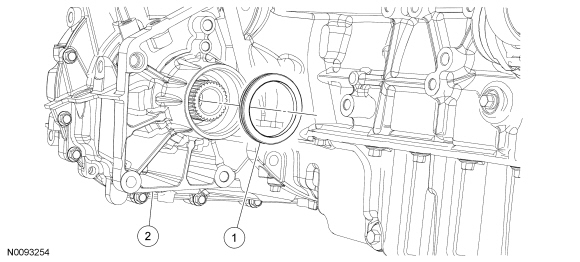

3. Using a suitable awl, poke a small hole in the RH transaxle differential seal.





4. Using a suitable dent puller, remove the halfshaft seal.





Installation

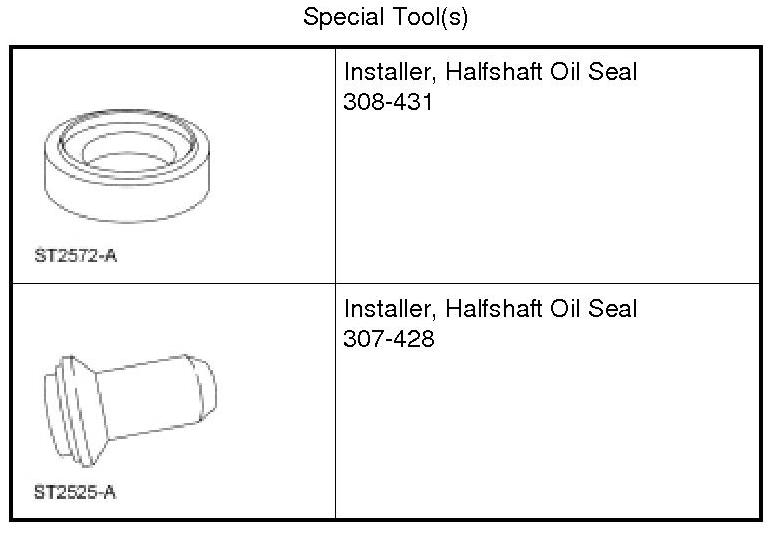

1. Install a new halfshaft seal on the Halfshaft Oil Seal Installer.





2. Using the RH Halfshaft Oil Seal Installers, install the RH halfshaft seal onto the transaxle case.





3. Install the PTU (Power Transfer Unit).

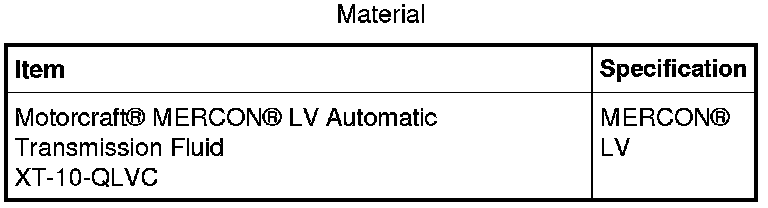

4. Fill the transaxle with clean transmission fluid.





5. Start the engine and move the range selector lever into each gear position.

6. Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
