Wheels and Tires: Specifications




Specifications

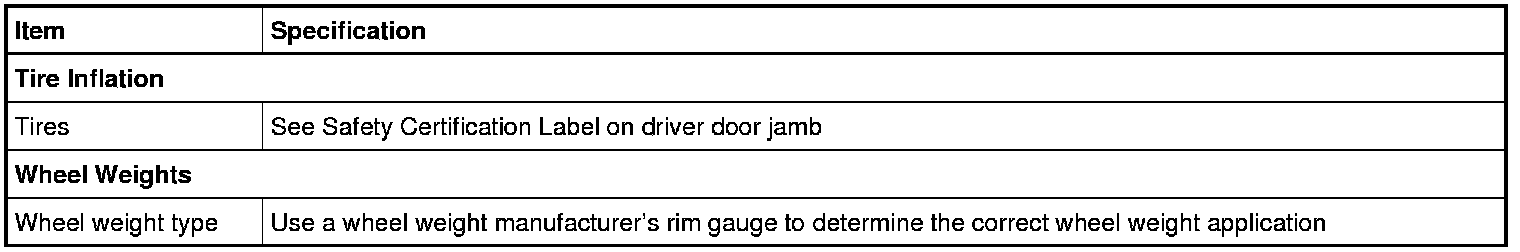

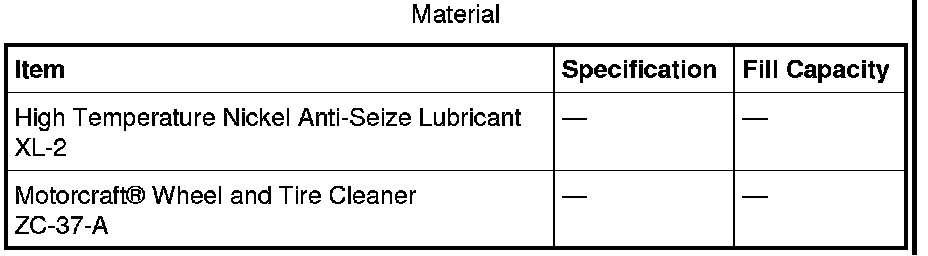

General Specifications

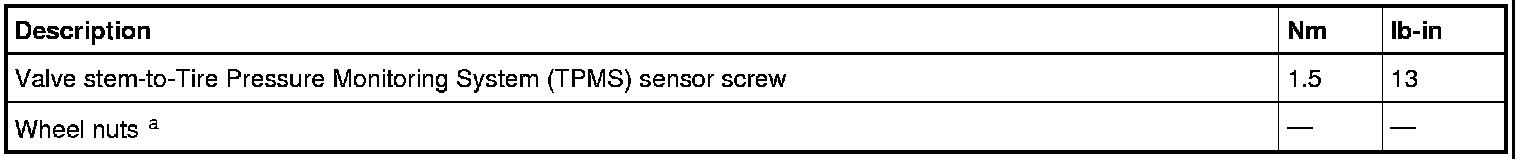

Torque Specifications





a Refer to the procedure.
