Oil Pressure Sensor: Service and Repair

Engine Oil Pressure (EOP) Switch













Removal and Installation

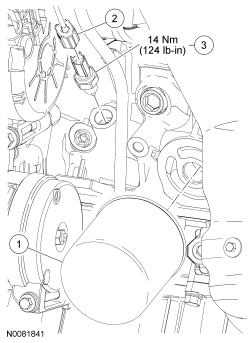

1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing.

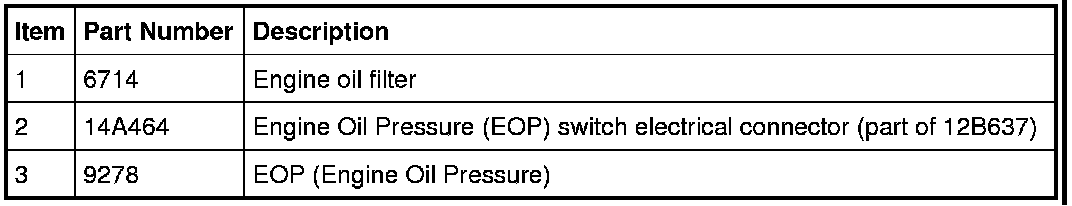

Remove the engine oil filter.

- To install, tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.


3. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

4. Remove the EOP (Engine Oil Pressure) switch.
- To install, tighten to 14 Nm (124 lb-in).


5. To install, reverse the removal procedure.

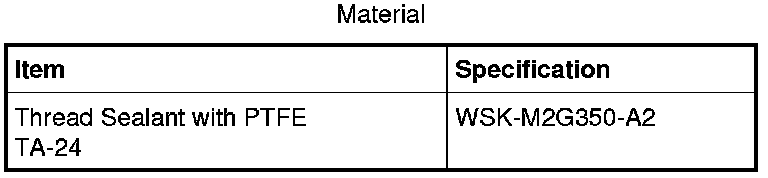

- Apply thread sealant with PTFE to the EOP (Engine Oil Pressure) switch threads.
