Supplemental Restraint System (SRS) Deactivation and Reactivation




Supplemental Restraint System (SRS) Deactivation and Reactivation





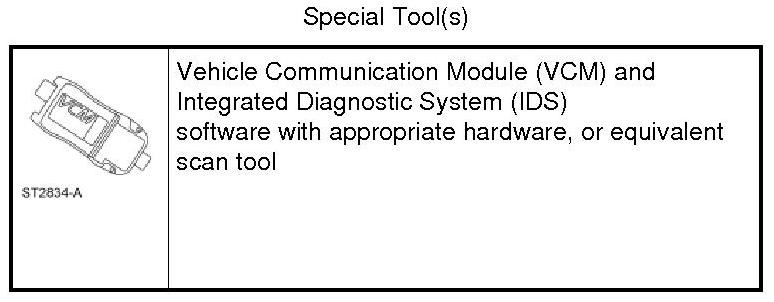

Deactivation

WARNING: Always wear eye protection when servicing a vehicle. Failure to follow this instruction may result in serious personal injury.

WARNING: To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.

WARNING: Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

WARNING: Never disassemble or tamper with seat belt deployable components, including pretensioners, load limiters and inflators. Never back probe deployable device electrical connectors. Tampering or back probing may cause an accidental deployment and result in personal injury or death.

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

All vehicles

1. Turn all vehicle accessories OFF.

2. Turn the ignition OFF.

3. At the Smart Junction Box (SJB) , located below the LH side of the instrument panel, remove the cover and the RCM (Restraints Control Module) fuse 32 (10A) from the SJB (Smart Junction Box). For additional information, refer to the Wiring Diagrams. [1][2]Diagrams By Number

4. Turn the ignition ON and monitor the air bag warning indicator for at least 30 seconds. The air bag warning indicator will remain lit continuously (no flashing) if the correct RCM (Restraints Control Module) fuse has been removed. If the air bag warning indicator does not remain lit continuously, remove the correct RCM (Restraints Control Module) fuse before proceeding.

5. Turn the ignition OFF.

6. WARNING: Always deplete the backup power supply before repairing or installing any new front or side air bag supplemental restraint system (SRS) component and before servicing, removing, installing, adjusting or striking components near the front or side impact sensors or the restraints control module (RCM). Nearby components include doors, instrument panel, console, door latches, strikers, seats and hood latches. Refer to the Description and Operation portion of Restraints and Safety Systems &/or Air Bag Systems for location of the RCM and impact sensor(s). To deplete the backup power supply energy, disconnect the battery ground cable and wait at least 1 minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped). Failure to follow these instructions may result in serious personal injury or death in the event of an accidental deployment.

Disconnect the battery ground cable and wait at least one minute.

7. Remove the driver air bag module. For additional information, refer to Driver Air Bag Module .

Hybrid vehicles

8. Remove the steering column opening trim panel.
- Remove the 2 screws.

- Pull downward to release the retainers and remove the steering column opening panel.


9. Disconnect the knee air bag module electrical connector.





All vehicles

10. Disconnect the glove compartment damper and lower the glove compartment.

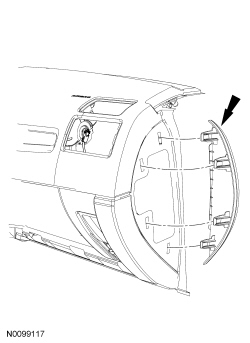

11. NOTE: RH HVAC register omitted for clarity.
Remove the RH instrument panel side finish panel to access the RH passenger air bag module electrical connector.






12. Through the glove compartment opening, access the LH passenger air bag electrical connector.





13. NOTICE: Do not pull the electrical connectors out by the Connector Position Assurance (CPA) clip. Damage to the clip can occur.

Using an appropriate tool, lift up and release the Connector Position Assurance (CPA) clips and disconnect the 2 electrical connectors.






14. From under the rear of the passenger seat, slide and disengage the passenger seat side air bag module electrical connector locking clip, and then release the tab and disconnect the passenger seat side air bag module electrical connector.





15. Remove the RH C-pillar trim cover retainer cap.

16. Remove the retainer and RH C-pillar trim cover.

17. Disconnect the RH side air curtain module electrical connector.





18. Remove the LH C-pillar trim cover retainer cap.

19. Remove the retainer and LH C-pillar trim cover.

20. Disconnect the LH side air curtain module electrical connector.





21. From under the rear of the driver seat, slide and disengage the driver seat side air bag module electrical connector locking clip, and then release the tab and disconnect the driver seat side air bag module electrical connector.





22. Install RCM (Restraints Control Module) fuse 32 (10A) in the SJB (Smart Junction Box).

23. Connect the battery ground cable.

Reactivation

All vehicles

1. Remove RCM (Restraints Control Module) fuse 32 (10A) from the SJB (Smart Junction Box).

2. Disconnect the battery ground cable and wait at least one minute.

3. Connect the driver seat side air bag module electrical connector and then slide and engage the seat side air bag electrical connector locking clip.





4. Connect the LH side air curtain module electrical connector.





5. Install the LH C-pillar trim cover and retainer.

6. Install the LH C-pillar trim cover retainer cap.

7. Connect the RH side air curtain module electrical connector.





8. Install the RH C-pillar trim cover and retainer.

9. Install the RH C-pillar trim cover retainer cap.

10. Connect the passenger seat side air bag module electrical connector and slide and engage the seat side air bag electrical connector locking clip.





11. NOTICE: The Connector Position Assurance (CPA) clip must be in the released position before installing the electrical connector. Failure to have the CPA (Connector Position Assurance) clip in the released position may break the tabs on the clip causing DTCs to set in the Restraints Control Module (RCM).

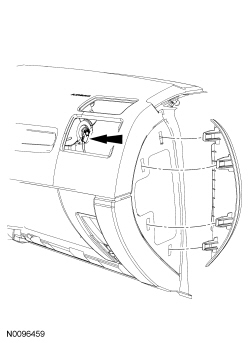

Through the RH instrument panel side finish panel opening, connect the RH passenger air bag module electrical connector and push in to seat the CPA (Connector Position Assurance) clip.
- Verify that the clip is fully seated.






12. Install the RH instrument panel side finish panel.





13. NOTICE: The Connector Position Assurance (CPA) clip must be in the released position before installing the electrical connector. Failure to have the CPA (Connector Position Assurance) clip in the released position may break the tabs on the clip causing DTCs to set in the Restraints Control Module (RCM).

Through the glove compartment opening, connect the LH passenger air bag electrical connector and push in to seat the CPA (Connector Position Assurance) clip.
- Verify that the clip is fully seated.






14. Attach the glove compartment damper cable.





Hybrid vehicles

15. Connect the knee air bag module electrical connector.





16. Install the steering column opening trim panel and 2 screws.

All vehicles

17. Install the driver air bag module. For additional information, refer to Driver Air Bag Module .

18. Turn the ignition from OFF to ON.

19. Install RCM (Restraints Control Module) fuse 32 (10A) in the SJB (Smart Junction Box) and close the cover.

20. WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

Connect the battery ground cable.


21. Prove out the SRS (Supplemental Restraint System) as follows:
Turn the ignition from ON to OFF. Wait 10 seconds, then turn the ignition ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator will light continuously for approximately 6 seconds and then turn off. If an air bag SRS (Supplemental Restraint System) fault is detected, the air bag warning indicator will:
- fail to light.
- remain lit continuously.
- flash.
The flashing might not occur until approximately 30 seconds after the ignition has been turned from the OFF to the ON position. This is the time required to complete testing of the SRS (Supplemental Restraint System). If the air bag warning indicator is inoperative and a SRS (Supplemental Restraint System) fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag warning indicator and any SRS (Supplemental Restraint System) fault discovered must be diagnosed and repaired.
Clear all RCM (Restraints Control Module) and OCSM (Occupant Classification System Module) CMDTCs (Continuous Memory Diagnostic Trouble Codes).
