Knock Sensor: Service and Repair

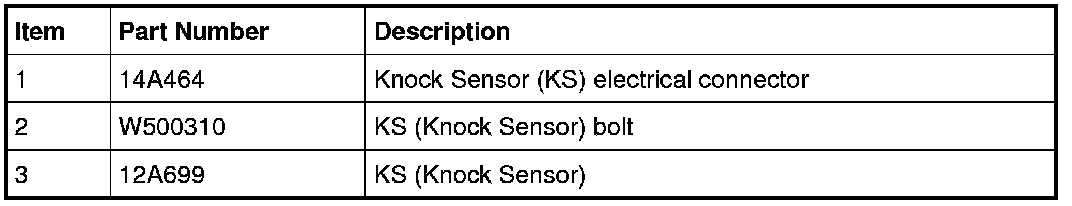

Knock Sensor (KS)

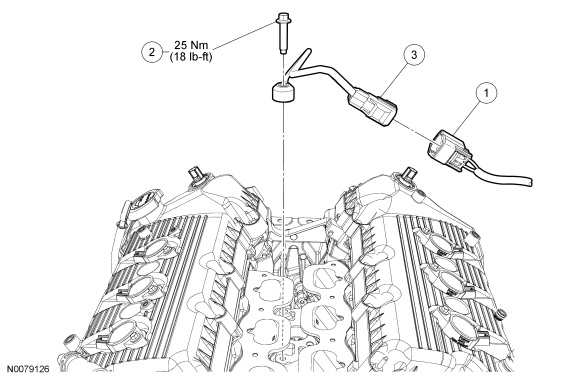

Cylinder-Head Mounted Knock Sensor (KS)

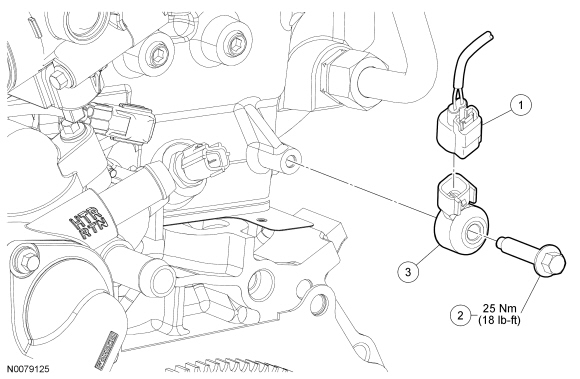

Cylinder-Block Mounted Knock Sensor (KS)









Removal

Cylinder head-mounted

1. Disconnect the Knock Sensor (KS) electrical connector.

2. Remove the bolt and the KS (Knock Sensor).

Engine block-mounted

3. Remove the lower intake manifold.

4. Disconnect the KS (Knock Sensor) electrical connector.

5. Remove the bolt and the KS (Knock Sensor).

Installation

Engine block-mounted

1. Install the KS (Knock Sensor) and the bolt.
- To install, tighten to 25 Nm (18 lb-ft).


2. Connect the KS (Knock Sensor) electrical connector.

3. Install the lower intake manifold.

Cylinder head-mounted

4. Install the KS (Knock Sensor) and the bolt.
- To install, tighten to 25 Nm (18 lb-ft).


5. Connect the KS (Knock Sensor) electrical connector.
