Accelerator Pedal: Service and Repair

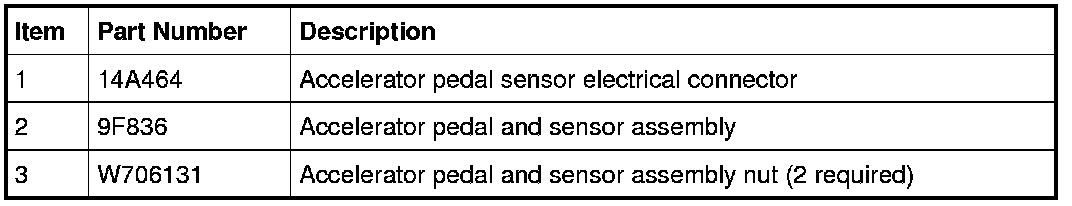

Accelerator Pedal and Bracket

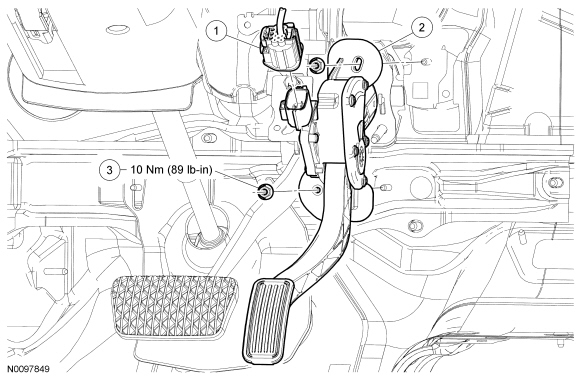

2.5L, 2.5L Hybrid and 3.0L Vehicles

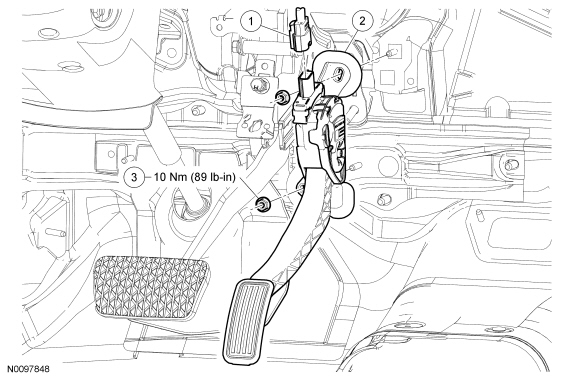

3.5L Vehicles









Removal and Installation

NOTE: The sport metallic accelerator pedal pad is not to be re-used. If the sport metallic accelerator pedal pad is removed it should be discarded and replaced with a new sport metallic accelerator pedal pad.

1. Disconnect the accelerator pedal sensor electrical connector.

2. Remove the 2 nuts and the accelerator pedal and sensor assembly.
- To install, tighten to 10 Nm (89 lb-in).


3. To install, reverse the removal procedure.
