No Diagnostic Trouble Codes (DTCs) Present Symptom Chart Index
No Diagnostic Trouble Codes (DTCs) Present Symptom Chart Index

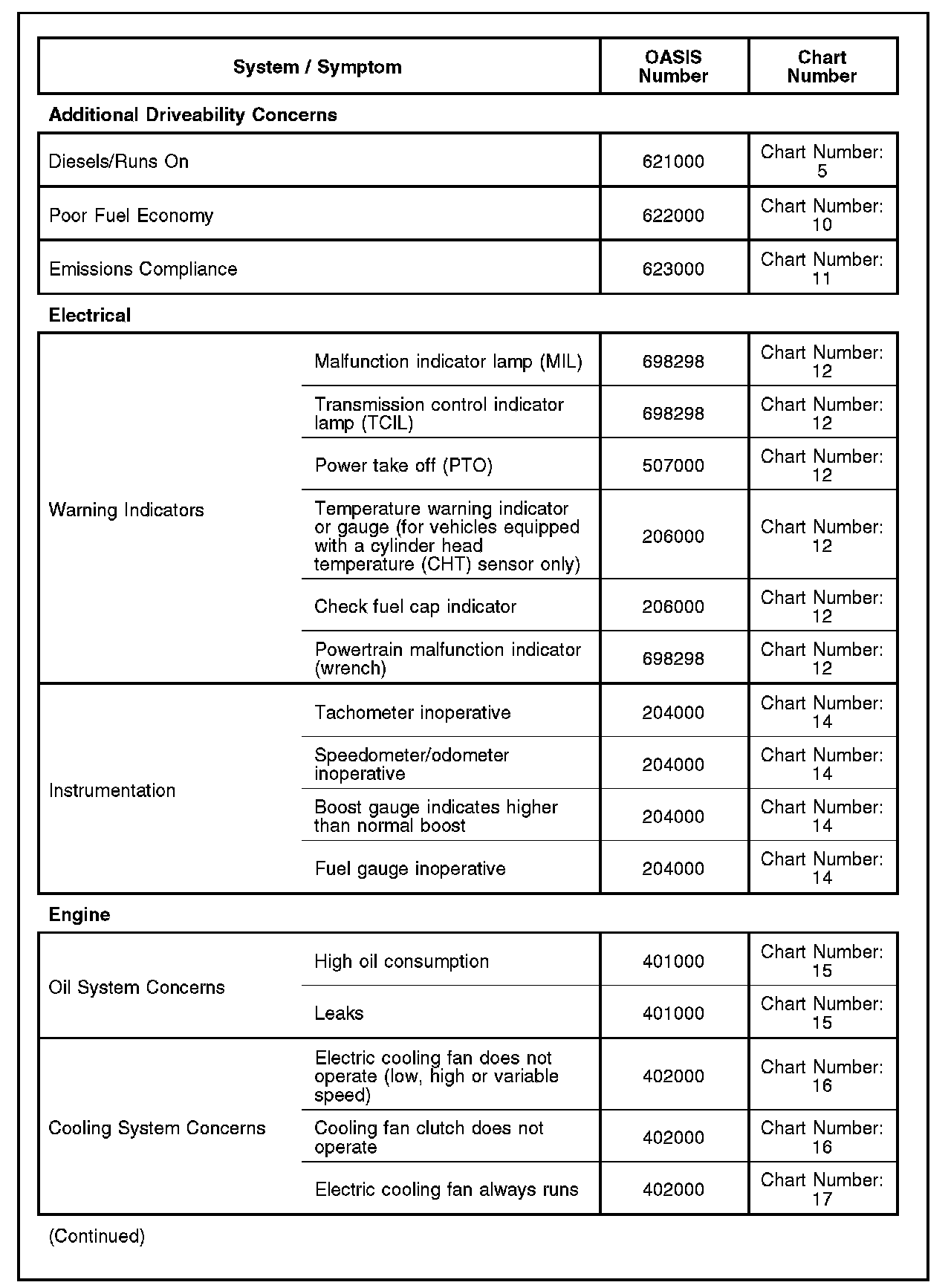

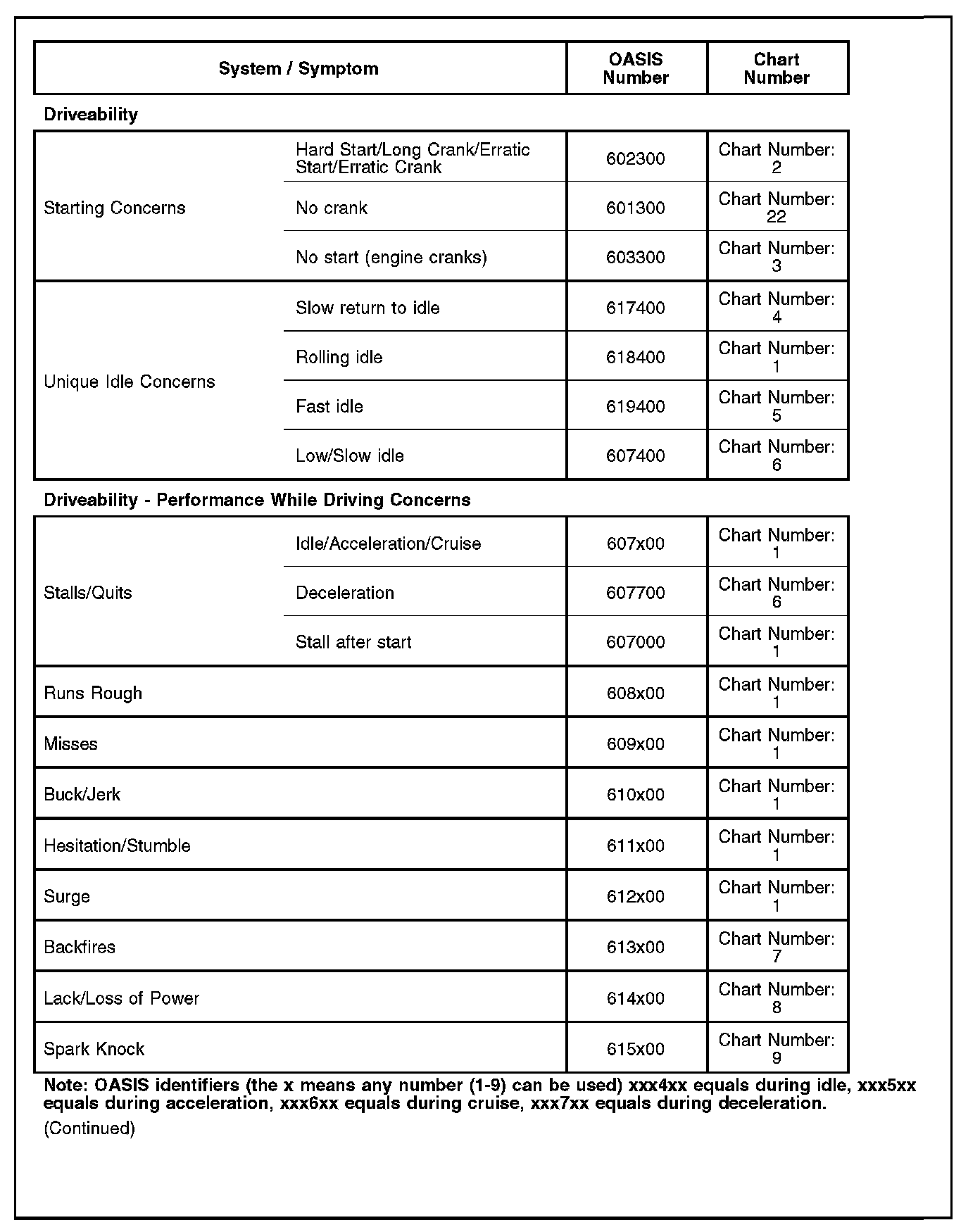

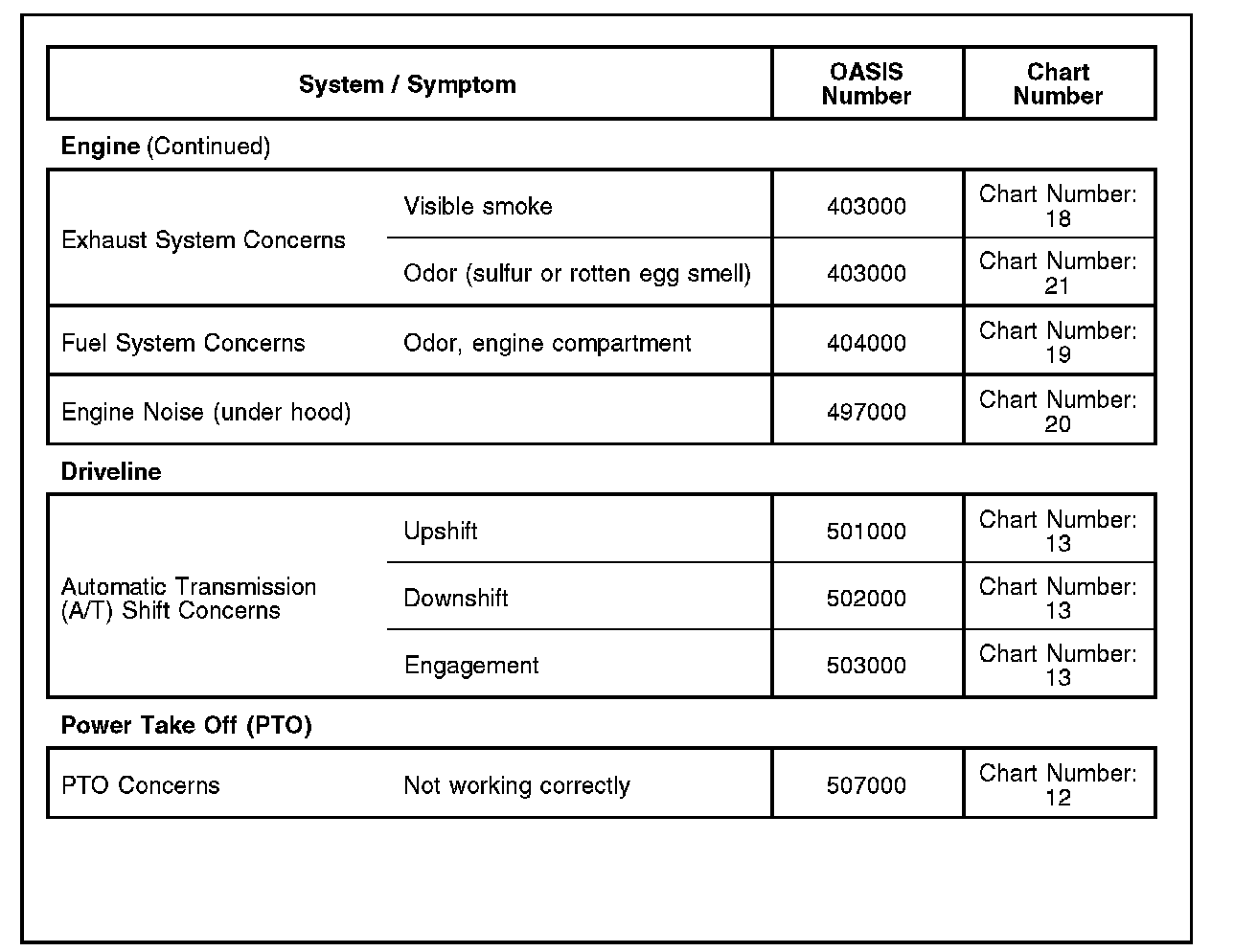

NO DIAGNOSTIC TROUBLE CODES (DTCS) PRESENT SYMPTOM CHART INDEX
