FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Fusion AWD V6-3.0L Flex Fuel
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Reading Diagnostic Trouble Codes / With Manufacturer's Scan Tool
Reading Diagnostic Trouble Codes / With Manufacturer's Scan Tool

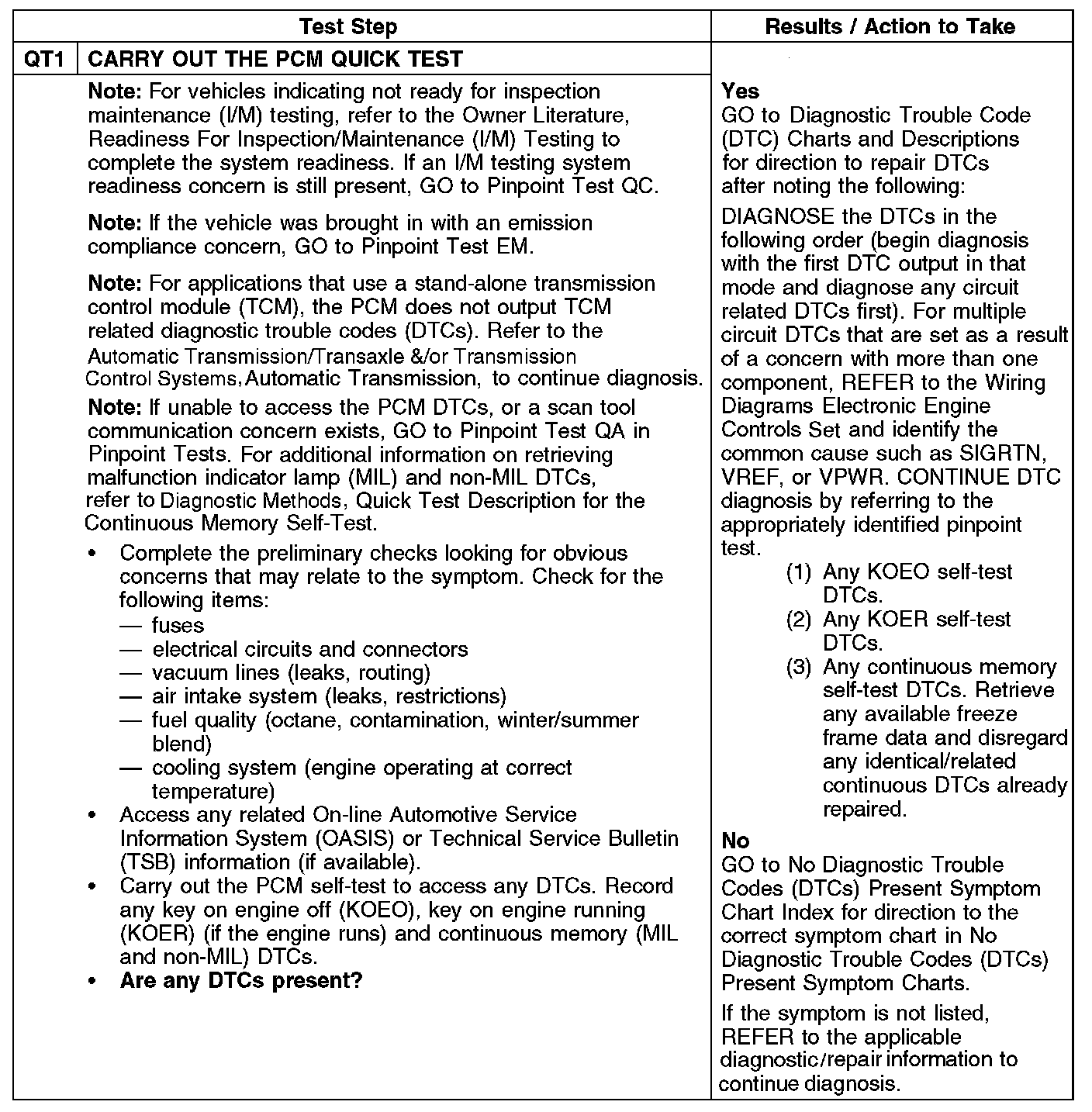

POWERTRAIN CONTROL MODULE (PCM) QUICK TEST
