Test TA: Clutch Pedal Position (CPP#2) Switch



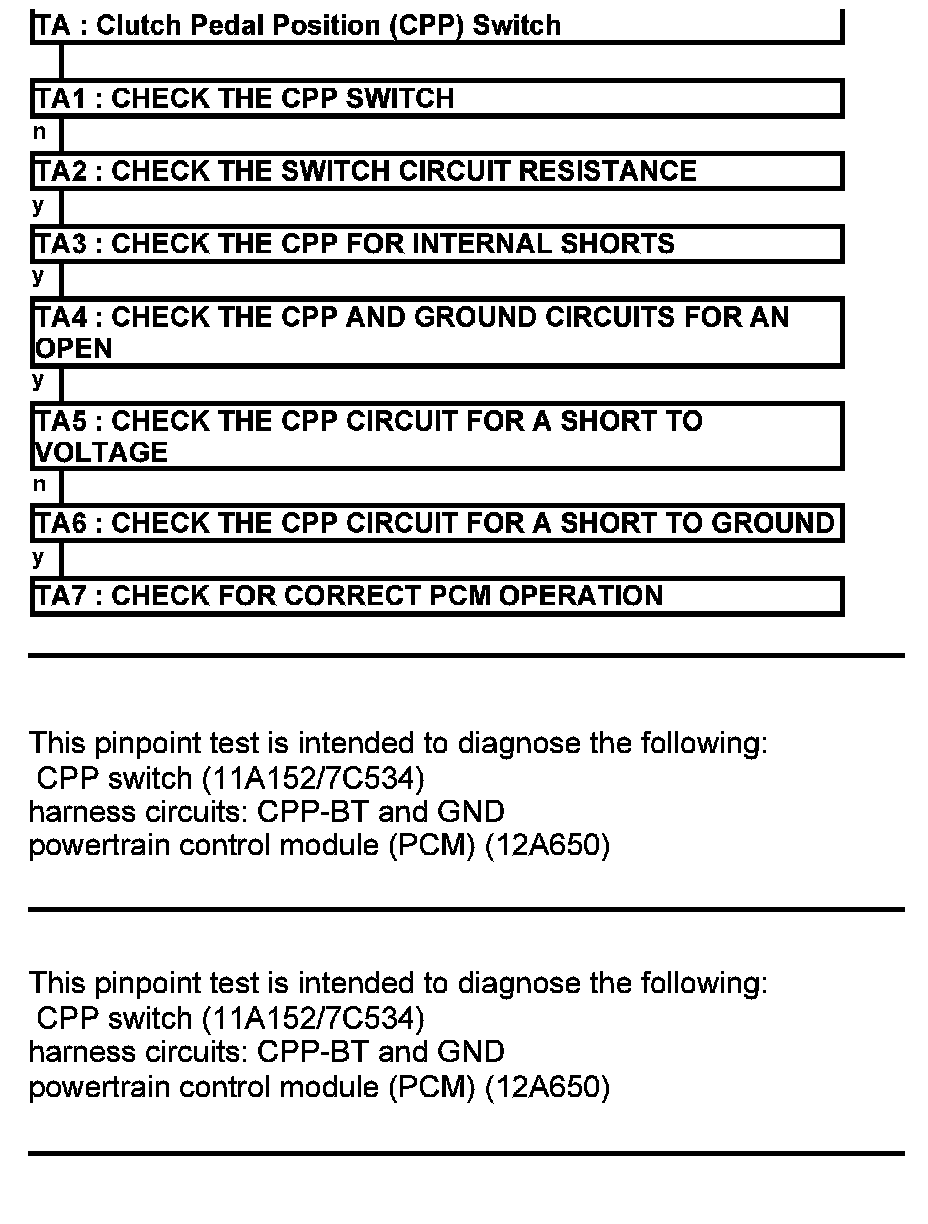

Clutch Pedal Position (CPP#2) Switch

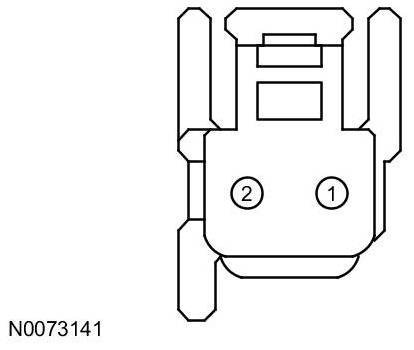

Clutch Pedal Position (CPP) Switch Connector






Harness Side







Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
