Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test QE: Electronic Throttle Control (ETC) System

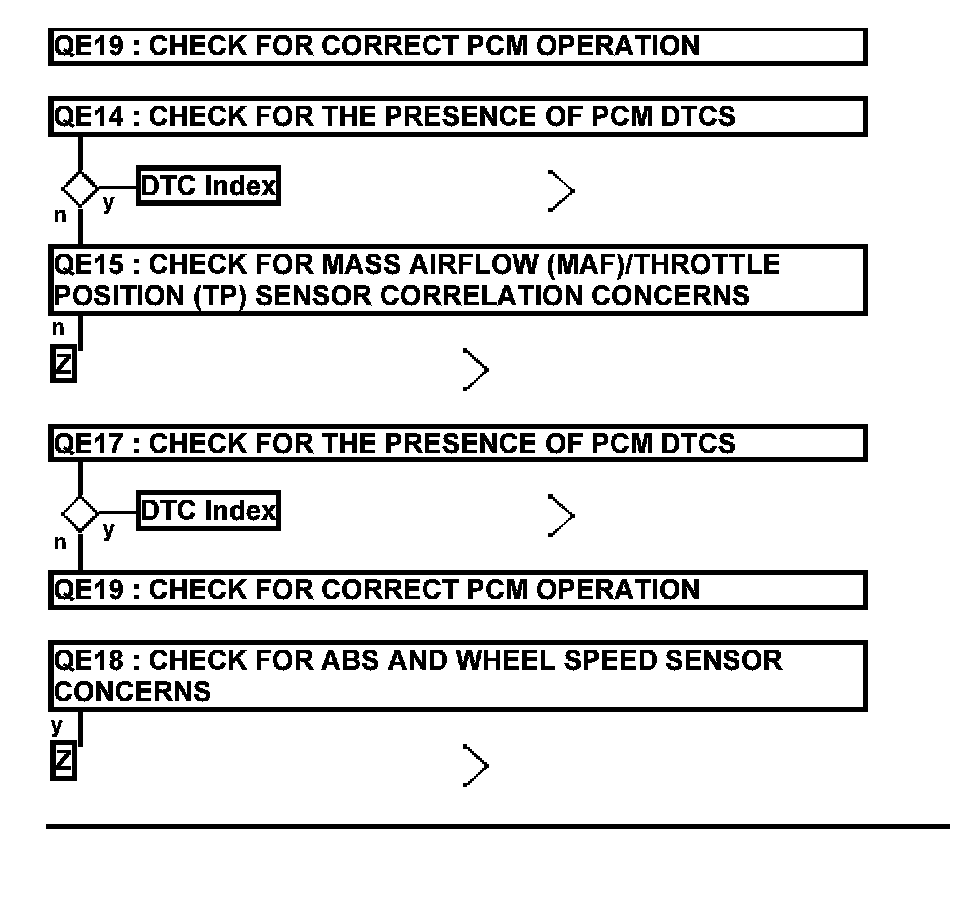

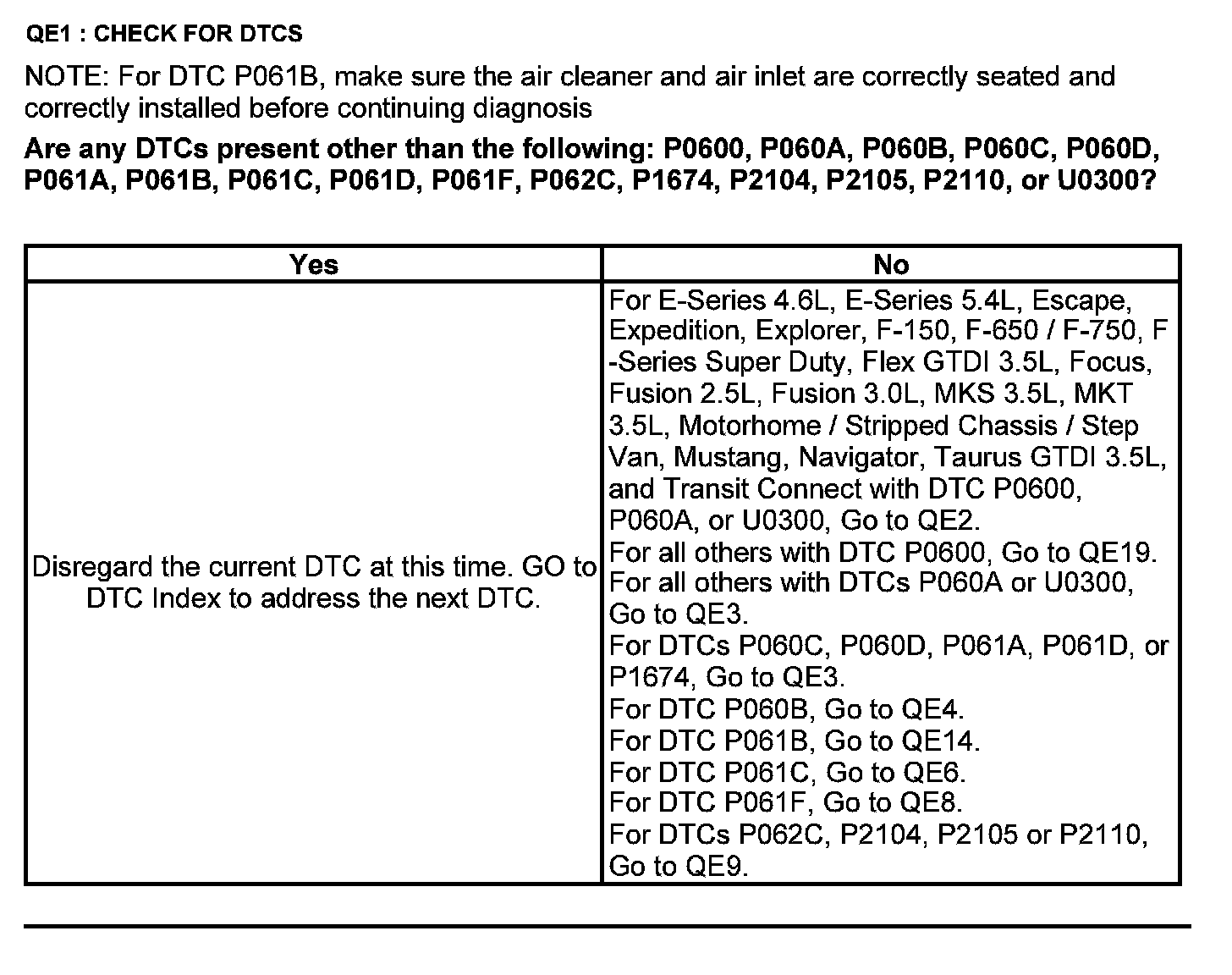

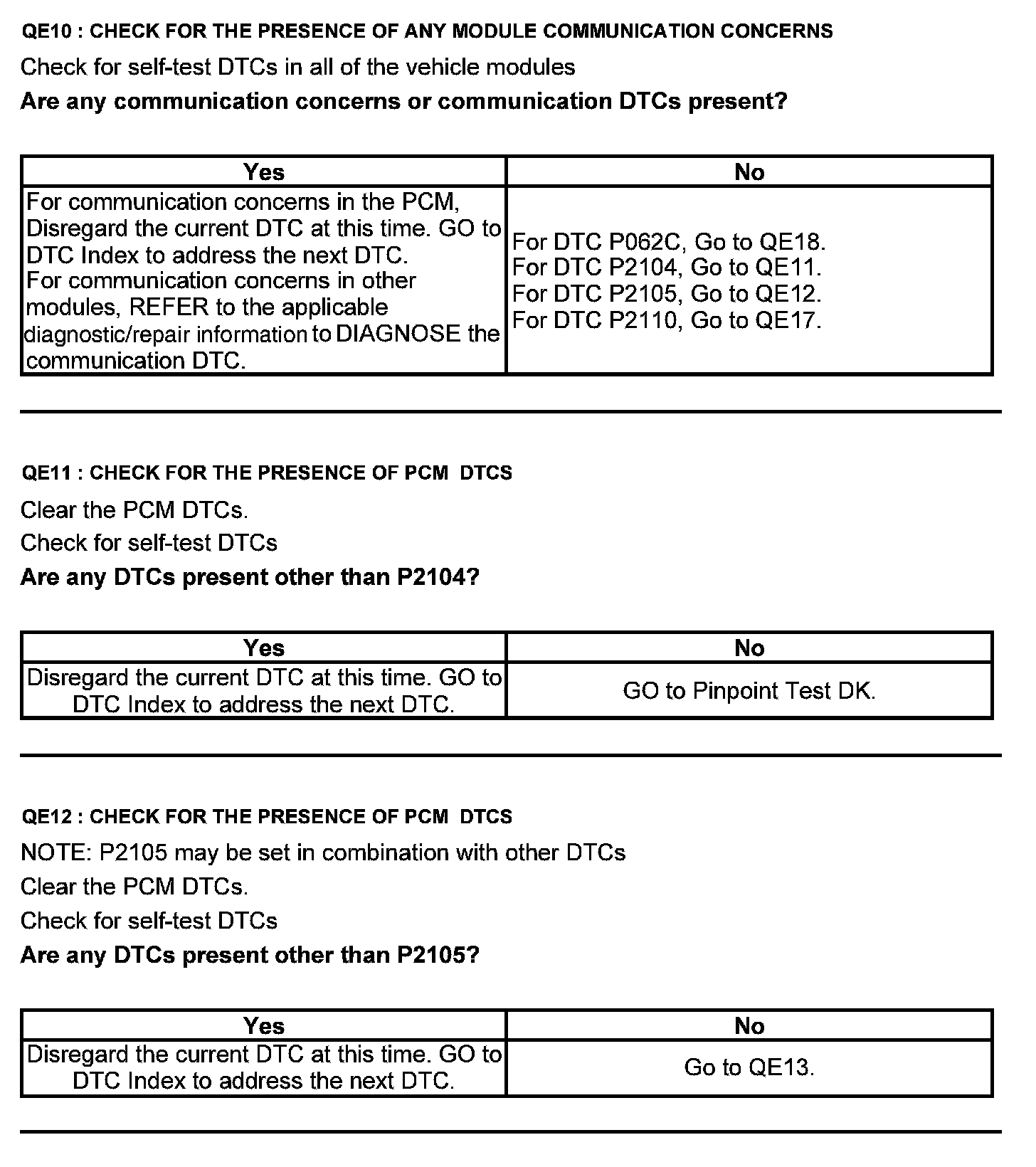

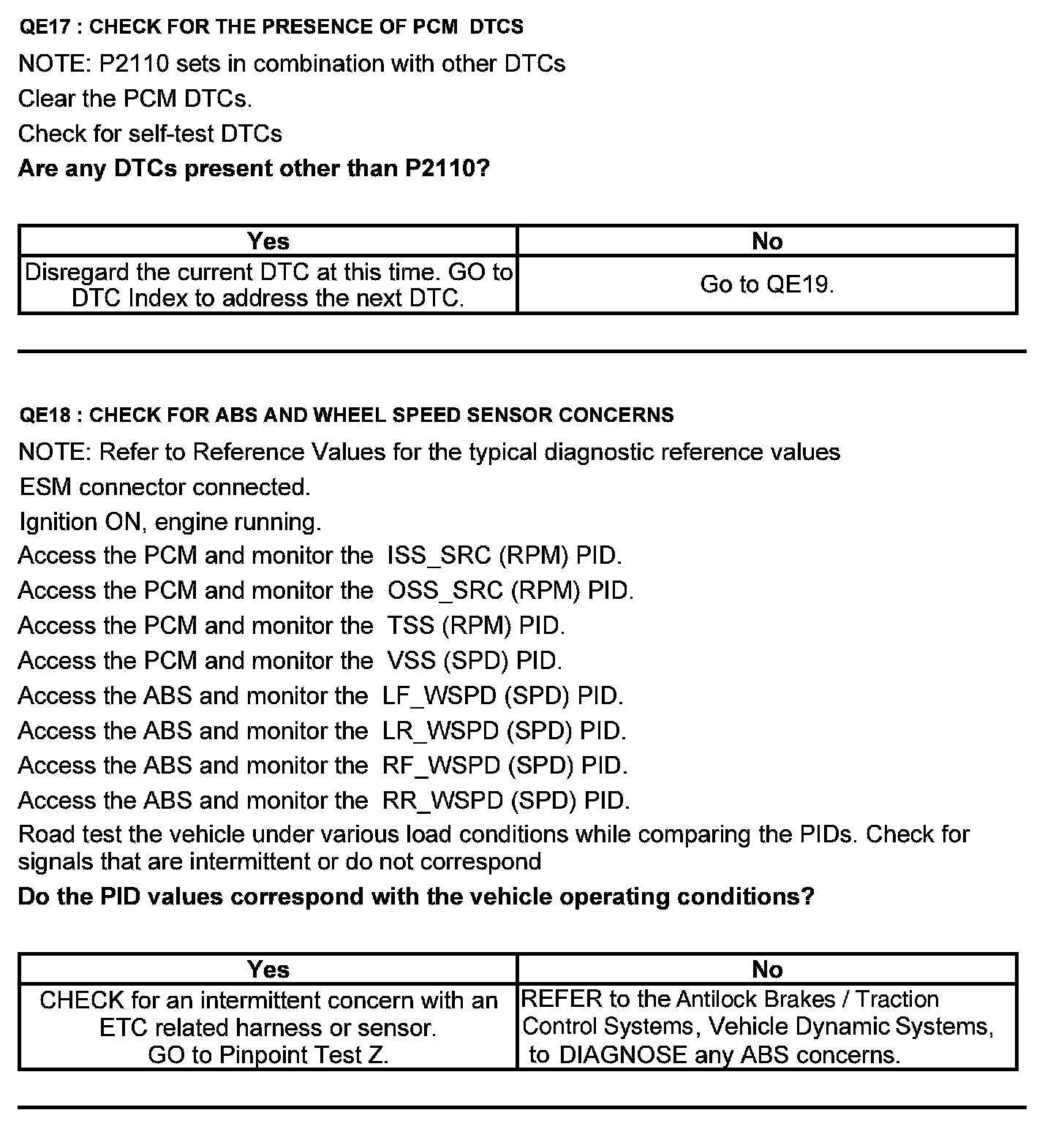

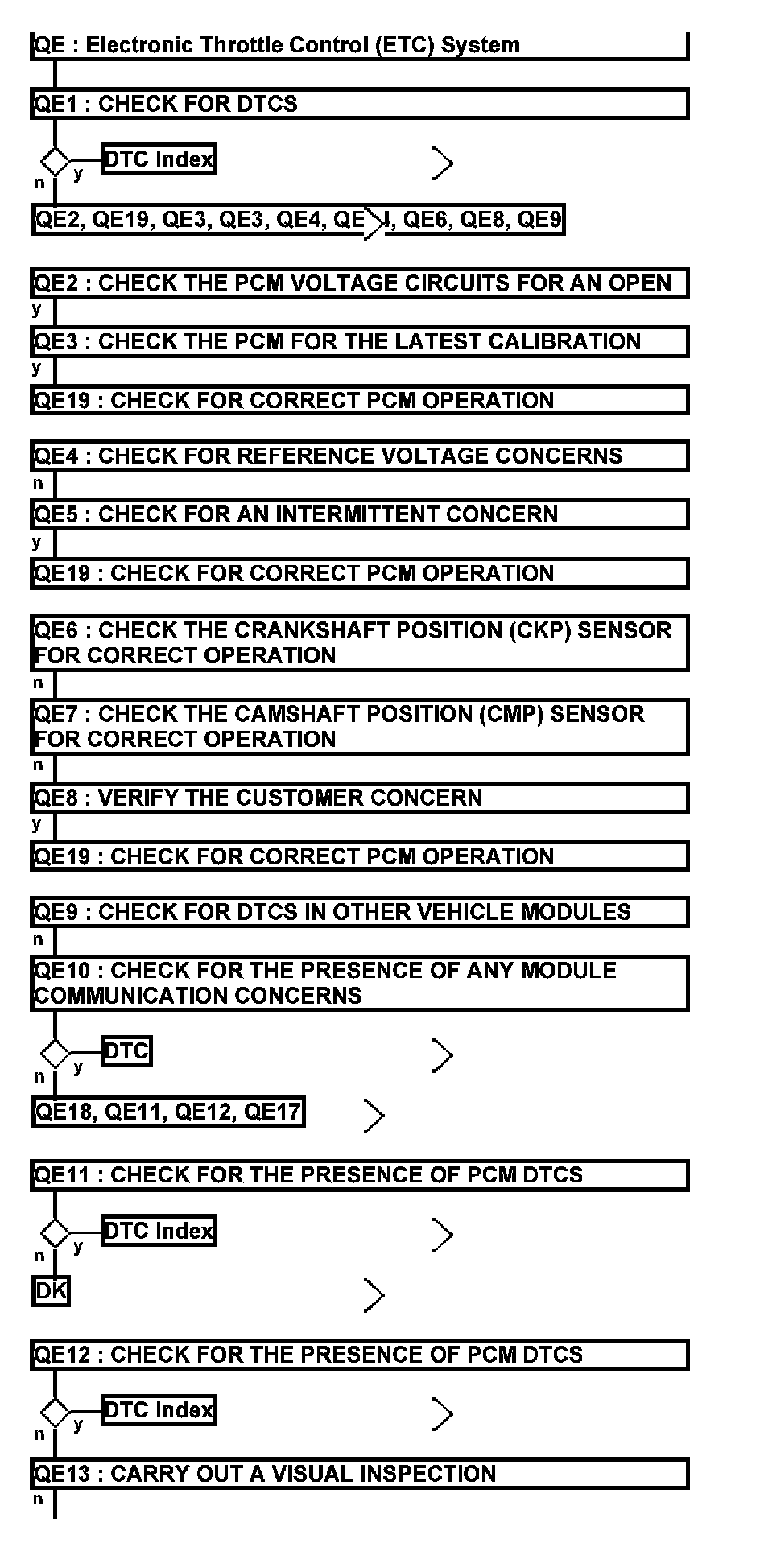

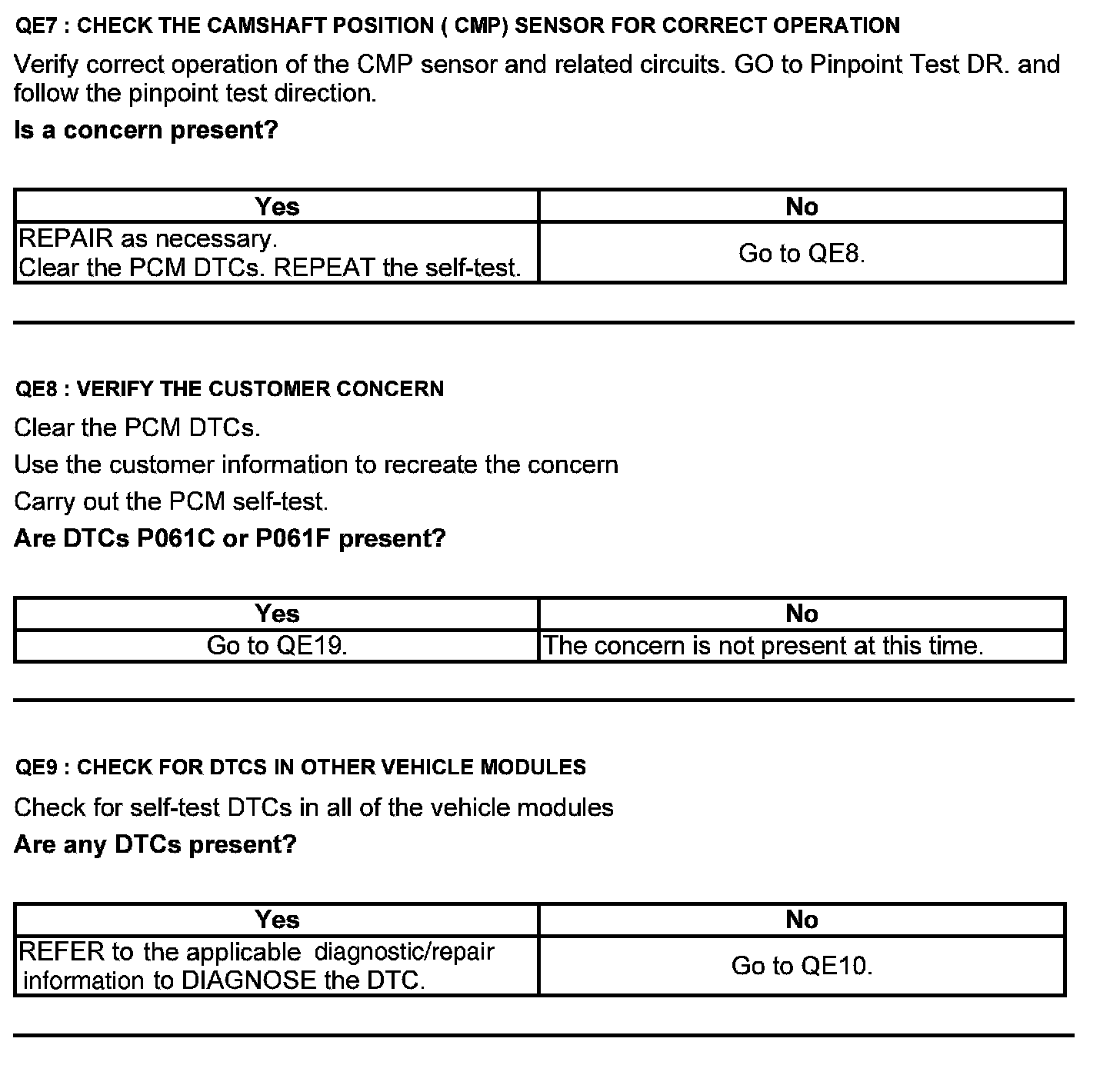

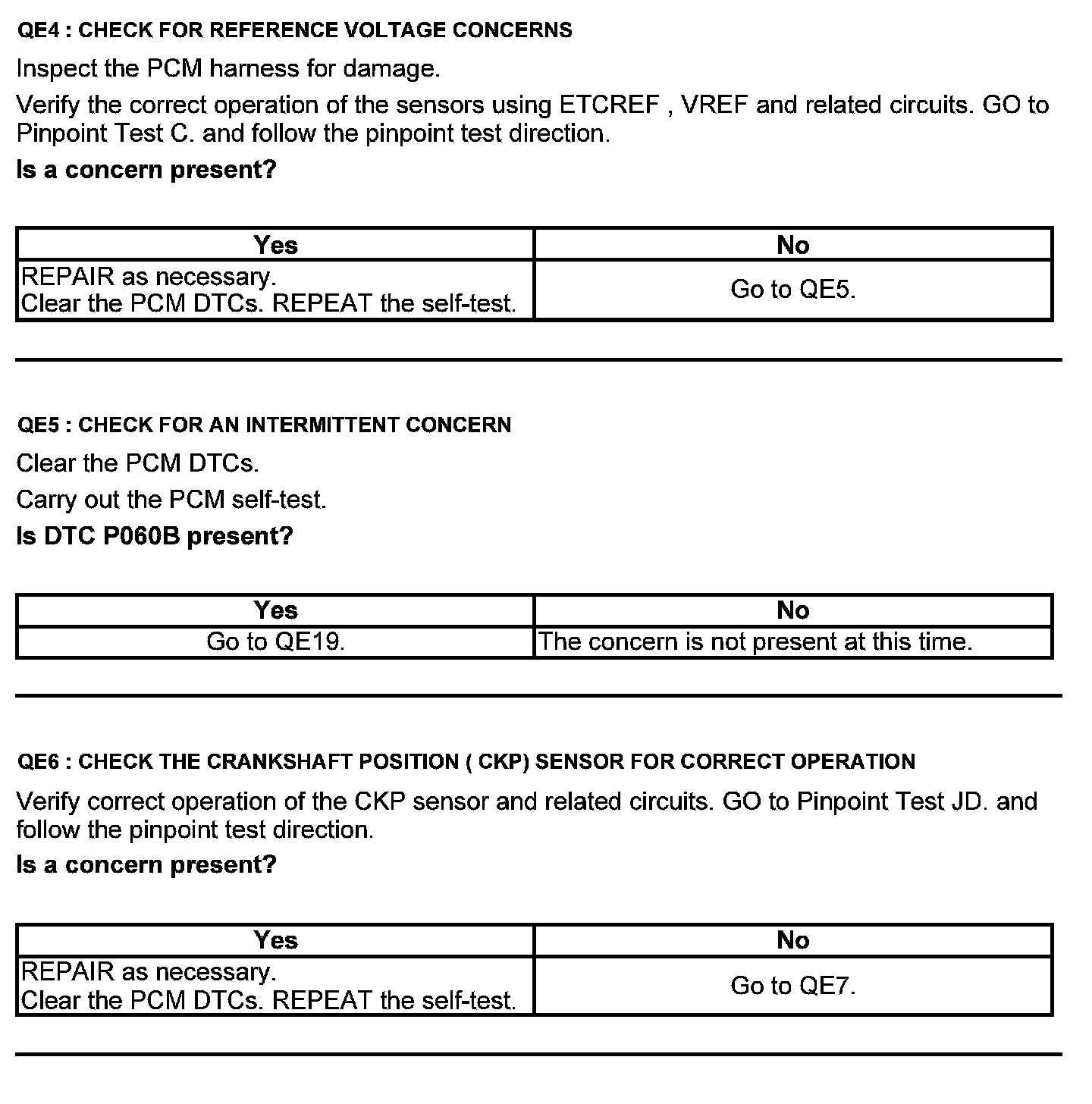

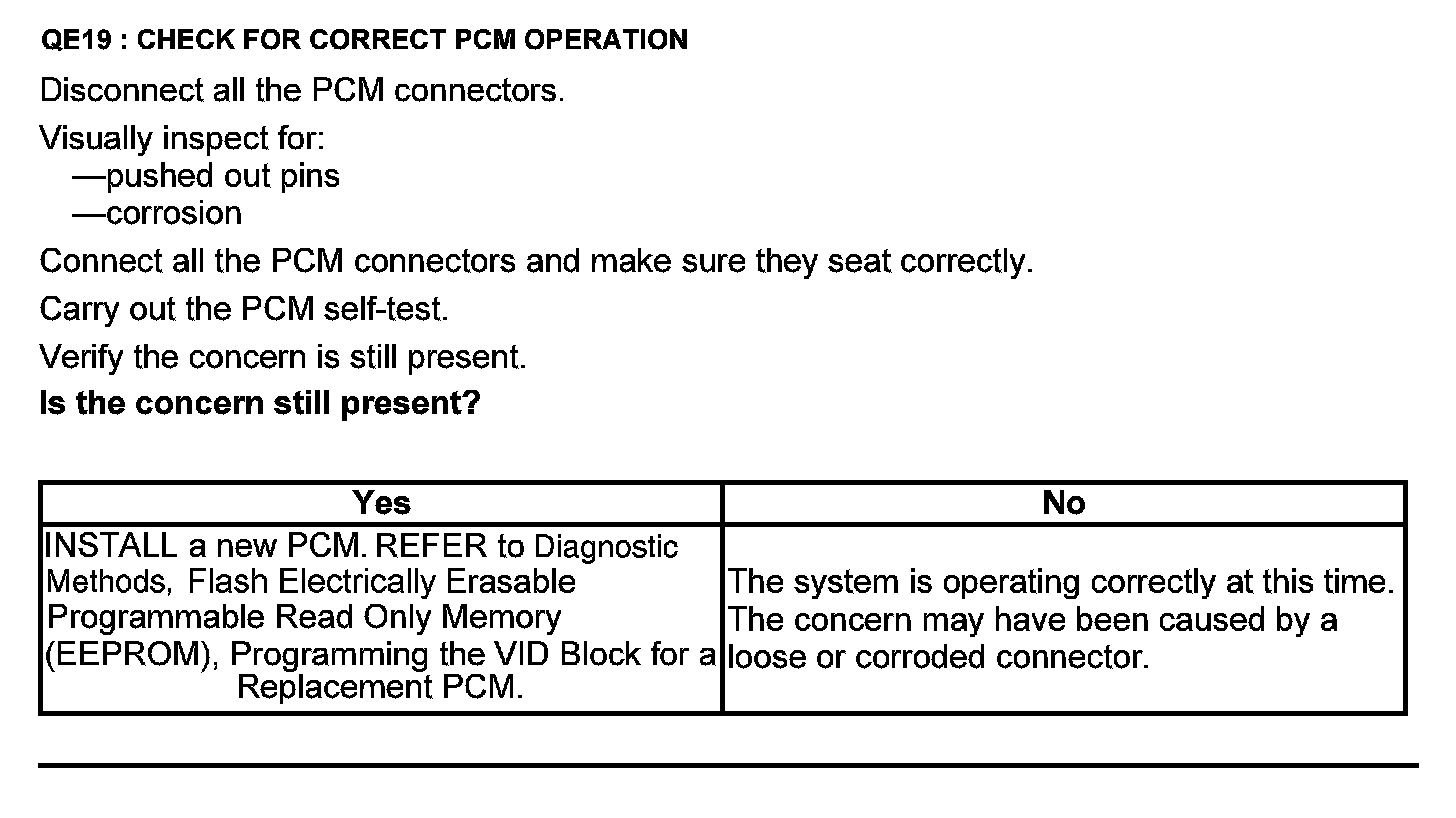

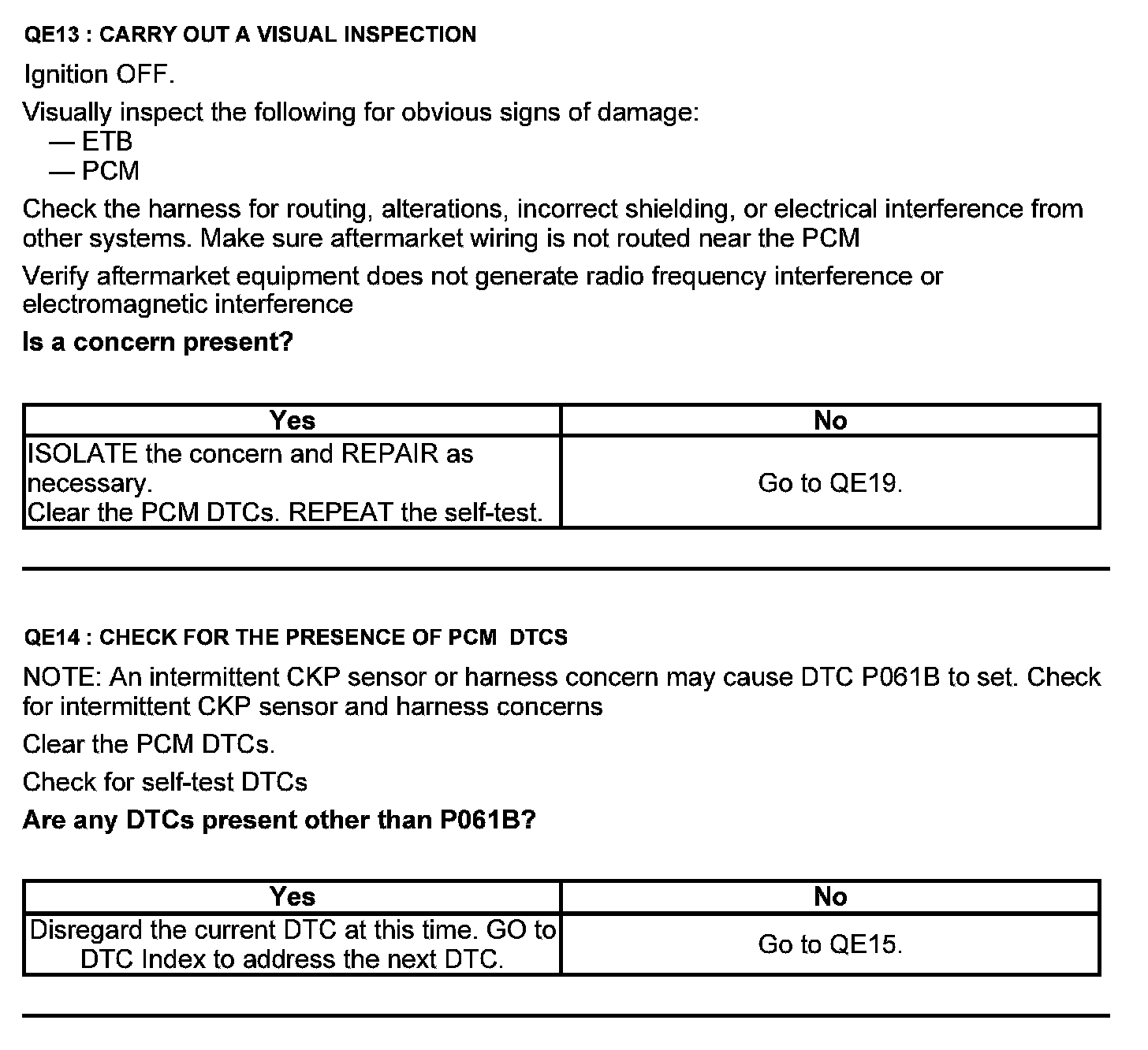

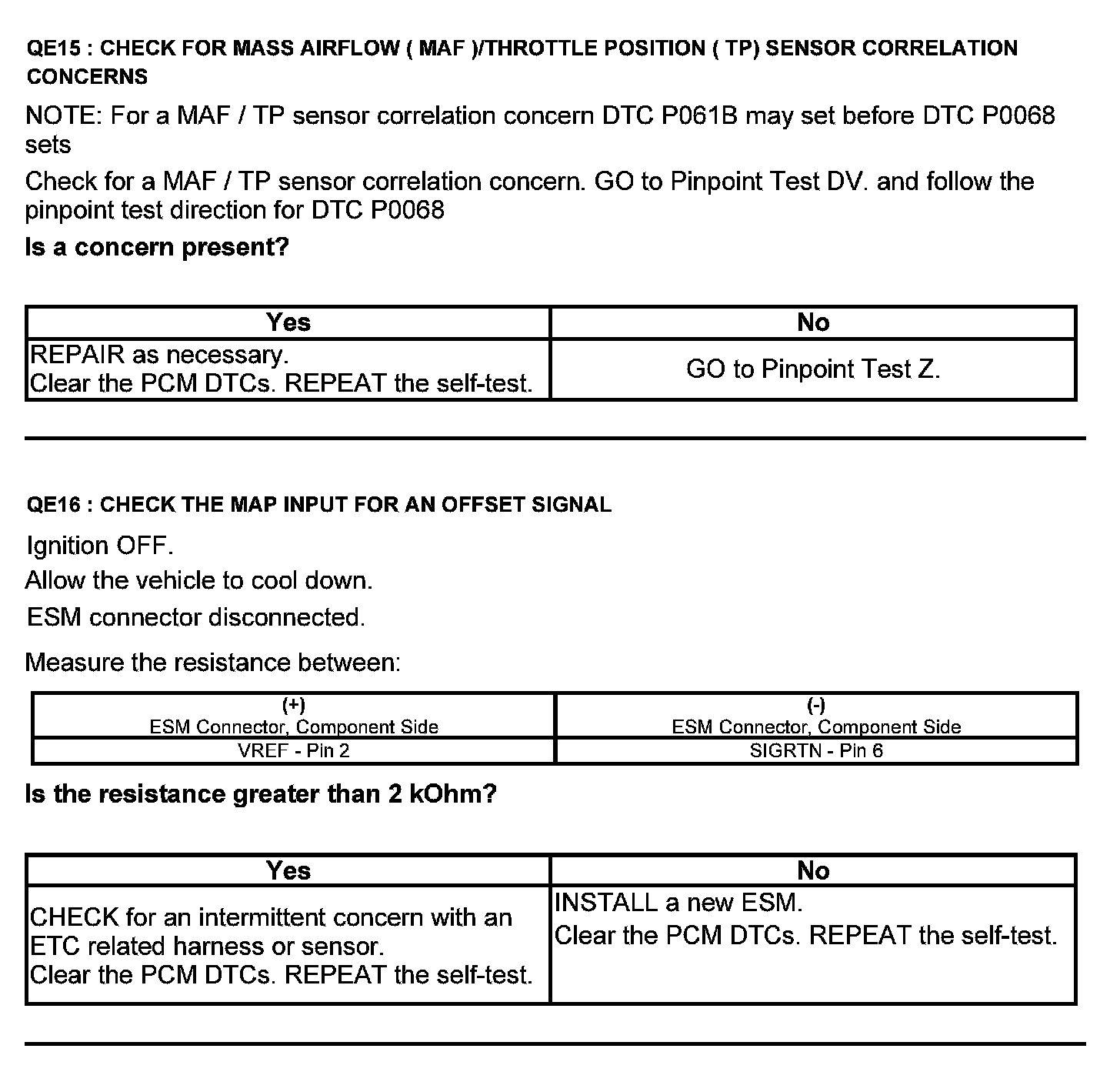

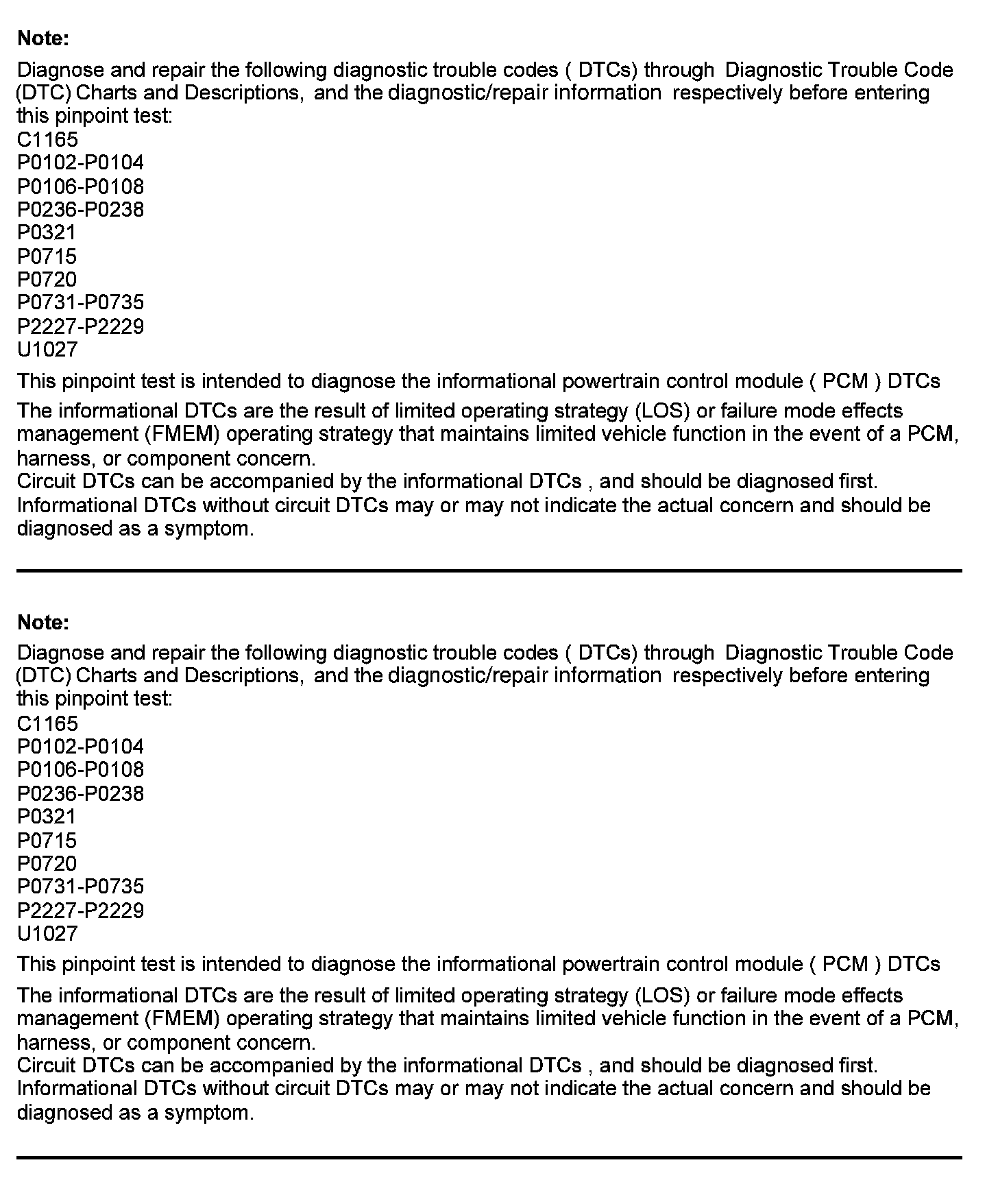

Test QE: Electronic Throttle Control (ETC) System



Electronic Throttle Control (ETC) System

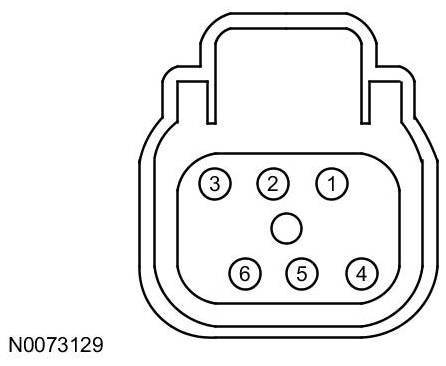

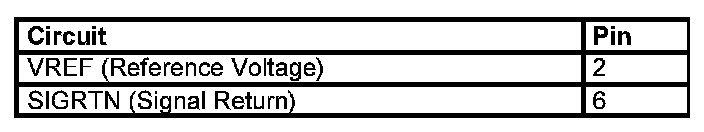

EGR System Module (ESM) Connector






Harness Side

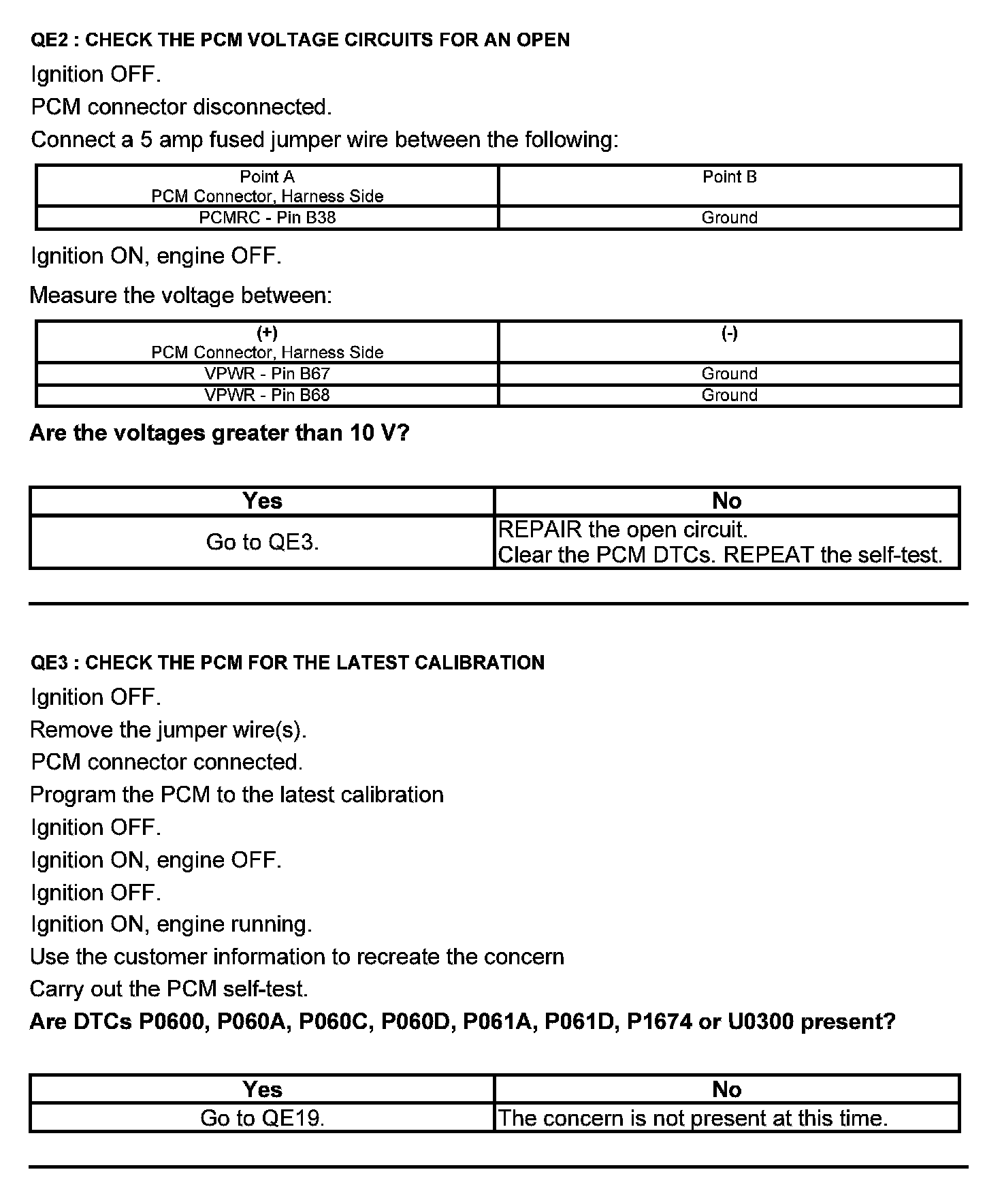

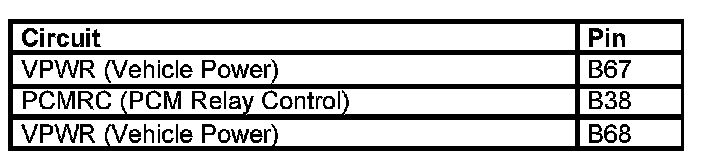

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
