Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test QC: On Board Diagnostic (OBD) Systems Readiness

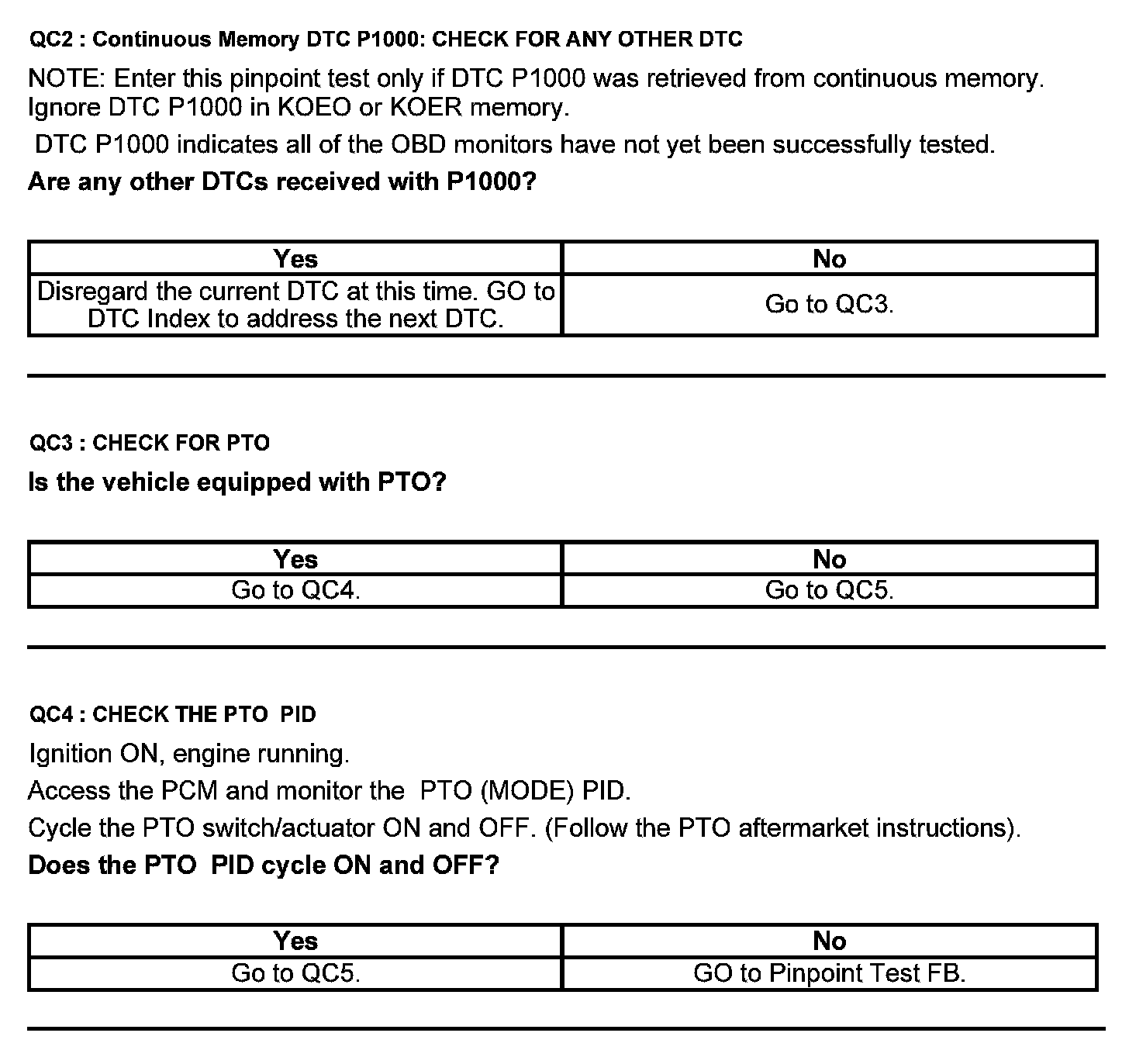

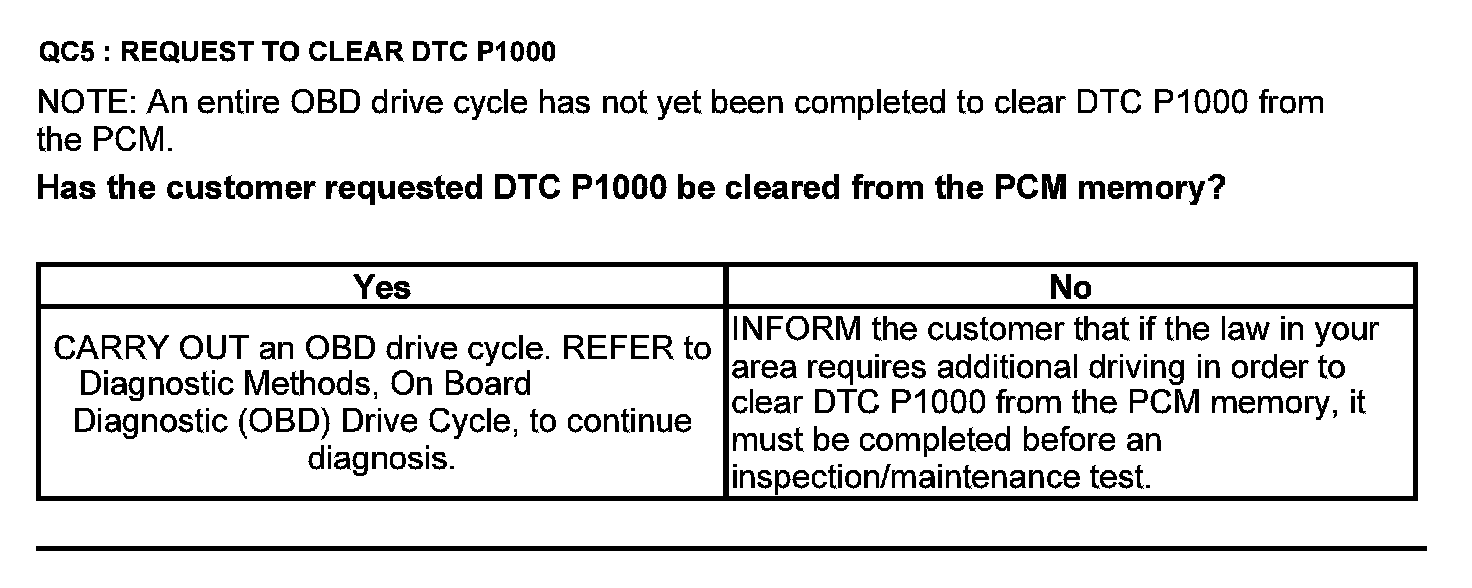

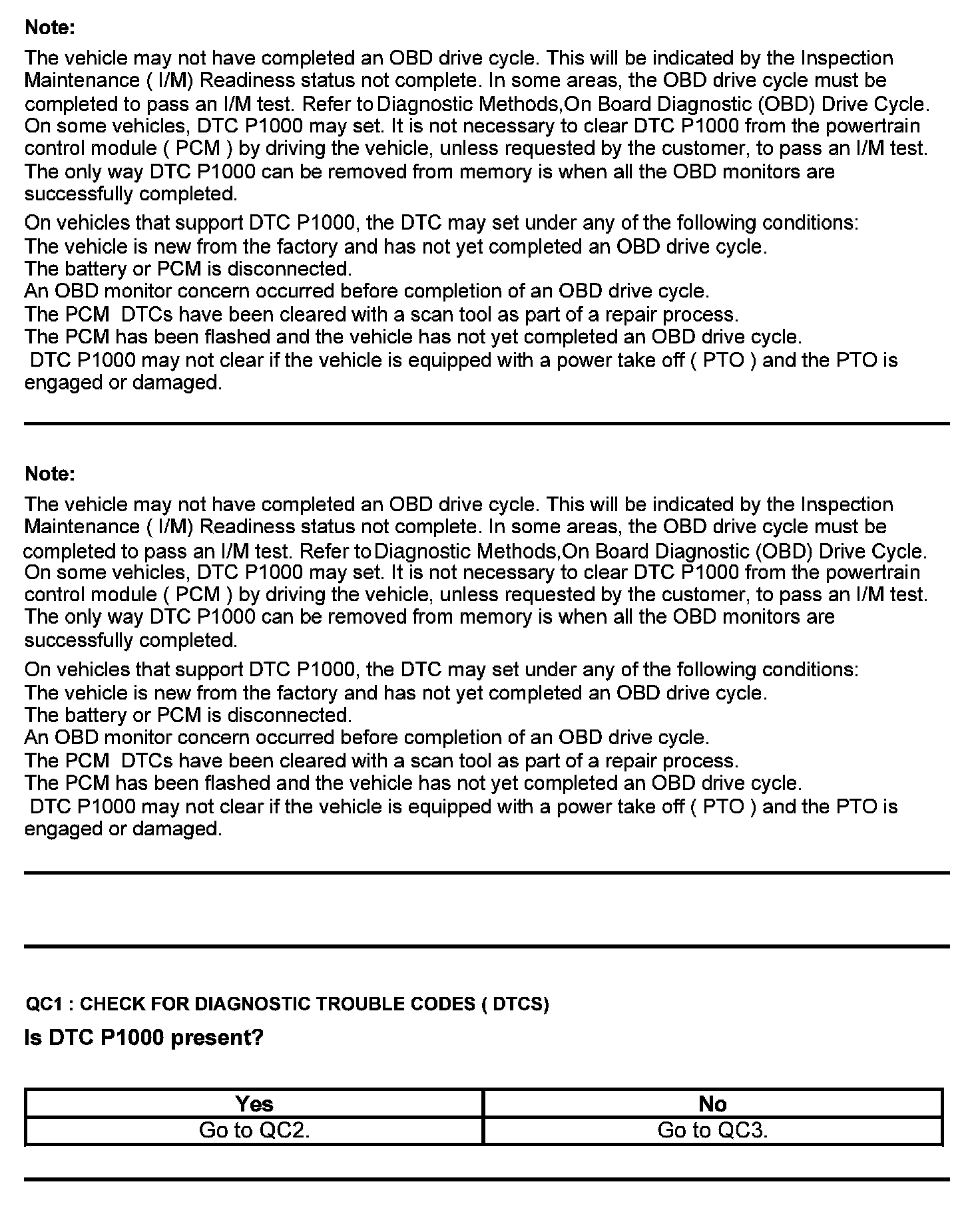

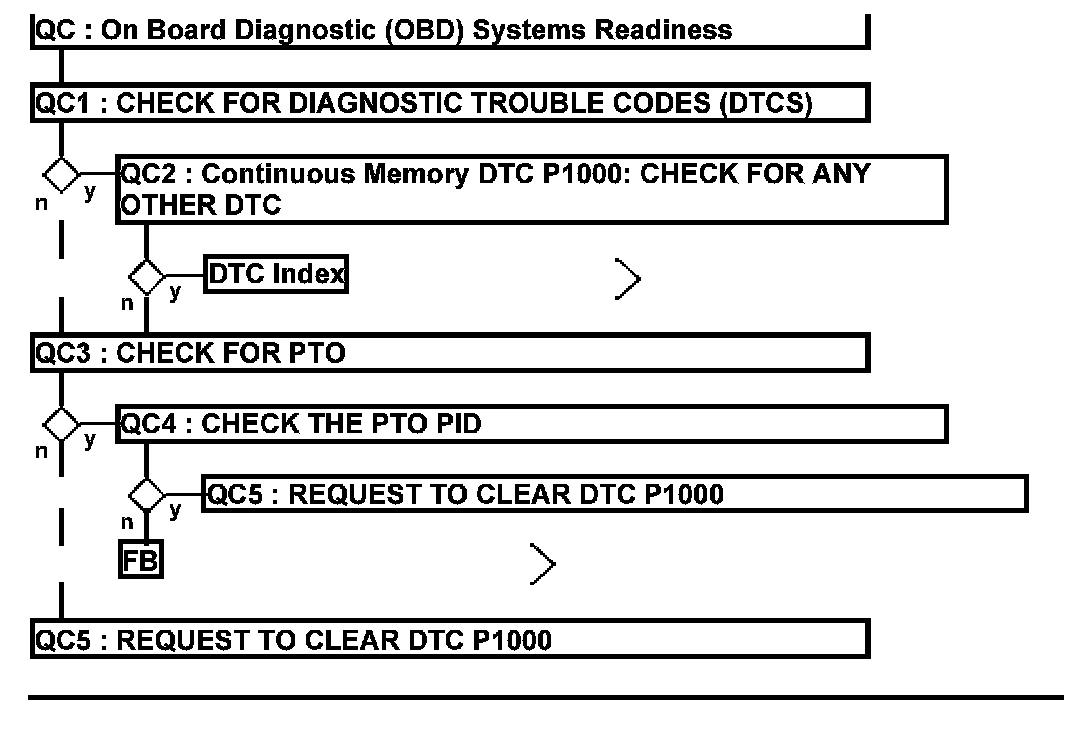

Test QC: On Board Diagnostic (OBD) Systems Readiness



On Board Diagnostic (OBD) Systems Readiness
