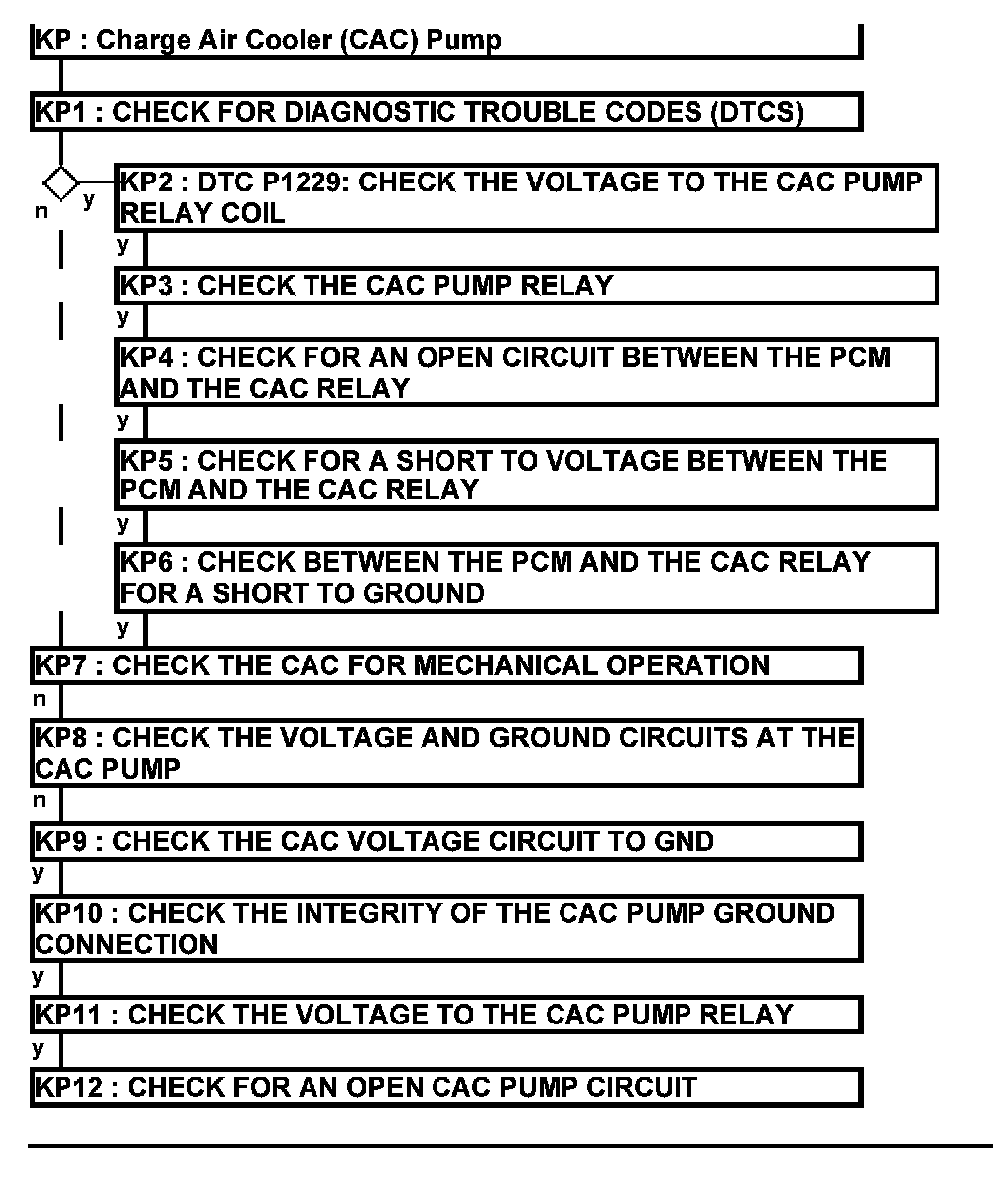

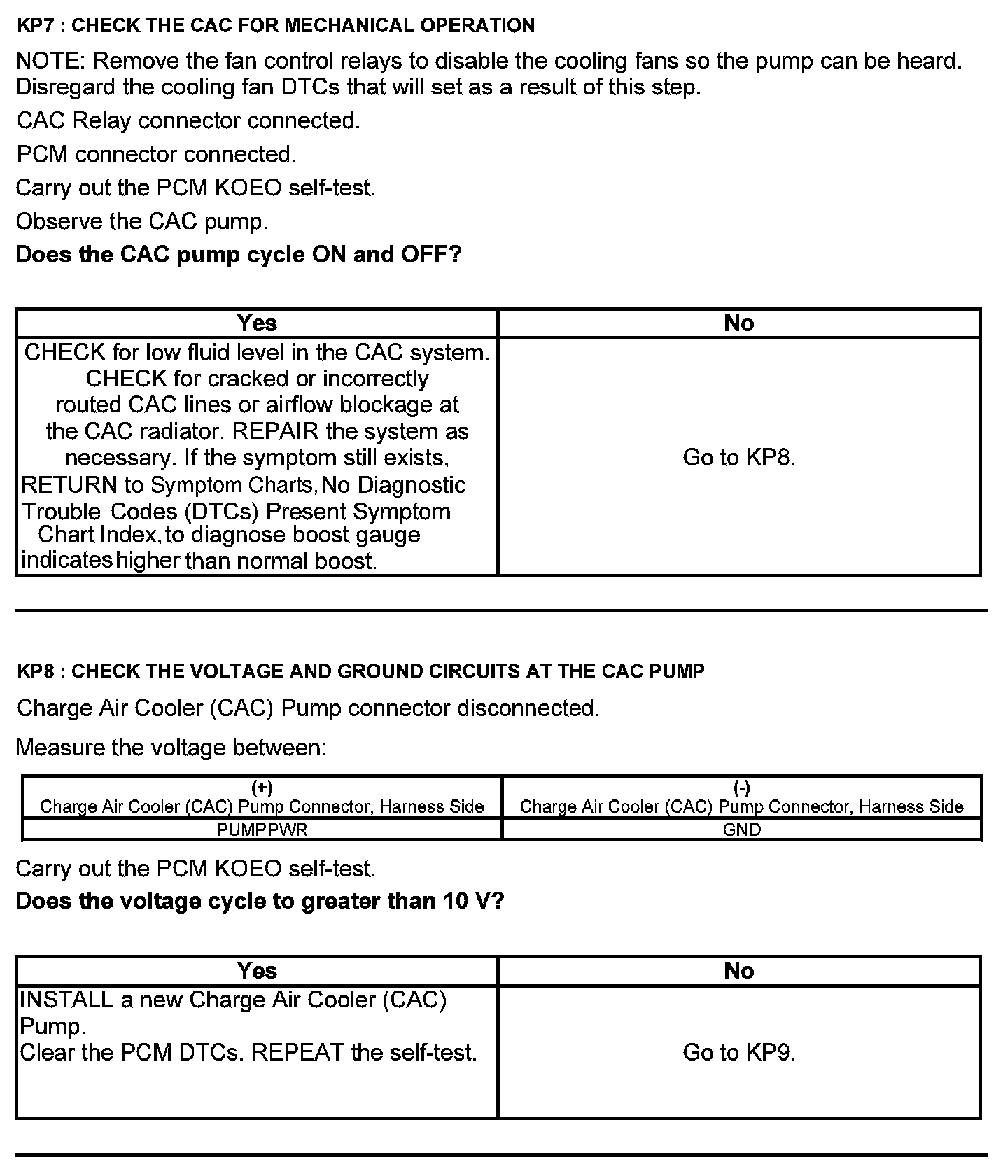

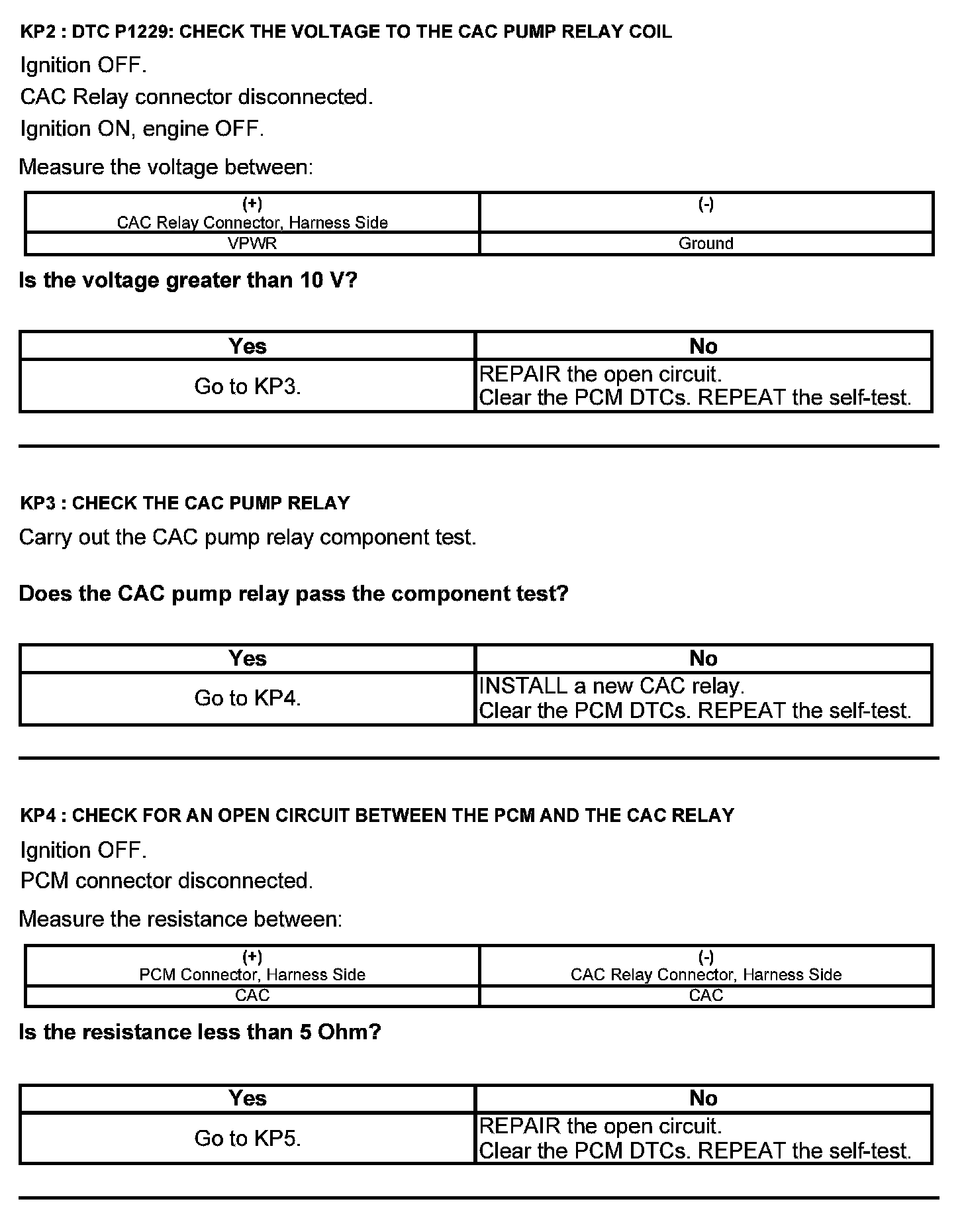

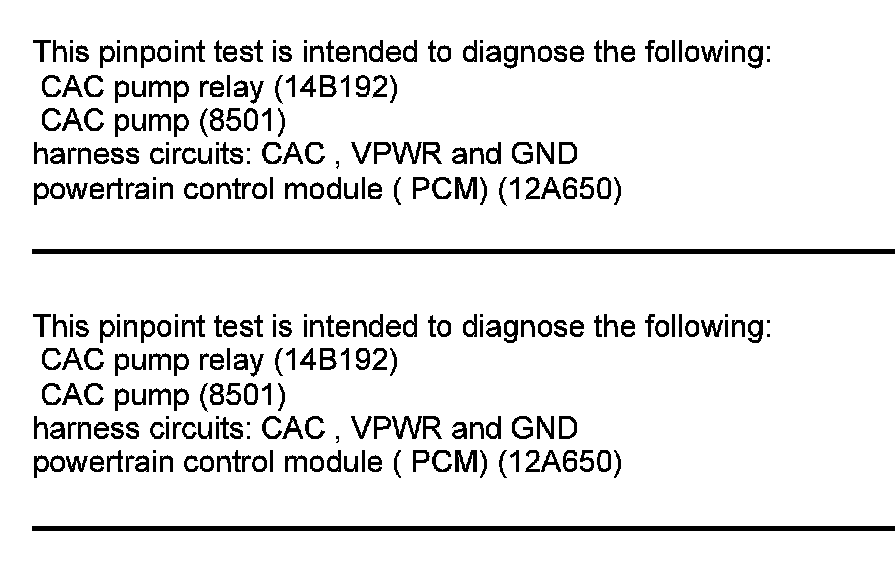

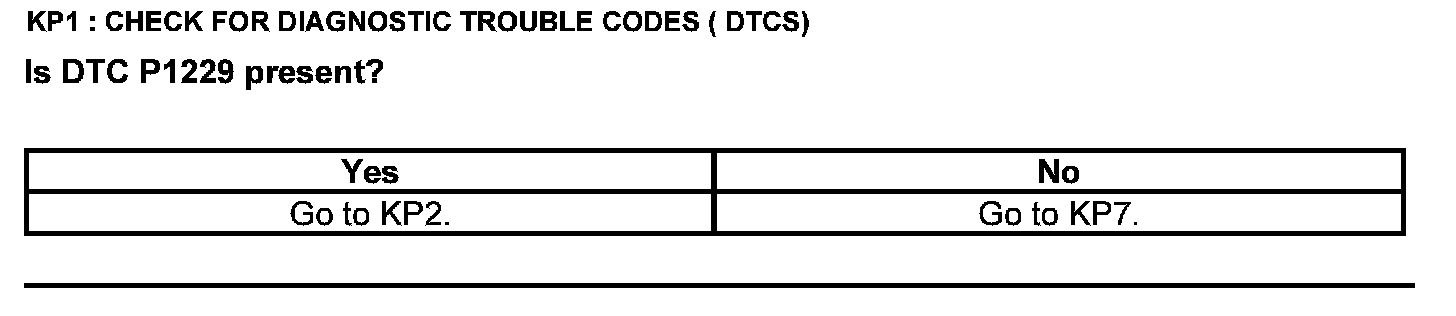

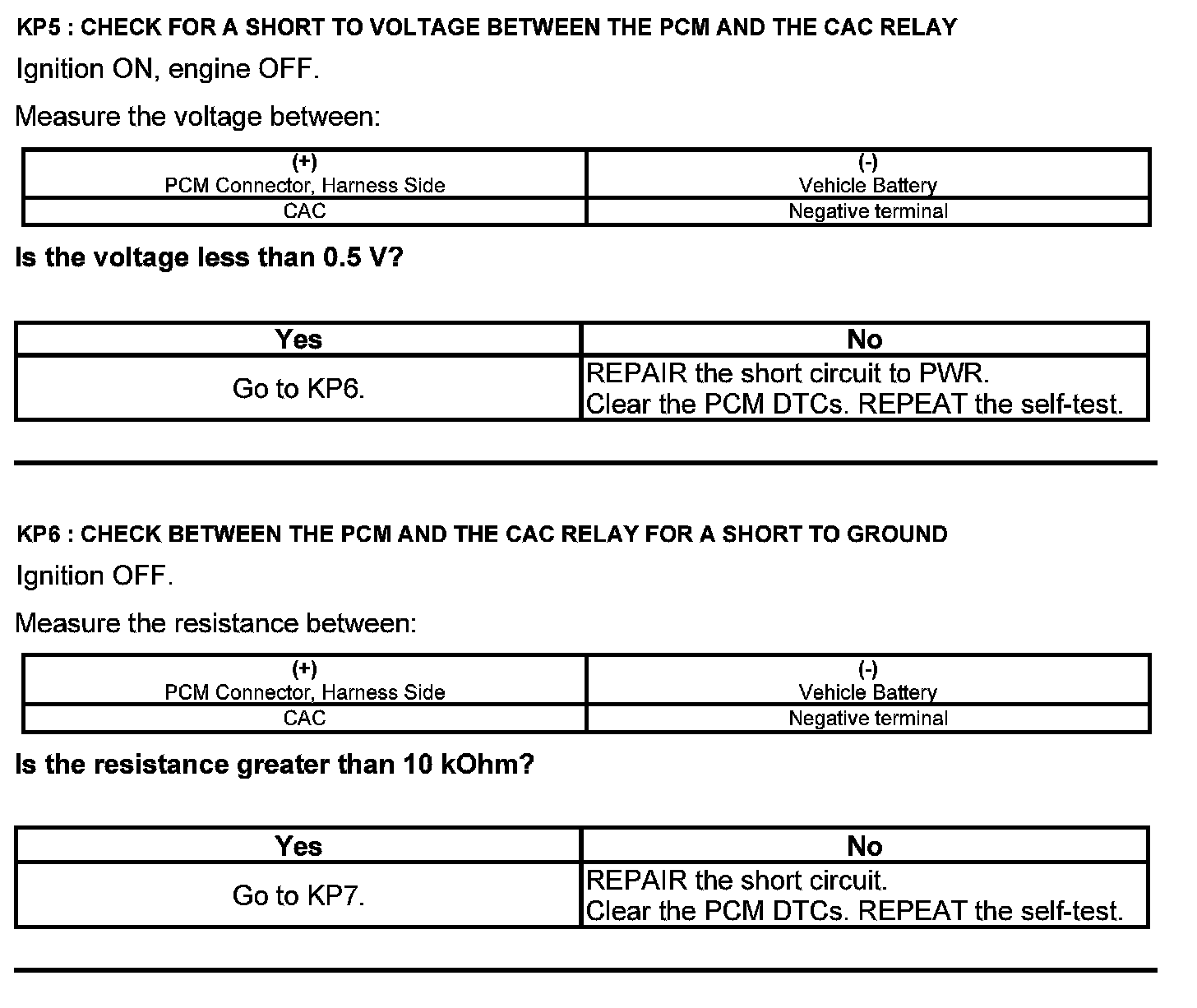

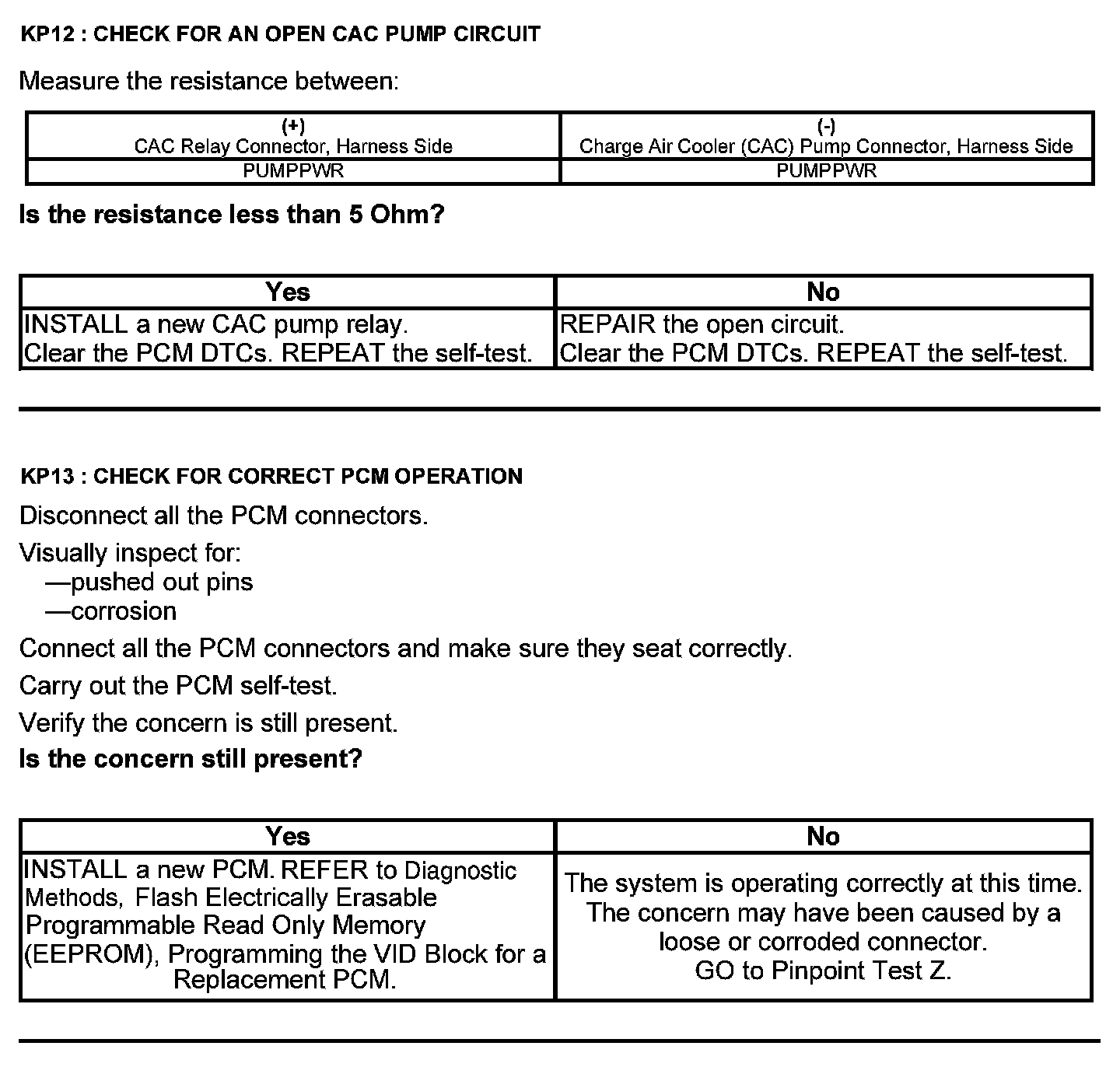

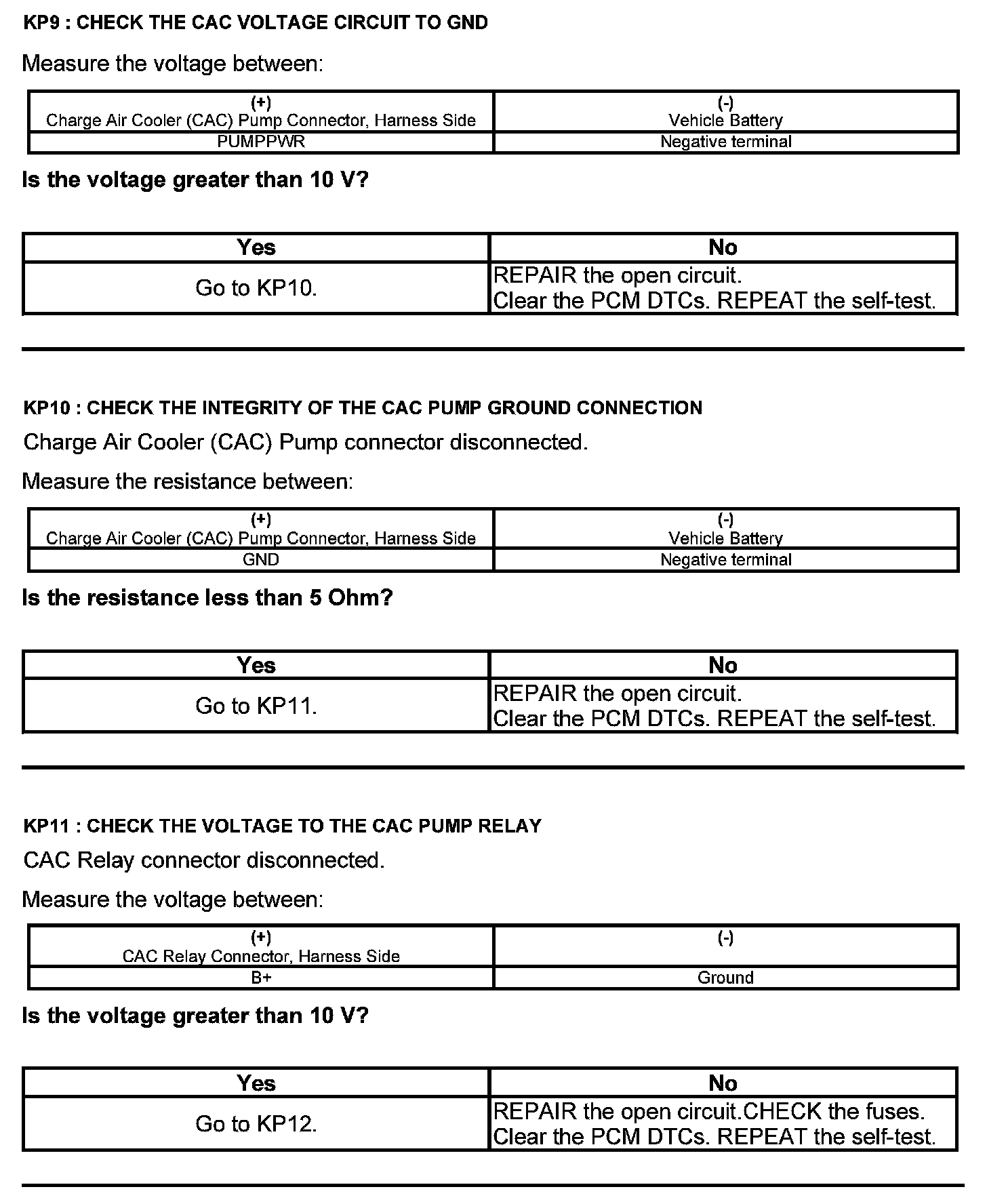

Test KP: Charge Air Cooler (CAC) Pump



Charge Air Cooler (CAC) Pump












Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
