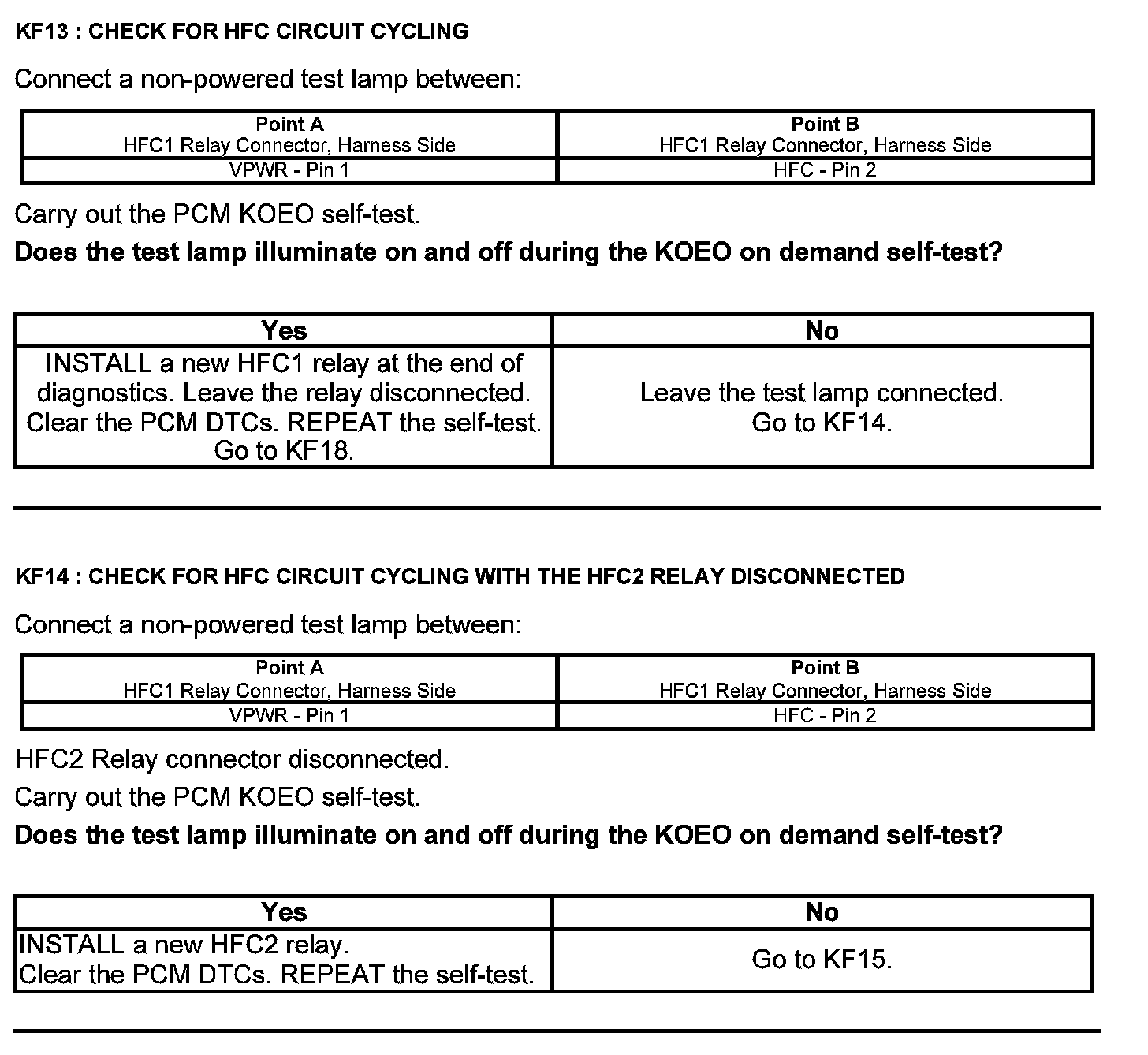

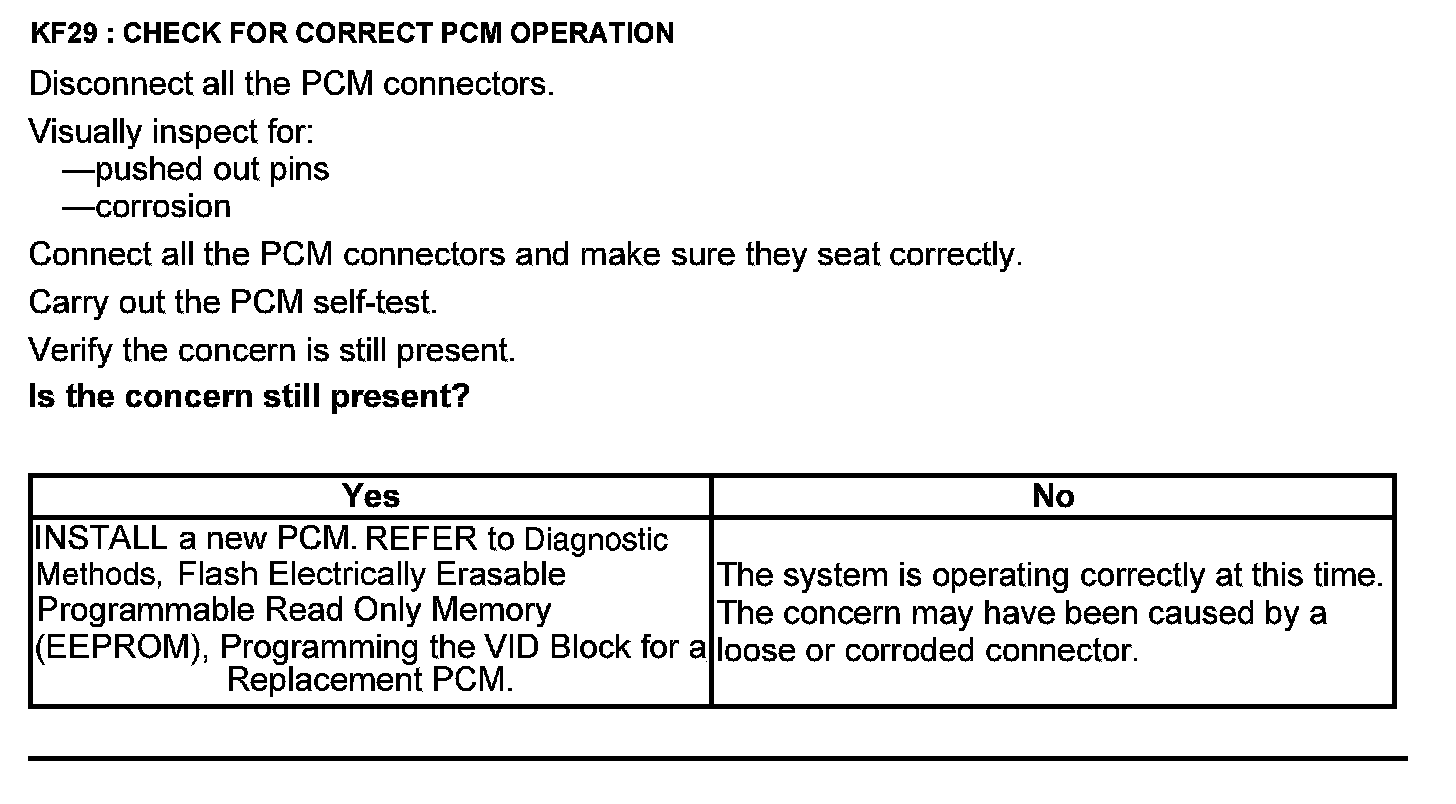

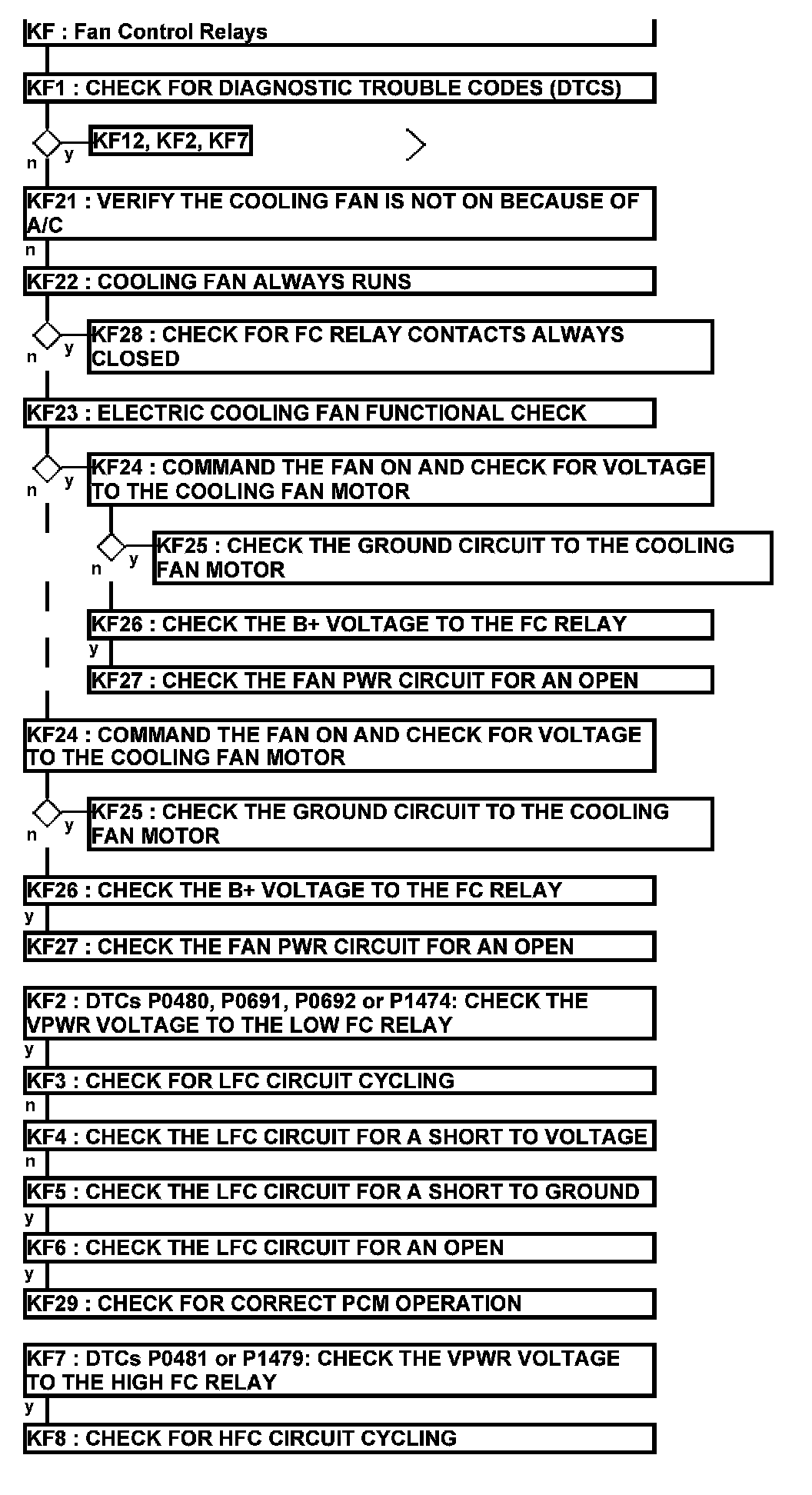

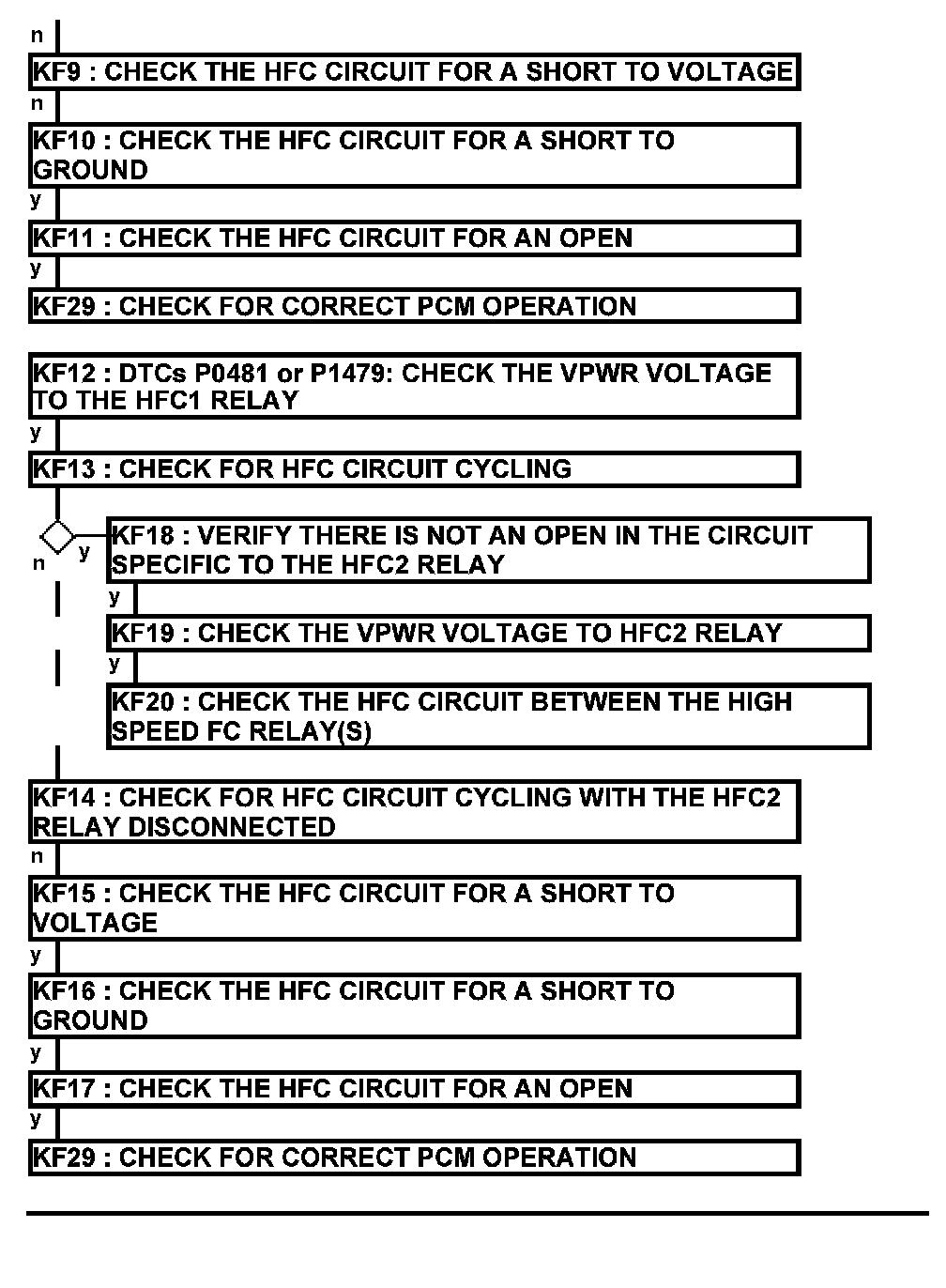

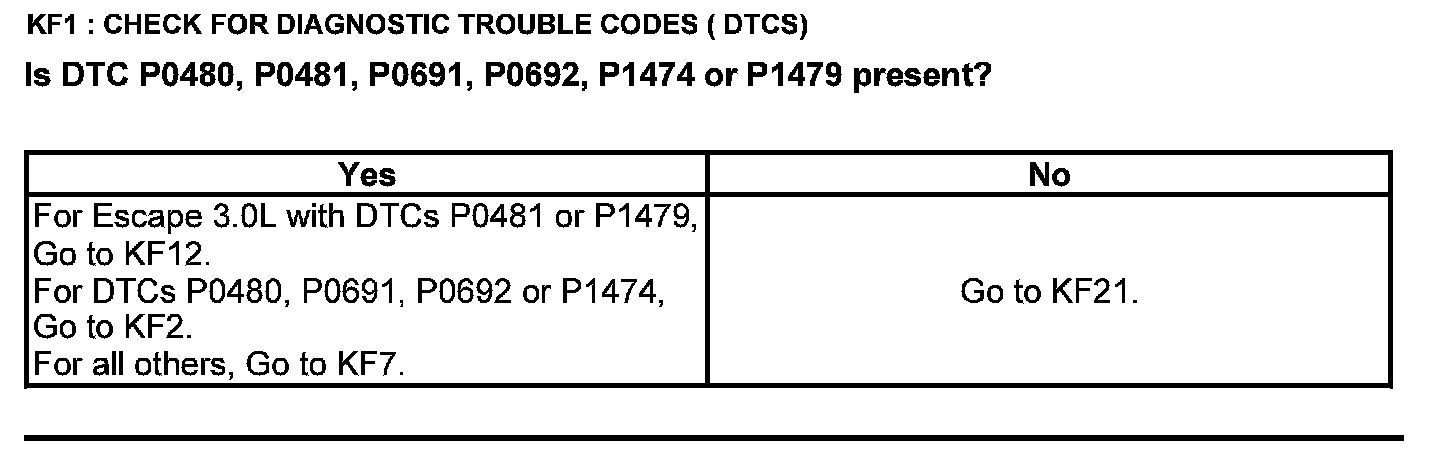

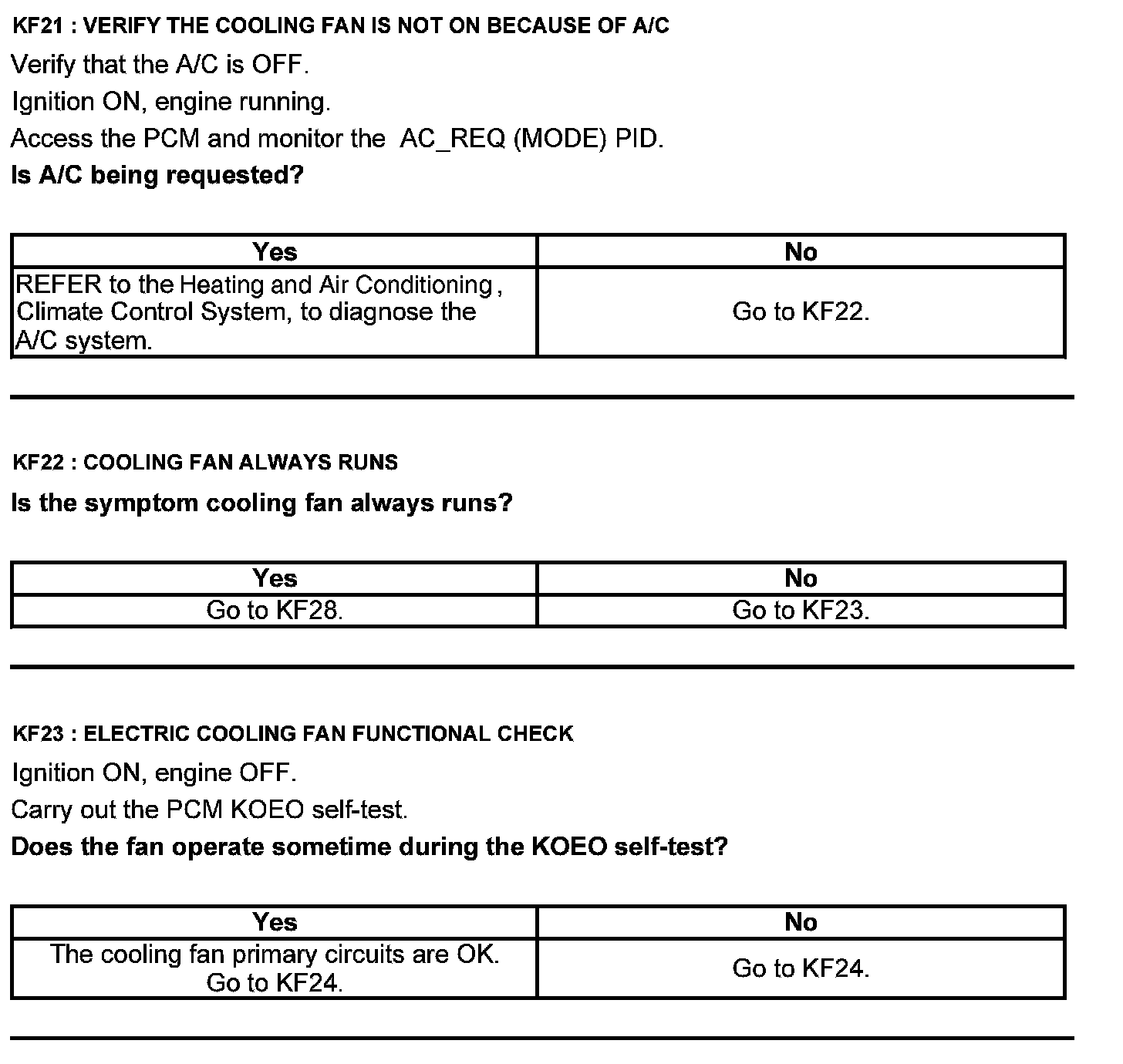

Test KF: Fan Control Relays

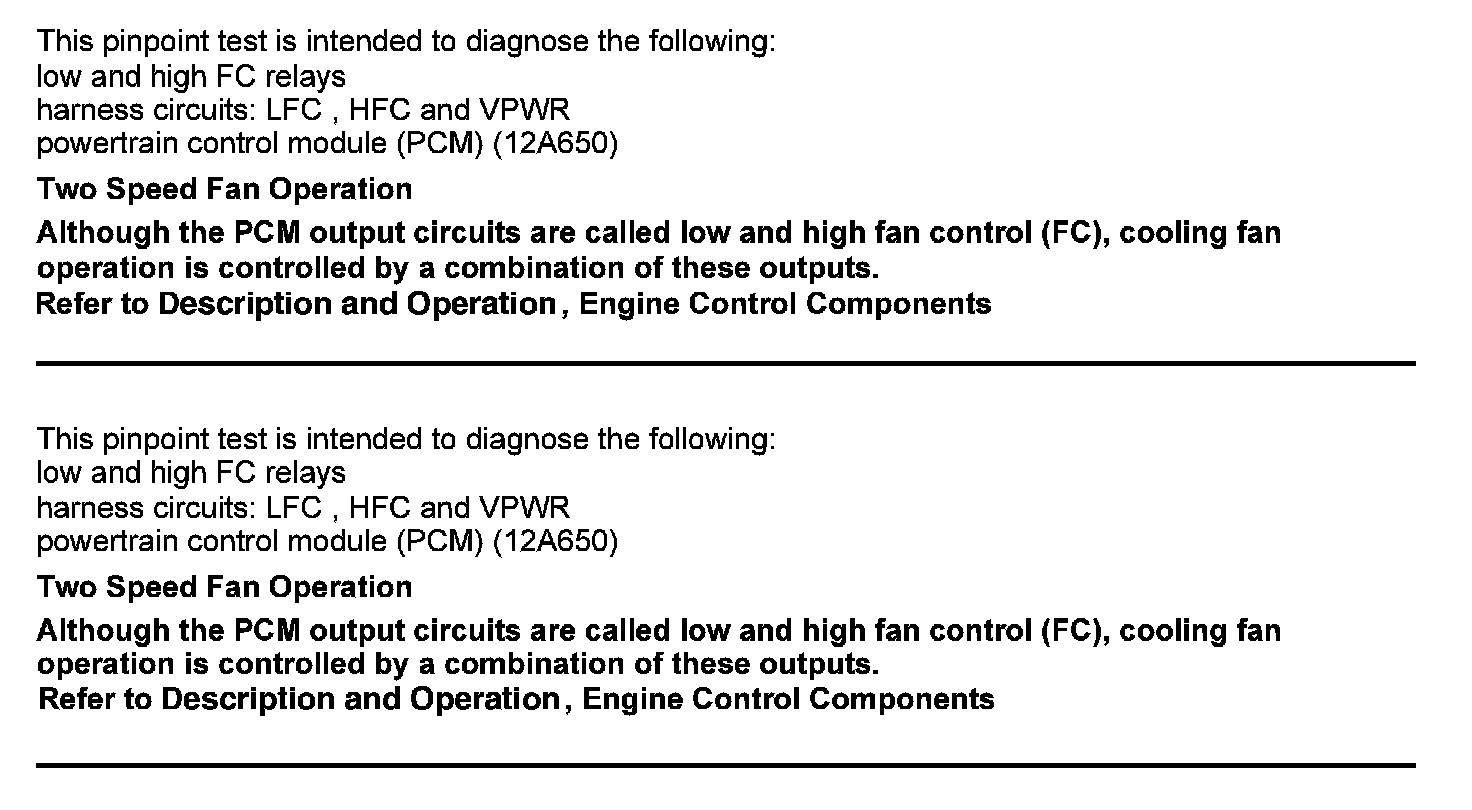

Fan Control Relays

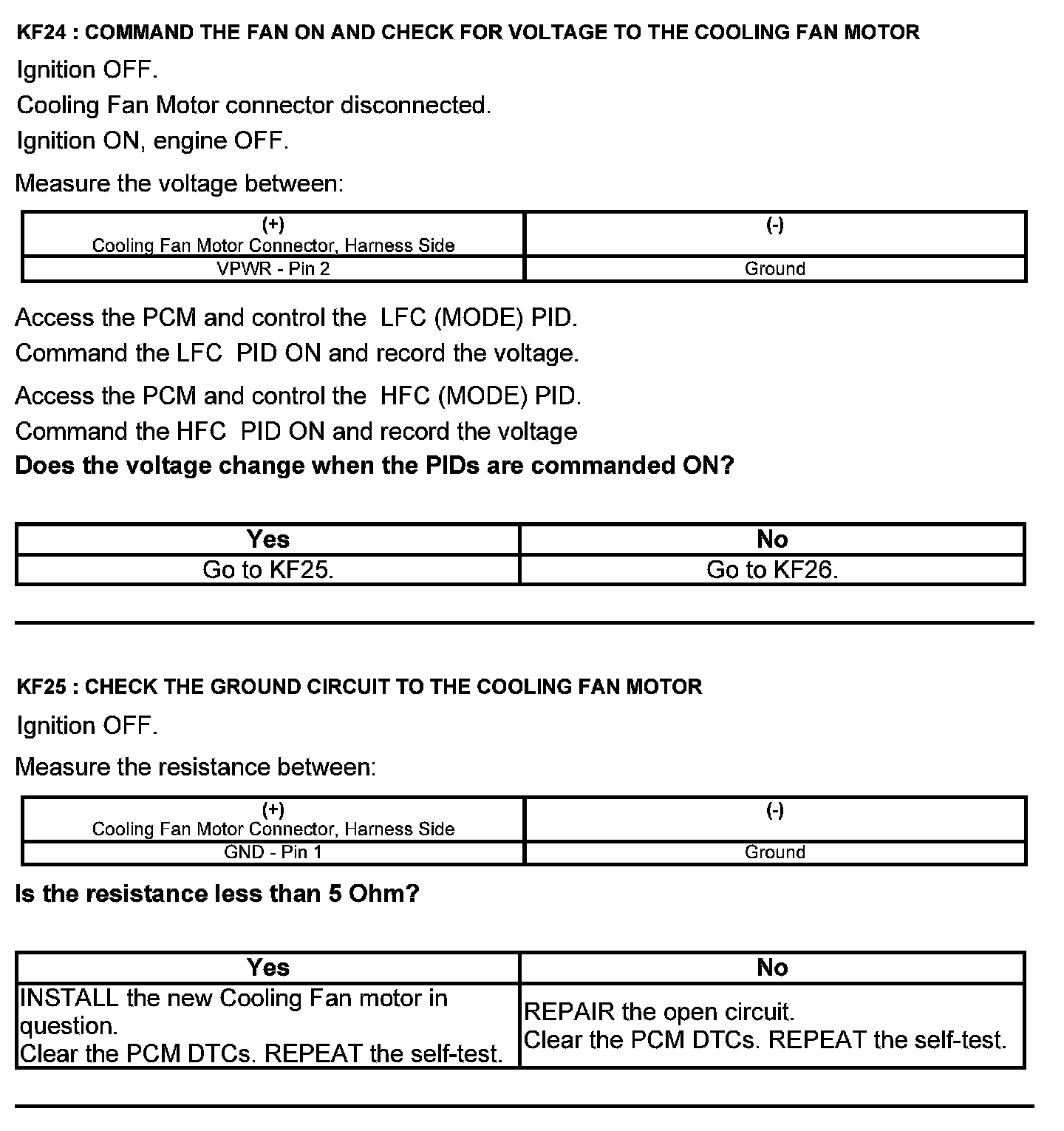

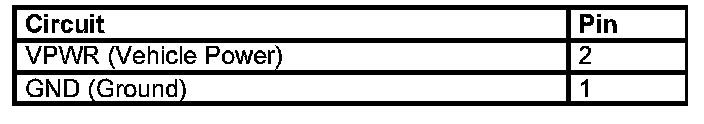

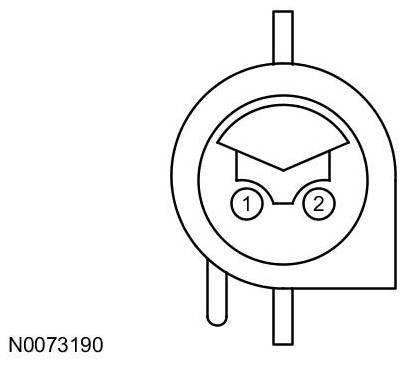

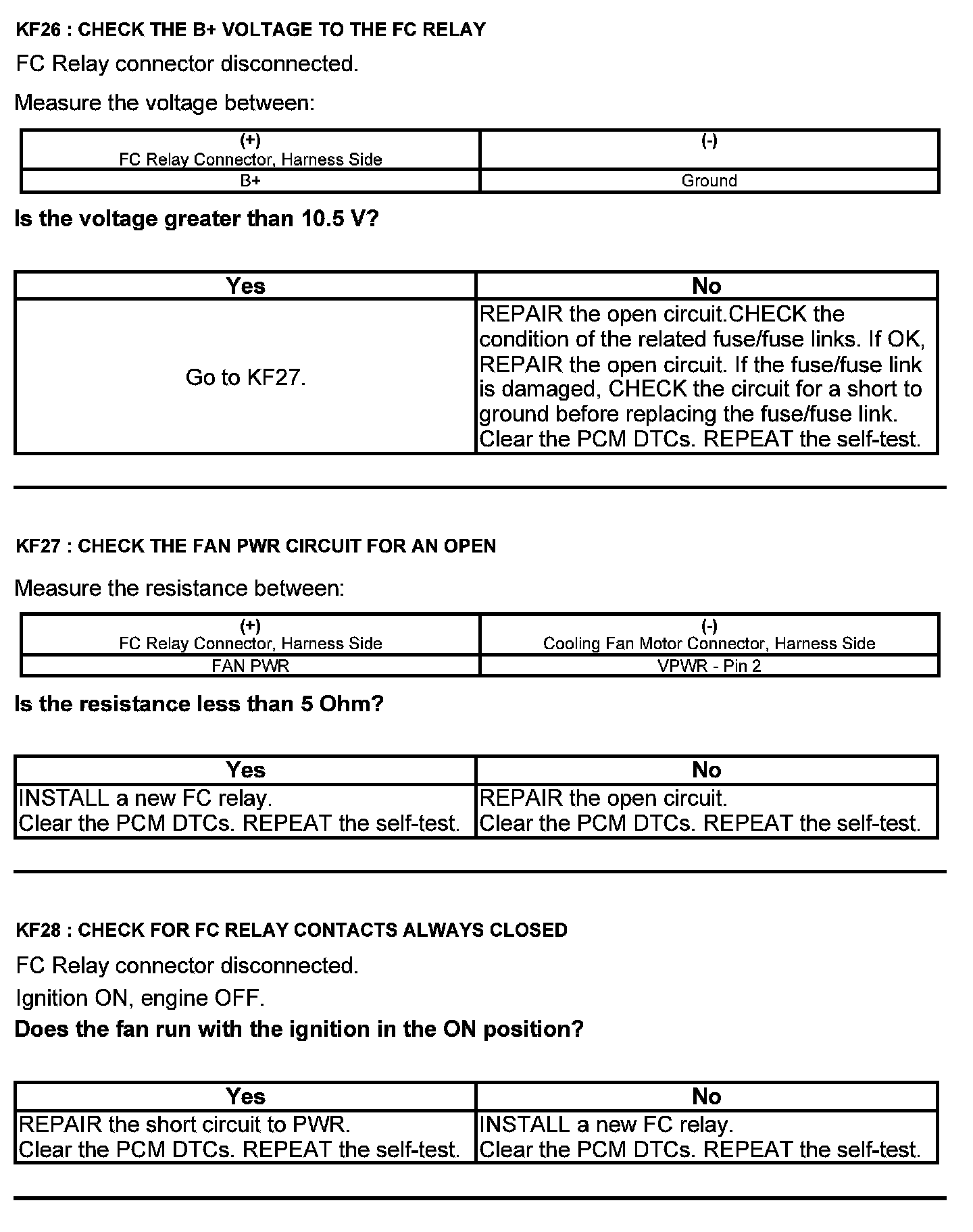

Cooling Fan Motor Connector






Harness Side

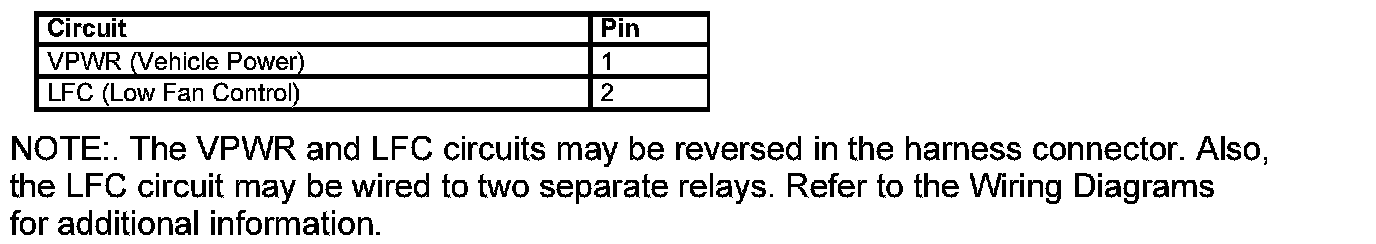

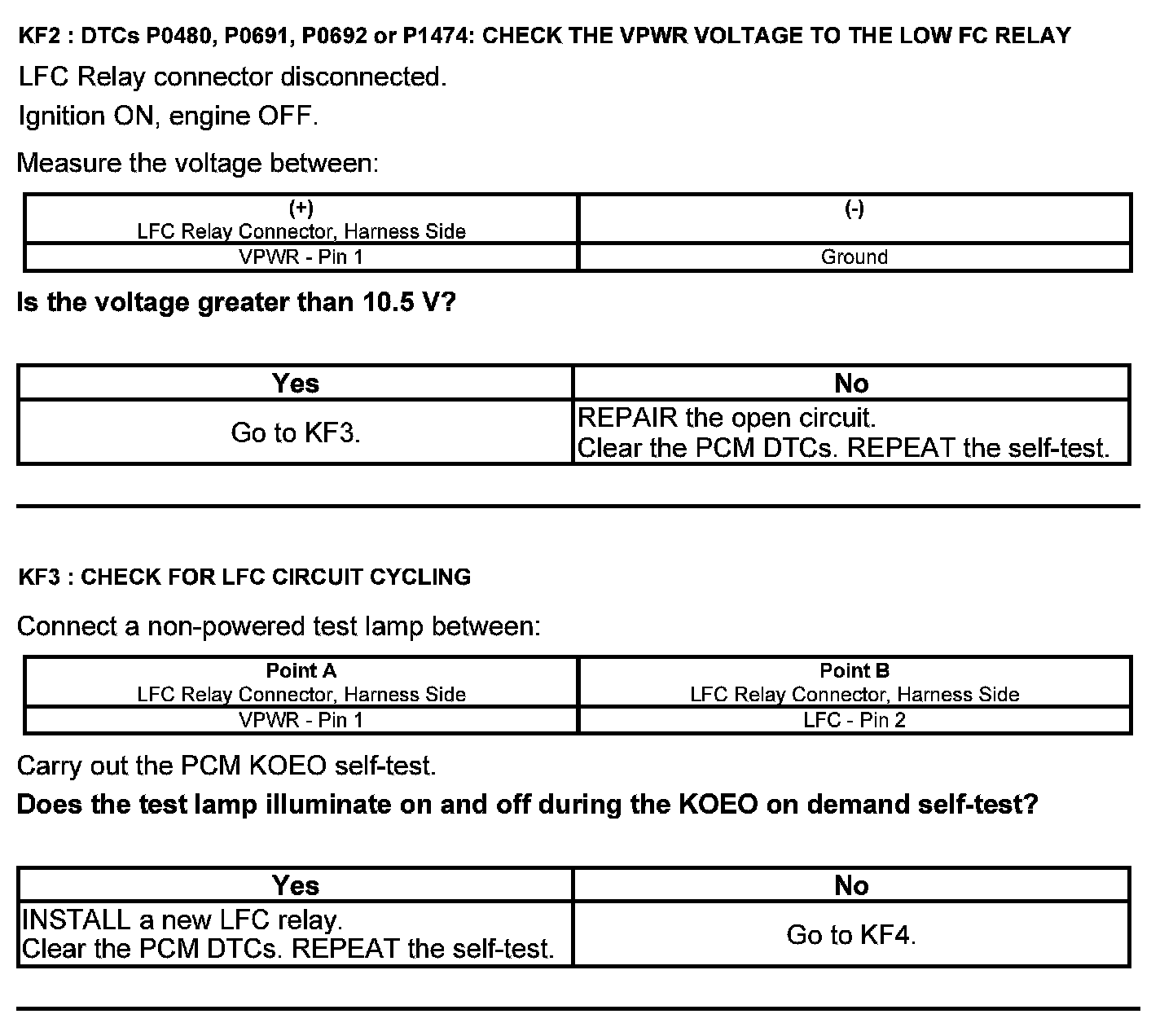

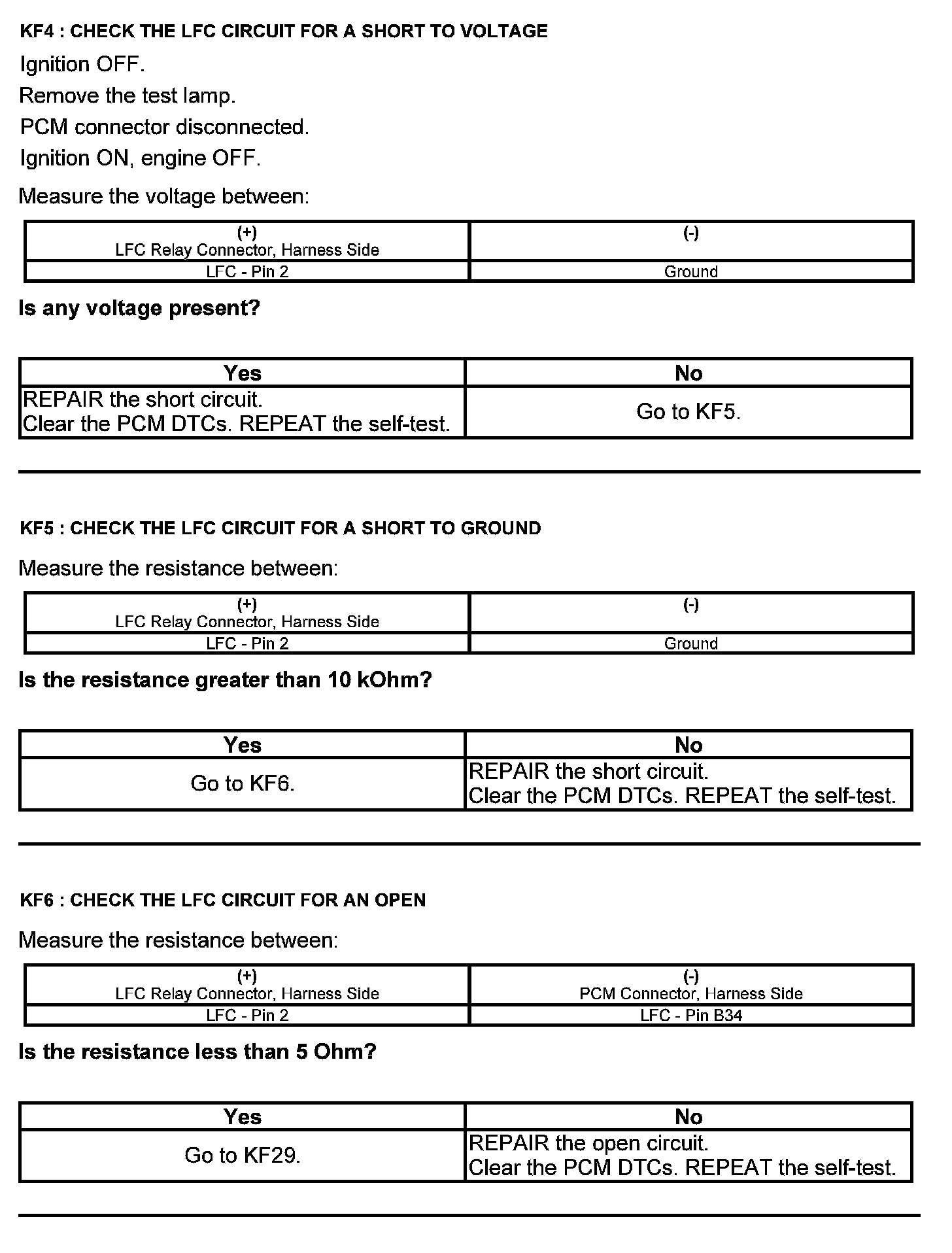

Low Fan Control (LFC) Relay Connector






Harness Side

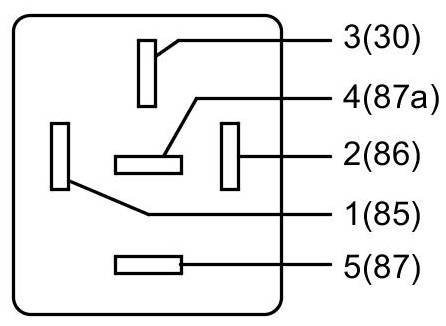

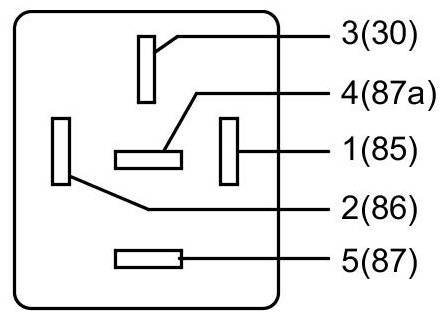

Component side

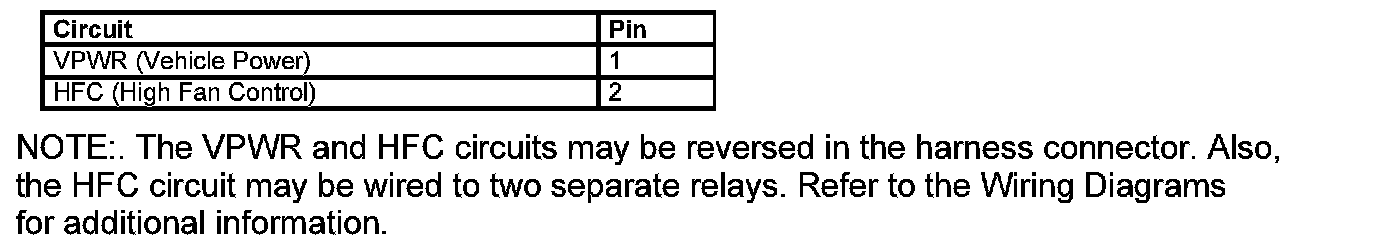

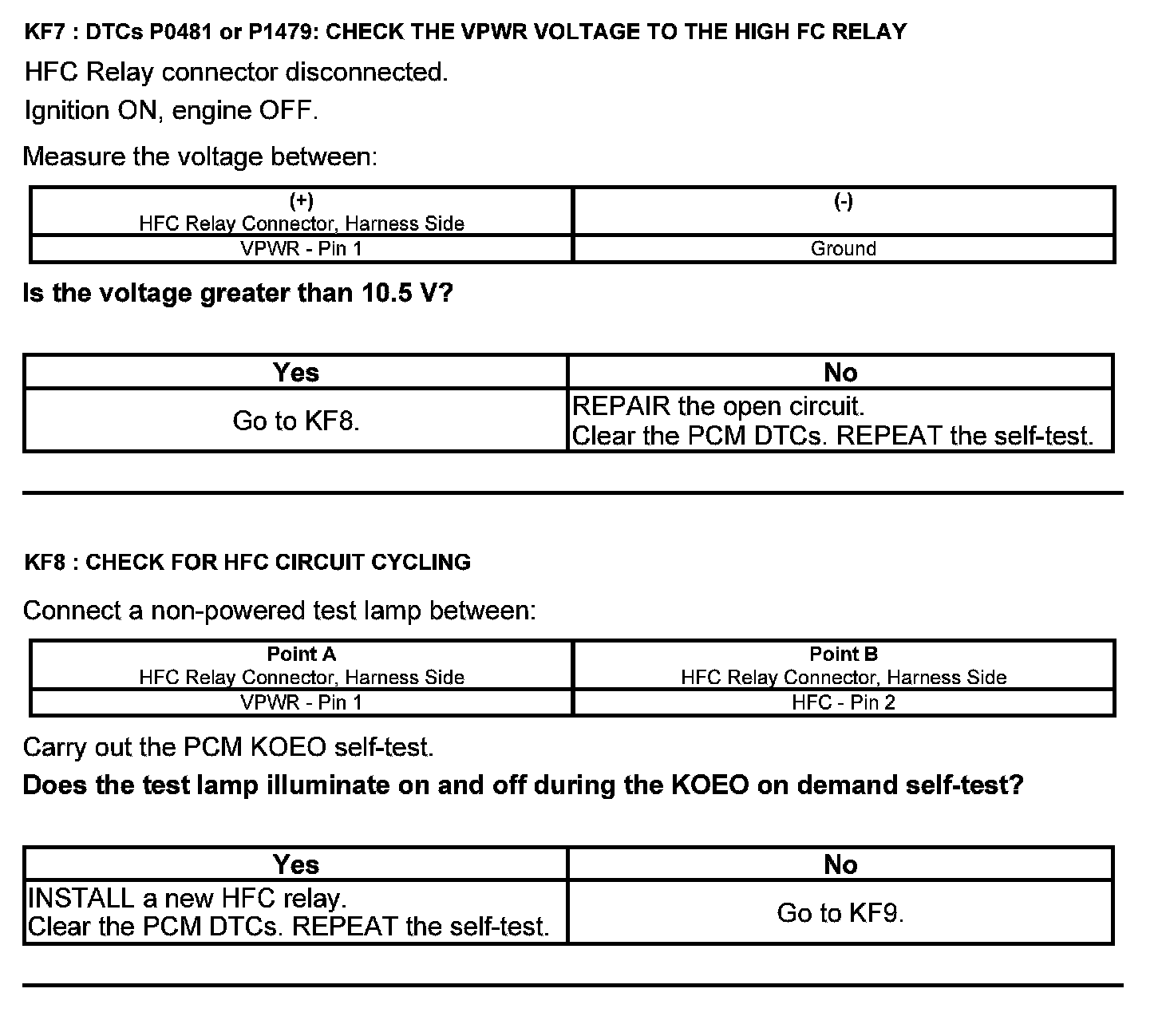

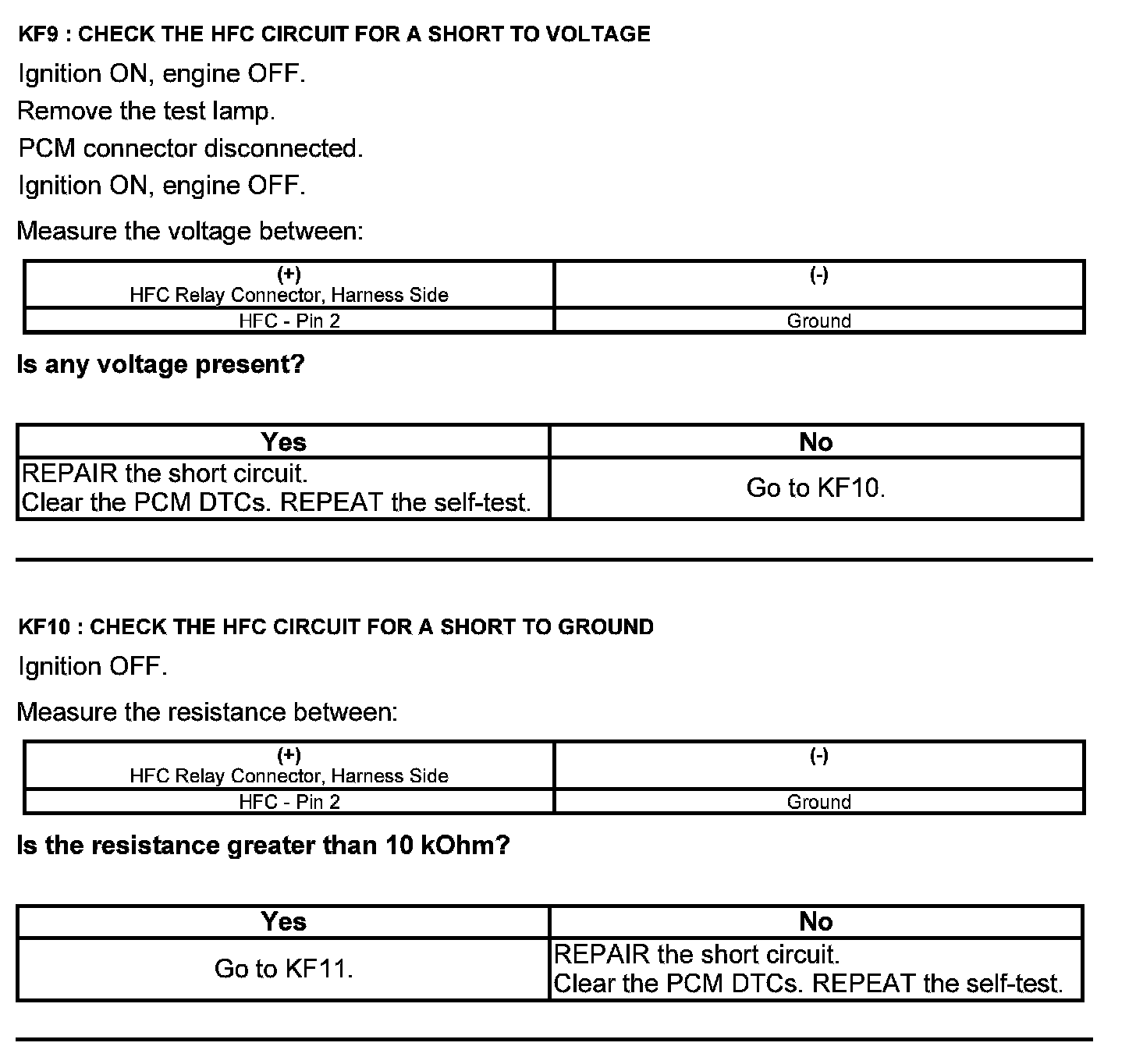

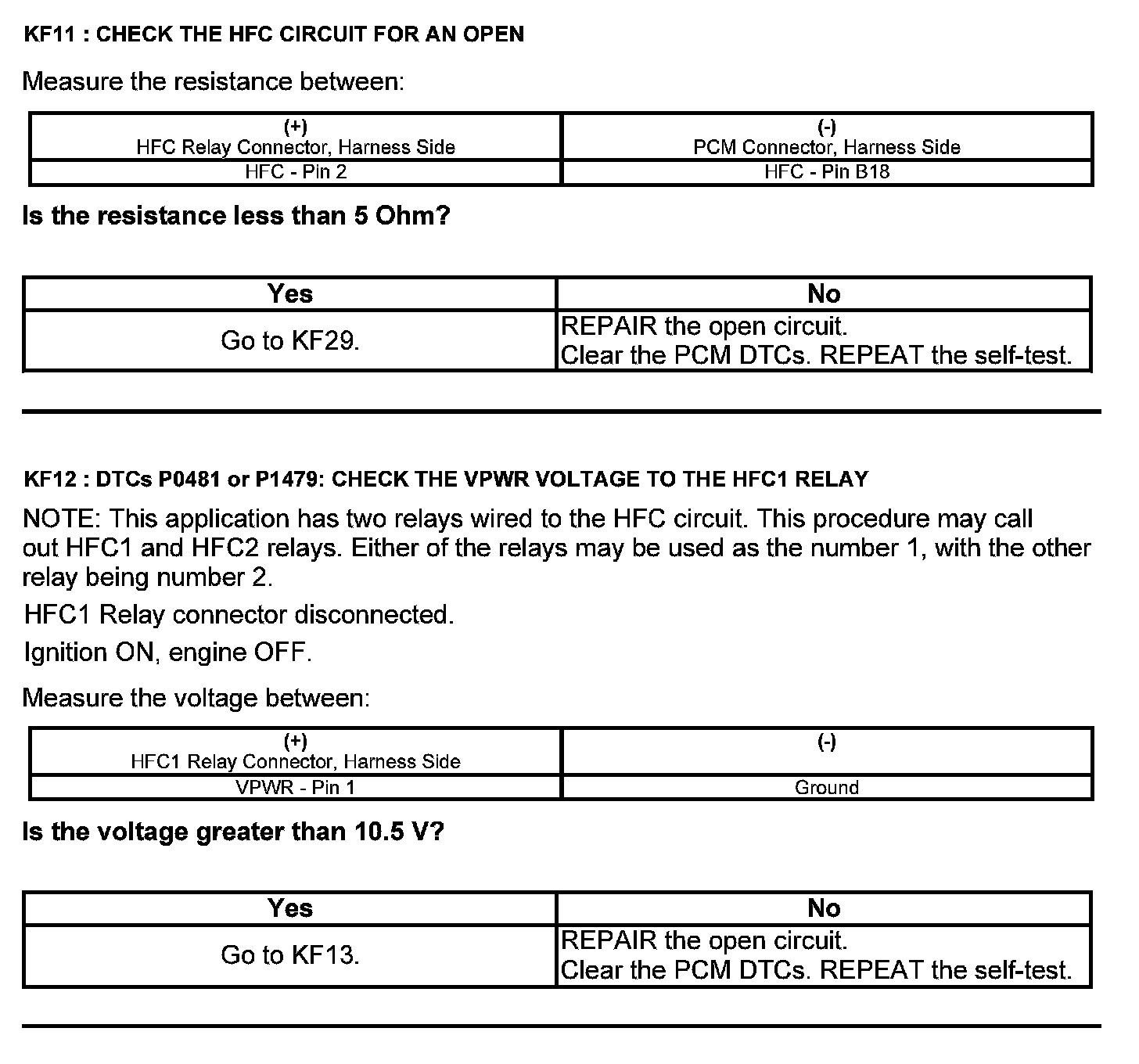

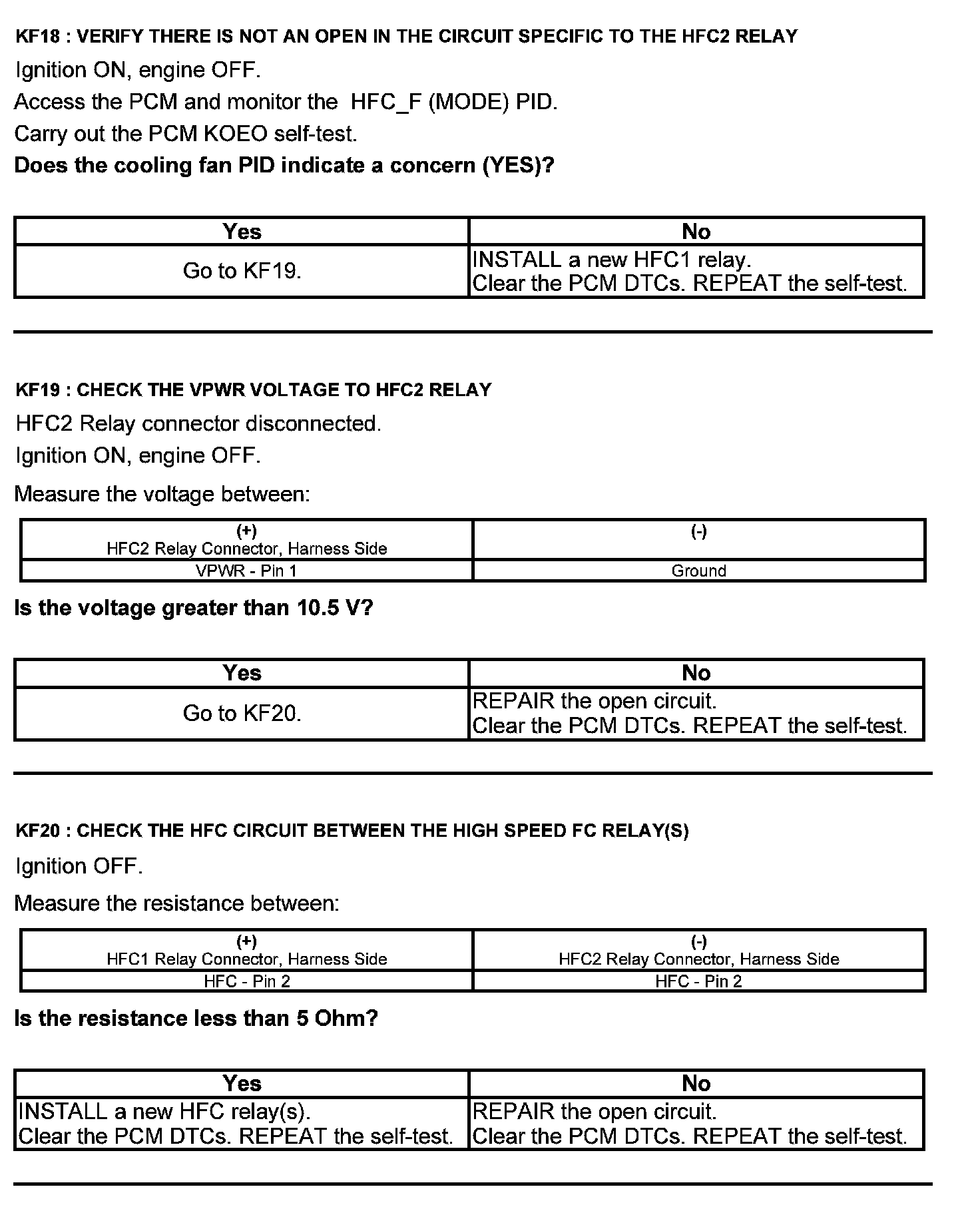

High Fan Control (HFC) Relay Connector






Harness Side






Component side

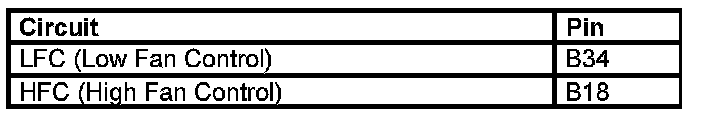

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
